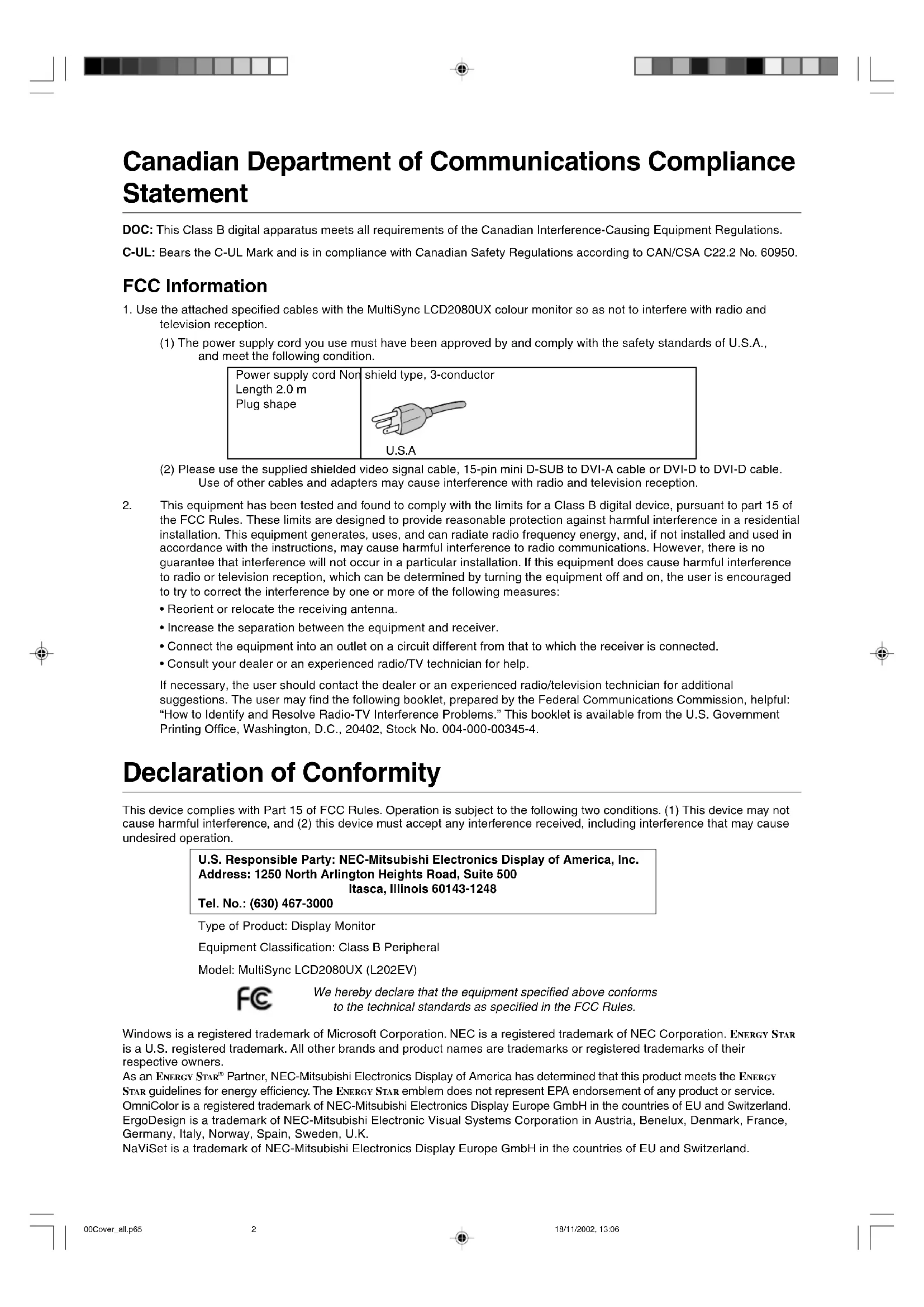

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950.

FCC Information

1. Use the attached specified cables with the MultiSync LCD2080UX colour monitor so as not to interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet the following condition.

Power supply cord Non Length 2.0 m Plug shape

shield type, 3-conductor U.S.A

(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to DVI-A cable or DVI-D to DVI-D cable. Use of other cables and adapters may cause interference with radio and television reception.

1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

2. Reorient or relocate the receiving antenna.

3. Increase the separation between the equipment and receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
5. Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC-Mitsubishi Electronics Display of America, Inc. Address: 1250 North Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248

Tel. No.: [phone]

Type of Product: Display Monitor

Equipment Classification: Class B Peripheral

Model: MultiSync LCD2080UX (L202EV)

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. ENERGY STAR is a U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of their respective owners.

As an ENERGY STAR® Partner, NEC-Mitsubishi Electronics Display of America has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service. OmniColor is a registered trademark of NEC-Mitsubishi Electronics Display Europe GmbH in the countries of EU and Switzerland. ErgoDesign is a trademark of NEC-Mitsubishi Electronic Visual Systems Corporation in Austria, Benelux, Denmark, France, Germany, Italy, Norway, Spain, Sweden, U.K.

NaViSet is a trademark of NEC-Mitsubishi Electronics Display Europe GmbH in the countries of EU and Switzerland.

TCO'95

Black Model

Congratulations! You have just purchased a TCO'95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO'95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability. TCO'95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees),

Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

Environmental Requirements

Brominated flame retardants

Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO'95 demand requires that plastic components weighing more than 25 grams must not contain organically bound chlorine and bromine.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO'95 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury damages the nervous system and is toxic in high doses.

TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit, except the back-light system.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO'95 requirement; Neither CFCs nor HCFCs may be used during the manufacturing of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: [phone]

E-mail (Internet): [e-mail]

You may also obtain current information on TCO'95 approved and labelled products by visiting their website at: http://www.tcodevelopment.com

TCO'99

White Model

Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO'99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses.

TCO'99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO'99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: [phone]

E-mail (Internet): [e-mail]

You may also obtain current information on TCO'99 approved and labelled products by visiting their website at: http://www.tcodevelopment.com

Index

Warning, Caution ...... English-1

Declaration ...... English-1

Contents ...... English-2

Quick Start ...... English-3

Controls ...... English-6

Recommended Use ...... English-9

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Caution:

When operating the MultiSync LCD2080UX with a 220-240V AC power source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

When operating the MultiSync LCD2080UX with a 220-240V AC power source in Australia, use the power cord provided with the monitor. If a power cord is not supplied with this equipment please contact your supplier.

For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor

MultiSync LCD2080UX (L202EV) is in

compliance with

Council Directive 73/23/EEC:

- EN 60950

Council Directive 89/336/EEC:

EN 55022

- EN 61000-3-2

- EN 61000-3-3

- EN 55024

and marked with

NEC-Mitsubishi Electric Visual

Systems Corporation

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

TÜV Rheinland Product Safety

ISO 13406-2

Contents

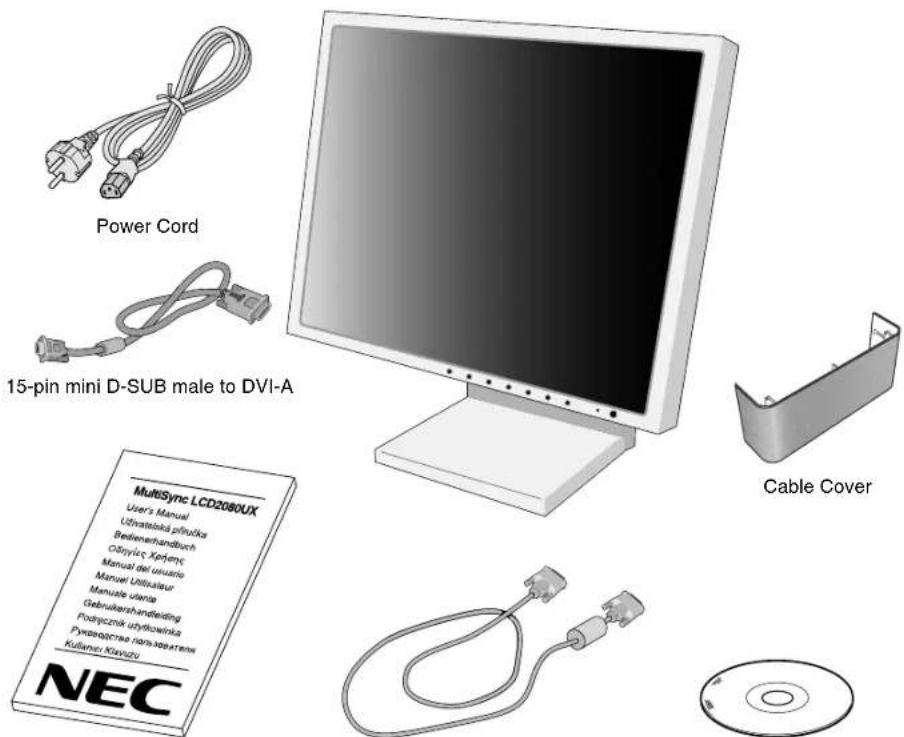

Your new NEC MultiSync LCD monitor box* should contain the following:

• MultiSync LCD2080UX monitor with tilt/swivel/pivot/height adjust stand
• Power Cord
  • Video Signal Cable (15-pin mini D-SUB male to DVI-A)
  • Video Signal Cable (DVI-D to DVI-D cable)
• User's Manual
• CD-ROM
• Cable cover

Power Cord 15-pin mini D-SUB male to DVI-A MultiSync LCD2080UX User's Manual Ukrstalska pfruoka Bedenerhandbuch Ośrylic Xerjentc Manual del usuario Manuel Utilisalaur Manuale udita Gebruikanshandiding Podycznik utytkowiska Pykwaścna rówskastami Kullaney Kūnjuo NEC

User's Manual DVI-D to DVI-D cable CD-ROM

* Remember to save your original box and packing material to transport or ship the monitor.

Quick Start

To attach the MultiSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

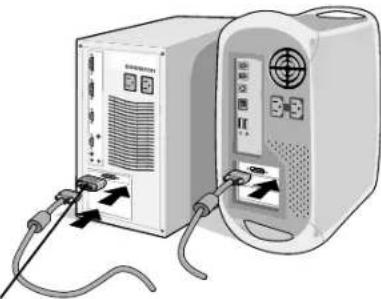

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.

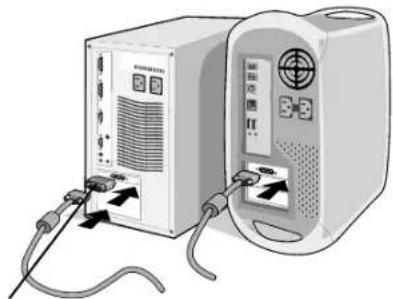

For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to the connector of the display card in your system (Figure A.2).

For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).

Two computer units with connected cables and ports, no visible text or symbols

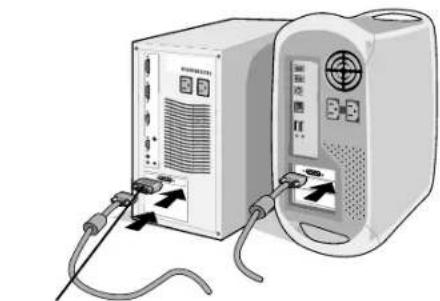

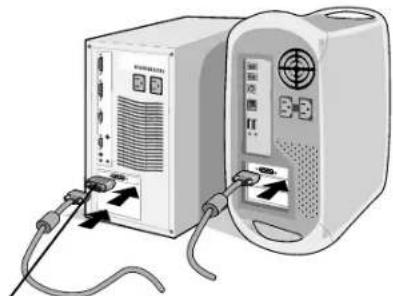

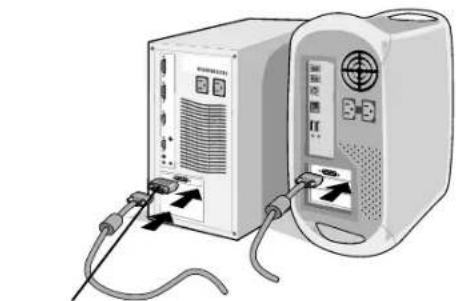

Figure A.1 Figure B.1

Front view of a computer tower with attached cables and ports (no visible text or labels)

Figure A.2

Illustration of two connected devices with cables and ports, no visible text or symbols

Macintosh Cable Adapter (not included)

NOTE: Some Macintosh systems do not require a Macintosh cable adapter.

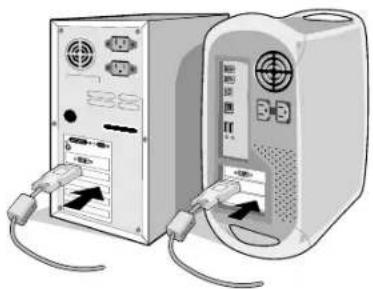

1. Connect the DVI signal cable to the connector on the back of the monitor. Place the video signal cable (Figure C.1). Connect only either VGA or DVI to input 2.

NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module and/or shorten the module's life.

Collect cables and keep them in the stand with attached cable cover. The cable cover can be attached on the front or back side of Tilt Stand (Figure C.1, C.2).

Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables.

1. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet (Figure C.1).

NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.

1. The Vacation Switch on the left side of the monitor must be turned on. Turn on the monitor with the front power button (Figure D.1) and the computer.

NOTE: The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off quickly.

1. No-touch auto adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM controls:

• Auto Contrast (Analog input only)

• Auto Adjust (Analog input only)

Refer to the Controls section of this User's Manual for a full description of these OSM controls.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User's Manual.

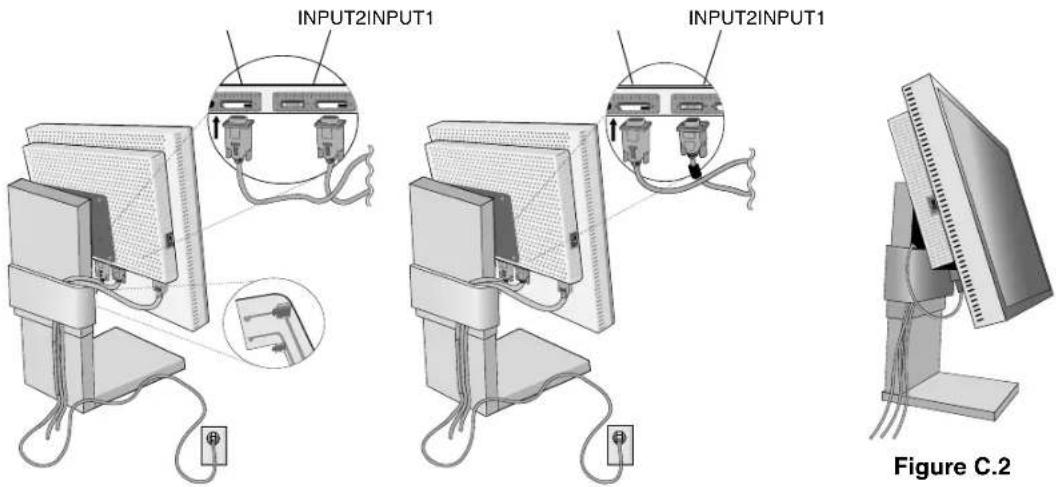

Figure C.1

Illustration of a computer monitor with ports and cables (no text or symbols visible)

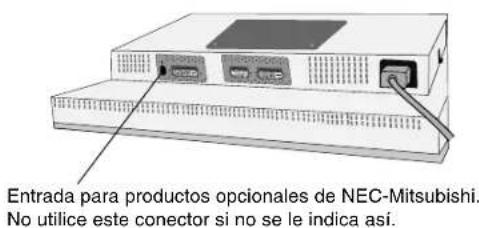

NEC-Mitsubishi optional product attachment. Do not use this connector unless specified.

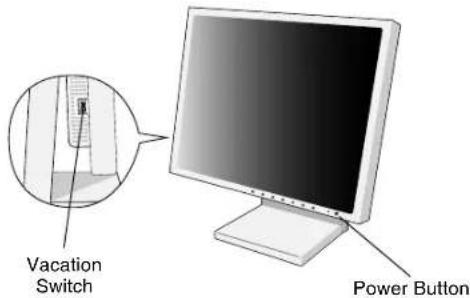

Vacation Switch Power Button

Figure D.1

Raise and Lower Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode.

To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE: Handle with care when raising or lowering the monitor screen.

Diagram showing two computer monitors with directional arrows indicating movement or navigation, one displaying a phone icon and the other showing a hand gesture.

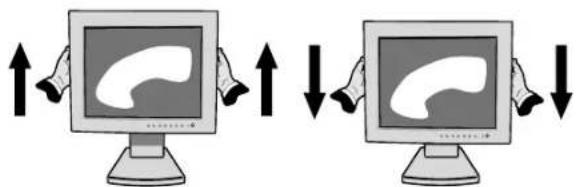

Figure RL.1

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching with your fingers.

To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).

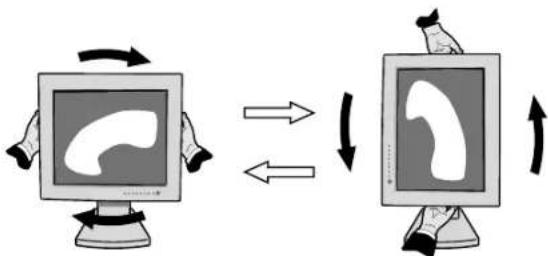

To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counterclockwise from Portrait to Landscape (Figure R.1).

To rotate OSM menu between landscape and portrait, refer to "Controls" section, "OSM ROTATION" function.

Figure R.1
English-4

Tilt

Grasp top and bottom sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).

Illustration of a hand holding a computer monitor with a curved white graphic on screen, surrounded by two stylized arrows (no text or symbols)

Figure TS.1

Swivel

Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Figure TS.2).

Illustration of a person holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figure TS.2

NOTE: Handle with care when tilting the monitor screen.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface. (Place the screen on a 25 mm platform so that the stand is parallel with the surface) (Figure S.1).

25 mm

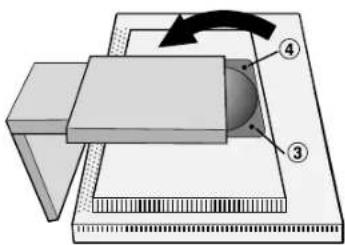

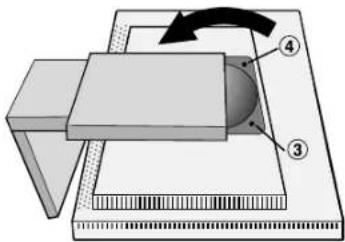

Figure S.1

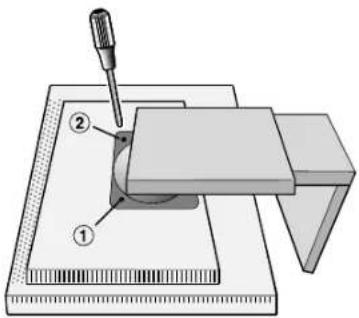

1. Remove the two top screws connecting the monitor to the stand (Figure S.2). Turn the stand to 180° counterclockwise (you will hear two clicks). Remove the screws from the bottom (Figure S.3) and lift off the stand. The monitor is now ready for mounting in an alternate manner.
2. Reverse this process to reattach stand: tighten the two bottom screws, turn stand 180° counter clockwise (you will hear two clicks), and tighten two top screws.

NOTE: Use only VESA-compatible alternative mounting method (100 mm pitch).

NOTE: Handle with care when removing monitor stand.

Diagram showing a mechanical setup with labeled components, including a tool and a base plate.

Figure S.2

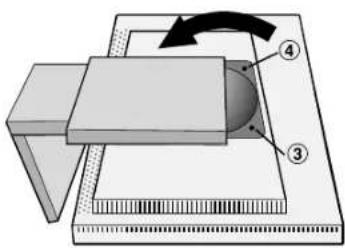

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Figure S.3

Caution: Use the original screws (4 pcs) when mounting to avoid damage to the monitor and stand. To fulfil the safety requirements the monitor must be mounted to an arm which guarantees the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).

English-5

Controls

OSM (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons (EXIT, ◀, ▶, −, +). To change signal input, press the SELECT button.

NOTE: OSM must be closed in order to change signal input.

Menu

EXIT

Exits the OSM controls.

Exits to the OSM main menu.

CONTROL

Moves the highlighted area left/right to select control menus.

Moves the highlighted area up/down to select one of the controls.

ADJUST - / +

Moves the bar left/right to increase or decrease the adjustment.

SELECT

Active Auto Adjust function. Enter the OSM controls. Enter the OSM sub menu.

RESET

Resets the highlighted control menu to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO

AUTO CONTRAST (Analog input only)

Adjusts the image displayed for non-standard video inputs.

AUTO BRIGHTNESS

This function adjusts the brightness automatically for the best CONTRAST and BRIGHTNESS setting based on the white display area.

AUTO Auto Adjust (Analog input only)

Automatically adjusts the Image Position and H. Size settings and Fine settings.

Image Controls

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

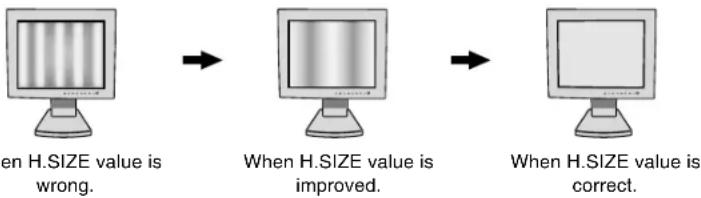

H.SIZE (Analog input only)

Adjusts the horizontal size by increasing or decreasing this setting.

Should the "AUTO Adjust function" do not give you a satisfactory picture setting, a further tuning can be performed using the "H.Size" function (dot clock). For this a Moiré test pattern could be used. This function may alter the width of the picture. Use Left/Right Menu to center the image on the screen. If the H.Size is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

English-6

\ FINE (Analog input only)

Improves focus, clarity and image stability by increasing or decreasing this setting.

Should the "Auto Adjust function" and the "H.Size" function do not give you a satisfactory picture setting, a fine tuning can be performed using the "Fine" function. It improves focus, clarity and image stability by increasing or decreasing this setting.

For this a Moiré test pattern could be used. If the Fine value is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

When FINE value is wrong. When FINE value is correct.

RGB Color Control Systems

Color Control Systems: Six colour presets select the desired colour setting (sRGB and NATIVE colour presets are standard and cannot be changed). Colour temperature increases or decreases, in each preset.

R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the colour bars.

NATIVE: Original colour presented by the LCD panel that is unadjustable.

Tools 1

a→d SHARPNESS: This function is digitally capable to keep crisp image at any timings. It is continuously adjustable to get distinct image or soft one as you prefer, and set independently by different timings.

The number of adjustment steps is different depending on whether EXPANSION Mode is OFF, FULL or ASPECT (1600 x 1200 is OFF Mode).

EXPANSION MODE: Sets the zoom method.

FULL: The image is expanded to 1600 x 1200, regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

CUSTOM (Digital input and Resolution of 1600 x 1200 only):

Select one of nine expansion rates. In this mode the resolution may be low and there may be blank areas. This mode is for use with special video cards.

VIDEO DETECT: Selects the method of video detection when more than one computer is connected.

FIRST DETECT: The video input has to be switched to "FIRST DETECT" mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

LAST DETECT: The video input has to be switched to the "LAST DETECT" mode. When the monitor is displaying a signal from the current source and a new secondary source is supplied to the monitor, then the monitor will automatically switch to the new video source. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.

NONE: The Monitor will not search the other video input port unless the monitor is turned on.

DVI SELECTION: This function selects the DVI input mode (Input 1). When the DVI selection has been changed, the computer has to be restarted.

AUTO: By using the DVI-D to DVI-D cable, the DVI SELECTION is DIGITAL.

By using the D-SUB to DVI-A cable, the DVI SELECTION is ANALOG.

DIGITAL: DVI digital input is available.

ANALOG: DVI analog input is available.

Note: Depending on the PC and Video card used, or when another Video signal cable is attached, this function may not operate.

OFF TIMER: Monitor will automatically power-down when the end user has selected a pre-determined amount of time.

Tools 2

LANGUAGE: OSM control menus are available in seven languages.

OSM POSITION: You can choose where you would like the OSM control image to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, down or up.

OSM TURN OFF: The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10, 20, 30, 45, 60 and 120 seconds.

OSM LOCK OUT: This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then “+” key and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then “+” key and hold down simultaneously.

OSM ROTATION: To rotate OSM between Landscape and Portrait modes.

RESOLUTION NOTIFIER: This optimal resolution is 1600 x 1200. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1600 x 1200.

HOT KEY: You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with < or ▶ contrast with + or - key, while the OSM menu is off. The standard OSM can be accessed with the EXIT button.

FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings (BRIGHTNESS, CONTRAST, IMAGE CONTROL, COLOR CONTROL SYSTEM, SHARPNESS, EXPANSION MODE, OFF TIMER, OSM POSITION, OSM TURN OFF, DISPLAY MODE) back to the factory settings. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Information

DISPLAY MODE: Provides information about the current resolution display and technical data including the preset timing being used and the horizontal and vertical frequencies. Increases or decreases the current resolution.

MONITOR INFO: Indicates the model and serial numbers of your monitor.

OSM Warning

OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no Horizontal or Vertical Sync. After power is turned on or when there is a change of input signal, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn't have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn't have proper timing, the Out Of Range menu will appear.

NOTE: If "i CHANGE DVI SELECTION" is displayed, switch to DVI SELECTION.

For advanced user menu see "Appendix".

Recommended use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC LCD COLOUR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• Do not bend power cord.
• Do not use monitor in high temperatured, humid, dusty, or oily areas.
• If glass is broken, handle with care.
• Do not cover vent on monitor.

- If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

CAUTION

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.

- Image Persistence: Image persistence is when a residual or "ghost" image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors' image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display-Europe recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

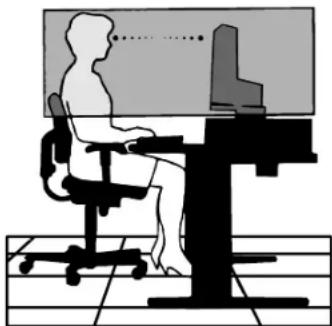

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 50 cm.
• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.
• Position the monitor at a 90^ angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

- Adjust the monitor's brightness and contrast controls to enhance readability.

- Use a document holder placed close to the screen.

- Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

- Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

- Get regular eye checkups.

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears.
• Do not position the Contrast control to its maximum setting.
• Use the preset Size and Position controls with standard signals.

- Use the preset Colour Setting.

- Use non-interlaced signals with a vertical refresh rate more than 60 Hz.

- Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

VAROVÁNÍ

CHRAŃTE ZAŘÍZENÍ PŘED DEŠTĚM A VLHKEM. ZABRÁNÍTE TAK NEBEZPEČÍ POŽÁRU NEBO ÚRAZU ELEKTRICKÝM PROUDEM. POLARIZOVANOU ZÁSTRČKU JEDNOTKY NEPOUŽÍVEJTE VE SPOJENÍ SE ZÁSUVKOU PRODLUŽOVACÍ ŠNŮRY NEBO JINÝMI ZÁSUVKAMI, POKUD KOLÍKY NELZE ZCELA ZASUNOUT.

UVNITŘ ZAŘÍZENÍ SE NACHÁZÍ VYSOKONAPĚTOVÉ KOMPONENTY, PROTO SKŘÍŇ NEOTEVÍREJTE. SERVIS SVĚRTE KVALIFIKOVANÉ OSOBĚ.

UPOZORNĚNÍ

UPOZORNĚNÍ: PRO SNÍŽENÍ RIZIKA ÚRAZU ELEKTRICKÝM PROUDEM ZKONTROLUJTE, ZDA JE NAPÁJECÍ ŠNŮRA ODPOJENA ZE ZÁSUVKY. PRO ÚPLNÉ ODPOJENÍ ZDROJE NAPÁJENÍ OD JEDNOTKY ODPOJTE NAPÁJECÍ ŠNŮRU Z ELEKTRICKÉ ZÁSUVKY (NEOSTRAŇUJTE KRYT). UVNITŘ SE NENACHÁZEJÍ DÍLY, DO KTERÝCH UŽIVATEL MŮŽE ZASAHOVAT. SERVIS SVĚRTE KVALIFIKOVANÉ OSOBĚ.

Tokyo 108-0023, Japan

TÜV Rheinland Product Safety

ISO 13406-2

Česky-1

Obsah

Two computer units with connected cables, one showing ports and arrows (no visible text or symbols)

Front view of a computer tower drive with cable and ports (no visible text or labels)

Obrázek A.2

Illustration of a computer setup with two connected devices, one showing ports and cables (no visible text or symbols)

Diagram showing two computer monitors with speech bubbles and directional arrows indicating signal or message flow.

Obrázek RL.1

Otočení obrazovky

Obrázek R.1
Česky-4

Sklon monitoru

Illustration of a hand holding a computer monitor displaying a white abstract shape, with arrows indicating rotation (no text or symbols)

Obrázek TS.1

Otáčení

Illustration of two hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Obrázek TS.2

Diagram showing a tool interacting with a sample under test, labeled with parts ① and ②

Obrázek S.2

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Obrázek S.3

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ergonomika

Tokyo 108-0023, Japan

TÜV Rheinland Product Safety

ISO 13406-2

Deutsch-1

Two computer units connected by cables, one with ports and arrows indicating data transfer (no visible text or symbols)

Front view of a computer tower with power cord and cable (no visible text or labels)

Abbildung A.2

Illustration of two connected devices with cables and ports, no visible text or symbols

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Abbildung RL.1

Bildschirmdrehung

Illustration of hands interacting with a computer monitor displaying a brain icon (no text or symbols)

Abbildung TS.1

Drehen

Illustration of two hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Abbildung TS.2

Diagram showing a tool interacting with a sample on a workbench, labeled with components ① and ②.

Abbildung S.2

Diagram of a mechanical or optical setup with labeled components and directional arrow indicating rotation or movement.

Abbildung S.3

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ergonomie

Two computer monitors connected by cable, one with ports and arrows indicating data transfer (no visible text or symbols)

Σχήμα Α.1 Σχήμα Β.1

Front view of a computer tower drive with cable and ports (no visible text or labels)

Σχήμα Α.2

Illustration of a computer setup with two connected devices and cables (no visible text or symbols)

Illustration of a computer monitor with ports and an attached cable (no text or symbols)

Diagram showing two computer monitors with speech bubbles and directional arrows, indicating a communication or messaging process.

Σχήμα ΡΛ.1

Illustration of a hand holding a computer monitor displaying a white abstract shape, with arrows indicating rotation (no text or symbols)

Σχήμα ΤΣ.1

Περιστροφή

Illustration of a person holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Σχήμα ΤΣ.2

Diagram showing a tool interacting with a sample under test, labeled with parts ① and ②.

Σχήμα Σ.2

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Σχήμα Σ.3

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Εργονομία

Directiva 89/336/CEE:

- EN 55022

- EN 61000-3-2

- EN 61000-3-3

- EN 55024

y lleva la marca

NEC-Mitsubishi Electric Visual

Systems Corporation

4-13-23, Shibaura,

Minato-Ku

Two computer units with connected cables, one showing ports and arrows indicating data transfer (no visible text or symbols)

Figura A.1 Figura B.1

Front view of a computer tower drive with ports and cables (no visible text or labels)

Figura A.2

Illustration of a computer setup with two connected devices, one front-mounted and one back-mounted, showing ports and cables (no text or symbols visible)

Illustration of a computer monitor with a stand and cables, no text or symbols present

Figura C.2

Figura C.1

Diagram showing two computer monitors with directional arrows indicating movement or navigation, one displaying a phone icon and the other showing a hand gesture.

Figura RL.1

Diagram illustrating computer interface rotation and movement, showing left-hand and right-hand states with a curved arrow indicating rotation direction.

Figura R.1
Español-4

Inclinación

Illustration of a hand holding a computer monitor displaying a white abstract shape, with arrows indicating rotation (no text or symbols)

Figura TS.1

Giro

Illustration of a person holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figura TS.2

Diagram showing a tool interacting with a sample on a workbench, labeled with parts ① and ②.

Figura S.2

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Figura S.3

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ergonomía

4-13-23, Shibaura, Minato-Ku

Tokyo 108-0023, Japon

TÜV Rheinland Product Safety

ISO 13406-2

Français-1

Contenu

Two computer units with connected cables, one with ports and arrows indicating data transfer (no visible text or symbols)

Figure A.1 Figure B.1

Front view of a computer tower drive with ports and cables (no visible text or labels)

Figure A.2

Illustration of a computer setup with two connected devices, one showing ports and cables (no visible text or symbols)

Illustration of a computer monitor with a stand and cables, no text or symbols present

Figure C.2

Figure C.1

Illustration of a computer monitor with ports and cables (no text or symbols)

Diagram showing two computer monitors with directional arrows indicating movement or navigation, featuring a telephone handset icon on the screen.

Figure RL.1

Rotation de l'écran

Illustration of a hand holding a computer monitor displaying a white abstract shape, with arrows indicating rotation (no text or symbols)

Figure TS.1

Pivotement

Illustration of a person holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figure TS.2

Diagram showing a tool interacting with a sample on a workbench, labeled with parts ① and ②.

Figure S.2

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Figure S.3

Diagram showing computer monitor transformation from left to right, indicating change in image quality or resolution.

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Ergonomie

Two computer units connected by cables, one with ports and arrows indicating data transfer (no visible text or symbols)

Figura A.1 Figura B.1

Front view of a computer tower drive with ports and cables (no visible text or labels)

Figura A.2

Illustration of two connected devices with cables and ports, no visible text or symbols

Illustration of a computer monitor with a stand and cables, no text or symbols present

Figura C.2

Figura C.1

Illustration of a computer monitor with ports and cable (no text or symbols)

Diagram showing two computer monitors with directional arrows indicating movement or interaction between them.

Figura RL.1

Illustration of a hand holding a computer monitor displaying a stylized face, with arrows indicating rotation (no text or symbols)

Figura TS.1

Rotazione

Illustration of a person holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figura TS.2

Diagram showing a tool interacting with a sample on a workbench, labeled with components ① and ②.

Figura S.2

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Figura S.3

Diagram showing computer monitor image transformation from left to right, with Chinese text labels on monitors

Silhouette of a person sitting at a desk with a computer, no text or symbols present

overeenstemming is met

Tokyo 108-0023, Japan

Inhoud

Two computer units connected by cable, one with ports and arrows indicating connection (no visible text or symbols)

Front view of a computer tower with drive bays and cable (no visible text or labels)

Illustratie A.2

Illustration of a computer setup with two connected devices, one showing ports and cables (no visible text or symbols)

Illustration of a desktop computer chassis with ventilation slots and an external cable (no text or symbols)

Diagram showing two computer monitors with speech bubbles and directional arrows indicating signal or message flow.

Illustratie RL.1

Scherm roteren

Illustration of hands using a computer monitor to interact with a curved interface (no text or symbols)

Illustratie TS.1

Illustration of hands holding a computer monitor with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Illustratie TS.2

Diagram showing a mechanical setup with labeled components, including a tool and a base plate.

Illustratie S.2

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Illustratie S.3

Diagram showing computer monitor conversion from left to right, indicating a change in image quality or performance.

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Two computer units connected by cables, one with ports and arrows indicating data transfer (no visible text or symbols)

Front view of a computer tower with power cord and cable (no visible text or labels)

Rysunek A.2

Two electronic devices connected by cables, one with ports and arrows indicating signal or data flow (no visible text or symbols)

Diagram showing two computer monitors with upward and downward arrows indicating directional movement or interaction.

Rysunek RL.1

Obroty ekranu

Diagram illustrating computer interface rotation and sound wave propagation, showing left and right states with directional arrows.

Illustration of hands holding a computer monitor with a curved white graphic on screen, no text or symbols present

Rysunek TS.1

Obrót ekranu

Illustration of a person holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Rysunek TS.2

Diagram showing a tool interacting with a sample on a workbench, labeled with parts ① and ②.

Rysunek S.2

Diagram showing a mechanical or optical setup with labeled components and directional arrow indicating rotation or movement.

Rysunek S.3

DOWN/UP (POZYCJA PIONOWA)

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ergonomia

Tokyo 108-0023, Japan

ME 06

Содержимое

Two computer units connected by cables, one with ports and arrows indicating data transfer (no visible text or symbols)

Front view of a computer tower drive with ports and cables (no visible text or labels)

Рисунок А.2

Illustration of a computer setup with two connected devices, one front-mounted and one back-mounted, showing ports and cables (no text or symbols visible)

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Рисунок RL.1

Поворот экрана

Illustration of a hand holding a computer monitor displaying a white abstract shape, with arrows indicating rotation (no text or symbols)

Рисунок TS.1

Поворот

Illustration of a person holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Рисунок TS.2

Diagram showing a tool interacting with a sample under test, labeled with parts ① and ②.

Рисунок S.2

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Рисунок S.3

Внимание.

ПРИМЕЧАНИЕ. OSM must be closed in order to change signal input.

Меню

Diagram showing computer monitor conversion from left to right, indicating a change in image quality or performance.

Silhouette of a person sitting at a desk with a computer, viewed from behind (no text or symbols)

Эргономика

Two computer units connected by cables, one with ports and arrows indicating data transfer (no visible text or symbols)

Şekil A.1 Şekil B.1

Front view of a computer tower drive with ports and cables (no visible text or labels)

Şekil A.2

Illustration of two connected devices with cables and ports, no visible text or symbols

Illustration of a computer monitor with ports and an external cable (no text or symbols)

Diagram showing two computer monitors with directional arrows indicating movement or navigation, one displaying a phone icon and the other showing a hand gesture.

Şekil RL.1

Ekranın Dönmesi

Diagram illustrating computer interface rotation and movement, showing left-hand and right-hand states with a speech bubble icon on screen.

Şekil R.1
Türkçe-4

Eğim

Illustration of a hand holding a computer monitor displaying a white abstract shape, with arrows indicating rotation (no text or symbols)

Şekil TS.1

Açıklık

Illustration of a person holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Şekil TS.2

Diagram showing a tool interacting with a workbench, labeled with components ① and ②

Şekil S.2

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows indicating motion or movement.

Şekil S.3

Silhouette of a person sitting at a desk with a computer, no text or symbols present
