USER MANUAL KHM512CB KITCHENAID

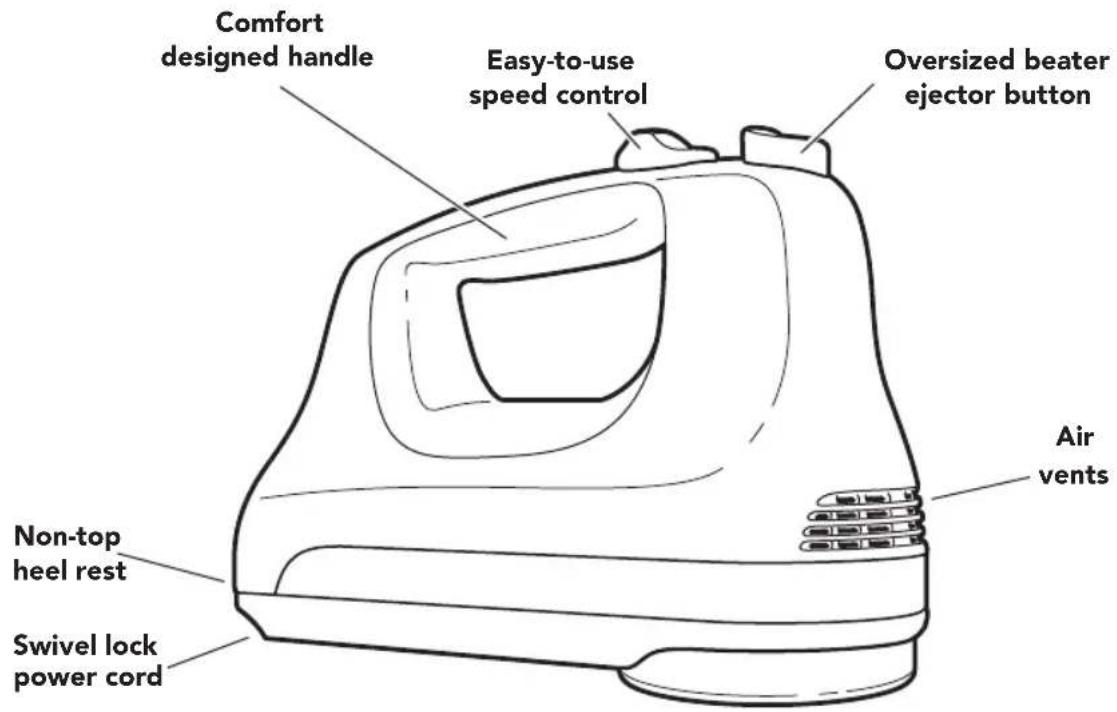

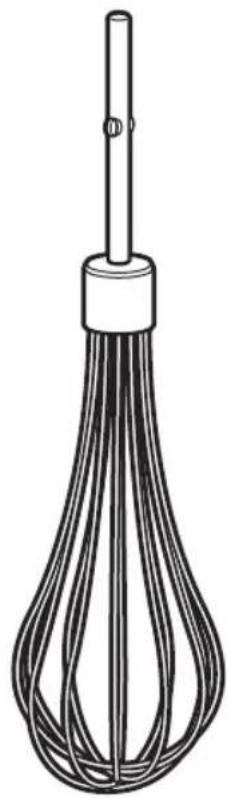

accessory Swivel lock power cord Comfort designed handle Oversized beater ejector button Easy-to-use speed control Air vents Stainless Steel 12-tine whisk accessory

PARTS AND ACCESSORIES

ACCESSORY GUIDE Accessory Uses Included with Model

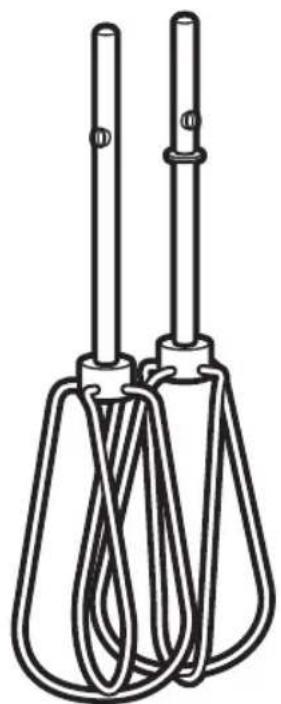

Turbo Beater™ cookie dough, cake batter

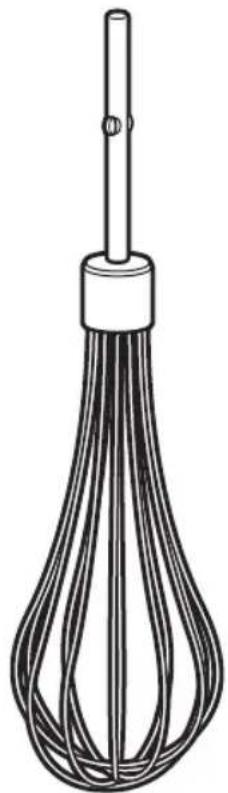

Turbo Beater™ II cookie dough, cake batter Artisan™ Beater† cookie dough, cake batter Liquid blender rod smoothies, diet drink mixes, chocolate milk, iced tea milkshakes, soups, sauces Dough hooks yeast bread doughs 12-tine whisk whipped cream, puddings whipped egg whites, sauces

Storage bag† to store accessories †Not sold as an accessory. To order these accessories In USA: visit www.shopkitchenaid.com, or call 1-800-541-6390. In Canada: call 1-800-807-6777. W10586270C_V2.indd 3 4/27/2018 2:13:11 PM4 | HAND MIXER SAFETY IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the follwing:

1. Read all instructions.

2. To protect against risk of electrical shock, do not put Hand Mixer in water or

3. This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.

4. Turn the appliance OFF, then unplug from the outlet when not in use, before

assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

5. Avoid contacting moving parts. Keep hands, hair, clothing, as well as spatulas

and other utensils away from all accessories during operation to reduce the risk of injury to persons and/or damage to the Hand Mixer.

6. Do not operate the Hand Mixer with a damaged cord or plug, or after the Hand

Mixer malfunctions, or is dropped or damaged in any manner. Return the Hand Mixer to the nearest Authorized Service Center for examination, repair, or electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by KitchenAid may cause re,

electric shock, or injury.

8. Do not use the Hand Mixer outdoors.

9. Do not let cord hang over edge of table or counter.

10. Do not let cord contact hot surface, including the stove.

11. Remove any accessories from the Hand Mixer before washing.

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS Volts: 120 A.C. only.Hertz: 60 HzNOTE: This Hand Mixer has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way. This product is designed for household use only.

This product is designed for household use only. W10586270C_V2.indd 5 4/27/2018 2:13:11 PM6 | USING THE HAND MIXER The 3-speed Hand Mixer should always be set on the lowest speed to start mixing. Move to higher speeds as needed. Speed Attachment Description 1 For slow stirring, combining, and starting all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Mix flour and other dry ingredients with liquids or other moist mixtures. Helps aviod ingredient splash out. 2 Stir batters and gelatin mixtures. Combine heavy mixtures, such as cookie dough. Mix light cream cheese spreads. Mash potatoes. 3 Combine heavy cream cheese mixtures. Mash squash. 4 Blend butter and sugar. Mix muffins, quick breads, cake batters, and frostings. 5 Beat egg whites and meringue mixtures. Whip heavy cream and mousse mixtures. NOTE: The Turbo Beater™ accessories are not designed for mixing and kneading bread dough. See “Accessory guide” section to order special dough hooks.

Speed Attachment Description 1 For slow stirring, combining, and starting all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Mix flour and other dry ingredients with liquids or other moist mixtures. Helps aviod ingredient splash out. 2 Stir batters and gelatin mixtures. Combine heavy mixtures, such as cookie dough. Mix light cream cheese spreads. Mash potatoes. Combine heavy cream cheese mixtures. Mash squash. Blend butter and sugar. Mix muffins, quick breads, cake batters, and frostings. 3 Beat egg whites and meringue mixtures. Whip heavy cream and mousse mixtures. The 5-speed Hand Mixer should always be set on the lowest speed to start mixing. Move to higher speeds as needed. NOTE: The Turbo Beater™ accessories are not designed for mixing and kneading bread dough. See “Accessory guide” section to order special dough hooks. W10586270C_V2.indd 6 4/27/2018 2:13:12 PMUSING THE HAND MIXER | 7 ENGLISH

Hand Mixer will beat faster and more thoroughly than most other electric hand mixers. Therefore, the beating time in most recipes must be adjusted to avoid over beating. Beating time is faster due to larger beater sizes. To help determine the ideal beating time, observe the batter or dough and beat only until it has the desired appearance described in your recipe, such as “smooth and creamy”. To select the best beating speeds, use the “Speed control guide” section.

The 6-speed Hand Mixer should always be set on the lowest speed to start mixing. Move to higher speeds as needed. Speed Attachment Description

For slow stirring, combining, and starting all mixing procedures.

Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Mix flour and other dry ingredients with liquids or other moist mixtures. Helps avoid ingredient splash out.

Stir batters and gelatin mixtures. Combine heavy mixtures, such as cookie dough. Mix light cream cheese spreads. Mash potatoes.

Combine heavy cream cheese mixtures. Mash squash.

Blend butter and sugar. Mix muffins, quick breads, cake batters, and frostings.

Beat egg whites and meringue mixtures. Whip heavy cream and mousse mixtures. NOTE: The Turbo Beater™ accessories are not designed for mixing and kneading bread dough. See “Accessory guide” section to order special dough hooks. W10586270C_V2.indd 7 4/27/2018 2:13:12 PM8 | SETTING UP THE HAND MIXER

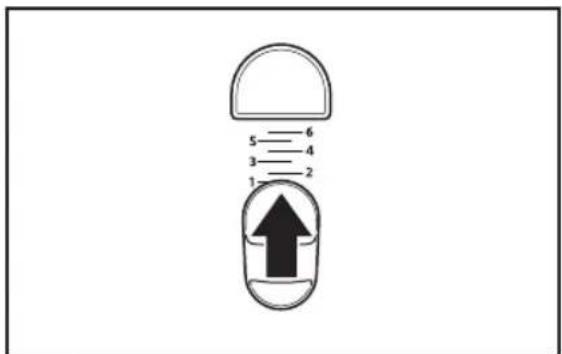

Start mixing at the lowest speed by sliding the Speed Control forward to the first position mark, which is Speed 1.

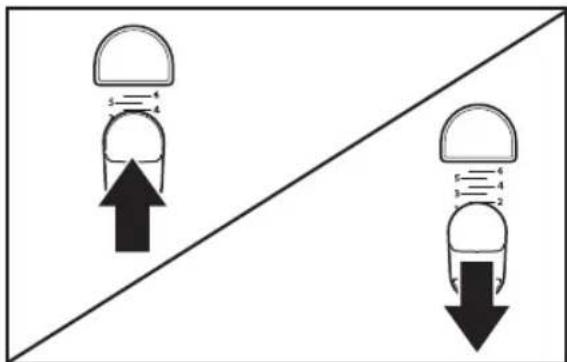

To increase the Hand Mixer speed, slide the Speed Control forward. To decrease the Hand Mixer speed, slide the Speed Control backward. See “Speed control guide” section.

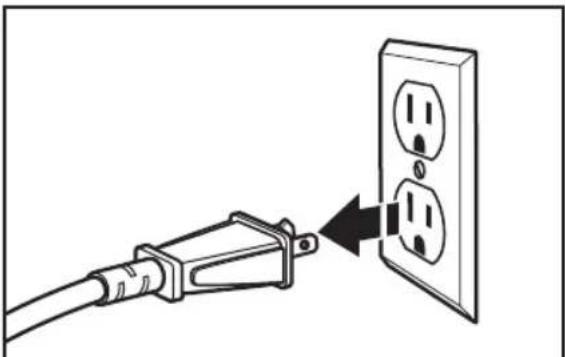

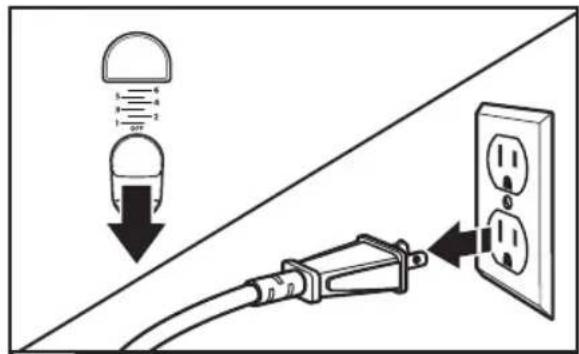

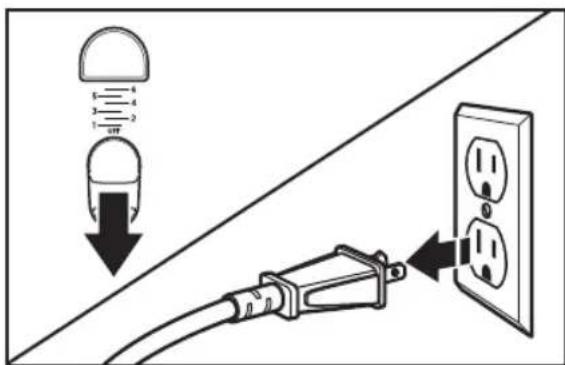

Make sure the Speed Control is in the “OFF” position by sliding it backward as far as possible. “OFF” will be visible on the speed control pad. Then plug the Hand Mixer into an electrical outlet.

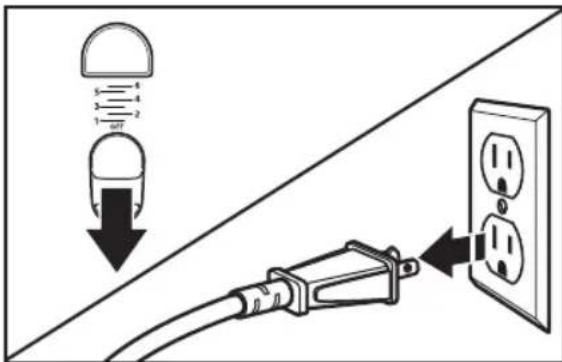

When finished, slide speed control to “OFF”. Unplug the Hand Mixer before removing the accessories.

ATTACHING THE ACCESSORIES

SETTING UP THE HAND MIXER

IMPORTANT: Be sure to read and follow the specific instructions in this manual for proper use of the Hand Mixer.

Make sure the Hand Mixer is unplugged from the electrical outlet. W10586270C_V2.indd 8 4/27/2018 2:13:13 PMSETTING UP THE HAND MIXER | 9 ENGLISH

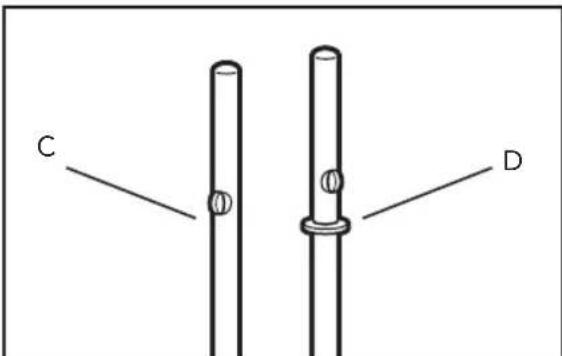

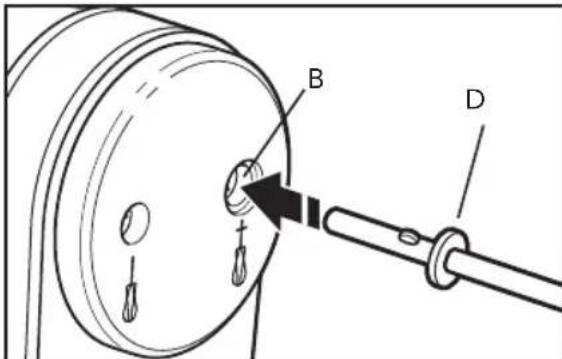

Insert the accessory shaft with the collar (D) into the larger opening (B) of the hand mixer. Align the flanges on the shaft with the slots in the opening. Push to lock into place. Paired accessories (beaters, optional dough hooks) include one accessory with a collar (D), and one without (C). Single accessories come with a collar (D) (liquid blending rod) or without (C) (whisk).

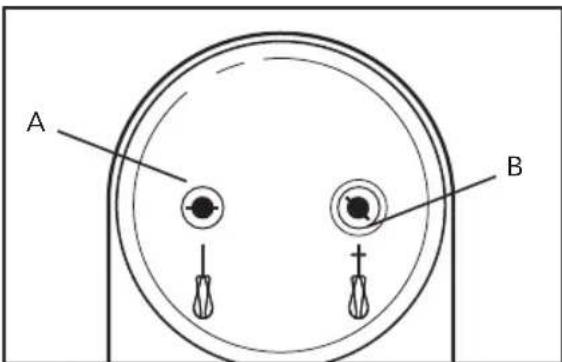

NOTE: An accessory shaft without a collar may be used in either opening (A or B). Those with a collar may only be used in the larger opening (B).

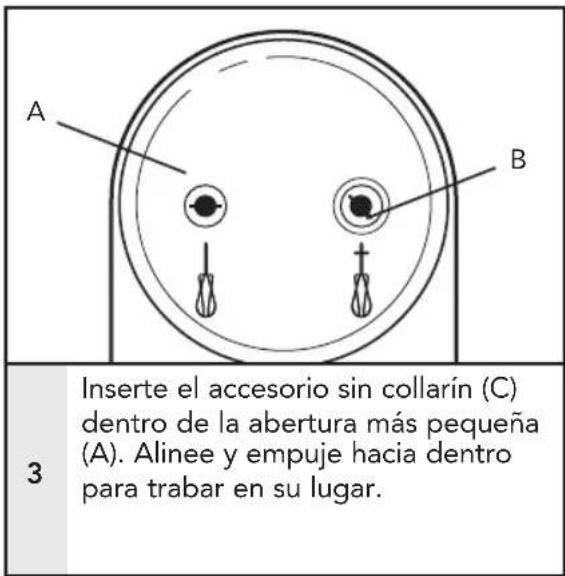

Insert the accessory without a collar (C) into the smaller opening (A). Align and push to lock into place.

REMOVING THE ACCESSORIES

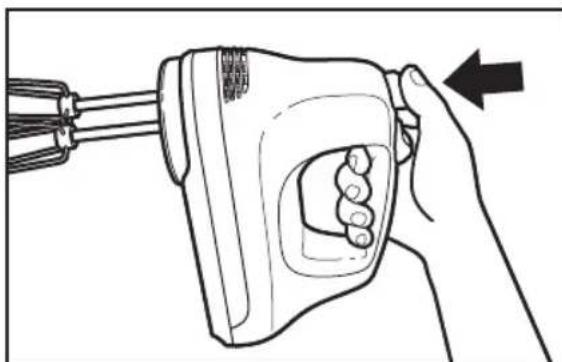

Press the ejector button to release the accessories from the Hand Mixer, then remove them.

If the Hand Mixer is running, stop the Hand Mixer by sliding the Power switch to the “O” (Off) position. Then unplug from the electrical outlet. W10586270C_V2.indd 9 4/27/2018 2:13:14 PM10 | CARE AND CLEANING

Electrical Shock Hazard Do not put in water. Doing so can result in death or electrical shock. NOTE: Do not immerse Hand Mixer in water.

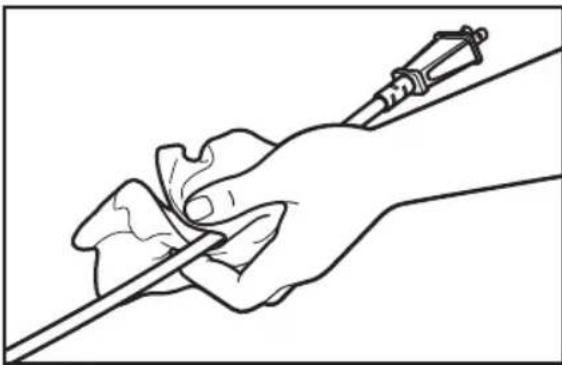

Always unplug Hand Mixer before cleaning. Wipe power cord and cord strap with damp cloth. Dry with a soft cloth.

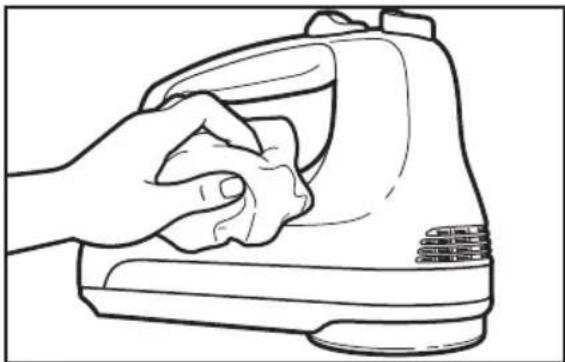

Wipe Hand Mixer with a damp cloth. Dry with a soft cloth. Always remove beaters from Hand Mixer before cleaning. Wash in dishwasher, or by hand in warm, soapy water. Rinse and wipe dry. Machine wash warm, tumble dry low. Or wipe clean with a warm soapy cloth.

CLEANING THE ACCESSORIES

CLEANING THE STORAGE BAG

W10586270C_V2.indd 10 4/27/2018 2:13:14 PMTROUBLESHOOTING | 11 ENGLISH TROUBLESHOOTING IF HAND MIXER MALFUNCTIONS OR FAILS TO OPERATE First try the solutions suggested here and possibly avoid the cost of service.

1. Is the Hand Mixer plugged in?

2. Is the fuse in the circuit to the Hand

Mixer in working order? If you have a circuit breaker box, make sure the circuit is closed.

3. Try unplugging the Hand Mixer, then

01-800-902-31-00 (Industrias Birtman) See the “Warranty” section for additional details. Do not return the Hand Mixer to the retailer – they do not provide service. W10586270C_V2.indd 11 4/27/2018 2:13:14 PM12 | WARRANTY AND SERVICE KitchenAid

Hand Mixer Warranty for the 50 United States, the District of Columbia, Puerto Rico, and Canada This warranty extends to the purchaser and any succeeding owner for Hand Mixers operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada. Length of Warranty: One Year Full Warranty from date of purchase. KitchenAid Will Pay Hassle-Free Replacement of your Hand Mixer. for Your Choice of: See the next page for details on how to arrange for service, or call the Customer Satisfaction Center toll-free at 1-800-541-6390.

The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. KitchenAid Will A. Repairs when the Hand Mixer is used in other than Not Pay for: normal single family home use. B. Damage resulting from accident, alteration, misuse or abuse. C. Any shipping or handling costs to deliver your Hand Mixer to an Authorized Service Center. D. Replacement parts or repair labor costs for Hand Mixers operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

W10586270C_V2.indd 12 4/27/2018 2:13:14 PMWARRANTY AND SERVICE | 13 ENGLISH Arranging for Service after the Warranty Expires, or Ordering Accessories and Replacement Parts In the United States and Puerto Rico: For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218 Outside the United States and Puerto Rico: Consult your local KitchenAid dealer or the store where you purchased the Hand Mixer for information on how to obtain service. For service information in Canada: Call toll-free 1-800-807-6777. For service information in Mexico: Call toll-free 01-800-0022-767. Hassle-Free Replacement Warranty – 50 United States, District of Columbia, and Puerto Rico We’re so confident the quality of our products meets the exacting standards of KitchenAid brand that, if your Hand Mixer should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Hand Mixer returned to us. Your replacement unit will also be covered by our one year limited warranty. If your Hand Mixer should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Hand Mixer, use the carton, packing materials, and prepaid shipping label to pack up your original Hand Mixer and send it back to KitchenAid. Hassle-Free Replacement Warranty – Canada We’re so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Hand Mixer should fail within the first year of ownership, we will replace your Hand Mixer with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. If your Hand Mixer should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. When you receive your replacement Hand Mixer, use the carton, packing materials, and prepaid shipping label to pack up your original Hand Mixer and send it back to KitchenAid.

WARRANTY AND SERVICE

®/™ ©2018 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere. W10586270C_V2.indd 13 4/27/2018 2:13:14 PM14 | PIÈCES ET CARACTÉRISTIQUES Support arrière anti- basculement Accessoire Turbo Beater
