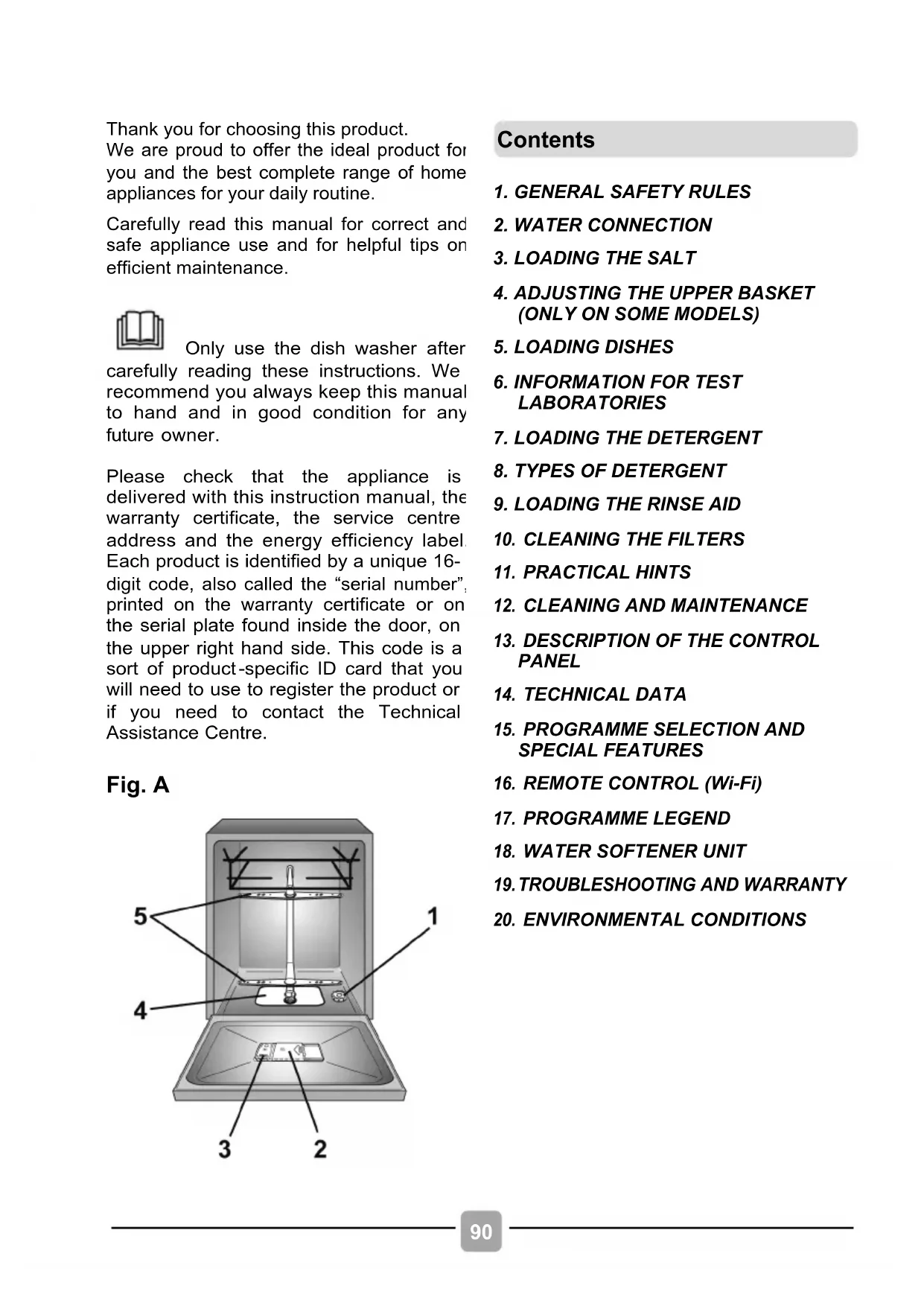

USER MANUAL CF 3C7L0W CANDY

Carefully read this manual for correct and safe appliance use and for helpful tips on efficient maintenance.

Only use the dish washer after carefully reading these instructions. We recommend you always keep this manual to hand and in good condition for any future owner. Please check that the appliance is delivered with this instruction manual, the warranty certificate, the service centre address and the energy efficiency label. Each product is identified by a unique 16- digit code, also called the “serial number”, printed on the warranty

certificate or on the serial plate found inside the door, on the upper right hand side. This code is a sort of product

specific ID card that you will need to use to register the product or if you need to contact the Technical Assistance Centre.

CLEANING THE FILTERS

CLEANING AND MAINTENANCE

TROUBLESHOOTING AND WARRANTY

This appliances is intended to be used in household and similar applications such as: − Staff kitchen areas in shops, offices and other working environments; − Farm houses; − By clients in hotels, motels and other residential type environments; − Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer’s warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law. for EU market The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks. for Extra EU markets This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Children of aged 3 and under should be kept away unless continuously supervised. If the supply cord is damaged, it must be replaced by a Special cord or assembly available from the manufactured or its service agent.

Only use the hose-sets supplied with the appliance for the water supply connection (do not reuse old hose-sets).92

Water pressure must be between 0.08 MPa and 1 MPa.

Make sure carpets or rugs do not obstruct the base or any of the ventilation openings. After installation, the appliance must be positioned so that the plug is accessible.

Do not leave the door open in a horizontal position, in order to avoid potential dangers (e.g. tripping).

For further information on the product or to consult the technical data sheet, please refer to the manufacturer's website. For the maximum number of place settings, see the relevant data plate attached to the product

The technical details (supply voltage and power input) are indicated on the product rating plate.

Make sure that the electrical system is earthed and complies with all applicable laws, and that the socket is compatible with the plug of the appliance. The manufacturer declines all responsibility for any damage to people or property due to non-earthing of the machine. Ensure that the dishwasher does not crush power cables. In general it is not advisable to use adaptors, multiple plugs and/or extension cables. Before cleaning or maintaining the dishwasher, unplug the appliance and turn off the water supply. Do not pull on the power cord or appliance to unplug the machine.

Water may reach very high temperatures during the wash cycle.

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit

that is regularly switched on and off by a utility. Electrical connections and safety instructions93

Do not leave the appliance exposed to the elements (rain, sun, etc.). Leaning or sitting on the open door of the dishwasher could cause it to tip over. When moving, do not lift the dishwasher by the door; during the transport, never lean the door on the trolley. We recommend two people lift the machine.

The dishwasher is designed for normal kitchen utensils. Objects that have been contamined by petrol, paint, traces of steel or iron, corrosive chemicals, acids or alkalis must not be washed in the dishwasher.

If there is a water softening device installed in the home there is no need to add salt to the water softener fitted in the dishwasher.

If the appliance breaks down or stops working properly, switch it off, turn off the water supply and do not tamper with it. Repair work should only be carried out by an approved service agent and only genuine spare parts should be fitted. Any failure to follow the above advice may have serious consequences for the safety of the appliance. If you need to move the machine after removing the packaging, do not try to lift it by the bottom of the door. Open the door slightly and lift the machine by holding it on the top.

By marking this product, we confirm, under our own responsibility, full compliance of this product with all relevant safety, health and environmental requirements under European legislation.

Remove all elements of the packaging.

Do not install or use the dishwasher if it is damaged.

Keep packaging materials away from children. Installation

Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.94

Follow the instructions supplied with the product.

In case of breakage, the hose must be replaced with an original spare part available from the manufacturer or its service center.

Remove the anti-removal device (A) by unscrewing the fixing screw (B).

Remove the inlet hose (C) by unscrewing the ring nut (D). Anti-removal device (only on some models)

Use only the inlet hose supplied with the appliance for connection to the water mains. Old inlet hoses must not be reused. Replacement of the inlet hose

Ensure that the product, before being switched on for the first time, is installed in a horizontal position by way of the adjustable feet. Check the horizontal position

(only freestanding models) If it is necessary to remove the worktop to install the dishwasher in a compartment

of a modular kitchen, please contact our Authorized Technical Assistance Centres.

(only built- in and half integrated models) Do not connect the dishwasher

to the mains supply until the front panel has been fully installed. Otherwise, the risk of an electrical hazard may persist.

(only built-in and semi- integrated models) Do not connect the dishwasher

to the mains supply until all installation operations have been performed according to the "TECHNICAL NOTES FOR INSTALLATION" supplied

Connect the new inlet hose by screwing the ring nut. Fit the anti-removal device, fixing it with the designated screw.

Ensure that the ring nut has been screwed in correctly and that there are no water leakages.96

The inlet and drain hoses can be directed to left or right.

Water pressure must be between 0,08 MPa and 1 MPa.

The inlet hose must be connected to a tap so that the water supply can be cut off when the machine is not in use (fig.1).

The dishwasher is fitted with 3/4" threaded connector (fig.2).

Connect inlet hose "A" to water tap "B" with a 3/4" attachment making sure that it has been properly tightened.

If it is necessary, the inlet pipe can be lengthened up to 2,5 m. The extension pipe is available from the After Sales Service Centre.

If the dishwasher is connected to new pipes or to pipes which have not been inuse for a long time run water through for a few minutes before connecting the inlet hose. In this way no deposits of sand or rust will clog up the water inflow filter.

The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60°C. The appliance must be connected to the water mains using new hose- sets. The old hose- sets should not be reused.97

may include one or more of the following features:

WATERBLOCK (fig.3) The waterblock system has been designed

improve the safety of your appliance. The system prevents flooding which might be caused by a machine malfunction or as a result of a fracture on the rubber pipes and in particular on the water supply pipe.

A sump located on the base of the appliance collects any possible water leakage and operates a sensor which activates a valve placed under the water tap and blocks any water, even with the tap fully opened.

box "A" containing the electrical parts is damaged, remove the plug from the socket immediately. To ensure perfect operation of the safety system, the hose with box "A" should be connected to the tap as shown in the figure . The water supply hose should not

be cut, as it contains live parts. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from the Technical Assistance Centre.

AQUASTOP (fig.4): A device located on the supply tube that stops water flow if the tube deteriorates; in this case, a red mark will appear in the window "B" and the tube must be replaced. To unscrew the nut, press the one-way lock device "C".

All the dishwashers are equipped with an overflow safety device which, if water exceeds normal levels due to malfunctions, automatically blocks water flow and/or drains excess quantities. Hydraulic safety devices98

The outlet hose should disharge into a standpipe, making sure that there are no kinks (fig.5).

The standpipe must be at least 40 cm above floor level and it must have an internal diameter of at least 4 cm.

It is advisable to fit an anti- odour air trap (fig.5X) . If necessary the outlet hose can be extended up to 2,5 m, provided that it is kept at a maximum height of 85 cm above floor level. The extension pipe is available from the After Sales Service Centre.

The hose can be hooked over the side of the sink, but it must not be immersed in water, in order to prevent water from being syphoned back to the machine when this is in operation (fig.5Y).

When installing the appliance under a worktop the hose pipe clamp must be attached to the wall in the highest possible position under the worktop (fig.5Z).

Check that there are no kinks in the inlet and outlet hoses. Connecting the outlet hose99

(Fig. A "1") The appearance of white stains on dishes is generally a warning sign that the salt container needs filling. On the bottom of the machine there is a container for the salt for regenerating the softener. It is important to use only a salt that is specifically designed for dishwasher. Other types of salt contain small quantities of insoluble particles which over a long period of time may affect and deteriorate the softener performance. To add salt, unscrew the cap of the container on the bottom and then refill the container.

During this operation a little water will overflow; but keep adding salt until the container is full. When the container is full, clean the thread of salt residue and retighten the tap.

After loading the salt, it is recommended running a complete washing cycle, or COLD RINSE programme.

The salt dispenser has a capacity of between 1 kg and, for efficient use of the appliance, it should be refilled from time to time .

(Only for first start up) When the appliance is used for the first time, after completely filling the salt container, it is necessary to add water until the container overflows. After loading the salt, YOU MUST run a complete washing cycle, or the PRE-

WASH/COLD RINSE/REFRESH

programme.100 Type "A":

1. Turn front blocks "A" outwards;

2. Remove the basket and remount it in

3. Replace blocks "A" in the original

position. Following this operation, the movable supports cannot be used in the upper position. Type "A" Type "B": (ONLY MODELS WITH EASY CLICK) The upper basket is equipped with a height adjustment system. To lift it: lift the basket holding it by the sides, as soon as it is in a raised position, let it go without applying any pressure to the levers. To lower it: hold the basket by the sides, press the two B levers on the sides of the basket, and lower it.

Never raise or lower the basket by working on one side only.

Always accompany the basket during its descent into the stop position.

We recommend adjusting the basket before loading the dishes. During the first start-up, the upper basket may be in the upper or lower position. Place the basket in the upper or lower position, as appropriate for the requirements of the load, following the instructions provided.

Cup Holder (only on some models) The upper basket (fig.1) is equipped with movable supports hooked to the side panel. They can either be placed in the open position (A) to place tea cups, coffee, long knives and ladles or in the lowered position (B) to have more space in the upper basket. Goblet-shaped glasses can be hung on the ends of the supports themselves.(fig.2).Using the upper basket The upper basket has been designed to offer maximum flexibility of use. It can beloaded with dessert plates, cups andglasses, which it is advisable to lock toavoid to avoid them being overturned bythe jets. Position the larger plates, slightly inclined towards the front in order to facilitate theeasy insertion of the basket inside themachine.A standard daily load is represented in fig.3 "Maxi-Ladle" (only on some models) This accessory (fig.4), has been designed to provide the optimal washing position for all long kitchen objects or tools such as bread knives, ladles, and forks

After loading the basket make sure that the spray arm rotates freely without hitting dishes or kitchen utensils. Using the upper basket102 The lower basket houses pots, pans, tureens, salad bowls, lids, serving plates, dinner plates, and soup plates.

The cutlery should be placed with the handle down, in the special plastic container positioned in the lower basket (fig.10-11) making sure that the cutlery itself does not prevent the rotation of the spray arm or the opening of the detergent compartment. Foldable racks (only on some models) In the lower basket (fig.5), there may be some adjustable combs (C-D-E depending on the model) useful to guarantee optimum stability for the dishes. Non-standard size or shaped dishes or plates can be raised/lowered (fig. 6 and fig.

7) to ensure maximum loading flexibility.

A standard daily load is represented in fig.9. The rational and correct arrangement of the dishes is an essential condition for a good washing result. Maxi Tray (only on some models) This accessory has been designed to provide the optimal washing position for oven trays and pans. Just extract the supports (E) located on the lower basket and place the kitchen accessories on them (fig.9). Using the lower basket103

Maxi Plates (only on some models) The Maxi Plates system (fig.10) has been designed to provide the optimal washing position thanks to two special supports for up to 8 8 larger-than-standard size plates, up to a diameter of 34.5cm (for example pizza dishes).

The cutlery basket is intended to contain cutlery of all kinds, excluding those of such length as to interfere with the upper sprinkler. The cutlery must be placed in the appropriate spaces of the upper grids to allow for optimal water passage. It is possible to remove the upper grids by lifting them and sliding them inside their seat (fig.11).

You can adjust the height of the cutlery basket handle by pulling or pushing the handle (fig.12).

An example of the positioning of the cutlery rack is shown in figure 8.

Use the third basket to load the cutlery, as shown in the image (fig.13). Load knives with the sharp, cutting side facing downwards.

Using the third basket (only on some models)

Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

Cutlery basket (only on some models)

After loading the basket make sure that the spray arm rotates freely without

hitting dishes or kitchen utensils.104 If necessary, the side shelves of the third basket can be slid or removed (fig.14-15) in order to create additional space in the upper basket for bulky items such as wine crystals.

In some programmes (see table of programmes), the third washing arm, positioned at the bottom of the dishwasher POWER WASH, will also be enabled. This feature is ideal when cleaning heavily soiled tableware or cookware, placing them directly in the area of the basket above the POWER WASH arm.

TEST LABORATORIES Please ask information required for comparison testing and measuring noise levels, according to EN normative, to the following address: [e-mail] In the request, please specify model name and number of the dishwasher (see rating plate).

POWER WASH (only on some models)105

DET ERGENT (Fig. A "2") Unsuitable detergents (like those for washing up by hand) do not contain the proper ingredients for use in a dishwasher, and stop the dishwasher from working correctly. The detergent container is inside the door (fig. A "2"). If container door is closed, to open it simply press the release button (A): the door is always open at the end of any wash programme ready for the next use. The amount of detergent to be used varies according to how dirty the dishes are and on the type of dishes to be washed. We advise using 20:30 g of detergent in the wash section of detergent compartment (B). If you are using tablets, one should suffice. Insert the TABLETS, making sure that they do not interfere with the opening system. After pouring the detergent into the container, close the door again, pushing in the direction of the arrow until it clicks into place. Since not all detergents are the same the instructions on the boxes of detergent can vary. We should just like to remind users that too little detergent does not clean the dishes properly whilst too much detergent will not produce better results and is also a waste. Do not use an excessive amount of detergent and help limit damage to the environment at the same time. WARNING When loading the lower basket, please ensure that the plates or others do not obstruct the detergent dispenser. Filling the detergent container It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid,gel or tablet form. The detergent106 In programmes that have a pre-wash cycle that requires an additional dose of detergent (see the washing programmes chapter), the additional detergent must be poured into the appropriate location (C). Loading pre-wash detergent in programmes that require it107

Detergent tablets of different manufacturers dissolve at different speeds, for this reason, during short programmes, some detergent tablets may be not fully effective, because they are not completely dissolved. If these products are used, is recommended to choose longer programmes to guarantee the complete use of the detergent.

The concentrated detergents, with reduced alkalinity and with natural enzymes, in conjunction with 50°C wash programmes, have a smaller impact on the environment and they protect the dishes and the dishwasher. The 50°C wash programmes purposely exploit the dirt-dissolving properties of the enzymes, allowing therefore, with the use of the concentrated detergents, to achieve the same results of the 65°C programmes but at a lower temperature.

The detergents that also contain the rinse aid must be placed in the wash section of the detergent container. The rinse aid container must be empty (if it is not empty, set the rinse aid regulator to lowest position before using combined detergents).

If you are planning to use "TABLETS" (“3 in 1 “/ “4 in 1”/ “5 in 1”, etc.) combined detergents i.e. those with built in salt and/or rinse agent, we would advise the following:

read carefully and follow the manufacturer’s instructions given on the packaging; the effectiveness of detergents containing the built in water softener/salt depends on the hardness of your water supply. Check that the hardness of your water supply is within the effective range given on the detergent packaging. If when using this type of product, you don't get satisfactory washing results, please contact the detergent manufacturer.

In certain circumstances use of combined detergents can cause: limescale deposits on dishes or in the dishwasher; a reduction in washing and drying performance.

Please note that using the "TABLETS" combined detergents, the rinse aid and salt indicator lights (only used on selected models) are superfluous, so you must ignore the lights. If washing and/or drying problems occur, we recommend you return to use traditional separate products (salt, detergent and rinse agent). This will ensure that the water softener in the dishwasher operates correctly. In this case, we recommends that you: refill both the salt and rinse aid container; run one normal washing cycle without a load. Please note that on return to the use of conventional salt, a number of cycles will be required before the system becomes fully efficient again. Any problems which arise as a direct result of the use of these products are not covered by our warranty. "TABLETS" combined detergents Combined detergents Concentrated detergents To get satisfactory washing results, the tablets MUST be placed in the wash section of the detergent container and NOT directly in the tub. Detergent tablets108 Rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and prevents spots and stains forming. The rinse aid container is next to the detergent container (fig.A "3"). To open, press the tab on the lid of the rinse aid dispenser and lift it. Add rinse aid up to the Max. indication. If the rinse aid spills out, remove it from the wash tank. Spilled rinse aid can cause excessive frothing during the wash cycle. Close the lid of the rinse aid dispenser. The lid clicks into the locking position. Always use rinse additives that are suitable for automatic dishwashers. Models equipped with display or rinse aid indicator (only on some models) When it becomes necessary to fill the rinse aid container, the display will indicate the lack of rinse aid (in models with display), or the designated indicator light on the dashboard will turn on. Adjusting the amount of rinse aid

2. Hold the "SETTINGS (5Sec.)"

button, a short beep will sound. 3.The "SETTINGS" message appears on the display.

6. Press "START/RESET" to access

the regulation levels.

Press "PROGRAMME SELECTION" to choose the value (R1......R6). With level R0, no rinse aid is dispensed. 8.Press "START/RESET" to confirm.

9. Press "ON/OFF" to confirm.

ALWAYS start the procedure with the dishwasher turned off. This has been factory-set to level 4, as this satisfies the majority of users. Filling the rinse aid container Rinse aid

The limestone content of the water considerably affects the formation of limescale and the drying performance. It is therefore important to regulate the quantity of rinse aid to achieve good washing results. If, after the wash, there are streaks on the dishes, decrease the amount by one position. If whitish spots occur, increase the amount by one position. Models not equipped with rinse aid indicator (only on some models): You can check the rinse aid level by means of the optical display (B) on the dispensing container. FULL EMPTY dark light Adjusting the amount of rinse aid. It is only possible to adjust the amount of rinse aid used by the dishwasher via a special APP that can be downloaded from the site with your smartphone. The limestone content of the water considerably affects the formation of limescale and the drying performance. It is therefore important to regulate the quantity of rinse aid to achieve good washing results. If, after the wash, there are streaks on the dishes, decrease the amount by one position. If whitish spots occur, increase the amount by one position. The adjustment has been factory-set at level 2 as this satisfies the majority of users.110

10. CLEANING THE FILTERS

(Fig. A "4") The filter system consists of: - A central container that traps the larger particles; - A micro filter, located beneath the gauze, that traps the tiniest particles ensuring a perfect rinse; - A flat gauze that continuously filters the wash water. To achieve excellent results every time, the filters should be checked and cleaned after each wash. To remove the filter unit, simply turn the handle anti-clockwise and extract it by pulling it upwards (fig.1). For ease of cleaning, the central container is removable (fig.2) by pressing the two buttons on the sides and pulling it upwards. Remove the gauze filter (fig.3) and wash the whole unit under a jet of water (fig.4). If necessary a small brush can be used. Re-assemble the plate and filter unit by following the previous operations in reverse order, taking care to screw the components back correctly, so as not to jeopardise the operation of the dishwasher. With the Self-cleaning Micro filter, maintenance is reduced and the filter unit need only be checked every two weeks. Nevertheless, after each wash it is advisable to check that the central container and the gauze filter are not clogged.111

Never use the dishwasher without the filters. WARNING After cleaning the filters, make sure that they are correctly reassembled and that the gauze filter is properly positioned at the bottom of the dishwasher. Make sure that the filter is screwed back, clockwise, into the gauze, as poor seating of the filter unit could have an adverse effect on the efficiency of the appliance.112

Before placing the dishes in the dishwasher, remove any remaining food (bones, shells, pieces of meat or vegetables, coffee grounds, skin of fruit, cigarette ash, thooth picks etc. to avoid blocking the filters, water outlet and washing arm nozzles. There is no need to rinse the dishes before loading them into the dishwasher, as this leads to increased water and energy consumption and is not recommended. If saucepans and oven dishes are encrusted with the remains of burnt or roast food, it is advisable to leave them to soak before washing. Place the dishes face downwards. Try to place the dishes in such a way that they are not touching one another. If they are loaded properly you will get better results.

After loading the dishes check that the washing arms can rotate freely. Pans and other dishes that have particularly stubborn food particles or remnants of burnt food should be left to soak in water with dishwasher detergent. To wash silver properly: a) rinse the silver immediately after use, especially if it has been used for mayonnaise, eggs, fish etc.; b) do not sprinkle detergent onto it; c) keep it separate from other metals.

Tips on how to save money and not damage the environment when using your appliance. Achieve the best use of energy, water, detergent and time by using the recommended maximum load size. Save up to 50% energy by washing a full load instead of 2 half loads. If you want the dishwasher to give a complete wash, place the dishes in the dishwasher at the end of each meal and if necessary turn on the COLD RINSE cycle to soften the food remains and remove bigger particles of food from the new load of dishes. When the dishwasher is full start the complete wash cycle programme. If the dishes are not very dirty or if the baskets are not very full select an ECONOMY programme, following the instructions in the program list. The most efficient programmes in terms of combined use of water and energy are usually the longer-lasting ones with lower temperature. Washing in a dishwasher uses less energy and water compared to hand washing if the dishwasher is used following the manufacturer’s instructions and advice.

It should be remembered that not all dishes are suitable for washing in a dishwasher. We advise against using the dishwasher to wash items in thermoplastic, cutlery with wooden or plastic handles, saucepans with wooden handles, items in aluminum, crystal leaded glass unless otherwise stated. Certain decorations may fade. It is therefore a good idea before loading the whole batch to wash just one of the items first so as to be sure that others like it will not fade. What not to wash. How to make savings. How to get really good wash results.113

It is a good idea not to put silver cutlery with non-stainless steel handles into the dishwasher as there could be a chemical reaction between them.

In order to avoid any dripping from the top rack, remove the lower rack first. If the dishes are to be left in the machine for some time, leave the door ajar, to let some air circulate and to improve the drying performance.

Useful hints When buying new crockery or cutlery always make sure that they are suitable for washing in a dishwasher.114

MAINT ENANCE Looking after your appliance correctly can extend its lifespan. Disconnect the machine from the power supply. To clean the dishwasher outside, do not use solvents (degreasing action) neither abrasives, but only a cloth soaked with water. The dishwasher does not require special maintenance, because the tank is self- cleaning. Regularly wipe the door gasket with a damp cloth to remove any food remains or rinse aid. Dishwasher cleaning is recommended, in order to remove limestone deposits or dirt. We suggest you run a washing cycle periodically with specialist dishwasher cleaning products. For all cleaning operations the dishwasher must be empty. If, in spite of the routine cleaning of the filters, you notice that the dishes or pans are not properly washed or rinsed, check that all the spray heads on the rotor arms (fig. A "5") are clear. If they are blocked, clean them in the following way:

1) remove the upper rotor arm, turning the

ring nut from the right to the left (fig.1).

2) The lower rotor arm can be extracted by

simply pulling it upwards (fig.2).

3) wash the rotor arms under a jet of water

to clear any blockage in the spray heads (fig.3). Do not use tools that can deform the spray heads. Cleaning the appliance’s interior Cleaning the appliance’s exterior115

4) when you have finished, refit the rotor

arms in the same position, remembering to re-align the arrow and screw into position (fig.4).

5) Both the door lining and the tank lining

are in stainless steel; however, should spots caused by oxidation occur, this is probably due to a high level of iron salts presents in the water.

6) The spots can be removed with a mild

abrasive agent; never use chlorine based materials, steel wool, etc.

After every wash it is essential to turn off water supply and to switch off the machine by pressing the On/Off button to the off position. If the machine is not going to be used for some time, it is advisable to follow these rules:

1. do an empty wash with detergent in

order to clean the machine of any deposits;

2. pull out the electric plug;

3. turn off the water tap;

6. keep the inside of the machine clean;

7. If the machine is left in places where the

temperature is below 0°C any water left inside the pipes may freeze. Wait until the temperature rises above zero and then wait for about 24 hours before.

PROGRAMME SELECTION light / Cycle started by remote control indicator light

8 people Place settings (EN 50242)

Capacity with pans and dishes Water supply pressure (MPa) Fuse / Power input / Supply voltage

To turn the appliance on and off, press the ON/OFF button.

Open the door and place the dirty dishesinside the appliance. Press the "ON/OFF" button. The indicator light associated with the "ECO"programme or stored programme will flash. Select a different programme by pressing the "PROGRAMME SELECTION"button. The indicator light associated withthe selected programme will flash. To select an option, press the corresponding button (the indicator lightwill turn on). Press the "START/RESET" button (the indicator light associated with theprogramme selected will stop flashingand remain on). When the door is shut, after an audible signal has sounded, the programme willstart automatically.If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.Some programmes use an impulse or intermittent washing system (depending on the model) which reduces consumption, noise and improves performance. Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically. Close the door, without pressing any buttons The cycle will start from where it left off. If you wish to change or cancel a programme already in progress, proceed as follows: Hold the "RESET" button for at least 3 seconds. Several audible signals willsound and the programme indicator lightswill turn on and off individually and insequence. The indicator light associated with the "ECO" programme or stored programmewill flash.

At this point a new programme can be set.

Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser.

Changing a running programme

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished. Interrupting a Programme The "intermittent" working of the washing pump is NOT to be considered a malfunction; it is a characteristic of impulse washing, and therefore should be considered a normal feature of the programme. "IMPULSE"or "INTERMITTENCE" programmes (only on some models) Programme settings ON/OFF button

The end of the program will be indicated by 3 signals lasting 3 seconds interspersed with a pause of 20 seconds, after one minute the dishwasher will switch off at the same time on the display. the word "END" will appear for one minute. This button can be used to select two different functions, depending on the selected programme: "HALF LOAD" button (only on some models). Appositely developed for small lightly soiled loads that fits approximately half of the dishwasher’s capacity. By selecting this option, you can save time, energy, and water. After selecting the program, press the "HALF LOAD" button and the indicator light will turn on. If this option is not compatible with the set program, a sound will be heard. "TABLETS" button (only on some models). This option optimises the use of the "TABLETS" ("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined detergents. By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt and rinse aid shortage lights are de- activated). After selecting the program, press the "TABLETS" button for 5 sec. and the indicator light will turn on. If this option is not compatible with the set program, a sound will be heard. This model is provided with an indicator light on the control panel which will light up when it is necessary to reload the salt container. After filling the salt container, press this button for a few seconds, until the corresponding indicator light switches off. In order to guarantee the correct functioning of the salt indicator light,

If you press the reset button without filling the salt container, this will interfere with the correct functioning of the salt indicator light. "RESET" button for "NO SALT" indicator light (only in models with a salt indicator light reset button) "NO SALT" indicator light This option is recommended when using the RAPID programme, whose duration will be extended, enabling improved performance from the detergent tablets.

Once selected, this option keeps being on (light on) also for next washing cycles and it can be de- activate (light off) only by pressing the button once again for 5 second. HALF LOAD/TABLETS Option button Only for models with the AUTO DOOR" option, during the drying phase the door will open automatically and you will have to wait until for the end-of- cycle signal before removing the dishes.

This button can be used to select two different functions. - DELAY START The dishwasher start time can be set with this button, delaying the start by 3, 6 or 9 hours. Proceed as follows to set a delayed start:

Choose a programme by pressing the "PROGRAMME SELECTION" button. Press the "DELAY START" button (each time you press it, you can set a respective delayed start). Type A (only on some models)

3h Indicator light on 6h Indicator light on 9h both indicator light on

Type B (only on some models)

3h Indicator light on 6h Indicator light on 9h Indicator light on

To start the countdown, press the "START/ RESET" button (the set time indicator light will start to flash). If a 9 hour delay is set, countdown will be displayed by the 6h indicator light after 3 hours and the 3h indicator light after 6 hours. At the end of the last 3 hours (at the end of countdown) the 3h indicator light will stop flashing and remain on to indicate the washing phase and the programme will start automatically. Delayed start can be changed or cancelled if countdown has has not ended, and therefore the programme has not yet started. Select another programme or select/deselect the option button, proceeding as follows: Hold the "RESET" button down for at least 3 seconds. Some audible signals will sound and the programme indicator lights will turn on and off individually and sequentially. The delayed start and the selected programme will be cancelled. The programme indicator lights will flash, the dishwasher is ready start programme. - SETTINGS The dishwasher is regulated with certain factory settings. You can however, from the SETTINGS menu, adjust various parameters to suit your washing requirements. The parameters adjusted are: SOFTENER To adjust the softener see the specific Chapter of the manual. BUZZER Activates or deactivates the acoustic signal at the end of the programme. MEMO FUNCTION To enable the storage of the last used program.

Turn on the dishwasher by holding the "ON/OFF" button for approximately 3 seconds. Hold the "SETTINGS" button for 5 seconds to open the menu. The dishwasher must ALWAYS be turned off before you start this procedure. The dishwasher must ALWAYS be turned off before you start this procedure.

DELAY START/SETTINGS OPTION

button120 You can now choose what you want to set. BUZZER Press the "HALF LOAD/TABLETS" button to activate or deactivate the acoustic indicator. - The buzzer will remain active if the "HALF LOAD/TABLETS" indicator light switches on and a sound is heard; - The buzzer will remain inactive if the "HALF LOAD/TABLETS" option indicator light does not come on and no sound is heard; Press the "START/RESET" button to save the settings and exit the settings menu. MEMO FUNCTION To enable memorisation of the last programme used, proceed as follows:

button to activate or deactivate the MEMO FUNCTION. - The MEMO FUNCTION will be active if the "6h" indicator light comes on. - The MEMO FUNCTION will be inactive if the "6h" indicator light does not come on. Press the "START/RESET" button to save the setting and exit the settings menu. The dishwasher is equipped with an electronic child lock. The child lock disables the controls, preventing unwanted or accidental changes from being made. Turn the child lock feature on and off as follows: Turn on the dishwasher by holding the "ON/OFF" button down for approximately 3 seconds. Press the "CHILD LOCK" button for approximately 5 seconds. Only the "ON/OFF" buttons will remain active.

Press the "CHILD LOCK" button for approximately 5 seconds.

If the child lock command is active, the dishwasher will make a sound and blink twice for every button that is pressed.

Switching off the machine with the "ON/OFF" button, the next time the machine is switched on, the child lock will be activated. CHILD LOCK121

Download the hOn App on your device by framing the following QR code: or by the link: go.haier-europe.com/download-app

Make sure the router is turned on and your smartphone/tablet is connected to your home Wi Fi network.

Open the App, create the user profile (or log-in if it is already created previously) and pairing the appliance following the instructions on the device display or the procedure described in the "Quick Guide" that comes with the appliance. Successful pairing If the pairing with the app is successful, the "Wi-Fi" indicator light will turn on and remain on. You can now control the dishwasher from the App. Unsuccessful pairing If enrolment fails (or does not succeed within 5 minutes.):

• The "Wi-Fi" indicator light will turn off. The dishwasher will not be connected. Repeat the pairing procedure from the App. In the event of problems or changes to the home router settings (e.g., change of network name/password, internet supplier, etc.), you are required to perform the pairing procedure once more, removing the product from the App, or changing the Wi-Fi network credentials from the appliance settings in the App. Whenever you want to use the machine with remote control: Make sure that the router is switched on and connected to the Internet. Fill the dishwasher, add detergent. Turn on the dishwasher. Press the "Wi-Fi" button the "WI-Fi" indicator will light up and remain on. Close the door. NOTE: For built-in models, perform this operation before turning on the dishwasher. It is now possible to control the appliance from the App.

ENABLING REMOTE CONTROL

Reset WiFi The frequency of the home Wi-Fi network has to be set on the 2.4 GHz band. You can not configure the machine if your home network is set to the 5 GHz band. To discover all the details of the Wi-Fi features, explore the app menus in DEMO mode.

The hOn App is available for devices running both Android and iOS, both for tablets and for smartphones.

APPLIANCE PAIRING (ON APP)

REMOTE CONTROL (WI-FI) This appliance is equipped with Wi-Fi technology that allows the machine to be remote controlled via an app.122 Without cycle in progress: The "P5" indicator light will turn on when the cycle - activated from the app - starts. With cycle already in progress: The cycle-in-progress indicator light will remain on until the cycle is completed. To exit REMOTE CONTROL mode, press the "Wi-Fi" button on the dishwasher again. The "Wi-Fi" indicator light will blink very slowly. Without cycle in progress: It will be possible to manually select a new cycle. With cycle in progress: The cycle-in-progress indicator light will remain on until the cycle is completed. The cycle will be completed without being controlled via the App. An alternative way to exit remote control mode. Press and hold the "START/RESET" button for 3 seconds. If there is a cycle in progress, it will be cancelled and the appliance will exit REMOTE CONTROL mode. The "Wi-Fi" indicator light will flash slowly. It will now be possible to set a new wash cycle from the control panel. Press and hold the "ON/OFF" button for 3 seconds (or power off). If there is a cycle in progress, it will be paused and the appliance will exit REMOTE CONTROL mode. On switching it on again, the "Wi-Fi" indicator light will flash slowly and any cycle in progress will continue from the point of interruption. This indicator light indicates the connection status: - ON: remote control enabled.

FLASHING VERY SLOWLY: remote control disabled. - FLASHING SLOWLY: reset from the Wi-Fi network (during App pairing). - FLASHING RAPIDLY: appliance paired with the app but no Wi-Fi connection. Check the correct operation of the router or the updated home Wi-Fi credentials (Network name and/or password). In this case, update the app settings, following the instructions on your smartphone. "Wi-Fi" indicator light Opening the door, any REMOTE CONTROL will be disabled. To resume control from the App, close the door. If the appliance is switched off and then on again - either via the ON/OFF button or as a result of a power failure

when REMOTE CONTROL is enabled and a wash cycle is in progress, the cycle will continue from the point of interruption. In this case, "REMOTE CONTROL" will be disabled.

Programme Description P1 RAPID 49’ A half-load programme designed to wash and dry in 49 minutes whilst simultaneously reducing consumption. P2 UNIVERSAL Suitable for everyday light soiled dishes, your daily reference program. P3 ECO A standard and more efficient programme in terms of combined energy and water consumption for regularly-soiled dishes. EN60436-standardized programme. P4 INTENSIVE For heavily soiled pans and any other items that require a strong and effective washing. Perfectly designed for very dirty plates, pans, and pots. P5 PREWASH Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load. Programmes with prewash For wash programmes with prewash, it is advisable to add a second dose of detergent (max.10 g) directly in the machine.124

Options Programme Detergent for soaking (Prewash) Temperature of wash (°C) Average time of wash ¹ (min.) "DELAY START" button "TABLETS" button "HALF LOAD" button

With hot water the time remaining until the end of the programme is automatically displayed while the programme is running. *Values are measured in a laboratory according to European Standard EN 60436 (consumption may vary according to conditions of usage). The actual duration of the wash cycle varies according to the model. The ECO programme is suitable for cleaning normally soiled tableware and is the most efficient programme for this use in terms of combined energy and water consumption. Furthermore, this programme is used by regulatory authorities to assess compliance with EU ecodesign legislation. Except for the ECO programme, the values given for other programmes are indicative only. The cycle duration may be influenced by numerous factors, such as water temperature, mains water pressure, environmental temperature, the amount of detergent used and the number and distribution of dishes in the loading racks.125

UNIT Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Hardness of up to 90°fH (French grading) or 50°dH (German grading) through 6 different settings. The table below lists different degrees of water hardness with the corresponding setting for the softener unit. Level Water hardness Use of Regenerating salt Programme Indicator Light ºfH (French grading) ºdH (German grading) S0 0-5 0-3 NO No indicator lights

• The water softener unit is set in thefactory at level 3, as this is suitable forthe majority of users.According to the degree of hardness of your water, regulate the softener unit in the following way: 1. Turn on the dishwasher by holding the"ON/OFF" button for approximately3 seconds.

2. Hold down the "SETTING" button

for 5 seconds to open the menu. Whenyou enter the settings mode, there willbe 6 flashes from several of theindicator lights on the dashboard.

3. Press "PROGRAMME SELECTION"

button to select the desired level oflimescale removal: every time you pressthe button, the corresponding indicatorlight will switch on, as shown in thetable above (P1 S1, P1+P2S2). For level ‘S0’, all the indicator lights will be switched off.

4. Press the "START/RESET" button

to save the setting and exit the settingsmenu. WARNING! If any problem occurs, turn the dishwasher off by pressing the "ON/OFF"

button and start the procedure again from the beginning. The dishwasher must ALWAYS be off before start of this procedure. Regulating the water softener126

The regeneration phase is carried out at the end of a washing cycle. Approximately 3.5 litres of water are consumed in the resin regeneration phase, with an energy consumption of approximately 1Wh and an increase in cycle time of approximately 7 minutes. For the Eco cycle, it is as shown in the table.

No indicator lights Never S1 P1 1 every 9 cycles S2 P2 1 every 5 cycles *S3 P3 1 every 4 cycles

Information on resin regeneration with salt127

If you believe the dishwasher is not working correctly, consult the quick guide provided below with some practical tips on how to fix the most common problems. If the malfunction continues or recurs, contact the Technical Assistance Centre.

Error displayed Meaning and solutions "NO WATER" with a short audio signal (only on some models). ERROR E2 (with display) with a short audio signal The dishwasher does not fill with water Make sure the water supply is open. Make sure the water supply hose is not bent or crushed. Make sure the drain pipe is at the proper height (see installation section). Close the water supply, unscrew the drain pipe from the back of the dishwasher and check that the "sand" filter is not clogged. ERROR E3 (with display) with a short audio signal The dishwasher does not drain water Make sure the drain pipe isn’t bent, trapped or blocked, and the filter is not clogged. Make sure the siphon is not clogged. ERROR E4 (with display) with a short audio signal Water leak Make sure the drain pipe isn’t bent, trapped or blocked, and the filter is not clogged. Make sure the siphon is not clogged. ERROR E8 (with display) with a short audio signal The water heating element is not working correctly or the filter plate is clogged Clean the filter plate. ERROR E18 (with display) with a short audio signal Water level problems; check clogged filter plate. Clean the filter plate. Only models with a display Models with a display: errors are reported by a number preceded by the letter "E" (e.g. Error 2 = E2) and a short audio signal. Models without a display: an error is shown by a sequence of flashes of every LED. The error code is shown by the number of flashes followed by a pause of 5 seconds (example: two flashes – pause 5 seconds – two flashes – repeating = Error 2). BUG REPORTS128 ERROR E21 (with display) with a short audio signal Uncontrolled water supply with open solenoid valve. Close the water tap immediately and disconnect the appliance from the power supply. Any other code (with display) Turn off and unplug the dishwasher, wait a minute. Turn on the machine and restart a program. If the error occurs again contact an Authorised Customer Service Centre directly. If malfunctions or faults occur when a programme is running, the indicator light that corresponds to the selected cycle will blink rapidly, and an intermittent audio signal will sound. In this case, turn the dishwasher off by pressing the "ON/OFF" button. After checking to make sure the water supply is open, that the drain pipe is not bent and that the siphon or filters are not clogged, set the selected program again. If the fault persists, contact the Technical Assistance Centre. FAULTS CAUSE SOLUTION

works Plug not connected to wall socket Connect electric plug O/I button not pressed Press button Door is open Close door No electricity Check

does not fill with water See point 1 Check The water tap is closed Open the water tap The water supply hose is bent Eliminate the bends in the hose The filter of the water supply hose is clogged Clean the filter at the end of the hose Other faults WARNING To ensure the correct operation of the overflow safety device, we recommend not moving or tilting the dishwasher during operation.

Should it be necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that no water remains inside the appliance. This dishwasher is equipped with an overflow safety device that, in the event of a problem, automatically discharges any excess water. Only models without a display129

does not discharge water Filter is dirty Clean filter Drain pipe is bent Eliminate the bends in the pipe The drain pipe extension is not correctly connected Follow the instructions for connecting the drain pipe carefully The outlet connection on the wall is pointing downwards not upwards Call a qualified technician

discharges water continuously Position of the drain pipe is too low Lift drain pipe to at least 40 cm above floor level

not heard to rotate Excessive amount of detergent Reduce amount of detergent Use suitable detergent Item prevents arms from rotating Check Filtering plate and filter very dirty Clean filtering plate and filter

appliances without a display: one or more indicator lights flashing quickly Water supply tap turned off Switch off the appliance. Turn on the tap. Re-set the cycle.

partially washed See point 5 Check Bottom of saucepans have not been washed well Burnt on food remains must be soaked before putting pans in dishwasher Edge of saucepans have not been washed well Reposition saucepans Spray arms are partially blocked Remove spray arms by unscrewing ring nuts clockwise and wash under running water The dishes have not been loaded properly Do not place the dishes too close together The end of the drain pipe is immersed in water The end of the drain pipe must not come into contact with the outflow water An incorrect amount of detergent has been measured out, or the detergent is old and hard Increase the measure according to how dirty the dishes are, or change detergent The cap of the salt container is not closed properly

Choose a more vigorous programme The wash programme is not thorough enough Tighten it properly

dispensed or partially dispensed Cutlery, dishes, pans, etc., stop the detergent dispenser from opening Position dishes so as not to obstruct the dispenser130 FAULTS CAUSE SOLUTION

white spots on dishes Mains water is too hard Check salt and rinse aid level and regulate. Should the fault persist, contact the Technical Assistance Centre

wash The dishes knock against one another Re-check loading of dishes in the basket The revolving arms knock against the dishes Re-check loading of dishes in the basket

are not completely dry Inadequate air flow Leave the dishwasher door ajar at the end of the wash program to allow the dishes to dry naturally Rinse aid missing Fill the rinse aid dispenser N.B.: Should any of the above situations result in a bad wash performance or insufficient rinsing, remove dirt deposits from the dishes by hand since the final drying cycle hardens the dirt, making it difficult to remove with a subsequent wash. If the malfunction continues, contact the Technical Assistance Centre, quoting the model of the dishwasher. This is found on the plate on the upper section of the inside of the dishwasher door, or on the warranty. This information will make it possible to take quicker, more effective action. Except for the list of spare parts available on our website, under no circumstances should you repair or attempt to repair the appliance yourself or have the appliance repaired by inexperienced and / or unqualified persons. Repairs carried out by inexperienced and / or unqualified persons can cause injury or serious malfunction of the equipment and damage to property. It is advisable to contact our Authorized Technical Assistance Centres. We recommend that you always use original spare parts, which can be obtained from our customer service for a period of at least 10 years from the moment the appliance is put into circulation within the European Economic Area.

From 1 March 2021, energy and environmental information relating to the energy labelling of household appliances and the specifications for their eco-design are visible in Europe in the product database (EPREL) at the following link https://eprel.ec.europa.eu/ or through the QR code located on the energy label. WARNING The manufacturer cannot be held responsible for any damage to things and people and / or for safety issues resulting from repairs not carried out by an Authorized Technical Assistance Centre or by a service provider authorised by the manufacturer in accordance with company guidelines relating to the repair and maintenance of its products. Any damage caused to the product by unauthorized personnel during a repair attempt will not be covered by the conventional warranty.131

The manufacturer declines all responsibility for any printing errors in this booklet. Moreover, the manufacturer reserves the right to make any changes deemed useful to its products without changing their essential characteristics. Assistance and Warranty The product is guaranteed under the law, and under the terms and conditions stated on the warranty certificate included with the product. The certificate should be stored and shown to an authorized Technical Assistance Centre in case of need, together with the proof of purchase. You can also check the warranty conditions on our website. For assistance, please fill in the online form or contact us at the number indicated on the support page of our website.132

This appliance is marked a cording to the European directive 2012/19/EUon Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re -used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one -to- one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.133

N/A = OPTION NON DISPONIBLE
