USER MANUAL Top Juicer 150145 BARTSCHER

Exterior view of a Bartscher brand juice maker (no signage or text visible on device body)

150.145

Bedienungsanleitung

Saftpresse

Seite 1 bis 16

D/A/CH

Instruction manual

Juice extractor

from page 17 to 32

GB/UK

Mode d'emploi

Centrifugeuse

Labeled diagram of a coffee maker with numbered parts for identification

Exploded diagram of a coffee maker with numbered parts and directional arrows indicating assembly steps

Exterior view of a modern outdoor juice maker with a glass bowl of juice (no text or symbols visible)

1.1 Information about the instruction manual 18
1.2 Key to symbols 18
1.3 Liability and Warrantees 19
1.4 Copyright protection 19
1.5 Declaration of conformity 19

2. Safety 20

2.1 General information 20
2.2 Safety instructions for use of the device 20-21
2.3 Intended use 21

3. Delivery, packaging and storage 22

3.1 Delivery check 22
3.2 Packaging 22
3.3 Storage 22

4. Technical data 23

4.1 Overview of parts 23
4.2 Technical specification 24
4.3 About the juice extractor 24

5. Installation and operation 25

5.1 Safety instructions 25
5.2 Installation and connection 25-26
5.3 Operating 26-29

6. Cleaning and maintenance 30

6.1 Safety advice 30
6.2 Cleaning 30-31
6.3 Safety instructions for maintenance 31

7. Waste disposal 32

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
o. Children should be observed to ensure that they are not playing with the device.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
- The device is to be used indoors only.

2.3 Intended use

CAUTION!

The unit has been designed and produced exclusively for home use. For this reason it cannot be used commercially in constant operation!

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The juice extractor is intended only for juicing fruits and vegetables.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

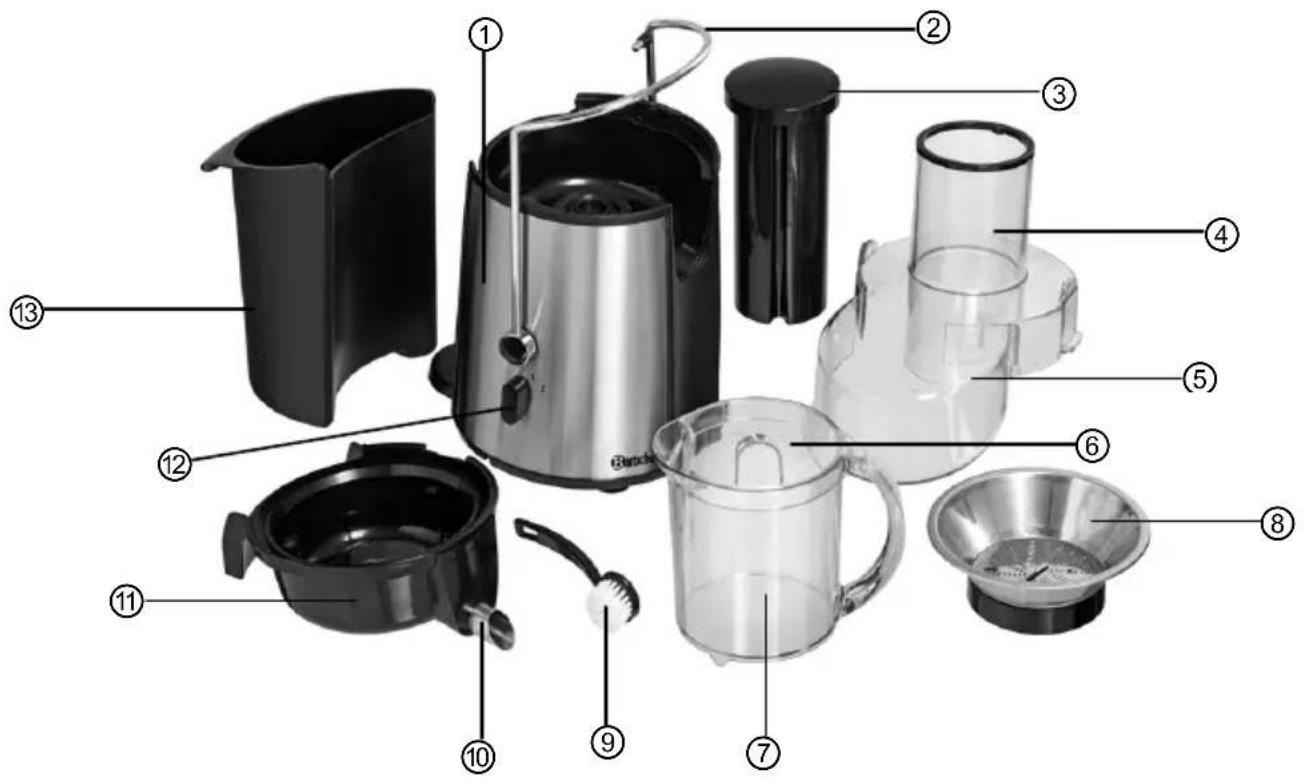

4. Technical data 4.1 Overview of parts

Labeled diagram of a coffee maker with numbered parts for identification

① Motor housing
② Locking arm with safety switch
③ Plunger
④ Feed chute
⑤ Lid
⑥ Splash guard
⑦ Plastic pitcher
⑧ Sieve
⑨ Cleaning brush
⑩ Exit chute
⑪ Sieve housing
⑫ Speed dial (0-1-2)
⑬ Pressings container

4.2 Technical specification

Name	Juice extractor "Top Juicer"
Art. no.:	150.145
Housing construction: stainless steel
Power:	230 V ~ 50/60 Hz 0.7 kW
Speed settings: 2 / max. 18,000 RPM
Dimensions: W 310 x D	210 x H 400 mm
Feed chute: 75 mm
Weight: 4.0 kg
Accessories:	cleaning brush, plastic pitcher with splash guard(capacity: 1 litre)

We reserve the right to make technical changes!

4.3 About the juice extractor

By purchasing the electric juice extractor "Top Juicer", you have become the owner of equipment that makes it possible to quickly produce juice rich in vitamins from fruits and vegetables.

The large feed chute, integrated into the lid and with a diameter of 75 mm, shortens the time necessary to prepare raw materials by making it possible to produce juice from whole fruits (e.g. apples) or vegetables without cutting.

A 700 W motor with two speed settings helps you get maximum results.

Speed setting "1" is perfect for soft fruits and vegetables containing large amounts of water, such as oranges and melons. Speed setting "2" is better for hard and fibrous fruits and vegetables, like apples, ginseng, celery and carrots.

The two-litre pressings container lets you squeeze a lot of juice without interruption. When the pressing container fills up, just remove it and empty it out without needing to disassemble the unit.

The lid is held on by the locking arm equipped with a safety switch. The safety switch turns the unit off immediately if the locking arm is released.

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

• See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.
• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
• Do not touch the unit's moving parts. Wait for the unit to stop functioning before disassembling sub-assemblies.
• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.
- Place the device on top of an even and safe surface which supports the weight of the device and which is table.
- Not at any time should you place the device on an inflammable surface (such as: table cloth, carpet, etc.).
- You must not position the device near open fireplaces, electric ovens/arc furnaces, furnaces/electric heaters or other heat sources.

- The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.

- Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operating

Before first use, clean the unit as described in 6.2 "Cleaning".

CAUTION!

If the unit is to stay unused or if sub-assemblies are to be attached or detached, disconnect the unit from its socket.

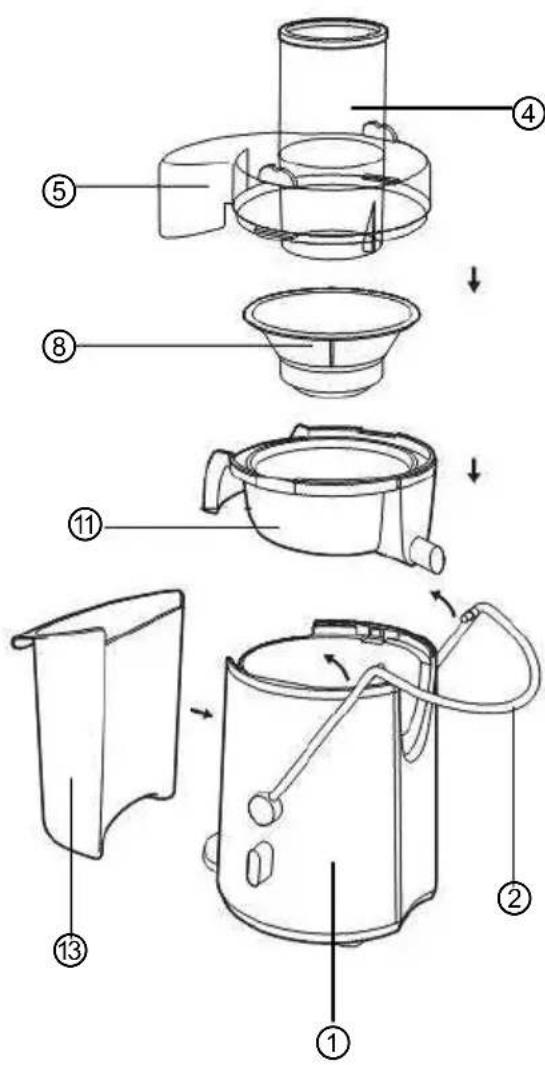

Assembly

• While assembling, follow the instructions in the diagram located to the right.
• Place the motor housing ① on a dry, flat surface. Press down on the motor housing ① until the suction legs are securely attached to the surface.
• Place the pressings container ⑬ on the appropriate bracket located on the motor housing. For easier cleaning a plastic bag can be placed inside the pressings container.
• Attach the sieve housing ⑪ on the motor housing ① so that the exit chute is located above the pressings container.
• Place the sieve ⑧ carefully in the sieve housing ⑪ and press until it locks in place.

WARNING! Danger of injury!

The knives in the sieve are very sharp. To avoid injury, be very careful when handling the sieve.

Exploded diagram of a kitchen appliance with numbered parts for identification and assembly steps

• Next, attach the lid ⑤, ensuring that the feed chute ④ is located over the sieve ⑧.
• Place the locking arm ② on the lid ⑤. Lock the arm in the notches located at each side of the lid ⑤.

CAUTION!

The unit will only function properly when all elements are properly assembled, and the locking arm with safety latch is properly inserted into the lid..

CAUTION!

Never operate the unit when the accessories are mounted but no food products have been inserted.

Preparing fruits and vegetables

• For best-tasting juice, use only fresh fruits and vegetables.
• The best foods for the juicer are apples, pineapples, oranges, grapes, melons, carrots, celery, beets and tomatoes.
• Wash fruits and vegetables thoroughly before making juice.
• Fruits and vegetables with thin skins do not need to be peeled. They can be scrubbed with a sponge to remove traces of dirt or wax. Thick skins from e.g. lemons, oranges or pineapples must be removed.

- Fruits with large pits, such as mango and papaya, should have them removed to avoid damage to blades.

- Seeds from some fruits can have a bitter taste. Before making juice from such fruits, remove the seeds.

- Cut large fruits and vegetables into smaller pieces. Cone-shaped foods such as carrots should be inserted with the thin end first.

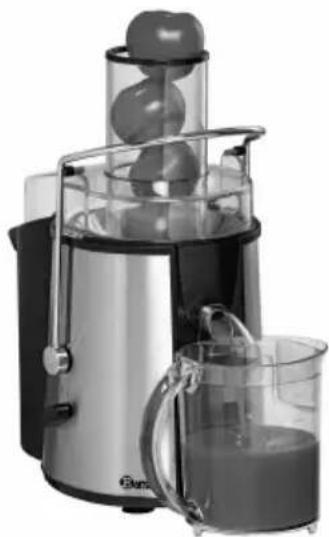

Squeezing juice

• Place the plastic pitcher with splash protection under the exit chute (see diagram).
• Connect the unit to a grounded single outlet.
• Select speed "1" or "2". Speed "1" is for making juice from soft fruits and vegetables, and speed "2" is for hard ones.
• Insert prepared fruits or vegetables into the feed chute.
• Insert the plunger into the feed chute, making sure the groove fits the slot inside the feed chute.
• For the maximum amount of juice, press the plunger slowly and delicately. Pressing too hard can reduce the amount of juice and damage the unit.

Exterior view of a modern kitchen juicer with a glass cup holding a drink (no visible text or symbols)

WARNING! Danger of injury!

Never use your fingers to push through fruits and vegetables. Always use the plunger!

• Juice in the sieve housing flows and gathers in the plastic pitcher. Pressings are separated and gather in the pressings container.
• Fruits and vegetables can be juiced until either the plastic pitcher or pressings container fill up.
• Ensure that the plastic pitcher with splash guard is located under the exit chute placed in the sieve housing.
• When juicing, pay attention to the amount of material in the pressings container. When it fills up, turn the unit off and empty the container.

CAUTION!

The unit can malfunction if the pressings container is overfilled. Spillage from the pressings container can cause juice to enter the motor housing and damage it. Regularly check and empty the pressings container!

CAUTION!

The unit cannot operate without interruption for longer than 3 minutes. After 3 minutes of uninterrupted operation, turn the unit off and leave to cool for at least 20 minutes before using again.

• If too little juice has been squeezed in the time given above, turn the unit off (turn the speed dial to "0") and leave it to cool before juicing more fruits or vegetables.
  • After finishing juicing, turn the juicer off and remove the plug from its socket.

CAUTION!

If the unit is not in use, always disconnect it from its power source. Do the same before removing or attaching sub-assemblies.

Advice and tips

• When preparing juice from different kinds of fruits and vegetables, it can be helpful to combine them based on their characteristics and in various configurations. For example, when juicing apples and oranges, first juice the soft fruit (oranges) then the hard one (apples). This helps make the best juice possible.
• When making juice from fresh herbs such as mint or parsley, insert them into the juicer between pieces of fruits/vegetables in order to get the largest amount of juice. If there is only a small amount of herbs, they should be inserted together with pieces of fruits/vegetables.
• Starchy fruits (banana, papaya, fig, avocado, mango, etc.) are difficult to juice (the mousse created can clog the sieve). Such fruits should be processed in a mixer or blender. If a given juice flavour requires banana, insert it into the juicer as the first or second piece of fruit. Mixing with other juices will help the banana nectar to flow more easily, but can sometimes result in foaming.
• Small fruits such as grapes and strawberries should be juiced in bunches, not individually. This will provide best juicing results.
• Remember that red beets will colour all other fruits and vegetables. Always juice beets after finishing all other juices to avoid undesired colouring.
  • Apple juice quickly turns brown when exposed to air. Add just a hint of lemon juice to it.
• Juice should be served right after squeezing, as with time it will lose taste and nutritional value.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down.
- Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

• Clean the unit regularly.
  Before cleaning, turn the speed dial to "0" and remove the unit's plug from its socket.
  o Disassemble immediately after use the parts of the unit that are to be cleaned.
  Perform disassembly in this order:

Remove the pressings container and empty it.
➢ Pull the locking arm out from the lid.
Remove the lid.
Remove the sieve housing and sieve be lifting it up from the motor housing.
Carefully remove the sieve from its housing.

• Rinse the sieve housing, lid, pressings container, plunger and plastic pitcher under running water, then wash in warm water and a mild cleaning agent. Rinse in clean water.
• Clean the outside of the sieve under running water using the brush included with the unit. Next, clean the inside of the sieve by brushing the unit in a counter-clockwise direction to remove pressings.
  To ensure all pressings that could block the sieve have been removed, examine the sieve under a light source.

WARNING! Danger of injury!

The knives in the sieve are very sharp. To avoid injury, do not touch them with bare hands.

o Before reassembly, carefully wipe down all parts or leave them to dry thoroughly.
o Removable parts can also be washed in a dishwasher.

NOTE!

All removable parts (excepting the motor housing!) are dishwasher-safe.

- Clean the motor housing regularly.

CAUTION!

Never clean the motor housing under running water, nor place in the dishwasher. Wash the motor housing with only a soft, moist cloth.

Do not use any harsh cleaning substances, acetone, alcohol, etc. when cleaning the motor housing as they may damage the unit's surface.
○ After finishing cleaning, wipe dry and polish the surface with a soft, dry cloth.
- If the unit will not be used for a longer time, clean it thoroughly and store in a dry place.

6.3 Safety instructions for maintenance

• Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
• In case of damage or malfunction, please contact your stockist or our customer service centre.
  ○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

Labeled diagram of a brand coffee maker with numbered parts for identification

4.2 Indications techniques

Technical diagram of a coffee maker with numbered parts and directional arrows indicating assembly steps

Exterior view of a modern outdoor juice maker with a glass bowl and fruit in the foreground (no text or symbols visible)

AVERTISSEMENT ! Risque de blessure !

Labeled diagram of a coffee maker with numbered parts for identification

Technical diagram of a coffee maker with numbered parts and directional arrows indicating assembly steps

Exterior view of a modern electric juice maker with a glass cup holding a white liquid (no text or symbols visible)

Labeled diagram of a coffee maker with numbered parts for identification

Technical diagram of a coffee maker with numbered parts and directional arrows indicating assembly steps

Exterior view of a modern outdoor juice maker with a glass bowl and fruit in the foreground (no text or symbols visible)
