Alpatec PRMB 1600 - Heating TAURUS - Free user manual and instructions

Product type	Electric radiant heater
Brand	Taurus
Model	Alpatec PRMB 1600
Dimensions (L x H x D)	73.5 x 53.5 x 20 cm
Weight	6.9 kg
Power supply	220-240 V, 50 Hz
Protection class	Class I (mandatory earthing)
Maximum power	1600 W
Intermediate power	1000 W
Minimum power	600 W
Recommended heating area	16 m²
Heating positions	3 (I, II, III)
Thermostat	Yes, adjustable
Operating indicator light	Yes
Installation	On floor with castors or wall mounting
Safety devices	Tip-over and overheat protection
Panel type	Radiant panel
Maintenance and cleaning	Clean with a damp cloth after unplugging and cooling
Repairability	Call a qualified professional
Use	Household use only
Included accessories	Feet with castors, wall brackets, screws
Recycling	Do not dispose of with household waste (WEEE)

Frequently Asked Questions - Alpatec PRMB 1600 TAURUS

How to install the Alpatec PRMB 1600 heater?

The unit can be installed on the floor with the supplied castors or mounted on the wall. For wall mounting, mark the location at least 25 cm from the floor, drill the wall and screw in the plastic brackets. Then hang the unit on the brackets using the adhesive pads. For floor installation, turn the unit over and attach the feet with the supplied screws. Ensure a clearance of 50 cm around the unit.

Can I use this heater in a bathroom?

No, the unit must not be used in a damp room such as a bathroom, nor near a swimming pool or any water source. Moisture increases the risk of electric shock. Use it only in a dry location.

What to do if the appliance emits an odor during first use?

A slight smoke or odor may occur during first use, this is normal and stops after a few seconds. Ensure the room is well ventilated. If the odor persists, unplug the appliance and contact customer service.

How to clean the heater?

Always unplug the appliance and wait for it to cool completely before cleaning. Use a damp cloth (not wet) to wipe the surface. Never use abrasive products or immerse the appliance in water. Avoid water entering the air vents.

What to do in case of overheating?

The appliance is equipped with an overheat protection device that automatically turns it off in case of excessive heat. If this happens, unplug the appliance and let it cool completely before reuse. Check that the air vents are not blocked. If the problem persists, contact a qualified professional.

The appliance turns off by itself, is this normal?

Yes, the appliance is equipped with a thermostat that automatically cuts off the heating when the desired temperature is reached. It turns back on when the ambient temperature drops. This is normal operation to maintain a constant temperature. The appliance also turns off if it tips over (tip-over safety).

Can I cover the appliance?

No, never cover the appliance when it is plugged in or operating. This causes overheating and a fire risk. The air vents must remain clear. Do not use it to dry textiles or animals.

How to adjust the power and temperature?

Use the operating switch to select the power: position I = 600 W, II = 1000 W, III = 1600 W. Then turn the thermostat to select the desired temperature. The indicator light turns on when the appliance is heating. To turn off, set the switch to 0 and unplug.

Is the appliance equipped with a thermostat?

Yes, the appliance has an adjustable thermostat that controls the ambient temperature. It automatically turns off the heating when the selected temperature is reached and turns it back on if the temperature drops. However, the manual states that the appliance is not equipped with an ambient temperature control thermostat (sic), but there is indeed a thermostat. Use it with caution in small rooms.

What to do if the appliance does not turn on?

First check that the appliance is plugged into a working outlet and that the residual current device has not tripped. Make sure the switch is in a position other than 0. If the appliance still does not turn on, there may be a safety issue (tip-over or overheat). Unplug, wait for cooling and try again. If nothing works, contact customer service.

USER MANUAL Alpatec PRMB 1600 TAURUS

ALPATEC logo featuring a stylized globe and wave design (no text or symbols beyond the logo design)

Two large outdoor heat exchangers with mesh grating and black wheels, no visible text or symbols.

Technical line drawing of a mechanical component with mounting holes and fasteners (no text or symbols)

Fig. 1

Pure technical diagram of a mechanical component with two ports and a central rectangular feature, no text or symbols present.

Line drawing of a cabinet with two doors and a labeled inset showing a 3D box (no text or symbols present)

A : Support en plastique
A: Plastic stand
A: Soporte de plástico
:A مسند بلاستيكي

Fig. 3

Simple line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

B : Patin en plastique
B: Plastic stand
B: Zapata de plástico
A: قطعة سند من البلاستيك

Fig. 4

Français

Panneau rayonnant mobile ou mural PRMB 1600 / PRMB 2400

Cher Client,

$$ \text { PRMB } 2 4 0 0: I = 1 0 0 0 \mathrm{W} $$

$$ \mathrm{II} = 1 4 0 0 \mathrm{W} $$

$$ \mathrm{III} = 2 4 0 0 \mathrm{W} $$

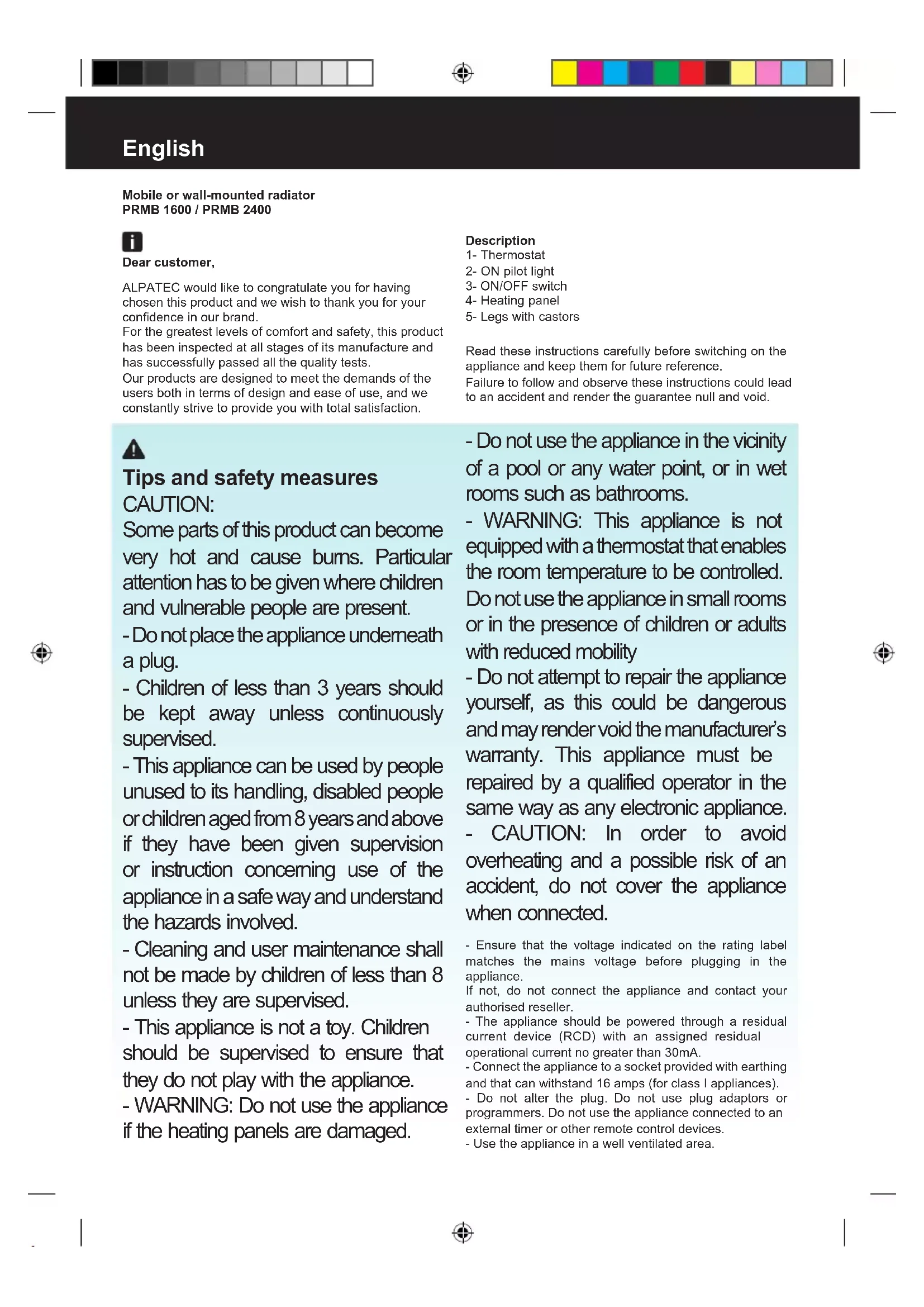

Mobile or wall-mounted radiator PRMB 1600 / PRMB 2400

Dear customer,

ALPATEC would like to congratulate you for having chosen this product and we wish to thank you for your confidence in our brand.

For the greatest levels of comfort and safety, this product has been inspected at all stages of its manufacture and has successfully passed all the quality tests.

Our products are designed to meet the demands of the users both in terms of design and ease of use, and we constantly strive to provide you with total satisfaction.

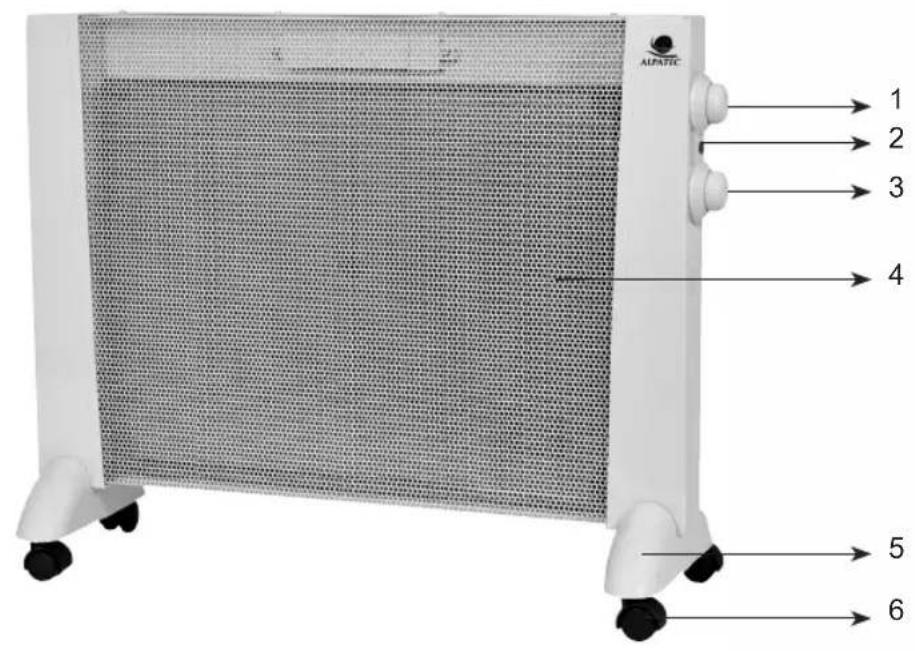

Description

1- Thermostat
2- ON pilot light
3- ON/OFF switch
4- Heating panel
5- Legs with castors

Read these instructions carefully before switching on the appliance and keep them for future reference.

Failure to follow and observe these instructions could lead to an accident and render the guarantee null and void.

Tips and safety measures CAUTION:

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• Do not place the appliance underneath a plug.
• Children of less than 3 years should be kept away unless continuously supervised.
• This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children of less than 8 unless they are supervised.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

• WARNING: Do not use the appliance if the heating panels are damaged.

• Do not use the appliance in the vicinity of a pool or any water point, or in wet rooms such as bathrooms.

• WARNING: This appliance is not equipped with a thermostat that enables the room temperature to be controlled. Do not use the appliance in small rooms or in the presence of children or adults with reduced mobility
• Do not attempt to repair the appliance yourself, as this could be dangerous and may render void the manufacturer's warranty. This appliance must be repaired by a qualified operator in the same way as any electronic appliance.
• CAUTION: In order to avoid overheating and a possible risk of an accident, do not cover the appliance when connected.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

If not, do not connect the appliance and contact your authorised reseller.
- The appliance should be powered through a residual current device (RCD) with an assigned residual operational current no greater than 30mA.
- Connect the appliance to a socket provided with earthing and that can withstand 16 amps (for class I appliances).
- Do not alter the plug. Do not use plug adaptors or programmers. Do not use the appliance connected to an external timer or other remote control devices.
- Use the appliance in a well ventilated area.

If you need to use the appliance at the same time as other gas or fuel appliances, make sure the room is well ventilated.

- Do not leave the appliance in direct contact with sun rays.

- Keep children away from the appliance during its operation.

- Only use the accessories provided and recommended by the manufacturer as the use of other accessories may be dangerous and may damage the appliance.

- The appliance must be placed on a flat, stable surface. Leave a minimum space of 50cm around the appliance.

- Keep the appliance away from heat sources.

- Do not use the appliance near flammable materials, such as curtains, drapes, wall coverings, furniture, etc.

- Do not use the appliance if the power cable or socket are damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance it is damaged.

- Do not touch the appliance or the socket with wet feet or hands wet, or with bare feet.

- Never use the power cord to lift up, carry or unplug the appliance.

- Do not wrap the cable around the appliance.

- Do not cut the connection power cord.

- Do not allow the power cord to come into contact with the appliance's hot surfaces.

- Check the state of the power cord

If there are visible signs of damage, do not plug in the appliance. Contact your distributor or our aftersales service.

- Do not use the appliance outdoors, as it must always be used in a dry place.

- Do not store the appliance outdoors.

- Do not expose the appliance to extreme temperatures or leave it outdoors, in the rain or in wet environments. If water gets into the appliance, this will increase the risk of electric shock.

- The temperature of the accessible surfaces may be high when the appliance is in use.

- Do not touch the heated parts of the appliance, as it may cause serious burns.

Recommendations:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if it is not properly assembled.

- Do not use the appliance if its accessories do not function properly. Replace them in the event of any defects.

- Do not move the appliance while it is in use.

- Do not use the appliance if it is tilted, or turn it upside down while it is connected to the mains.

- Disconnect the appliance from the mains and allow it to cool before undertaking any bulb changing operation, cleaning task or storage.

- This appliance is for household use only, not professional or industrial use.

- Do not store the appliance in a vertical position.

- This appliance should be stored out of reach of children and/or the disabled.

- Store the appliance in a dry and well-ventilated place, at a temperature higher than 2°C and lower than 40°C, free from dust and out of direct sunlight.

- To prevent the risk of accidents, do not place objects or hands in the appliance's small grill vents during its operation. Carry out a regular check to ensure that no object or dust is blocking the vents.

- Never leave the appliance unattended while it is connected to the mains.

- Never leave the appliance unattended when in use and keep out of the reach of children.

- Do not use the appliance to dry pets or animals or textiles of any kind and do not cover the appliance.

- Hold the appliance by its handle to lift it or carry it. Never lift or carry the appliance while it is hot. Wait for the appliance to cool completely before touching it.

- Keep children away from the appliance during its operation and do not let them touch it even when it is turned off.

- Do not submerge the appliance in water or any other liquid, or place it under a running tap.

- Do not expose to extreme temperatures or strong magnetism.

- Do not leave the appliance running if you are going out. Make sure that it is switched off before leaving the house.

- Do not attempt to repair the appliance and the power cord yourself, as this could be dangerous and may render void the manufacturer's warranty. This appliance must be repaired by a qualified operator in the same way as any electronic appliance.

- PLEASE NOTE: Always follow the instructions in this manual for cleaning the appliance, as this could pose the risk of accident otherwise..

- If for any reason the appliance is on fire, immediately disconnect it from the mains, ensure there is no presence of air currents that could stoke the fire and put out the flames with the help of a lid, or other non-flammable items, NEVER using water.

Installation

Be sure to remove all packaging material.

In order to prevent possible risk of accidents, do not leave items such as plastic bags, polystyrene or cables within the reach of children.

Ensure that the voltage indicated on the rating label matches the mains voltage.

If the appliance is to be mounted on a wall, fix it at a height of at least 25 cm from the floor.

The power socket must be easily accessible in order to unplug the appliance quickly in case of emergency.

The appliance must only be used with its wall bracket, supplied with the packaging.

Fixing the legs with castors (Fig. 1):

Put the appliance face down, present the supports facing the orifices and fix them using the supplied bolts.

Wall fixing:

Mark the location on the wall (at least 25 cm from the floor), having first measured the distance between the slots. (Fig. 2).

Drill the holes in the wall over the marks made and screw the plastic supports to the wall. (Fig. 3)

Fix the plastic stands to the rear of the appliance (Fig. 4) Mount the appliance on the supports.

Caution: Remove the legs with castors if you are going to mount the appliance on the wall.

Use:

The appliance may give off a small amount of smoke and/or odour the first time you use it. This is perfectly normal and will disappear after a few seconds.

- Fully unroll the appliance's power cable before each use.

- Make sure that the appliance is properly assembled.

- Connect the appliance to the mains.

- Set the ON switch in the desired position, after which the ON pilot light will come on.

PRMB 1600: I = 600 W

$$ \mathrm{II} = 1 0 0 0 \mathrm{W} $$

$$ \mathrm{III} = 1 6 0 0 \mathrm{W} $$

PRMB 2400 : I = 1000 W

$$ \mathrm{II} = 1 4 0 0 \mathrm{W} $$

$$ \mathrm{III} = 2 4 0 0 \mathrm{W} $$

- Rotate the thermostat to select the desired temperature.

- When the desired temperature is reached, the apparatus will switch off automatically.

- If temperature in the room drops, the appliance will switch on again automatically.

The provided image is a graphic symbol, not text. It does not contain any chart or data points that can be extracted and converted into a markdown table.

Cleaning

Make sure that the appliance is switched off and allow it to cool down before undertaking any cleaning task.

Never clean the appliance while it is in operation, or use abrasive products.

Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

Never submerge the appliance in water or any other liquid or place it under running water.

If the appliance is not completely clean its surface may become degraded, affecting its useful life, and may become dangerous to use.

NB: If you switch the appliance on after long periods of inactivity it may emit a small amount of smoke. This is perfectly normal and is caused by the combustion of leftover accumulated dust particles. This phenomenon may be prevented by cleaning the appliance before using it.

#

Anomalies and repair

If the appliance does not work properly or anomalies occur, do not attempt to disassemble the appliance yourself due to the risk of accident, which would also void the warranty.

Check with our aftersales service using the contact details indicated on the guarantee or contact your distributor.

The manufacturer shall not be responsible in the event of damage caused to people or objects as a result of failure to follow the indications in this manual.

Spécifications :	Unit PRMB 1600 PRMB 2400
Maximum power W 1600 2400
Intermediate power W 1000 1400
Minimum power W 600 1000
Treated surface	m^2	16	24
Protection against electric shock		Class I	Class I
Voltage	V	220-240	220-240
Frequency	Hz	~50	~50
Product dimensions (W x H x D)	Cm	73,5 x 53,5 x 20	84 x 53.5 x 20
oduct weight	Kg 6,9	7,7

Please note: appliances may be updated and therefore may have elements that are different from those shown although this does not affect the indications given in this manual. It is possible that there may be slight differences between the products and the photographs.

Keep this manual in a safe place for future reference.

Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Pure black rectangle with no visible text, symbols, or features

Ecology and recyclability of the product

Once the product's working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment as indicated in the symbol appearing on the product, the instruction manual or the packaging. The materials from which the product is com-

posed are recyclable depending on their respective markings.

In this way, it greatly contributes to the protection of the environment through recycling, material reuse or through other means of reuse of used appliances. Check with your town hall to find out the corresponding container for each type of product.

This appliance complies with Directive 2006/95/

EC on Low Voltage and Directive 2004/108/EC on

Electromagnetic Compatibility.

Español

PRMB 1600 : I = 600 W

$$ \mathrm{II} = 1 0 0 0 \mathrm{W} $$

$$ \mathrm{III} = 1 6 0 0 \mathrm{W} $$

PRMB 2400 : I = 1000 W

$$ \mathrm{II} = 1 4 0 0 \mathrm{W} $$

$$ \mathrm{III} = 2 4 0 0 \mathrm{W} $$
