Dishwasher User manual DW80B70* Series, DW80B60* Series DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 1 2021-12-22 5:11:48English2 Contents Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols 4 Before using your dishwasher 7 Before you start 10 Unpacking your dishwasher 10 Checking parts 11 Unsuitable items for the dishwasher 13 Using your dishwasher 14 Basic use of racks 14 Detergent guidelines 24 Touchpad responsiveness 27 Operations 28 Control panel 28 Cycle overview 32 Simple steps to start your dishwasher 34 Settings 35 SmartThings 37 Special features 40 Maintenance 41 Cleaning 41 Long-term care 45 Cleaning the drain pump 46 Storing your dishwasher 46 Troubleshooting 47 Check these solutions if your dishwasher… 47 Information codes 52 DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 2 2021-12-22 5:11:48English 3 Contents Cycle chart 54

SAVE THESE INSTRUCTIONS

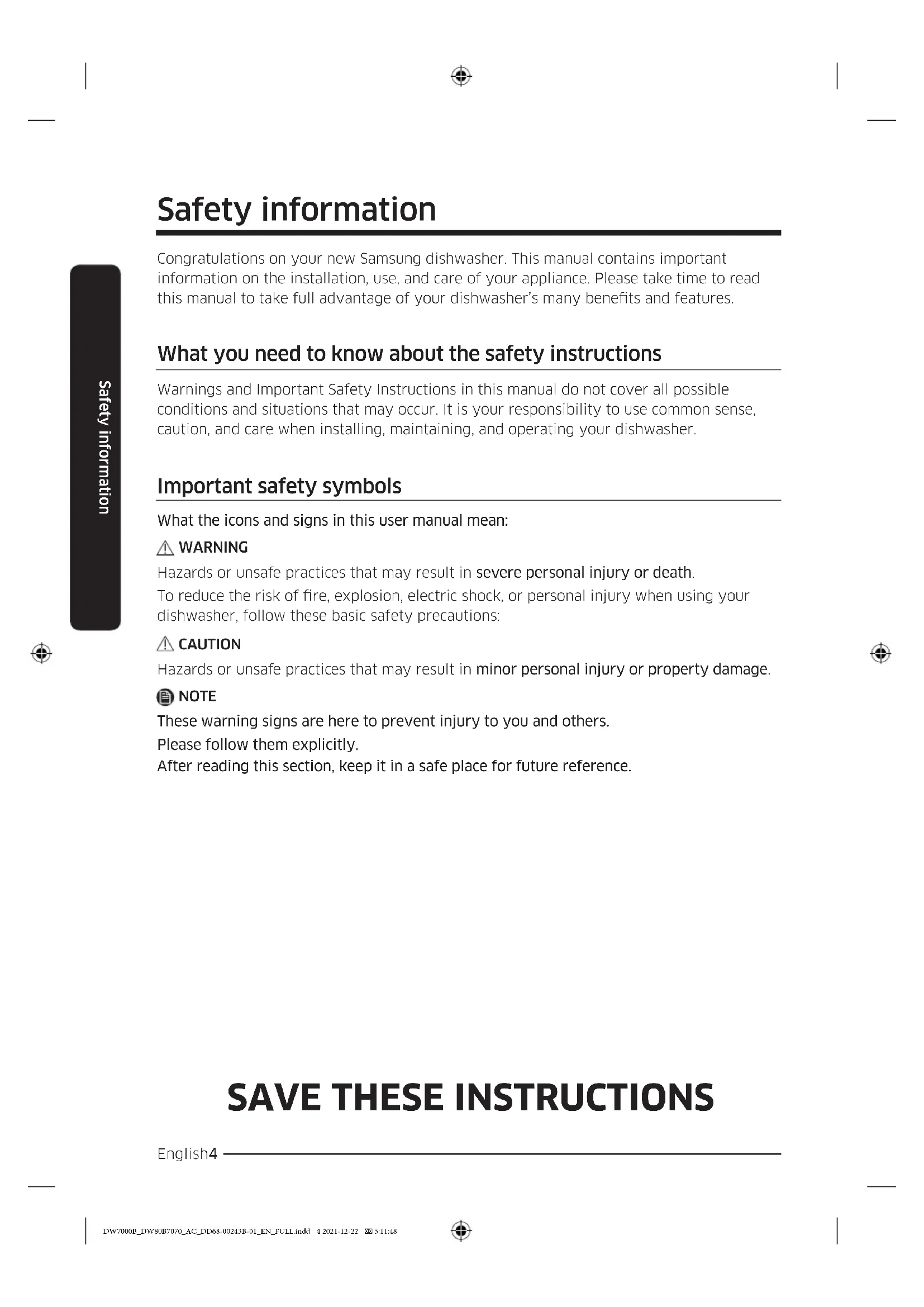

Safety information Safety information Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use, and care of your appliance. Please take time to read this manual to take full advantage of your dishwasher’s many benets and features. What you need to know about the safety instructions Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your dishwasher. Important safety symbols What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury or death. To reduce the risk of re, explosion, electric shock, or personal injury when using your dishwasher, follow these basic safety precautions: CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. NOTE These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 4 2021-12-22 5:11:48English 5

SAVE THESE INSTRUCTIONS

Safety information California Proposition 65 Warning

WARNING: Cancer and Reproductive Harm -

www.P65Warnings.ca.gov WARNING When using your dishwasher, follow basic precautions, including the following:

1. Read all instructions before using the dishwasher.

2. Use the dishwasher only for its intended function.

3. Use only detergents or wetting agents recommended for use in a dishwasher and keep

them out of the reach of children.

4. When loading items to be washed:

- locate sharp items so that they are not likely to damage the door seal, and - load sharp knives with the handles up to reduce the risk of cut-type injuries.

5. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.

For plastic items not so marked, check the manufacturer’s recommendations.

6. Do not touch the HEATING ELEMENT during or immediately after use.

7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

8. Do not tamper with the controls.

9. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

10. To reduce the risk of injury, do not allow children to play in or on the dishwasher.

11. Under certain conditions, hydrogen gas may be produced in a hot-water system that

has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot- water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water ow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is ammable, do not smoke or use an open ame during this time.

12. Remove the door to the washing compartment when removing an old dishwasher from

service or discarding it. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 5 2021-12-22 5:11:48English6

SAVE THESE INSTRUCTIONS

Safety information Safety information CAUTION

• After unpacking the dishwasher, keep the packaging out of the reach of children.

• The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.

• As with any equipment using electricity, water, and moving parts, potential hazards exist.

• Do not install the dishwasher near electrical components. Keep the dishwasher away from open ames.

• Install and level your dishwasher on an uncarpeted oor that can support its weight.

• Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet. See page 7 for more information on grounding your dishwasher.

• Connect the ground wire to the green ground connector in the terminal box.

• After the dishwasher is installed, check that the drain hose is properly connected and that there is no leakage from the hose connectors. If the drain hose is loose, it may cause property damage.

• The water supply line is susceptible to breakage. As time goes by, it becomes less exible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it immediately.

• To safely operate this appliance, familiarize yourself with its operations and exercise care when using it.

• Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not wash dishes exposed to these materials.

• Keep your dishwasher detergent out of the reach of children. Detergent has an adverse effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the detergent come into contact with your skin and eyes.

• Do not push or place pressure on the door when it is open, as this may damage the dishwasher or cause harm.

• Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher.

• Disconnect the power cable (or set the circuit breaker to off) before servicing your dishwasher.

• Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs, and modications are permitted by authorized service technicians only. Work done by an unauthorized person may void your warranty. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 6 2021-12-22 5:11:48English 7

SAVE THESE INSTRUCTIONS

• Before disposing of your dishwasher, remove the door of the washing compartment or the door latch so that children or small animals cannot get trapped inside.

• If the dishwasher is left unused for an extended period of time, turn off the water supply.

• This dishwasher is intended for residential use only. Before using your dishwasher WARNING Tip-Over Hazard

• Do not use the dishwasher until it is correctly installed.

• Do not push down on the dishwasher door when it is open.

• Do not place excessive weight on the dishwasher door when it is open. Electric Shock Hazard Failure to follow these instructions can result in death, re, or electric shock:

• Electrically ground the dishwasher

• Connect the ground wire to the green ground connector in the junction box.

• Do not use an extension cord. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 7 2021-12-22 5:11:49English8

SAVE THESE INSTRUCTIONS

Safety information Safety information Regulatory notice FCC Notice FCC CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that cause undesired operation. For products sold in the US and Canadian markets, only channels 1–11 are available. You cannot select any other channels. FCC STATEMENT: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna

• Increasing the separation between the equipment and receiver

• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.

• Consulting the dealer or an experienced radio/TV technician for help. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 8 2021-12-22 5:11:49English 9

SAVE THESE INSTRUCTIONS

Safety information FCC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co- located or operated in conjunction with any other antenna or transmitter. IC Notice The term “IC” before the radio certication number only signies that Industry Canada technical specications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. For products sold in the US and Canadian markets, only channels 1–11 are available. You cannot select any other channels. IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 9 2021-12-22 5:11:49English10 Before you start Before you start Be sure to have your installer follow these instructions closely so that your new dishwasher works properly and that you’re not at risk of injury when washing dishes. Unpacking your dishwasher

• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage. If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the dishwasher, and contact Samsung Customer Service at the number listed on the next page.

• If there is no damage to the product, you can proceed with the installation. If you are going to install it yourself, make sure to read through the installation guide and follow the directions inside.

• After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 10 2021-12-22 5:11:49English 11 Before you start Checking parts When your dishwasher has been unpacked, make sure you’ve received all the parts shown below. If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service at 1-800-SAMSUNG (726-7864).

rack NOTE Accessory parts - User/Installation manual, Installation Kit, Kick Plate. CAUTION

• Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint. These materials will damage the dishwasher. Ash does not dissolve and will spread inside the dishwasher.

• Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks, paper napkins, etc. from your dishes. Food remains and waste can make noise, cause the dishwasher to malfunction, and damage your dishes and dishwasher. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 12 2021-12-22 5:11:50English 13 Before you start Unsuitable items for the dishwasher WARNING Wash only items such as glass, porcelain, and cutlery which the manufacturer states is dishwasher safe. Do not wash aluminium (e.g. grease lters). The dishwasher may damage aluminium, or in extreme cases, cause a severe chemical reaction. Do not wash the following items in the dishwasher.

• Copper, brass, tin, ivory, and aluminium items or items with adhesive

• Non-heat resistant plastics

• Craft items, antiques, valuable vases, and decorative glassware

• Pottery or glazed-ceramic items

• Wooden cutlery and crockery or items with wooden parts

• Delicate glassware or glassware containing lead crystal. Clouding may occur on the glassware after frequent washing. NOTE Silverware that has contacted food containing sulphur may become discoloured. Food with sulphuric content include egg yolks, onions, mayonnaise, mustard, sh, sh brine, and marinades. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 13 2021-12-22 5:11:50English14 Using your dishwasher Using your dishwasher Basic use of racks Angle of the plate supports In the Lower rack, you can easily fold down the fold-down tines to make room for large items such as pots and pans in the StormWash

area. Remove the rack from the dishwasher, and then fold down the tines one at a time. See the illustration below. Lower rack In the Upper rack, you can adjust the angle of the tines to two different positions to match the size and shape of your dishes. To adjust the tines, grasp the handle at the front of the rack, and then push it left or right. See the illustration below. Upper rack DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 14 2021-12-22 5:11:51English 15 Using your dishwasher Height adjustment You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. Depending on where you set the upper rack height, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodated plates up to 8 in. (20 cm) in diameter. To raise the upper rack Pull the upper rack upwards. The adjustable handle will latch, and the upper rack will rise. To lower the upper rack Hold both the adjustable handles located at the left and right sides of the upper rack, and then evenly press down. CAUTION

• Adjust the height of the upper rack before loading dishes into the rack. Adjusting the rack after loading the dishes may damage the dishes.

• Make sure to hold both handles when adjusting, or the dishwasher door may not close properly. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 15 2021-12-22 5:11:51English16 Using your dishwasher Using your dishwasher To remove the upper rack Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the front. See the illustrations below. CAUTION While the upper rack is removable, it must be installed for the dishwasher to operate properly. If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will perform poorly. Step 1. Step 2. Step 3. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 16 2021-12-22 5:11:52English 17 Using your dishwasher To remove the 3

1. Stand facing the dishwasher, and then

rack out so that the handles at the ends of the rack supports (dark grey in the illustration) are even with the end of the rack.

2. With your right thumb, nd the small

indentation on the inside of the left rack support that houses the tab for the handle lock.

3. Push the handle lock tab in (i.e. to your

left) with the tip of your thumb, and then pull the handle towards you until it disengages from the support.

4. Repeat this process with the right

handle using your left thumb.

5. When the handles are removed, remove

rack from the dishwasher.

6. Reverse the order of removal to

rack. CAUTION Make sure the hook-shaped part of the handle faces downward and the handle lock (circled) re-engages when reinserting the handle into the rail. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 17 2021-12-22 5:11:52English18 Using your dishwasher Using your dishwasher Loading dishes Loading the lower rack The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates. Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper rack. See the recommended loading patterns below. 10 place settings 12 place settings DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 18 2021-12-22 5:11:53English 19 Using your dishwasher Loading the Storm Wash⁺ Area For more effective cleaning, load large items into the Storm Wash⁺ area on the left side of the lower rack (Red zone). When you select Storm Wash⁺, the dishwasher supplies additional power to reinforce the water jet in the Storm Wash⁺ area. Make sure pot handles and other items do not interfere with the rotation of the nozzles. CAUTION

• Take caution not to clog the hot air outlet of SmartDry in the right corner of the lower basket. Clogged outlet will not facilitate heat circulation.

• Keep plastic dishes away from the hot air outlet of SmartDry as they are vulnerable to heat. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 19 2021-12-22 5:11:53English20 Using your dishwasher Using your dishwasher Loading the upper rack The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other. See the illustrations below. Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.) When loading dishes, pull the upper rack out sufciently so you can load it without striking the counter above. 10 place settings 12 place settings Using the glass support The glass support is especially suited for wine glasses. Hang wine glasses onto the pegs of the glass support. Fold the glass support back when it is not being used. CAUTION Do not adjust the level of the upper rack with the glass support propped up. This will make it impossible to adjust the upper rack. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 20 2021-12-22 5:11:54English 21 Using your dishwasher Loading the 3

The cutlery rack is best suited for atware and cooking or serving utensils. Use it with the spoon stands in the lower basket. You can load cutlery and utensils in the 3rd rack or the spoon stands in the lower basket. Removing the Cutlery Rack The entire cutlery rack can be removed if more space is needed on the upper rack for larger items. (See the “To remove the 3rd Rack” section on page 17.) DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 21 2021-12-22 5:11:54English22 Using your dishwasher Using your dishwasher Loading the Cutlery rack The cutlery rack consists of two compartments. You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent chipping and discoloration. See the illustrations below. You can use the cutlery rack with the cover open. Refer to the illustration on the left. 10 place settings 12 place settings DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 22 2021-12-22 5:11:55English 23 Using your dishwasher The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items below. NOTE Do NOT let any item extend through the bottom. Do not load chopsticks in this rack, which should be loaded in the 3rd rack.

5. Serving spoons and Serving forks

DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 23 2021-12-22 5:11:55English24 Using your dishwasher Using your dishwasher Detergent guidelines All dishwasher cycles require detergent in the detergent compartment. Apply detergent as appropriate for the selected cycle to ensure best performance. WARNING

• Do not consume dishwasher detergent. Avoid breathing in detergent fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have consumed dishwasher detergent or inhaled detergent fumes, seek medical attention immediately.

• Keep dishwasher detergent out of children’s reach. CAUTION Use dishwasher detergent only. Other types of detergent produce excessive foam, which may decrease the dishwasher’s performance or cause it to malfunction. To ll the detergent dispenser

1. Gently press the dispenser ap to

unlock, and then slide it open. Note that the dispenser ap opens at the end of each cycle. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 24 2021-12-22 5:11:55English 25 Using your dishwasher

2. Apply the recommended amount of

detergent to the main compartment.

3. Close the ap, and then press down to

lock. NOTE This dishwasher has no separate compartment for tablet detergent.

4. For better performace, pour a small

amount of detergent onto the door to clean heavily soiled items more effectively. The additional detergent will activate during the pre-wash process. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 25 2021-12-22 5:11:55English26 Using your dishwasher Using your dishwasher Rinse aid Rinse aid improves the drying performance of the dishwasher. When the Rinse Rell indicator lights up on the control panel, rell with rinse aid. Only use liquid rinse aid. Powdered rinse aid will clog the compartment opening and cause the dishwasher to malfunction. CAUTION

• Do not apply any type of detergent to the rinse aid compartment.

• Do not over ll the compartment. Excessive rinse aid may overow during a cycle.

1. Pull up the cap of the rinse

compartment to open.

2. Fill the compartment with rinse aid as

specied by the rinse aid manufacturer. NOTE For more information on setting the rinse aid amount, see page 35.

3. Press down the circle area of the cap

to close. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 26 2021-12-22 5:11:56English 27 Using your dishwasher Touchpad responsiveness To prevent the touch-enabled controls from losing responsiveness, follow these instructions.

• Touch the center of each button with one nger.

• Do not touch more than one button at a time, except as directed.

• Clean the surface of the control panel regularly with a soft, damp cloth. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 27 2021-12-22 5:11:56English28 Operations Operations WARNING To reduce the risk of re, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. Control panel DW80B7* Series

01 POWER When you press the POWER button, the Cycle On light for the most recently started cycle turns on. When the selected cycle is complete, the dishwasher powers off automatically. 02 Cycle Selector Select the appropriate wash cycle depending on the soil level of your dishes. After you select a cycle, the Cycle On light for that cycle lights. If you want to change the cycle once it has started, press the POWER button. Then, turn on the dishwasher again and select a new cycle. 03 Lower Rack If selected, only the lower rack nozzle is activated to reduce both the cycle time and power consumption. Use this cycle to wash a small load of dishes or glasses in the lower rack. To wash heavily soiled items, select the Storm Wash⁺ option. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 28 2021-12-22 5:11:57English 29 Operations 04 Storm Wash⁺ Use this option when you want to wash pots and pans, durable serving bowls, and other large, very dirty, hard to clean dishes. To use Storm Wash⁺, place the dishes face down in the marked Storm Wash⁺ area in the lower basket. 05 Hi-Temp Wash Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food. 06 Sanitize / (Control Lock) With the Sanitize option selected, the water temperature is increased to 163 ˚F (73 ˚C) in the nal rinse cycle for high temperature sanitization. If you select the Sanitize option, the "Sanitize" lamp blinks when the water temperature reaches the sanitary temperature (over 155 ˚F (68 ˚C)), and then remains illuminated until the Sanitize option ends. When you open the door or press the POWER button, the "Sanitize" lamp turns off. NOTE Only Normal cycle with the Sanitize option has been designed to meet the requirements for soil removal and sanitization efcacy in NSF 184. For the Sanitize mode, the amount of detergent as 3/4 oz (20 g) in Main wash dispenser and 1/3 oz (10 g) on the door for pre-wash is used. Control Lock allows you to lock the buttons on the control panel so children cannot accidently start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold the Sanitize button down for three (3) seconds when the power is On. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 29 2021-12-22 5:11:57English30 Operations Operations 07 SmartDry Hi/Lo

• Hi – Press SmartDry Hi/Lo once to select “SmartDry High”. This option increases the rinsing temperature up to 73 ˚C and enhances the drying performance compared to “SmartDry Low”.

• Lo – Press SmartDry Hi/Lo twice to select “SmartDry Low”. This option reinforces the drying performance inside the dishwasher through the circulation of heated air. And it increases the cycle time accordingly. NOTE “SmartDry Low” is a recommended drying option by the manufacturer.

• Off – Press SmartDry Hi/Lo three times to exit.

• SmartDry Low condition is the recommended for regular use to completely wash a full load of normally soiled dishes. CAUTION

• The dishwasher stays in a high temperature inside during the SmartDry process. Do not open the door or touch any of loaded dishes or the hot air outlet of SmartDry in the lower right corner.

• Take caution not to clog the hot air outlet of SmartDry with dishes. Clogged outlet will not facilitate heat circulation.

• Keep plastic dishes away from the hot air outlet of SmartDry as they are vulnerable to heat.

• To enhance the drying performance, it is recommended to use rinse for the SmartDry cycle. 08 Smart Control You can monitor and control the dishwasher remotely through a Wi-Fi connection. To connect the dishwasher to your smart phone for the rst time, press and hold Smart Control. For more information, see the “SmartThings” section on page 37. 09 Display Displays information about the current cycle including the cycle time, remaining time, Delay Start settings, and other cycle-specic information. If a problem occurs during operation, an information code appears with a warning sound. Refer to the information codes on page 52. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 30 2021-12-22 5:11:57English 31 Operations 10 Delay Start Delay a cycle for up to 24 hours in one-hour increments. To increase the delay start time, press or hold the Delay Start button. The hour displayed indicates the time at which the wash will start. - After setting the delay time, press the START button, and then close the door to start the cycle. - To change the delay time after the dishwasher has started, rst turn the dishwasher off and turn it back on. Then, select a new cycle and change the delay time settings. 11 START To start a cycle, press the START button before closing the door. Cancel & Drain: To cancel a currently running cycle and drain the dishwasher, press and hold the START button for three (3) seconds. Once the dishwasher is reset, select a cycle and option, and then press START to restart the dishwasher. Indicators Control Lock indicator Lights up if Control Lock is activated, and blinks if any button except for the POWER button is pressed. Self Clean indicator Lights up if Self Clean is activated, and blinks for 5 seconds every 20-22 cycles. The cycle counter disappears when the Self Clean cycle is complete, or the dishwasher reaches the 23rd cycle. Rinse Rell indicator Lights up if the dishwasher runs out of rinse aid. Smart Control Lights up if SmartThings is activated. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 31 2021-12-22 5:11:58English32 Operations Operations Progress displays DW80B7071** series DW80B6061** series Wash When the dishwasher is in a wash portion of a cycle, the rst light is illuminated. Rinse When the dishwasher is in a rinse portion of a cycle, the second light is illuminated. Dry When the dishwasher is in a drying portion of a cycle, the third light is illuminated. End After the dishwasher has completed all portions of a cycle, all lights are turned off. Cycle overview

01 Auto This cycle detects the level of soil and automatically initiates the optimal cycle after a few minutes of operation. 02 Normal Use this cycle for normally soiled dishes. The energy-usage label is based on this cycle. 03 Heavy Use this cycle for heavily soiled dishes. 04 Delicate Use this cycle for soiled, fragile items such as ne glassware and crystal glass (wine glass). Do not use this cycle for other glassware because clouding or etching may occur. 05 Express 60' Use this cycle when you need to wash dishes quickly. It takes about 1 hour. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 32 2021-12-22 5:11:58English 33 Operations 06 Pre Blast Use this cycle for dislodging large food debris roughly in a quick time and preventing caking. No detergent or rinse is applied. 07 Download Cycle Beside the default cycles, you can download and use additional cycles on your smartphone. Download Cycle Beside the default cycles, you can download and use additional cycles on your smartphone.

1. Press POWER button, and then select the Download Cycle.

2. Select a downloadable cycle on your smartphone app.

Cycles available: Self Clean, Plastic, Pots Pans, Baby Care, Night. - The default cycle is Self Clean. - You can save the downloaded cycle for future use.

3. Press START button, and close the door of the dishwasher.

Self Clean Use this cycle to clean the dishwasher’s tub. If the dishwasher needs self cleaning, the Self Clean indicator will blink for 5 seconds. If you start a cycle when the indicator is blinking, the indicator turns off automatically. Be sure to run the Self Clean cycle with the dishwasher empty, and never use it as a wash cycle to clean dishes. Plastic Appropriate for cleaning plastic dishes that are vulnerable to heat and temperature. Pots Pans Appropriate for cleaning cookware such as pans and pots that are likely to be soiled heavily. Baby Care Use this cycle to rinse dishes with high-temperature water before drying. No detergent is applied. Night Use this cycle for normal dishwashing after a meal. This cycle takes a longer time but less energy than the Normal cycle. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 33 2021-12-22 5:11:58English34 Operations Operations Simple steps to start your dishwasher

1. Open the door, and then load the dishwasher. Make sure dishes are empty.

2. If applicable, put the dishes in the lower rack. If adding the Storm Wash⁺ option, put the

dishes in the left side of the lower rack.

3. Add detergent to the detergent dispenser. For better results, add rinse aid to the rinse

aid compartment. NOTE You should use rinse aid for better drying performance. You can further improve drying performance by also selecting the Sanitize option.

4. Press POWER, and then select a cycle with necessary options (Lower Rack,

Storm Wash⁺, Hi-Temp Wash, Sanitize). If you change the cycle after selecting an option, the original cycle is reset.

5. Press START, and then close the door within 3 seconds. The dishwasher starts the cycle

after draining for a few seconds. NOTE

• To change the cycle after it has started, press and hold START for 3 seconds to cancel the cycle. Then, select a new cycle.

• To resume after you have opened the door to stop the dishwasher while operating, simply press START rst, and then close the door. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 34 2021-12-22 5:11:58English 35 Operations Settings You can change the sound, Auto Release™ Dry alert, Rinse aid amount, and Auto Release™ Dry settings to your preference. To change the settings, press the Sanitize and Delay Start buttons simultaneously for 3 seconds. Press Sanitize to navigate through the sub menus, and then press Delay Start to conrm your changes. Sound U1/U0 Auto Release™ Dry alert J1/J0 Rinse aid amount F1~F6 Auto Release™ Dry A1/A0 Sound Press Sanitize until ‘U1’ or ‘U0’ is displayed. To mute the dishwasher, select ‘U0’, and then press Delay Start. To unmute, select ‘U1’, and then press Delay Start. Auto Release™ Dry alert You can enable or disable the setting that alerts you when the door opens to start the Auto Release™ Dry function. Press Sanitize until ‘J1’ or ‘J0’ is displayed. To disable the Auto Release™ alert, select ‘J0’, and then press Delay Start. To enable, select ‘J1’, and then press Delay Start. Rinse aid amount Press Sanitize until ‘F1~F6’ is displayed. The higher the number, the more rinse aid the dishwasher uses. To improve drying performance, select a higher number. If your dishes appear discolored after a wash, switch to a lower number. The factory default level is ‘F4’. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 35 2021-12-22 5:11:58English36 Operations Operations Auto Release™ Dry The Auto Release™ Dry function, which is designed to improve drying performance, automatically opens the dishwasher’s door 1 to 15 minutes before a cycle ends. You can enable or disable Auto Release™ Dry in two ways: Using the Setting Mode or using the toggle keys. Both methods are described starting below. Press Sanitize until “A1” or “A0” is displayed. Then, press Delay Start to enable (A1) or disable (A0) Auto Release™ Dry. Using the Toggle Keys : Press the Lower + Hi-Temp Wash button for 3 seconds to enable (A1) or disable (A0) Auto Release™ Dry. NOTE

• Once the door opens on the Auto Release™ Dry mode, the door cannot be closed manually for the next 2 minutes.

• Disabling (A0) “Auto Release™ Dry” can affect the drying results. Enable (A1) “Auto Release™ Dry” for better drying result.

• After a cycle is complete, the door automatically opens to let steam out. This is normal and not a product malfunction. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 36 2021-12-22 5:11:59English 37 Operations SmartThings Wi-Fi connection On your smartphone, go to Settings, and then connect to your home Wi-Fi network. Download On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), nd the SmartThings app using “SmartThings” as the search term. Download and install the app on your device. NOTE

• The SmartThigns app is designed for Android 8.0 or later, iOS 13.0 or later.

• For improved performance, the SmartThings app is subject to change without notice, or discontinued support according to the manufacturer’s policy. Log in You must rst log into SmartThings using your Samsung account. To create a new Samsung account, follow the instructions on the app. You don’t need a separate app to create your account. NOTE If you have a Samsung account, use the account to log in. A registered Samsung smartphone user automatically logs in. To register your device to SmartThings

1. Make sure your smartphone is connected to a wireless network.

2. Run SmartThings on your smartphone. iPhone users are required to provide the login

information each time they access the app.

3. When a message of “A new device is found.”, select Add.

4. If no message appears, select + and then select your dishwasher in a list of devices

available. If your dishwasher is not listed, select Device Type > Specic Device Model, and then add your dishwasher manually.

5. Follow the on screen instructions to complete the connection process for your

dishwasher. Press and hold Smart Control for more than 5 seconds until the “AP” message appears on the display. Your dishwasher will be registered with the app.

6. When the process is complete, your dishwasher will appear in the list of devices on

your SmartThings App.

7. Tap the dishwasher icon to open the dishwasher page.

8. When a network connection is established, the Wi-Fi icon lights up on your dishwasher.

DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 37 2021-12-22 5:11:59English38 Operations Operations Dishwasher app Integrated control: You can monitor and control your dishwasher both at home and on the go.

• Select the dishwasher icon on SmartThings. The dishwasher page appears.

• Check the operation status or notications related to your dishwasher, and then change options or settings if necessary. NOTE

• This device is designed for household use only (Class B), and can be used in all residential areas.

• This device may cause wireless interference, and neither the manufacturer or the installer of this device can provide a safety measure of any kind.

• Recommended encryption methods are WPA/TKIP and WPA2/AES. Newly developed Wi-Fi protocols or unapproved Wi-Fi protocols are not supported.

• The reception sensitivity of a wireless network may be affected by surrounding wireless environments.

• If your Internet provider has registered the MAC address of your PC or the modem module for permanent use, your Samsung dishwasher may fail to connect to the Internet. If this is the case, contact your Internet provider.

• The Internet rewall may interrupt your Internet connection. If this happens, contact your Internet provider.

• If your dishwasher still fails to connect to the Internet after you have followed the instructions of your Internet provider, contact a local Samsung retailer or service center.

• To install and set up your wired or wireless router, refer to the user manual that came with your router.

• Your Samsung dishwasher supports the Wi-Fi 2.4 GHz protocols.

• Your Samsung dishwasher supports the IEEE802.11 b/g/n (2.4 GHz), Soft-AP protocols. (IEEE802.11n is recommended)

• An unapproved wired/wireless router may fail to connect to your Samsung dishwasher.

• The SmartThings app is available on Android devices with OS 8.0 or higher and iOS devices with iOS 13 or higher. The app is optimised for Samsung smartphones (Galaxy S and Note series).

• Some functions of the app may operate differently on third-party devices.

• The app is subject to change without notice for improved performance. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 38 2021-12-22 5:11:59English 39 Operations SmartThings Category Checkpoint Description Monitoring Washing status You can check the current cycle and its options, and the remaining cycle time. Smart Control The Smart Control status is shown for the dishwasher. Energy monitoring Use this to monitor the energy consumption status. Control Start/Pause/Cancel Select a cycle and necessary options, and then select Start/Pause/Cancel to start an operation, to stop temporarily, or to cancel the current operation. My Favorite Add frequently used cycles and options to My Favorite for later use. Delay Start Set Delay Start to start the cycle at a scheduled time. (Delay up to 24 hours.) Notication Cycle completed Noties you that the current cycle is complete. Detergent Noties you if the dishwasher is out of rinse aid. Washing Recipe Cycle recommendation Recommends the best cycle with optimal options for loaded dishes. Homecare Wizard Maintenance The wizard features a device management service and a usage guide. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 39 2021-12-22 5:11:59English40 Operations Operations Special features Delay Start You can delay the cycle starting time up to 24 hours in 1-hour increments. To increase the delay time, press Delay Start. The hour displayed indicates the time at which the cycle will start.

1. Open the door, and then load the dishwasher.

2. Press Delay Start, and then press or hold Delay Start to change the time in 1-hour

NOTE To change the delay time once the dishwasher has started, press POWER and then restart the dishwasher. Touch Controls Touch controls allow you to operate the dishwasher easily.

• They are convenient to operate, requiring only a soft touch.

• Have a simple and stylish design.

• Are easy to clean. NOTE If you have children or you want to clean the Control Interface, we recommend activating the Control Lock feature to lock the control buttons. Control Lock To prevent children from playing with the dishwasher, Control Lock locks all button controls except for POWER.

• To activate Control Lock, press and hold Sanitize or Lock for 3 seconds. With Control Lock activated, you cannot select a cycle or option, or start an operation.

• To deactivate Control Lock, press and hold Sanitize or Lock again for 3 seconds.

• Control Lock remains active after the dishwasher restarts. To cancel Control Lock, you must deactivate it rst. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 40 2021-12-22 5:11:59English 41 Maintenance Maintenance Cleaning Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and lengthen its lifecycle. Exterior Clean spills on the surface of the dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. CAUTION

• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances. These materials may discolour the surface of the dishwasher and cause stains.

• The dishwasher has electric parts inside. Do not sprinkle water directly onto the dishwasher. Protect electrical components from coming in contact with water.

• For a stainless-steel door panel, clean using a stainless steel cleaner for home appliances and a clean, soft cloth. Interior Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles. Wipe inside the dishwasher and inside the door with a wet dishcloth. To maintain optimum cleanliness, we recommend running the Self Clean cycle periodically with the dishwasher empty. To keep the cutlery pad clean, turn it over after each use. To remove white spots and odors from the cutlery pad, run the Self Clean cycle with the dishwasher empty and no detergent until the cutlery pad ushes. Then, stop the cycle and put an 8-ounce cup of white vinegar into the lower basket. Close the door, and then resume the cycle. Use a damp cloth to remove lime scale or grease deposits inside the dishwasher. Alternatively, apply some detergent, and then run an empty cycle using the highest rinse temperature. CAUTION

• Do not remove the front seal (the long rubber seal enclosing the opening of the dishwasher). The seal keeps the inner side of the dishwasher sealed. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 41 2021-12-22 5:11:59English42 Maintenance Maintenance Nozzles To prevent the nozzles from being clogged, or if the nozzles are clogged, remove and clean each nozzle. Use caution when removing the nozzles as they may break. Upper nozzle

1. Open the door, and then pull out the

upper rack to reveal the upper nozzle.

2. Turn counter clockwise to remove the

nozzle cap, and then remove the nozzle.

3. Unclog and clean the nozzle.

4. Reinsert the nozzle, and then tighten

5. Rotate the nozzle by hand to make sure

the nozzle is engaged correctly. Top nozzle

1. Check whether the nozzle holes are

clogged by food particles.

2. If cleaning is needed, remove the top

upper rack rst, unfasten the nozzle cap by turning it counterclockwise, and then remove the nozzle.

4. Clean the nozzle, re-insert it, and then

fasten the nozzle cap to the nozzle by turning the cap clockwise.

5. Check whether the nozzle is engaged

correctly by rotating it by hand. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 42 2021-12-22 5:12:00English 43 Maintenance Lower nozzle

1. Open the door, and then pull out the

lower rack to reveal the lower nozzle.

2. Pull up the nozzle to remove it.

3. Clean the nozzle.

4. Re-insert the nozzle, and then push the

nozzle down until you hear a click.

5. Rotate the nozzle by hand to make sure

the nozzle is engaged correctly. Filter We recommend cleaning the lter every month.

1. Open the door, and then remove the

2. Turn the lter handle counterclockwise

to unlock the lter cover. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 43 2021-12-22 5:12:00English44 Maintenance Maintenance

3. Remove the lter cover, and then the

cylindrical micro lter underneath.

4. Remove any dirt and impurities from

the micro lter and the lter cover.

5. Rinse them with running water, and

then dry well. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 44 2021-12-22 5:12:01English 45 Maintenance

6. Reinsert the lter, and then the lter

7. Turn the lter handle clockwise to lock.

CAUTION Make sure the lter cover is closed properly. A loose cover can reduce the ltering performance. Storm Wash

nozzle has already been rotated, rotate it back to the original position as shown. To do this, rotate the nozzle until you can contact on the rear side. Long-term care If you will not use the dishwasher for an extended period of time, rst drain the unit completely, and then disconnect the water hose. Shut off the water supply valve and the circuit breaker. Water remaining in the hoses or the internal components can damage the dishwasher. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 45 2021-12-22 5:12:01English46 Maintenance Maintenance Cleaning the drain pump If the dishwasher fails to drain because the drain pump is clogged with foreign matter or there is an abnormal noise coming from the drain pump, you must unclog and clean the drain pump as instructed below.

1. Remove the lower rack.

2. See the "Filter" section to remove the

cylindrical micro lter.

3. Remove any moisture from the lter

4. Remove the drain-pump cover by

pushing its handle in the direction of the arrow (1), and then pulling up (2).

5. Check the impeller to see if it's in good

condition. Then, remove any foreign matter from the pump.

6. Reinsert the drain-pump cover and then

press down until you hear a click. Storing your dishwasher If you need to store your dishwasher for an extended period of time, rst drain and disconnect it. If you leave water in the hoses and internal components, you can damage the dishwasher. After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit breaker. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 46 2021-12-22 5:12:02English 47 Troubleshooting Troubleshooting Check these solutions if your dishwasher… Problem Possible cause Solution Will not start. The door is not closed completely.

• Check if the door is latched and closed completely. Check whether the Upper Rack is properly joined to the Duct Nozzle.

• Also, check if the Upper Rack is crooked or unbalanced. The START button was not pressed.

• See the information code that appears on the display. Doesn't operate at all.

• Make sure the power cable is connected properly. The water supply does not work.

• Check if the water supply valve is open.

• Check if the supplied water pressure is between 20 and 120 psi (between 140 and 830 kPa). The Control Panel is locked.

• Unlock the Control Lock, (See page 29.) A circuit breaker is open. • Reset the circuit breaker. An operation or cycle is taking too long. The dishwasher is connected to a cold water supply.

• Check if the water supply line is connected to a cold water supply. To work properly, the dishwasher must be connected to a hot water supply. (If connected to a cold water supply, additional time is required to heat the cold water.) DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 47 2021-12-22 5:12:02English48 Troubleshooting Troubleshooting Problem Possible cause Solution There are food particles remaining on dishes. (Not cleaning properly.) The cycle selected was unsuitable.

• Select a cycle according to the number and soil level of the dishes, as directed in this manual. The water temperature is low.

• Connect the water supply line to a hot water supply. For best performance, the temperature of the supplied water should be 120 ˚F (49 ˚C). Low water pressure.

• The water pressure should be between 20 and 120 psi (140- 830 kPa). The water is too hard.

• Use a commercial dishwasher cleaner.

• Use high-quality, fresh detergent with rinse aid. Dishwasher detergent was not used.

• Use automatic dishwasher detergent.

• We recommend a powder type or multi-function tablet dishwasher detergent. Detergent remains in the dispenser.

• Make sure large items such as cookie sheets, cutting boards, or contaners, etc. are not blocking the detergent dispenser and preventing it from opening properly.

• Rearrange the dishes so they do not interfere with detergent dispenser operation. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 48 2021-12-22 5:12:02English 49 Troubleshooting Problem Possible cause Solution There are food particles remaining on dishes. (Not cleaning properly.) There is no rinse aid.

• Check the dispenser and add rinse aid.

• Use liquid type rinse aid. A nozzle is clogged. • Clean the nozzle. See page 42. The dishes are improperly loaded. Too many dishes have been loaded.

• Rearrange the dishes so they do not interfere with nozzle rotation and detergent dispenser operation.

• Load only an appropriate number of dishes.

• Load your dishes as recommended. (See page 18.)

• Load the heavily soiled items into the Storm Wash⁺ area. (See page 19) The lters are clogged or not correctly fastened. (Food soils remain on the lter.)

• Scrape food from dishes prior to loading. (Do not pre-rinse.)

• Clean the lter. (See page 43.)

• Make sure the lters are correctly fastened. Less water than required is supplied.

• Check if the supplied water pressure is between 20 and 120 psi (between 140 and 830 kPa). Leaves glasses with a light lm. The water supplied is soft and too much detergent was used.

• Underload the dishwasher and use a rinse aid to minimize this. Aluminum dishes were included in the wash load.

• Remove the marks on the dishes using a low sensitivity cleaner. Leaves a yellow or brown lm on the inside of the dishwasher. This is caused by coffee and tea soils.

• Remove the soils using a spot cleaner.

• Use a cycle with a higher temperature. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 49 2021-12-22 5:12:02English50 Troubleshooting Troubleshooting Problem Possible cause Solution Does not dry dishes well. There is no rinse aid in the dispenser or not enough rinse aid was used.

• Check the rinse aid settings. The temperature of the water is low when the dishwasher is running.

• Connect the water supply line to a hot water supply.

• Use rinse aid with the Sanitize or SmartDry Hi/Lo option. Too many dishes have been loaded.

• Proper loading of items can affect drying.

• Load your dishes as recommended. (See page 18.) Glasses and cups with concave bottoms hold water. This water may spill onto other items when you unload.

• After nishing the cycle, empty the lower rack rst and then the upper rack. This will prevent water dripping from the upper rack onto the dishes in the lower rack. Auto Release™ Dry is turned off.

• Turn Auto Release™ Dry on. Press the Lower Rack + Hi-Temp Wash button for 3 seconds to access the Auto Release™ Dry menu. Select "A1" to activate Auto Release™ Dry. Multiple detergent tablets were used without selecting the Sanitize option.

• Select the Sanitize option or use rinse aid. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 50 2021-12-22 5:12:02English 51 Troubleshooting Problem Possible cause Solution Has a bad odor. Water was left over from an incomplete cycle.

• Clean the dishwasher by running the Heavy cycle with the dishwasher empty and no detergent. The Drain Hose is obstructed.

• Contact a qualied service technician to remove any obstruction from the drain hose. The dishwasher is not used daily or soiled dishes are left in unit too long.

• With the dishwasher empty and no detergent, place a glass with 8 ounces of vinegar upright into the lower rack, and then run a Heavy cycle. Is too noisy. Sound is generated when the dispenser cover is open and the drain pump is operating in an early stage.

• This is normal operation. The dishwasher is not level.

• Ensure the dishwasher is level. Foreign material (a screw, a plastic piece) is in the pump chamber.

• Contact a qualied service technician to remove foreign material from the pump chamber. There is a ‘chopping’ sound because a nozzle is bumping against the dishes.

• Rearrange the dishes. Less water than required is supplied.

• Check if the supplied water pressure is between 20 and 120 psi (between 140 and 830 kPa). Does not have a smoothly rotating nozzle. Nozzle holes are clogged with food particles.

• Clean the nozzle holes. (See page 42.) The nozzle is blocked by a dish or pot and cannot rotate.

• After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes interfere with them. Water won’t pump out of the dishwasher. The drain is clogged.

• Clean the drain pump by removing the drain-pump cover. (See page 46.) DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 51 2021-12-22 5:12:02English52 Troubleshooting Troubleshooting Problem Possible cause Solution Has a bent upper rack after dishes are loaded. The dishes are not loaded properly.

• Load your dishes as recommended. (See page 18.) Cannot close the door. Auto Release™ Dry mode is in operation.

• Once the door opens in the Auto Release™ Dry mode, the door cannot be closed manually for the next 2 minutes. You may close the door after 2 minutes. Information codes The Control Panel displays information codes to help you understand what is occurring with your dishwasher. Code Action

• If a water supply valve connection leak occurs, close the water supply valve and go to your house circuit breaker panel, set the dishwasher’s circuit breaker switch to off, and then contact the installer to x. If the problem continues, contact an authorized Samsung service center.

• Check if the water supply valve is closed or clogged, or is frozen. Also check if the supplied water pressure is less than required. If the problem continues, close the water supply valve, and then contact an authorized Samsung service center.

• After closing the water supply valve, check whether the drain hose is clogged or folded. Also, check whether the drain hole inside the sump is clogged. If the problem continues, contact an authorized Samsung service center.

High temperature heating check.

• Functional check. With the dishwasher empty, add detergent, and then run a cycle. If the problem continues, go to your house circuit breaker panel, set the dishwasher’s circuit breaker switch to off, and then contact an authorized Samsung service center. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 52 2021-12-22 5:12:02English 53 Troubleshooting Code Action

Pump operation check.

• Functional check. Turn off the dishwasher and try to start it again. If the problem continues, contact an authorized Samsung service center.

• Functional check. Turn off the dishwasher and try to start it again. If the problem continues, contact an authorized Samsung service center. HC2 Dry heater failure check.

• Turn the dishwasher off and turn it back on. Then, try again. If the problem continues, contact an authorized Samsung service center. HC4 Dry heater overheat check.

Cycle time (min) 89 150 Available Options Lower Rack X O Storm Wash⁺ X O Hi-Temp Wash X O Sanitize X O SmartDry-High O O SmartDry-Low O O Delay Start O O

• When you select the Auto or Normal cycle, running the Prewash and Rinse cycles depends on the soil level of the load.

• The water consumption and wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water.

Cycle time (min) 130 115 157 Available Options Lower Rack X O O Storm Wash⁺ X X O Hi-Temp Wash X X O Sanitize X X O Delay Start O O O DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 60 2021-12-22 5:12:03English 61 Cycle chart Cycle BabyCare Night Cycle sequence Hot Rinse Dry End Prewash Mainwash Rinse Hot Rinse Dry End Temp [˚F (˚C)] Main wash - 131 (55) Hot Rinse *Sanitize 163 ˚F (73 ˚C) 163 (73) 130 (54) Water consumption [gal (ℓ)]

1.0 (3.8) 5.0 (19.1)

Cycle time (min) 80 170 Available Options Lower Rack X O Storm Wash⁺ X O Hi-Temp Wash X O Sanitize X O Delay Start O O

• When you select the Auto or Normal cycle, running the Prewash and Rinse cycles depends on the soil level of the load.

• The water consumption and wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water.

• When the Rinse Aid is empty, wash time and Last Rinse temperature can increase a little. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 61 2021-12-22 5:12:03English62 Appendix Appendix Helping the environment

• Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cable so that the appliance cannot be connected to a power source.

• Remove the door so that animals and small children cannot get trapped inside the appliance.

• Do not exceed the detergent quantities recommended in the detergent manufacturers’ instructions. Specications MODEL DW80B7070AP / DW80B7071US / DW80B7071UG / DW80B7070US / DW80B7070UG / DW80B6061US / DW80B6061UG / DW80B6060US / DW80B6060UG Type Built-in Dishwasher Power 120 V / 60 Hz AC only, 15 A circuit breaker Wash capacity 15 place settings Used water pressure 20-120 psi (140-830 kPa) Rated power uasge Wash Motor 60-100 W Heater 1100 W Dimensions (Width × Depth × Height)

in. (605 x 693 x 860 mm) (DW80B7071U* / DW80B6061U*) Weight (Unpacked)

(DW80B7070AP / DW80B6061U* / DW80B6060U*)

(DW80B7070U* / DW80B7071U*) DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 62 2021-12-22 5:12:03English 63 Open Source Announcement Open Source Announcement The software included in this product contains open source software. The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 63 2021-12-22 5:12:03English64 Warranty (CANADA) Warranty (CANADA) SAMSUNG DISHWASHER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year All Parts and Labor, Five (5) Years Printed Circuit Board, Racking (Labor Charges for in-home service starting from the 2nd year is customer’s responsibility), and Lifetime Stainless Door Liner & Tub for leakage. If the unit cannot be repaired, Samsung will replace your unit with same or current model (that is better or equivalent in functionality) (Labor related to replacement is customer’s responsibility). This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous Canada. In home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 64 2021-12-22 5:12:03English 65 Warranty (CANADA) This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, uctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 65 2021-12-22 5:12:03English66 Warranty (CANADA) Warranty (CANADA) Some states or provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state or province to province. To obtain warranty service, please contact SAMSUNG at: In CANADA Samsung Electronics Canada Inc. 2050 Derry Road West Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 66 2021-12-22 5:12:03Memo DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 67 2021-12-22 5:12:03QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT U.S.A - Consumer Electronics - Mobile Phones 1-800-SAMSUNG (726-7864) 1-844-SAM-PAYS (726-7297) www.samsung.com/us/support CANADA 1-800-SAMSUNG(726-7864) 1-844-SAM-PAYS (726-7297) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) bit.ly/samsungdishwashers DW7000B_DW80B7070_AC_DD68-00243B-01_EN_FULL.indd 68 2021-12-22 5:12:03Lave-vaisselle Manuel d'utilisation Série DW80B70*, série DW80B60* DW7000B_DW80B7070_AC_DD68-00243B-01_CFR_FULL.indd 1 2021-12-21 8:24:33Français2 Table des matières Table des matières Consignes de sécurité 4 Ce que vous devez savoir sur les consignes de sécurité 4 Symboles de sécurité importants 4 Avant d'utiliser votre lave-vaisselle 7 Avant de commencer 10 Déballage du lave-vaisselle 10 Contrôle du contenu 11 Objets non adaptés au lave-vaisselle 13 Utilisation du lave-vaisselle 14 Utilisation de base des paniers 14 Recommandations relatives au produit de lavage 24 Sensibilité du pavé tactile 27 Opérations 28 Tableau de commande 28 Présentation des programmes 32 Étapes simples pour démarrer votre lave-vaisselle 34 Réglages 35 SmartThings 37 Fonctions spéciales 40 Entretien 41 Nettoyage 41 Entretien sur le long terme 45 Nettoyage de la pompe de vidange 46 Entreposage de votre lave-vaisselle 46 Dépannage 47 Consultez ces solutions si vous rencontrez l'un des problèmes suivants avec votre lave-vaisselle. 47 Codes d'information 52 DW7000B_DW80B7070_AC_DD68-00243B-01_CFR_FULL.indd 2 2021-12-21 8:24:33Français 3 Table des matières Tableau des programmes 54

application SmartThings.

(DW80B7070AP / DW80B6061U* / DW80B6060U*)
