Product type	Extractor hood
Brand	SMEG
Model	KCV80NE2
Minimum safety distance (cooking surface)	650 mm
Exhaust duct diameter	120 mm minimum
Electrical class	Class I (mandatory earthing)
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 speeds + intensive mode
Delayed shut-off function	Yes (5 minutes)
Timed intensive function	Yes (6 minutes)
Lighting	Integrated, replacement by after-sales service
Activated charcoal filter	Replacement approximately every 4 months, not washable
Grease filter	Dishwasher safe, clean every 2 months
Usage	Domestic use only
Country of manufacture	Not specified (Italy likely)

Frequently Asked Questions - KCV80NE2 SMEG

What is the minimum installation height between the hood and the hob?

The minimum safety distance is 650 mm. If the hob instructions specify a greater distance, that takes precedence.

How to clean the grease filters?

The grease filters must be cleaned every 2 months. They are dishwasher safe.

When should the charcoal filter be replaced?

The activated charcoal filter cannot be washed and must be replaced approximately every 4 months, or more often with heavy use.

How to activate intensive mode?

Press the D button a second time to activate the timed intensive speed (6 minutes). The hood turns off automatically after this time.

How to use delayed shut-off?

Press the Delay button to activate the automatic delayed shut-off of 5 minutes. Ideal for eliminating residual odors.

What to do if the lighting no longer works?

Contact the after-sales service for lighting replacement. Do not attempt to replace it yourself.

Can I use the hood without an exhaust duct?

The hood can operate in recirculation mode with a charcoal filter. Make sure to install a suitable charcoal filter.

What are the risks if the hood is incorrectly installed?

Incorrect installation may cause electric shock or fire risks. Follow the instructions and use appropriate screws.

Can the hood be used with gas appliances?

Yes, but you must ensure sufficient ventilation of the room to prevent backflow of combustion gases. The negative pressure must not exceed 0.04 mbar.

How to clean the exterior of the hood?

Use a damp cloth with a neutral liquid detergent. Avoid abrasives.

USER MANUAL KCV80NE2 SMEG

Technical line drawing of a cabinet or enclosure with mounting base (no text or symbols)

KCV60NE KCV60SE2

KCV60BE KCV80SE2

KCV60SGE KCV60BE2

KCV80NE KCV60NE2

KCV80BE KCV80BE2

KCV80SGE KCV80NE2

EN USER MANUAL....3

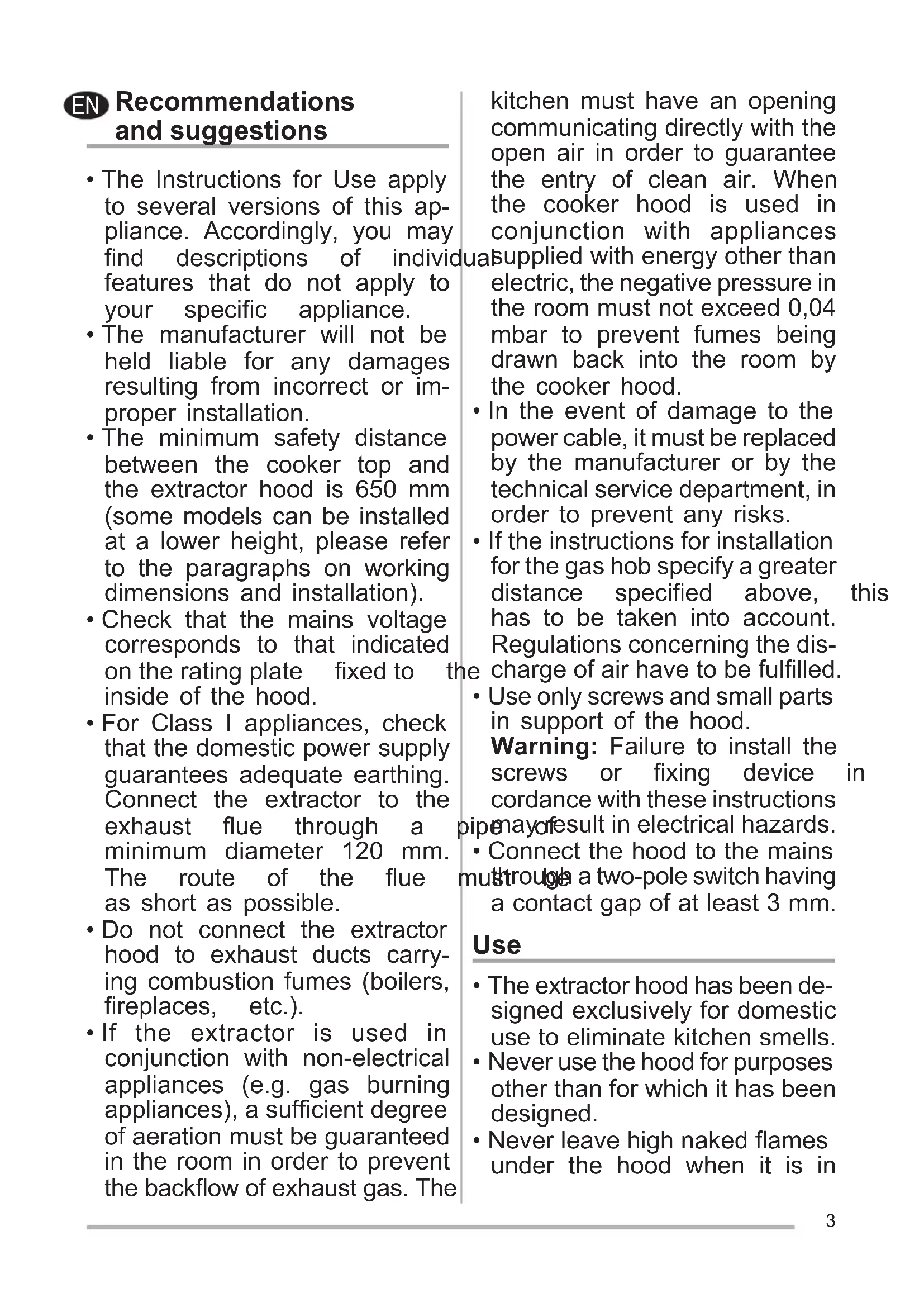

Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a minimum diameter 120 mm. The route of the flue as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The

kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances was supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, has to be taken into account. Regulations concerning the dis-e charge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in cordance with these instructions may result in electrical hazards.

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in

operation.

• Adjust the flame intensity direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

Maintenance

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environ-

ment and human health, which toould otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

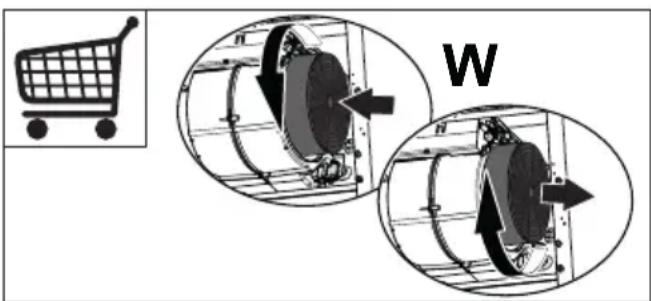

- The Activated charcoal is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).
