USER MANUAL ADB1400AMW AMANA

User-Maintenance Instructions 4

INSTALLATION REQUIREMENTS....5

Tools and Parts ....5

Location Requirements 7

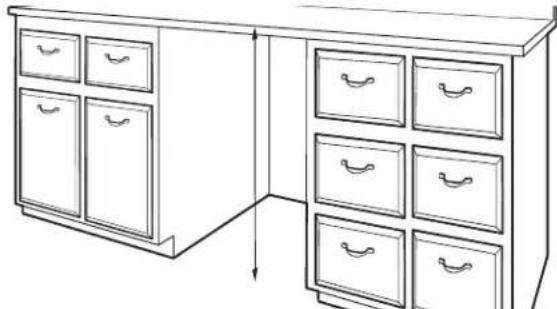

Cabinet Opening Dimensions 8

Drain Requirements 8

Water Supply Requirements....8

Electrical Requirements 8

INSTALLATION INSTRUCTIONS 9

Before You Begin....9

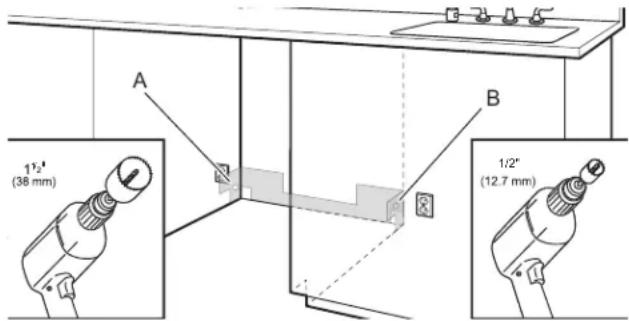

Prepare Cabinet Opening - New Utilities....9

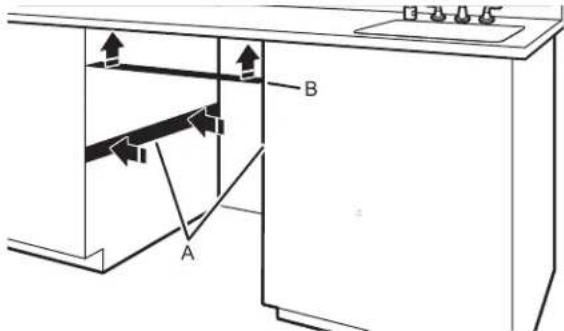

Install Optional Moisture Barrier (Recommended for Wood Countertops).... 10

Electrical Connection 10

Prepare Dishwasher 11

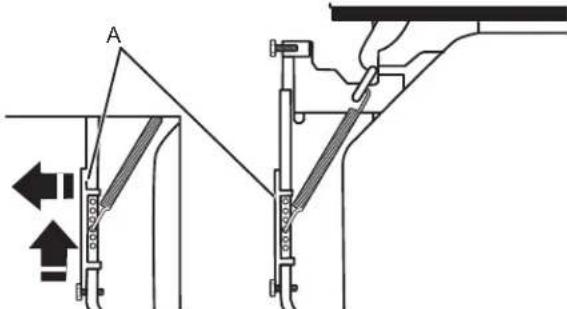

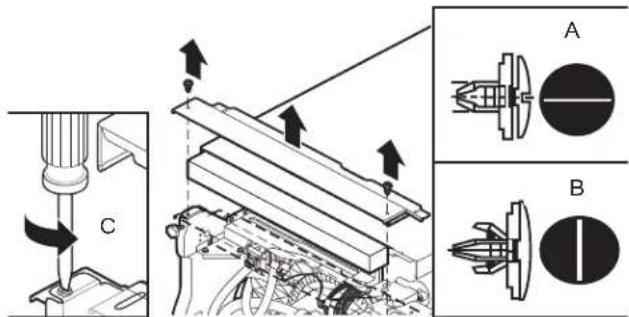

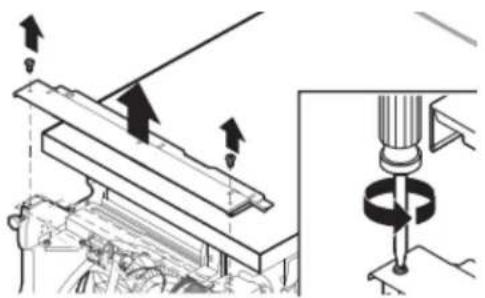

Remove Access Panel 11

Connect Water Line to Fill Valve.... 12

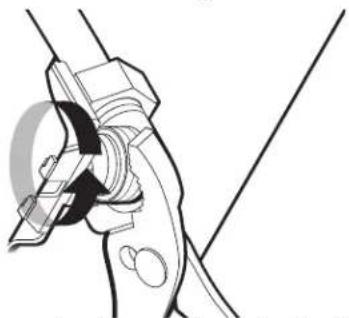

Connect Fill Hose to Fill Valve.... 13

Drain Hose Connection 13

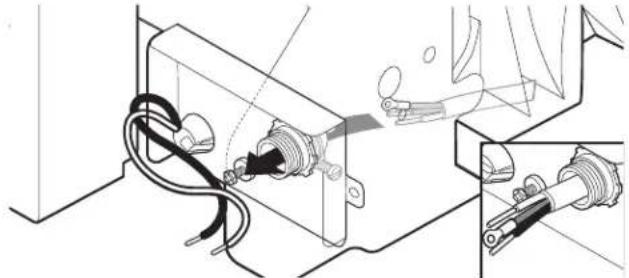

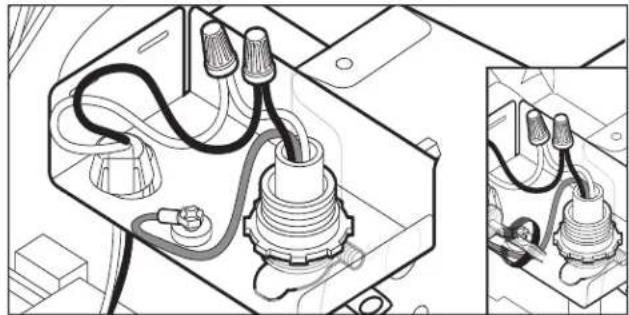

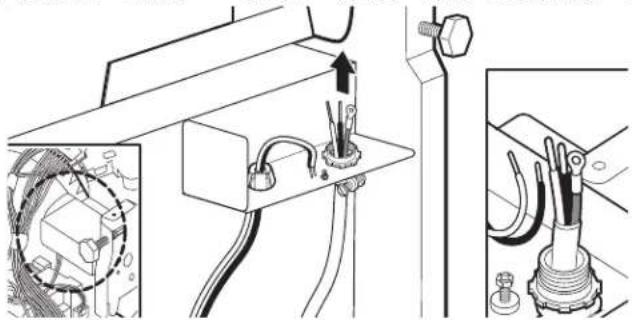

Power Cord Connection 14

Install Door Handle (on some models) 16

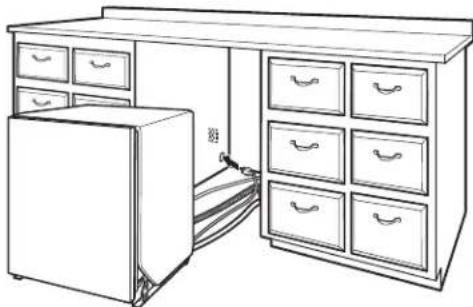

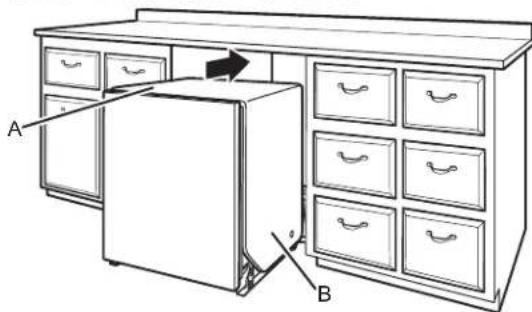

Place Dishwasher in Cabinet 16

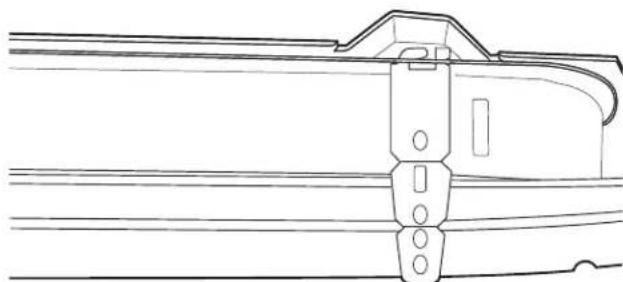

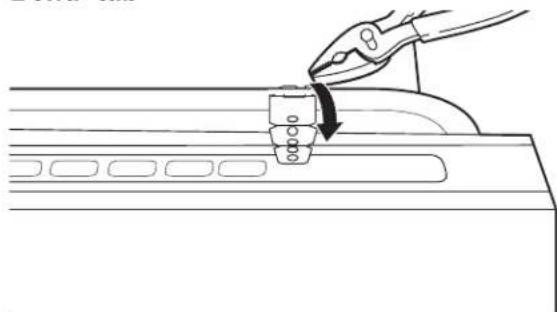

Choose Anchor Attachment Method.... 17

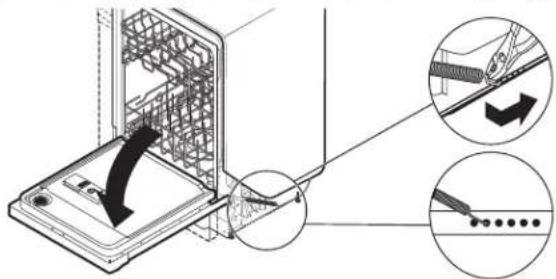

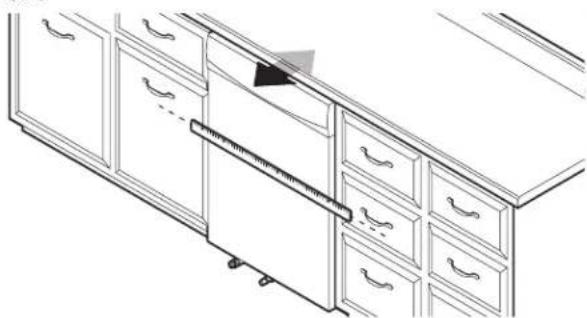

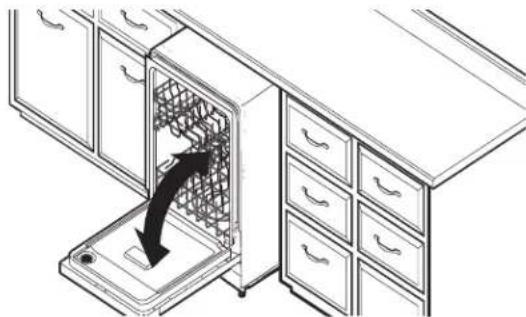

Final Installation Check 18

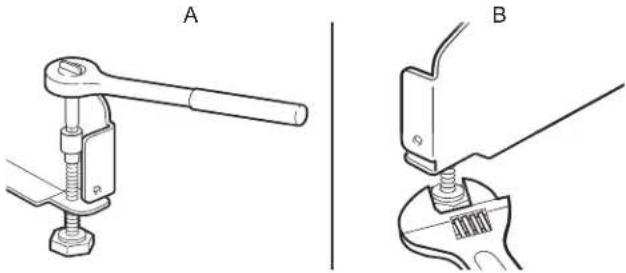

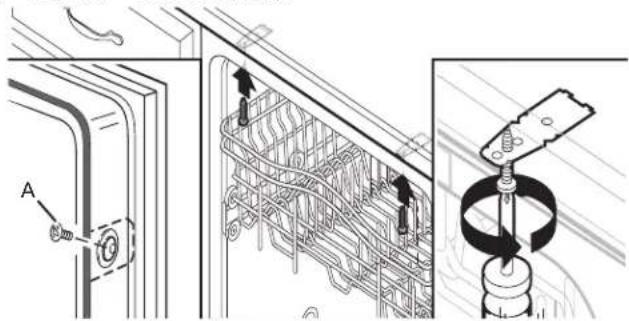

Secure Dishwasher in Cabinet Opening.... 19

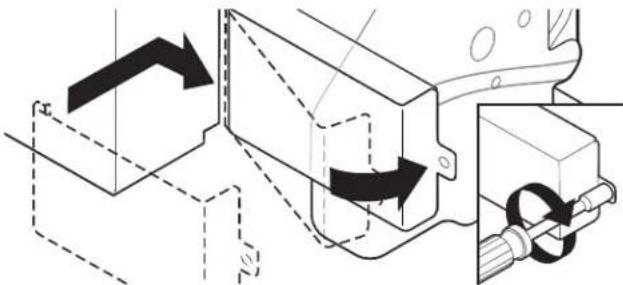

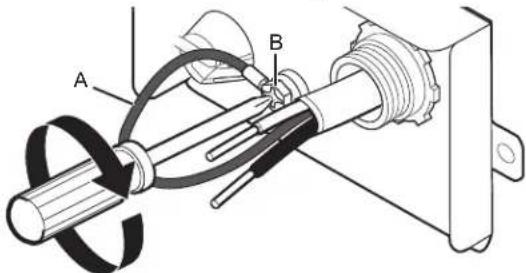

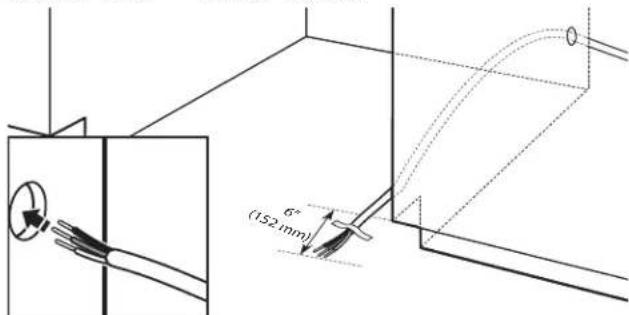

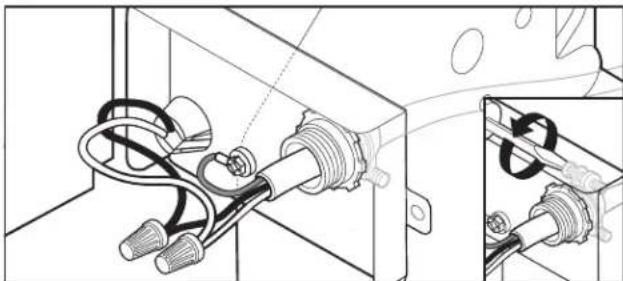

Direct Wire Connection 20

Connect Water Line to House Shutoff Valve.... 21

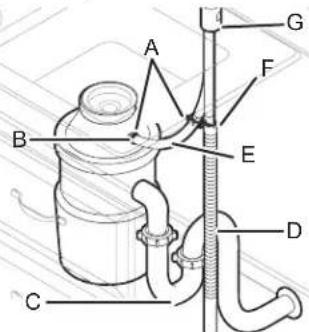

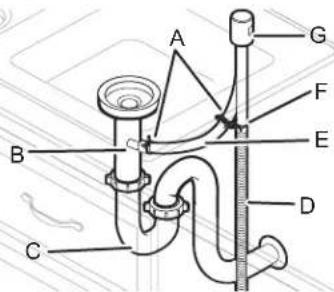

Connect Drain Hose 21

Complete Installation 24

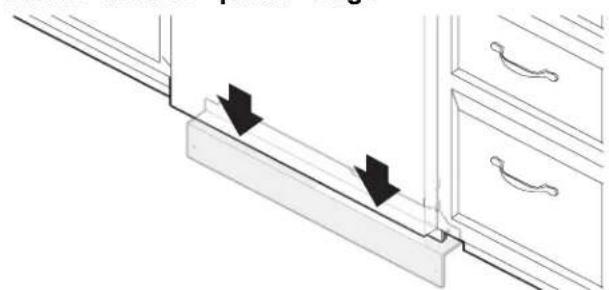

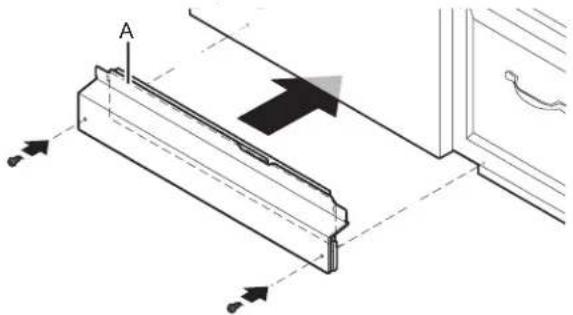

Install Access Panel 24

Check Operation.... 25

If Dishwasher Does Not Operate 25

Additional Tips.... 25

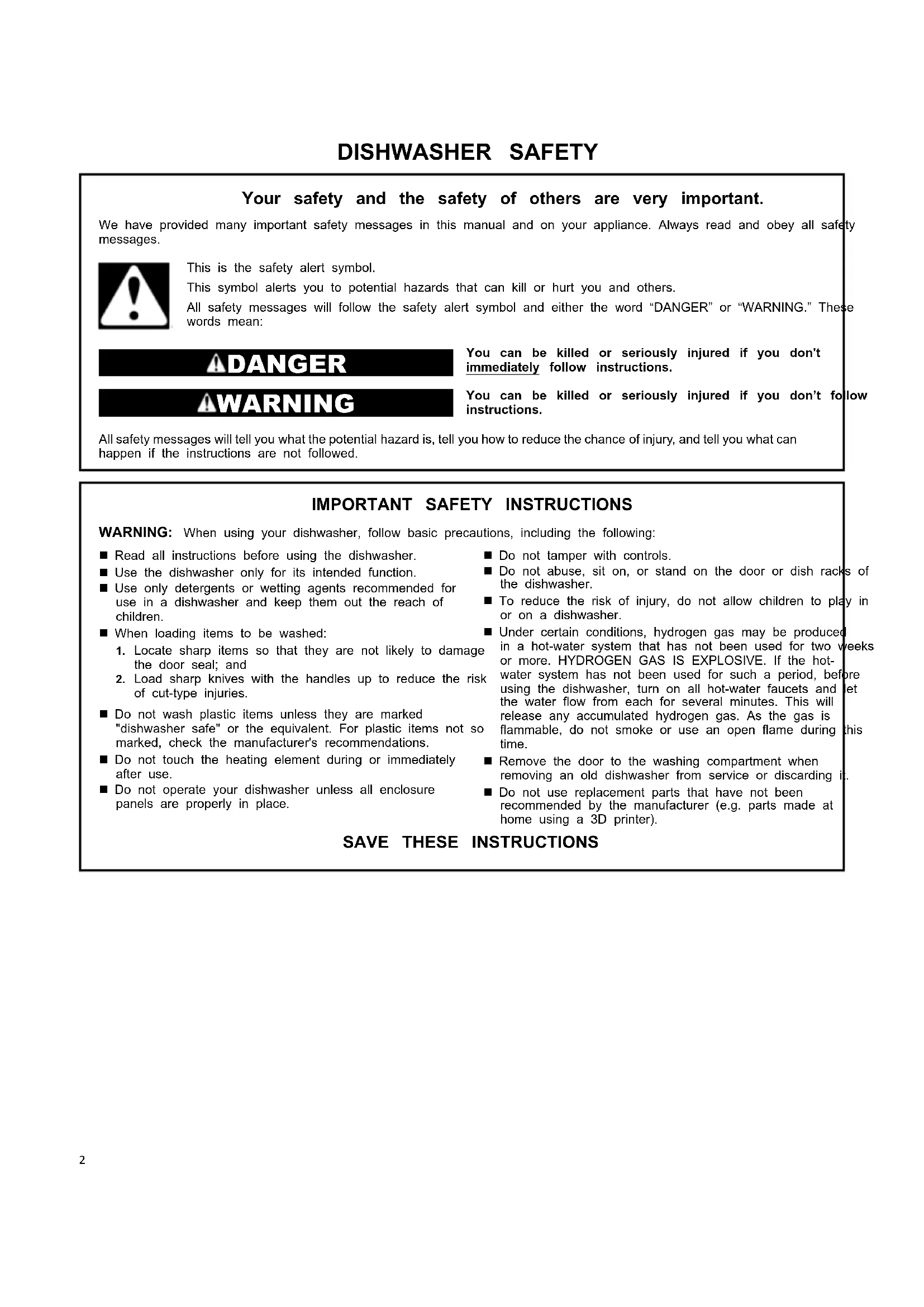

SÉCURITÉ DU LAVE-VAISSELLE.... 26

ENTRETIEN ET RÉPARATION DU LAVE-VAISSELLE ..... 28

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using your dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or wetting agents recommended for use in a dishwasher and keep them out the reach of children.
  ■ When loading items to be washed:

• Locate sharp items so that they are not likely to damage the door seal; and

• Load sharp knives with the handles up to reduce the risk of cut-type injuries.

■ Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Do not touch the heating element during or immediately after use.
■ Do not operate your dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.
■ To reduce the risk of injury, do not allow children to play in or on a dishwasher.
■ Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
■ Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

☐ For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinance.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed. Do not push down on open door.

Doing so can result in serious injury or cuts.

DISHWASHER MAINTENANCE AND CARE

User-Maintenance Instructions

Cleaning the Exterior

Clean the exterior of the dishwasher with only a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, it may have a coating that is resistant to fingerprints. Avoid using abrasive cleaning products on the exterior of the dishwasher.

Cleaning and Maintaining the Interior

Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh®+Dishwasher Cleaner can help to remove the residue. Monthly use of affreshDishwasher Cleaner is recommended to help maintain the dishwasher. Follow package directions.

Another method to remove white residue is to use a vinegar rins. However, vinegar is an acid and using it too often could damage your dishwasher.

Place (do not pour) 2 cups (500 mL) white vinegar in a glass or dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water.

NOTE: We recommend the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dishwasher cleaning and daily care.

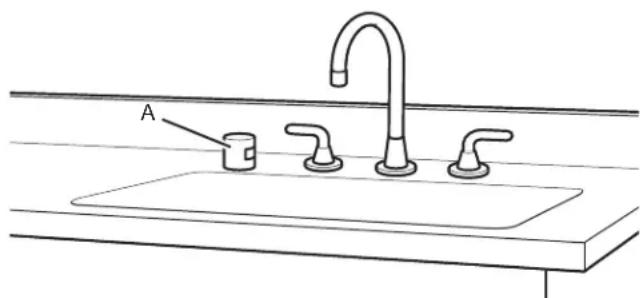

If you have a drain air gap, check and clean it if the dishwasher not draining well.

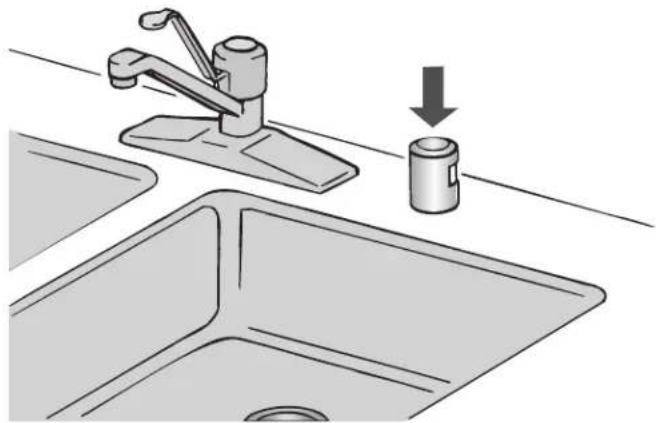

Illustration of a kitchen sink with a faucet and a cylindrical container, showing a downward arrow indicating a drop (no text or symbols present)

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

■ When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.

■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered by the warranty.

■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Cleaning the Filters

It is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency.

Recommended Time Interval to Clean Your Filter
Number of loads per week	If you only scrape before loading*	If you scrape and rinse before loading	If you wash before loading
8–12 Every two	months	Every four months	Once per year
4–7 Every two	months	Once per year	Once per year
1–3 Twice per er	year	Once per year	Once per year

*Manufacturer's recommendation: This practice will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort.

Very Hard Water

If you have hard water (above 15 grains), clean your filter at least once per month. Building up of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see the online "Troubleshooting" section.

NOTE: Online references can be found in the Quick Start Guide.

Filter Removal Instructions

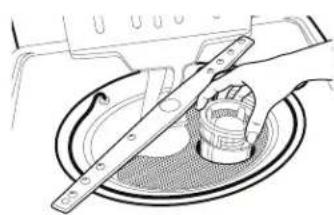

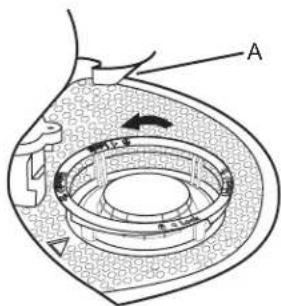

1. Turn the upper filter assembly 1/4 turn counterclockwise and lift out.
2. Separate the upper filter assembly by gently pulling apart.
3. Clean the filters as shown.

Diagram of a circular device with labeled components and directional arrows, likely illustrating a mechanical or fluid system.

Diagram of a car interior showing a wheel rim, a circular component, and a handle (no text or symbols)

A. Locating tab

†affresh® is a registered trademark of Whirlpool, U.S.A.

Cleaning Instructions

IMPORTANT: Do not use wire brush, scouring pad, etc., as they may damage the filters.

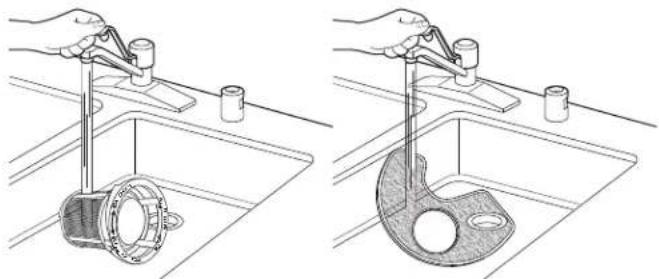

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

Two-step diagram showing a hand using a tool to clean a mechanical component in a sink (no text or symbols present)

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the recommended tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed:

Line drawing of two pliers (no text or symbols)

Pliers Flat-blade screwdriver

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Phillips screwdriver Utility knife

Simple line drawing of a flat tool with a handle and central slot (no text or symbols)

Simple line drawing of a screwdriver with a cylindrical head and shaft (no text or symbols)

5/16" (8 mm) and

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

Small level

1/4" (6.35 mm) nut drivers or hex sockets

Line drawing of a tape measure (no text or symbols)

Measuring tape or ruler 5/8"

Simple line drawing of a double-ended wrench (no text or symbols)

(16 mm) open-end wrench

Line drawing of an adjustable wrench with a screw and handle (no text or symbols)

10" (254 mm) adjustable wrench that opens to 1^1/8 " (29 mm)

Simple line drawing of a screwdriver (no text or symbols)

Torx ^® + T20 ^® and, if installing custom front panels, Torx T15 ^® screwdrivers

Other Useful Items You May Need:

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Flashlight Shallow pan

Simple line drawing of a rectangular tray or container (no text or symbols)

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Bath towel Masking or duct tape

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

†TORX, T20 and T15 are registered trademarks of Acument Intellectual Properties, LLC.

Parts Supplied

Two coiled rope or wire loops, no text or symbols present

Drain hose clamps (2)

(1 large/red and 1 small/green)

Diagram of a coiled cable or hose with two connectors (no text or symbols)

Drain hose

Line drawing of a screw with two circular fasteners and a central threaded end (no text or symbols)

10 x 1/2" (12.7 mm)

Phillips-head screws (2)

Two identical mechanical component diagrams with circular holes, no text or symbols present

Undercounter mounting brackets (2)

Make sure all these parts are included in the literature package.

Simple line drawing of a horizontal bar with two ends and a small circular end (no text or symbols)

Door handle (on some models)

Optional Accessory Parts Available:

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Simple geometric diagram with two nested squares (no text or symbols)

Call us at our toll-free number or visit our website listed on the Quick Start Guide for optional accessory part information.

Moisture Barrier Tape

NOTE: Moisture barrier tape is recommended if installing a dishwasher under a wooden countertop.

Side Panel Kit

For enclosing the side of the dishwasher when installing it at the end of your cabinetry (Whirlpool part number varies with color.)

First-Time Installations

Check local codes. Check existing electrical supply. See the "Electrical Requirements" section. It is recommended that electrical connections be made by a licensed electrical installer.

Additional Tools Needed:

Simple line drawing of a light bulb with a handle and base (no text or symbols)

Small tubing cutter Wire strippers

Line drawing of a pair of pliers (no text or symbols)

Line drawing of a handheld electric drill bit (no text or symbols)

With 1/2" (12.7 mm),
3/4" (19 mm), and
1½" (38.1 mm) hole saw bits

Additional Parts Needed (not provided):

Line drawing of a pipe fitting with a coiled tube (no text or symbols)

Technical line drawing of a mechanical component with threaded ends and a central circular housing (no text or symbols)

Two identical cylindrical objects with fluted lids, shown in line drawing style (no text or symbols)

3/8" (9.5 mm) Compression x 3/4" (19 mm) Hose Fitting with rubber seal and 90° elbow (required to properly connect household water line to the dishwasher)

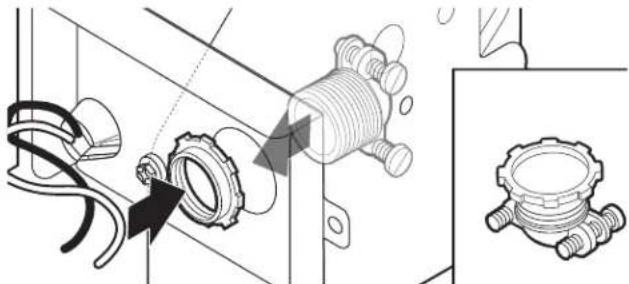

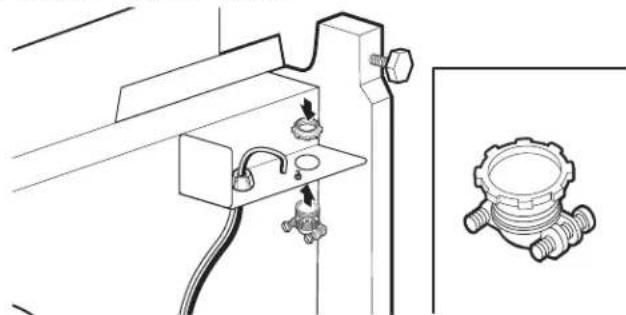

Household Wiring (Metallic) Strain Relief to fit 7/8" (22 mm) hole (required to properly secure household wiring to the dishwasher terminal box)

NOTE: Use only: Straight: Whirlpool Part Number 4317824, 90°: Whirlpool Part Number W10278923RP

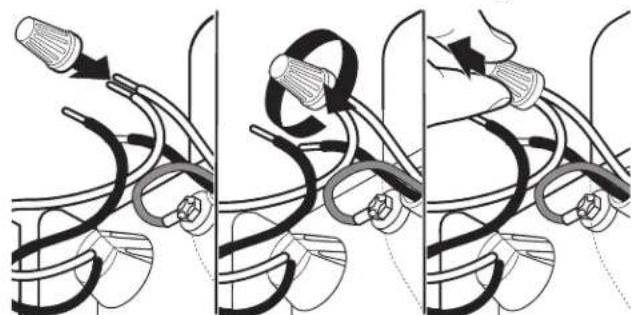

Twist-On Wire Connectors NOTES:

■ Confirm proper size for connecting your gauge of household wiring to the 16-gauge wiring in the dishwasher.

■ Use only: Straight: Whirlpool Part Number 4317824, 90°: Whirlpool Part Number W10278923RP

Simple line drawing of a coiled spring or rope (no text or symbols)

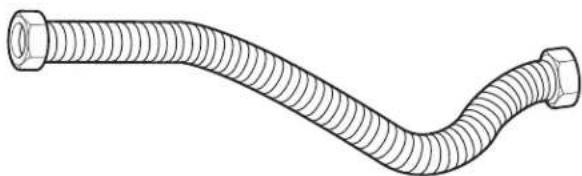

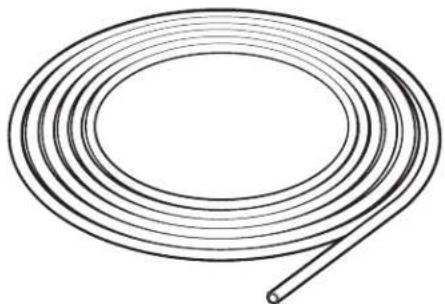

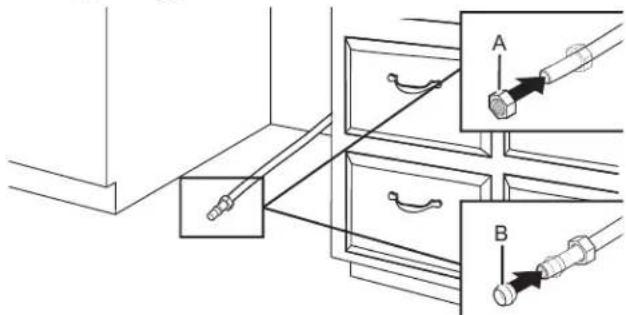

Copper Tubing (3/8" [9.5 mm] O.D. suggested) or Flexible Braided Water Supply Line Kit.

Two interlocked metal rings with metal clips attached (no text or symbols)

Screw-Type Clamps 1½"-2" (38 mm - 50 mm) (3 maximum)

Illustration of a coiled industrial pipe or hose with no visible text or symbols

Optional – Longer Drain Hose Maximum length 12 ft (3.7 m) NOTE: Must meet AHAM/IAPMO test standards, fit 1" (25 mm) drain connection and be resistant to heat and detergent.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

NOTE: If using a flexible braided hose, replace inlet hose after 5 years to reduce the risk of hose failure. Record hose installation or replacement dates on the hose for future reference.

For Direct Wire For Power Cord

Simple line drawing of a rectangular box with three parallel wires above it, and a circular ring symbol inside (no text or labels)

Illustration of a power plug, cord, and small accessories (no text or symbols)

Cabinet Grommet

For 1/_2 " (38 mm) hole in cabinet

NOTE: Required for metal cabinets

Power Cord Kit

Kit typically includes power cord, metallic strain relief, grommet, and twist-on wire connectors (Straight: Whirlpool Part Number 4317824, 90°: Whirlpool Part Number W10278923RP). For proper installation, refer to the installation instructions provided with the kit.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

Location Requirements

Dishwasher must be fully enclosed (top, sides, back, and floor) upon installation. A side panel kit is available from your dealer for installing your dishwasher at the end of your cabinetry.

An optional moisture barrier accessory is also available for installing underneath a wooden countertop.

Check location where dishwasher will be installed. The location must provide:

■ Convenient access for loading and unloading dishes. Corner locations require a 2" (51 mm) minimum clearance between the side of the dishwasher door and the wall or cabinet.
■ Easy access to water, electricity, and drain:

• Grounded electrical supply is required.
• This dishwasher has a water-heating feature and also requires a connection to a hot water supply line.

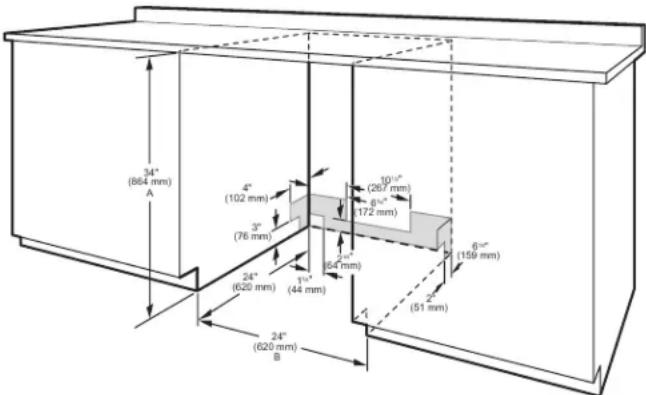

• Make sure pipes, wires, and drain hose are within the shaded area shown in the "Cabinet Opening Dimensions" section.
• Do not run drain lines, water lines, or electrical wiring where they can interfere with or contact dishwasher motor or legs.
• Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.

NOTE: If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel.

- If installed in new construction, flush the water supply line of debris before connecting it to the fill valve. If it is not flushed, debris from the water supply could plug the fill valve screen.

■ A square opening for proper operation and appearance.
■ The cabinet front to be perpendicular to floor.
■ A level floor.

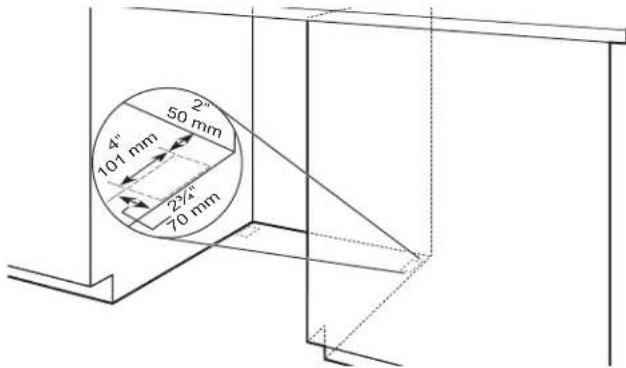

Helpful Hint: If floor at front of opening is not level with floor at rear of opening, shims may be used to level dishwasher.

NOTE: To avoid shifting during dishwasher operation, shims must be securely attached to the floor.

■ The location where the dishwasher will be installed must provide clearance between motor and flooring. Motor should not touch the floor.
■ Do not install dishwasher over carpeted flooring.

Cabinet Opening Dimensions

Clearances

Check that all surfaces have no protrusions that would prohibit dishwasher installation.

34" (864 mm) A 4" (102 mm) 3" (76 mm) 24" (620 mm) 1" (44 mm) 2" (51 mm) 6" (172 mm) 10" (267 mm) 6" (159 mm) 24" (620 mm) B

A. Measured from the lowest point on the underside of the countertop. May be reduced to 33" (851 mm) by removing the wheels and perforated area of insulation (blanket) on dishwasher.
B. Minimum, measured from narrowest point of opening.

NOTE: Shaded areas of cabinet walls show where utility connections may be installed.

Drain Requirements

A new drain hose is supplied with your dishwasher. If drain hose is not long enough, use a new drain hose with a maximum length of 12 ft (3.7 m) that meets all current AHAM/IAPMO test standards, is resistant to heat and detergent, and fits the 1" (25 mm) drain connector of the dishwasher.

NOTE: Do not connect multiple drain hoses together.

■ Make sure to connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20" (508 mm) minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter or be connected to an air gap.
■ Make sure to use an air gap if the drain hose is connected to house plumbing lower than 20" (508 mm) above subfloor or floor.

Line drawing of a kitchen sink with faucet and three washers (no text or symbols)

A. Air gap

If required, the air gap should be installed in accordance with the air gap installation instructions. When you are connecting the air gap, a rubber hose (not provided) will be needed to connect to the waste tee or disposer inlet.
■ Use 1/2" (12.7 mm) minimum I.D. drain line fittings.

Water Supply Requirements

■ This dishwasher has a water heating feature and also requires a connection to a hot water supply line.
■ A hot water line with 20 psi to 120 psi (138 kPa to 827 kPa) water pressure can be verified by a licensed plumber.
■ 120°F (49°C) water at dishwasher
■ 3/8" (9.5 mm) O.D. copper tubing with compression fitting or flexible braided water supply line NOTE: 1/2" (12.7 mm) minimum plastic tubing is not recommended.
■ A 90° elbow with 3/4" (19 mm) hose connection with rubber washer
■ Do not solder within 6" (152 mm) of the water inlet valve.
If installed in new construction, make sure the house water supply lines have been flushed prior to connecting the dishwasher to remove any debris that may exist in the supply line.

NOTE: If replacing an existing dishwasher, it is recommended to install a new water line and drain hose (supplied) with the new dishwasher.

Electrical Requirements

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70 – latest edition, and all local codes and ordinances.

For a fee, a copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

You Must Have:

■ 120 V, 60 Hz, AC-only, 15 A or 20 A, fused electrical supply.
■ Copper wire only.
■ A maximum of 2 field wiring supply conductors (12 AWG largest size) plus 1 grounding conductor are permitted in the terminal box.

We Recommend:

■ A time-delay fuse or circuit breaker.

Circuit Requirement:

■ The dishwasher may be installed on the same circuit as a garbage disposal providing that the branch circuit cannot exceed rated circuit load and must comply with all governing codes and regulations such as but not limited to National Electrical Code, ANSI/NFPA 70 - latest edition.
■ No electrical connections other than the dishwasher power and ground connections can be made inside of the dishwasher terminal box.

If Connecting Dishwasher with a Power Cord:

■ Use a UL-listed power cord kit marked for use with dishwasher. See the "Tools and Parts" section for part details.

■ Plug into a grounded 3-prong outlet. Outlet must meet all local codes and ordinances.

If Connecting Dishwasher with Direct Wiring:

■ Use flexible, armored, or nonmetallie sheathed copper wire with grounding wire that meets the wiring requirements for your home and local codes and ordinances.

■ Use a UL-listed/CSA-approved metallic strain relief.

INSTALLATION INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

You Need To:

■ Slowly open dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials and drain hose. Close dishwasher door until latched.

NOTE: Each dishwasher is tested at the factory and may contain some residual water in the tub as a result of the test.

■ Observe all governing codes and ordinances.
■ Install this dishwasher as specified in these instructions.
■ Installation should be performed by a qualified service technician.
■ The dishwasher must be installed to meet all electrical and plumbing national and local codes and ordinances.
■ Care shall be exercised when the appliance is installed or removed to reduce the likelihood of damage to the power cord.

WARNING: To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation.

Before You Begin

WARNING

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing appliance.

Failure to do so can result in death or electrical shock.

1. Disconnect power

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

2. Shut off water supply

Shut off water supply to the dishwasher.

Prepare Cabinet Opening – New Utilities

3. Drill hole locations - new construction

A 1½" (38 mm) B 1/2" (12.7 mm)

A. Optional location
B. Preferred location

The power-supply receptacle for the appliance shall be installed in a cabinet or on a wall adjacent to the undercounter space in which the appliance is to be installed.

NOTE: Refer to the "Cabinet Opening Dimensions" section for the correct hole placement and dimensions of the shaded area.

Drill a ^1f_2 " (38 mm) drain hole in the side or rear of cabinet, depending on the location of the drain hose routing and drain hose connection location.

Drill a 1/2" (12.7 mm) water supply hose hole in the side or rear of cabinet, depending on location of water supply routing and connection location.

Drill a ^11 / _2 " (38 mm) electrical conduit hole in the right-hand side or rear of the cabinet.

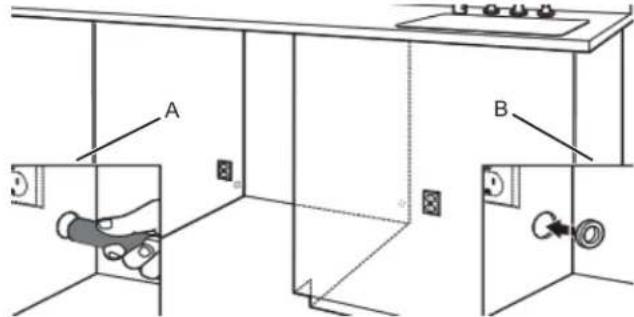

4. Sand holes smooth

Technical diagram showing two labeled components A and B with internal connections and a hand holding a device, likely illustrating a mechanical or electrical system setup.

A. Wood cabinet
B. Metal cabinet

Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover edges of hole with grommet included with power cord kit. See the "Tools and Parts" section for part details.

Helpful Tip: Wiring the dishwasher will be easier if you route the cable into the cabinet opening from the right-hand side.

Install Optional Moisture Barrier (Recommended for Wood Countertops)

Moisture barrier/Wood shims

Diagram of a kitchen interior showing labeled components A and B with directional arrows indicating flow or movement.

A. Install wood shims
B. Moisture barrier

Make sure the area under the cabinet is clean and dry for installation of the moisture barrier. Remove the backing of the moisture barrier and apply to underside of the countertop along the front edge of the counter.

NOTE: Install wood shims if side anchoring and the gap between sides of the dishwasher are greater than 1/2" (12.7 mm) on each side or are greater than the length of the anchor screws.

5. Built-up floors - add shims as needed

4" 50 mm 101 mm 2" 2" 70 mm

Built-up floors: If the kitchen floor is higher than the cabinet opening's floor—for example, the kitchen floor tile does not extend into the cabinet opening—add shims, as needed, in the area shown to bring the dishwasher up to 34" (864 mm) below the countertop.

NOTE: Shims must be securely attached to floor to avoid movement when the dishwasher is in use.

6. If installing into a 12" (851 mm) opening

Simple line drawing of a 3D rectangular prism with no text or symbols

Cut insulation blanket along perforation for cabinet opening height of 33^1/_2 " (851 mm). For other cabinet opening heights, do not cut the insulation blanket.

Electrical Connection

• For Direct Wire, begin with step 7
• For Power Cord, wait until step 22

7. Direct wire - route cable

6° (152 mm)

If installing with direct wire, route the cable as shown.

Route cable from power supply through cabinet hole. (Cable must extend to the right-front side of cabinet opening.) Tape cable to the floor in area shown. This will prohibit cable from moving when dishwasher is moved into cabinet opening.

NOTE: If removing a previous dishwasher with a power cord, you will need to transfer the power cord to the new dishwasher.

Prepare Dishwasher

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

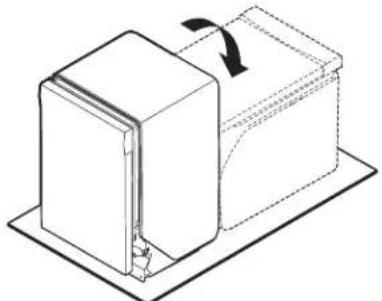

8. Put dishwasher on its back

Diagram of a mechanical assembly with a rectangular block and a curved arrow indicating rotation (no text or symbols)

Helpful Tip: Place cardboard under dishwasher until installed in cabinet opening to avoid damaging floor covering.

Using 2 or more people, grasp sides of dishwasher door frame and place the dishwasher on its back.

Do not use the door panel as a worktable without first covering it with a towel to avoid scratching the door panel.

NOTE: On some models, once the dishwasher is on its back, pull on the door handle to remove it from the access panel.

Remove Access Panel

• For Plastic Access Panels, go to step 9
• For Metal Access Panels, go to step 10

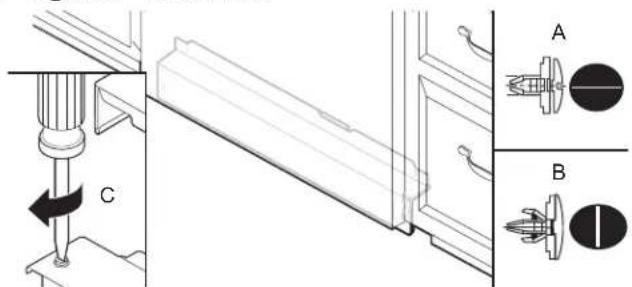

9. Plastic panel

Technical diagram showing mechanical assembly with labeled components A and B, including a cutting tool and directional arrows indicating motion or movement.

A. Unlocked
B. locked

C. 1/4 turn

Using a flat-blade screwdriver, turn the plastic fasteners 1/4 turn counterclockwise to unlock them. Go to step 12.

10. Metal panel

Technical diagram showing mechanical assembly with arrows indicating motion and a drill bit (no text or symbols)

Using a 1/4" (6.35 mm) nut driver or Phillips screwdriver, remove 2 screws attaching access panel to dishwasher.

11. Measure cabinet opening

Line drawing of a cabinet with multiple drawers and drawers, no text or symbols present

Measure height of cabinet opening from underside of countertop to floor where dishwasher will be installed. Be sure to measure the lowest point on the underside of the countertop and the highest point on the floor.

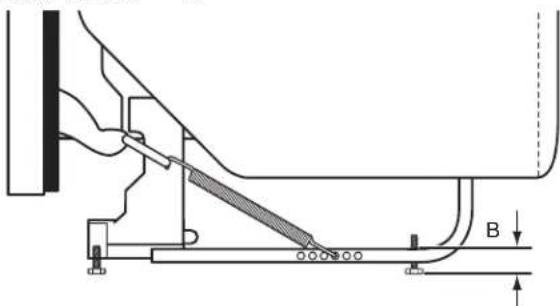

Dishwasher Height Adjustment Chart
Cabinet-opening height	Front legs height A	Rear legs height B
33 ^1/2 " (851 mm)	3/8" (9.8 mm)	Move legs and spacers.
34" (864 mm) 7/8"	(22 mm) 1" (25.4 mm)
34 ^1/2 " (876 mm)	^1/_8 " (28.8 mm)	^1/_4 " (31.3 mm)

Front legs - A

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Rear legs - B

Technical diagram of a mechanical assembly with labeled component B (no text or symbols present)

Adjust both front and back leveling legs to the same height.

NOTE: If the minimum cabinet opening height is less than 33718 " (860 mm), the rear leveling legs and spacers can be removed for additional clearance. This will allow the dishwasher to fit into a 112 3 (851 mm) high cabinet opening, but the dishwasher will be more difficult to move. (Measurements are approximate. Rear and front leveling legs are preset at the factory for 1/2 34876 mm).)

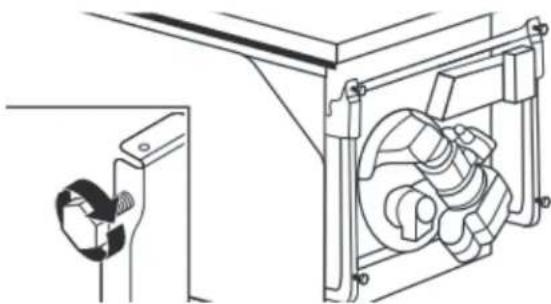

12. Adjust leveling legs

Technical line drawing of a mechanical assembly with a bracket and housing (no text or symbols)

Refer to the "Dishwasher Height Adjustment Chart" for height of leveling legs needed for your cabinet opening.

13. Remove plastic rail cover

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating movement or force

A. Plastic rail cover

Remove and discard the plastic rail cover on each side of the dishwasher frame. To remove the plastic rail cover, push upward and back to unsnap it from the dishwasher frame.

Connect Water Line to Fill Valve

- For Copper Line, begin with step 14

- For Flexible Line, begin with step 16

14. Copper water line

Simple line drawing of a coiled cable or wire with no text or symbols

If using copper tubing, measure overall length of copper tubing required to reach the water supply, cut to length, and attach with compression fittings.

1. Slide nut and ferrule onto tubing (copper tubing only)

Technical diagram showing assembly steps of a mechanical component with labeled parts A and B

A. Nut
B. Ferrule

Copper tubing only: Put the tubing into the 90° elbow fitting as far as it will go. (The copper tubing bends and kinks easily.) Slide the nut and ferrule forward and start the nut onto the elbow threads.

NOTE: To avoid vibration during operation, route the water supply line so that it does not touch the dishwasher base, frame, or motor. Go to step 18.

1. Flexible line

Line drawing of a flexible hose with threaded ends and hexagonal connectors (no text or symbols)

Flexible braided line: Confirm the flexible braided line is long enough.

1. Add 90° elbow fitting to the water supply line

Line drawing of a flexible hose with a flanged end and threaded end (no text or symbols)

Get 3/8" (9.5 mm) compression x 3/4" (19 mm) hose fitting with 90° elbow. See the "Tools and Parts" section at the front of the guide for part details and order. Connect the 3/8" (9.5 mm) compression fitting of the 90° elbow fitting to the water supply line. Attach so the 3/4" (19 mm) connection is facing upward as shown above.

Connect Fill Hose to Fill Valve

1. Tighten 90° elbow fitting to valve

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Be sure rubber washer is properly seated in fitting. Slide the 3/4" (19 mm) fitting of the 90° elbow up to the valve and hand-tighten to avoid cross-threading. Hand-tighten until the coupling is tight. Using pliers, check the tightness of the coupling. An additional 1/4 to 1/2 turn may be required to seal the rubber gasket. Route fill hose out the rear left side of unit.

NOTES:

■ Do not use PTFE plumber's tape with compression fittings.
■ Do not overtighten. Damage to the coupling can result.

Drain Hose Connection

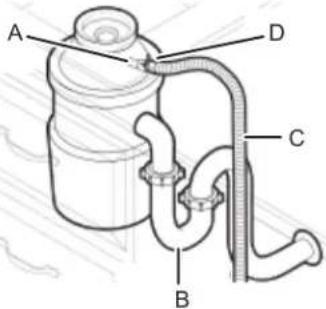

1. Connect drain hose

A B C D E

A. Small clamp D. Drain hose stop
B. Rubber drain hose connector E. Drain hose
C. Stop

Place towel under drain hose to catch any water in drain hose. Place the small (green) drain hose clamp onto the small end of the drain hose. Push the new drain hose into the rubber drain hose connector up to the drain hose stop.

20. Slide clamp onto connector

A B C D E

A. Small clamp

D. Drain hose stop

B. Rubber drain

E. Drain hose

hose connector

C. Stop

Using pliers, squeeze open the small drain hose clamp, and slide it onto the connector between stops.

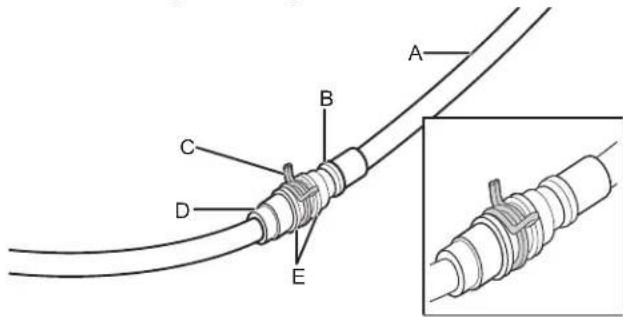

21. Hose clamp final position

A B C D E

A. Drain hose

D. Rubber drain hose

B. Drain hose stop

connector

C. Small clamp

E. Stop

NOTE: Route drain hose out the rear of the dishwasher.

Power Cord Connection

NOTE: If removing a previous dishwasher with a power cord, you will need to transfer the power cord to the new dishwasher.

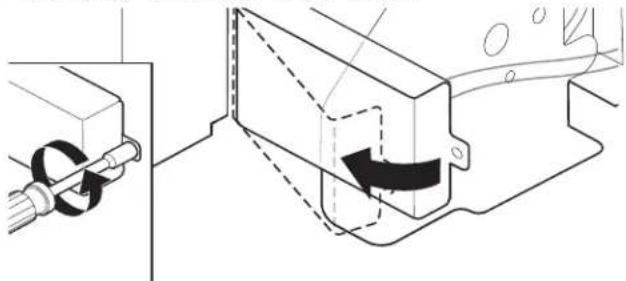

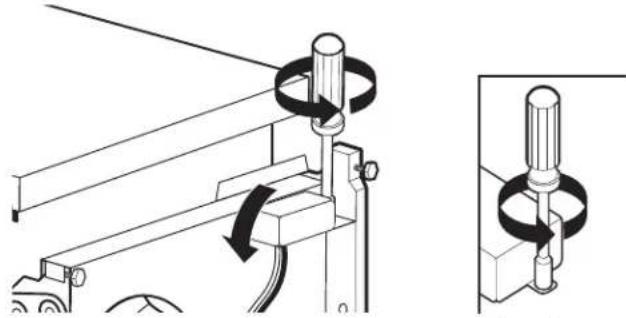

22. Remove terminal box cover

Technical diagram showing mechanical assembly with rotating components and a close-up view of a cylindrical component (no text or symbols)

Using a 1/4" hex-head socket, nut driver, or®T20® screwdriver, remove terminal box cover. Retain for later use.

23. Install strain relief

Technical line drawing of a mechanical assembly with no visible text or symbols

Install the metallic strain relief provided in this kit (Straight: Whirlpool Part Number 4317824, 90°: Whirlpool Part Number W10278923RP). Make sure screw heads are facing to the left when tightening conduit nut. Strain relief is provided with the power cord kit.

24. Power cord - route cord into terminal box

Technical diagram showing electrical wiring connections with a magnified inset of a mechanical component (no text or symbols)

Route cord so that it does not touch dishwasher motor or lower part of dishwasher tub. Pull cord through strain relief in terminal box.

NOTE: A maximum of 2 power cord supply conductors (12 AWG largest size) plus 1 grounding conductor are permitted in the terminal box.

WARNING

Electrical Shock Hazard

Electrically ground appliance.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

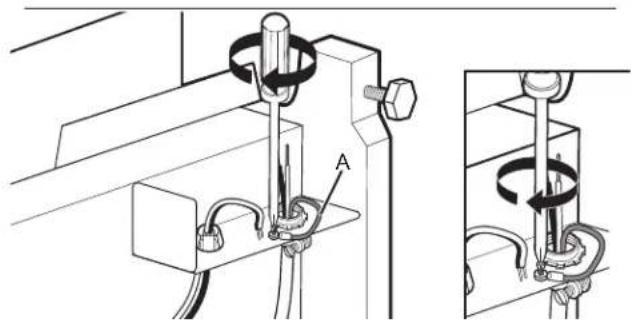

25. Power cord - connect ground wire

Technical line drawing of a mechanical assembly with labeled component A, showing internal components and connection details (no text or symbols)

A. Ground wire

Remove the ground connector screw and place it through the ring terminal of the green ground wire of power cord. Reattach and tighten the ground connector screw.

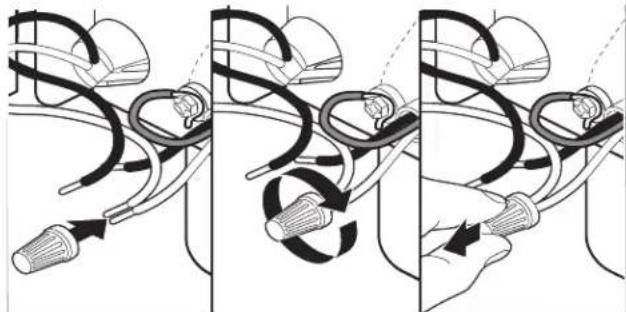

26. Power cord - connect remaining wires

Three-panel illustration showing a hand holding a tool with a connector, connected to wires and tubing (no text or symbols)

Select twist-on wire connectors of the proper size provided in this kit (Straight: Whirlpool Part Number 4317824, 90°: Whirlpool Part Number W10278923RP). Connect wires, black to black and white to white, using the twist-on wire connectors.

NOTE: Do not pre-twist stranded wire. Twist on wire connector. Gently tug on wires to be sure both are secured.

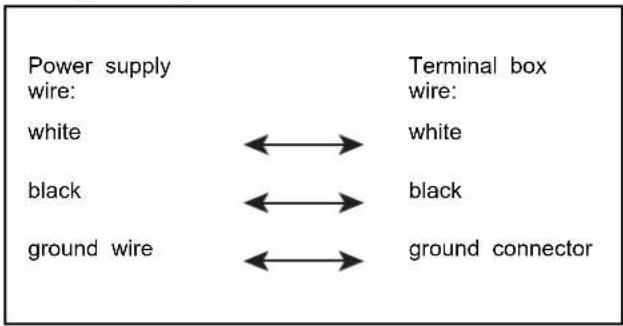

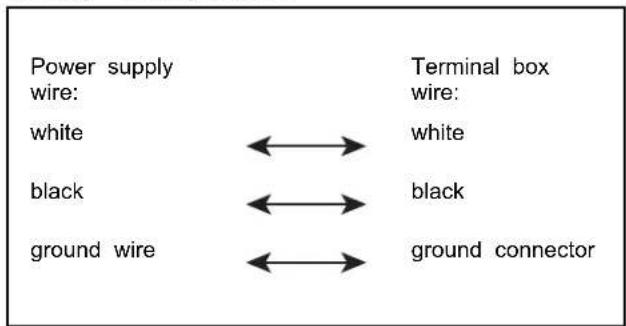

Wiring configuration

27. Power cord - secure cord in strain relief

Technical line drawing of an electrical connector with wiring and socket (no text or symbols)

Tighten strain relief screws to secure cord.

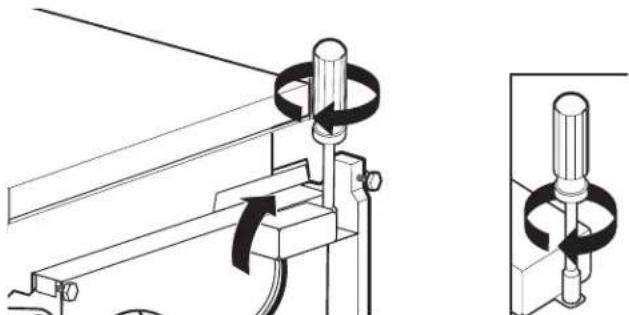

28. Power cord - reinstall terminal box cover and wires

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Place wires inside terminal box. Insert tabs on left side of cover. Make sure wires are tucked inside the box and not pinched by the cover. Use a 1/4" hex-head socket, nut driver, or Tor® T20® screwdriver, and the screw removed in step 22 to secure the terminal box cover.

If power cord supplied model, remove the first tie strap closest to the plug to maximize the cord length. Do not remove any other tie straps.

NOTE: Route power cord out the rear of the dishwasher. Do not plug cord into an outlet until instructed to do so.

Install Door Handle (on some models)

Technical diagram showing a mechanical assembly with labeled components A, B, C, D and an inset circular view of a rotating component.

A. Setscrew (in

C. Handle

bottom of handle)

D. Mounting stud

B. Hex key

IMPORTANT: Do not scratch the front panel during this procedure. If door panel has a protective film, peel film back past the point of the handle studs before installing handle. Handle is easiest to install while unit is on its back.

Remove the door handle and hex key from the packaging. Setscrews are already installed in the handle. Place handle on mounting studs with the setscrews facing down. Push the door handle tightly against the door. Insert the short end of the hex key into the setscrews. Tighten the setscrews 1/4 turn past snug.

Retain hex key with Owner's Manual.

Place Dishwasher in Cabinet

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

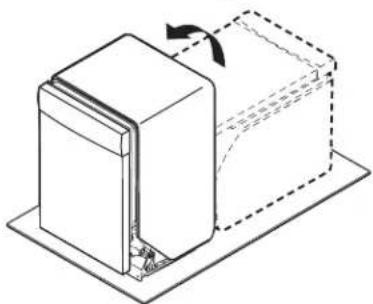

30. Stand dishwasher upright

Diagram of a mechanical or electrical component with a rotating arrow indicating rotation (no text or symbols present)

Using 2 or more people, stand the dishwasher up.

NOTE: Do not install kick plate until instructed to do so.

IMPORTANT: If wheels were removed, cover the floor when moving the dishwasher. Slowly move dishwasher completely into cabinet opening. Do not kink or pinch water line, drain hose, power cord, or direct wire between dishwasher and cabinet. Remove cardboard from under dishwasher.

It is all right if dishwasher fits tightly into cabinet opening. Do not remove insulation blanket—the blanket reduces the sound level.

NOTE: Route water supply, drain hose, and power cord out the rear of the dishwasher.

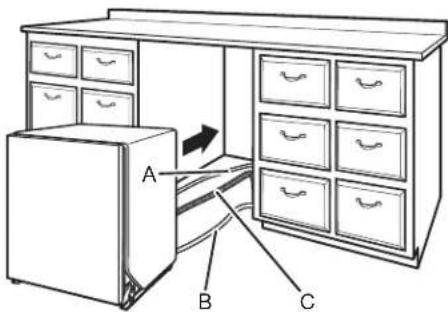

31. Move dishwasher close to cabinet opening

Diagram of a cabinet with labeled parts A, B, and C, showing internal compartments and an open refrigerator.

A. Water line

C. Drain hose

B. Cable

Route the utilities through the holes in the cabinet and pull the slack out at the same time as the dishwasher is pushed into the cabinet.

1. Route power cord.

Line drawing of a cluttered office cabinet with drawers and a refrigerator (no text or symbols)

If using a power cord, make sure to route end through cutout before sliding dishwasher into cabinet opening.

1. Pull slack from utilities

Technical line drawing of a mechanical assembly with a curved component and directional arrow (no text or symbols)

NOTE: Pull slack out of utilities at the same time the dishwasher is pushed into the cabinet opening to avoid any kinks.

1. Secure installation blanket

Diagram of a refrigerator with labeled parts A and B, showing internal compartments and a cabinet top view.

A. Insulation blanket
B. Secure blanket

NOTE: Make sure insulation blanket is secured at both left and right rear corners before pushing into cabinet opening to keep the blanket from bunching up in a tight-fitting cabinet.

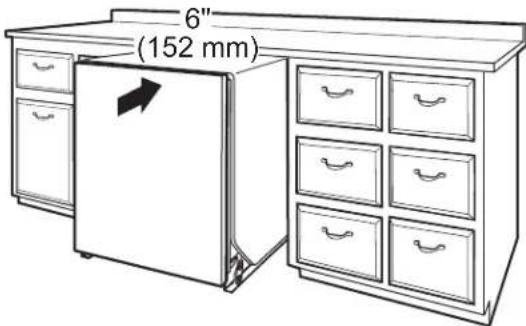

1. Move dishwasher all but 6" (152 mm) into cabinet opening

6" (152 mm)

NOTE: Leave unit about 6" (152 mm) out from cabinet in order to install anchor brackets and adjust door tension if needed.

Choose Anchor Attachment Method

IMPORTANT: The dishwasher must be secured to the cabinet as one of the final steps. Prepare the dishwasher for this by attaching the 2 brackets found in the parts bag to the dishwasher.

• For countertops that are wood, laminate, or another similar surface, use Countertop Attachment: go to step 36
• For countertops that are marble, granite, or another hard surface, use Side Attachment: go to step 37

NOTE: If the gap between the top of the door and the underside of the countertop is tight (less than 1/4" [6.35 mm]), we suggest using Side Attachment to keep from scratching the User Interface or console with the anchor screws.

Countertop Attachment:

1. Insert bracket

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

NOTE: Tabs must point to the right.

Remove the brackets from the package and insert into the open slots on the left- and right-hand top of the dishwasher collar as shown. Go to step 41.

Bend tab

Line drawing of a hand using a tool to press down a component on a device (no text or symbols)

Using pliers, bend/twist tab to lock the brackets in place.

Side Attachment:

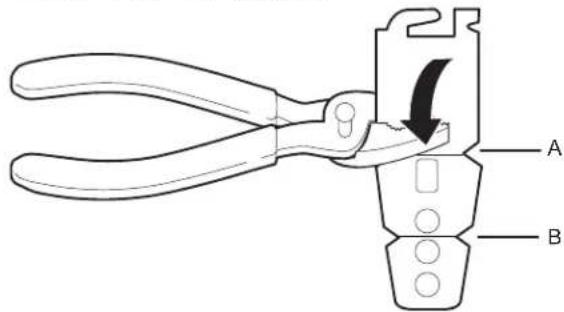

1. Break end of bracket

Diagram of a pliers tool with labeled parts A and B, showing a directional arrow indicating movement or adjustment.

A. Scored line for stainless steel tub models

B. Scored line for plastic tub models

Break off the end of the bracket along the scored line using pliers.

1. Install bracket

A

A. Bend tabs

Push bracket into slot on the side of dishwasher and bend tab in toward the side of the dishwasher so that it keeps the bracket in place. Repeat this step for the other side of the dishwasher.

NOTE: Install wood shims to the inside of the cabinets if the gap between the sides of the cabinet and the sides of the dishwasher are greater than 1/2" (13 mm) on each side.

NOTE: Do not attach the dishwasher. This will be done later.

Final Installation Check

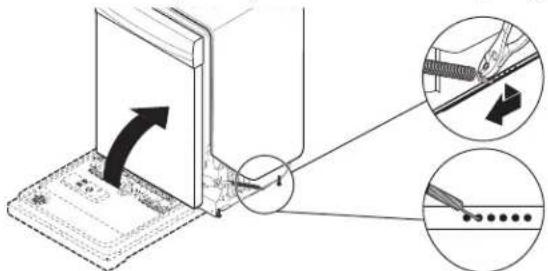

1. Open and close door

Line drawing of a kitchen drawer with an open drawer containing a rack, showing a black arrow indicating direction (no text or symbols)

1. Closes too quickly - decrease spring tension

Diagram illustrating a mechanical assembly or cleaning process with labeled components and directional arrows indicating movement.

If the door closes too quickly, decrease the spring tension by moving the spring end toward the front of the dishwasher.

NOTE: Springs should be in the same notches on left and right sides.

1. Closes too quickly - decrease spring tension

Technical diagram showing cable installation process with magnified views of cable assembly and wire connection details

If the door falls open, increase the spring tension by moving the spring end toward the back of the dishwasher.

NOTE: Springs should be in the same notches on left and right sides.

1. Align front of dishwasher with front of cabine doors

Line drawing of a kitchen drawer with drawers and a handle (no text or symbols)

Align front of dishwasher door panel with front of cabinet doors. You may need to adjust alignment to be even with your cabinets.

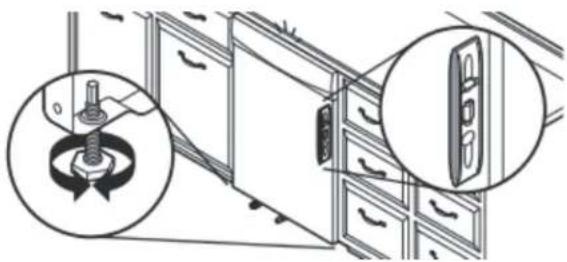

1. Check for plumb and adjust legs if needed

Secure Dishwasher in Cabinet Opening

Diagram showing a refrigerator interior with a screwdriver and a close-up of the drawer (no text or symbols present)

Check that leveling legs are firmly against the floor. Close and latch the door and place level against the front panel. Check that dishwasher is centered from front to back in the opening. If needed, adjust leveling leg until dishwasher is plumb. Repeat for other side of dishwasher.

Helpful Tip: Push up on front of dishwasher to raise dishwasher off the ground to adjust front legs. With some installations, it may be easier to adjust the front leg using a 3/16" hex head socket or adjustable wrench. If the gap between the top of the door and the underside of the countertop is tight (less than 1/4" [6 mm]), we suggest side anchoring to keep from scratching the control panel or console.

Level legs

Technical line drawings of two mechanical tools labeled A and B, showing different tool configurations (no text or symbols present)

A. Preferred method
B. Optional method

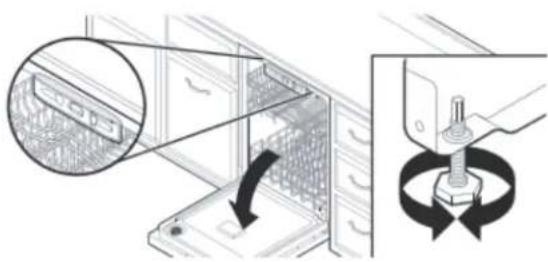

1. Check level side to side and adjust legs if needed

Diagram showing a mechanical assembly with a magnified inset of a component, no text or symbols present.

Place level against top-front opening of tub. Check that dishwasher is level from side to side. If dishwasher is not level, adjust front legs up or down until dishwasher is level.

1. Double-check dishwasher alignment in cabinet opening

Line drawing of a cabinet interior showing door, door lock, and drawer arrangement (no text or symbols)

Check that dishwasher is still level front to back and side to side in the cabinet opening.

Open dishwasher door and place towel over pump assembly and spray arm of dishwasher. For some models, you may have to remove lower dish rack. This will keep screws from falling into pump area when you are securing dishwasher to countertop or cabinet.

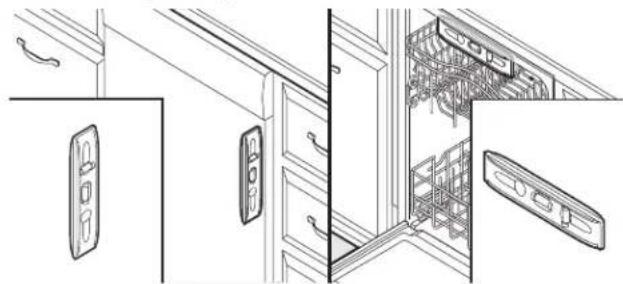

1. Secure dishwasher


Technical diagram showing mechanical assembly with labeled component A and a spring mechanism

A. Screw to side cabinet

Open dishwasher door to prepare for securing the dishwasher to the countertop or side cabinet.

NOTES:

■ The dishwasher must be secured to keep it from shifting when the door is opened or closed.
■ Do not drop screws into bottom of dishwasher.
- Locate brackets installed in the "Choose Anchor Attachment Method" section, either on top or on the sides of the dishwasher.
■ If countertop anchoring: Secure dishwasher to the countertop with two #10 x 1/2" Phillips-head screws (included).
■ If side anchoring: Drill pilot holes in cabinet to avoid splitting the wood. Secure dishwasher to cabinet with two #10 x 1/2" Phillips-head screws (included). Remove upper rack for easier access.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

IMPORTANT: Check that top of door does not contact screws, brackets, or countertop. If it does, adjust leveling legs or use the side attachment option.

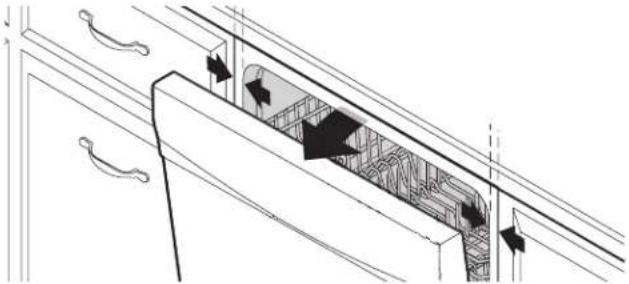

48. Check inner spacing

Architectural diagram showing door frame structure with arrows indicating direction (no text or symbols)

Open door and check that space between dishwasher cabinet opening and tub is equal on both sides. If spacing not equal, loosen bracket screws and shift tub. Tighten bracket screws.

Direct Wire Connection

49. Remove terminal box cover

Technical diagram showing mechanical assembly with a pipe fitting and a clamping mechanism (no text or labels)

Using a 1/4" hex-head socket, nut driver, or®T20® screwdriver, remove terminal box cover. Retain for later use.

50. Install strain relief

Technical illustration of mechanical components with no visible text or symbols

Install a UL-listed/CSA-approved metallic strain relief.

51. Route cable into terminal box

Technical line drawing of a mechanical assembly with wires and connectors (no text or symbols)

Route cable so that it does not touch dishwasher motor or lower part of dishwasher tub. Pull cable through UL-listed/CSA-approved strain relief in terminal box. Strain relief is not supplied with the dishwasher. Owner must purchase a 7/8" (22 mm) screw-in type strain relief.

Select UL-listed/CSA-approved twist-on wire connectors (not included) rated to connect your household wiring to 16-gauge dishwasher wiring.

WARNING

Electrical Shock Hazard

Electrically ground appliance.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

52. Direct wire - connect ground wire

Technical diagram of a mechanical assembly with labeled components A and B, showing wiring and components.

A. Ground wire
B. Ground screw

Form bare ground wire into a U-shaped hook. Wrap ground wire hook clockwise around the ground connector screw and under the washer. Securely tighten ground connector screw.

53. Direct wire - connect remaining wires

Three-panel illustration showing a hand holding a device with cable routing, no text or symbols present.

Select UL-listed/CSA-approved twist-on wire connectors of the proper size. Connect wires, black to black and white to white, using the twist-on wire connectors.

NOTE: Do not pre-twist stranded wire. Twist on wire connector. Gently tug on wires to be sure both are secured.

Wiring configuration

54. Direct wire - secure cable in strain relief

Technical line drawing of a mechanical assembly with coiled components and connectors (no text or symbols)

Tighten strain relief screws to secure cable.

55. Direct wire - reinstall terminal box cover and wires

Technical diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

Place wires inside terminal box. Insert tabs on left side of cover. Make sure wires are tucked inside box. Close cover ensuring wires are not pinched. Use 1/4" nut driver or Torx T20® screwdriver and previously removed screw to secure cover.

Connect Water Line to House Shutoff Valve

NOTE: If using a flexible braided hose, replace inlet hose after 5 years to reduce the risk of hose failure. Record hose installation or replacement dates on the hose for future reference

56. Attach water supply line

Line drawing of a pipe fitting with a handle and valve (no text or symbols)

Attach the water supply line (copper tubing or flexible braided line) to the hot water line using a connection configuration that is in compliance with local codes and ordinances. The water supply to the dishwasher should have a manual shutoff valve located under the sink.

Connect Drain Hose

57. Connect drain hose

Connect drain hose to waste tee or waste disposer using one of the following options:

■ Option A: Waste disposer – no air gap
■ Option B: No waste disposer – no air gap
■ Option C: Waste disposer – with air gap
■ Option D: No waste disposer – with air gap

IMPORTANT: The drain hose connection of the disposer or a waste tee must be made before the drain trap and at least 20" (508 mm) above the floor where the dishwasher will be installed.

Helpful Tip: To reduce vibration of the hose, keep the hose away from the floor.

Option A: Waste disposer - no air gap

A D C B

A. Disposer inlet

C. Drain hose

B. Drain trap

D. Large drain hose clamp

Option B: No waste disposer - no air gap

A B C D

A. Waste tee

B. Drain trap

C. Drain hose

D. Large drain hose clamp

Helpful Tip: Remove disposer knockout plug.

1. Using a hammer and screwdriver, knock plug into disposer.

1. Use needle-nose pliers to remove plug.

1. Fit rubber end (A) of drain hose to waste tee and cut if needed. NOTE: Do not cut ribbed section.

2. Attach rubber end of drain hose to waste tee with a large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use 1½"1 to 2" (38 mm to 50 mm) screw-type clamp (not provided).

1. Attach drain hose to disposer inlet with large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position.

Option C: Waste disposer - with air gap

A B C D E F G

A. Screw-type clamps

E. Rubber hose connector

B. Disposer inlet

F. Large drain hose clamp

C. Drain trap

G. Air gap

D. Drain hose

Option D: No waste disposer - with air gap

A G F B E C D

A. Screw-type clamps

E. Rubber hose connector

B. Waste tee

F. Large drain hose clamp

C. Drain trap

G. Air gap

D. Drain hose

Helpful Tip: Remove disposer knockout plug.

1. Using a hammer and screwdriver, knock plug into disposer.

1. Use needle-nose pliers to remove plug.

1. Connect rubber end (A) of drain hose to air gap and cut if needed. NOTE: Do not cut ribbed section.

1. Connect rubber end (A) of drain hose to air gap and cut if needed. NOTE: Do not cut ribbed section.

2. Attach drain hose to air gap with large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1½" to 2" (38 mm to 50 mm) screw-type clamp (not provided).

3. Use a rubber hose (not provided) with screw-type clamps (not provided) to connect from waste tee to air gap.

1. Attach drain hose to air gap with large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1½" to 2" (38 mm to 50 mm) screw-type clamp (not provided).

1. Use a rubber hose (not provided) with screw-type clamps (not provided) to connect from air gap to disposer inlet.

Complete Installation

Check that the power supply wire or cord does not touch dishwasher motor or the lower part of the dishwasher tub.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Install Access Panel

- For Plastic, begin with step 60

- For Metal, begin with step 63

Plastic Panel:

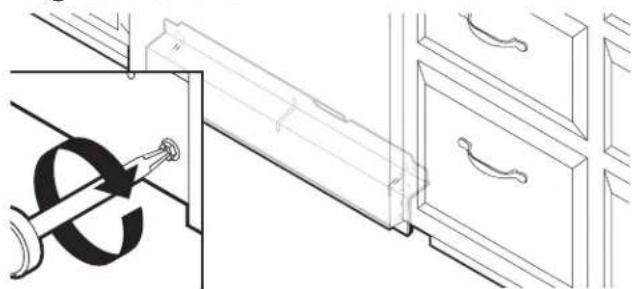

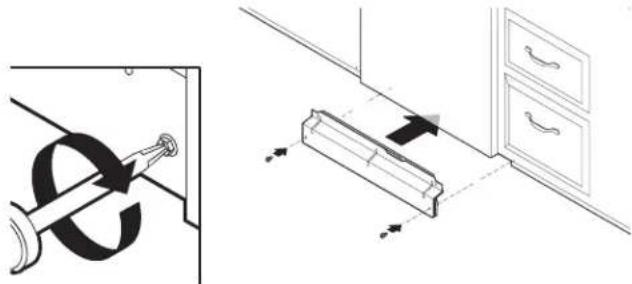

1. Reinstall access panel and fasteners

Technical diagram of a mechanical component with directional arrows and labeled point A (no text or symbols beyond labels)

A. Insulation (on some models)

Place the plastic access panel against the dishwasher leg. Make sure insulation does not interfere with the float assembly.

1. Power supply cord - Plug into a grounded prong outlet 61.3 Check access panel edge

Diagram showing a cable installation with an inset magnified view of the cable being inserted (no text or symbols present)

Plug into a grounded 3-prong outlet.

Diagram of a door handle assembly with arrows indicating direction (no text or symbols)

Check that the lower edge of the access panel touches the floor. Adjust if necessary.

1. Reconnect power

Reconnect electrical power at the fuse box or circuit breaker 62 box.

NOTE: With the access panel off, start the dishwasher and allow it to complete the shortest wash cycle. After the first 2 minutes, unlatch door, wait 5 seconds, and then open door. Check that there is water in the bottom of the dishwasher tub. Check that dishwasher is working properly

1. Tighten fasteners

Technical diagram showing mechanical assembly with labeled parts A and B, including a directional arrow labeled C.

A. Unlocked B. Locked
C. 1/4 turn

Using a flat-blade screwdriver, turn the fasteners 1/4 turn clockwise to lock into place. The fastener slot will be straight up and down when properly locked. Go to step 65.

Metal Panel:

63. Reinstall access panels

Diagram showing a door lock mechanism and a cabinet with directional arrows (no text or symbols)

Place the panel against dishwasher legs. Using a Phillips screwdriver or 1/4" nut driver, reinstall the screws through holes in the access panel.

64. Check lower panel edge

Diagram showing two arrows pointing to a wooden shelf or support structure with drawers (no text or symbols)

Check that the lower edge of the access panel touches the floor. Adjust if necessary.

65. Tighten screws

Technical line drawing of a cabinet or drawer assembly with a tool inserted into a component (no text or symbols present)

Tighten access panel screws.

Check Operation

• Read the dishwasher Quick Start Guide that came with your dishwasher.
  ■ Check that all parts have been installed and no steps were skipped. Check that you have all tools used.

If the dishwasher is not working properly, disconnect power or unplug dishwasher and refer to the "If Dishwasher Does Not Operate" section.

If Dishwasher Does Not Operate

First try the solutions suggested here to possibly avoid the cost of a service call.

■ Has the circuit breaker tripped or the house fuse blown?
■ Is the door closed tightly and latched?
■ Has the cycle been set correctly to start the dishwasher?
■ Is the water turned on?

If none of these possible solutions work, refer to the contact information referenced in your Quick Start Guide.

Additional Tips

Expect longer wash times. Your new dishwasher will average 2-5 hours per load but use nearly 40% less energy than older models. Designed with a low-wattage, low-energy-consumption motor, your dishwasher washes longer to ensure exceptional cleaning. Certain models are equipped with an optical water sensor, so the first cycle will run longer to calibrate the optical sensor. Selecting certain options could increase cycle time past 3.5 hours.

Rinse aid is necessary for good drying results:

This dishwasher is designed to be used with rinse aid for good drying performance and controlling hard-water-deposit buildup. Energy-efficient dishwashers use less water and energy, so they depend on the water sheeting action of rinse aid for good drying performance.

Start/Resume light may flash:

When pressing Start/Resume, you must make sure the door is closed within 3 seconds. If you do not close the door within 3 seconds, the Start/Resume light will flash until you press it again. (You must also do this when adding a dish during the middle of a cycle.)

Front Status Light:

For dishwashers that have a status light on the front of the door, this light will turn ON when a cycle is started and will remain on until the end of the cycle (this includes through the dry portion of the cycle) or the cycle is canceled. This front status light will turn off when the cycle is complete or canceled.

SÉCURITÉ DU LAVE-VAISSELLE

Illustration of a kitchen sink with a faucet and a cylindrical container, showing a downward arrow indicating a drop (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled component A and a close-up of a circular component with a ruler inside.

Line drawing of a mechanical measuring tool with a circular head and handle (no text or symbols)

Simple line drawing of a double-ended wrench (no text or symbols)

Two technical illustrations showing hands using a tool to clean a mechanical component in a sink (no text or symbols present)

EXIGENCES D'INSTALLATION

Outils et pièces

Line drawing of two pair of pliers (no text or symbols)

Line drawing of a screwdriver with a flat head and threaded shaft (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flat tool with a handle and central grip (no text or symbols)

Simple line drawing of a screwdriver with a flat head and rounded body (no text or symbols)

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

Line drawing of an adjustable wrench with a handle and screwdriver (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Simple line drawing of a rectangular tray or container (no text or symbols)

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Simple line drawing of a rolled-up tape or tape (no text or symbols)

Two coiled rope or wire loops, no text or symbols present

Illustration of a coiled mechanical component with two connectors (no text or symbols)

Illustration of a screw with two circular heads and a plus button (no text or symbols)

Two identical mechanical component diagrams with mounting holes and side brackets (no text or symbols)

Tournevis cruciforme no 10 x Supports de fixation (au-1/2 po (12,7 mm) (2) dessous du comptoir) (2)

Simple line drawing of a horizontal bar with two ends and a small circular end (no text or symbols)

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Simple geometric diagram with two nested squares (no text or symbols)

Simple line drawing of a mechanical component with a cylindrical shaft and attached base plate (no text or symbols)

Line drawing of a pair of pliers with metal handles and a zigzag handle (no text or symbols)

Line drawing of a handheld electric drill (no text or symbols)

Line drawing of a pipe fitting with a coiled tube (no text or symbols)

Technical line drawing of a mechanical component with threaded ends and a central circular housing (no text or symbols)

Two identical cylindrical objects with fluted lids, shown side by side (no text or symbols)

Simple line drawing of a coiled spring or rope (no text or symbols)

Two interlocked metal rings with metal clips attached (no text or symbols)

Illustration of a coiled industrial pipe or hose with no visible text or symbols

Diagram showing a rectangular box with three parallel wires above and a circular ring below, no text or symbols present.

Œillet pour armoire

Illustration of a power plug, coiled cable, and various electrical connectors (no text or symbols)

Line drawing of a kitchen sink with faucet and three washers (no text or symbols)

A. Brise-siphon

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Il vous faut :

Technical diagram showing a room layout with labeled components A and B, including fixtures like a lamp, switches, and a door.

Technical diagram of a kitchen appliance with labeled parts A and B, showing internal structure and directional arrows.

Simple line drawing of a 3D rectangular block with a flat top and corner edges (no text or symbols)

Technical diagram showing cable installation with magnified detail and force measurement annotation

Diagram of a mechanical assembly with a rectangular block and a curved arrow indicating rotation (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A and B, including a tool and directional arrows indicating motion or movement.

Mechanical assembly diagram showing a cutting tool and workpiece with directional arrows (no text or labels)

Line drawing of a cabinet with multiple drawers, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Pieds arrière - B

Technical diagram of a mechanical assembly with labeled component B (no text or symbols present)

Technical line drawing of a mechanical assembly with a bracket and housing (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components A and B, including directional arrows indicating movement or force.

A. Écrou B. Virole

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating movement or force

Line drawing of a flexible hose with threaded ends and hexagonal connectors (no text or symbols)

Line drawing of a coiled cable or wire with a looped end (no text or symbols)

Line drawing of a flexible hose with a flanged end and bulbous cap (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Mechanical assembly diagram showing a rotating lever mechanism with a close-up view of the component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing electrical wiring connections with no visible text or symbols

Technical line drawing of a mechanical assembly with labeled component A, showing no text or symbols beyond the label 'A'

Three-panel illustration showing a hand holding a cable with a connector, illustrating the process of connecting wires (no text or symbols present)

Technical diagram of an electrical component with wiring and a close-up inset showing internal wiring connections (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly with a close-up inset showing the same component (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled components A, B, C, D and an inset circular component with rotational motion arrows.

Isometric line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a refrigerator with labeled parts A, B, and C showing internal compartments and a cabinet interior.

Line drawing of a cabinet with drawers and a refrigerator, no text or symbols present

Diagram of a refrigerator with labeled parts A and B, showing folding and opening compartments.

Technical line drawing of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a hand using a pliers to press down a device on a device (no text or symbols)

Diagram of a pliers tool with labeled parts A and B, showing a directional arrow indicating movement or assembly.

Line drawing of a kitchen appliance with a drawer and drawer, showing a black arrow indicating a process or operation (no text or symbols present)

Technical diagram showing mechanical assembly with directional arrows and close-up insets of components

Technical diagram showing a device with internal structure and three close-up insets illustrating cable or wire manipulation steps.

Line drawing of a kitchen drawer with drawers and a scroll rack (no text or symbols)

Diagram showing a mechanical assembly with a bolt inserted into a drawer, and a close-up of the component being inserted (no text or symbols present)

Technical line drawings of two mechanical tools labeled A and B, showing different clamp configurations (no text or symbols present)

Diagram showing a device being inserted into a rack, with a magnified inset highlighting the internal structure (no text or symbols present)

Line drawing of a cabinet interior with doors, drawers, and storage racks (no text or symbols)

Technical diagram showing mechanical assembly with labeled component 'A' and a spring scale mechanism

Diagram showing a mechanical assembly with a bolt and rotating component, no text or symbols present

Architectural diagram showing door frame structure with arrows indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with a rotating component and a clamping mechanism (no text or labels)

Technical illustration of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with wires and components, no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts A and B, showing components like a shaft, cable, and housing.

Three-panel diagram showing a hand holding a device with curved tubing and connectors, illustrating mechanical or electrical manipulation (no text or symbols present)

Technical line drawing of a mechanical assembly with coiled components and connectors (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of a pipe fitting with a flanged handle and valve (no text or symbols)

Technical diagram of a mechanical device with labeled parts A through G

A. Bride à vis

Labeled diagram of a plumbing or plumbing system with components A through G

Technical diagram of a mechanical assembly with labeled component A and directional arrows (no text or symbols beyond labels)

Diagram showing cable installation with magnified detail and cable clamp, likely illustrating electrical or mechanical connection.

Diagram of a door handle assembly with arrows indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A and B, including a directional arrow labeled C.

Diagram showing a door lock mechanism and a cabinet with directional arrows (no text or symbols)

Diagram showing a door handle with two arrows indicating direction, placed on a cabinet (no text or symbols present)

Line drawing of a kitchen drawer with a hammer inserted into a door, showing no text or symbols
