USER MANUAL NA24T4230FS SAMSUNG

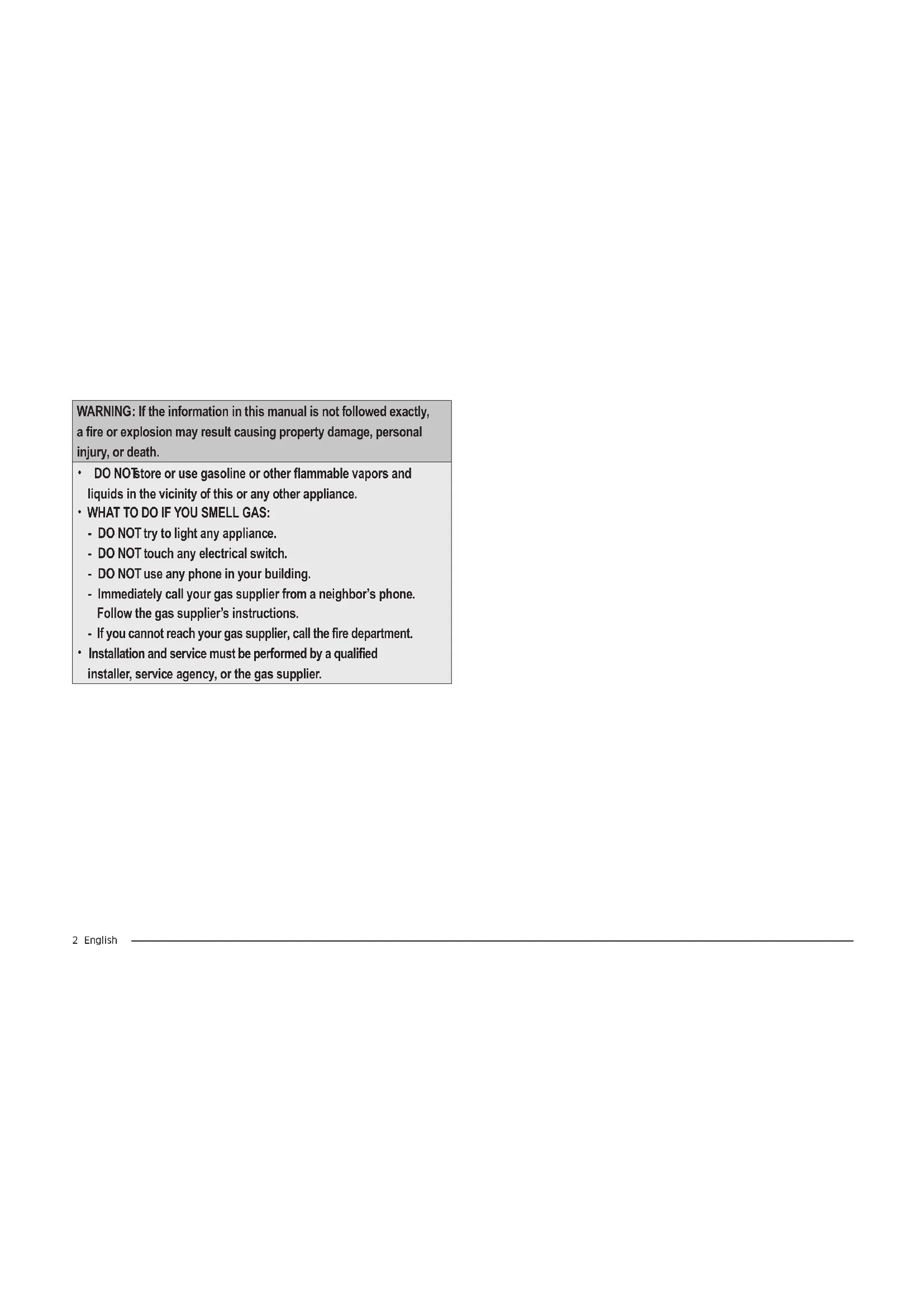

WARNING: If the information in this manual is not followed exactly,

a fire or explosion may result causing property damage, personal injury, or death.

• DO NOT liquids in the vicinity of this or any other appliance. store or use gasoline or other flammable vapors and

• WHAT TO DO IF YOU SMELL GAS: - DO NOT try to light any appliance. - DO NOT touch any electrical switch. - DO NOT use any phone in your building. - Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the fire department. Installation and service must be performed by a qualified

installer, service agency, or the gas supplier.Contents English 3 Troubleshooting

Using the cooktop burners

Care and cleaning of the cooktop

Porcelain enamel surfaces (on some models)

Stainless steel surfaces (on some models)

Burner grates and components

Burner caps and heads

Burner head and cap replacement

• This product must be installed by a licensed plumber or gas tter qualied or licensed by the State of Massachusetts. When using ball-type gas shut-off valves, you must use the T-handle type. Multiple exible gas lines must not be connected in series. Important safety information Read all instructions before using this appliance

• All electrical and gas equipment with moving parts can be dangerous. Please read the important safety instructions for this appliance in this manual. The instructions must be followed to minimize the risk of injury, death, or property damage.

• Save this manual. Please Do Not Discard. Symbols used in this manual WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in electric shock, personal injury, or property damage. NOTE Useful tips and instructions These warning icons and symbols are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. NA5300R_DG68-01132A-00_EN.indd 6 2019-04-19 4:46:08English 5 Important safety information

• Do not lean on the cooktop. You may turn the control knobs accidently.

• Do not stand on top of the appliance or place objects (such as laundry, an oven cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, re, problems with the product, or injury. Fire safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Do not store, place, or use ammable or combustible materials such as paper, plastic, pot holders, linens, curtains, gasoline or other ammable vapors or liquids near the cooktop.

• Do not wear loose tting or hanging garments while using the cooktop.

• To avoid grease buildup, regularly clean the vents.

• Do not let pot holders or other ammable materials touch a heating element. Do not use a towel or other bulky items made out of cloth in place of a pot holder.

• Do not use water on a grease re. To put out a grease re, turn off the heat source and smother the re with a tight-tting lid or use a multipurpose dry chemical or foam-type re extinguisher.

• Do not heat unopened food containers. The buildup of pressure may cause the container to burst and result in injury.

• Always check if the burners are combusting normally. Overheating may cause a re, and incomplete combustion may cause carbon-monoxide poisoning. General safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Do not touch any part of the cooktop, including but not limited to cooktop burners during or immediately after cooking.

• Know the location of the gas shut-off valve and how to shut it off.

• Make sure the hold down brackets are properly installed on the cooktop. See the installation instructions for more information.

• Do not let children near the cooktop. Do not let children go onto the cooktop. Do not let children play with the cooktop or any part(s) of the cooktop. Do not leave children unattended in an area where the cooktop is in use.

• Remove all packaging materials from the cooktop before operating to prevent ignition of these materials. Keep all packaging materials out of children’s reach. Properly dispose the packaging materials after the cooktop is unpacked.

• Do not store any object of interest to children on the cooktop or backguard of the cooktop. Children climbing on the cooktop to reach items could be killed or seriously injured.

• Do not operate the cooktop if the cooktop or any part of the cooktop is damaged, malfunctioning, or missing parts.

• Do not use the cooktop as a space heater. Use the cooktop for cooking only.

• Use only dry pot holders.

• Do not use the cooktop to heat unopened food containers.

• Unplug or disconnect the power cord before servicing.

• Never store combustible materials (dishtowels, paper products, etc.) or packaged or canned food under the cooktop in a way that would let them come in contact with the underside of the cooktop. The combustible material could catch re and the packaged or canned food could explode.

• Make sure the gas line is not compressed or bent by heavy objects. Otherwise, gas leaks or incomplete combustion may occur. NA5300R_DG68-01132A-00_EN.indd 7 2019-04-19 4:46:096 English Important safety information Important safety information Electrical and grounding safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Plug the power cord into a grounded 3-prong outlet.

• Do not remove the grounding prong.

• Do not use an adapter or an extension cord.

• Do not use a damaged power plug, power cord, or loose power outlet.

• Do not modify the power plug, power cord, or power outlet in any way.

• Do not put a fuse in a neutral or ground circuit.

• Use a dedicated 120-volt, 60-Hz, 15-amp, AC, fused electrical circuit for this cooktop. A time-delay fuse or circuit breaker is recommended. Do not plug more than one appliance into this circuit.

• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

• This cooktop must be Earth grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path for the electric current. This cooktop is equipped with a cord having a grounding plug. The plug must be rmly plugged into an outlet that is properly installed and grounded in accordance with the local codes and ordinances. If you are unsure whether your electrical outlet is properly grounded, have it checked by a licensed electrician.

• The cooktop is supplied with a 3-pronged grounded plug. This cord must be plugged into a matching, grounded 3-prong outlet that meets all local codes and ordinances. If codes permit the use of a separate ground wire, we recommend that a qualied electrician determine the proper path for this ground wire.

• Electrical service to the cooktop must conform to local codes. Barring local codes, it should meet the latest ANSI/NFPA No. 70 – Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions.

• It is the personal responsibility of the cooktop owner to provide the correct electrical service for this cooktop. Gas safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions. Checking for gas leaks

• Leak testing of the appliance must be conducted according to the manufacturer’s instructions. Do not use a ame to check for gas leaks. Use a brush to spread a soapy water mixture around the area you are checking. If there is a gas leak, you will see small bubbles in the soapy water mixture at the leak point. If you smell gas:

• Close the valve and do not use the cooktop.

• Do not light a match, candle, or cigarette.

• Do not turn on any gas or electric appliances.

• Do not touch any electrical switches or plug a power cord into an outlet.

• Do not use any phone in your building.

• Evacuate the room, building, or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department. NA5300R_DG68-01132A-00_EN.indd 8 2019-04-19 4:46:09English 7 Important safety information

• Make sure the middle valve has adequate capacity and is not clogged.

• This cooktop must be installed by a qualied technician. Otherwise, gas leaks, re, or defective ignition may occur. Location safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• This cooktop is for indoor, household use only. Do not install the cooktop in areas exposed to the weather and/or water.

• Do not install the cooktop in a place which is exposed to a strong draft.

• Select a location where a grounded, 3- prong outlet is easily accessible.

• If the cooktop is located near a window, do not hang long curtains or paper blinds on that window.

• For the cooktop to ventilate properly, there must be enough clearance at the top, back and sides of the cooktop, and underneath the cooktop. The vents allow the necessary exhaust for the cooktop to operate properly with correct combustion.

• Make sure the wall coverings around the cooktop can withstand heat up to 194 °F (90 °C).

• Cabinet storage above the surface of the cooktop should be avoided. If cabinet storage above the cooktop is necessary: allow a minimum clearance of 30 inches (76.2 cm) between the cooking surface and the bottom of the cabinets. Installation safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Have your cooktop installed and properly grounded by a qualied installer, in accordance with the installation instructions. Any adjustment and service should be performed only by qualied gas cooktop installers or service technicians.

• Do not attempt to service, modify, or replace your cooktop or any part of your cooktop unless it is specically recommended in this manual. All other service should be referred to a qualied technician.

• Always use new exible connectors when installing a gas appliance. Do not use old exible connectors.

• Make sure the hold down brackets are properly installed on the cooktop. See the installation instructions for more information.

• Remove all tape and packaging materials.

• Remove all accessories from the cooktop, Grates and griddles are heavy. Use caution when handling them.

• Make sure no parts came loose during shipping.

• Make sure your cooktop is correctly installed and adjusted by a qualied service technician or installer for the type of gas (natural or LP) you will use. For your cooktop to utilize LP gas, the installer must replace the 5 surface burner orices with the provided LP orice set, and reverse the GPR adapter. These adjustments must be made by a qualied service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. The qualied agency performing this work assumes the gas conversion responsibility.

• Installation of this cooktop must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, the Natural Gas and Propane Installation Code, CSA B149.1. This cooktop has been design-certied by ETL according to ANSI Z21.1, latest edition, and Canadian Gas Association according to CAN/CGA-1.1, latest edition. NA5300R_DG68-01132A-00_EN.indd 9 2019-04-19 4:46:098 English Important safety information Important safety information

• Always heat frying oils slowly, and watch as they heat. If you are frying foods at high heat, carefully watch during the cooking process. If a combination of fats or oils is to be used during frying, mix them together before heating.

• Use a deep-fryer thermometer whenever possible. This prevents overheating the fryer beyond the smoking point.

• Use a minimum amount of oil when shallow pan-frying or deep-frying. Avoid cooking unthawed food or food with excessive amounts of ice.

• Before moving cookware full of fats or oils, make sure it has completely cooled.

• To prevent delayed eruptive boiling, always allow heated liquids to stand at least 20 seconds after you have turned off the burner so that the temperature in the liquid can stabilize. In the event of scalding, follow these rst aid instructions:

1. Immerse the scalded area in cool or lukewarm water for at least 10 minutes.

2. Do not apply any creams, oils, or lotions.

3. Cover with a clean, dry cloth.

• If a power failure occurs or the electric ignition fails to operate, do not use matches or lighters to ignite the burners. This may cause a re or physical burns.

• Do not place and use electric-powered cooking devices such as IH rice cookers or desktop cooking heaters on top of your cooktop. Electromagnetic forces from these appliances may cause the cooktop to malfunction. CAUTION If the cooktop is installed above an oven, do not use the cooktop while the oven’s self-cleaning function is on. Cooktop safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Select cookware that is designed for range top cooking. Use cookware that is large enough to cover the burner grates. Adjust the burner ames so that the ames do not extend beyond the bottom of the cookware.

• Make sure all burners are off when not in use.

• Do not use aluminium foil to line the grates or any part of the cooktop.

• Do not leave burners unattended on medium or high heat settings.

• Before igniting, make sure all burner caps are properly in place and all burners are level.

• Always use the LITE position when igniting the burners and make sure the burners have ignited. If ignition fails, turn the knob to OFF and wait until the gas has dissipated.

• When you set a burner to simmer, do not turn the knob quickly. Make sure the ame stays on.

• Do not place any objects other than cookware on the cooktop.

• This cooktop is designed to cook with a wok or wok ring attachment. If foods are amed, they should only be amed under a ventilation hood that is on.

• Before removing or changing cookware, turn off the burners.

• Remove food and cookware immediately after cooking.

• Before removing any parts of the burner for cleaning, make sure the cooktop is off and completely cool.

• After cleaning the burner spreader, make sure it is completely dry before re- assembling.

• To avoid carbon monoxide poisoning, do not pour water into the cooktop well while cleaning.

• To avoid cookware discoloration, deformity, and/or carbon monoxide poisoning, do not use cookware that is substantially larger than the grate.

• Make sure cookware handles are turned to the side or rear of the cooktop and not over other surface burners.

• Stand away from the cooktop while frying. NA5300R_DG68-01132A-00_EN.indd 10 2019-04-19 4:46:09English 9 Overview Overview Layout LR RR

01 Left Rear Triple crown burner NG : 12,500 BTU LPG : 11,500 BTU 02 Right Rear Rapid burner NG : 10,500 BTU LPG : 9,000 BTU 05 Right Grate 04 Left Grate 06 Knobs 4 pcs NA5300R_DG68-01132A-00_EN.indd 11 2019-04-19 4:46:10 03 Left Front / Right Front Auxiliary burner NG : 5,000 BTU LPG : 5,000 BTU10 English Overview What’s included NOTE If you need an accessory marked with an asterisk (*), you can buy it from the Samsung Contact Center (1-800-SAMSUNG (726-7864)). Each burner has a corresponding knob that lets you to set the ame level from LO to HI. In addition, each burner knob has a Lite setting. Turning a knob to Lite ignites the corresponding burner. The burner indicators ar e located above each knob and show which burner the knob controls. Each burner is designed for specific cooking purposes. See the table below. Burner Purpose Food type Characteristics Rapid (RR) General heating / Low simmering General food, casseroles General-purpose cooking Auxiliary (LF, RF) Low simmering Chocolate, casseroles, sauces Delicate food that requires low heat for a long time Triple (LR) Quick heating General General-purpose cooking NA5300R_DG68-01132A-00_EN.indd 12 2019-04-19 4:46:11 Grates (2) * Cooktop burners and caps (4) * Screw (4) (M4 L20) Hold down brackets (4) * Foam tape (4) Injector (4) * Wok Support (1) Regulator and 3/8"-1/2" brass connector (1) *English 11 Using the cooktop burners Using the cooktop burners Ignition Manual ignition If there is a power failure, you can ignite the burner manually. Use caution when doing this.

1. Hold a long gas grill lighter to the cooktop burner you want to light.

2. Push in the control knob for that burner, and then turn it to the Lite position.

Turn on the grill lighter to ignite the burner.

3. After the burner is lit, turn the control knob to adjust the ame level.

Flame level The ames on the burners should always stay under the cookwar e, and should not extend beyond the cookware bottom at any time. WARNING

• Flames larger than the cookware bottom may result in a re or physical injury.

• When you set a burner to simmer, do not turn the burner knob quickly. Watch the ame to make sure it stays on.

• After turning on a surface burner, make sure that the burner is ignited. Adjust the level of the ame by turning the burner knob.

• Always turn off the surface burner controls before removing cookware. All surface burner controls should be turned OFF when you are not cooking.

• Always turn the burners off before you go to sleep or go out.

• If you smell gas, turn off the gas to the cooktop and call a qualied service technician. NEVER use an open ame to locate a leak.

• If you turn the knob, but the surface burner does not ignite, turn off the control knob immediately.

• Do not operate the burner for an extended period of time without cookware on the grate. The nish on the grate may chip without cookware to absorb the heat.

• Be sure the burners and grates are cool before you place your hand, a pot holder, cleaning cloths or other materials on them. NA5300R_DG68-01132A-00_EN.indd 13 2019-04-19 4:46:11

Fully press down the control knob for the corresponding cooki ng position and turn it to the left, to the Lite position, and hold it here for a few seconds at most until the burner ignites. After igniting, keep the control knob pressed for about 5-8 seconds more because the heat sensor that opens the gas channel has to warm up first. Set control knob to the position you want. Repeat steps 1 and 2 to check the operation of each cooktop burner in succession. The flame size can be set continuously between maximum and minimum by slowing turning the control knob. Make sure all cooktop burners are properly installed. To light a burner:12 English Using the cooktop burners Using the cooktop burners Size limitations CAUTION

• Do not place a pan or pot with a bottom diameter of about 10 inches or more on the RF or LF burner.

• Always make sure cookware handles are turned to the side or rear of the cooktop and not over other surface burners. This will minimize the chance of burns, spillovers, and the ignition of ammable materials that can occur if pots or pans are bumped accidently.

• If using glass cookware, make sure it is designed for cooktop cooking.

• Never leave plastic items on the cooktop. They can melt or ignite. Heating a sealed plastic container can cause a building up of dangerous pressure which can cause the container to explode.

• Make sure you hold the handle of a wok or a small one-handled pot while cooking. Cookware Requirements

• Flat bottom and straight sides

• Well-balanced with the handle weighing less than the main portion of the pot or pan. Material characteristics

• Aluminum: An excellent heat conductor. Some types of food may cause the aluminum to darken. However, anodized aluminum cookware resists staining and pitting.

• Copper: An excellent heat conductor but discolors easily.

• Stainless steel: A slow heat conductor with uneven cooking performance but is durable, easy to clean, and resists staining.

• Cast-Iron: A poor conductor but retains heat very well.

• Enamelware: Heating characteristics depend on the base material.

• Glass: A slow heat conductor. Use only glass cookware that is specied for cooktop cooking or oven use.

• Heatproof Glass-Ceramic: Can be used for either surface or oven cooking. It conducts heat very slowly and cools very slowly. Check cookware manufacturer's directions to be sure it can be used on a gas cooktop. NA5300R_DG68-01132A-00_EN.indd 14 2019-04-19 4:46:11 10 inches or more 10 inches or moreEnglish 13 Using the cooktop burners Install the grates NOTE

NA5300R_DG68-01132A-00_EN.indd 15 2019-04-19 4:46:12 LEFT RIGHT To replace the grates correctly, follow these steps: Overhangs must be placed outward. Make the rubber feet of the grates match with the panel bulge. Adjust the grates to place it on the panel smoothly LEFT RIGHT Install the grates as instructed below for longest life. When installed properly, the openings in the grates are centered over the burners. The two cooktop grates are designed to fit in specific positions on the cooktop. For maximum stability, these grates should only be used in their proper positions. Distinguish the left and right grates. When picking up the grates, you can see the LEFT and RIGHT letters near the overhangs of the grates. Place the grates with the overhangs and letters at the back and the overhangs facing out. Then put the grate with the LEFT letter on the left side, and the grate with the RIGHT letter on the right side. The left and right grate have overhangs and letters to help you locate the side grates correctly. They will stack up and be placed unevenly when you locate wrong direction. See the illustration below.

Care and cleaning of the cooktop Care and cleaning of the cooktop WARNING Be sure unplug the power cord and all surfaces are cool before cleaning any part of the cooktop. If the power cord is inaccessible, turn off power to the cooktop at the breaker or fuse box. Cooktop surface We recommend that you remove food spills immediately after they take place. LEFT RIGHT

1. Turn off all surface burners.

2. Wait until all burner grates cool down,

and then remove them.

3. Clean the cooktop surface using a soft

cloth. If food spills run into gaps of the burner components, remove the burner cap and the head, and wipe up the spills.

4. When you are done cleaning, reinsert

the burner components, and then put the burner grates back into position. Porcelain enamel surfaces (on some models) The porcelain enamel nish is sturdy but breakable if misused. This nish is acid- resistant. However, any acidic foods with high sugar content (such as fruit, juices, tomatoes, or vinegar) should not be permitted to remain on the nish. If an acidic food spills on the cooktop while it is hot, turn off all burners, and then use a dry paper towel or cloth to wipe the spill up right away. When the surface has cooled, wash it with an all-purpose cleaner and water. Rinse well. For other spills, such as fat spatterings, wash the cooktop with soap and water or an all- purpose cleaner after the surface has cooled. Rinse well. Polish with a dry cloth. Stainless steel surfaces (on some models)

1. Remove any spills, spots, and grease stains using a soft, wet cloth.

2. Apply an apporoved stainless steel cleanser to a cloth or paper towel.

3. Clean one small area at a time, rubbing with the grain of the stainless steel if

4. When done, dry the surface using a soft, dry cloth.

5. Repeat steps 2 through 4 as many times as necessary.

• Do not use a steel-wool pad or abrasive cleaner, which can scratch or damage the surface.

• Do not remove the cooktop surface to clean it. The gas lines leading to the burner manifolds can be damaged, resulting in a re or system failure.

• Do not pour water into the cooktop well while cleaning the cooktop. This could leak down into the cooktop gas and electrical systems creating a risk of electrical shock or high levels of Carbon Monoxide due to corrosion of the gas valves or ports.

• Do not spray any type of cleanser into the manifold holes. The ignition system is located in those holes and must be kept free of moisture.

• Do not clean the cooktop or stainless steel parts with:

• Caustic lye (sodium hydroxide) or cleaners containing this chemical

• Hard or steel wool pads

• Abrasive materials or chemicals. NA5300R_DG68-01132A-00_EN.indd 16 2019-04-19 4:46:12English 15 Care and cleaning of the cooktop Control knobs Make sure all surface burner knobs are in the OFF position.

01 Grasp each knob and pull straight up to remove. 02 Spill protector. Do not remove.

1. Pull the knobs off the control valve

2. Clean the knobs in warm, soapy water.

Then rinse and dry them thoroughly.

3. Clean the stainless steel surfaces using

stainless steel cleaner.

4. Re-attach the knobs in the OFF position

to the control valve stems. CAUTION

• Do not clean the control knobs in a dish washer.

• Do not spray cleansers directly onto the control panel. Moisture entering the electric circuits may cause electric shock or product damage. Burner grates and components Turn off all surface burners and make sure they have all cooled down.

2. Remove the burner caps from the burner

3. Remove the burner heads from the

valve manifolds to reveal the starter electrodes.

4. Clean all removable grates and burner

components in warm, soapy water. Do not use steel-wool pads or abrasive cleaners.

5. Rinse and dry grates and burner

components thoroughly.

6. Return the burner heads to their

positions on top of the manifold valves. Make sure a starter electrode is inserted through the hole in each burner head. NOTE

ee pages 17, 18 for detailed burner component re-assembly instructions.

7. Return the burner caps to their positions

on top of the burner heads. To ensure proper and safe operation, make sure the burner caps lie at on top of the burner heads.

8. Re-install the burner grates in their

respective positions.

9. Turn on each burner and check if it

operates properly. After verifying that a burner operates normally, turn it off. NA5300R_DG68-01132A-00_EN.indd 17 2019-04-19 4:46:13 816 English Care and cleaning of the cooktop Care and cleaning of the cooktop Burner caps and heads NOTES Before removing the burner caps and heads, remember their size and location. Replace them in the same location after cleaning. Wash burner caps and burner heads in hot, soapy water and rinse with clean running water. You may scour with a plastic scouring pad to remove burned-on food particles. Use a sewing needle or twist tie to unclog the small holes in the burner head, if required. CAUTION

• Do not wash any burner parts in a dishwasher.

• Do not use steel wool or scouring powders to clean the burners. Burner bases CAUTION The burner bases cannot be removed for cleaning. Round burner base Electrode Make sure that no water gets into the burner bases and the brass gas orices. Wipe clean with a damp cloth. Be careful not to scratch, deform, or damage the bases. Allow them to dry fully before using. Electrodes CAUTION Do not attempt to remove the electrode from the cooktop or burner bases.

01 Clean this metal part 02 Do not clean this white ceramic part with an emery board Be careful not to push in any cooktop controls while cleaning the cooktop. A slight electrical shock might result which could cause you to knock over hot cookware. Make sure that the white ceramic electrodes in the cooktop are clear of soil and dry. Clean the metal part of the electrode with a soft cloth. Do not use water to clean the igniters. Before reassembling the surface burners, push down gently on each of the white ceramic, electrodes to make sure they are pressed against the burners bases. NOTE Do not attempt to remove the electrode from the cooktop. NA5300R_DG68-01132A-00_EN.indd 18 2019-04-19 4:46:13English 17 Care and cleaning of the cooktop Grates CAUTION Do not clean the grates in a dishwasher. They will be damaged. LEFT RIGHT Lift grates out when cool. Grates should be washed regularly and after spillovers. Wash them in hot, soapy water and rinse with clean water. When replacing the grates, be sure they are positioned securely over the burners. Burner head and cap replacement Round Burner head

1. Orient the burner head so that the

opening for the electrode lines up with the electrode.

2. Install the burner head so that the

electrode passes through the opening for the electrode. Make sure the burner head lies at on the stove top. Burner Head CAUTION Make sure all burner components (heads and caps) are reinstalled properly. They will be stable and rest at when correctly installed. NA5300R_DG68-01132A-00_EN.indd 19 2019-04-19 4:46:1418 English Care and cleaning of the cooktop Care and cleaning of the cooktop Burner cap

1. Match the burner caps to the burners by

size, and then re-install the caps on the burner heads. CAUTION Make sure each cap is re-installed on the correct burner head, is centered on the burner head, and lies at. Burner cap CAUTION Make sure all burner components (heads and caps) are reinstalled properly. They will be stable and rest at when correctly installed. NOTE After you have re-installed the surface burners, ignite each one to ensure each one is working correctly. Incorrect placement of a burner head or cap will result in poor ignition or uneven ames (as shown in the pictures). NA5300R_DG68-01132A-00_EN.indd 20 2019-04-19 4:46:15English 19 Troubleshooting Troubleshooting If you encounter a problem with the cooktop, check the tables starting below, and then try the suggested actions. Checkpoints Gas safety Problem Possible cause Action You smell gas. The surface burner knob is not in the OFF position and the burner is not lit. Turn the burner knob to OFF. There is a gas leak. Clear the room, building, or area of all occupants. Immediately call your gas supplier from a neighbor’s phone. Do not call from your phone. It is electrical and could cause a spark that could ignite the gas. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the re department. Surface burner Problem Cause Action All burners do not light. The power cord is not plugged into the electrical outlet. Make sure the electrical plug is plugged into a live, properly grounded outlet. A fuse in your home may be blown or the circuit breaker may have tripped. Replace the fuse or reset the circuit breaker. The gas supply is not properly connected or turned on. See the Installation Instructions that came with your cooktop. Problem Cause Action Surface burners do not light. The control knob is not set properly. Push in the control knob and turn it to the Lite position. The burner caps are not in place. The burner base is misaligned. Clean the electrodes. Put the burner cap on the burner head. Align the burner base. A surface burner clicks during operation. The control knob has been left in the Lite position. After the burner lights, turn the control knob to a desired setting. If the burner still clicks, contact a service technician. The burners do not burn evenly. Surface burner components and caps are not assembled correctly and level. See pages 17, and 18. The surface burners are dirty. Clean the surface burner components. (See pages 15, and 17.) Very large or yellow surface burner ames. The wrong burner orice is installed. Check the burner orice size. Contact your installer if you have the wrong orice (LP gas instead of natural gas or natural gas instead of LP gas). NA5300R_DG68-01132A-00_EN.indd 21 2019-04-19 4:46:1520 English Warranty Warranty (U.S.A) PLEASE DO NOT DISCARD. SAMSUNG GAS Cooktop LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period, starting from the date of original purchase, of: One (1) Year Parts and Labor This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service. SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. To receive in-home service, product must be unobstructed and accessible to the service agent. During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG. This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modication or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product’s nishes; damage caused by abuse, misuse, pest infestations, accident, re, oods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, uctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). In addition, damage to the glass cooktop caused by (i) use of cleaners other than the recommended cleaners and pads or (ii) hardened spills of sugary materials or melted plastic that are not cleaned according to the directions in the use and care guide are not covered by this limited warranty. The cost of repair or replacement under these excluded circumstances shall be the customer’s responsibility. Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues. NA5300R_DG68-01132A-00_EN.indd 22 2019-04-19 4:46:15English 21 Warranty

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state.

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, rm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) and www.samsung.com/us/support Registration Please register your product online at www.samsung.com/register. Questions For questions about features, operation/performance, parts, accessories, or service, call 1-800-SAMSUNG (726-7864), or visit our Web site at www.samsung.com/us/support.. Model name & serial number Both the model name and the serial number are marked right side of the cooktop base. For later use, write down the information onto the current page. Model Name Serial Number NA5300R_DG68-01132A-00_EN.indd 23 2019-04-19 4:46:15Warranty WarrantyWarranty (CANADA) PLEASE DO NOT DISCARD. SAMSUNG GAS Cooktop

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand produ ct, as supplied and distributed by SAMSUNG ELECTRONICS CANADA INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year Parts and Labor This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG-authorized service center, and any unauthorized service will void this warranty. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Samsung will provide in- home service during the one (1) year warranty period at no charge subject to availability within the contiguous Canada. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, Samsung may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. 22 English This limited warranty shall not cover cases of incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or xing installation errors. Furthermore, damage to the cooktop caused by the use of cleaners other than the recommended cleaners and pads and damage to the cooktop caused by hardened spills of sugary materials or melted plastic that are not cleaned according to the directions in the use and care guide are not covered. SAMSUNG does not warrant uninterrupted or error-free operation of the product. EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES OR CONDITIONS ON THIS PRODUCT EITHER EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES AND CONDITIONS INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY, INFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER GENERAL, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE, AND STATES YOUR EXCLUSIVE REMEDY. NA5300R_DG68-01132A-00_EN.indd 24 2019-04-19 4:46:15English 23 Warranty Registration Please register your product online at www.samsung.com/register. Questions For questions about features, operation/performance, parts, accessories, or service, call 1-800-SAMSUNG (726-7864), or visit our Web site at www.samsung.com/ca/support (English), or www.samsung.com/ca_fr/support (French). Model name & serial number Both the model name and the serial number are marked right side of the cooktop base. For later use, write down the information onto the current page. Model Name Serial Number Some states or provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state or province to province. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) and www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) NA5300R_DG68-01132A-00_EN.indd 25 2019-04-19 4:46:15Memo NA5300R_DG68-01132A-00_EN.indd 26 2019-04-19 4:46:16Memo NA5300R_DG68-01132A-00_EN.indd 27 2019-04-19 4:46:16Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT U.S.A Consumer Electronics 1-800-SAMSUNG (726-7864) www.samsung.com/us/support CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) NA5300R_DG68-01132A-00_EN.indd 28 2019-04-19 4:46:16Table de cuisson au gaz Manuel d’utilisateur NA24T4230FS2 Français
