681 - Kettle Chef's Choice - Free user manual and instructions

Product Type	Cordless Electric Kettle
Brand and Model	Chef's Choice 681
Maximum Capacity	1.7 liters (7 cups)
Minimum Capacity	0.7 liter (3 cups)
Body Material	Stainless Steel
Power Supply	110-120 V~, 60 Hz (base with grounded plug)
Power	1500 W (estimated)
Base Type	Swivel base with electrical connector
Main Functions	Automatic steam detection shut-off, dry-heating protection, illuminated on/off switch
Water Level Gauge	External, visible with lid closed
Lid Opening	Push-button on handle, locks in closed position
Descaling Filter	Yes, removable and cleanable
Spout	Designed for pouring small amounts
Handle	Insulated, for lifting the kettle
Safety	Automatic shut-off, overheat protection, lockable lid, moisture-resistant base
Maintenance and Cleaning	Regular descaling with vinegar or descaling product, exterior cleaning with soft cloth, do not immerse
Spare Parts and Repairability	Replaceable deposit filter; repair by EdgeCraft Corporation
Warranty	1 year limited (parts and labor)
Intended Use	Household only, for heating water

Frequently Asked Questions - 681 Chef's Choice

How to use the Chef's Choice 681 kettle for the first time?

Before first use, carefully read the safety instructions. Fill the kettle with water to the maximum level, boil it, then discard the water. Rinse and repeat if necessary.

What is the minimum amount of water to put in the kettle?

The kettle must contain at least 3 cups (0.7 liter) of water to avoid dry heating. Never operate the kettle empty.

How to descale the kettle?

Mix 1/2 liter of water with 6 tablespoons of white vinegar, boil the mixture. Then rinse twice with clear water. You can also use a commercial descaling product following the instructions.

What to do if water spills on the base?

Immediately unplug the power cord from the wall outlet. Turn the base over to drain the water, dry it thoroughly with an absorbent cloth. Place the kettle back on the dry base and reconnect.

How to clean the deposit filter?

Open the lid, place a finger under the filter grid handle, slide upward and remove. Clean it under running water with a nylon brush or soak in hot vinegar. Replace by inserting into the grooves until it clicks.

Why does the kettle not shut off automatically?

Check that the lid is properly closed. The automatic shut-off relies on steam detection; if the lid is not closed properly, steam does not circulate correctly. Also ensure there is enough water (at least 0.7 L) and that the filter is in place.

Can I use the kettle without the filter?

No, the filter must always be in place. Without it, steam detection may be impaired and limescale particles can end up in your drink.

Does the kettle heat under low voltage (dimming)?

Yes, but boiling may take longer and automatic shut-off may be delayed. Fill the kettle at least halfway (about 0.85 L) to compensate. Make sure to turn off the appliance before serving.

What to do if the dry-heating protection is triggered?

The switch turns off and the light goes out. Unplug the cord, let cool for a few minutes, then fill the kettle with at least 3 cups of water. The kettle will work normally again.

How to clean the exterior of the kettle?

Use a soft damp cloth. Never use abrasive cleaners. Do not immerse the kettle or base in water and do not put them in the dishwasher.

USER MANUAL 681 Chef's Choice

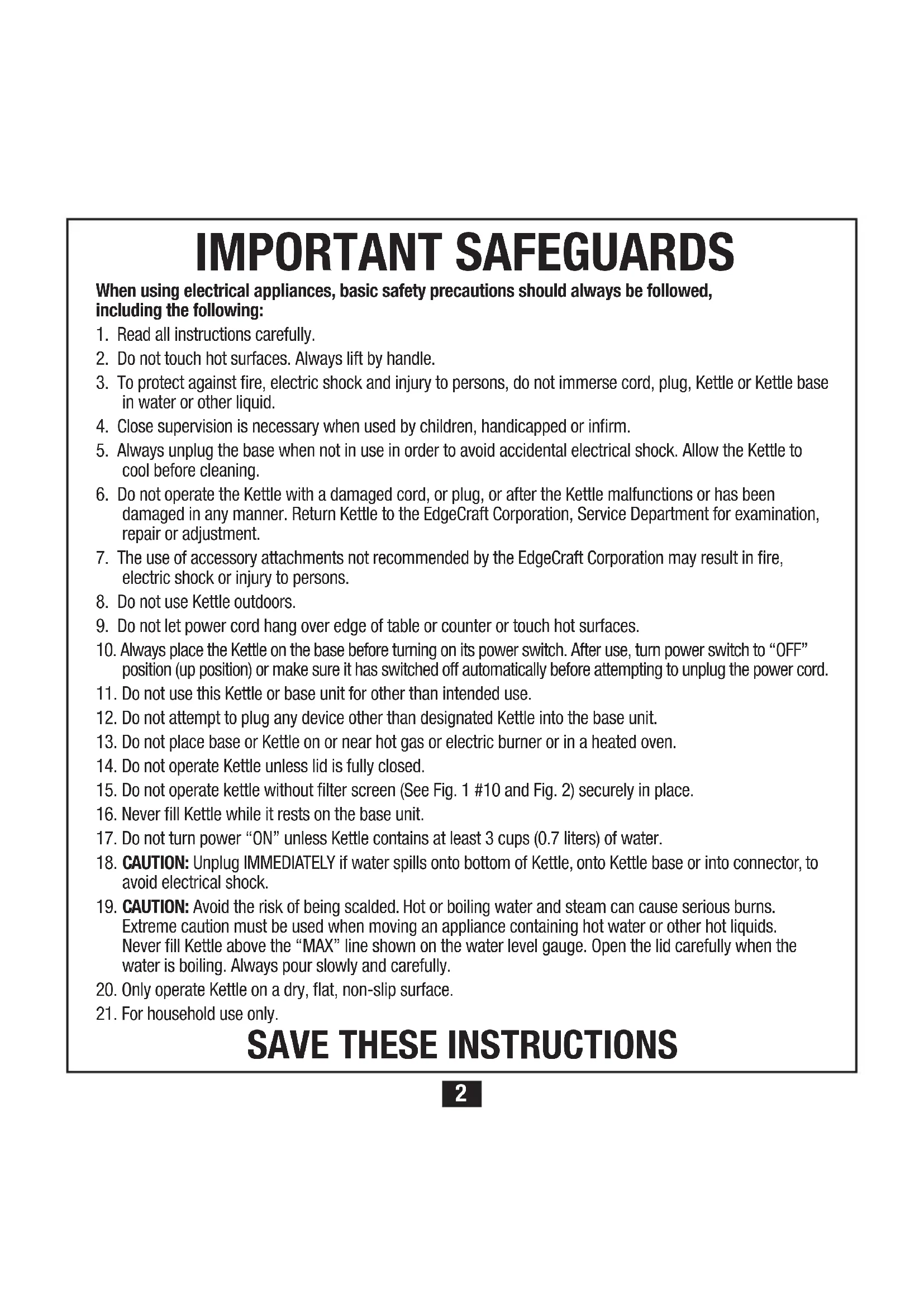

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Do not touch hot surfaces. Always lift by handle.
3. To protect against fire, electric shock and injury to persons, do not immerse cord, plug, Kettle or Kettle base in water or other liquid.
4. Close supervision is necessary when used by children, handicapped or infirm.
5. Always unplug the base when not in use in order to avoid accidental electrical shock. Allow the Kettle to cool before cleaning.
6. Do not operate the Kettle with a damaged cord, or plug, or after the Kettle malfunctions or has been damaged in any manner. Return Kettle to the EdgeCraft Corporation, Service Department for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the EdgeCraft Corporation may result in fire, electric shock or injury to persons.
8. Do not use Kettle outdoors.
9. Do not let power cord hang over edge of table or counter or touch hot surfaces.
10. Always place the Kettle on the base before turning on its power switch. After use, turn power switch to "OFF" position (up position) or make sure it has switched off automatically before attempting to unplug the power cord.
11. Do not use this Kettle or base unit for other than intended use.
12. Do not attempt to plug any device other than designated Kettle into the base unit.
13. Do not place base or Kettle on or near hot gas or electric burner or in a heated oven.
14. Do not operate Kettle unless lid is fully closed.
15. Do not operate kettle without filter screen (See Fig. 1 #10 and Fig. 2) securely in place.
16. Never fill Kettle while it rests on the base unit.
17. Do not turn power "ON" unless Kettle contains at least 3 cups (0.7 liters) of water.
18. CAUTION: Unplug IMMEDIATELY if water spills onto bottom of Kettle, onto Kettle base or into connector, to avoid electrical shock.
19. CAUTION: Avoid the risk of being scalded. Hot or boiling water and steam can cause serious burns. Extreme caution must be used when moving an appliance containing hot water or other hot liquids. Never fill Kettle above the "MAX" line shown on the water level gauge. Open the lid carefully when the water is boiling. Always pour slowly and carefully.
20. Only operate Kettle on a dry, flat, non-slip surface.
21. For household use only.

SAVE THESE INSTRUCTIONS

You Made a Good Choice

Your Chef's Choice® Cordless Electric Kettle is the best of its kind. It can efficiently boil 114 quarts (1.7 liters) of water in only minutes. An appliance crafted for excellence, careful attention has been given to every detail from the sleek design to its multiple protection safety switches. A convenient external water level gauge lets you know the water level even when the lid is closed.

The Kettle's enclosed heating element allows for an easily cleanable, stainless steel interior and ensures years of service from this elegant yet durable product.

Please take a minute to familiarize yourself with the following instructions to maximize your enjoyment of your Electric Kettle.

First Use of the Electric Kettle

• Read all safety and operating instructions carefully before using the Kettle for the first time. An adult should provide close supervision if Kettle is being used by children or handicapped or infirm.
  For new Kettles, do not use the first filling of boiled water, discard it, rinse out the Kettle and refill with fresh water.

Using Your Chef'sChoice® Electric Kettle

The appliance has two parts:

a) Base unit with electrical connector and power cord.
b) Removable Kettle with electrical adapter.

• The Kettle can only be used with the power base unit supplied with the kettle. Base unit and Kettle must bear the same model number. The Kettle lid must be fully closed when heating the water. It is equipped with a snap lock so it does not open unintentionally while the water is being poured. The lid can be easily opened with only one hand. Simply grasp the handle and push on the lid release button with the thumb (never force lid open, always use the button).
  To close the lid, press down lightly on it until it snaps completely shut.
• Remove Kettle from the base. Fill Kettle with at least three cups (0.7 liters) of water to prevent it from running dry during the boiling process. Do not fill the Kettle above the maximum line shown on the water gauge to prevent boiling water from splashing out through the spout. If overfilled and water flows down outside of Kettle and onto its bottom, shut "OFF" and unplug unit, empty the Kettle, dry base thoroughly and refill Kettle carefully before setting onto base unit. Water on the bottom of the Kettle can lead to an electric shock. (See further instructions.)
  After filling with at least 3 cups of water, place the Kettle on the base unit.

• The Kettle is equipped with a convenient automatic steam activated switch-off device, which detects the presence of steam and deactivates the appliance shortly after the boiling point is reached. For the proper functioning of the automatic shut-off device, it is necessary that the lid be completely closed. NOTE: This automatic switch-off mechanism flips the "ON/OFF" switch to the "OFF" (up) position when the water boils. Upon automatic shut-off you may see a few drops of water on the base unit. This condensate will not impair the operation of the Kettle nor its safety.
  Unwind the power cord to the desired length before plugging the cord into a powered outlet.
  This appliance has a three way grounded power plug. Do not attempt to defeat this safety feature by using a threeto-two way adapter. If your receptacle is only two way without a ground seek help from a licensed electrician.

• A short power supply cord is provided with this appliance to reduce the risk of someone becoming entangled in or tripping over a longer cord and causing the Kettle to overturn, discharging its hot contents. While EdgeCraft does not recommend it, extension cords are available and may be used if care is exercised in their use. If an extension cord is used, it should be a grounded three conductor cord rated at not less than 15 amperes and match the configuration of the plug. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on or tipped over by children or the infirm.
  Plug base unit into a three way grounded 110-120 volt, AC outlet.

• The Kettle power switch (5) has 2 positions - "ON" (l) and "OFF" (0). Place Kettle on its base and push the switch down to the "ON" position. The switch will illuminate to indicate the power is on.
  The Kettle normally switches off automatically within about 30 seconds after the boiling point is reached.
• The time required for the Kettle to automatically switch off after the boiling point is reached will vary depending on the amount of water in the Kettle; it will switch off faster after boiling if filled to its "maximum" level than if filled to only a minimum level.
• If only warm water is desired, you can interrupt the heating procedure at any time by simply lifting the kettle off of its power base. The power switch will shut "OFF". In order to restart the heating place the kettle on its power base and depress the ON/OFF switch. The switch will light indicating that the power is on.
• The Kettle can be lifted easily from the base for pouring or serving. The pouring spout has been specially designed to easily pour even small amounts of water.
• Replace the Kettle on the base unit when finished pouring.
• Whenever the kettle is lifted off its base the power switch must be pushed down to the "ON" position again if you wish to restart the heating of the water. Always check the water level before turning the power switch "ON". Make certain there are at least three cups (0.7 liters) of water in Kettle before turning switch "ON". Avoid boiling the kettle dry.
• Lid
• Lid Release Button
• Water Level Gauge
• Base Unit

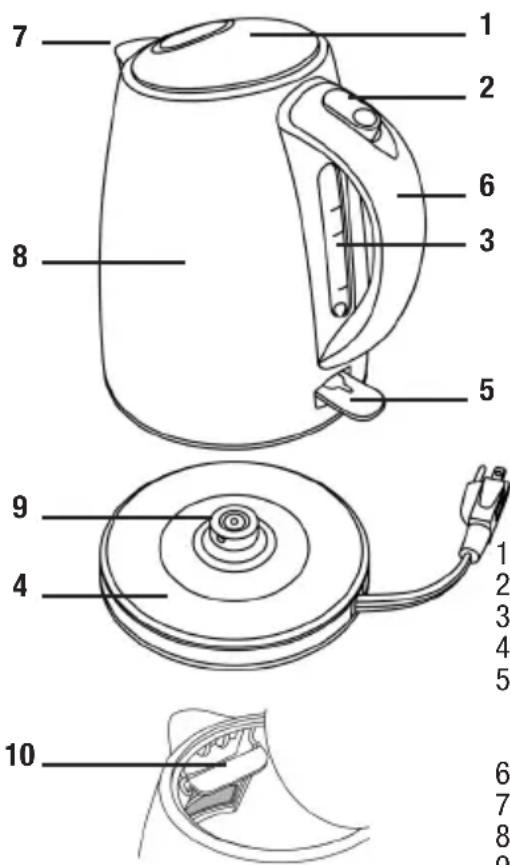

Figure 1.

1. Illuminated Power Switch Pull up to power "OFF" Push down to power "ON"
2. Handle
3. Spout
4. Stainless Steel Body
5. 360^ Power Connector

6. Filter Screen

7. Avoid spilling water on the base unit. In the event the base unit becomes wet, proceed as follows:

8. disconnect the power cord from the power outlet.

9. invert base unit and shake out all water.
10. dry the base unit with a dry absorbent cloth.
11. place the Kettle on the base and re-insert the power cord into the power outlet.

CAUTION: The Kettle always gets hot during operation. DO NOT touch the metal body or lid. Lift the Kettle only by the handle and open the lid only by using the lid release button. Exercise care to avoid contact with steam or the water when opening or closing the lid while the Kettle is still hot or contains hot water.

Operation During "Brown-Outs" and Periods of Low Voltage

During periods of extremely hot weather power companies in localized areas allow the grid voltage to drop from the standard 120 volts to as low as 108 volts. At such low voltages you will notice that it takes longer for the water to boil. Further, once the water boils, it takes longer for the steam detection switch to turn off the power.

Consequently during "brown-outs", we strongly recommend that you compensate for the slower response of the steam switch by always filling the kettle at least half full of water before turning on the power. With that amount of water the steam detection switch will operate normally during "brown-outs." Always make certain the power switch is off or shut it off before lifting the kettle from its base to pour the boiled water.

Care and Maintenance of Your Chef'sChoice® Electric Kettle

• The Chef's Choice® Kettle is designed specifically for heating water. Do not attempt to heat anything other than water in the Kettle. With liquids and mixtures of low water content, the automatic steam activated shut-off switch may not function properly and the Kettle may be damaged.
  Before cleaning, make sure power switch is turned "OFF", then remove the Kettle from its base unit. Unplug the base unit.
  Always wait until the Kettle has fully cooled to room temperature before cleaning.
  To avoid scratching, clean the outside of the Kettle with a soft cloth only. Never use abrasive cleanser.
  The interior of the Kettle can be cleaned by decalcification at regular intervals (refer to page 6 Decalcification).
• Rinse out the Kettle at regular intervals and after extended non-use. Do not immerse.
• Do not attempt to clean any part of the Kettle or base in the dishwasher.

Decalcification

In areas with a high calcium content in the water supply, the Kettle should be decalcified at regular intervals.

• Fill the Kettle with a solution of 16 oz. water and 6 tablespoons of vinegar and bring to a boil.
• When process is complete, rinse the Kettle twice with clean water.
• Commercially available liquid decalcifiers may also be used. Follow the instructions provided with decalcifier by its manufacturer.

Regular decalcification will keep the Kettle operating at peak performance and electrical efficiency. It will also extend the life of the Kettle.

Figure 2.

Over time slightly brownish stains may appear inside of the Kettle. This is not rusting of the Kettle, it is a result of high iron content in the water supply, often referred to as boiler scale. These stains can be easily wiped away with a cloth or mild abrasive. Rinse Kettle thoroughly after decalcification or cleaning.

Scale Filter

To prevent loose particles of limescale being poured into your beverage, the Kettle is equipped with a scale filter behind the spout. The filter is removable for cleaning and replacement. Do not operate the kettle without this filter in place. If this filter is removed, the function of the steam switch will be compromised. Replacement filters are available from the EdgeCraft Corp.

Before removing the filter (for replacement or cleaning):
- make sure the Kettle is unplugged from the power source.
- do not attempt to remove the filter when hot or when the Kettle contains hot water.

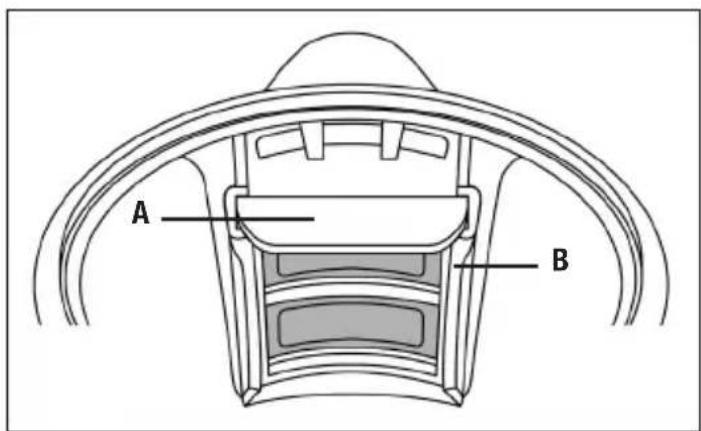

To remove the filter (Fig.2), open the Kettle and carefully place a finger under the handle of the screen (A), slide the screen upward, and lift it out of its track (B).
Scale can be removed from the filter by:
- running water over filter under a tap, while gently brushing with a soft nylon brush.
- or by soaking the filter in heated vinegar solution or a commercially available descaling agent.
To reinsert the filter, hold the screen by its handle (A), insert it into the plastic grooves and slide it down the grooves (B) until it seats firmly in place.
- Never leave the filter loose inside the kettle. Ensure that the filter is always correctly secured behind the spout.

Boil-dry Protection

CAUTION: Avoid boiling the Kettle dry. Never operate Kettle with less than 3 cups of water. This Kettle is equipped with a pair of self-resetting "boil-dry" switches that protect the appliance in the event of improper use. If heating is accidentally started without sufficient water or if the water evaporates completely, the appliance is automatically switched OFF by the "boil-dry" protection. The light will not stay on. Try to avoid allowing the Kettle to "boil-dry". If the "boil-dry" protection is actuated, the power switch will shut off and its indicator light go off (See #5 switch in Fig. 1). Disconnect the power cord and allow the Kettle to cool down for a few minutes and then refill with at least 3 cups of cold water. The Kettle will now operate normally. Frequent "boil-dry" of the Kettle may reduce its usable life.

(CAUTION: Small amounts of hot water remaining in the Kettle can cause scalding injuries).

Service

This appliance is for household use only. No user-serviceable parts are inside. In the event service is needed, return your Kettle to EdgeCraft Corp., where the cost of repair can be estimated before the repair is undertaken. Please include your return address and a brief description of the problem or damage to the Kettle on a separate sheet inside the box. PLEASE CAREFULLY PACKAGE THE KETTLE TO AVOID SHIPPING DAMAGE.

Send your Kettle insured and postage prepaid to:

EdgeCraft Corporation

825 Southwood Road, Avondale, PA 19311 U.S.A.

Telephone [phone] or 610-268-0500

www.edgcraft.com

Retain evidence of shipping for your protection.

Limited Warranty: Used with normal care, this EdgeCraft product is guaranteed against defective material and workmanship for a period of one (1) year from the date of original purchase ("Warranty Period"). We will repair or replace, at our option, any product or part that is defective in material or workmanship without charge if the product is returned to us postage prepaid with dated proof of purchase within the Warranty Period. This warranty does not apply to commercial use or any product abuse. ALL IMPLIED WARRANTY, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD. EDGECAFT CORPORATION SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts and some states do not allow exclusions or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
