USER MANUAL 686 Chef's Choice

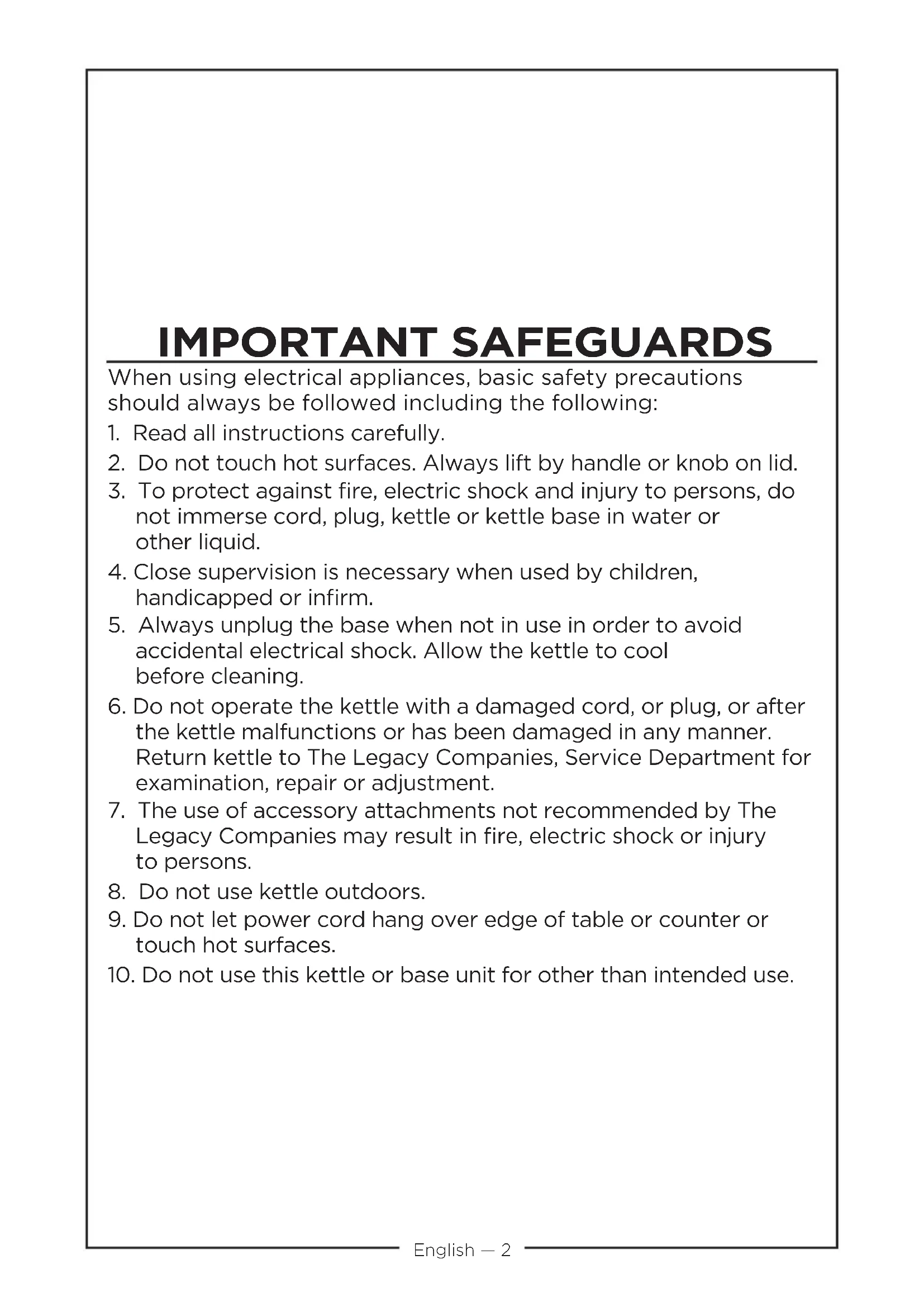

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully.
2. Do not touch hot surfaces. Always lift by handle or knob on lid.
3. To protect against fire, electric shock and injury to persons, do not immerse cord, plug, kettle or kettle base in water or other liquid.
4. Close supervision is necessary when used by children, handicapped or infirm.
5. Always unplug the base when not in use in order to avoid accidental electrical shock. Allow the kettle to cool before cleaning.
6. Do not operate the kettle with a damaged cord, or plug, or after the kettle malfunctions or has been damaged in any manner. Return kettle to The Legacy Companies, Service Department for examination, repair or adjustment.
7. The use of accessory attachments not recommended by The Legacy Companies may result in fire, electric shock or injury to persons.
8. Do not use kettle outdoors.
9. Do not let power cord hang over edge of table or counter or touch hot surfaces.

10. Do not use this kettle or base unit for other than intended use.

11. Do not attempt to plug any device other than designated kettle into the base unit.

12. Do not place base or kettle on or near hot gas or electric burner or in a heated oven.
13. Do not operate kettle unless lid is fully closed.
14. Never fill kettle while it rests on the base unit.
15. Do not turn power "ON" unless kettle contains sufficient water.
16. CAUTION: Unplug IMMEDIATELY if water spills onto bottom of kettle, onto kettle base or into connector, to avoid electrical shock.
17. CAUTION: Avoid the risk of being scalded. Hot or boiling water and steam can cause serious burns. Extreme caution must be used when moving an appliance containing hot water or other hot liquids. Never fill kettle above the "MAX" line shown on the water level gauge. Open the lid carefully when the water is boiling. Always pour slowly and carefully.
    18.Only operate kettle on a dry, flat, non-slip surface.
18. For household use only.

SAVE THESE INSTRUCTIONS.

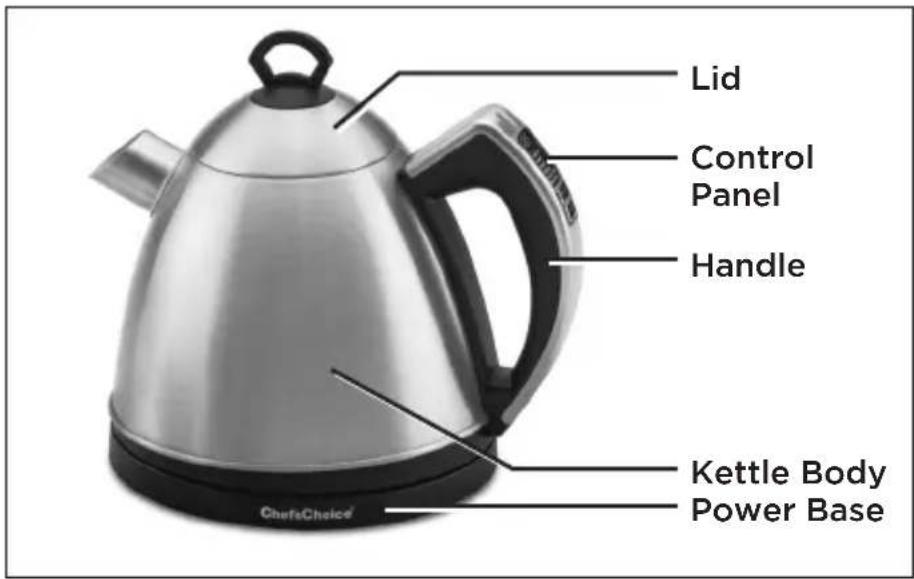

Figure 1. Chef'sChoice® Model 686.

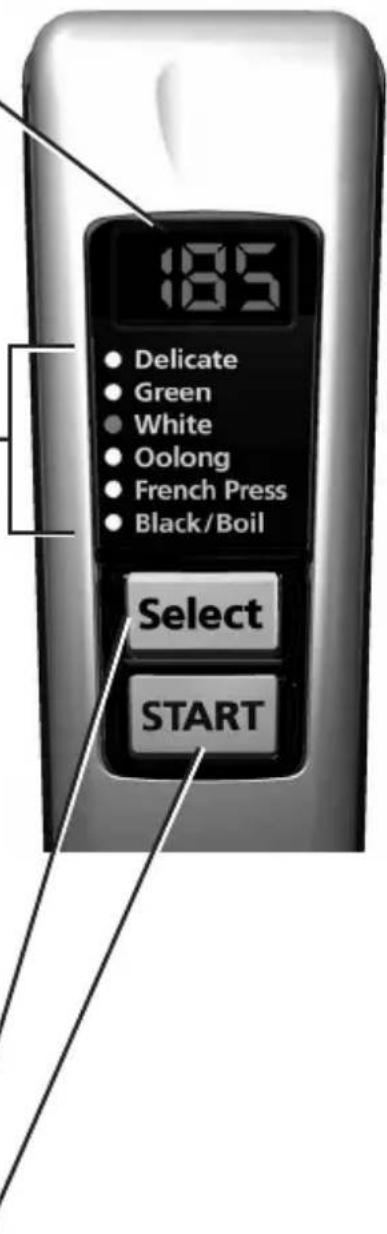

Figure 2. Control panel.

Set Temperature Display

Displays the set temperature in ^ F to which the kettle will heat water, based on the choices indicated by the "Select" button

Menu Listing

List of popular choices. Each choice is associated with a specific temperature shown above on the temperature display. The selected choice shows a blue dot next to it.

Indicator Light (behind these buttons)

Light off - kettle not active
- Blue Light - display activated but kettle waiting for a choice using the "Select" button and pressing "START" button
- Flashing Blue - kettle is heating
- Green Light - water in kettle has reached set temperature
- Flashing green Light - keep warm mode
Red Light - Error

Select Button

Used to cycle between Menu / temperature settings

START Button

Used to start or stop a heating cycle

UNDERSTANDING THE CHEF'SCHOICE MODEL 686

• Read all instructions carefully and take a minute to familiarize yourself with the user-friendly controls of the Model 686 kettle (Figure 1) before using it for the first time. An adult should provide close supervision if kettle is being used by children or handicapped or infirm.
• For new kettles, do not use the first filling of boiled water, discard it, rinse out the kettle and refill with fresh water.
  The appliance has two parts:

a) Base unit with electrical connector and power cord.
b) Removable kettle with electrical adapter.

• The kettle can only be used with the provided power base. Power base and kettle must bear the same model identification number. Unwind the power cord from the bottom of power base to the desired length before plugging the cord into a powered outlet.
• The lid is easily removed. Simply grasp the handle and pull upwards firmly. Do not pull the handle sideways.
• This appliance has a three way grounded power plug. Do not attempt to defeat this safety feature by using a three-to-two way adapter. If your receptacle is only two way without a ground seek help from a licensed electrician.
• A short power supply cord is provided with this appliance to reduce the risk of someone becoming entangled in or tripping over a longer cord and causing the kettle to overturn, discharging its hot contents. While The Legacy Companies does not recommend it, extension cords are available and may be used if care is exercised in their use. If an extension cord is used, it should be a grounded three conductor cord rated at not less than 15 amperes and match the configuration of the plug. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on or tipped over by children or the infirm.
• Fill the kettle with at least 16 ounces of water (which is approximately the same as 2 cups) and place the kettle on the power base. Do not fill the kettle above the MAX indicator to prevent water from splashing out through the spout during boiling. For greatest temperature accuracy and convenience we recommend you fill the kettle with 1 to 1.4 liters of water (approximately 4 to 6 cups.)
• If over-filled and water flows down outside of kettle and on to its bottom and onto the power base, unplug the power base unit, empty kettle and dry thoroughly. Refill before returning kettle to the power base.

OPERATING THE KETTLE (HEATING WATER)

Place the kettle on the power base and connect the cord to a 120 volt 60Hz AC outlet. Press either the Select or START buttons to activate the kettle's electronics. The buttons will illuminate in blue and the temperature setting will display in red. Pressing the select button will cycle through the six different menu items. A blue light dot will be visible next to each choice along with the set temperature.

With not less than 2 cups of water in the kettle and the desired menu item selected, simply press the START button to activate the heating cycle. Heating will not begin until the START button is pressed. You may hear a soft click and the buttons will begin to flash blue, confirming that heating has begun.

If the heating cycle is not interrupted the temperature will continue to rise until the Set Temperature for the selected menu item is reached. At this point the kettle will beep to alert you that the water has reached the selected temperature and is ready for use. The buttons will then begin to flash green intermittently indicating the Keep Warm cycle is active. (Note - the keep warm cycle will not activate after the Black/Boil setting 212^ . When the water reaches boiling, the kettle will beep then shut off.)

TO STOP THE HEATING

You can halt the process at any time during the Heating or Keep Warm cycles by pressing the START button. The display will turn completely off, confirming that power to the kettle has been shut off.

TO KEEP WARM

After the water reaches the Set Temperature, the kettle will automatically enter the Keep Warm mode and hold the water at the Set Temperature. (Except on the Black/Boil setting) In this mode the Smartkettle® control will automatically cycle power on and off to the heating element to maintain the water temperature you selected. During the Keep Warm period the buttons will be flashing green to confirm that temperature control is taking place.

If the kettle is removed from the power base to pour the hot water, power to the heater control is interrupted. Returning the kettle to the power base in a short period of time (less than 4 minutes) will resume the keep warm cycle. The display will illuminate and the buttons will flash green to indicate the keep warm cycle has resumed. If the kettle is off the base for longer than 4 minutes, power will no longer be on when the kettle is placed on the base. To resume the keep warm cycle in this case, merely press the START button twice.

For your safety, and to conserve energy, the Keep Warm function will not operate indefinitely. If the cycle is not stopped manually, the keep warm cycle will remain active for 30 minutes from the original "ready" beep. After this time, the kettle will turn off. If you want to continue to maintain this temperature simply press the START button again twice and an additional Keep Warm cycle (30 minutes of temperature control at the last Set Temperature) will begin. If at any time a new Set Temperature is selected that is below the current water temperature, power to the heating element will temporarily be off as the water cools to the lower Set Temperature. The buttons will continue to flash blue to indicate a cycle is active. Once the water temperature cools to the lower Set Temperature the beeper will sound and the normal Keep Warm mode will be activated. This is the process you might follow if you wish to boil (sterilize) the water before actually using it at a lower temperature.

Note: The beeper will only sound once when the kettle reaches the Set Temperature and enters the Keep Warm mode. As long as the kettle is in the Keep Warm mode, however, the buttons will be flashing green.

BOILING TEMPERATURE AT HIGHER ELEVATIONS

The unique electronics in the kettle are designed to detect boiling irrespective of the geographic elevation at your location. At an elevation of 10,000 ft. for example, such as in the upper Colorado mountains, water will boil at about 195^ while at sea level the boiling point is 212^ .

If you are at 10,000 foot elevation, for example, and set the kettle temperature to 212^ the kettle will heat the water until it reaches the local boiling point of 195^ . It will beep when the temperature is reached and automatically shut off. The general rule is that for every 1,000 feet above sea level the boiling point of water will be lower by 1.73^ . At 3,000 feet it boils at 207^ ; at 5,000 feet the boiling point is 203^ .

Those who like their water fully boiling, can select the Black/Boil option as described above and obtain that automatically irrespective of the local altitude or barometric pressure.

OPERATION DURING "BROWN-OUTS" AND PERIODS OF LOW VOLTAGE

During periods of extremely hot weather power companies in localized areas allow the grid voltage to drop from the standard 120 volts to as low as 108 volts. At such low voltages you will notice that it takes longer for the water to boil. Further, once the water boils, it takes longer for the steam detection switch to turn off the power.

Consequently during "brown-outs", we strongly recommend that you compensate for the slower response of the steam switch by always filling the kettle at least half full of water before turning on the power. With that amount of water the steam detection switch will operate normally during "brown-outs." Always make certain the power switch is off or shut it off before lifting the kettle from its base to pour the boiled water.

LOW WATER PROTECTION

There are two primary ways the kettle maintains safe operation even when turned on with little or no water. For water levels less than the recommended two cups, accuracy will be diminished, but the electronics in the kettle will still cycle off to maintain a safe condition. In these cases, the indicator light will blink a green light when a cycle is complete, but may quickly turn blue and begin reheating. In these cases, simply add more water and re-start the cycle.

For a dry kettle or extremely low water levels (less than 12 cup or 100ml), there are two safety switches that will interrupt power and turn the kettle completely OFF.

These switches will automatically reset once the kettle has cooled down. However since power will have been interrupted to the heater, when power is restored to the kettle the Control Panel will be in the OFF state. Add water and follow the previous instructions to start the kettle heating. For your safety multiple levels of thermal, electrical and operational protections are built into the kettle.

CARE AND MAINTENANCE OF YOUR CHEF'SCHOICE® ELECTRIC KETTLE

• The Chef's Choice® kettle is designed specifically for heating water. Do not attempt to heat anything other than water in the kettle.
• Before cleaning, make sure power switch is turned "OFF", then remove the kettle from its base unit. Unplug the base unit.
• Always wait until the kettle has fully cooled to room temperature before cleaning.
• To avoid scratching, clean the outside of the kettle with a soft cloth only. Never use abrasive cleanser.
• The interior of the kettle can be cleaned by decalcification at regular intervals (see next page).
• Rinse out the kettle at regular intervals and after extended non-use. Do not immerse.
• Do not attempt to clean any part of the kettle or base in the dishwasher.

DECALCIFICATION

In areas with a high calcium content in the water supply, the kettle should be decalcified at regular intervals. Fill the kettle with a solution of 24 oz. (0.7L) water and 10 tablespoons of vinegar and bring to a boil. When process is complete, rinse the kettle twice with clean water. Regular decalcification will keep the kettle operating at peak performance and electrical efficiency. It will also extend the life of the kettle.

USEFUL TIPS:

• Greatest temperature accuracy can be achieved when filling the kettle to its maximum level and starting with room temperature water.
• The temperature will be closest to the set temperature when the kettle first indicates that a cycle is done (beep plus green lights). The temperature will drift slightly as the kettle goes through its keep warm cycle. This is necessary for energy efficiency and a long life for the kettle.
• Always use the kettle with the lid properly seated in its place, to avoid extended heating times, reduced efficiency, and the possibility of hot water to splashing on users.
• If the kettle display will not activate when a button is pressed, make sure that the boil dry protection has not been triggered. Rinse the kettle thoroughly with cool water, fill the kettle and place back on the base.

SERVICE

This appliance is for household use only. No user-serviceable parts are inside. In the event service is needed, return your kettle to The Legacy Companies, where the cost of repair can be estimated before the repair is undertaken.

Please include your return address and a brief description of the problem or damage to the kettle on a separate sheet inside the box. PLEASE CAREFULLY PACKAGE THE KETTLE TO AVOID SHIPPING DAMAGE.

Send your kettle insured and postage prepaid to:

The Legacy Companies 149 Cleveland Drive, Paris, KY 40361 U.S.A. Consumer Support 1-800-342-3255 chefschoice.com

Retain evidence of shipping for your protection.

Conforms to: UL 1082 Certified to CAN/CSA: C22.2 #64 120 volts/60Hertz, 1500 watts

© 2020 The Legacy Companies E20 E/F/S T686001

Limited Warranty: Used with normal care, this EdgeCraft product is guaranteed against defective material and workmanship for a period of one (1) year from the date of original purchase ("Warranty Period"). We will repair or replace, at our option, any product or part that is defective in material or workmanship without charge if the product is returned to us postage prepaid with dated proof of purchase within the Warranty Period. This warranty does not apply to commercial use or any product abuse. ALL IMPLIED WARRANTY, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD. EDGECARAFT CORPORATION SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts and some states do not allow exclusions or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
