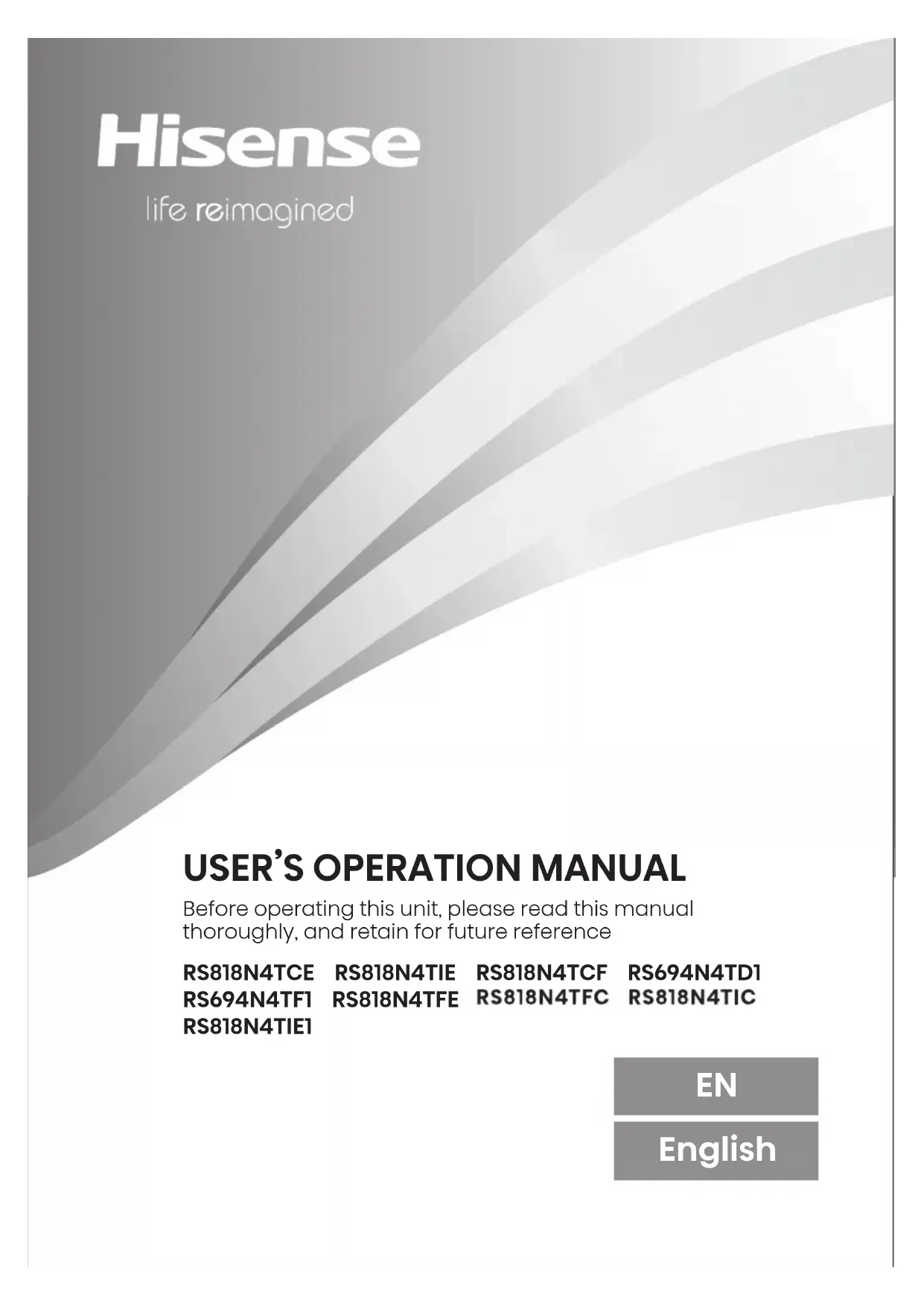

Before operating this unit, please read this manual thoroughly, and retain for future reference RS818N4TCE RS818N4TIE RS818N4TCF RS694N4TD1

For your safety and correct usage before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not

responsible for damages caused by omission. Hisense Refrigerator Safety for children and others who are vulnerable people According to EN standard This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Hisense Refrigerator Keep all packaging away from children as there is risk of suffocation. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety WARNING —This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar non-retail applications. WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING — Fill with potable water only.4 Hisense Refrigerator WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. If the refrigerant circuit should be damaged: -Avoid opening flames and sources of ignition. -Thoroughly ventilate the room in which the appliance is situated. WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. Replacing the illuminating lamps WARNING—The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps. Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. WARNING

Risk of fire / flammable materials It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a shortcircuit, fire, and/ or electric shock.5 Hisense Refrigerator Daily use Electrical safety 1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or damaged.

A crushed or damaged power plug may overheat and cause a fire.

3. Make sure that you can access the main plug of the

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power

plug. There is a risk of electric shock or fire.

You must not operate the appliance without the interior lighting lamp cover. 7.The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. In order to sense the temperature and humidity near the appliance and make the appliance run better, add temperature and humidity sensor outside the box of appliance. Do not store flammable gass or liquids in the appliance, There is a risk of an explosion. Do not operate any electrical appliances in the appliance (e.g.electric ice cream makers,mixers etc.). When unplugging always pull the plug from the mains socket,do not pull on the cable. Do not place hot items near the plastic components of this appliance. This refrigerating appliance is not intended to be used as a built-in appliance.6 Hisense Refrigerator Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage. Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the appliance. Frozen food can cause frost burns if consumed straight from the freezer compartment. Do not place the appliance in direct sunlight. Keep burning candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet. The appliance is heavy.Care should be taken when moving it. Do not remove nor touch items from the freezer compartment if your hands are damp/wet,as this could cause skin abrasions or frost/freezer burns. Never use the base,drawers, doors etc. to stand on or as supports. Frozen food must not be refrozen once it has been thawed out. Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips. To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers. caution! Care and cleaningHisense Refrigerator Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of fire, follow the instructions relevant to installation. The appliance must not be locate close to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance. Service Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. This product must be serviced by an authorized Service Center, and only genuine spare parts must be used. 1)If the appliance is Frost Free. Installation Important! For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing. It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

2)If the appliance contains freezer compartment. Note: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.(This clause applies only to the EU region.)Installing your new appliance %HIRUHXVLQJWKHDSSOLDQFHIRUWKHILUVW WLPH\RXVKRXOGEHDZDUHRIWKH IROORZLQJWLSV Ventilation of appliance ,QRUGHUWRLPSURYHHIILFLHQF\RI WKHFRROLQJV\VWHPDQGVDYH

View of the appliance Description of the appliance

UHPDLQWKHVDPH 1RWH:To get the best energy efficiency of this product, please place all shelves,drawers on their original position as the illustration above. 1.WiFi module 2.Freezer zone LED light 3.Ice-Maker Front Cover Assembly 4.Ice Bucket Assembly 5.Wind channel cover in freezer 6.Freezer shelf 7.Freezer upper drawer cover plate 8.Freezer upper drawer 9.Freezer door Rack 10.Freezer lower drawer cover plate 11.Freezer lower drawer 12.Left adjustable bottom feet 13.Fridge zone LED light 14.Fridge door Rack 15.Fridge shelf 16.Wind channel cover in fridge 17.Multifunctional drawer part 18.Water storage box part 19.Bottle rack 20.Crisper box cover plate 21.Fridge upper drawer 22.Humidity control cover plate 23.Fridge lower drawer 24.Right adjustable bottom feet•

The control panel consists of two areas. The middle of topside shows conditions of the appliance surrounded by 6 icons as well as keys. And the bottom side is three keys related to ice maker. setting. setting reverts back to the previous icons on the display panel will be lit for Once the appliance is powered on, all Child Lock is off and the temperature 3 seconds with a buzzer sound. The Note: "Crushed", and "Water" will go off on All the icons except "Cubed", and all doors closed for one minute. the condition of all keys untouched the door is open or you touch any The control panel will light up when button.

average temperature of the whole The temperature only means the inside each compartment may vary refrigerator cabinet. Temperatures Caution! from those displayed on the panel, depending on how much food stored and where the refrigerator is placed. In addition, the actual temperature from higher room and lower room will be different. NOTE: Setting the refrigerator running at high temperature will accelerate food decomposition. For optimum food preservation, we recommend that when starting the refrigerator for the first time, the temperature of fridge is set to 4℃, and that of the freezer to -18℃.

7RXFKLQJWKH$ODUPNH\GXULQJGRRU

RIIWKHLFRQJRHVRII13 Press and hold the "Fridge" key for 3 seconds, and the " " icon will be lit, which shows that the fridge is running in the mode of "Super Cool". On that condition, the temperature of fridge is set to 2°C. "Super Cool" mode will be switched off automatically after 6 hours, and the fridge setting will revert back to the previous setting. Touch the "Fridge" key or "Eco" key so that the refrigerator can quit "Super Cool" in advance. Note: By touching "Fridge" key, the refrigerator setting will revert back to the previous setting, while by touching "Eco" key, the refrigerator will run in the function of "Eco". "Freezer temperature control" temperature setting function of freezer, Touch the "Freezer" key to activate the the temperature will be set according After that, touch the key continuously, to the following sequence: Press and hold the "Freezer" key for 3 seconds, and the " " icon will be lit, which shows that the fridge is running in the mode of "Super Freezer". On that condition, the temperature of freezer is set to -24℃.If the freezing capacity according to the rating plate is to be used, switch on Super Freezer at least 24 hours before the fresh products are placed in the freezer conpartment. "Super Freezer" mode will be switched off automatically after

hours, and the freezer setting will revert back to the previous setting. Touch the "Freezer" key or "Eco" key so that the refrigerator can quit "Super Freezer" in advance. Note: By touching "Freezer" key, the refrigerator setting will revert back to the previous setting, while by touching "Eco" key, the refrigerator will run in the function of "Eco". "Dispenser control" When the freezer door is open or the Child Lock is on, the dispenser will not work. The Ice Type button includes "Cubed" and "Crushed" options. Press the "Cubed" key or "Crushed" key to choose the type of ice to be dispensed. Or touch the "Water" button to activate the water mode.

:KHQWRXFKLQJWKH,FH7\SHEXWWRQ

:DWHUVWRUDJHER[$ODUP

WKHDODUPE\SUHVVLQJDQGKROGLQJ (FREXWWRQIRUVHFRQGV Note! ,IZDWHULVQRWGLVSHQVHGRU GLVSHQVHGVORZO\SOHDVHFKHFN ZKHWKHUWKHZDWHUVWRUDJHER[LV FRUUHFWO\LQVWDOOHGRUQRWDQGPDNHVXUH WKHUHLVHQRXJKZDWHULQWKHZDWHU VWRUDJHER[ 7KHOLJKWZLOOJRRIIZLWKRXWWRXFKLQJ DQ\EXWWRQRUWKHGRRUVKDYHEHHQ FORVHGIRURQHPLQXWHV Wi-Fi Function Introduction This appliance may be controlled remotely with a smart phone or a tablet computer. If the appliance is not connected to the home network, it will function like a regular appliance. What do you need to connect the appliance? Signal from the local wireless network (Wi-Fi) should be sufficiently strong in the spot where the appliance is installed. Home network router has to be connected to the internet, and the Wi-Fi function on the appliance should be activated. The smart phone/tablet computer has to be connected to the internet. Operating system on your smart phone/tablet computer should be compatible with the ConnectLife app. APPLIANCE Wi-Fi STATE There are three WiFi states as shown below, you can activate the display board according to the relevant steps. CONNECT APPLIANCE TO Wi-Fi After activating the Wi-Fi function, connect your device to your home router in order to connect your appliance with the ConnectLife mobile app.15 Step 1: Set the appliance to normal operation. Touch the Wi-Fi icon for approximately 3 seconds. You entered network connection menu when ‘--’ appears in the display. Step 2: Touch the Fridge key to select 'O' within 60 seconds. Step 3: Touch the Wi-Fi icon to confirm the selection mode. The Wi-Fi symbol starts blinking and the network of this appliance is now open to connect to, for 5 minutes. Step 4: When the Wi-Fi symbol is on, it means that the Wi-Fi connection is successful. The display will return to normal.

MULTI-USER PAIR APPLIANCE

The appliance can be paired with your mobile device. Simply pair another user to your appliance. This requires, that your appliance was already set up before and is connected to your home network. If not, go back and select SET UP APPLIANCE. Step 1: Set the appliance to normal operation. Touch the Wi-Fi icon for approximately 3 seconds. You entered network connection menu when ‘--’ appears in the display. Step 2: Touch the Fridge key to select 'P' within 60 seconds. Step 3: Touch the Wi-Fi icon to confirm the selection mode. The PAIR network of this appliance is now open to connect to, for 5 minutes. Step 4: When the display will return to normal, it means the PAIR connection is successful.

UNBIND ALL USERS OF APPLIANCE

By activating this function, the user information stored in the appliance will be deleted, and appliance will be removed from all paired app user accounts. Step 1: Set the appliance to normal operation. Touch the Wi-Fi icon for approximately 3 seconds. You entered network connection menu when ‘--’ appears in the display. Step 2: Touch the Fridge key to select '88' within 60 seconds. Step 3: Touch the Wi-Fi icon to confirm the selection mode to realize unbinding. Step 4: After the device is unbound, it will automatically enter the distribution network state, the Wi-Fi icon flashes, and the distribution network time is up to 5 minutes.16 ConnectLife App The ConnectLife App is available to download free of charge from the Apple App Store or from the Google Play Store. Installing the ConnectLife app

Go to the App Store (on Apple devices), AppGallery (on Huawei devices) or Google Play store (on Android devices) on your phone/tablet computer.

Search for "ConnectLife"

3. Choose the ConnectLife app and

INFORMATION! We recommend downloading and installing the mobile app and creating a ConnectLife account before attempting to set up the connection with your appliance. install it on your smart phone/tablet computer. Add Refrigerator on APP

3. Open the Camera on App to scan

the appliance SN code(barcode). The 23-bit barcode can be found under the data plate on the inside of the refrigerator.

Select ‘SET UP APPLIANCE’, follow the instruct and make sure Wi-Fi function of the appliance is activated, then select 'Next'. Note: When the appliance has connected to the home network and other users want to pair the same appliance, they can directly select ‘PAIR APPLIANCE’ to bind.

5. Turn on bluetooth as prompted, you

are now presented with the appliance (refrigerator HIS -XXXX), then select it.

6. Select secure Wi-Fi option, input the

password and connect.

7. Select the location of appliance and

8. Add successful, you are now able to

control appliance remotely.17 Note! The control panel will light up when the door is open or you touch any button. The light will go off without touching any button or the doors have been closed for one minutes. When the refrigerator is powered on, all the icons of the control panel will light up for 3 seconds, and a buzzer sounds. The Child Lock is off. And the temperature setting reverts back to the previous setting. As the application continues to be upgraded, please refer to the actual display interface. User manual: Transmitting frequency band(s) and max allowed transmitting power in the operating frequency band(s): 2400-2483.5MHz,less than or equal to 20dbm. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.This section tells you how to use most of the useful features. We recommend that you read through them carefully before using the appliance.

When you found the doors are not at the same level, you can use a screwdriver to adjust the fridge door. When the freezer door is higher than the fridge door. First, you can use the spanner to turn the bolt anticlockwise on the lower hinge that can raise the fridge door. Once in position use the spanner to lock the nut. When the freezer door is lower than the fridge door. You should use the spanner to turn the bolt clockwise to make the fridge door go down. Once in position lock in place.

2. Using your refrigerator compartment

The refrigerator compartment is suitable for storage of vegetables and fruit. Food inside should be packed to store in order to avoid losing moisture or flavor permeating into other foods. Caution! Never close the refrigerator door while the shelves, crisper and/or telescopic slides are extended. It may damage both them and the refrigerator. Glass shelves and Door racks The refrigerator compartment is provided with glass shelves and several different door racks, which are suitable for the storage of eggs, canned liquid, bottled drinks and packed food. They can be placed at different heights according to your need. But do not place too many heavy things in racks. Before you lift up the door shelf vertically, please take the food out. several Note: The door racks and shelves can be taken out to be cleaned. ②nut ①bolt ③spanner Using your appliance Only the fridge door can be adjusted. 18,

position. Note ② Lift the front small cover,and then inpouring directly ③ Refiting the water storage box on the fridge shelf It is for providing water for ice maker and water dispenser. Y ou can inpour-ing water into the water storage box by following steps: ① Pull out the water storage box

&DXWLRQ When the water storage box needs to be refilled,please pull out the water storage box and insert it correctly to the operation malfunction. The suggested water volume is not more than 4.5L. After re-installation of the water storage box, please wait for 10 seconds to get the first water supply. Only fill WATER into the box, SODA,JUICE,MILK,ALCOHOL, etc...are not allowedBottled or canned liquid are at risk of exploding caused by volume expansion and so should not be stored in the freezer compartment.

4. Using the dispenser

You can choose the type of ice or water by touching the “Cubed” or “Crushed” or “Water” button. When you choose ice type, push the dispenser gently with your cup. Ice will be released from the dispenser. Make sure the cup is in line with the dispenser, and the ice exactly fall into the cup. If you select Cubed Ice after using the Crushed Ice feature, a small amount of residual crushed ice might fall into your cup. Do not removing your cup or glass from under the dispenser after dispensing water or ice you need. You should be wait for 2 or 3 seconds to prevent spills. immediately Do not pull the lever out as this could damage or break the lever’s spring. The dispensed water is cool, not icy cold. When you want colder water with ice, dispense ice to your glass first, then fill with water from the dispenser. Note: Do not dispense ice continually more than one minute during normal use to avoid the excessive temperature on the ice crusher motor. Drawers

If you want to remove the Ice Bucket: Please hold the handle as shown in the figure below. Then lift up and pull the Ice Bucket out slowly to prevent damage. Note! When the ice maker dumps ice into the bucket, any sounds you hear are part of normal operation. If you do not dispense ice for a long periods of time, Ice may clump in the Ice Bucket. If this occurs, please remove all the ice and empty the bucket. If ice doesn’t come out, please check for any ice stuck in the chute and remove it. Or pull out the Ice Bucket and check for any ice cubes clump, then remove them. Ice chute Ice Maker Cover Ice Bucket If you are going on a long vacation or business trip and won’t be using the ice dispensers for period of time, please close the water valve to prevent leaks. ①L the Ice Bucketift up ②Pull the Ice Bucket out slowly Removing Steps:

When you put it back, please make sure the two side(B&B’) of Ice Bucket is wedged into the buckles(A&A’).

the two side(B&B’) of Ice Bucket wedge into the buckles(A&A’). ②Pull the Ice Bucket down, and make sure the Ice Bucket is held the bracket firmly. Push the Ice Bucket up, and make

7KHUHLVDZDWHUOLQHFRQQHFWLRQ EHWZHHQice maker and water storage box, don't disassemble the whole water supply system by yourself. It is recommended that suitably qualified person to do this 'RQRWXVHH[FHVVLYHIRUFHWRRSHQ

7KHVWRUDJHER[LVRSWLRQDOQRQ

IL[HG,IWKHSURGXFWKDVWKLV

DFFHVVRU\SOHDVHUHIHUWRWKH IROORZLQJLQVWUXFWLRQVFor hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. Exterior cleaning To maintain good appearance of your appliance, you should clean it regularly. Wipe the digital panel and display panel with a clean, soft cloth. Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface. Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth. Do not use sharp objects as they are likely to scratch the surface. Do not use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire. Warning! Warning! Interior cleaning You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. You can remove the drawers and shelves for a more thorough clean. Wipe the inside of the freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place. Cleaning and care 23Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment’s interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follow:

1. Remove existing food and

accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the process. Warning! Do not use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket. Door seals cleaning Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash the seals with a mild detergent and warm water. Rinse and dry them thoroughly after cleaning. Warning! Only after the door seals are completely dry should the appliance be powered on. Replacing the LED light

Warning: The LED light must be

replaced by a competent person. If the LED light is damaged, follow the steps below: Water storage box cleaning You should clean the water storage box regularly. You can remove the water storage box along horizontal outward, and then disassemble the cover of box. Wipe the inside of the box and cover with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth, clean it with directly drinking water again. Thoroughly dry all surfaces and removable parts before putting them back into place. You can assemble the water storage box along horizontal forward when you finish cleaning.

2. When defrosting is completed,

clean your freezer as described above.

1. Unplug your appliance.

2. Remove light cover by rising up and

puling out the LED light.

3. Hold the LED light with one hand

and pull it with the other hand while pressing the connector latch.

4. Replace LED light and snap it

correctly in place and recover the light cover. NOTE: This product contains a light source of energy efficiency class <G>.Hints for freezing When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment. Prepare food in small portions to enable it to be rapidly and completely frozen and make it possible to subsequently thaw only the quantity required. Wrap up the food in aluminum foil or polyethylene food wraps which are airtight. Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid patrial defrosting. Helpful hints and tips Energy saving tips We recommend that you follow the tips to save energy. Try to avoid keeping the door open for long periods in order to conserve energy. Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) Don’t set the temperature colder than necessary. Don’t store warm food or evaporating liquid in the appliance. Place the appliance in a well ventilated, humidity free room. Please refer to the installing your new appliance chapter. The description of appliance diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration. Hints for refrigeration Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy. Do cover or wrap the food, particularly if it has a strong flavor. Place food properly so that air can circulate freely around it. Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers. Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf. Fruit and vegetables: They should be stored in the special drawer provided. Butter and cheese: Should be wrapped in airtight foil or plastic film wrap. Milk bottles: Should have a lid and be stored in the door racks. Hints for fresh food refrigeration 25It is recommended to label and date each frozen package in order to keep track of the storage time. Hints for the storage of frozen food Ensure that frozen food has been stored correctly by the food retailer Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer. Switching off your appliance If the appliance needs to be switched off for an extended period, the following steps should be taken to prevent mould on the appliance.

2. Remove the power plug from the

3. Clean and dry the interior

4. Ensure that all the doors are

wedged open slightly to allow air to circulate. 26Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product. Appliance is not working correctly Check whether the power cord is plugged into the power outlet properly. Check the fuse or circuit of your power supply replace if, necessary. The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem. It is normal that the freezer is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor. The interior may need to be cleaned. Some food, containers or wrapping cause odours. The sounds below are quite normal: Compressor running noises. Air movement noise from the small fan motor in the freezer compartment or other compartments. Gurgling sound similar to water boiling. Popping noise during automatic defrosting. Clicking noise before the compressor starts. Other unusual noises are due to the reasons below and may need you to check and take action: The cabinet is not level. The back of appliance touches the wall. Bottles or containers knocking against each other. Problem Possible cause & Solution Odours from the compartments Noise from the appliance 27You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top. Increase the temperature by following the”Display controls” chapter. Check whether the top of the refrigerator is tilted back by mm10-15 to allow the doors to self close, or if something inside is preventing the doors from closing. The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout under neath the top of the compressor depot may not be properly positioned to direct water into this pan, or the water spout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout. Check if the refrigerator is power-off for a long time, this may cause the ice in the bucket to melt into water, and flow to the floor . The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter. The control system has disabled the lights due to the door being kept open too long, close and reopen the door to reactivate the lights. It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: Temperature setting is set colder than necessary. Large quantity of warm food has recently been stored within the appliance. The temperature outside the appliance is too high. Doors are kept open too long or too often. After your installing the appliance or it has been switched off for a long time. The motor runs continuously Temperature inside is too warm Temperature inside is too cold Doors can’t be closed easily Water drips on the floor The light is not working before making ice? if it is not sufficiently cool, it may take longer to make ice, such as when first installed. have set the Cubed or Crushed mode on. Ice is not dispensing A layer of frost occurs in the compartment Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure the door can be fully closed. To remove the frost, please refer to the cleaning and care chapter. Did you wait for 10 hours after installation of the water supply line Is the water storage box installed accurately? Make sure there is enough water in the water storage box.. Did you manually stop the ice making function? Make sure you 28Disposal of the appliance It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance

1. Pull out the mains plug from the mains socket.

2. Cut off the power cord and discard with the mains plug

Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Correct Disposal of this product Water dispenser is not functioning This is normal. The bubbling comes from the refrigerant coolant liquid circulating through the refrigerator. You can hear water bubbling in the refrigerator Is there any ice blocked within the ice maker bucket or ice chute? Is the freezer temperature too warm? Try setting the freezer temperature lower. have set the Cubed or Crushed mode on. Is the water storage box installed accurately? Make sure there is enough water in the water storage box. Is water line broke or bent? Make sure the water line is unblocked and clear of any obstruction. Is the water storage box frozen for the refrigerator temperature is too low? Try selecting a warmer setting on the display panel. Is the water pump working? 29To avoid contamination of food, please respect the following instructions - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems.

Order Compartments TYPE Target storage temp.[℃] Appropriate food

Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, Drinks and other foods which are not suitable for freezing.

(***)*-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 3 months – nutrition values and taste decrease with time), suitable for frozen fresh food.

***-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 3 months – nutrition values and taste decrease with time). Not suitable for freeing fresh food.

**-Freezer ≤-12 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 2 months – nutrition values and taste decrease with time). Not suitable for freeing fresh food.

*-Freezer ≤-6 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 1 month – nutrition values and taste decrease with time). Not suitable for freeing fresh food.

0-star -6 0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably not later than 3 days) . Partially packed/wrapped up encapsulated processed foods (non-freezable foods)

Chill -2 +3 Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 ℃ and above 0 ℃ is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 ℃)

~Note: please store different foods according to the compartments or target storage temperature of your purchased products. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Water dispenser cleaning (special for water dispenser products): - Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. WARNING! Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean.

Fresh Food 0+4 Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)

+20 red wine,white wine,sparkling wine etc. ~Hisense
