USER MANUAL RC43C2GSE HISENSE

For questions about features, operation/performance, parts or service,call: 1-855-344-73671

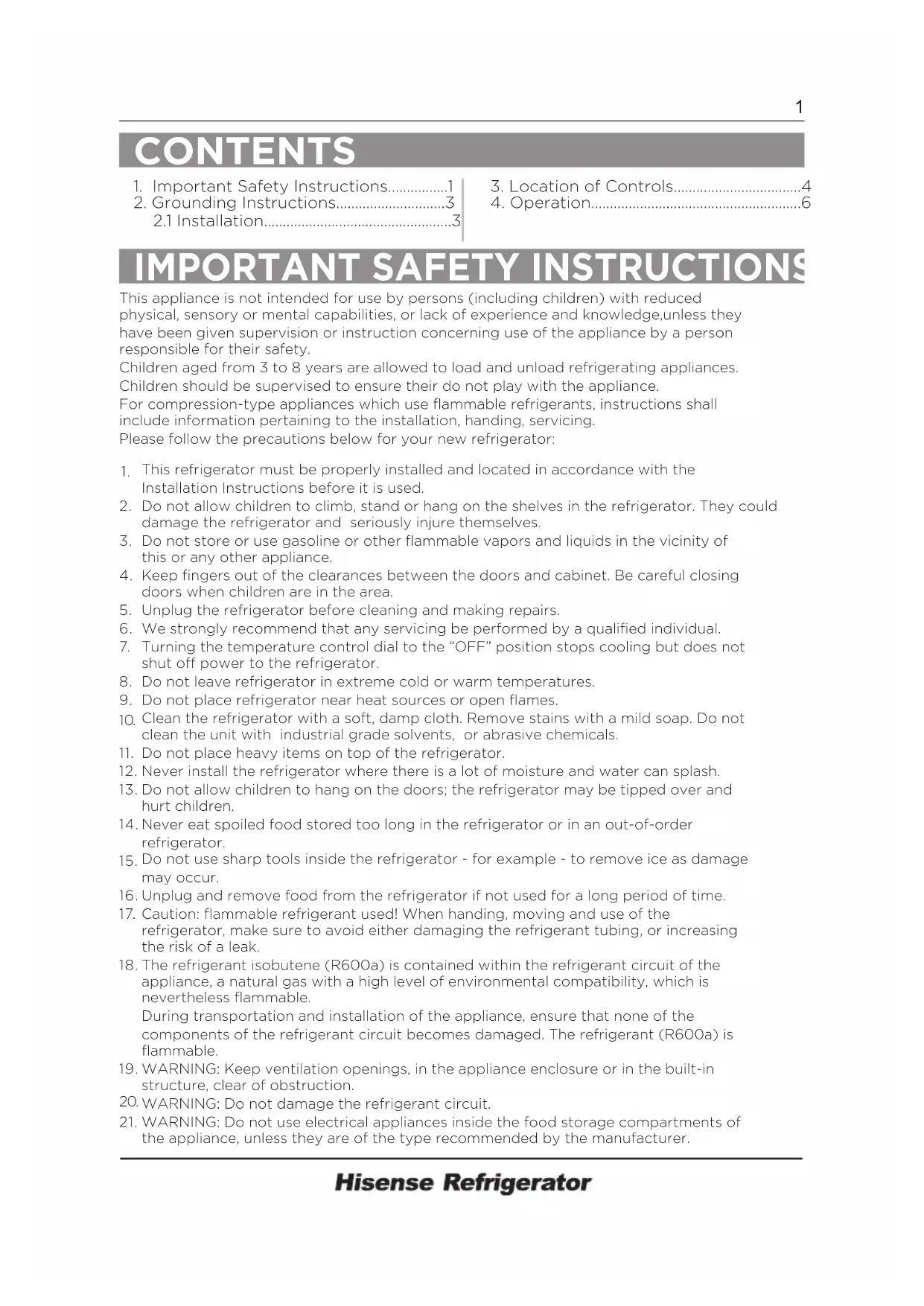

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children should be supervised to ensure their do not play with the appliance. For compression-type appliances which use flammable refrigerants, instructions shall include information pertaining to the installation, handing, servicing. Please follow the precautions below for your new refrigerator: CONTENTS

This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used. Do not allow children to climb, stand or hang on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Keep fingers out of the clearances between the doors and cabinet. Be careful closing doors when children are in the area. Unplug the refrigerator before cleaning and making repairs. We strongly recommend that any servicing be performed by a qualified individual. Turning the temperature control dial to the “OFF” position stops cooling but does not shut off power to the refrigerator. Do not leave refrigerator in extreme cold or warm temperatures. Do not place refrigerator near heat sources or open flames. Clean the refrigerator with a soft, damp cloth. Remove stains with a mild soap. Do not clean the unit with industrial grade solvents, or abrasive chemicals. Do not place heavy items on top of the refrigerator. Never install the refrigerator where there is a lot of moisture and water can splash. Do not allow children to hang on the doors; the refrigerator may be tipped over and hurt children. Never eat spoiled food stored too long in the refrigerator or in an out-of-order refrigerator. Do not use sharp tools inside the refrigerator - for example - to remove ice as damage may occur. Unplug and remove food from the refrigerator if not used for a long period of time. Caution: flammable refrigerant used! When handing, moving and use of the refrigerator, make sure to avoid either damaging the refrigerant tubing, or increasing the risk of a leak. The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in

structure, clear of obstruction.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of

the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of

the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Food needs to be packed in bags before putting into the refrigerator, and

liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean. The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.

WARNING: Risk of fire /flammable materials.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or

WARNING: Do not locate multiple portable socket-outlets or portable power supplies

at the rear of the appliance.

This product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal recycles it responsibly to promote the sustainable reuse of material resources. To return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. WARNING! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. PROPER DISPOSAL An empty refrigerator is an extremely dangerous attraction to children. If you are getting rid of your old refrigerator, please follow the instructions in the Child Entrapment Warning. CHILD ENTRAPMENT WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer: 1 . Take off the doors.

2. Leave the shelves in place so that children may not easily climb inside.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded. Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a three wire extension cord that has a three blade grounding plug, and a three slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance.

INSTALLATION When using a 3-pronged plug 3-pronged Receptacle 3-pronged plug Receptacle Box Cover When using a grounding adapter, make sure the receptacle box is fully grounded. Grounding Lead Screw Receptacle Grounding Adapter Receptacle Box Cover Steady, flat location: If the refrigerator is not leveled during installation, the doors may not close or seal properly, causing cooling, frost, or moisture problems. It is very important for the refrigerator to be level in order to function properly. To level your refrigerator, you may either turn the level leg clockwise to raise that side to the refrigerator or turn counter-clockwise to lower that side. Having someone push against the top of the refrigerator will take some weight off the leveling leg. This makes it easier to adjust the leveling leg. Ventilation: Place refrigerator approximately 5 inches from the wall to ensure proper airflow to the compressor. Do not place refrigerator near any heat resources such as a heater or stove as it will put a strain on the compressor. Power supply: . Check your local power source. This refrigerator requires a 1 1 5V,60Hz power supply. . Use a receptacle that will accept the ground prong. The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Do not use extension cords or ungrounded(two prong) adapters. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. If you have only a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pun straight out from the outlet. NOTES:

1. Freezer Compartment

3. LED light (Behind

DEFROSTING Temp Control Temp Control The thermostat control knob for the refrigerator and freezer is located at the upper right hand corner of the refrigerator compartment. The first time you turn the unit on, adjust the thermostat control knob to “4” and give your refrigerator time to cool down completely before adding food; a full 24 hours is recommended. After it is fully cooled, test it and adjust towards “1” to make less cool or towards “7” to cool more to best suit your needs. However, the setting of “4” should be appropriate for home or office refrigerator use. NOTE: Turning the control knob to the “0” position will stop the cooling cycle. Refrigerator compartment: Defrosting process is automatic; melted frost flows into drip tray and automatically evaporates. Freezer compartment: Defrosting for the freezer must be performed manually.

1. Turn the thermostat knob to the “0”

position and leave the freezer door open.

2. Remove all food and ice cube tray or

transfer to refrigerator compartment.

3. Place towel under compact refrigerator

or move refrigerator outdoors where no water damage can occur.

4. Clean and wipe out the melted frost

with a cloth. NOTE: To avoid damaging the freezer compartment wall, do not use any sharp objects to remove the frost or to separate the frozen food.7 OPERATION (CONTINUED) REPLACING THE LED light

Warning: The LED light must not be replaced by the user!

If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed:

1. Unplug your appliance.

2. Remove light cover by pushing and prying.

3. Remove screw cover and unscrew the controller box.

4. Replace LED light and snap it correctly in place.5.Remove upper door and place it on

smooth surface with panel upwards. 6.Loose screws used to fix middle hinge and remove middle hinge. Then turn middle hinge by 180. Take washer on axis and put it on another end. Place it well for use.

7. Remove lower door and place panel

upwards on smooth surface.

8. Change screw hole covers on middle

cover plate from left to right (as shown in figure below).

9. Use the 8mm socket

driver to remove lower hinge part and front foot fixed board. Then Screw out lower hinge axis and flip over the hinge body and fix the hinge axis with slotted screwdriver as the picture shows and mount washer. Note: Before this step, you should lay the refrigerator on it’s back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the refrigerator.

OPERATION (CONTINUED) Changing the door from the right side to the left. The side at which the door opens can be changed from the right side (as supplied) to the left side, if the installation site requires. Tools you will need (Not provided by seller): § 8mm socket driver § phillips screwdrivers § Putty Knife or slotted screwdrivers § 6mm wrench and 7mm wrench Parts you will need ,parts are from the package of manual door stopper door stop left upper hinge cover Caution: To avoid to injury yourself and/or property, we recommend someone assist you during the door reversal process. .Ensure the Appliance is unplugged and empty. .Following steps are generally recommended

1. Stand the refrigerator, open the upper

door and remove the things in the door and close it.

2. open the screw hole cove and the upper

hinge cover which is at the top right corner of the refrigerator. 3.Unscrew the special flange self-tapping screws which are used for fixing the right upper hinge part by a 8mm socket driver or a spanner(please support the upper door with your hand when doing it ). 4.Remove the right upper hinge part and screw hole cover place them on , the smooth surface. upper hingecover (right)screw hole coverspecial flangeself-tapping screwsright upper hinge partLower hinge part (right)Adjustable bottom feet part

10. Change lower hinge part to left and front

foot fixed board to right and fix them with screws. Then install adjustable bottom feet parts. 11.Remove the door stop (right) and door stopper (right) with Phillips screwdrivers, Install the door stopper(left) and door stop (left) which are from the package of user’s manual. Stand the refrigerator then move lower door and adjust its position to align lower hole(left) site and lower hinge axis. Then adjust middle hinge and align the middle hinge axis to the higher (left) hole site. Then install the middle hinge.

12. Screw out top hinge axis, and flip over the

hinge body and fix the hinge axis with nut as the picture below shows. Move upper door to appropriate position. Lower hinge part (left) Note: washer may stick to lower door. 1 Door stop (left)-from package of manual 2 Door stopper (left)-from package of manual 3 Self-tapping screws 4 Door stop (right) 5 Door stopper (right) Washer

13. Replace and Install the left upper hinge

cover on the left corner, Replace the screw hole cover on the right corner. 14.Stand and level the appliance. NOTE: Before the appliance is powered, We recommend that you should wait for about 2 hours.≤ 6- -6~0 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month, the longer the storage time, the worse the taste and nutrition),are not suitable for frozen fresh food. Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than3 days) . Partially encapsulated processed foods (non-freezable foods) Target storage temp.[ ] °C Order Compartments type Appropriate food

(***)*-Freezer *-Freezer 0-star Fridge ***-Freezer **-Freezer +2~+8 ≤ 18- ≤ 18- ≤ 12- Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, rinks and other foods which are not uitable for freezing. Seafood (fish,shrimp,shellfish),freshwater aquatic products and meat products (recommended for 3 months ,the longer the storage time,the worse the taste and nutrition),suitable for frozen fresh food. Seafood (fish, shrimp, shellfish),freshwater aquatic products and meat products (recommended for 3 months,the longer the storage time,the worse the taste and nutrition),are not suitable for frozen fresh food. Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition),are not suitable for frozen fresh food.

To avoid contamination of food, please respect the following instructions: - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre- frozen food, storing or making icecream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food.11 Note: please store different foods according to the compartments or target storage temperature of your purchased products. - If the refrigerating appliance is left empty for long periods, switch off, defrost , clean, dry, and leave the door open to prevent mould developing within the appliance. Water dispenser cleaning (special for water dispenser products): - Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Fresh Food Wine 0~ 4+ + +5~ 20 Fresh pork,beef,fish,chicken,cooked food,etc. (Recommended to eat within the same day,preferably no more than 3 days) red wine,white wine,sparkling wine etc. Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 and above 0 is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 )
