IAN 356463 - Playhouse Playtive - Free user manual and instructions

Product type	Outdoor playhouse
Brand	Playtive
Model	IAN 356463
Recommended age	1.5 to 6 years
Maximum number of users	2
Maximum load per user	50 kg
Approximate dimensions (L x W x H)	135 x 110 x 140 cm
Approximate weight	25 kg
Main material	Solid wood with water-based varnish
Use	Outdoor only
Assembly required	Yes, by an adult
Main functions	Imaginative play, playhouse
Maintenance and cleaning	Check and tighten screws regularly, treat wood annually with stain, ventilate if damp
Safety	Use under adult supervision, level and stable surface, safety distance of at least 2 m from obstacles, anchor to ground
Spare parts and repairability	Contact Qsource GmbH customer service
Warranty	Subject to proof of purchase, contact customer service
General information	Private domestic use, not suitable for commercial use

Frequently Asked Questions - IAN 356463 Playtive

What is the recommended age for this playhouse?

The playhouse is designed for children aged 1.5 to 6 years.

How many children can play at the same time?

Use is limited to a maximum of 2 people.

What is the maximum weight supported per user?

The maximum permitted load is 50 kg per user.

Does the playhouse need to be anchored to the ground?

Yes, it is recommended to anchor the playhouse to the ground with suitable equipment to prevent it from tipping or moving.

Can the playhouse be used indoors?

No, the playhouse is only intended for outdoor use.

How should I maintain the wood?

It is recommended to treat the wood with a special wood stain annually and store it in a dry place in winter.

Do I need to supervise children while they play?

Yes, use is only permitted under direct adult supervision.

What should I do if parts are missing or damaged?

Do not use the playhouse and contact Qsource GmbH customer service at [e-mail].

Is the playhouse weather-resistant?

It is designed to be slightly water-repellent, but water penetration can occur. Ventilate if damp and treat the wood regularly.

What safety distances must be observed?

Install the playhouse at a distance of at least 2 m from other structures or obstacles (house, fence, swing, etc.).

USER MANUAL IAN 356463 Playtive

Isometric line drawing of a small modular house with sloped roof and window (no text or symbols)

PDF ONLINE www.lidl-service.com

Two identical stick figures standing side by side, no text or symbols present

2 Pers.

Illustration of a screwdriver and a magnified view of the screwdriver tip (no text or symbols)

Parts:

Dele:

Pièces:

Onderdelen:

Teile:

[mm]

0

10

20

30

40

50

60

70

80

90

∅ 3,5mm × 45mm ∅ 3,5mm × 40mm ∅ 3mm × 25mm

12x A 20x B 24x C

M4 × 40mm

4x D 8x E

8x

E

Simple line drawing of a mushroom-shaped object with a rounded top and base (no text or symbols)

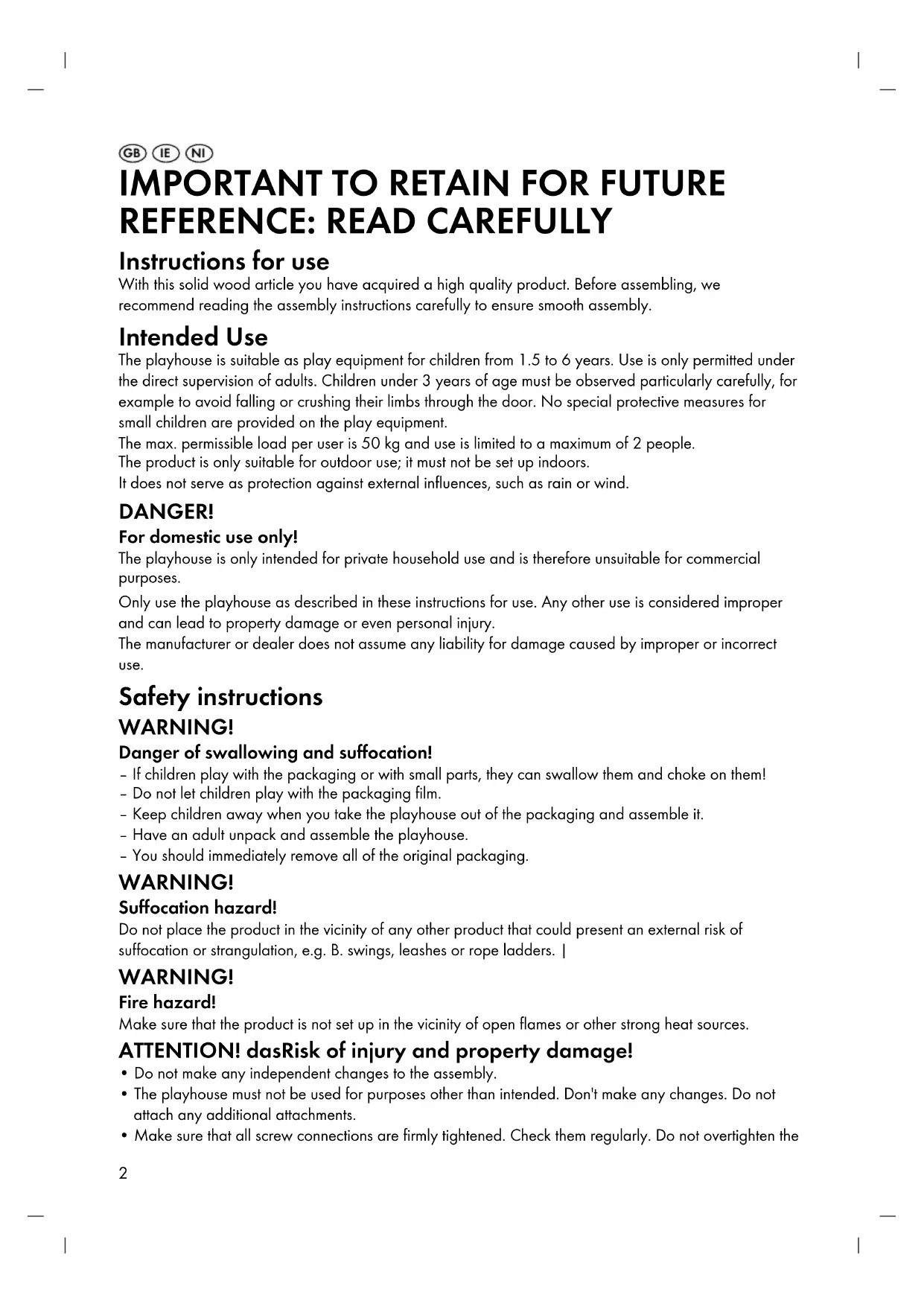

GB / IE / NI Operation and Safety Notes Page 2

Instructions for use

With this solid wood article you have acquired a high quality product. Before assembling, we recommend reading the assembly instructions carefully to ensure smooth assembly.

Intended Use

The playhouse is suitable as play equipment for children from 1.5 to 6 years. Use is only permitted under the direct supervision of adults. Children under 3 years of age must be observed particularly carefully, for example to avoid falling or crushing their limbs through the door. No special protective measures for small children are provided on the play equipment.

The max. permissible load per user is 50 kg and use is limited to a maximum of 2 people.

The product is only suitable for outdoor use; it must not be set up indoors.

It does not serve as protection against external influences, such as rain or wind.

DANGER!

For domestic use only!

The playhouse is only intended for private household use and is therefore unsuitable for commercial purposes.

Only use the playhouse as described in these instructions for use. Any other use is considered improper and can lead to property damage or even personal injury.

The manufacturer or dealer does not assume any liability for damage caused by improper or incorrect use.

Safety instructions

WARNING!

Danger of swallowing and suffocation!

• If children play with the packaging or with small parts, they can swallow them and choke on them!
• Do not let children play with the packaging film.
• Keep children away when you take the playhouse out of the packaging and assemble it.
• Have an adult unpack and assemble the playhouse.
• You should immediately remove all of the original packaging.

WARNING!

Suffocation hazard!

Do not place the product in the vicinity of any other product that could present an external risk of suffocation or strangulation, e.g. B. swings, leashes or rope ladders. |

WARNING!

Fire hazard!

Make sure that the product is not set up in the vicinity of open flames or other strong heat sources.

ATTENTION! dasRisk of injury and property damage!

• Do not make any independent changes to the assembly.
• The playhouse must not be used for purposes other than intended. Don't make any changes. Do not attach any additional attachments.
• Make sure that all screw connections are firmly tightened. Check them regularly. Do not overtighten the

screws when tightening!

• In the event of damage or loose connections, the playhouse may no longer be used.
• The playhouse may only be used when it is fully assembled.
• Before using the playhouse for the first time, check it for sharp edges and splinters and remove them.
• Only place the playhouse with a safety distance of at least 2 m from other structures or obstacles such as B. house, garage, fence, swing, slide, clothesline, sweeping branches or electrical cables.
• Only set up the playhouse on a level, soft surface, such as lawn or rubber mats.
• To prevent it falling over or shifting, fix the playhouse to the floor with suitable fastening material. Ask your specialist dealer which fastening is suitable for your ground surface. For example, it must be secured against wind and willful overturning.
• The playhouse must not be built over concrete, asphalt or other hard surfaces. An open space of at least 200 × 200 cm for the construction of the playhouse is recommended.
• The roof of the playhouse can fall under the load, for example snow or ice. Clear the roof of it in good time.
• The playhouse is designed to be slightly water-repellent. Nevertheless, water penetration or moisture build-up can occur. If moisture should build up inside or rain should penetrate, ventilate the playhouse immediately and sufficiently until it is dry again.
• Do not let anyone climb or do gymnastics on the playhouse. There is a risk of collapse
• Use the playhouse only for its intended purpose and do not overload it.
• Make sure that your child only ever plays with the playhouse on a level, non-sloping floor.
• Explain to the children how to use the playhouse correctly and never leave them unattended while they are playing.

Note on assembly

Before starting assembly, please check that all parts supplied are complete. The article is not to be used if screws or parts are missing or damaged.

When assembling, make sure that all parts are loosely connected to each other first and only tightened at the end. For assembly, please only use the appropriate tools, as shown in the illustrations.

DANGER!

- The assembly may only be carried out by adults.

- Do not let children play with the playhouse until it is fully assembled.

Maintenance instructions

During use, screws should be tightened regularly so that everything is secure and nothing wobbles. Check the wooden parts of the playhouse from time to time for worn or broken areas in order to smooth them out with sandpaper.

The playhouse is made of solid wood. In a natural product made of wood, irregularities in color and structure are characteristic and do not represent a defect.

Longer periods of warmth can also cause dry cracks, which largely regress at lower temperatures. The wood of the playhouse is treated with an environmentally friendly, saliva and sweat-proof water-based glaze and is therefore only weatherproof to a limited extent. To avoid weathering and mold stains, it is therefore recommended that the wood be treated with a special wood stain, which should be repeated annually.

The playhouse should be stored in winter, for this we recommend a dry place with air circulation.

Disposal

Please return packaging and used products to regional recycling centers.

Note

This product is subject to strict quality assurance. If, however, a defect should occur when using this article properly, please contact our customer service. In order to process a warranty service, it is essential to keep the proof of purchase.

Contact

Qsource GmbH, Auguste-Baur-Strasse 1, D-22587 Hamburg, Tel.: [phone], Fax: [phone], E-Mail: [e-mail] You can reach us Monday to Friday from 8 a.m. to 4 p.m.

DK

VIGTIGT AT OPBEVARE TIL FREMTIDIG REFERENCE: LÆS N∅JE

Brugsanvisning

Technical diagram showing 14 labeled architectural or structural components with numbered annotations, likely for architectural or engineering purposes.

A 1x C 4x Ø 3mm x 25mm 2 5 4 c

B 1x 6x Ø 3mm x 25mm ③ ③ ③

C 1x B 4x Ø 3,5mm x 40mm 1 B

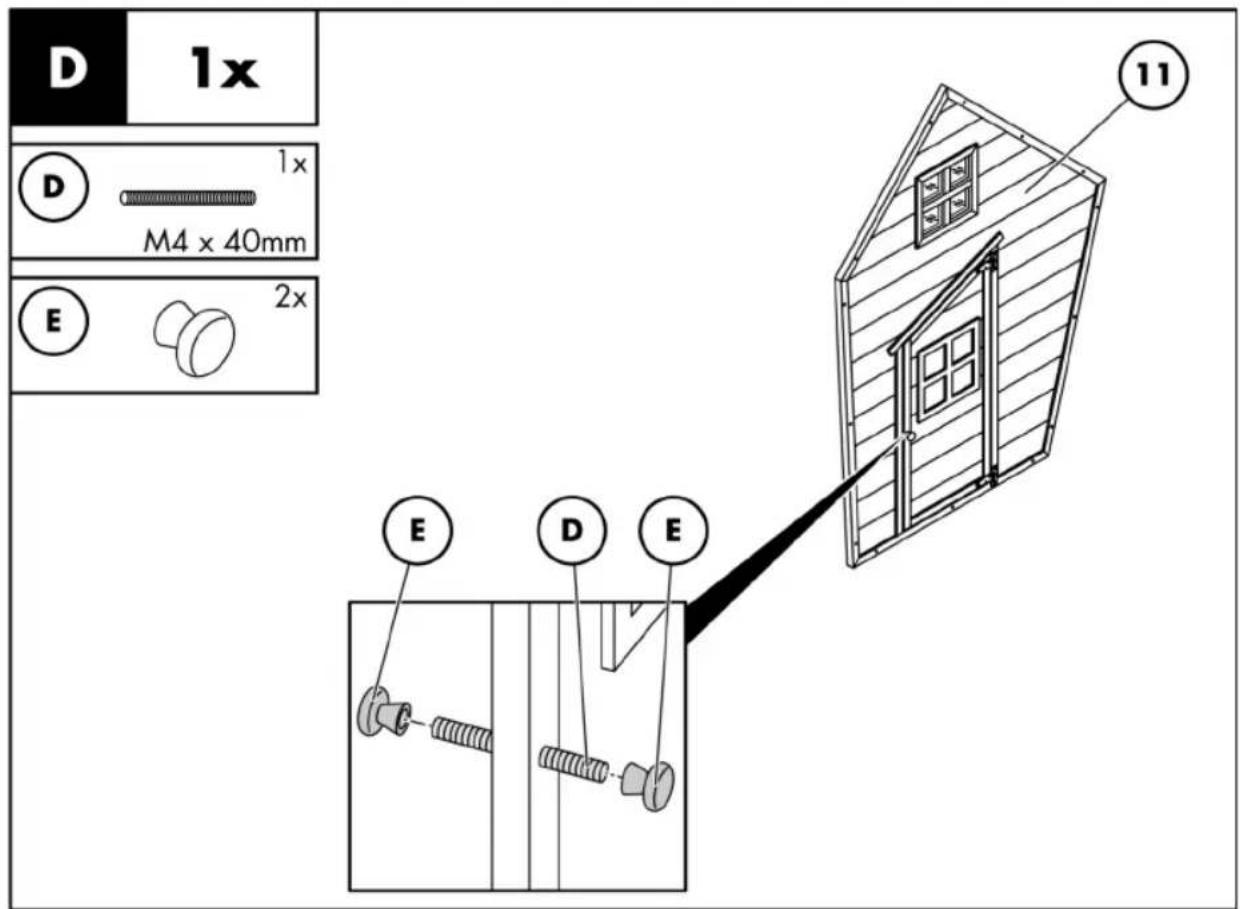

D 1x D 1x M4 x 40mm E 2x E D E 11

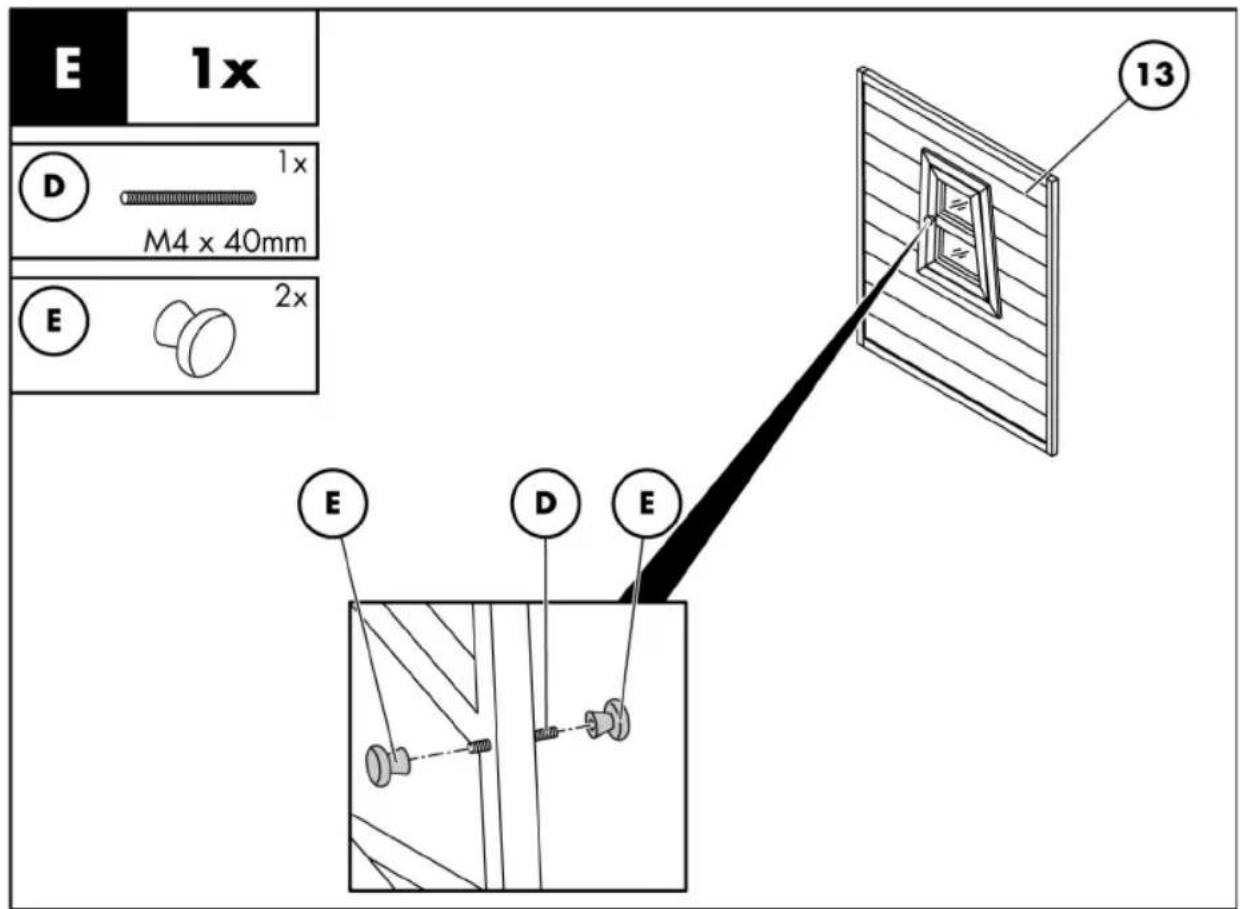

E 1x D 1x M4 x 40mm E 2x E D E 13

F 1x D 2x M4 x 40mm E 4x E D E 10

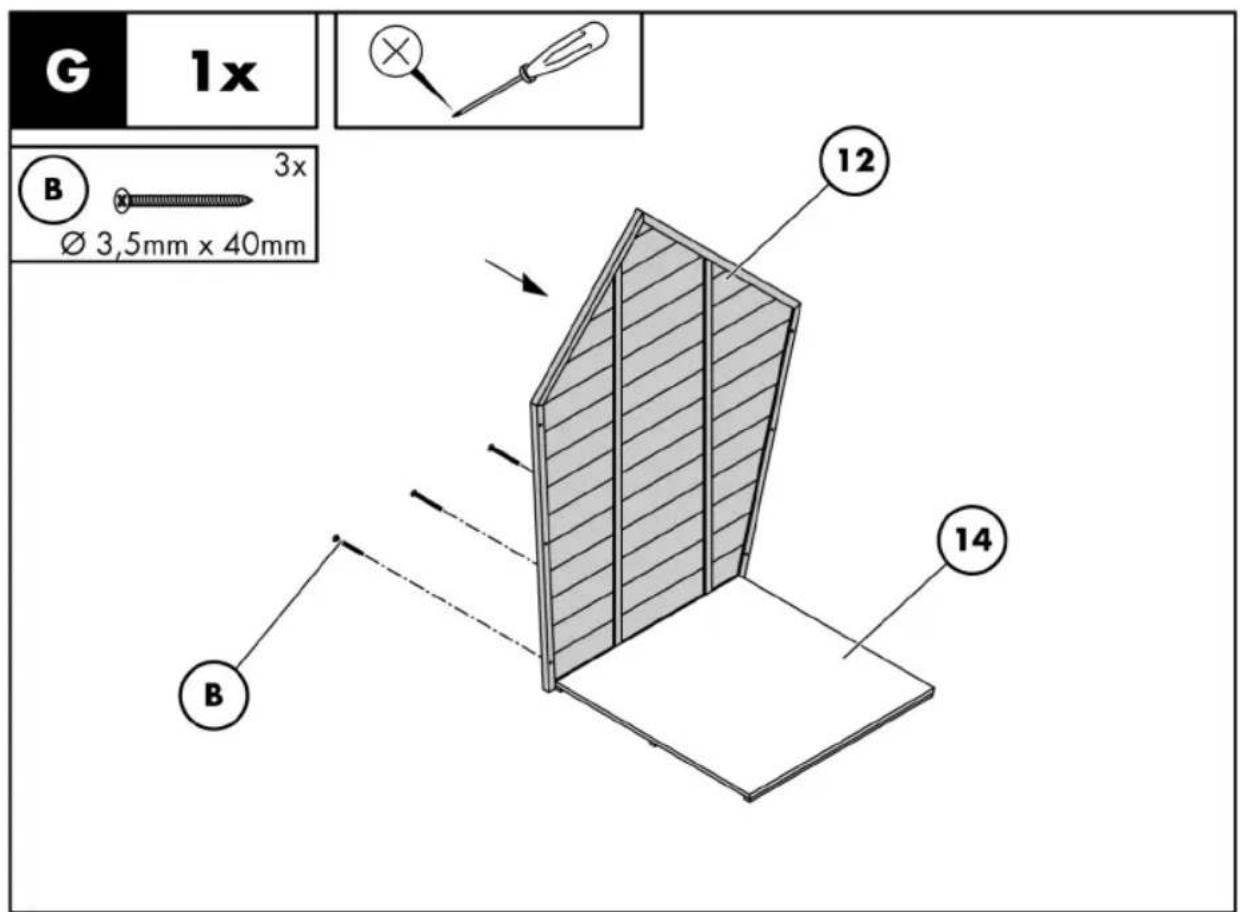

G 1x B 3x Ø 3,5mm x 40mm 12 14 B

H 1x A 3x Ø 3,5mm x 45mm A 13

I 1x A 3x Ø 3,5mm x 45mm B 3x Ø 3,5mm x 40mm 11 A B

J 1x 6x Ø 3,5mm x 45mm A A 10

K 1x 4x Ø 3mm x 25mm c c 8

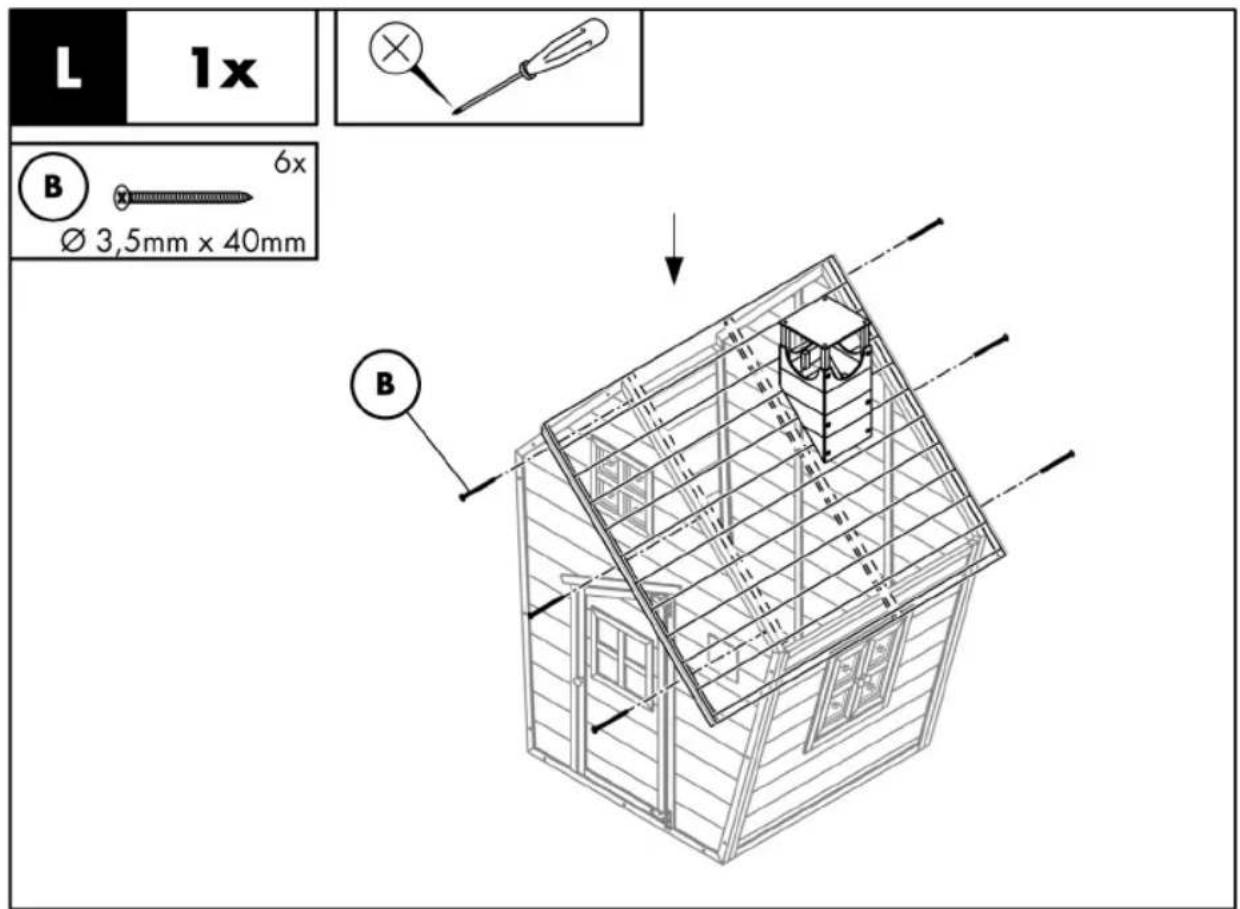

L 1x 6x Ø 3,5mm x 40mm B B

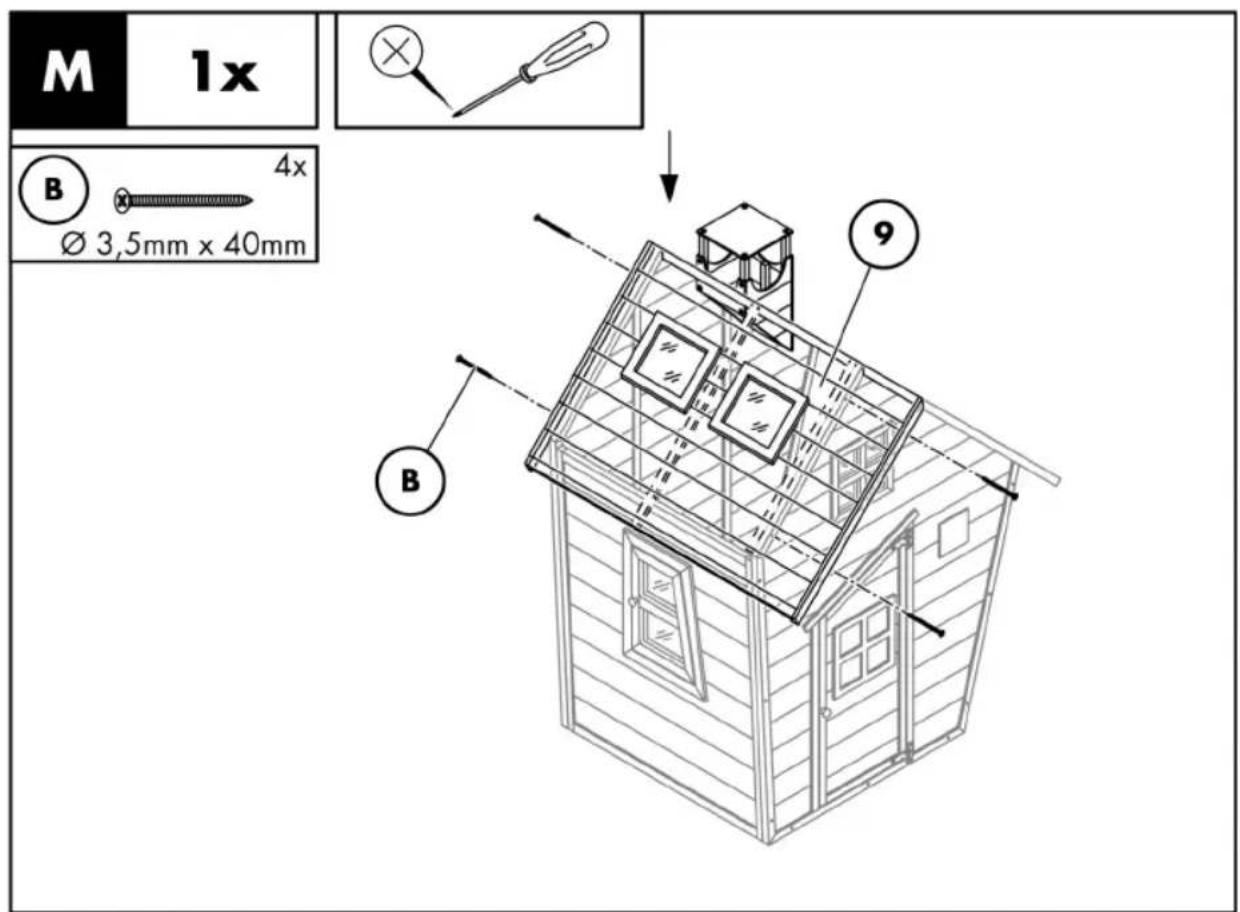

M 1x B 4x Ø 3,5mm x 40mm 9 B

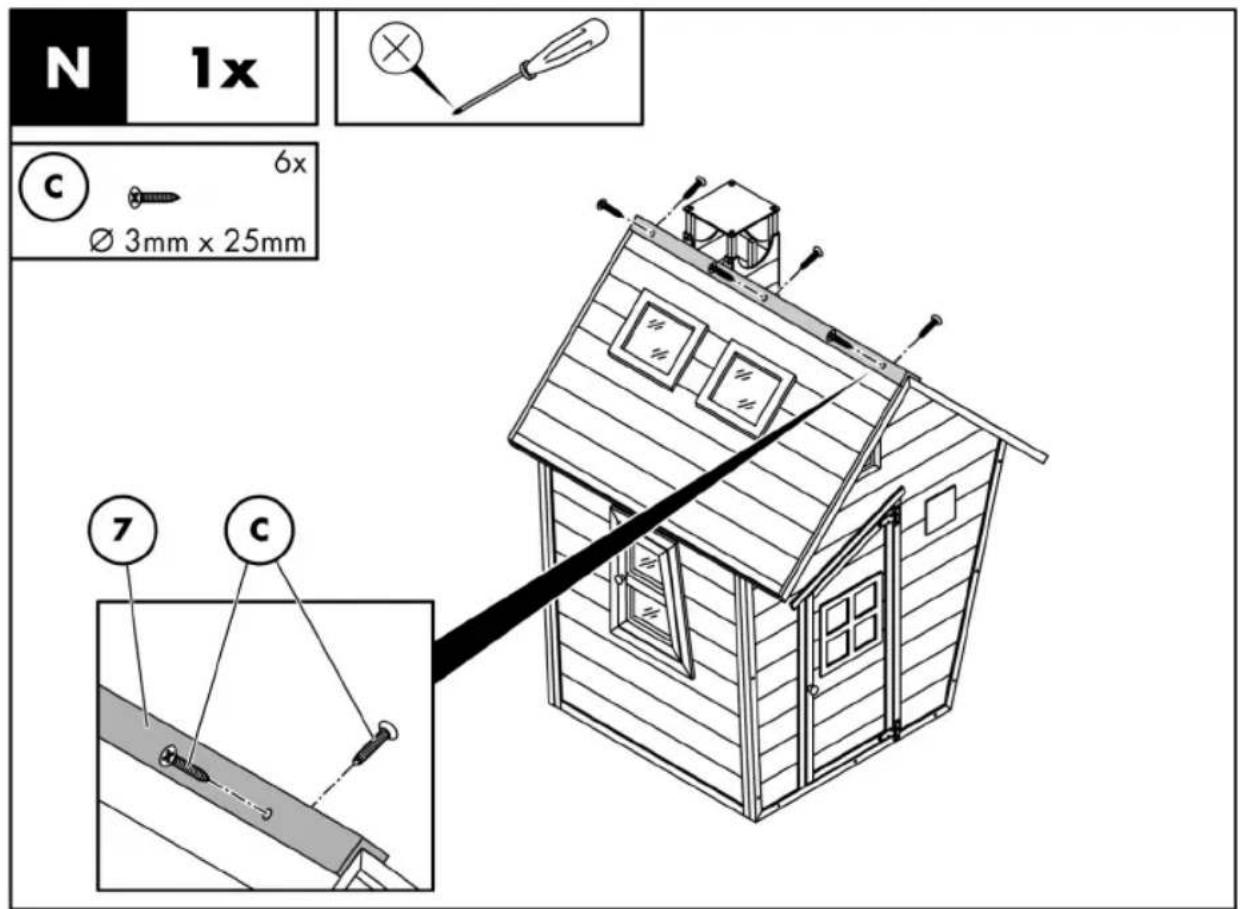

N 1x 6x Ø 3mm x 25mm ⑦ C

1x 4x Ø 3mm x 25mm 6 c

Isometric line drawing of a small house with tiled roof and window, no text or symbols present

QSOURCE GMBH
