Product type	Wet/dry vacuum cleaner
Brand	Hyundai
Model	57707
Rated power	1 400 W
Max. tool socket power	2 000 W
Mains voltage	230 V~
Mains frequency	50 Hz
Tank capacity	30 litres
Suction pressure	19 kPa
Noise level (pressure)	< 82 dB(A)
Weight	10.5 kg
Filtration type	Dust bag, foam filter, HEPA filter
Functions	Vacuuming solids, vacuuming liquids, vacuuming power tools
Electronic power socket	Yes, for connecting a power tool (max. 2000 W)
Automatic float shut-off	Yes, in liquid mode
Included accessories	Hose, tube, nozzle, crevice nozzle, brush nozzle, vacuum bag, foam filter, HEPA filter, 4 wheels, instruction manual
Maintenance	Empty the tank after each liquid use, clean the tank regularly with soapy water, clean the motor housing and air outlet with a lint-free cloth
Bag replacement	Replace the vacuum bag when full or regularly
Safety	Use only original accessories, do not vacuum hot embers or flammable liquids, unplug before maintenance
Warranty	See the attached warranty conditions
Certification	Compliant with CE standards, declaration of conformity Dvize bv

Frequently Asked Questions - 57707 HYUNDAI

How to use the vacuum cleaner to vacuum liquids?

To vacuum liquids, remove the dust bag, place the foam filter on the basket, reassemble the motor housing, and connect the hose. Make sure the electronic power socket is not in use. Turn on the appliance with the switch in position I. The float automatically stops suction when the tank is full.

How to clean the foam filter?

After vacuuming liquids, remove the foam filter, rinse it with clean water only, clean it thoroughly and replace it after complete drying.

How to change the dust bag?

Unplug the vacuum cleaner. Open the latches, remove the motor housing, take out the full bag, throw it away or empty it, then insert a new bag by sliding it firmly onto the sleeve. Close the housing.

Can I connect a power tool to the vacuum cleaner?

Yes, the vacuum cleaner has an electronic socket. Set the switch to position II, connect the tool (max 2000 W) and the vacuum cleaner turns on/off automatically with the tool. Do not use in liquid mode.

What to do if the vacuum cleaner stops during liquid use?

This is normal: the overflow float has cut off suction because the tank is full. Turn off the appliance, unplug it, empty the tank, then turn it back on.

What types of waste should not be vacuumed?

Never vacuum hot embers or smoldering debris, explosive or flammable liquids or substances (gasoline, solvents, etc.). This could cause a fire or explosion.

How to mount the wheels?

Turn the trolley upside down. Place the rear wheel axle in the grooves and fix it with the two screws. Press the swivel caster pins into the front. Turn the trolley right side up.

What is the tank capacity?

The tank has a capacity of 30 liters. For liquids, it is important not to exceed the maximum level indicated by the float.

How to maintain the vacuum cleaner?

After each liquid use, empty and dry the tank. Clean the tank regularly with soapy water, and the motor housing and air outlet with a lint-free cloth. Replace the dust bag when full.

Is the vacuum cleaner noisy?

The sound pressure level is below 82 dB(A). Use hearing protection if necessary.

USER MANUAL 57707 HYUNDAI

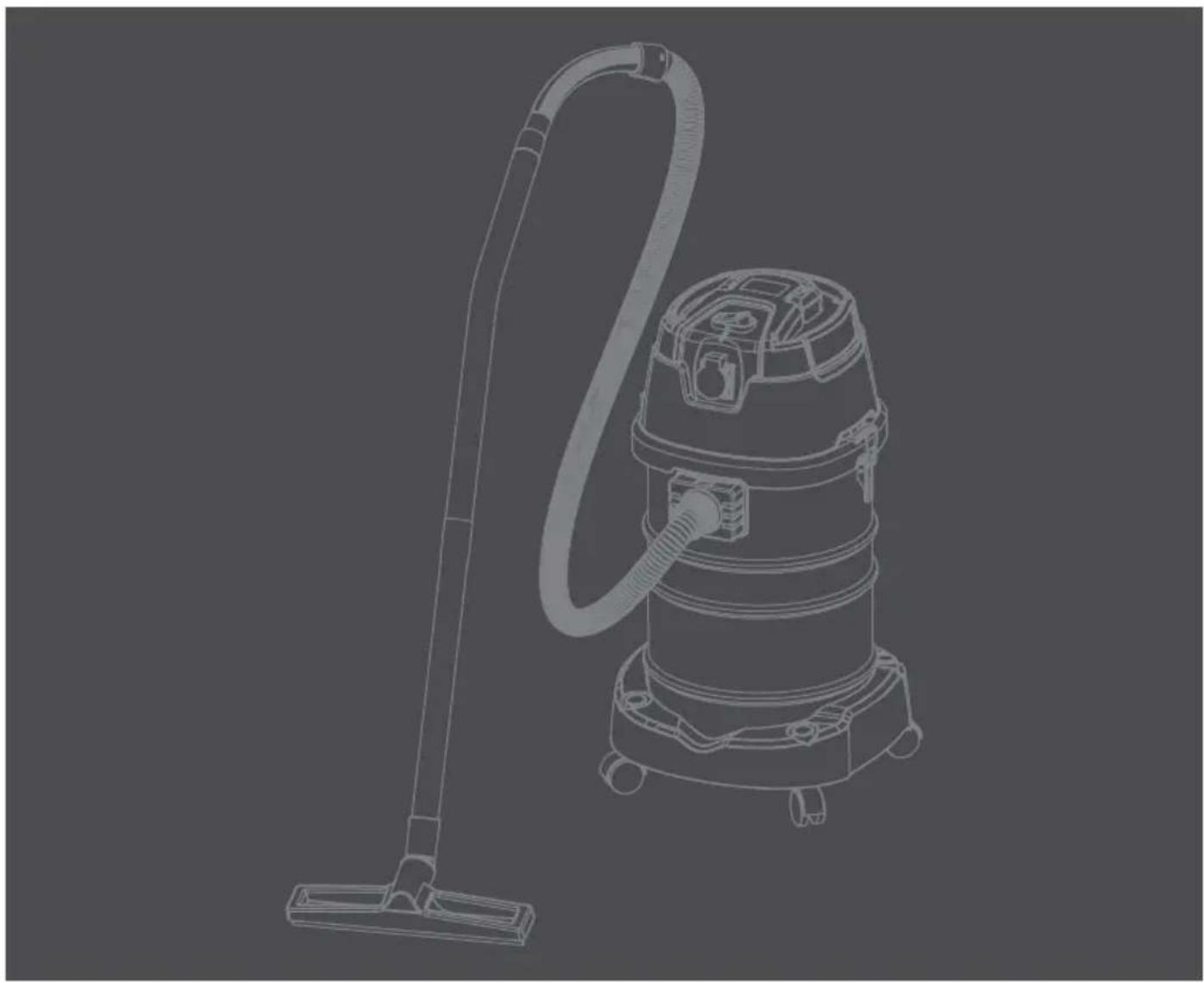

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Line drawing of a vacuum cleaner with handle and control panel (no text or symbols)

HYUNDAI

Nederlands 5

English 8

Français 11

Deutsch 14

Svenska 17

Dansk 20

• Verklaring van overeenstemming 23
- Declaration of conformity
• Certificat de conformité
- Konformitätserklärung
- Förklaring om överensstämmelse
• Overensstemmelseserklæring

1 2 3 4 5 6 7 8 9 10 HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDA

A

HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI HYUNDAI

NAT-/DROOGZUIGER 57707

WAARSCHUWING

VEILIGHEIDSWAARSCHUWINGEN

BESCHRIJVING (AFB. A)

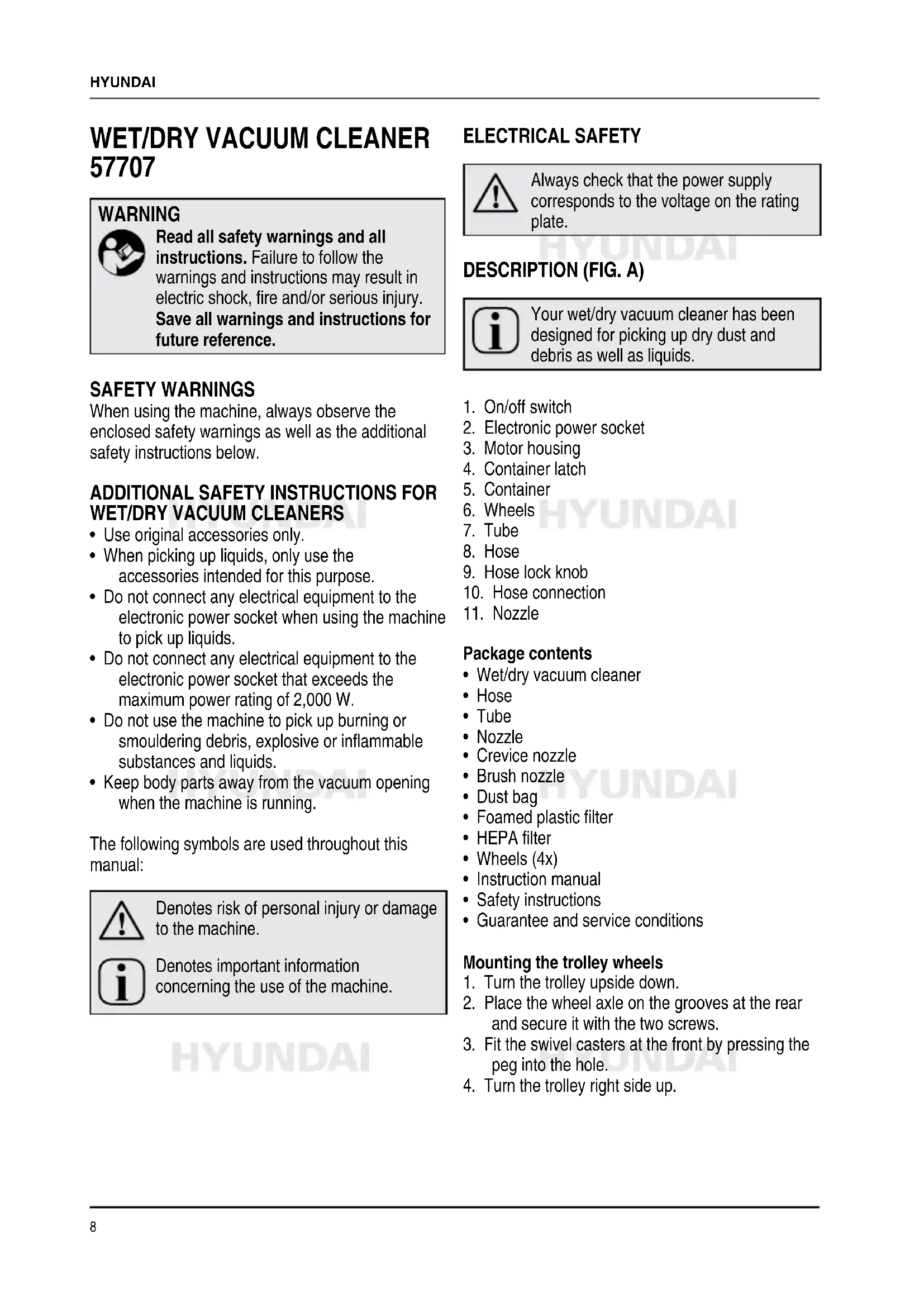

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

SAFETY WARNINGS

When using the machine, always observe the enclosed safety warnings as well as the additional safety instructions below.

ADDITIONAL SAFETY INSTRUCTIONS FOR WET/DRY VACUUM CLEANERS

• Use original accessories only.
• When picking up liquids, only use the accessories intended for this purpose.
• Do not connect any electrical equipment to the electronic power socket when using the machine to pick up liquids.
• Do not connect any electrical equipment to the electronic power socket that exceeds the maximum power rating of 2,000 W.
• Do not use the machine to pick up burning or smouldering debris, explosive or inflammable substances and liquids.
• Keep body parts away from the vacuum opening when the machine is running.

The following symbols are used throughout this manual:

Denotes risk of personal injury or damage to the machine.

Denotes important information concerning the use of the machine.

ELECTRICAL SAFETY

Always check that the power supply corresponds to the voltage on the rating plate.

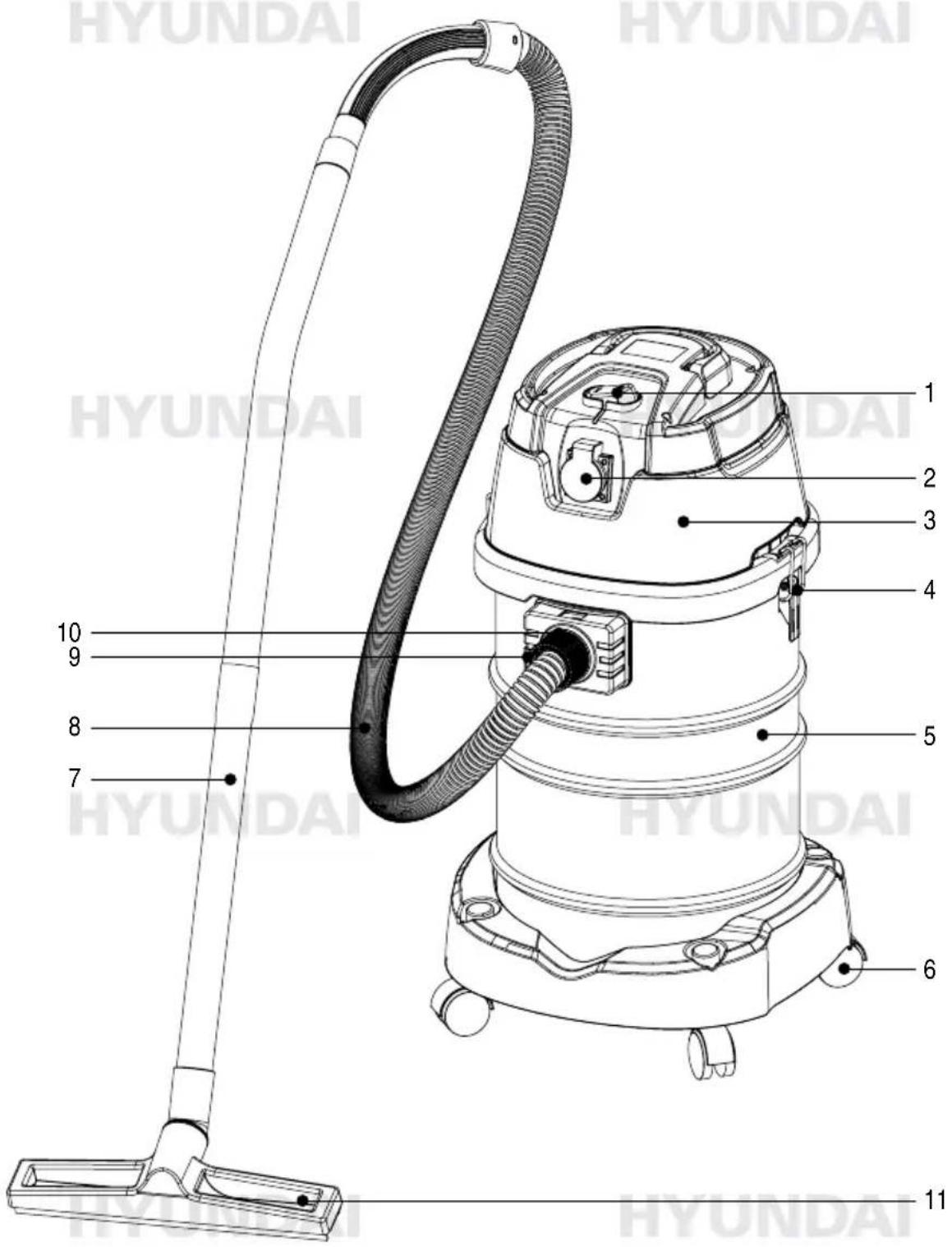

DESCRIPTION (FIG. A)

Your wet/dry vacuum cleaner has been designed for picking up dry dust and debris as well as liquids.

1. On/off switch
2. Motor housing
3. Container latch
4. Container
5. Wheels
6. Tube
7. Hose
8. Hose lock knob
9. Hose connection

10. Nozzle

11. Electronic power socket

Package contents

• Wet/dry vacuum cleaner
• Hose
• Tube
• Nozzle
• Crevice nozzle
• Brush nozzle
• Dust bag
• Foamed plastic filter
• HEPA filter
• Wheels (4x)
• Instruction manual
• Safety instructions

• Guarantee and service conditions

Mounting the trolley wheels

1. Turn the trolley upside down.
2. Place the wheel axle on the grooves at the rear and secure it with the two screws.
3. Fit the swivel casters at the front by pressing the peg into the hole.
4. Turn the trolley right side up.

BEFORE USE

Before mounting an accessory, always unplug the machine.

Mounting accessories for picking up dry material

The dust bag must be used for picking up dry material.

1. Remove the motor housing (3) from the container (5) by releasing the container latches (4).
2. Place the dust bag in the container and slide it firmly over the hose connection (10).
3. Replace the motor housing and click the container latches firmly shut.
4. Connect the hose (8) to the hose connection (10).

Mounting accessories for picking up liquids

The supplied foamed plastic filter must be used for picking up liquids.

1. Remove the motor housing (3) from the container (5) by releasing the container latches (4).
2. Remove the dust bag from the container.
3. Pull the supplied foamed plastic filter over the filter basket.
4. Replace the motor housing and click the container latches firmly shut.
5. Connect the hose (8) to the hose connection (10).

Connecting the hose

1. Slide the hose lock knob (9) to the left, insert the end of the hose into the hose connection and release the lock knob.
2. Place the tube (7) onto the other end of the hose.
3. Place a nozzle (11) onto the other end of the tube.

USE

Always check whether the correct accessories have been mounted before switching on the machine.

For dry dust and debris

1. Insert the mains plug into a mains outlet.
2. Switch on the machine by setting the on/off switch (1) to position 'I'.
3. Switch off the machine by setting the on/off switch (1) to position '0'.

For dust produced by power tools

The machine has a socket for connection of power tools. The machine switches on and off automatically when the power tool is used.

The power rating of the power tool connected to the socket must not exceed 2000 W.

1. Insert the mains plug into a mains outlet.
2. Set the on/off switch (1) to position 'II'.
3. Plug the power tool into the electronic power socket (2).
4. Connect the hose (8) to the dust extraction outlet on the power tool.
5. Operate the power tool as described in the instructions.
6. The machine switches on and off automatically when the power tool is used. It will continue to run for a few seconds after the power tool is switched off to collect any remaining dust.
7. Switch off the machine by setting the on/off switch (1) to position '0'.

The electronic power socket is not suitable for use as a regular mains socket. Therefore never use the machine as a regular mains socket or as a replacement for an extension lead.

For liquids

Do not connect any electrical equipment to the electronic power socket when using the machine to pick up liquids.

1. Insert the mains plug into a mains outlet.
2. Switch on the machine by setting the on/off switch (1) to position 'I'.
3. Switch off the machine by setting the on/off switch (1) to position '0'.

The machine is equipped with an overflow float that stops the suction power when the tank gets too full. When this happens, switch off the machine, empty the tank and switch on the machine again.

CLEANING AND MAINTENANCE

Always remove the plug from the mains outlet before cleaning or maintenance.

Cleaning

After picking up dry material:

1. Remove the dust bag.
2. Discard or empty the dust bag.
3. Fit the empty dust bag or a new one.

After picking up liquids:

1. Remove the foamed plastic filter.
2. Rinse the filter. Use only water.
3. Dry the filter thoroughly.
4. Fit the filter.

Maintenance

• Empty the container each time after using the machine to pick up liquids. Allow the container to dry thoroughly afterwards.

• Regularly clean the container using soap and water. Allow the container to dry thoroughly afterwards.

• Regularly clean the motor housing using a non-fluffy cloth or brush.

• Regularly clean the exhaust outlet using a non-fluffy cloth or brush.
• Regularly replace the dust bag. Always replace the dust bag when it is full.

TECHNICAL DATA

Mains voltage V\~ 230

Mains frequency Hz 50

Power rating W 1,400

Max. socket power W 2,000

Suction power kPa 19

Container capacity I 30

Weight kg 10.5

Noise

L_pA (sound pressure level) ^* dB(A) <82

*Uncertainty K= dB(A) 3

GUARANTEE

Refer to the enclosed guarantee conditions for the terms and conditions of guarantee.

ENVIRONMENT

Your product, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

Subject to change; specifications can be changed without further notice.
