IAN 386411 - Balance bike Playtive - Free user manual and instructions

Product type	Balance bike
Brand	Playtive
Model	IAN 386411
Maximum user weight	20 kg
Adjustable handlebar height	Approximately 33 to 41 cm
Dimensions (L × H × D)	Approximately 51 × 32.4 × 37 cm
Tire diameter	Approximately 14.5 cm
Recommended age	12 to 36 months
Use	Private use, not on public roads, no brakes
Recommended surface	Smooth, clean and dry
Required protective equipment	Helmet, wrist guards, elbow pads, knee pads and shoes
Assembly	By an adult, multi-function tool provided
Handlebar adjustment	Height adjustable via steel clamp with locking screw
Main materials	Metal and plastic
Cleaning	Dry cloth only, no harsh cleaners
Storage	Dry and clean place, room temperature
Warranty	3 years (material and manufacturing defects)
After-sales service (Switzerland)	Tel. [phone], email [e-mail]
Spare parts	Available during the warranty period
Safety standards	Directive 2009/48/EC on toy safety

Frequently Asked Questions - IAN 386411 Playtive

From what age can my child use this balance bike?

The Playtive IAN 386411 balance bike is designed for children from 12 months up to 36 months maximum. The child's weight must not exceed 20 kg.

Does the balance bike have brakes?

No, this balance bike does not have brakes. The child learns to brake by putting their feet on the ground. It is therefore essential to use it on smooth, clean and dry surfaces and always under supervision.

How to adjust the handlebar height?

Loosen the locking screw (7a) of the steel clamp (7) using the provided multi-function tool. Adjust the height of the handlebar tube respecting the minimum insertion depth marking, then tighten the screw firmly.

What protective equipment should my child wear?

For your child's safety, they must wear a helmet as well as hand, wrist, elbow and knee protection and closed-toe shoes.

Can I use the balance bike on public roads?

No, this balance bike is a toy for private use and must not be used on public roads. Use it only in safe areas, away from vehicles and obstacles.

How to clean and maintain the balance bike?

Clean the balance bike only with a dry cloth. Never use harsh cleaning products. Store it in a dry and clean place at room temperature.

What to do if a part is damaged or missing?

Essential spare parts are available during the warranty period. Contact customer service at 0842 665566 (Switzerland) or by email at [e-mail].

Is the balance bike under warranty?

Yes, DELTA-SPORT HANDELS-KONTOR GmbH offers a 3-year warranty from the date of purchase, covering material and manufacturing defects. Keep the original receipt.

How to assemble the balance bike?

Assembly must be done by an adult. Follow figures B to D in the manual. Use the provided multi-function tool (screwdriver and nut wrench). Insert the handlebar into the front fork respecting the minimum depth, then tighten the clamp screw.

What are the essential safety precautions?

Always supervise the child. Check before each use that the balance bike is not damaged. Do not use near stairs, water bodies or on slopes. Do not exceed 20 kg user weight.

USER MANUAL IAN 386411 Playtive

Two children's tricycles with black and white wheels, no visible text or symbols on the main body.

PDF ONLINE www.lidl-service.com

LAUFLERNRAD

DE AT CH

LAUFLERNRAD

Gebrauchsanweisung

IT CH

BICI PER IMPARARE A CAMMINARE

Istruzioni d'uso

FR CH

DRAISIENNE D'APPRENTISSAGE

Instructions for use

CE

IAN 386411_2104

DE AT CH

FR IT GB

A 1 x 2 x 3 x 4 x 5 x 6 x 7 x 9 x 84 x

Line drawing of a children's tricycle with wheels and a handle (no text or symbols)

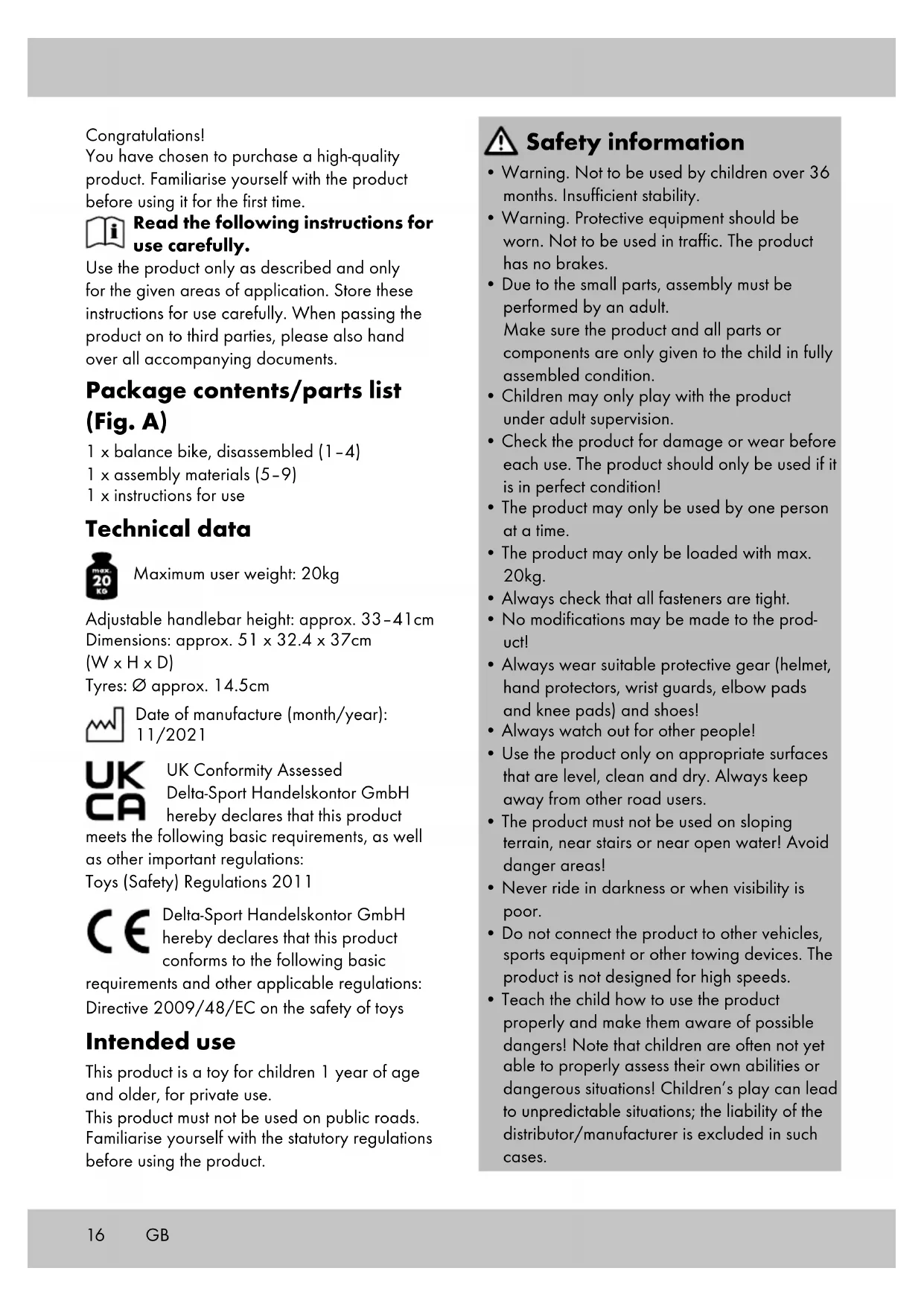

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents/parts list (Fig. A)

1 x balance bike, disassembled (1-4)
1 x assembly materials (5-9)
1 x instructions for use

Technical data

Maximum user weight: 20kg

Adjustable handlebar height: approx. 33-41cm

Dimensions: approx. 51 x 32.4 x 37cm

(W × H × D)

Tyres: ∅ approx. 14.5cm

Date of manufacture (month/year): 11/2021

UK Conformity Assessed

Delta-Sport Handelskontor GmbH hereby declares that this product

meets the following basic requirements, as well as other important regulations:

Toys (Safety) Regulations 2011

Delta-Sport Handelskontor GmbH hereby declares that this product conforms to the following basic

requirements and other applicable regulations:

Directive 2009/48/EC on the safety of toys

Intended use

This product is a toy for children 1 year of age and older, for private use.

This product must not be used on public roads.

Familiarise yourself with the statutory regulations before using the product.

Safety information

• Warning. Not to be used by children over 36 months. Insufficient stability.
• Warning. Protective equipment should be worn. Not to be used in traffic. The product has no brakes.
• Due to the small parts, assembly must be performed by an adult.

Make sure the product and all parts or components are only given to the child in fully assembled condition.

• Children may only play with the product under adult supervision.
- Check the product for damage or wear before each use. The product should only be used if it is in perfect condition!
- The product may only be used by one person at a time.
- The product may only be loaded with max. 20kg.
• Always check that all fasteners are tight.
- No modifications may be made to the product!
- Always wear suitable protective gear (helmet, hand protectors, wrist guards, elbow pads and knee pads) and shoes!
• Always watch out for other people!
- Use the product only on appropriate surfaces that are level, clean and dry. Always keep away from other road users.
- The product must not be used on sloping terrain, near stairs or near open water! Avoid danger areas!
- Never ride in darkness or when visibility is poor.
- Do not connect the product to other vehicles, sports equipment or other towing devices. The product is not designed for high speeds.
- Teach the child how to use the product properly and make them aware of possible dangers! Note that children are often not yet able to properly assess their own abilities or dangerous situations! Children's play can lead to unpredictable situations; the liability of the distributor/manufacturer is excluded in such cases.

• Do not let your child use the product unsupervised as children cannot adequately assess potential dangers.
• Using the product requires skill to prevent falls or collisions that could result in injury to the user or others.

Preventing damage to the product!

- Avoid water, oil, potholes and very rough surfaces.

Assembly

Assemble the product as shown in Figures B–D, on a flat, even surface.

To assemble the product, use the multitool provided with screwdriver and ring spanner (9).

Note: Always check that the fasteners are tight and tighten them if necessary.

Assembling the handlebar (Fig. D)

1. Slide the washer (6) and the steel clamp (7) onto the front fork (2) (Fig. D).

Note: Make sure the steel clamp securing bolt is on the side with the slot. The steel clamp must be centred on the slot.

1. Slide the cover (5) onto the handlebar tube (4) (Fig. D).

2. Insert the handlebar tube into the front fork (2).

Note the minimum insertion depth marked on the handlebar!

1. Tighten the securing bolt (7a) on the steel clamp (7) using the tool (9) supplied.

2. Slide the cover (5) over the steel clamp (7).

Adjusting the height of the steering column (Fig. D)

To adjust the steering of the balance bike, loosen the securing bolt (7a) on the steel clamp (7).

Note: If there is too much play in the handlebar, screw the securing bolt (7a) tighter. If the handlebar is too stiff, loosen the nut.

Note the minimum insertion depth marked on the handlebar!

Storage, cleaning

When not in use, always store the product clean and dry at room temperature.

Wipe clean with a dry cloth only.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling.

The code consists of the recycling symbol – which is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 386411_2104

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

11/2021
