IAN 323001 - Portable video game console Playtive - Free user manual and instructions

Product type	Portable video game console
Brand	Playtive
Model	IAN 323001
Dimensions (L × H × D)	approx. 12 × 2 × 6 cm
Power supply	3 LR03 (AAA) 1.5 V batteries
Number of built-in games	More than 200
Screen	Built-in, with protective film to remove
Buttons	Directional (left, right, forward, back), A, B, Start, Reset, Volume
Recommended age	From 3 years
Warranty	3 years from date of purchase
Maintenance	Clean with a damp cloth, do not use harsh products
Spare parts	Available during the warranty period
Safety	Do not leave children unattended, risk of epilepsy, precautions with batteries

Frequently Asked Questions - IAN 323001 Playtive

How to turn the console on and off?

Slide the switch to the left to turn on, to the right to turn off.

How to change the batteries?

Loosen the screw on the battery compartment cover, insert 3 LR03 (AAA) batteries observing polarity, then close.

What to do if the screen does not turn on?

Check that the batteries are correctly installed and not depleted. If the problem persists, press the Reset button.

How many games are included?

The console contains more than 200 built-in games.

How to adjust the volume?

Press the Volume button to adjust the volume or mute.

Is the console suitable for young children?

It is recommended from 3 years old. Supervise children and keep batteries out of their reach.

Is there a risk of epilepsy?

Yes, some people may have seizures. Stop playing if you experience visual disturbances, twitching, or disorientation.

How to clean the console?

Use a damp cloth, no harsh products. Do not let moisture enter.

What to do in case of malfunction?

Press the Reset button to restart. If the problem persists, contact customer service.

How to dispose of used batteries?

Do not throw them in household waste. Take them to a designated collection point.

USER MANUAL IAN 323001 Playtive

MINI HANDHELD GAMES CONSOLE

Operating instructions

DK

MINI JOY GAMING PAD

Operating instructions 4 - 10

DK

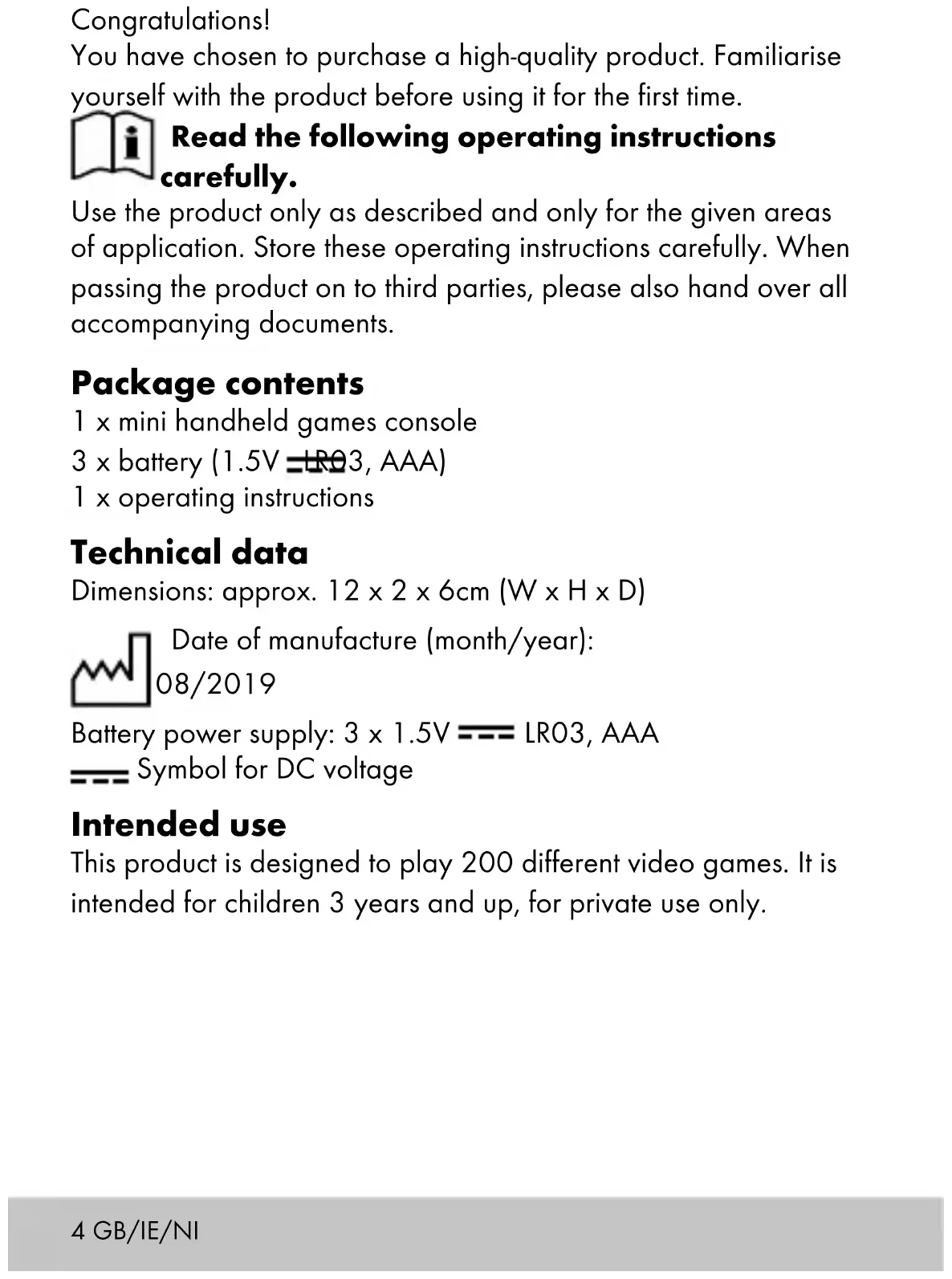

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following operating instructions carefully.

Use the product only as described and only for the given areas of application. Store these operating instructions carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x mini handheld games console
3 x battery (1.5V = LRO3, AAA)
1 x operating instructions

Technical data

Dimensions: approx. 12 × 2 × 6cm (W x H x D)

Date of manufacture (month/year):

08/2019

Battery power supply: 3 x 1.5V = LR03, AAA

--- Symbol for DC voltage

Intended use

This product is designed to play 200 different video games. It is intended for children 3 years and up, for private use only.

Safety information

Important: please read these operating instructions carefully and keep them for future reference!

Life-threatening hazard!

• Never leave children unattended with the packaging materials. There is a risk of suffocation.
• Check the product for damage or wear before each use.
  Only use the product if it is in perfect condition!
• No modifications may be made to the product!

Epilepsy warning!

- Some people may experience epileptic seizures when exposed to certain light frequencies, flickering lights or geometric shapes. Stop the game immediately and seek medical attention if one of the following symptoms occurs while playing: visual impairment, eye and muscle spasms, loss of consciousness, disorientation or cramps.

Battery warning notices

• Remove the batteries when they are flat, or if the product is not in use for an extended period.
• Do not use different types or brands of battery or new and used batteries together or batteries with different capacities as these can leak and cause damage.
• Ensure the polarity (+/-) is correct when inserting the batteries.
• Replace all batteries at the same time and dispose of the old batteries as prescribed.
• Warning! Batteries must not be charged or reactivated by other means, must not be taken apart, thrown into fire or short-circuited.

• Always keep batteries out of reach of children.
- Do not use rechargeable batteries!
- Cleaning and maintenance must not be carried out by children without supervision.
- Clean the battery and device contacts as needed and before inserting.
- Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leakage.
- Batteries can be life-threatening if swallowed. Therefore, store batteries in a place inaccessible to small children. Medical attention must be sought immediately if a battery is swallowed.

Danger!

• Handle damaged or leaking batteries with extreme caution and dispose of them properly as soon as possible. Wear gloves when doing so.
• If you come into contact with battery acid, wash the affected area with soap and water. If battery acid gets in your eye, rinse it with water and seek medical attention immediately!
• The connection terminals must not be short-circuited.

Inserting/replacing the batteries (Fig. A) WARNING! Observe the following instructions to avoid mechanical and electrical damage.

The product comes with three batteries, which must be taken out of their packaging before inserting.

When the batteries are flat, you can replace them.

1. Use a suitable screwdriver to loosen the screw from the battery compartment cover (1a) and remove the battery compartment cover.

2. Carefully insert the batteries (2) into the battery compartment (1b).

Note: pay attention to the plus/minus poles of the batteries and to their correct insertion. The batteries must be completely inside the battery holder.

1. Close the battery compartment cover (1a) and tighten the screw.

Note: when replacing the batteries, proceed as described for inserting them. Before inserting the replacements, remove the flat batteries from the battery compartment.

Turning the product on/off (Fig. B)

Slide the switch (1c) to the left to turn the product on.

Slide the switch to the right to turn the product off.

Using the product (Fig. B)

Remove the protective film from the display before using the product for the first time.

The product comes with 200 games.

The button controls may vary from one game to the next. The following button controls apply in general:

• Press the volume button (1d) to regulate or mute the volume.
• Press the buttons (1e) left, right, forward or backward to change direction in the game.
• Press the reset button (1f) to return to game selection or to restart the product in the event of a malfunction.
• Press the start button (1g) to confirm the selection or to pause the game.
  • Function of A button (1h) varies by game.
  • Function of B button (1i) varies by game.

Storage, cleaning

When not in use, always store the product dry, clean, without batteries and at room temperature.

Only clean the product with a damp cloth and wipe dry afterwards.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a specialty disposal

facility. Find out about collection sites and their hours of operation from your local authority.

Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and numbers (b) with the following meaning:

1-7: plastics/20-22: paper and cardboard/80-98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 323001_1901

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
