Product type	Juicer / Multipurpose Food System
Model	NC900 (NC800HDS / NC900HDC / NC900HDR)
Dimensions	Width: 16.51 cm, Depth: 36.83 cm, Height: 39.37 cm
Weight	9 kg (20 lb) shipping weight
Power	120 V, 60 Hz, 150 watts
Rotation speed	80 RPM
Main functions	Juice extraction (hard/soft fruits, citrus, vegetables, wheatgrass), slicing, chopping, nut butters, nut/soy milks, frozen desserts, baby food, pasta and bread stick extrusion
Materials	BPA-free Ultem press screw, stainless steel filters, food-grade plastic drum and hopper
Included accessories	Pusher, hopper, drum, press screw, juice filter, blank cone, blank end cap, adjustable end cap, 3 pasta nozzles (round, flat, for bread sticks), cleaning brush, pulp and juice containers
Care and cleaning	Dishwasher safe parts (top rack); can be sterilized with hot water and baking soda
Safety	Grounding required, safety clips on hopper, ON/OFF and reverse button, overload protection
Spare parts and repairability	Repairs by manufacturer or authorized center; do not disassemble yourself
General info	2 HP motor, 1.63 m power cord; also available in 230 V / 50 Hz (NC802HDR, NC802HDS, NC902HDC)

Frequently Asked Questions - NC900 OMEGA

How to clean the Omega NC900 juicer?

Most parts (drum, screw, filter, caps, nozzles) are dishwasher safe, top rack. For sterilization, immerse them in hot water with baking soda or dish soap for 30 minutes. Never immerse the motor base.

What to do if the appliance stops working during use?

Press the REV (reverse) button for 3 to 5 seconds, release, then repeat 2 to 3 times to dislodge the food. Then press ON to resume. If the problem persists, unplug, disassemble and clean the drum.

Can you extract citrus juice with this appliance?

Yes, it efficiently extracts juice from citrus fruits. Use the adjustable end cap in the loosened position (turn clockwise) to optimize citrus extraction.

How to prepare nut butter?

Replace the juice filter with the blank cone and use the adjustable end cap. Pass the nuts 2 to 3 times through the appliance until smooth. You can add a little oil or salt to taste.

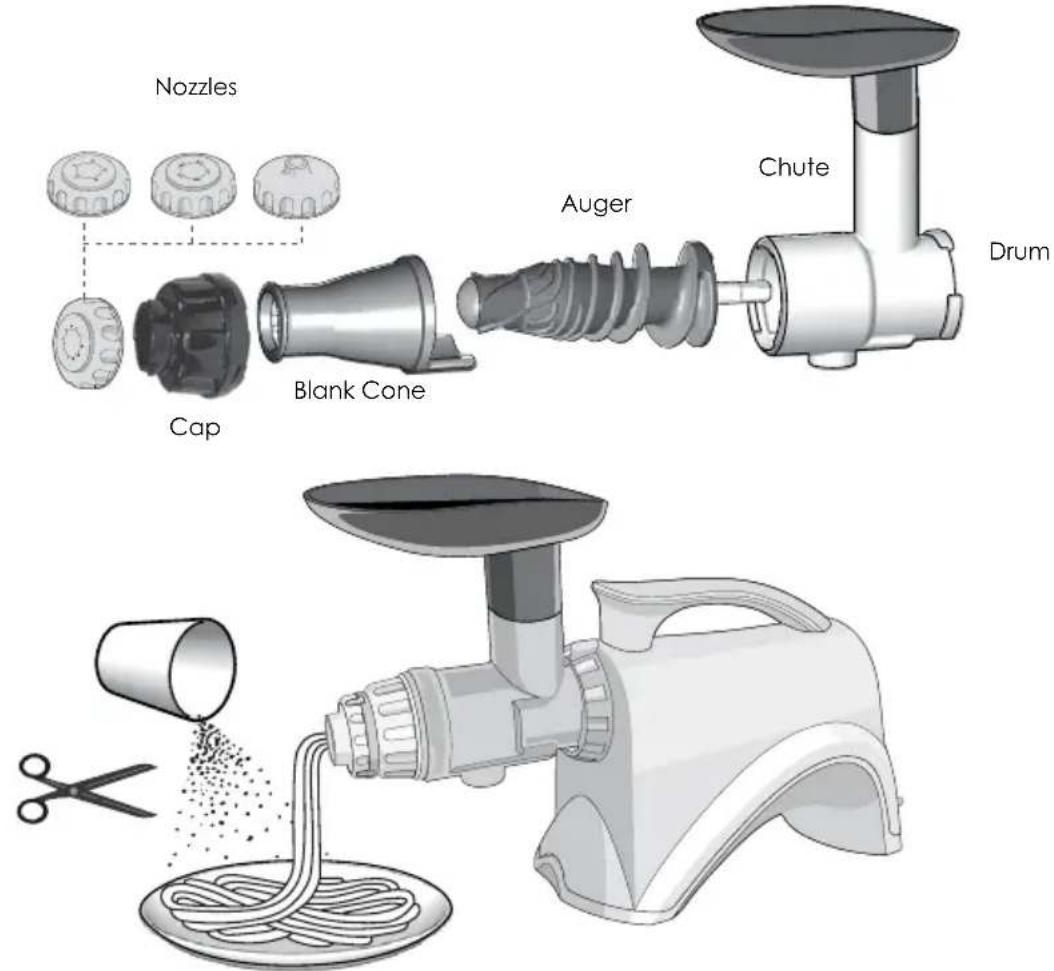

How to extrude pasta?

Attach the blank cone and a pasta nozzle (round, flat, or for bread sticks). Prepare the dough by hand or in a mixer, then feed it into the hopper. If the dough sticks, dust with a little flour. Cut the noodles to desired length.

What is the rotation speed of the Omega NC900?

The speed is 80 RPM, allowing low-temperature extraction that preserves nutrients and flavors.

Is it normal for the appliance to vibrate during use?

Yes, slight vibrations are normal, especially with hard ingredients (carrots, beets). This is due to the rotation of the press screw and the motor. If vibrations are excessive, check that the appliance is on a flat surface.

How to use the adjustable end cap?

Turn the cap counterclockwise to tighten (more pressure, ideal for wheatgrass) and clockwise to loosen (ideal for citrus). This optimizes juice yield depending on the food.

Can I wash the parts in the dishwasher?

Yes, all food-contact parts (drum, screw, filter, caps, nozzles, pusher) can be placed on the top rack of the dishwasher. The motor base must never be immersed.

What to do in case of juice leakage on the base?

Check if the juice flap is closed and the hopper is not overfilled. A slight leak may occur if you put too much food at once. Introduce food gradually. Ensure all clips are properly locked.

USER MANUAL NC900 OMEGA

White Omega-branded electric juice maker with black handle and white body (no visible text or symbols)

NC800 - NC900

USER MANUAL

Nutrition System

LOW SPEED MASTICATING JUICER

MODE D'EMPLOI

Système alimentaire

www.OmegaJuicers.com

Omega®

Congratulations!

CONGRATULATIONS on the purchase of your new Omega product.

At Omega, we strive to develop technologically advanced machines that help deliver nutrition and flavor of the highest kind and closest to nature's purest form.

We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinventandrenewourlineofjuicers,highspeedblendersandbeverageequipment.

Our team at Omega thanks you for supporting us for over 50 years!

www.omegajuicers.com/omega-warranty-registration

RECIPES, VISIT:

www.omegajuicers.com/recipes

CUSTOMER SERVICE:

visit: www.omegajuicers.com

After using your Omega, we kindly ask you to rate the machine on

www.OmegaJuicers.com

TABLE OF CONTENTS

02 - 03 Important Safeguards

04 - 05 Know Your Omega

06 - 07 Quick Start Assembly

08 - 09 Operating Instructions

10 - 11 Multi-Purpose Nutrition System

12 - 13 Sterilization & Easy Cleaning

14 - 17 Precautions for Safe Use

18 - 19 If the Auger Stops Working

20 - 25 How To Prepare

21 Fruits And Vegetables

22 Wheatgrass And Greens

22 Mincing And Chopping

23 Nut Butters

25 Pasta and Breadsticks

26 - 27 Troubleshooting

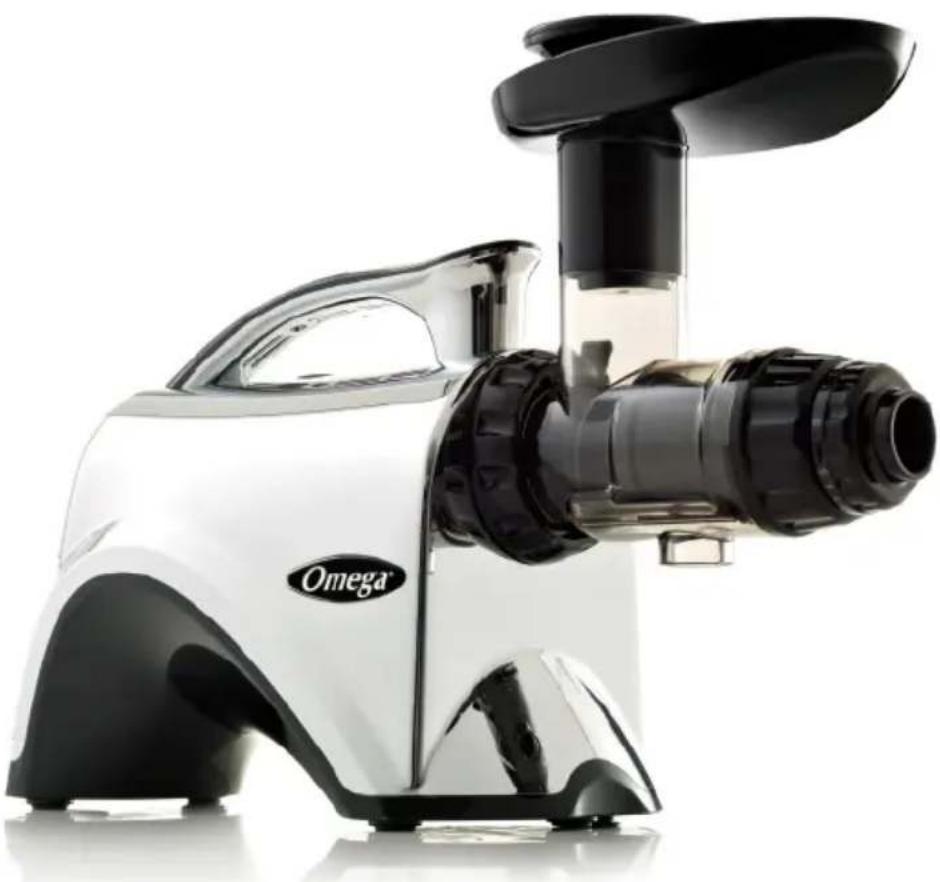

28 - 29 Product Specifications

30 - 41 Recipes

42 - 83 French

84 - 125 Spanish

IMPORTANT SAFEGUARDS

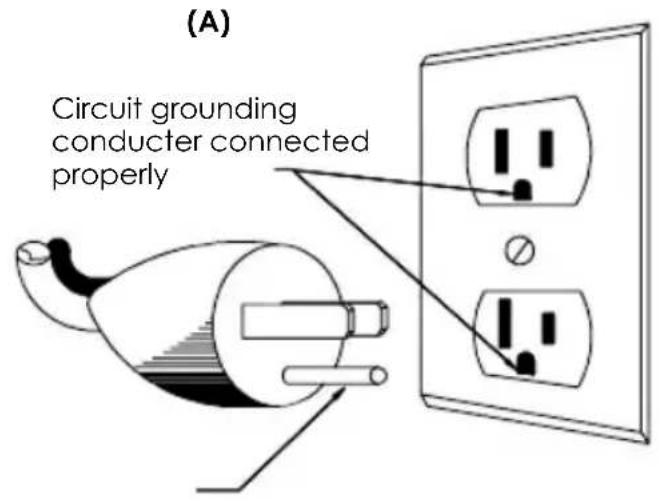

WARNING: GROUNDING INSTRUCTIONS

This appliance must be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and a 3-prong grounding-type plug to fit the proper grounding-type receptacle. The appliance has a plug that looks like sketch A in Figure 73.1. An adaptor, sketch B, should be used for connecting sketch A plugs to two-prong receptacles. The grounding tab which extends from the adaptor must be connected to a permanent ground such as a properly grounded outlet box as shown in sketch C using a metal screw.

FIGURE 73.1
Grounding Methods

(A) Circuit grounding conductor connected properly

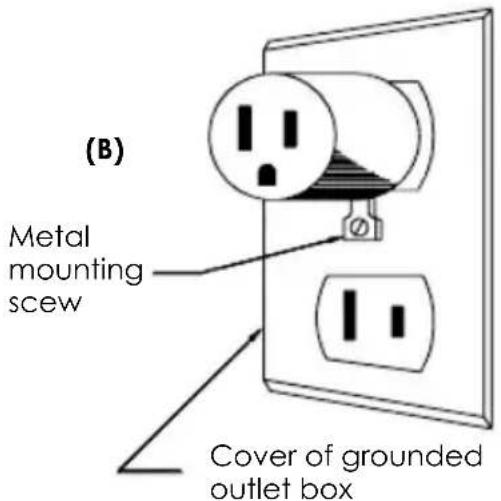

(B) Metal mounting screw Cover of grounded outlet box

(C)
ADAPTER

Technical line drawing of a cylindrical device with a meshed base and a side-mounted bracket (no text or symbols)

Grounding means
AA220

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following.

1. READ ALL INSTRUCTIONS BEFORE USING.
2. To protect against electrical shock, do not immerse cord, plug, or main body (motor) in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contact with moving parts. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the manufacturer (see warranty) for examination, repair, or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.
8. Do not let cord hang over edge of table or counter or touch heated surfaces.
9. Always make sure juicer cover is clamped securely in place before motor is turned on. Do not unfasten clamps while juicer is in operation.
10. Be sure to turn switch to OFF position after each use of your juicer. Make sure the motor stops completely before disassembling.
11. Do not put your fingers or other objects into the juicer while it is in operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push down the lodged food. When this method is not possible, turn off the machine, remove the plug from wall outlet and disassemble juicer to remove the remaining food.
12. Do not use outdoors.
13. Do not place on or near a hot gas or electric burner or in a heated oven.
14. Do not use appliance for anything other than its intended use.
15. Keep hands and utensils away from moving blades or discs while processing food to reduce the risk of severe injury to persons or damage to the food processor. A scraper may be used but must be used only when the food processor is not running.
16. Blades are sharp. Handle carefully.
17. Keep the appliance clean. Refer to the Care & Cleaning instructions in this manual.
18. DO NOT plug in until familiar with all the instructions and operating procedures.
19. DO NOT unplug from electrical outlet by pulling on the cord. To unplug, grasp the plug, not the cord, and pull.
20. Turn off all controls before unplugging from or plugging into an electrical outlet.
21. This appliance can not grind meat.
22. Check hopper for presence of foreign objects before using.
23. Moving parts – Keep fingers out of discharge openings.
24. Sharp blade – Always use food pusher.

SAVE THESE INSTRUCTIONS

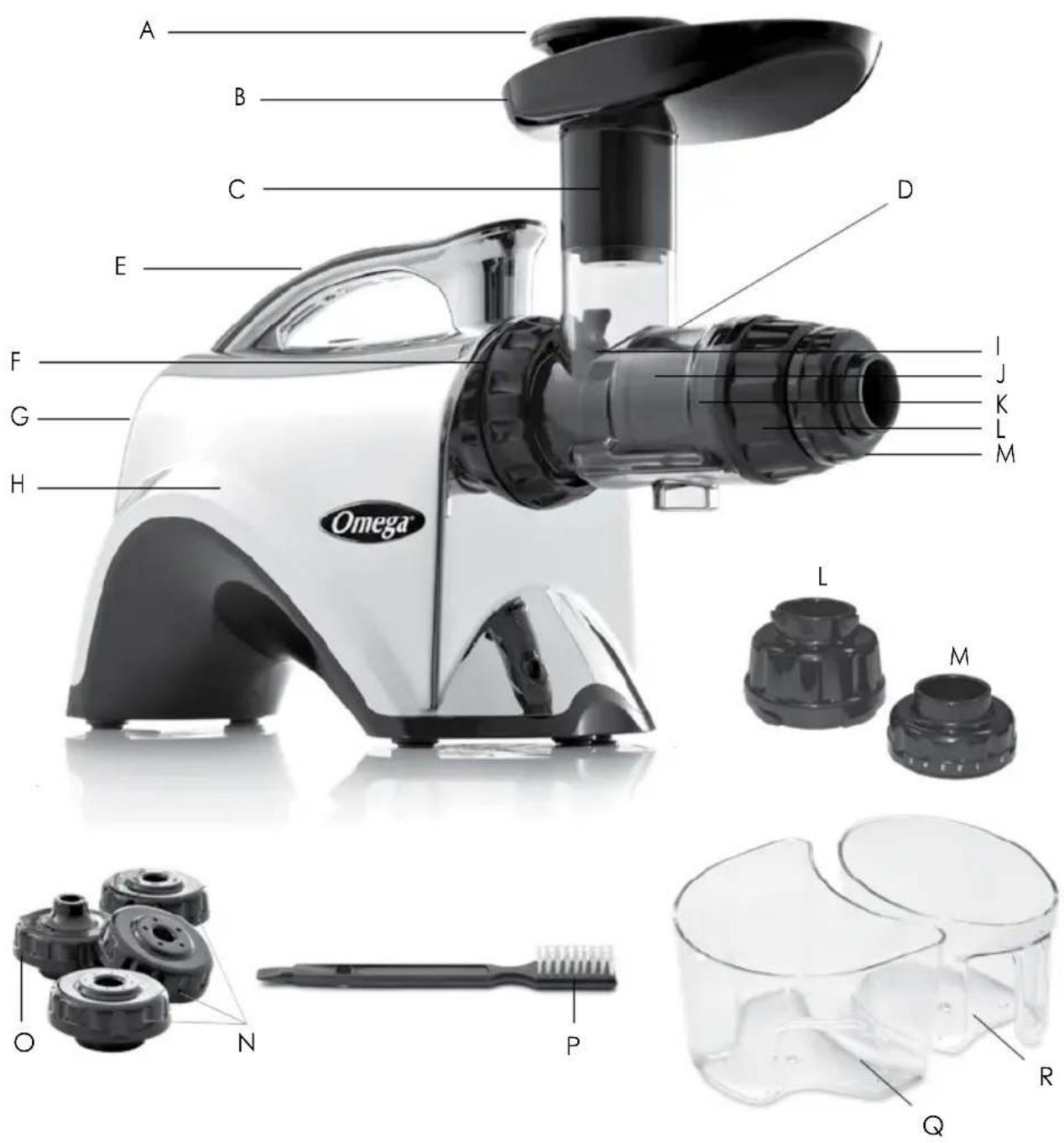

KNOW YOUR OMEGA

A B C D E F G H I J K L M Omega® L M O N P R Q

A Pusher
B Hopper
C Chute
D Drum
E Handle
F Locking Clip

G On/Off Button (In Rear)
H Housing
I Auger (Inside Drum)
J Blank Cone (Inside Drum)
K Juicing Screen (Inside Drum)
L Blank End Cap

M Adjustable End Cap
N 3 Pasta Nozzles
- 1 Breadsticks Nozzle
P Cleaning Brush
Q Pulp Container
R Juice Container

QUICK START ASSEMBLY

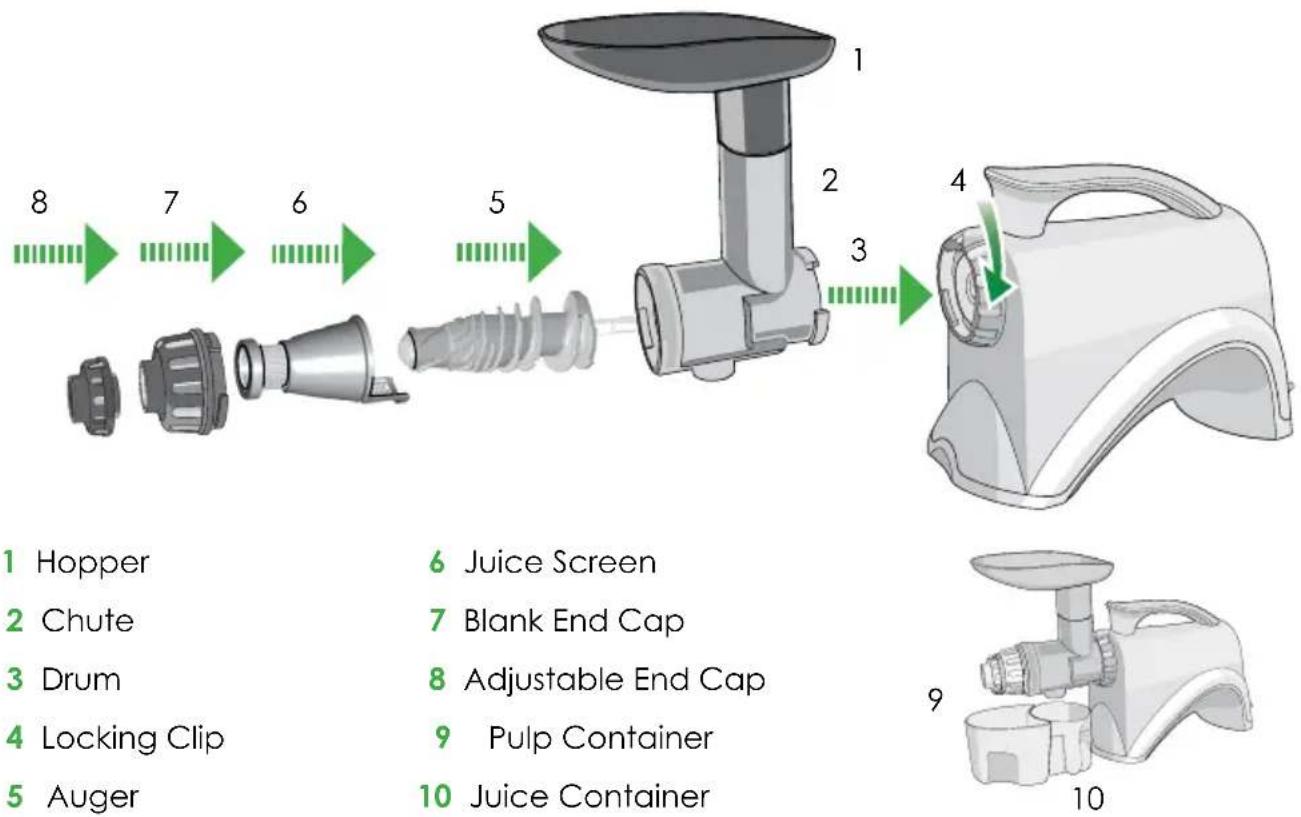

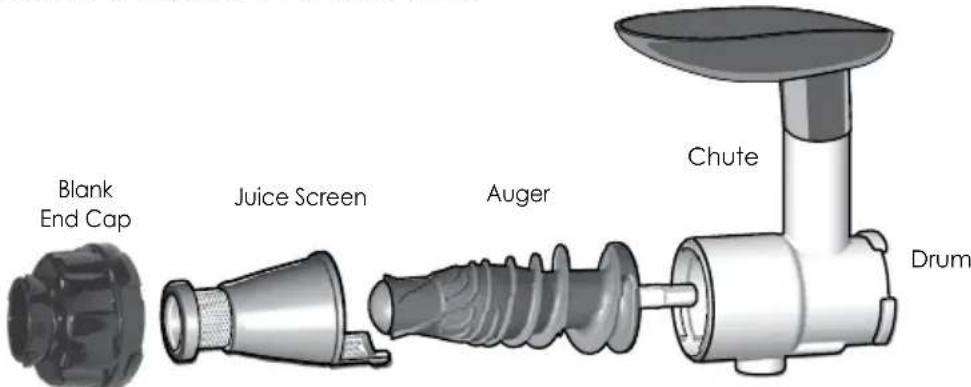

FOR JUICING

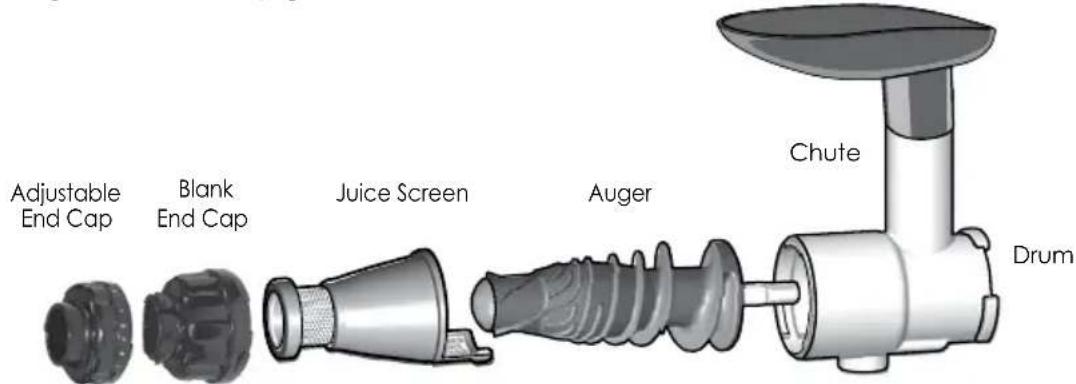

1 Hopper 2 Chute 3 Drum 4 Locking Clip 5 Auger 6 Juice Screen 7 Blank End Cap 8 Adjustable End Cap 9 Pulp Container 10 Juice Container

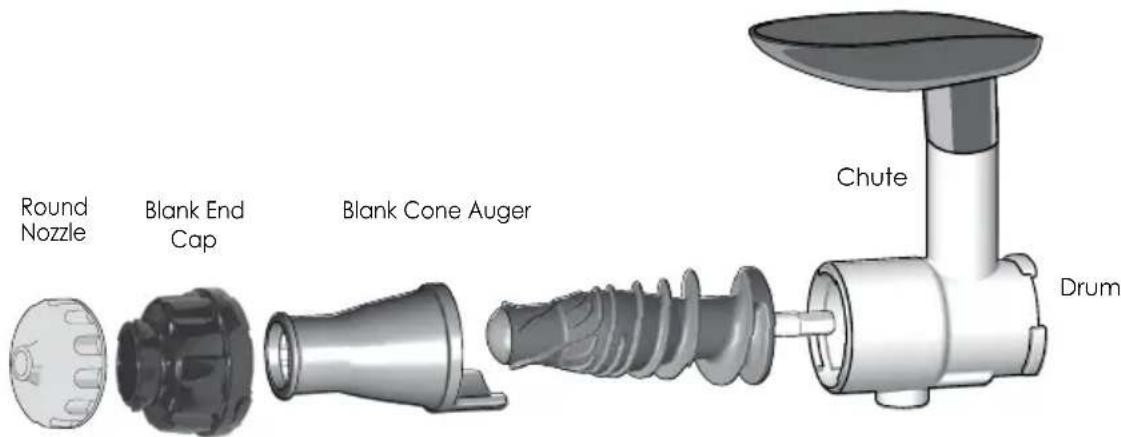

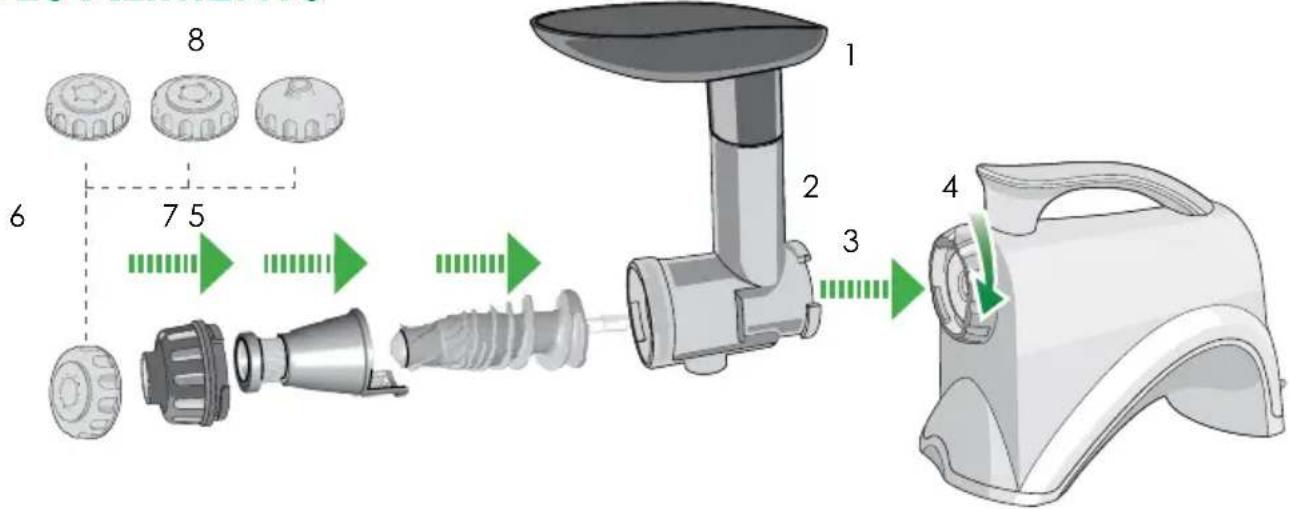

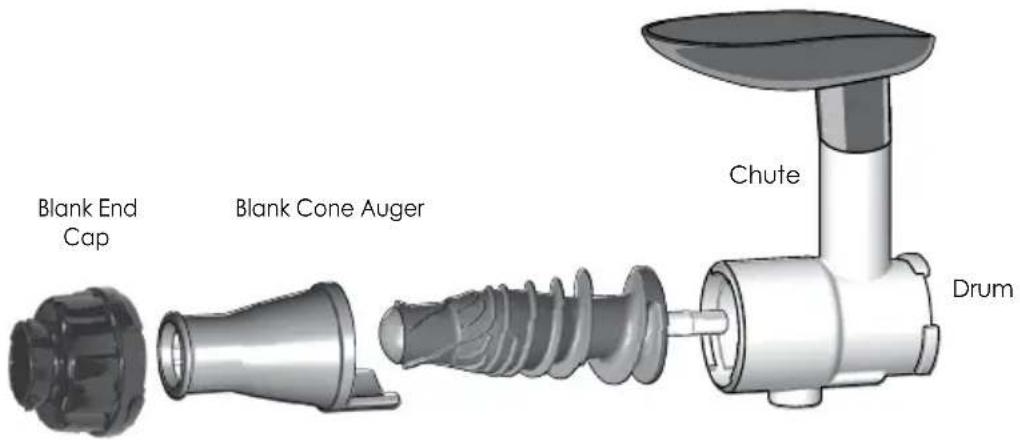

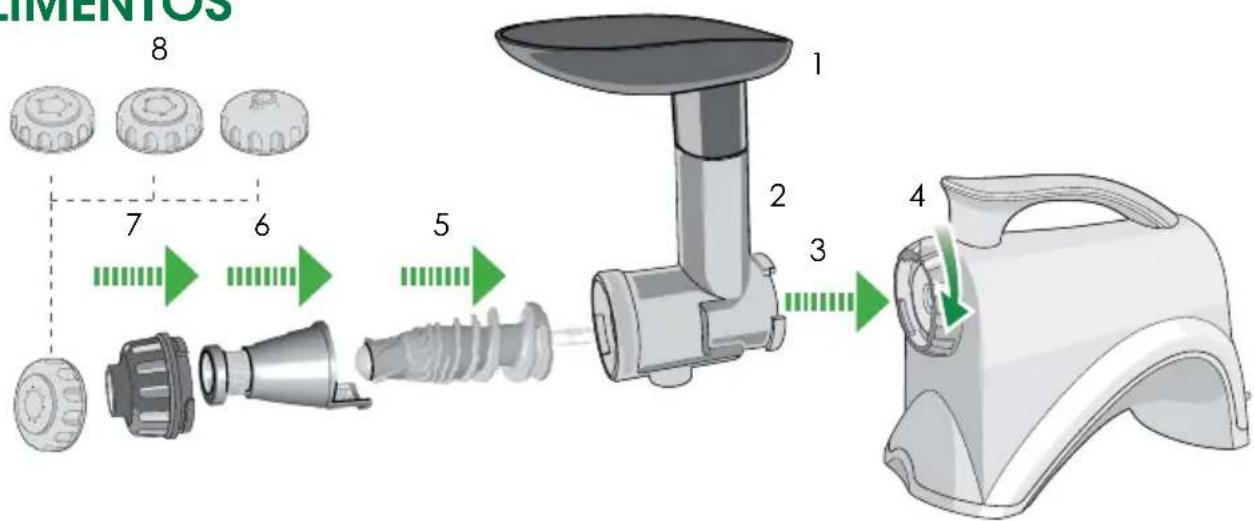

FOR FOOD PROCESSING

8 7 6 5 1 2 3 4 Hopper Blank Cone Chute Blank End Cap Drum Nozzle Options Locking Clip Pulp Container Auger

1 Hopper

2 Chute

3 Drum

4 Locking Clip

5 Auger

6 Blank Cone

7 Blank End Cap

8 Nozzle Options

9 Pulp Container

OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS

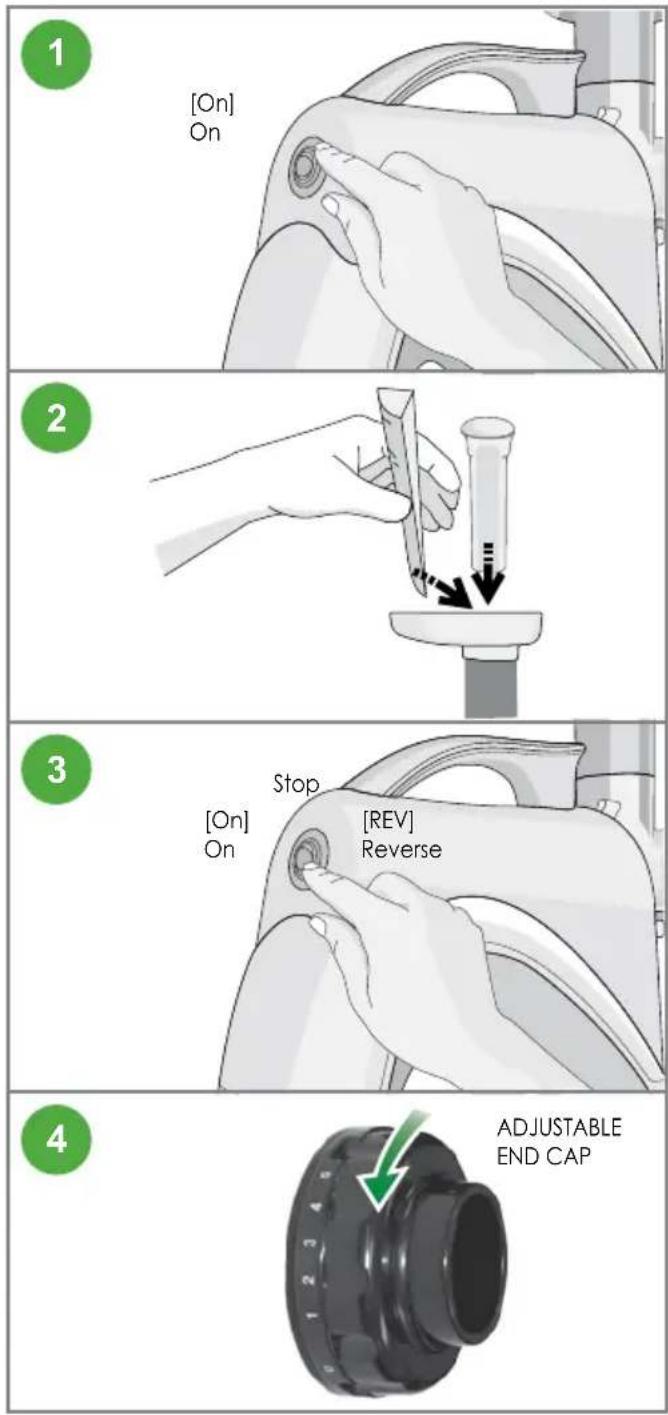

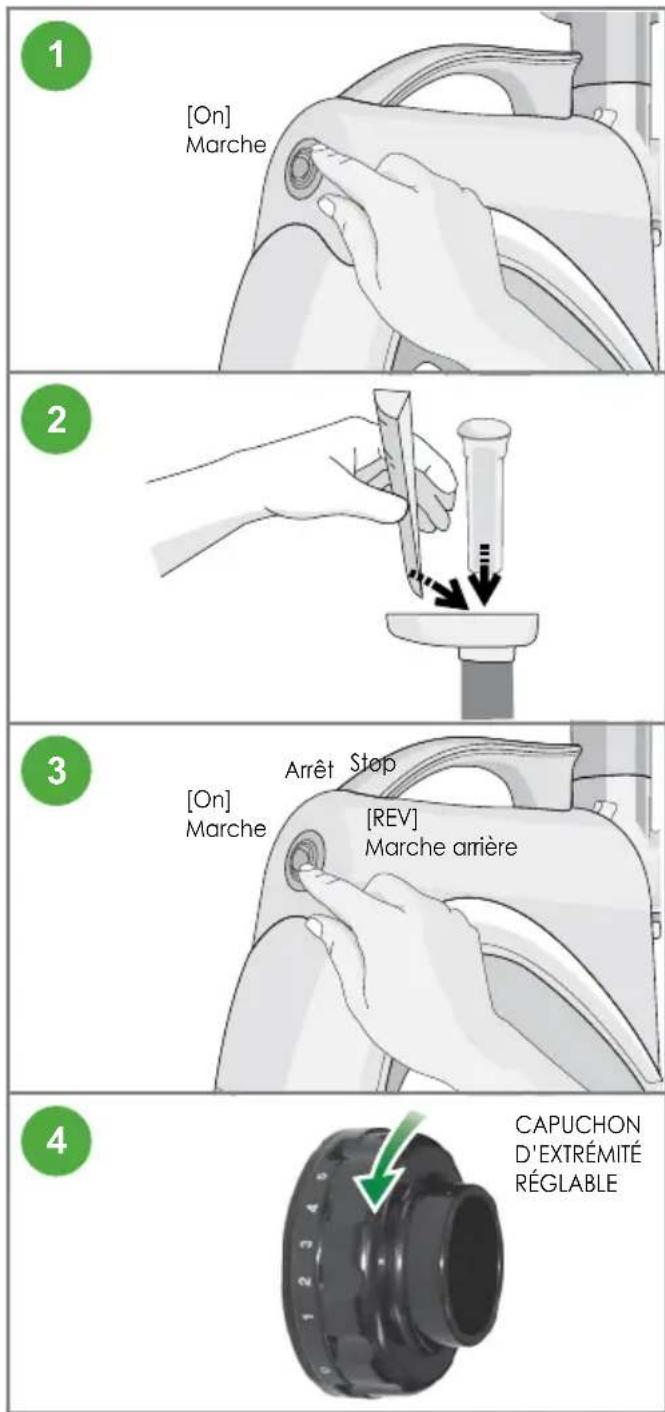

JUICING FUNCTION

Press [ON] button on the back of the Omega® Nutrition System to start.

Gradually put the ingredients into the hopper chute and press down with the pusher.

DO NOT place any metal objects into the hopper. If the drum set is clogged or the machine stops operating, press the reverse button 2 to 3 times and press the ON button again to resume normal operation.

After the extraction or processing is complete, place the switch in the stop position to stop.

WARNING When using [ON] or [Rev] button, make sure that the auger stops completely.

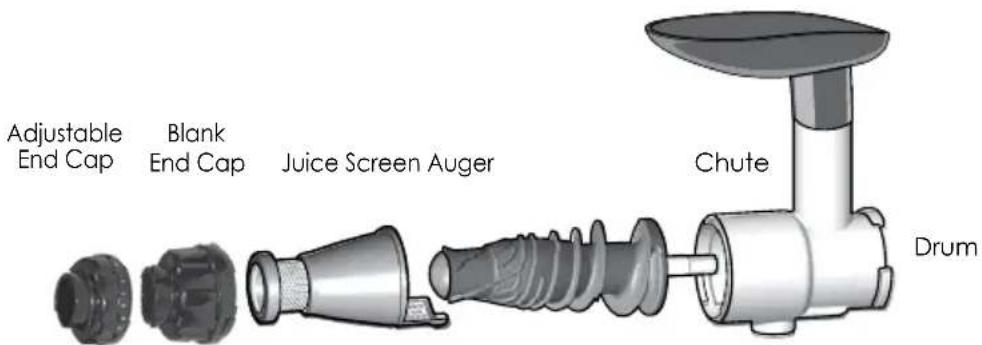

Turn the adjustable end cap counterclockwise to tighten the squeeze, increasing the pressure. Turn the adjustable end cap clockwise to loosen the pressure. Use the setting loosest for citrus fruits. Use the tighter setting for wheatgrass. Using the appropriate setting will yield more juice.

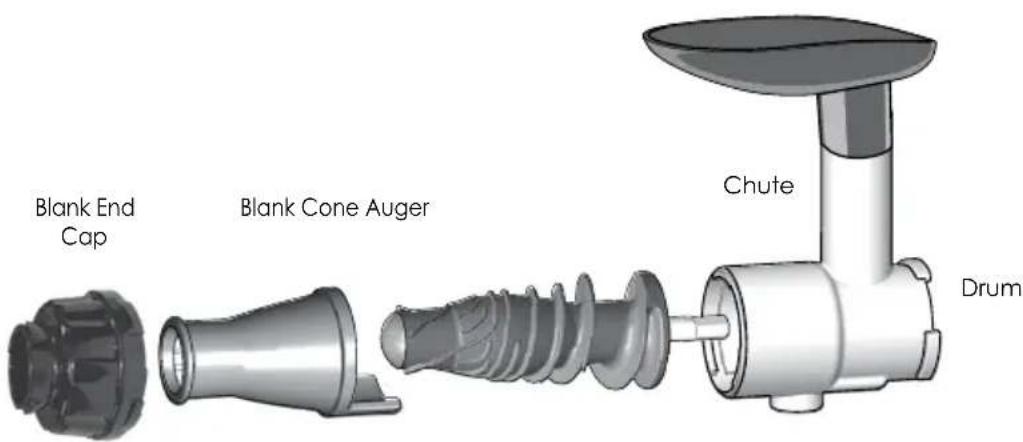

FOOD PROCESSING FUNCTION

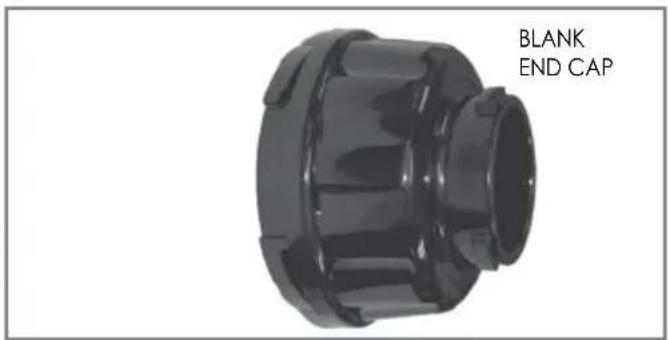

BLANK END CAP

Use the blank end cap for all food processing functions from mincing and chopping to pastas and breadsticks (refer to pages 22-25).

MULTI-PURPOSE NUTRITION SYSTEM

MULTI-PURPOSE NUTRITION SYSTEM

This heavy-duty nutrition system features a patented, stone mill-like auger, made of hygienic BPA-free Ultem. The low speed of 80 RPMs ensures full taste and the highest nutritional value.

• FRUIT JUICE. Efficiently juices hard and soft fruits: even citrus fruits.
• VEGETABLE JUICE. Juices all kinds of vegetables including carrots, beets, celery, peppers, and radishes without destroying the natural flavor and nutritional benefits. Fresh taste and full nutrition are guaranteed with this unique extraction process.
• WHEATGRASS AND LEAFY GREENS. Kale, cabbage, spinach and pine tree needles are just some of the natural products that can be juiced. Enjoy the best that nature offers in raw foods and juice them for full nutritional benefits.
• FOOD PROCESSOR. Chops and minces, providing natural flavor and nutrition from garlic, scallions, red pepper, ginger, and most other foods, including herbs and seasonings. Soft foods for special diets for babies are quick and easy to prepare with the homogenizer set-up.
• NUT BUTTERS. Make almond butter, peanut butter, sunflower seed butter and more while using all-natural ingredients.
• NUTS & SOY MILKS. Use almonds, pecans, cashews, hazelnuts, or any other of your favorites to create nutritious milks. You can also make coconut milks.
• DESSERT MAKER. Make all-natural, dairy free, gluten free, low fat, low sugar, low calorie desserts that taste like your favorite ice creams or frozen treats.
• BABY FOODS. Make homemade baby food knowing that you are giving your baby fresh produce that is nutritious and easily digestible.
• PASTA EXTRUDER. Make homemade spaghetti, linguini, or breadsticks can be extruded in just minutes with the included pasta nozzles.

STERILIZATION

&

EASY CLEANING

STERILIZATION & CLEANING

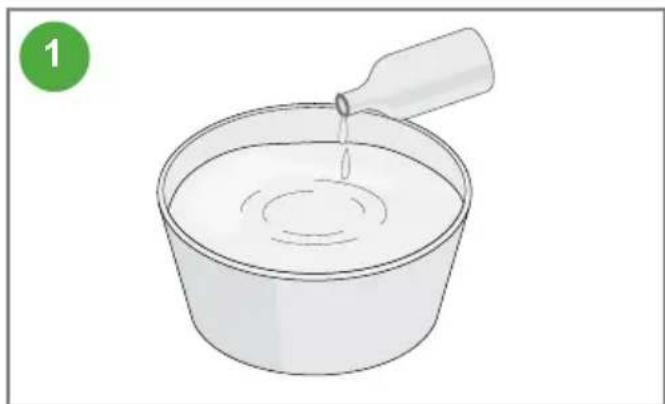

STERILIZATION

Illustration of a bucket pouring liquid into a container (no text or symbols)

You can thoroughly wash parts by immersing in warm water diluted with one or two drops of baking soda or dishwashing soap for about 30 minutes.

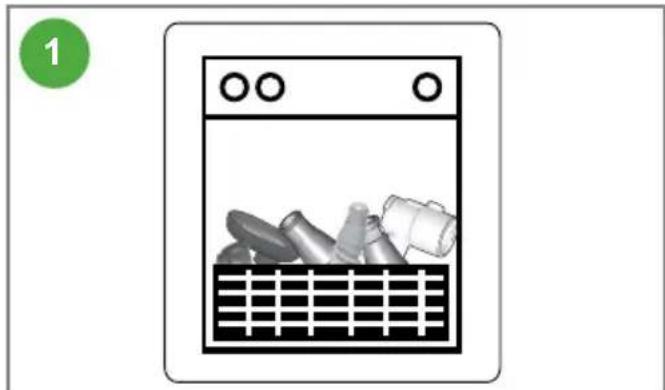

EASY CLEANING SYSTEM

Illustration of a washing machine with waste sorting bins (no text or symbols)

When finished using the Omega® Nutrition System, simply put parts into dishwasher, on top rack.

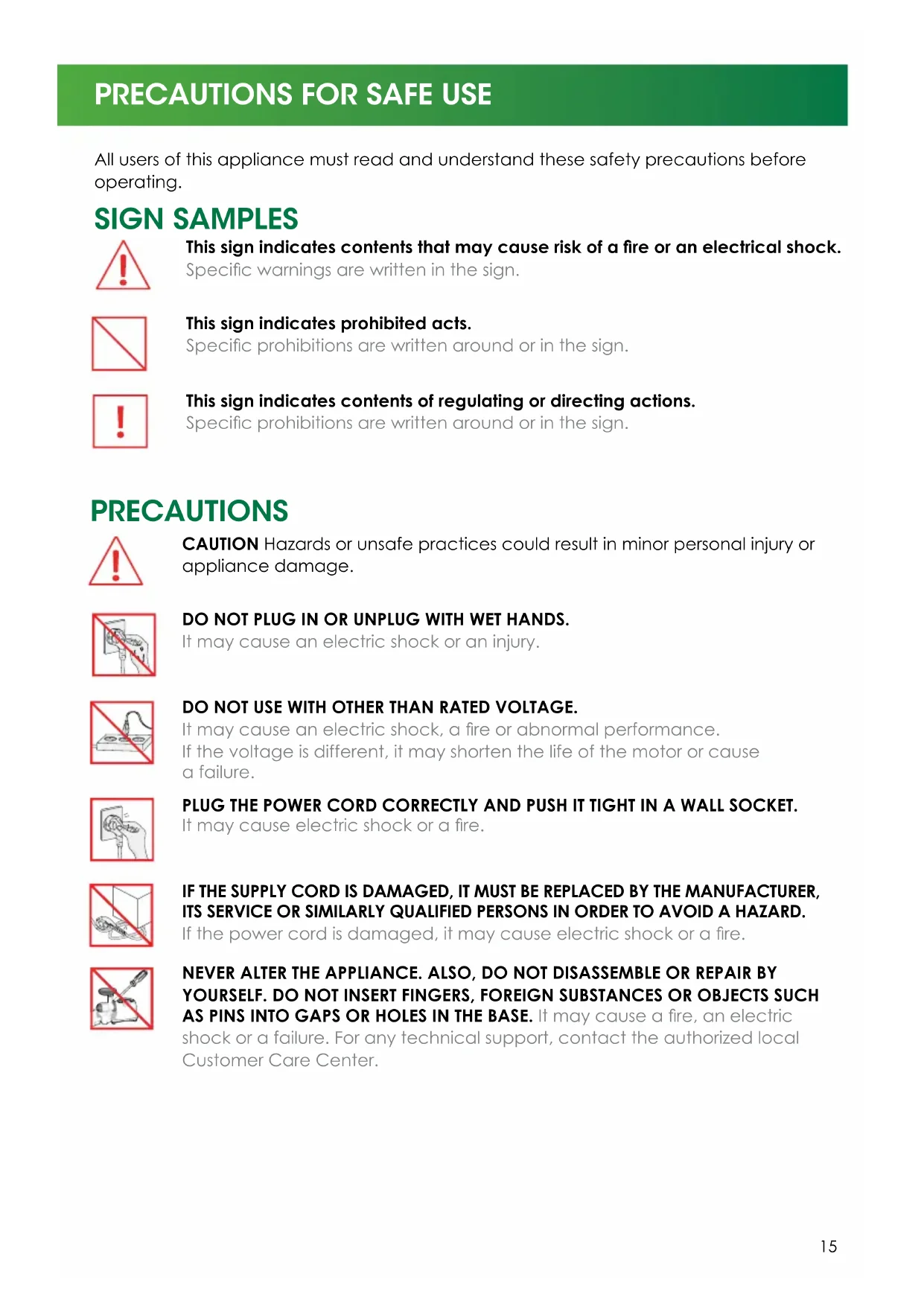

PRECAUTIONS FOR SAFE USE

PRECAUTIONS FOR SAFE USE

All users of this appliance must read and understand these safety precautions before operating.

SIGN SAMPLES

This sign indicates contents that may cause risk of a fire or an electrical shock.

Specific warnings are written in the sign.

This sign indicates prohibited acts.

Specific prohibitions are written around or in the sign.

This sign indicates contents of regulating or directing actions.

Specific prohibitions are written around or in the sign.

PRECAUTIONS

CAUTION Hazards or unsafe practices could result in minor personal injury or appliance damage.

DO NOT PLUG IN OR UNPLUG WITH WET HANDS.

It may cause an electric shock or an injury.

DO NOT USE WITH OTHER THAN RATED VOLTAGE.

It may cause an electric shock, a fire or abnormal performance.

If the voltage is different, it may shorten the life of the motor or cause a failure.

PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET.

It may cause electric shock or a fire.

IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.

If the power cord is damaged, it may cause electric shock or a fire.

NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BASE. It may cause a fire, an electric

shock or a failure. For any technical support, contact the authorized local Customer Care Center.

PRECAUTIONS FOR SAFE USE

DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE.

Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS.

It may cause electric shock or a fire.

WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE IT.

It may cause an electric shock, a fire or an injury.

FOR SAFETY, MUST DO GROUND CONNECTION DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC.

It could cause an electric shock, a fire, or a malfunction and an explosion.

Be sure to use the socket with ground connection.

NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING TUBE OR JUICE OUTLET.

It may cause an injury, an accident or a failure.

THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

Children should be supervised to ensure that they do not play with the appliance.

DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY.

It may cause an injury or a failure.

WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY.

It may cause an injury or a failure.

IF SCREW ROTATION IS STOPPED IN NORMAL OPERATION, PRESS [REVERSE/REV] BUTTON AND HOLD FOR 2-3 SECONDS AND THEN AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If such a stop event continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem continues, immediately stop the appliance and contact the local Customer Care Center.

NEVER PUT A FINGER, A FORK OR A SPOON ETC. INTO JUICE OUTLET.

It may cause an injury or a failure.

PRECAUTIONS FOR SAFE USE

DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE THE BOWL SET OR PARTS AND TRY TO LOCK THEM.

It may cause an injury or a failure. Any act of event needed, switch off first and unplug the power cord.

WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE, SCARF ETC. NOT TO BE ENTANGLED INTO FEEDING TUBE.

It may cause an injury, a failure or a breakage.

PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE.

It may cause an injury or a failure.

DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME.

It may cause a motor failure due to overheating. Cool it down sufficiently for 5 minutes and operate it again.

WHEN PLACING INGREDIENTS INTO THE FEEDING TUBE, ONLY USE THE PUSHER PROVIDED.

It may cause an injury or a failure.

DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT.

It may cause an electric shock, a fire or damage

IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL OR EXCESSIVE HEATING, SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER CARE CENTER.

When using a new appliance, it gives off a smell and the smell disappears naturally over time.

ALWAYS UNPLUG THE APPLIANCE AFTER USE. WHEN UNPLUGGING THE POWER CORD, MAKE SURE TO HOLD THE POWER CORD.

If holding the wire to unplug, it may cause an electric shock or a fire.

THE APPLIANCE WEIGHS ABOUT 13 LB (5.9 KG). WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS.

If attempting to hold bowl or the edge of the base, the base may fall causing an injury or a failure.

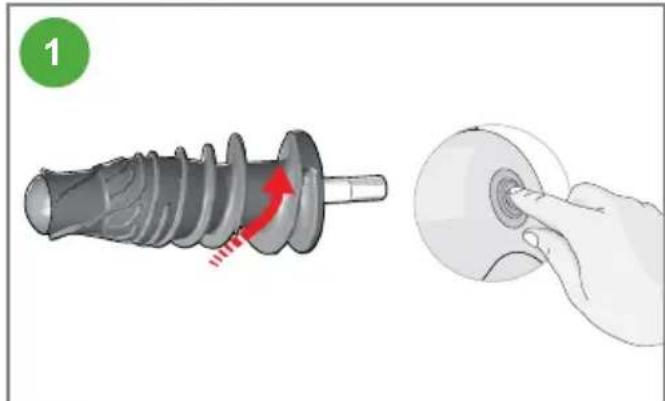

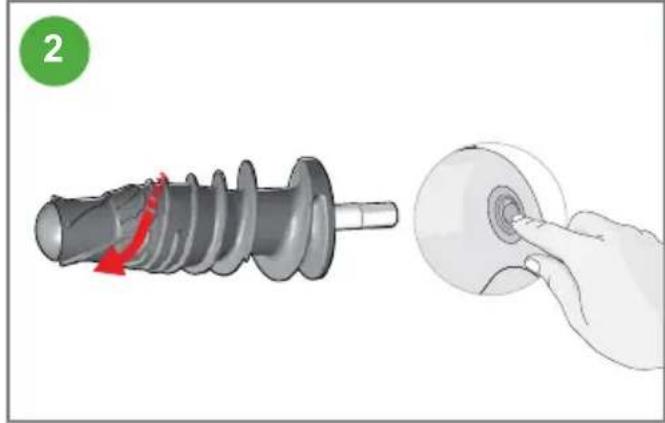

IF THE AUGER STOPS WORKING

IF THE AUGER STOPS WORKING

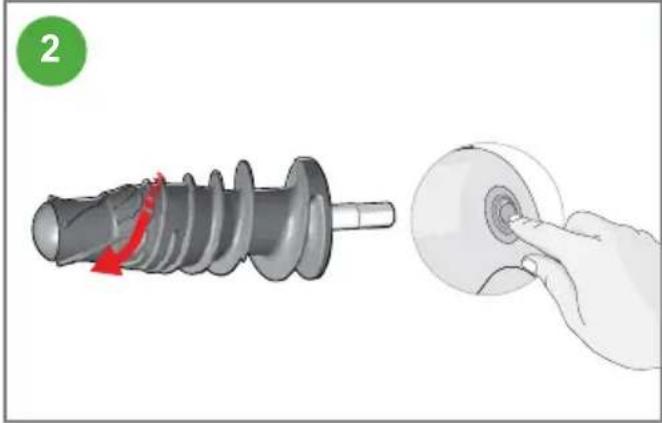

Illustration of a mechanical component with a red arrow indicating rotation, next to a hand holding a circular button (no text or symbols)

Illustration of a mechanical component being inserted into a circular housing, with a hand pointing to the end (no text or symbols present)

Press [Rev] button for 3 to 5 seconds, then release. When the [Rev] button is released, the auger will stop rotating. Repeat this 2 to 3 times. The [Rev] button pushes the ingredients upward releasing the food clog.

Press [ON] button to start. When using [ON] auger should rotate. Wait 2 to 3 seconds. Then press [REV] button. Repeat this 2 to 3 times. Make sure the auger stops completely after releasing the button.

Note:

Even after following the directions above, if the juicer still doesn't work, please unplug the power cord, disassemble the chamber set and clean it. Then try again.

HOW TO PREPARE

FRUITS AND VEGETABLES

WHEATGRASS AND GREENS

MINCING AND CHOPPING

NUT BUTTERS

NUTS AND SOY MILKS

DESSERTS

BABY FOODS

PASTA AND BREADSTICKS

FRUITS AND VEGETABLES

Juicing Screen

Adjustable End Cap

No Nozzle Needed

- Thoroughly wash fresh ingredients to remove accumulated chemicals. The Omega® Nutrition System can extract juice from un-peeled fruits and vegetables but your taste may prefer peeled produce.

- Soft produce will process easier if refrigerated.

- Cut fruits and vegetables into small pieces to fit in the drum.

- Turn [ON] machine and let it run without interruption until all juice has been extracted.

• Alternate soft and firm items. It is best to start with the softer item.

- If the pulp starts to clog the drum, turn [OFF] machine and empty the drum set. Reassemble and resume normal operation.

• After placing the last piece of fruit or vegetable into the hopper, keep the machine running for a few seconds to ensure juice is extracted.

• After every use, clean all parts that come into contact with food or juice.

- You may juice items that are not usually used in meals, for example, carrot or beet stems.

Adjustable End Cap Blank End Cap Juice Screen Auger Chute Drum

WHEATGRASS AND GREENS

Juicing Screen

Adjustable End Cap

No Nozzle Needed

• Thoroughly wash fresh ingredients to remove accumulated chemicals.
- Do not overfill the feed chute. Feed the juicer with small quantities. Allow most of the juice to exit before pushing in the next item.
- Some juice may exit into the pulp bowl and not the juice bowl. This is normal. This may continue to occur until the ejection area is filled with pulp.
- When juicing an item for added taste, insert that item during the first half of the juicing process. If inserted at the end of the process, the full taste may not come through.
- Certain green drinks may be too strong for some people. Lemon, apple, ginger, carrots &/or beets may be added as a natural sweetener to dilute the taste of wheatgrass and leafy greens.

Adjustable End Cap Blank End Cap Juice Screen Auger Chute Drum

MINCING AND CHOPPING

Blank Cone

Blank End Cap

Round/Oval Nozzle

• Use as a food processor to make marinades, salsas, soups and sauces.
• Chop or grind meat, fish, herbs, soaked rice and beans. Remove any fat from the meat or poultry if not desired in the finished product. Bone and scale fish before processing.

Round Nozzle Blank End Cap Blank Cone Auger Chute Drum

NUT BUTTERS

Blank Cone

Blank End Cap

No Nozzle Needed

• Nut butters are an all-natural version of peanut butter, almond butter, sunflower seed butter, etc.
• Remove all skins and shells from nuts. Turn [ON] machine.
  Start adding nuts 1 cup at a time.
  • If needed, add 1 to 2 tablespoons of oil slowly between nuts.
• Process nuts through nutrition system at least two to three times until texture is of a smoother consistency.

Blank End Cap Blank Cone Auger Chute Drum

NUT & SOY MILKS

Juicing Screen

Blank End Cap

No Nozzle Needed

• Nut milks consist of almonds, pecans, cashews, hazelnuts, etc. You can also make coconut milk and soy milk.
• Soak nuts for 4-8 hours in water.
• Drain and rinse nuts well. Add fresh water to the soaked nuts. We recommend 3 cups of water per 1 cup of nuts. Add more water for a thinner consistency and less water for a thicker consistency.
• Turn [ON] machine. Ladle the soaked nuts and some of the fresh water into the chute. Optional: Add pulp to the bowl of remaining water and spoon into juicer for a second time for a more flavor and a creamier texture. You can either stop after the second process or repeat for a third time.

Blank End Cap Juice Screen Auger Chute Drum

DESSERTS

Blank Cone

Blank End Cap

No Nozzle Needed

• Make all-natural sweet, frozen treats without the added fat, sugar and calories.
- Thaw frozen fruit for 5-10 minutes. Turn [ON] machine. Process thawed fruit through nutrition system and serve.
- Popular frozen fruit sorbets include banana, cherry, blackberry, blueberry, raspberry, strawberry, melon, kiwi, mango, pear, pineapple, peach, grape, orange, and more!
- You can also make frozen lemonades and ice creams with all-natural ingredients. Recipes can be found on www.OmegaJuicers.com.

BABY FOOD

Blank Cone

Blank End Cap

No Nozzle Needed

• Making homemade baby food with your Omega Juicer can be very rewarding knowing that you are giving your baby fresh produce that is nutritious and easily digestible. This also gives your baby regular chances to experience a wide variety of textures and tastes without artificial preservatives or additives.
• Start by cooking the vegetable or fruit. Either steam, bake, or boil. Steaming maintains the most nutrients.
• For Fruits: apples, pears, peaches, plums, mangoes and strawberries, all puree well.
  • For Vegetables: potatoes, carrots, yams, broccoli and squash, all puree well.
• Turn [ON] machine. Spoon the cooked vegetable/fruit down the chute. If steamed or boiled vegetable or fruit add some of the cooked liquid. Adding the liquid helps preserve any nutrients that may have released into the water during cooking.

The above recipes are made using the items below.

Blank End Cap Blank Cone Auger Chute Drum

PASTA OR BREADSTICKS

Blank Cone | Blank End Cap | Round, Flat or Breadsticks Nozzle

• This machine can to extrude pasta; not make pasta. Make dough by hand or use a mixer.
• Sprinkle a small amount of flour on the pasta, on the nutrition system hopper and inside the drum to prevent sticking.
• Add water to the dough if it becomes too dry.
  • To extrude pasta:

Decide which style of noodle you prefer and place the appropriate nozzle on the drum.

Shape the pasta dough into balls or tubes that are slightly smaller than the nutrition system hopper opening.

Turn [ON] machine. Process dough through nutrition system. A consistent feeding of dough without any gaps will give you longer noodles as pasta exits. Pasta may be cut with a scissor or a knife to desired length.

Freshly made pasta should be put in boiling water. Fresh pasta will cook faster than packaged pasta.

If you want to make the pasta more flavorful, add spinach, basil or sundried tomatoes. Leftover vegetable juice or pulp may also be mixed into dough for added flavor.

Your choice of nozzle will determine the size and shape of the pasta.

Nozzles Cap Blank Cone Auger Chute Drum

TROUBLESHOOTING

TROUBLESHOOTING

Please troubleshoot using the details below before contacting Omega Customer Service for repair or service. When contacting Omega for after-sales service, please have the manufacturer's serial number or bar code available.

The Appliance Does Not Work

• Make sure the power cord is plugged in correctly.
• Make sure the drum is assembled correctly. If the drum is not locked into place, the appliance will not operate.
• Make sure the appliance is assembled according to the instructions in this manual. Refer to the instructions.
• If the appliance still does not work, please contact Omega Customer Service for additional support.

The drum Does Not Open

• If there is a lot of pulp inside the drum, press [On] to release the excess pulp.
• Check the appliance for any foreign substance or solid objects including seeds.
• Press [Rev] button to push up stuck ingredients.
• Do not attempt to open by force. If the drum still does not open, please contact Omega Customer Service for additional support.

The Appliance Stops During Normal Operation

• Check for large pieces of food stuck in the appliance.
• Refer to the section "If the Auger Stops Working" and follow the guideline for the [Rev] button.
• If the appliance still does not work, please contact Omega Customer Service for additional support.

Fine Lines or Scratch Marks around the Auger

- This is normal. Do not be concerned. These are molding marks resulting from the normal manufacturing process.

Juice Leaks Over the Base

• Check for an excessive amount of ingredients in the hopper and/or chute.
• If you try to juice a large amount of food compared to the pulp chute, the packing will be slightly pushed away. Juice may leak out of the gap.
• Do not force too much food into the juicer. Push food gradually for extraction.
• Check to make sure the juice flap is closed.

Juicer Shakes when In-Use

• This is normal as the auger rotates. It is not a malfunction. Hard ingredients such as carrots, potato, radish, beets, etc. may cause shaking more so than soft ingredients.
• Depending on the firmness of the ingredient, there may be a more pronounced shaking of the motor.
• Slight shaking may be caused by the motor.

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

Product Name Omega Nutrition System

Model Name NC800HDS/NC900HDC/NC900HDR

NC900R/NC900B

Rated Voltage 120 V

Rated Frequency 60 Hz

Rated Power Consumption 150 W

RPM 80 RPM

Cord Length 64 inches (1625.6 mm)

Shipping Weight 20 lb (9 kg)

Outward Dimension 6.5" Width (165 mm)

14.5" Depth (368 mm)

15.5" Height (394 mm)

Rated Operating Time Less than 30 minutes

Also Available

NC802HDR, NC802HDS and NC902HDC 230V/50Hz

White Omega juice maker with black handle and white base, no visible text or symbols on device body

RECIPES

Almond Milk

What You'll Need:

2 cups of unsalted almonds 6 cups of distilled water

How To Prepare:

1 Soak almonds overnight in 3 cups of water. Drain.
2 Place almonds in 3 cups of fresh water.
3 Using the juicing screen in the Omega® Nutrition System, ladle almonds and water into juicer.
If you prefer the milk thinner add more water.
4 You can sweeten milk by adding 1 tsp of honey, agave nectar, cane sugar or maple syrup. You can make vanilla almond milk by adding 1 tsp of vanilla extract or make chocolate almond milk by adding 1 tbsp of unsweetened cocoa powder.

PREP

12 hours

PROCESS

4 minutes

Soy Milk

What You'll Need:

1 cup dried organic soy beans 6 cups of water dash of salt 1 / 2 tsp vanilla extract 1 tsp agave or other sweetener 1 tsp cinnamon

PREP

12 hours

PROCESS

35 minutes

How To Prepare:

1 Soak soy beans overnight in 3 cups of water. Drain.
2 Place soy beans in 3 cups of fresh water. Using the juicing screen in the Omega® Nutrition System. Ladle soy beans and water into juicer. If you prefer the milk thinner add more water.
3 Transfer the milk to a pot on the stove. Bring the milk to a boil. Then reduce to low and let simmer for 25 minutes. Skim off and discard any foam or filmy layers that occur.
4 Remove from heat and flavor with salt, vanilla extract, agave and cinnamon. Mix and Enjoy.

Peanut Butter

What You'll Need:

2 cups shelled and skinned roasted peanuts 1 tbsp grapeseed oil 2 tsp coconut nectar 1 tsp real salt

How To Prepare:

With an Omega® Nutrition System, change the juicing cone for the blank cone and assemble your preferred nozzle.
2 Start pouring nuts into the chute. Run them through about 2-3 times until oils start to appear.
3 Transfer to a bowl and combine all ingredients by hand, with a spoon.
4 Pour the mixture into the Omega® Nutrition System one more time.

PREP 5 minutes PROCESS 10 minutes

Cookie Dough Nut Butter

What You'll Need:

2 cups dry cashews 6 tablespoons coconut nectar 1 tbsp coconut oil 2 tsp vanilla powder 12 tsp real salt

How To Prepare:

1 With an Omega® Nutrition System, change the juicing cone for the blank cone and assemble your preferred nozzle.
2 Start pouring nuts into the chute. Run them through about 2-3 times until oils start to appear.
3 Transfer to a bowl and combine all ingredients by hand, with a spoon. Pour the mixture into the Nutrition System one more time.

PREP 5 minutes PROCESS 8 minutes

Homemade Pasta

What You'll Need:

1 cup flour 1 egg, beaten 2 tbsp water ½ tsp salt

How To Prepare:

1 In a large bowl, combine flour and salt.
Make a well in the middle of the flour/salt mixture, then add egg. If dough is too stiff, then add water.
3 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred pasta nozzle.
4 Put dough through chute and cut noodles to preferred length.

PREP 5 minutes JUICE 5 minutes

Eggless Pasta

What You'll Need:

2 cups semolina flour 12 tsp salt 12 cup warm water

How To Prepare:

In a large bowl combine flour and salt, then add water (add more if too dry).
2 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred pasta nozzle.
3 Put dough through chute and cut noodles to preferred length.

PREP 5 minutes JUICE 5 minutes

Breadsticks

What You'll Need:

2 ¼ pkg active dry yeast 1 ½ cup warm water ½ cup warm milk 2 tbsp sugar 3 tbsp butter, divided and melted ½ tsp kosher salt ½ tsp minced garlic ¾ tsp dried italian seasoning 4 ½ - 5 ½ cups flour ¼ cup parmesan cheese, grated

PREP

15 minutes

5 minutes

How To Prepare:

In a large bowl, combine yeast with water and let stand until it bubbles (7-10 minutes).
2 Add milk, sugar, butter, kosher salt, and 2 cups of flour. Beat until smooth. Add parmesan cheese and remaining flour until it forms into a soft dough.
3 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred bread stick nozzle. Put dough through chute, running the dough about 7-8 times.
4 Divide dough into equal portions.

Salsa in a Glass

What You'll Need:

2 tomatoes

1/4 onion

1/2 lime

1 jalapeno pepper

5 sprigs of fresh cilantro

PREP

5 minutes

JUICE

5 minutes

How To Prepare:

1 Wash all produce well.
2 Peel lime (optional).
3 Add all ingredients into your Omega® Nutrition System and juice.
4 Serve and enjoy.

Baby Food - Applesauce

What You'll Need:

3 medium red apples

How To Prepare:

1 Steam 3 medium red, skinned and seeded apples.
2 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred nozzle.
3 Process through the Omega® Nutrition System.

4 Add a sprinkle of cinnamon. Yields 1 cup.

PREP 15 minutes PROCESS 6 minutes

Baby Food - Sweet Potato

What You'll Need:

2 sweet potatoes

How To Prepare:

1 Steam potatoes 20 to 25 minutes.
2 Process through the Omega® Nutrition System.
3 1 large potato yields about 1 cup.

PREP 30 minutes PROCESS 5 minutes

Baby Food - Carrots

What You'll Need:

3 large carrots

How To Prepare:

1 Steam carrots.
With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred nozzle.
3 Process through the Omega® Nutrition System.
Three large carrots yields about 1 cup.

PREP 30 minutes PROCESS 5 minutes

Baby Food - Peas

What You'll Need:

peas

PREP

3 minutes

PROCESS

6 minutes

How To Prepare:

1 Depod peas when preparing. No need to steam, unless you prefer.
2 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred nozzle.
3 Then process through the Omega® Nutrition System. Better for children 1 to 2 years old (younger children have trouble digesting them).

Clean Boost

What You'll Need:

12 a beetroot 5 spinach leaves 14 cabbage

1 broccoli stick

12 a grapefruit

12 a lemon

1 orange

1 kiwi fruit

2 small pieces of ginger

PREP

2 minutes

JUICE

4 minutes

How To Prepare:

1 Cut product to fit into hopper.
2 Juice in an Omega® Nutrition System.
3 Pour over ice.
4 Enjoy!

Australian Dream

What You'll Need:

2 beets (australian beetroot) 2 organic carrots 1 cup organic strawberries 2 cups kale leaves (6-8 leaves) (australia tuscan cabbage)

PREP

3 minutes

JUICE

6 minutes

How To Prepare:

1 Wash all produce well.
2 Cut as needed to fit into juicer.
3 Juice in an Omega® Nutrition System.
4 Pour over ice and enjoy.

Morning Glory Citrus

What You'll Need:

2 grapefruits (peeled) 1 red bell pepper 2 pears 6 carrots

How To Prepare:

1 Wash all produce well.

2 Juice all produce in an Omega® Nutrition System and enjoy!

Serving Size: 16 - 18 oz.

Bursting with Vitamin C and beta-carotene, as well as Vitamins A & K and even copper.

PREP 5 minutes JUICE 5 minutes

Apple & Kiwi Juice

What You'll Need:

2 apples 3 kiwis

How To Prepare:

1 Wash the apples, then remove the core and cut into quarters.
2 Peel the kiwis and chop into small pieces.
3 Juice ingredients in your Omega® Nutrition System.
4 Stir before drinking.

PREP 5 minutes JUICE 5 minutes

Total Health Booster

What You'll Need:

1 medium apple, cored and cubed
2 medium soft pears, cored and cubed ^1/2 cup fresh cherries (pits removed or frozen and thawed)

How To Prepare:

1 In your Omega® Nutrition System, juice apple, pears, and cherries.
Before serving, garnish with fresh cherries, if desired.

PREP 5 minutes JUICE 5 minutes

Cukelear Power

What You'll Need:

1 cucumber 2 collard green leaves 1 handful of cauliflower florets ½ lemon (yellow rind removed)

How To Prepare:

1 Wash all produce.
2 Add all ingredients into your Omega® Nutrition System and juice.
3 Pour into your glass and enjoy!

PREP 5 minutes JUICE 5 minutes

Tropical Morning

What You'll Need:

1 peach (remove pit) 1 mango (peeled and seed removed) 1 orange (skin removed) 12 cup coconut water 1 teaspoon agave nectar

How To Prepare:

1 In your Omega® Nutrition System, juice peach, mango and orange
2 Add remaining ingredients and stir.
3 Serve chilled and garnish with a peach slice.

PREP 5 minutes JUICE 5 minutes

Island Dreaming Sorbet

What You'll Need:

1 / 2 cup frozen pineapple chunks 1 / 2 cup frozen banana 1 cup frozen strawberries 1 / 2 cup frozen mango chunks 2 tbsp coconut flakes

How To Prepare:

1 Mix all ingredients in a bowl. Thaw slightly before running through Omega® Nutrition System.
2 Change the juicing cone for the blank cone and assemble your preferred nozzle.
3 Start pouring and pushing the ingredients into the chute. Serve.

PREP 5 minutes PROCESS 5 minutes

Frozen Lemonade Sorbet

What You'll Need:

6 tbsp lemon juice

3 tbsp raw honey 1 cup water

PREP

6 hours

PROCESS

5 minutes

How To Prepare:

1 Heat lemon juice and honey for 10-20 seconds in microwave. Stir. Add in the water and stir.
32 Freeze the mixture in ice cube trays or ice pop mold.
3 With an Omega® Nutrition System, change the juicing cone for the blank cone and assemble your preferred nozzle.
4 Thaw lemon cubes slightly before pushing thru the chute of Omega® Nutrition System. Serve.

Orange Dreamsicle Sorbet

What You'll Need:

4 frozen oranges/ mandarins peeled 1 cup vanilla yogurt

PREP

5 minutes

PROCESS

5 minutes

How To Prepare:

1 Freeze yogurt and peeled orange segments.
2 Thaw slightly before running through Omega® Nutrition System.
3 Change the juicing cone for the blank cone and assemble your preferred nozzle.
4 Start pouring and pushing the ingredients into the chute, alternating the yogurt and the orange segments. Serve.

Omega®

Félicitations!

www.omegajuicers.com/omega-warranty-registration

POUR DES RECETTES, RENDEZVOUS AU :

www.omegajuicers.com/recipes

www.OmegaJuicers.com

TABLE OF CONTENTS

Technical line drawing of a cylindrical mechanical device with a textured base and mounting bracket (no text or symbols)

A B C D E F G H I J K L M Omega® L M O N P R Q

Illustration of a manual hand mixer with labeled parts (no text or symbols on the device itself)

TRANSFORMATION DES ALIMENTS

Diagram of a food cleaning machine with labeled parts and directional arrows indicating assembly steps

Illustration of a manual hand mixer with a side bowl (no text or symbols)

9

MODE D'EMPLOI

EXTRACTION DE JUS

Illustration of a bucket pouring liquid into a container (no text or symbols)

Illustration of a washing machine with waste sorting bins (no text or symbols)

Illustration of a mechanical component being inserted into a circular button, with no visible text or symbols.

Illustration of a mechanical component with a red arrow indicating a specific section, next to a hand holding a circular button (no text or symbols present)

INFORMATION SUR LE PRODUIT

INFORMATION SUR LE PRODUIT

White Omega-branded electric juice maker with black handle and digital screen (no visible text or symbols)

RECETTES

Lait d'Amande

Ingrédients:

2 cups dry cashews 6 tablespoons coconut nectar

1 tbsp coconut oil

2 tsp vanilla powder

12 tsp real salt

PRÉP 5 minutes MÉTHODE 8 minutes

Méthode:

www.OmegaJuicers.com

Pure electrical circuit lines without any symbols

Diagram showing a wall socket connected to two outlets with warning symbols and a fuse, indicating electrical hazard or safety warning.

A B C D E F G H I J K L M Omega L M O N P R Q

Illustration of a modern manual shaver with a side arm and cup (no text or symbols)

10

PARA PROCESAR ALIMENTOS

8 7 6 5 1 2 3 4

Illustration of a small manual hand mixer with a side bowl and handle (no text or symbols)

Black TAPA SENCILLA plastic mechanical component (no text or symbols on the part itself)

Illustration of a bucket pouring liquid into a container (no text or symbols)

Illustration of a washing machine with waste sorting bins (no text or symbols)

Illustration of a mechanical component being inserted into a circular button, with no visible text or symbols.

Illustration of a mechanical component being inserted into a circular housing, with a hand pointing to the end (no text or symbols present)

Illustration of a hairdryer with a funnel pouring powder into a cordage, accompanied by scissors and a cup (no text or symbols)

Modelo NC800HDS/NC900HDC/NC900HDR/

NC900R/NC900B

Voltaje nominal 120 V

White Omega juice maker with black handle and black blade, no visible text or symbols on device body

RECETAS

Leche de almendras

Ingredientes:

www.OmegaJuicers.com

The Legacy Companies, Weston, FL 33331 U.S.A.
