RJ204M - Snow blower Snow Joe - Free user manual and instructions

Product Type	Snow Roof Rake
Brand	Snow Joe
Model	RJ204M
Blade Material	Polycarbonate
Handle Material	Aluminum
Telescoping Handle	From 1.9 m to 6.4 m
Clearing Width	63.5 cm
Rake Head Height	15.2 cm
Maximum Reach Height	8.2 m
Net Weight	2.2 kg
Power Source	Manual (no power source)
Primary Function	Snow removal from roofs without climbing on the roof
Handle Lock	By turning the grip knob
Included Accessories	Allen wrench, fork wrench, metal spacers, screws and lock nut
Warranty	2 years (residential use)
Recommended Use	Residential, outdoor
Maintenance	Clean after use, store dry, protect ends with cap

Frequently Asked Questions - RJ204M Snow Joe

How to assemble the RJ204M roof rake?

Remove the shipping cap from the handle. Unscrew the grip knob, extend the handle until you see the small holes, then press the buttons to insert the handle into the rake head. Secure the metal spacers with the screws and lock nut using the provided wrenches.

How to adjust the telescoping handle length?

Turn the grip knob clockwise to loosen, extend the handle to the desired length, then turn the knob counterclockwise to lock.

What materials are used?

The blade is made of durable polycarbonate, the handle is made of lightweight aluminum.

What is the maximum reach height?

The reach height is up to 8.2 meters, ideal for single-story and ground-level roofs.

Is the rake warranted?

Yes, Snow Joe offers a 2-year limited warranty for ordinary residential and household use, from the date of purchase. Register your product at snowjoe.com/register.

Can I use this rake on a tile roof?

Yes, the polycarbonate blade is designed not to damage shingles, tiles or other common roofing materials.

How to clean and maintain the rake?

After each use, wipe the blade and handle with a dry cloth. Store it in a dry place, preferably with the end cap to protect the handle.

Is the handle replaceable?

If the handle is damaged, contact Snow Joe customer service at 1-866-766-9563 (1-866-SNOWJOE) for replacement parts.

What is the weight of the tool?

The rake weighs only 2.2 kg, making it lightweight and easy to handle.

Where can I find the full manual?

The manual is available for free download at notice-facile.com or on the official Snow Joe website. You can also request a translation by email.

USER MANUAL RJ204M Snow Joe

Abstract black and white logo design resembling a stylized 'S' or wave (no text or symbols)

21-FOOT TWIST-N-LOCK TELESCOPING SNOW SHOVEL ROOF RAKE

Line drawing of a hand-cockled tool with a long handle and metal chain (no text or symbols)

If you have any questions or comments, please call the Snow Joe® + Sun Joe® customer service department at:

Technical line drawing of a two-hopper mop handle and lever mechanism (no text or symbols)

Technical diagram of a mechanical component with numbered parts for identification

1. Handle

2. Open end wrench

3. Roof rake head

4. Hex key wrench

5. Metal braces (2)

6. Long hex screw

7. Short hex screws (2)

8. Locking nut

Technical Data

Blade Material ...... Polycarbonate (PC) blade

Pole Material....Aluminum

Telescopic Handle 6.2 ft to 21 ft (1.9 m to 6.4 m)

Clearing Width.... 25 in. (63.5 cm)

Rake Head Height 6 in. (15.2 cm)

Overhead Reach.... 27 ft (8.2 m)

Net Weight....4.8 lbs (2.2 kg)

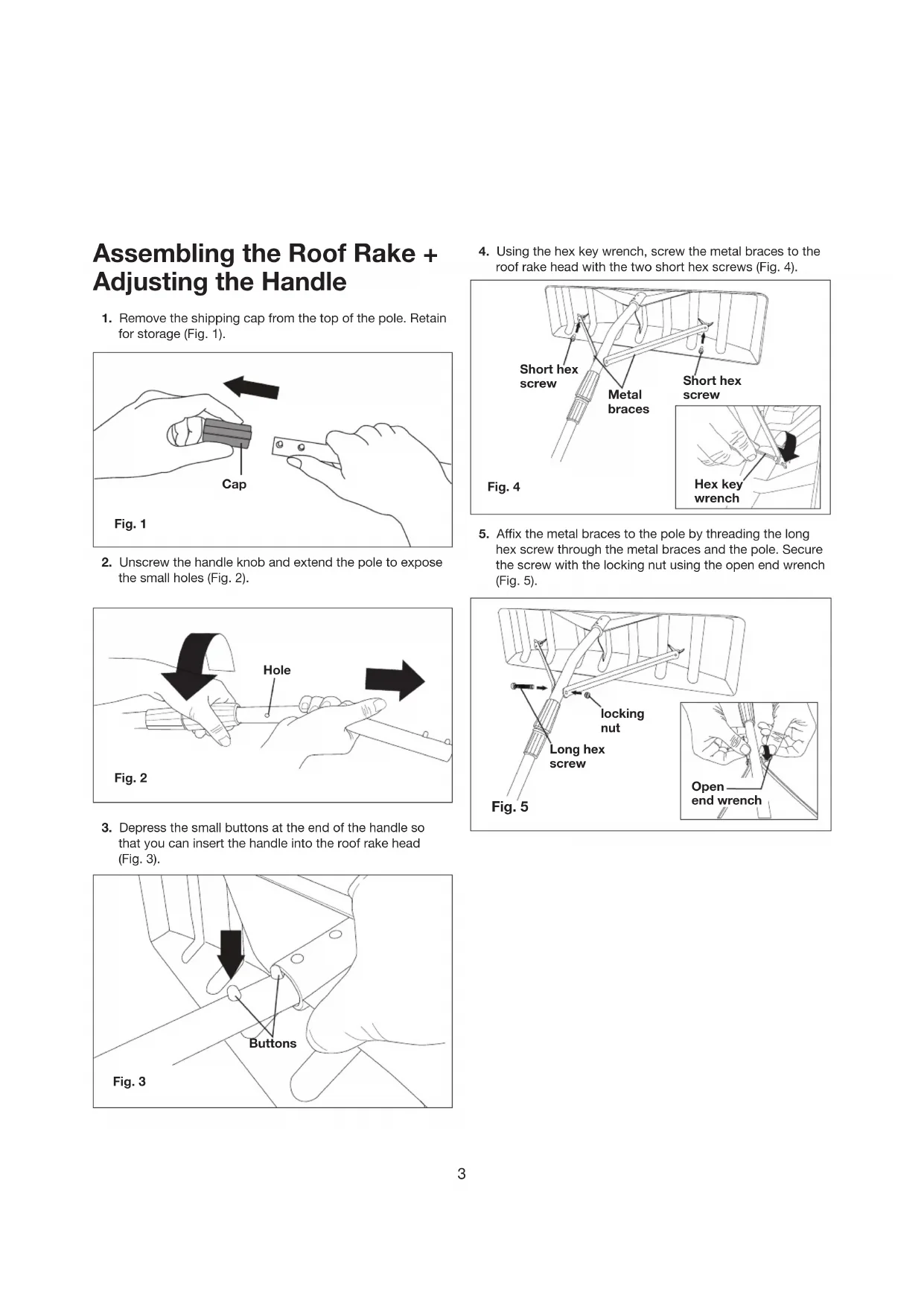

Assembling the Roof Rake + Adjusting the Handle

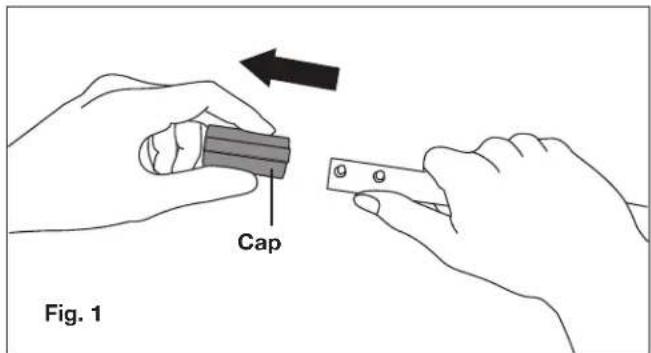

1. Remove the shipping cap from the top of the pole. Retain for storage (Fig. 1).

Cap Fig. 1

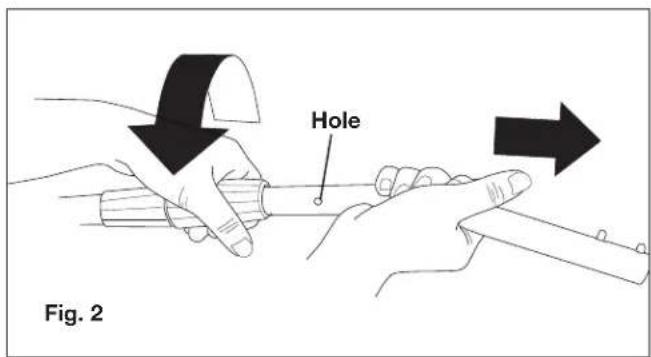

1. Unscrew the handle knob and extend the pole to expose the small holes (Fig. 2).

Hole Fig. 2

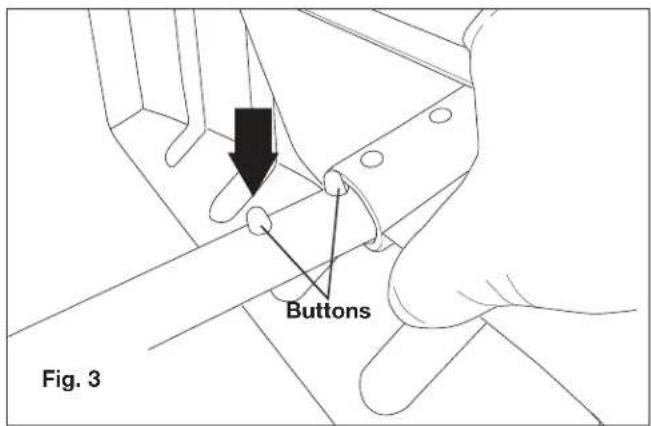

1. Depress the small buttons at the end of the handle so that you can insert the handle into the roof rake head (Fig. 3).

Buttons Fig. 3

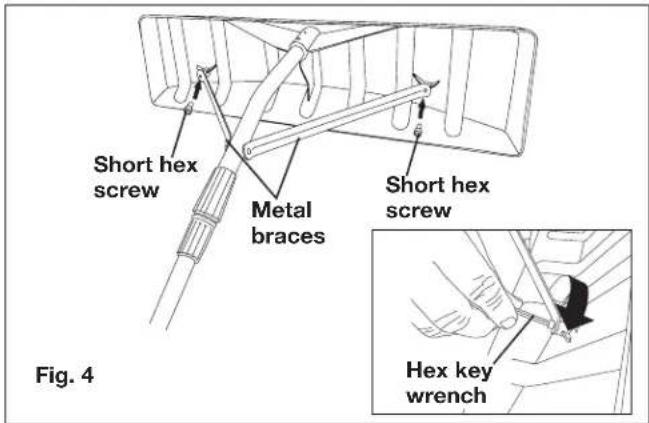

1. Using the hex key wrench, screw the metal braces to the roof rake head with the two short hex screws (Fig. 4).

Short hex screw Metal braces Short hex screw Hex key wrench Fig. 4

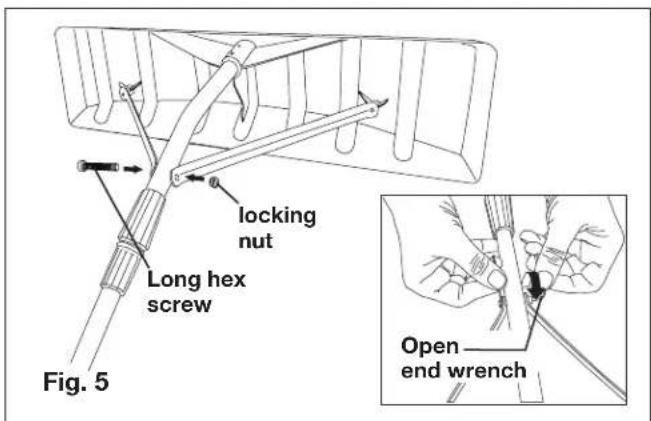

1. Affix the metal braces to the pole by threading the long hex screw through the metal braces and the pole. Secure the screw with the locking nut using the open end wrench (Fig. 5).

locking nut Long hex screw Fig. 5 Open end wrench

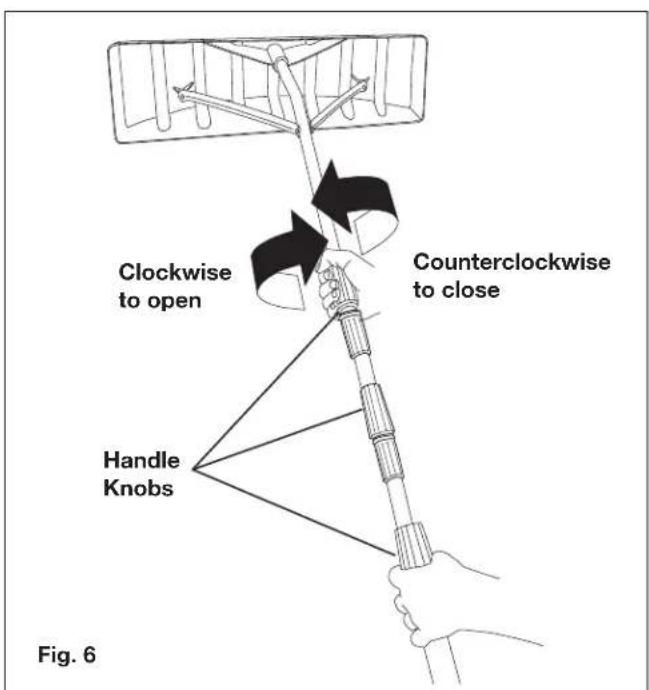

1. Lengthen the telescopic pole by rotating the handle knob clockwise and extending the pole to the desired length. Secure in position by twisting the knob counterclockwise (Fig. 6).

Clockwise to open Counterclockwise to close Handle Knobs Fig. 6

NOTE: If you have any questions, please call the Snow Joe® + Sun Joe® customer service department at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Abstract gray logo design with a stylized S-like shape inside an oval (no text or symbols)

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
