USER MANUAL 27BQ70QC LG

* LG LED Monitor applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

27BQ70QC

www.lg.com

Copyright @022 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS

LICENSE 3

OPEN SOURCE SOFTWARE NOTICE INFORMATION .... 4

ASSEMBLING AND PREPARING 4

USING THE MONITOR....13

USER SETTINGS 16

TROUBLESHOOTING 21

PRODUCT SPECIFICATION....22

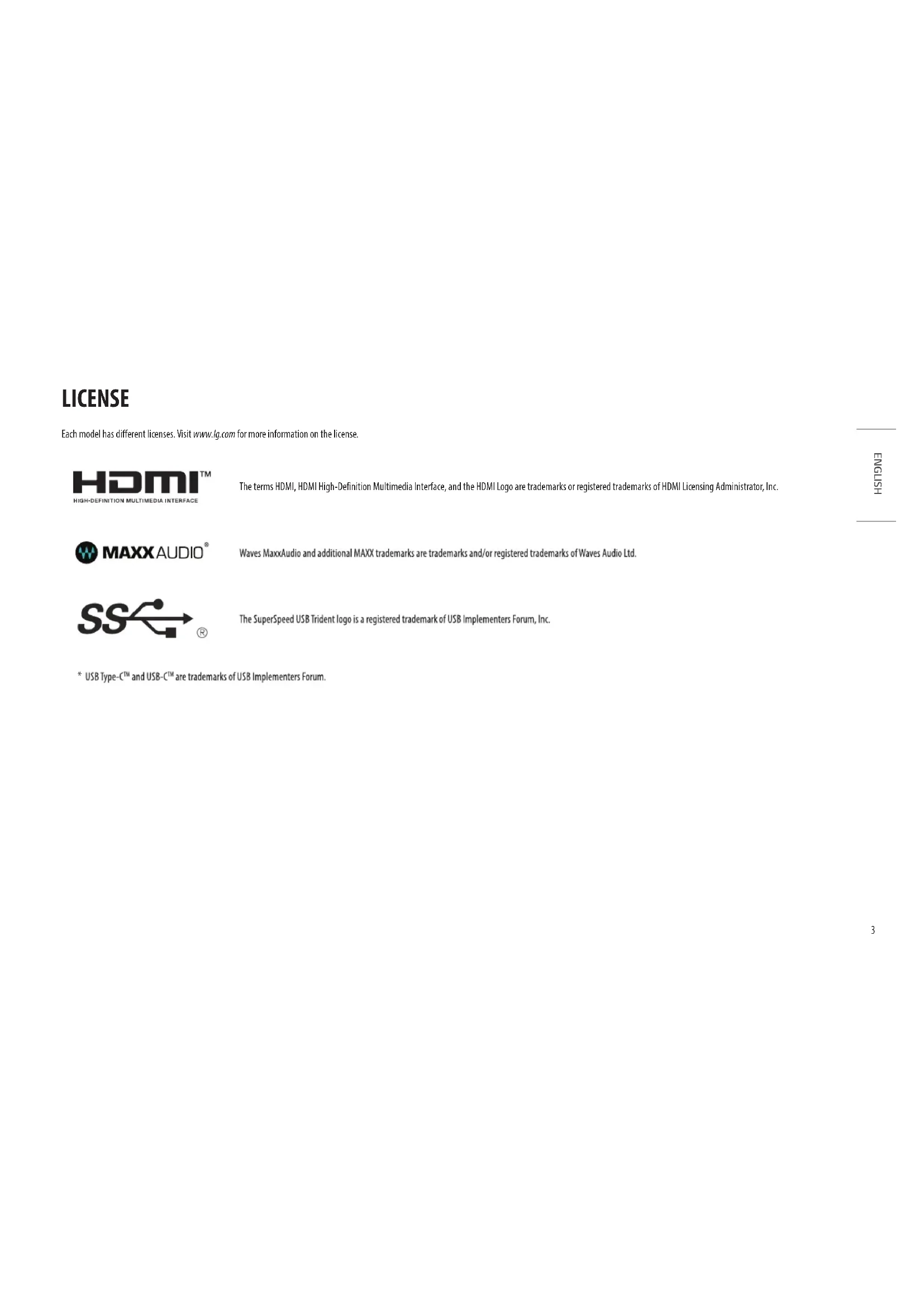

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

MAXX AUDIO®

Waves MaxxAudio and additional MAXX trademarks are trademarks and/or registered trademarks of Waves Audio Ltd.

The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

* USB Type-CTM and USB-CTM are trademarks of USB Implementers Forum.

OPEN SOURCE SOFTWARE NOTICE INFORMATION

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

ASSEMBLING AND PREPARING

CAUTION

• Always use genuine LG components to ensure safety and product performance.
- The product warranty will not cover damage or injury caused by the use of unauthorised components. - It is recommended that use the supplied components.
- Illustrations in this document represent typical procedures, so they may look different from the actual product.
- Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
- Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
- When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.

NOTE

• The components may look different from those illustrated here.
- Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.
- To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you purchased the product.
• The power cord provided may differ depending upon the region.

Supported Software

You can download and install the latest version from the LGE website (www.lg.com).

• Monitor Driver/ OnScreen Control/ Dual Controller

Product and Button Description

Diagram showing a monitor connected to a control panel with labeled icons for display, triangle, inverted triangle, and XO.

Button Description
(Power)	Power off state Press the button once to turn on the monitor.
	Power on state Press and hold the button once for five seconds or longer to turn off the monitor.
(Menu)	Press the button once to set the screen.
/ adjusts the volume.
/OK	Displays information about the current input.

Moving and Lifting the Monitor

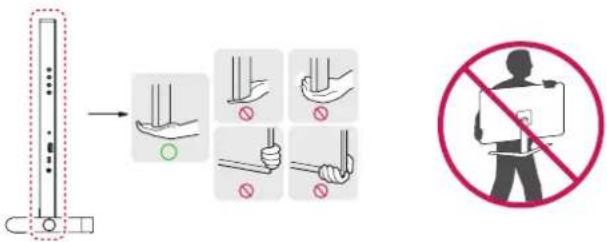

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.

• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• When holding the monitor, the screen should face away from you to prevent it from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive vibration.
• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

Diagram illustrating a step-by-step instructions for using a tool to prevent a person's absence of a device.

CAUTION

• Avoid touching the monitor screen as much as possible.
• This may result in damage to the screen or some of the pixels used to create images.

Installing on a Table

After folding the stand to secure it, lift the monitor and place it on the table in an upright position.

A-Type

Line drawing of a flat-screen TV mounted on a stand (no text or symbols)

CAUTION

• Make sure the table on which the product is installed is stable and solid. A table made of fragile materials such as glass may be damaged.
  • The monitor may tilt on uneven or slanted tables.
  • Installation of the stand may leave a mark on the table.
• Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.

Adjusting the Angle

The angle of the screen can be adjusted forward or backward from -5^ to 10^ for a comfortable viewing experience.

WARNING

• Be careful not to touch or press the screen area when adjusting the angle of the monitor.
• Do not use the button on the back of the product when adjusting the angle.
• Be careful not to use excessive force when adjusting the angle.

Illustration showing a hand holding a document with a prohibition symbol above it, indicating no restrictions or prohibition against the document.

Diagram showing a device with a red arrow pointing to a circular component, alongside an inset view of a curved surface with a red circle and number 20 (no text or symbols present)

Safety warning sign indicating no movement to a vertical pole, with Chinese text and red circle symbol

Using the Kensington Lock

For more information on installation and usage, refer to the Kensington lock owner's manual or visit the website at http://www.kensington.com.

Connect the monitor to a table using the Kensington security system cable.

Illustration of a laptop connected to a cable with a lock and connector, shown in two thought bubbles (no text or symbols present)

NOTE

• The Kensington security system is optional. You can obtain optional accessories from most electronics stores.

Installing on the Wall

Secure at least a certain amount of vertical flat space in the partition to be installed. In addition, ensure that it is strong and sturdy enough to hold and use the product.

B-Type C-Type A A

Hanger Length (A)	B-Type 80 mm
	C-Type 200 mm

NOTE

- The stand can be unfolded by pushing the button on the back of the product.

Diagram of a mechanical device with an arrow indicating direction and a circular inset showing rotational motion (no text or symbols)

CAUTION

• The partition in which the product is installed must be sufficiently rigid. If it is made of fragile material such as glass, this may result in damage to the product.
• If the partition surface is uneven or tilted, the product may tilt.
• When the monitor is installed, the traces may remain on the partition.
• Do not hang heavy items such as bags or clothes on the monitor or cradle.
• If the partition cannot support the monitor sufficiently, be careful as the monitor may fall over.
• When standing the folded stand, be careful not to get your fingers caught between the monitor head and the stand.
• Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.

NOTE

Technical line drawing of a rectangular frame with a vertical panel and mounting bracket, labeled 'A' (no text or symbols on the diagram itself)

Diagram of a rectangular device with a labeled component 'B' and internal structure, no readable text or symbols present.

A	B-Type	≥550mm
	C-Type	≥670mm
B 530 mm
C 30~70 mm

Webcam Installation

Insert the webcam according to the direction in which you wish the camera to shoot, and use it after connecting it to the monitor.

When Installing on a Table

Illustration of a flat-screen monitor with an inset showing a camera mounted on a screen (no text or symbols present)

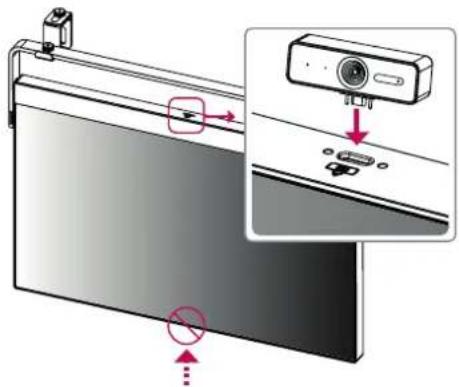

When Installing on a Partition

Diagram showing a device panel with an inset image of a camera and its internal components, highlighting a location pin.

CAUTION

- Do not mount the webcam on the bottom of the monitor.

NOTE

• The USB-C port on the side of the monitor and the USB-C port on the PC must be connected with a USB-C cable in order for the webcam to function.
  • The USB-C ports on the top and bottom of the monitor are exclusively for the webcam.

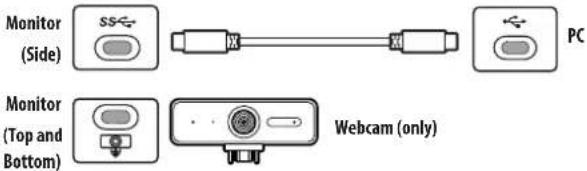

Monitor (Side) Monitor (Top and Bottom) PC Webcam (only)

Adjusting the Angle

The angle of the webcam can be adjusted from -15° to 10° (or 15°) front and back for comfortable use.

When installing on a table: -15° ~ 15° When installing on a partition: -15° ~ 10°

Using the Lens Cover

A lens cover can be attached to hide the lens when the webcam is not in use. When attaching the lens cover, attach it so that the cover opens to the left.

Diagram showing two circular components with internal circular elements and a cross-shaped diagram with red lines (no text or symbols)

USING THE MONITOR

• Illustrations in this manual may differ from the actual product.
- Press the ☐ (Menu) button on the side of the monitor and select the corresponding input from the [Input] menu.
- If you use generic cables not certified by LG, the screen may not display or there may be image noises.
- Do not press the screen for a prolonged time. This may cause image distortion.
- Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC screensaver if possible.
- When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.

CAUTION

Connecting to a PC

• This monitor supports the feature play

* PAs feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.

HDMI Connection

Transmits digital video and audio signals from your PC to the monitor.

CAUTION

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
- Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
- High Speed HDMI/™ cable
- High Speed HDMI ^ / ^TM cable with Ethernet

USB-C connection

Transmits digital video and audio signals from your PC to the monitor.

NOTE

• PD(Power Delivery) and DP Alternate Mode(DP over USB-C) are supported via USB-C Port.
• Features may not work properly depending on the connected device's specifications and the environment.
• USB-C port is not for the monitor power source but for a PC power source. Connect adapter to supply power to the monitor.
• It is recommended to turn off the device connected via HDMI when watching a video by connecting through USB-C.

Connecting AV Devices

HDMI Connection

HDMI transmits digital video and audio signals from your AV device to the monitor.

CAUTION

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
- Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types

- High Speed HDMF/ ^TM cable

- High Speed HDMf/ ^TM cable with Ethernet

Connecting Peripherals

Headset Connection

Connect peripherals to the monitor via the headset port.

NOTE

Peripheral devices are sold separately.

• Depending on the audio settings of the PC and external device, headset and speaker functions may be limited.
• If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.

Angled Straight

(Recommend)

- The USB-C port on the side of the monitor and the USB-C port on the PC must be connected with a USB-C cable in order for the microphone to function.

USER SETTINGS

NOTE

- Your monitor's OSD (On Screen Display) may differ slightly from that shown in this manual.

Menu Settings

1 Press the [Menu] button on the side of the monitor to enter.
2 Use the △buttons to set options.
3 If you wish to adjust the upper menu or other items, use the Ⓐ (Menu) button or press the Ⓞ/OK button to move.

[Quick Settings]

• [Brightness]: Adjusts the brightness of the screen.
• [Contrast]: Adjusts the contrast of the screen.
• [Volume]: Adjusts the volume level.
• [Color Temp]: Set your own colour temperature.
- [Warm]: Sets the screen colour to a reddish tone.
- [Cool]: Sets the screen colour to a bluish tone.

- [Custom]: The user can customize the red, green and blue colour.

- [Medium]: Sets the screen colour to between a red and blue tone.

- [Manual]: The user can fine-tune the colour temperature.

• [Waves MaxxAudio]

- [On]: MaxxAudl®by waves, recipient of a Technical GRAMMY Award® is a suite of studio-quality sound tools for a superior listening experience.

- [Off]: Disables the [Waves MaxxAudi®] feature.

[Input]

• [Input List]: Selects the input mode.
- [Aspect Ratio]: Adjusts the aspect ratio of the screen. The display may look the same for [Full Wide], [Original], and [Just Scan] options at the recommended resolution (2560 x 1440).
- [Full Wide]: Displays the video in widescreen, regardless of the video signal input.
- [Original]: Displays video according to the aspect ratio of the video signal input.
- [Just Scan]: The aspect ratio is not adjusted from the original.

[Picture]

[Picture] > [Picture Mode]

• [Custom]: Allows the user to adjust each element.
  • [Vivid]: Heightens contrast, brightness and sharpness to display vivid images.
  • [HDR Effect]: Optimizes the screen for high dynamic range.
• [Reader]: Optimizes the screen for reading documents. You can brighten the screen in the OSD menu.
  • [Cinema]: Optimizes the screen to improve the visual effects of a video.
  • [FPS]: This mode is optimized for FPS games.
  • [RTS]: This mode is optimized for RTS Game.
• [Color Weakness]: This mode is for users who cannot distinguish between red and green. It enables users with colour weakness to easily distinguish between the two colours.

NOTE

• The [Picture Mode] that can be set depends on the Input signal.
- HDR content may not display correctly depending on OS settings, please check HDR On/Off settings in Windows or Mac OS.
- When the HDR function is turned on, the characters or picture quality may be poor according to Graphic card performance.
- While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or power on/off according to Graphic card performance.

[Picture] > [Picture Adjust]

• [Brightness]: Adjusts the brightness of the screen.
• [Contrast]: Adjusts the contrast of the screen.
• [Sharpness]: Adjusts the sharpness of the screen.
- [SUPER RESOLUTION+]: Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.
- [High]: Optimizes the screen for crystal clear images. Best for high-definition video or games.
- [Middle]: Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes.
- [Low]: Optimizes the screen for smooth and natural images. Best for still images or images with less movement.
- [Off]: Displays in the most common setting. Disables [SUPER RESOLUTION +].
• [Black Level]: Sets the offset level (for HDMI only).
- Offset: As a reference for a video signal, this is the darkest colour the monitor can display.
- [High]: Keeps the current contrast ratio of the screen.
- [Low]: Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
• [DFC]
- [On]: Adjusts the brightness automatically according to the screen.
- [Off]: Disables the [DFC] feature.

[Picture] > [Game Adjust]

- [Response Time]: Sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use [Fast]. When there is a lot of motion, it is recommended that you use [Faster]. Once [Faster] mode is selected, Motion Blur may occur depending on the content.

- [Faster]: Sets the response time to faster.

- [Fast]: Sets the response time to fast.

- [Normal]: Sets the response time to normal.

- [Off]: Does not use the response time improvement feature.

- [Black Stabilizer]: You can control the black contrast to have better visibility in dark scenes. Increasing the [Black Stabilizer] value brightens the low grey level area on the screen. (You can easily distinguish objects on dark game screens.) Reducing the [Black Stabilizer] value darkens the low grey level area and increases the dynamic contrast on the screen.

[Picture] > [Color Adjust]

• [Gamma]
- [Mode 1], [Mode 2], [Mode 3]: The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes.
- [Mode 4]: If you do not need to adjust the gamma settings, select [Mode 4].
• [Color Temp]: Set your own colour temperature.
- [Custom]: The user can customize the red, green and blue colour.
- [Warm]: Sets the screen colour to a reddish tone.
- [Medium]: Sets the screen colour to between a red and blue tone.
- [Cool]: Sets the screen colour to a bluish tone.
- [Manual]: The user can fine-tune the colour temperature.

- [Red] / [Green] / [Blue]: You can customize the picture colour using [Red], [Green], and [Blue] colours.

- [Six Color]: Meets the user requirements for colours by adjusting the hue and saturation of the six colours (red, green, blue, cyan, magenta, and yellow) and then saving the settings.

- Hue: Adjusts the tone of the screen colours.

- Saturation: Adjusts the saturation of the screen colours. The lower the value, the less saturated and brighter the colours become. The higher the value, the more saturated and darker the colours become.

[Picture] > [Picture Reset]

• Returns picture and colour to the default settings.

[Sound]

• [Volume]: Adjusts the volume level.
• [Waves MaxxAudjo

- [On]: MaxxAud® by waves, recipient of a Technical GRAMMY Award® is a suite of studio-quality sound tools for a superior listening experience.

- [Off]: Disables the [Waves MaxxAudi®] function.

[General]

• [Language]: Sets the menu screen to the desired language.
• [SMART ENERGY SAVING]: Conserve energy by using luminance compensation algorithm.
- [High]: Saves energy using the high-efficiency [SMART ENERGY SAVING] feature.
- [Low]: Saves energy using the low-efficiency [SMART ENERGY SAVING] feature.
- [Off]: Disables the feature.
- [Automatic Standby]: If there is no operation on the monitor for a certain period of time, the monitor will automatically switch to standby mode.
• [Auto Reverse]
- [On]: Automatically rotates the screen 180 degrees by detecting when the monitor is upside down.
- [Off]: Disables the [Auto Reverse] feature.
- [DisplayPort Version]: Set DisplayPort Version to the same version as the connected external device. ([1.4] and [1.2])
To use the HDR function, set to [1.4].
[Buzzer]: This feature lets you set the sound generated from Buzzer when your monitor powers on.
[OSD Lock]: This feature disables the configuration and adjustment of menus.
All features are disabled except [Brightness], [Contrast] and [Volume] on [Quick Settings], menus of on [Input], and [OSD Lock] and [Information] of [General].

• [Deep Sleep Mode]: When [Deep Sleep Mode] is [On], power consumption is minimized while the monitor is in standby mode.
• [On]: Enables [Deep Sleep Mode].
• [Off]: Disables [Deep Sleep Mode].
  • [Information]: The following display information will be shown; [Total Power On Time], [Resolution].
  • [Reset to Initial Settings]: Returns to the default settings.

NOTE

• [SMART ENERGY SAVING]
- The value of energy saving data may differ depending on panel and panel suppliers.
- If you select the option of [SMART ENERGY SAVING] is [High] or [Low], monitor luminance become higher or lower depend on source.
• [Auto Reverse]
- When rotating 180 degrees, [Response Time] and DAS Mode do not work.

TROUBLESHOOTING

Nothing is displayed on the screen.

• Is the monitor's power cord plugged in?
- Check if the power cord is correctly plugged into the power outlet.
• Is the [No Signal] message being displayed?
- This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
• Is the [Out of Range] message being displayed?
- This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the "PRODUCT SPECIFICATION" section of this manual to set the appropriate frequency.

Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails.

• Did you select the appropriate resolution?
- If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.
- Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.
- The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.

The screen retains an image.

• Does image sticking occur even when the monitor is turned off?
- Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
- To extend the lifetime of the monitor, use a screensaver.
Are there spots on the screen?
- When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related to the monitor's performance.

Some features are disabled.

- Are some functions not available when you press the Menu button?

• The OSD is locked. Disable [OSD Lock] in [General].
• Check the PC settings and input signal. (HDR, No Signal)

Do you see an "Unrecognised monitor, Pingrator Playd/Este Dage?"

• Have you installed the display driver?
- Be sure to install the display driver from our web site: https://www.lg.com.
- Make sure to check if the graphics card supportPlugactionPlay

No sound from the headphone port.

• Are images displayed without sound?
- Make sure that the headphone port connections are made properly.
- Try increasing the volume with the √ buttons.
- Set the audio output of the PC to the monitor you are using. (The settings may differ depending on the operating system (OS) you use.)

PRODUCT SPECIFICATION

Specifications are subject to change without notice.

The symbol -means alternating current, and the symbol means direct current.

Colour Depth:

• 10-bit colour is supported.

Resolution

• Max Resolution: 2560 x 1440 @ 60 Hz
• Recommended Resolution: 2560 x 1440 @ 60 Hz

Environmental Conditions

- Operating Conditions

• Temperature: 0 °C to 40 °C
• Humidity: Less than 80%

- Storing Conditions

• Temperature: -20 °C to 60 °C
• Humidity: Less than 85 %

AC/DC Adapter

• Model: ADS-150KL-19N-3 190140E
Manufacturer: Shenzhen Honor Electronic Co., Ltd.
• Input: 100-240 V\~ 50/60 Hz 2.0 A
• Output: 19V-7.37A

Dimensions

• Monitor Size (Width x Depth x Height) (mm)
- When installing on a table: 631.8 x 160.4 x 391.8
- When installing on a partition: 631.8 x 32.1 x 454.2
• Weight (Without Packaging) (kg): 6.0

Power Sources

• Power Rating: 19 V -7.0 A
Power Consumption
- Operating Mode: 38 W (Typical)*
- Sleep Mode (Standby Mode): ≤ 0.5 W
- Off Mode: ≤ 0.3 W

* The Operating Mode of Power Consumption is measured with LGE test standard. (Full White pattern, Maximum resolution, Outgoing condition)
* The Power Consumption level can be different by operating condition and monitor setting.

Support Mode

(Preset Mode, USB-C)

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45.00 60.00 +/+
1280 x 800 49.702 59.810 -/+
1280 x 1024	63.981 60.02 +/+
1600 x 900 60.00 60.00 +/+
1920 x 1080 67.5	60	+/-
2560 x 1440 88.79 59.95 +/-

(Preset Mode, HDMI)

Resolution Horizontal	Frequency (kHz) Vertical Frequency (Hz)	Polarity (H/V) Remarks
640 x 480 31.469 59.94	-/-
800 x 600 37.879 60.31	7 +/+
1024 x 768 48.363 60	-
1152 x 864 54.347 60.05	+/+
1280 x 720 45.00 60.00	+/+
1280 x 800 49.702 59.81	0 -/+
1280 x 1024 63.981 60.02	+/+
1600 x 900 60.00 60.00	+/+
1920 x 1080 67.5	60	+/-
2560 x 1440 88.79 59.95	+/-

HDMI Timing (Video)

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz)
480p 31.5 60
720p 45 60
1080p 67.5 60
2160p 67.5 30

LG

Life's Good

The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service.

Model

Serial No.

This Product qualifies for ENERGY STAR®

Changing the factory default configuration and settings or enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY STAR® certification. Refer to ENERGYSTAR.gov for more information on the ENERGY STAR® program.

IMPORTANT PRECAUTIONS

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. All precautions and safety information apply to LCD and OLED models.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The appliance coupler is used as the disconnect device.

Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily accessible.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

Do not Open the Display:

• There are no user serviceable components inside.
• There are Dangerous High Voltages inside, even when the power is OFF.
• Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

• Do not place the display on a sloping shelf unless properly secured.
• Use only a stand recommended by the manufacturer.
• Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.
  It can cause injury to human, problem to product and damage the display.

To Prevent Fire or Hazards:

• Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.
• Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.
• Do not add accessories that have not been designed for this display.
• When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.
• In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous. It can cause electric shock.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard.

Therefore, NEVER:

• Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
• Place the display in a built-in enclosure unless proper ventilation is provided.
• Cover the openings with cloth or other material.
• Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen.

However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

Displaying a still image for long time on the monitor may leave persistent image or stain on the monitor screen. To avoid this problem, use a screen saver and power off when this product is not used. Persistent image or stain caused by long time usage are not covered by the warranty on this product.

Do not shock or scratch the front and sides of the screen with metallic objects.

Otherwise, it may cause damage to the screen.

Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged product can cause electric shock or fire. Contact an authorized the service center for repair.

Avoid high temperatures and humidity.

Do not install this product on a wall if it could be exposed to oil or oil mist.

- This may damage the product and cause it to fall.

For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Do not use products using high voltage around the Monitor. (ex. Electrical Swatter)

• Monitor may have malfunction as its electrical shock.

Precautions to the AC Adapter and Power

If water or any foreign substance goes inside the product (TV, monitor, power cord, or AC adapter), disconnect the power cord immediately and contact the service center.

• Otherwise, this may cause a fire or electric shock due to damage to the product.
  Do not touch the power plug or AC adapter with wet hands. If the pins of the plug are wet or dusty, wipe and dry them before use.

- Otherwise, this may cause a fire or electric shock.

Make sure to completely insert the power cord into the AC adapter.

• If loosely connected, the poor connection may cause a fire or electric shock.
  Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc.
• The use of non-approved products may cause a fire or electric shock.

When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force.

• The power line can be damaged, which may cause electric shock or fire.
  Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects.

- Damaged power cords may cause a fire or electric shock.

Never disassemble, repair or modify the power cord or AC adapter.

• This may cause a fire or electric shock.

Be sure to keep the outlet, AC adapter, and pins of the power plug clean from dust and etc.

• This may cause a fire.

On Cleaning

• Unplug the display before cleaning the face of the display screen.
• Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.
• When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners or alcohol)
• Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining.

On Repacking

- Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

MASA TË RËNDËSISHME PARAPRAKE

Balení

Par iepakojumu

Opnieuw inpakken

Empacotamento

MUHIM EHTIYOT CHORALARI

Shaxsiy shikastlanishlarning oldini olish:

• To'g'ri mahkamlanmagan bo'lsa, displeyni qiya tokchalarga o'rnatmang.
• Faqat ishlab chiqaruvchi tomonidan tavsiya qilingan tayanchlardan foydalaning.
• Mahsulot ustiga buyumlarni tashlamang yoki uni hech qanday ta'sir ostiga qo'ymang. Mahsulot ekraniga o'yinchoqlar yoki boshqa buyumlarni otmang. Bu odamlarning jarohatlanishi, mahsulot bilan bog'liq muammolar va displayyning shikastlanishiga olib kelishi mumkin.

Empacotamento

Cartoon illustration of a computer monitor with a sad face and a 'no' symbol, next to a battery (no text or symbols on the monitor itself)

Illustration showing a person reacting to a computer screen with a 'no' symbol, indicating no violation or absence of activity.

Cartoon illustration of a computer monitor with a smiling face and a money bag, no text or symbols present

Cartoon illustration of a computer monitor with a sad face and raised arms, resting on a rectangular block (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and surrounding tools (no text or symbols)

Cartoon illustration of a computer monitor with an angry face and steam lines (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and a phone emitting sound waves (no text or symbols)

Cartoon illustration of a person holding a document with a computer monitor displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and smoke, symbolizing stress or urgency (no text or symbols present)

Illustration of a child kicking a soccer ball while a distressed computer character is running away (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms and legs, standing on a grater (no text or symbols)

Cartoon illustration of a distressed computer monitor character with arms raised (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and waving hands, sitting at a desk (no text or symbols)

Illustration of a smiling house with wind turbines and solar panels, no text or symbols present

Cartoon illustration of a computer monitor holding a 'no sign' and a window with sun (no text or symbols on the monitor or window)

Illustration of a computer monitor displaying a cartoon character with motion lines (no text or symbols)

Illustration of a cartoon kettle and a computer monitor with a smiling face, emitting bubbles (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms and legs, floating on a surface (no text or symbols)

Cartoon illustration of a toilet and computer monitor with a sad face (no text or symbols)

Cartoon illustration of a smiling smartphone with a gear and a hand holding a device (no text or symbols)

정격 전압에서 사용하세요.

Illustration of a cartoon electric plug emitting sound waves to a phone screen (no text or symbols)

Safety warning illustration showing a dislocation device with a red prohibition symbol and lightning bolt

Cartoon illustration of a distressed computer monitor with a sad face and cloud above, no text or symbols present.

Illustration of a hand holding a power outlet with a computer monitor displaying a sad face, no text or symbols present.

Illustration of a hand holding a small electronic device with a smiling face and a red arrow indicating rotation (no text or symbols)

Illustration of a USB cable connector with a red arrow indicating compression or disassembly (no text or symbols)

Safety warning illustration showing a hand holding a hose with a 'No' symbol and a person running away, indicating no hazard or absence of safety.

Illustration of a wireless cable with attached plug and connector, labeled 'LG' in top right corner (no other text or symbols)

Cartoon illustration of a smiling computer monitor with a phone and cable, no text or symbols present

Illustration showing a hand holding a smartphone with a warning symbol and a cartoon character reacting to it.

Diagram showing a device emitting a radiation dose onto a box, with a prohibition symbol indicating no radiation.

Illustration showing a person holding a prohibition symbol with scissors and tools, next to an open box and computer.

Cartoon illustration of a smiling computer with a phone connected to its right (no text or symbols)

Illustration of a person watching a whale on a computer monitor (no text or symbols present)

Illustration of a cartoon mouse pulling a smiling computer screen (no text or symbols)

Cartoon illustration showing a computer monitor with a sad face and an electrical outlet connected to a switch, symbolizing attention or attention.

Cartoon illustration of a distressed computer with a sad face and a broken phone connected to its side (no text or symbols)

Cartoon illustration of a smiling computer monitor with hands reaching toward it, no text or symbols present.

Cartoon illustration of a smiling computer inside an open box (no text or symbols)

Illustration of two people holding a smiling computer monitor (no text or symbols present)

Cartoon illustration showing a person holding a wrench next to a computer screen displaying a sad face with a 'no' symbol, suggesting a negative or no sign.

Cartoon illustration of a smiling computer monitor with a surprised expression (no text or symbols)

Cartoon illustration of a smiling computer monitor character with a paper airplane and speech bubble (no text or symbols)

Cartoon illustration of a baby and a man on a computer screen (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and a red prohibition symbol, next to a window with water droplets (no text or symbols on main elements)

물이 들어가거나 젖게하지 마세 요.

Cartoon illustration of a sad face emerging from a smartphone with a thermometer and lightning bolts nearby (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and a warning symbol (no text or labels)

Illustration showing a computer monitor with a sad face and a red prohibition symbol, indicating no protection or no action.

Illustration of a woman holding a cup with a smiley face beside a computer monitor (no text or symbols)

Cartoon illustration of a computer monitor displaying a sad face with an angry expression (no text or symbols)

Cartoon illustration of a smiling computer monitor holding a document (no text or symbols on the monitor or background)

Cartoon illustration of a smiling computer monitor with eyes closed and a hand pointing at it (no text or symbols)

Four cartoon-style computer monitors with smiling faces and curved arrows, each holding a hand (no text or symbols)

Cartoon illustration of a hand holding a spray bottle next to a computer monitor with a sad face, no text or symbols present.

Cartoon illustration of a smiling computer monitor with a smile and a desk lamp (no text or symbols)

Cartoon illustration of a man holding a paint can next to a computer monitor displaying a sad face (no text or symbols)

DDC is a communication channel over which the monitor automatically informs the host system (PC) about its capabilities.

DDC protocol

① DDC1/DDC2B

An uni-directional communication channel.

② DDC 2AB/DDC2B+/DDC2Bi

A bi-directional communication channel.

Note

- PC must support DDC functions to do this.

E-DDC (Enhanced DDC)

A protocol based on I²C and used on a bidirectional data channel between the display and host. This protocol accesses devices at I²C address of A0/A1 as well as the address 60. The 60 address is used as a segment register to allow larger amounts of data to be retrieved than is possible using DDC2B protocols. The protocol is compatible with DDC2B protocols.

DEUTSCH

DDC (Display Data Channel)

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

양방향 통신 채널.

주

② DDC 2AB/DDC2B+/DDC2Bi

双方向通信チャンネル。

注

This program is designed to have computer equipment manufacturers build circuitry into their products to reduce power consumption when it is not in operation.

When this monitor is used with a PC on which a screen blanking software complying with the VESA Display Power Management Signalling (DPMS) Protocol is installed, it can conserve significant energy by reducing power consumption when it is not in operation.

There are 2 signal lines, 3 modes of operation.

: On Mode, Sleep Mode, Off Mode.

Mode Definition
On mode	The normal operation.When the monitor is on mode, being connected to a power source, it displays an image.
Sleep Mode	The reduced power state returns to on mode when the user moves the mouse or presses a key on the keyboard.
Off Mode	The lowest power consumption state returns to on mode when the user pushes a power switch.

Note

- The energy saving Design monitors only work while connected to the computers that have energy saving features.

Unplug the monitor from the wall outlet and refer servicing to qualified service personnel when :

• The power cord or plug is damaged or frayed.
  • Liquid has been spilled into the monitor.
• The monitor has been exposed to rain or water.
• The monitor does not operate normally following the operating instructions. Adjust only those controls that are covered in the operating instructions. An improper adjustment of other controls may result in damage and often requires extensive work by a qualified technician to restore the monitor to normal operation.
• The monitor has been dropped or the cabinet has been damaged.
• The monitor exhibits a distinct change in performance.
• Snapping or popping from the monitor is continuous or frequent while the monitor is operating. It is normal for some monitors to make occasional sounds when being turned on or off, or when changing video modes.

Do not attempt to service the monitor yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

DEUTSCH

Wartun

Please read this manual carefully before operating your set and retain it for future reference.

INFORMATION FOR ENVIRONMENTAL PRESERVATION

English

Information for Environmental Preservation

LGE. announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake environmentally friendly activities in careful consideration of economic, environmental, and social aspects.

We promote activities for environmental preservation, and we specifically develop our products to embrace the concept of environment-friendly.

We minimize the hazardous materials contained in our products. For example, there is no cadmium to be found in our product.

Information for recycling

This product may contain parts which could be hazardous to the environment. It is important that this product be recycled after use.

LGE. handles all waste product through an environmentally acceptable recycling method. There are several take-back and recycling systems currently in operation worldwide. Many parts will be reused and recycled, while harmful substances and heavy metals are treated by an environmentally friendly method.

If you want to find out more information about our recycling program, please contact your local LG vendor or a corporate representative of LG.

We set our vision and policies on a cleaner world by selecting the issue of the global environment as a task for corporate improvement. Please visit our website for more information about our 'green' policies.

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

Deutsch

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

Français

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

Italiano

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

Español

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

Português

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

Nederlands

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

Русский

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

한국어

환경 보존 정보

http://www.lg.com/global/sustainability/environment/take-back-recycling.jsp

EPEAT

epeat TM

"EPEAT registered where applicable/supported. EPEAT registration varies by country - see

www.epeat.net for registration status by country."

JORDAN ONLY

WEEE

Disposal of your appliance

The symbol indicating separate collection for electrical and electronic equipment consists of the crossed-out wheeled bin.

الأردن فقط

WEEE
