USER MANUAL LCV800 LG

VACUUM CLEANER This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 4, 5 for your safety. Please keep this manual in an easily accessible place and refer to it anytime. ENGLISH FRANÇAIS2 LG vacuum cleaner warranty LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in material or workmanship under Personal household use, during the warranty period set forth below, effective from the date of original consumer purchase of the product. This limited warranty is good only to the original purchaser of the product and effective only when used in U.S.A and Canada. THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS, IN CONNECTION WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. This warranty covers only defects in material and workmanship. LGE will NOT pay for:

1. Expendable items that can wear out, including but not limited to filters, belts, batteries.

2. A service technician to instruct the user in correct product assembly, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not assembled, operated or maintained according to all instructions

supplied with this product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than

those recommended in all instructions supplied with this product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

• This warranty is extended to the original purchaser for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from states to states. To know what your legal rights are, consult your local or state consumer affairs or your state’s Attorney General. CUSTOMER ASSISTANCE INFORMATION: WARRANTY PERIOD: Three Year From the date of the original purchase Any part of the vacuum cleaner which fails due to a defect in materials or workmanship. During this full three-year warranty, LG will also provide, free of charge, all labor and shop service to replace the defective part. HOW SERVICE IS HANDLED: To Prove Warranty Coverage To Obtain Nearest Authorized Service Center or Sales Dealer, or to Obtain Product, Customer, or Service Assistance Retain your Sales Receipt to prove date of purchase. A copy of your Sales Receipt must be submitted at the time warranty service is provided. Call 1-800-243-0000 (Phone answered 24 hours - 365 days a year) and choose the appropriate prompt from the menu; or visit our website at: http://us.lgservice. com. (In Canada- Call 1-888-542-2623, website http://ca.lgservice.com)3 ENGLISH Table of contents LG vacuum cleaner warranty p. 2
• Important safety instructions p. 4
• ~5 How to use p. 6
• Assembling vacuum cleaner p. 6
• Operating vacuum cleaner p. 8
• Using carpet and floor nozzle / Mini turbine nozzle p. 9
• Using carpet master nozzle p. 10
• Using the accessory nozzles p. 11
• Emptying dust tank p. 12
• Cleaning dust tank p. 13
• Cleaning air filter and motor safety filter p. 14
• How to assemble dust separator p. 15
• Cleaning exhaust filter p. 16
• Check before requesting for service p. 17
• Trouble shooting ~194 p. 18

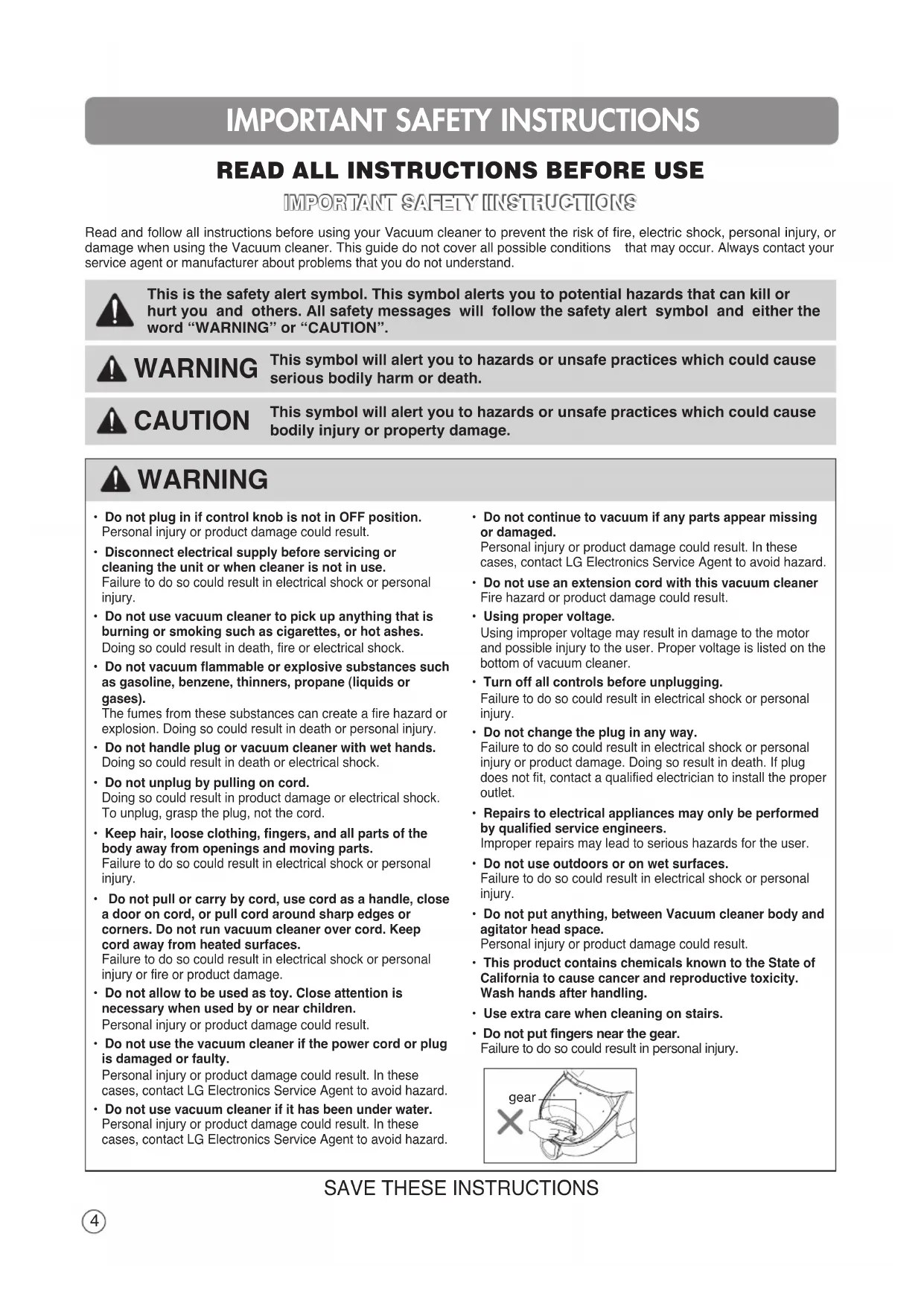

IMPORTANT SAFETY INSTRUCTIONS

• Do not plug in if control knob is not in OFF position. Personal injury or product damage could result.• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use. Failure to do so could result in electrical shock or personal injury.• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes. Doing so could result in death, fire or electrical shock.• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases). The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.• Do not handle plug or vacuum cleaner with wet hands. Doing so could result in death or electrical shock.• Do not unplug by pulling on cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts. Failure to do so could result in electrical shock or personal injury.• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces. Failure to do so could result in electrical shock or personal injury or fire or product damage.• Do not allow to be used as toy. Close attention is necessary when used by or near children. Personal injury or product damage could result.• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.• Do not use vacuum cleaner if it has been under water. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.• Do not continue to vacuum if any parts appear missing or damaged. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.• Do not use an extension cord with this vacuum cleaner Fire hazard or product damage could result.• Using proper voltage. Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.• Turn off all controls before unplugging. Failure to do so could result in electrical shock or personal injury.• Do not change the plug in any way. Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.• Repairs to electrical appliances may only be performed by qualified service engineers. Improper repairs may lead to serious hazards for the user.• Do not use outdoors or on wet surfaces. Failure to do so could result in electrical shock or personal injury.• Do not put anything, between Vacuum cleaner body and agitator head space. Personal injury or product damage could result.• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. Wash hands after handling.• Use extra care when cleaning on stairs.• Do not put fingers near the gear. Failure to do so could result in personal injury. WARNING

IMPORTANT SAFETY IINSTRUCTIIONS

Read and follow all instructions before using your Vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the Vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

SAVE THESE INSTRUCTIONS

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION”. WARNING This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death. CAUTION This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage. gear5 ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

• Do not put any objects into openings. Failure to do so could result in product damage.

• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow. Failure to do so could result in product damage.

• Do not use vacuum cleaner without dust tank and/or filters in place. Failure to do so could result in product damage.

• Always clean the dust tank after vacuuming carpet cleaners or fresheners, powders and fine dust. These products clog the filters,reduce airflow and can cause damage to the cleaner. Failure to clean the dust tank could cause permanent damage to the cleaner.

• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the cleaner or dust tank.

• Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping over it.

• The vacuum cleaner is not intended to use by young children or infirm people without supervision. Failure to do so could result in personal injury or product damage.

• Only use parts produced or recommended Electronics Service Agents. Failure to do so could result in product damage.

• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories. Failure to do so could result in personal injury or product damage.

• Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

• Use accessory nozzles in sofa mode. Failure to do so could result in product damage. You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 11 )

• If after emptying the dust tank the alarm sounds, clean the dust tank. Failure to do so could result in product damage.

• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs. Failure to do so could result in personal injury or product damage.

• Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine. Failure to do so could result in product damage.

• Do not dry the filter in an oven or microwave. Failure to do so could result in fire hazard.

• Do not dry the filter in a clothes dryer. Failure to do so could result in fire hazard.

• Do not dry near an open flame. Failure to do so could result in fire hazard.

• Always turn vacuum cleaner off before connecting or disconnecting the hose. Personal injury or product damage could result.

• Your vacuum cleaner is intended only for household use.

• Proper assembly and safe use of your vacuum cleaner are your responsibilities.

• Do not put the finger between crevice tool and cord hanger, when take out the crevice tool.

• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Unplug before connecting hose. CAUTION Thermal protector : This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minutes period, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a qualified electrician.6 ➊ Carpet and floor nozzle Push the nozzle into the telescopic pipe. ➋ Telescopic pipe

• Push telescopic pipe firmly into hose handle.

• Grasp the spring latch to expand.

• Pull out the pipe to desired length. Spring latch Telescopic pipe Hose Handle How to use Assembling vacuum cleaner7 ENGLISH ➌ Connecting the hose to the vacuum cleaner P ush the fitting pipe on the flexible hoseinto the attachment point on the vacuum cleaner. To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner. Fitting pipe Flexible Hose Button Attachment Point Click!8 How to use Operating vacuum cleaner

Indicator and alarm sound

• The indicator light of the hose handle is on and alarm will sound when dust tank is full. After about 1 min 30 sec, vacuum cleaner will turn itself off and alarm will sound. Empty the dust tank and reuse the vacuum cleaner. ➌ Park mode

• To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle. - Slide the hook on the nozzle into the slot on the side of vacuum cleaner. ➍ Storage

• When you have switched off and unplugged the vacuum cleaner, press the cord reel button to automatically rewind the cord.

• You can store your vacuum cleaner in a vertical position by sliding the hook on the nozzle into the slot on the underside of the vacuum cleaner. ➊ How to operate

• Pull out the power cord to the desired length and plug into the socket.

• Slide the control knob of the hose handle to operate vacuum cleaner.

• To turn off, slide the control knob to off position.

• Press the cord reel button to rewind the power cord after use. NOTICE When indicator light flashes and alarm sounds :

1. Dust tank is full

Turn off and and empty dust tank

2. Power is on without dust tank or dust tank is not installed clearly

Turn off and and reattach dust tank

3. Rotating plate in the dust tank is restricted because of obstruction

Turn off and and remove obstruction Plug Control knob Indicator Cord reel button9 ENGLISH How to use Using carpet and floor nozzle / Mini turbine nozzle ➊ Carpet and floor nozzle

• Two position nozzle This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

• Carpet or rug position press the pedal ( ) to lower brush.

• Hard floor position (tiles, parquets floor) Press the pedal ( ) to lift the brush up. Carpet Pedal Floor

• Cleaning carpet and floor nozzle

• Clean the hole and brush of nozzle. ➋ Mini turbine nozzle

• Mini turbine is used for stairs and other hard-to- reach places.

• To clean the mini turbine nozzle, remove the nozzle cover : Remove 2 screws on the bottom and take mini turbine nozzle cover off as shown.

• Frequently clean and remove hair, string, and lint build-up in the brush area. Failure to do so could damage to mini turbine nozzle.10 How to use Using carpet master nozzle ➌ Carpet master (depend on model)

• Cleaning turbine brush nozzle.

• Press the button on the rear side of the nozzle to separate the air cover.

• Use the crevice tool to clean the brush and the fan.

• Separate the convertible cover by inserting and pulling it out with the driver to remove any accumulated string, hair, etc.11 ENGLISH

NOTICE Be cautious to use the product on TV, LCD, Monitor or furniture, it can cause small scratch. How to use Using the accessory nozzles ➍ Upholstery nozzle Upholstery nozzle is for vacuuming upholstery, mattresses, etc. ➎ Dusting brush Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces. ➏ Crevice tool Crevice tool is for vacuuming in those normally hard-to-reach places such as reaching cobwebs or between the cushions of a sofa.

• Accessory nozzles include in the "PE BAG" with owner's manual.• BOX •Upholstery nozzleDusting brushCrevice tool

Push the button<Upholstery nozzle mode><Dusting brush mode>Pull the cover

NOTICE Use accessory in the sofa mode12 How to use Emptying dust tank The dust tank needs emptying when indicator light is on.

• Turn off the vacuum cleaner and unplug it.

• Grasp the handle of the tank and then press the tank separation lever.

• Pull out the dust tank.

• Empty the tank and then assemble the dust tank as below. Assembling dust tank Moving the vacuum cleaner

• Don't grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. You should grasp the carrier handle when you are moving the vacuum cleaner. Indicator Pull out Tank handle Dust tank cap Tank handle Carrier handle Indicator on hose is flickering for 1 minute, it sounds “ding~ding” like a buzzer from vacuum body. In 30 seconds, suction power will decrease, it stops operating automatically. Tank separation lever13 ENGLISH How to use Cleaning dust tank

• Press tank separation button and pull out dust tank.

• Dry fully in shade so that moisture is entirely removed. NOTICE If suction power decreases or Indicator on hose flickers after cleaning dust tank, clean air filter and motor safety filter. Next page Pull out Tank handle Tank separation lever14 How to use Cleaning air filter and motor safety filter If suction power is decreased after cleaning dust tank or indicator light is on, clean air filter and motor safety filter. Air filter and motor safety filter are located at the up of vacuum cleaner in the above figure.

• Push the vacuum cover button, open the body cover.

• Hold dust separator handle and pull it upward.

• Open the guide cover by pulling the guide cover lever and remove the dust.

• Open prefilter cover.

• Pull out the air filter.

• Clean air filter and motor safety filter with running water.

• Do not wash filters with hot water.

• Eliminate water thoroughly

• Dry it under well-ventilated shade for a day.

• The air filter and the motor safety filter should be cleaned as above the figure. NOTICE If filters are damaged, do not use them. In this cases, contact LG Electronics Service Agent. Wash filters at least every 3 months. Motor safety filter Pre-filter cover Guide cover Dust separator Air filter Indicator on hose is flickering for 1 minute, it sounds “Ddilililing ~ Dding~ ddilililing~” like a buzzer from vacuum body. In 30 seconds, suction power will decrease, it stops operating automatically. Indicator15 ENGLISH How to use How to assemble dust separator

• Insert the air filter.

• Close the filter cover.

• Close the dust separator cover.

• Hold the dust separator handle and put it down to connect it clearly.

• Close the vacuum cover. ClickClickClick CAUTION

• If there is no dust separator or dust separator is not installed clearly, cover will not be closed.

• If it is not installed clearly, pull the dust separator out and re-assemble it.

• Do not operate the vacuum cleaner when the body cover is not close.

• It can be the cause of malfunction CAUTION Assembling will be conducted in opposite order of separation. Use the vacuum after assembling the dust separator fully.16 Exhaust filter cover Exhaust filter cover Exhaust filter Button Lever Click How to use Cleaning exhaust filter

• The exhaust filter is reusable.

• To clean the exhaust filter, remove the exhaust filter cover on the body by pulling it out.

• Separate the exhaust filter.

• Dust off filter.(Do not wash filter with water.)

• The exhaust filter should be cleaned at least a year. Exhaust filter cover assembling

• Fit exhaust filter cover lugs to the grooves of vacuum cleaner body.

• Join it the body.17 ENGLISH How to use Check before requesting for service You should not waste money by requesting for service only to find out that it's not a problem. If you experience any issues with the product, check the following details before contacting the service center or the distributor. You may be able to resolve the issue by a simple instruction from the user manual. Suddenly, the suction is poor and noise is louder than usal.

Stage 1: Check the nozzle, pipe connection

Check nozzle and pipe inside whether blocked or not

Check pipe and hose inside whether blocked or not

If blocked, refer to the stage 2.

Stage 2: Check the hose inside

Set control knob to “FLOOR”(Max position)

Check the hose by opening and closing the hose inlet repeatedly.

3 ~ 4 times, the problem will be solved. Knob: Max position18 Trouble Shooting Review this chart to find do-it-yourself solutions for minor performance problems. Any service or repair needed, other than as described in this User’s Guide, should be performed through your local LGE service center. Electrical shock and personal injury hazard. Always unplug the vacuum cleaner before servicing. Failure to do so could result in electrical shock or personal injury. WARNING PROBLEM Vacuum cleaner will not run Poor suction Switch on, but hose LED is on and alarm sound “Dding~, Dding~” Switch on, but unit LED is on and alarm sound “Dding Dding~, Dding Dding~”

• Unplugged at wall outlet

• Hose is not connected to the body properly

• Full or clogged dust tank and filters

Dust tank improperly installed

• Clogged hose or wand

• Full or clogged dust tank and filters

• Dust tank improperly installed

• Clogged hose or wand

• Power is on without dust tank

• Rotating plate in the dust tank is restricted because of obstruction

• Dust separator and filters is full of dust

• Power is on without dust separator and filters

• Make sure cord is plugged into a functioning outlet.

• Remove the hose from the body and reconnect it properly. [See page 7]

• Empty dust tank and clean filters. [See page 12 ~ 16]

• Make sure all dust tank components and filters are installed correctly.

• Check for clogs. [See page 17]

• Empty dust tank and clean filters. [See page 12 ~ 16]

• Make sure all dust tank components and filters are installed correctly.

• Check for clogs. [See page 17]

POSSIBLE CAUSE POSSIBLE SOLUTION

Indicator Indicator Indicator Indicator19 ENGLISH Trouble Shooting PROBLEM Is the noise louder than usual? Smell Agitator does not turn

• Clogged hose or wand

• Smell as the motor spins fast around the surrounding rubber

• The filters of dust separator with dust is old or stored for a long time

• Pedal improperly positioned.

• Check for clogs. [See page 17]

• It's the smells from new vacuum cleaner. The smell disappears after 1-2 months. It's like the smells from a new car or furniture

• Empty dust tank and clean filters. [See page 12 ~ 16]

• Check for clogs. [See page 17]

• Check the pedal position [See page 9]

POSSIBLE CAUSE POSSIBLE SOLUTION

CAUSE POSSIBLE SOLUTION POSSIBLE

CAUSE POSSIBLE SOLUTION POSSIBLE
