USER MANUAL MDB8989SHK JENN-AIR

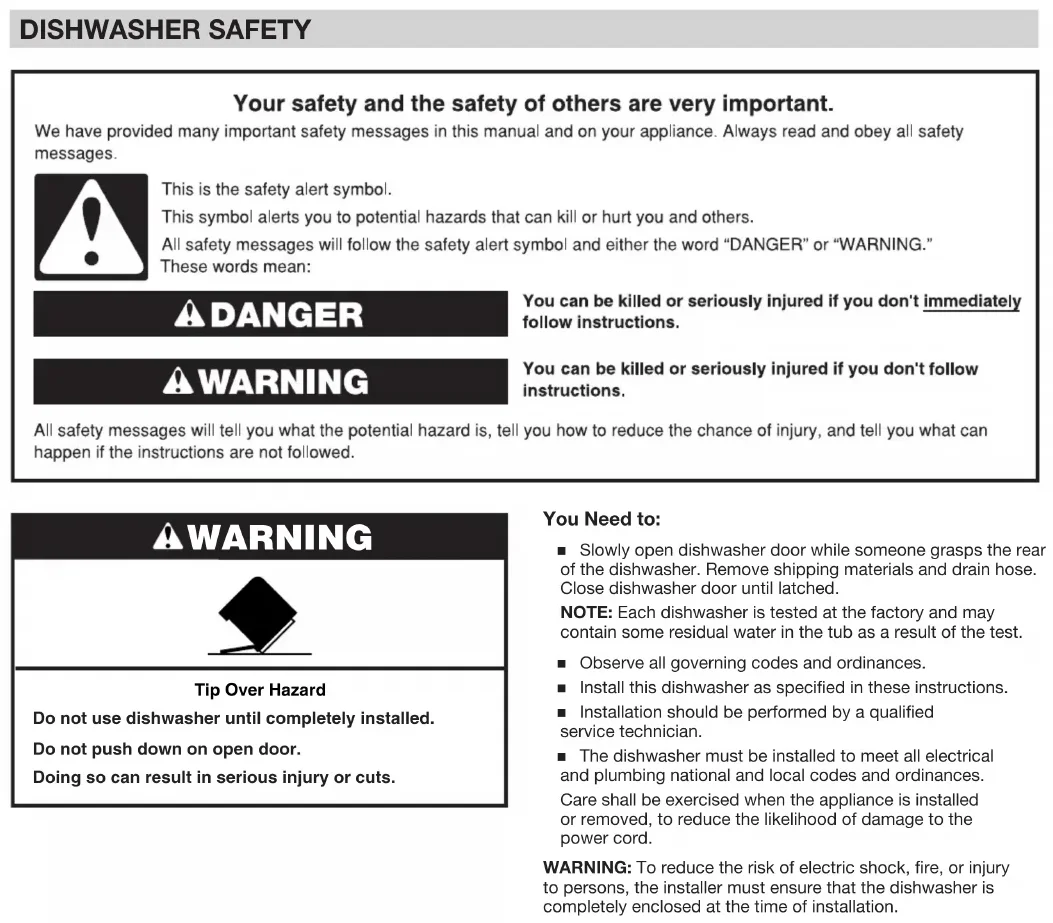

WARNING: To reduce the risk of electric shock, re, or injury

to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation. WARNING Tip Over Hazard Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts.4 INSTALLATION REQUIREMENTS

Gather the recommended tools and parts before starting installation. Read and follow the instructions provided with anytools listed here. All Installations Tools Needed: Pliers Flat-blade screwdriver Phillips screwdriver Utility knife

" (6.35 mm) nut drivers or hex sockets Small level Measuring tape or ruler

" (16 mm) open-end wrench 10" (254 mm) adjustable wrench that opens to

and, if installing custom front panels, Torx

screwdrivers Other Useful Items You May Need: Flashlight Shallow pan Bath towel Masking or duct tape Parts Supplied: Drain hose clamps (2) (1 large/red and 1 small/green) Drain hose #10 x

" (12.7 mm) Phillips-head screws (2) Undercounter mounting brackets (2) Make sure all these parts are included in the literature package. If parts are not included, call us at our toll-free number or visit our website listed in the User Guide. Door handle (on some models)

TORX, T15, and T20 are registred trademarks of Acument Intellectual Properties, LLC.5 Other Parts Needed (not provided):

" (19 mm) Hose Fitting with rubber seal and 90° elbow (required to properly connect household water line to the dishwasher) (Whirlpool Part Number W10685193) Household Wiring (Metallic) Strain Relief to fit

/8" (22mm) hole (required to properly secure household wiring to the dishwasher terminal box) (Whirlpool Part Number 4396672) NOTE: Use only UL Listed/ CSA Approved part. Twist-On Wire Connectors NOTES: ■ Conrm proper size for connecting your gauge of household wiring to the 16-gauge wiring in the dishwasher. ■ Use only UL Listed/CSA Approved parts. Call us at our toll-free number, visit our website listed in the User Guide for part numbers above, orsee local electrical/plumbing supply retailer for equivalent. Optional Accessory Parts Available: Moisture Barrier Tape NOTE: Moisture barrier tape is an optional, added level of protection if installing a dishwasher under a wooden countertop. (Whirlpool Part Number 4396277) Side Panel Kit For enclosing the side of the dishwasher when installing it at the end of your cabinetry (Whirlpool Part Number varies with color.) Call us at our toll-free number or visit our website listed in the User Guide for part numbers above. First-Time Installations Check local codes. Check existing electrical supply. See the “Electrical Requirements” section. It is recommended that electrical connections be made by a licensed electrical installer. Additional Tools Needed: Small tubing cutter Wire stripper Cordless drill with

/2" (38 mm) hole saw bits Additional Parts Needed (not provided): Copper Tubing (

/8" (9.5 mm) O.D. suggested) or Flexible Braided WaterSupply Line Kit (Whirlpool Part Number W10278635RP). Kitincludes braided hose and

/4" (19 mm) hosefitting. Screw-Type Clamps

NOTE: Must meet AHAM/IAPMO test standards, fit 1" (25mm) drain connection, and be resistant to heat and detergent Call us at our toll-free number, visit our website listed in the User Guide for part numbers above, orsee local plumbing supply retailer for equivalent. NOTE: If using a exible braided hose, replace inlet hose after 5years to reduce the risk of hose failure. Record hoseinstallation or replacement dates on the hose for futurereference.6 For Direct Wire For Power Cord Cabinet G rommet For 1

" (38 mm) hole in cabinet. (Whirlpool PartNumber302797) NOTE: Required for metal cabine

Kit typically includes power cord, metallic strain relief,grommet, and twist-on

re connectors. (Whirlpool Part Number 4317824) Call us at our toll-free number, visit our website listed in the User Guide for part numbers above, orsee local electrical supply retailer for equivalent. LOCATION REQUIREMENTS Dishwasher must be fully enclosed (top, sides, back, and oor) upon installation. A side panel kit is available from your dealer forinstalling your dishwasher at the end of your cabinetry. An optional moisture barrier accessory is also available for installing underneath a wooden countertop. See the “Tools and Parts” section at the front of the guide for part details andorders. Check location where dishwasher will be installed. The location must provide: ■ Convenient access for loading and unloading dishes. Corner locations require a 2" (51 mm) minimum clearance between the side of the dishwasher door and the wall or cabinet. ■ Easy access to water, electricity, and drain: ■ Grounded electrical supply is required. ■ This dishwasher has a water heating feature and also requires a connection to a hot water supply line. ■ Make sure pipes, wires and drain hose are within the shaded area shown in the “Product and Cabinet Opening Dimensions” section. ■ Do not run drain lines, water lines, or electrical wiring where they can interfere with or contact dishwasher motor or legs. ■ Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty. NOTE: If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel. ■ If installed in new construction, ush the water supply line of debris before connecting it to the ll valve. If it is not ushed, debris from the water supply could plug the ll valve screen. ■ A square opening for proper operation and appearance ■ The cabinet front to be perpendicular to oor ■ A level oor Helpful Hint: If oor at front of opening is not level with oor at rear of opening, shims may be used to level dishwasher. NOTE: To avoid shifting during dishwasher operation, shims must be securely attached to the oor. ■ The location where the dishwasher will be installed must provide clearance between motor and ooring. Motor should not touch the oor. ■ Do not install dishwasher over carpeted ooring.7 Product and Cabinet Opening Dimensions

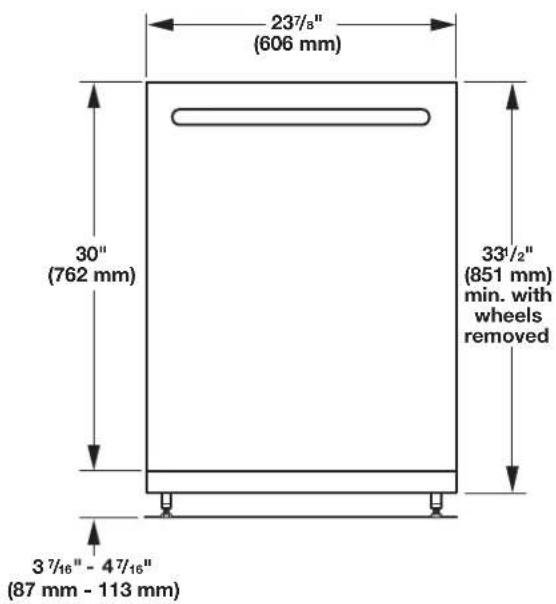

/2" (851 mm) min. with wheels removed

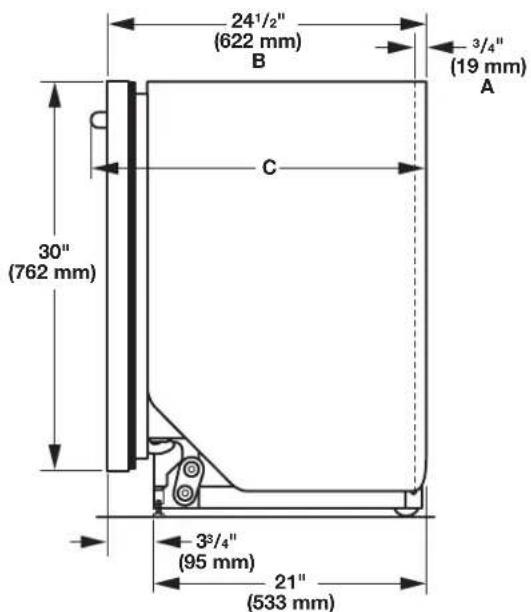

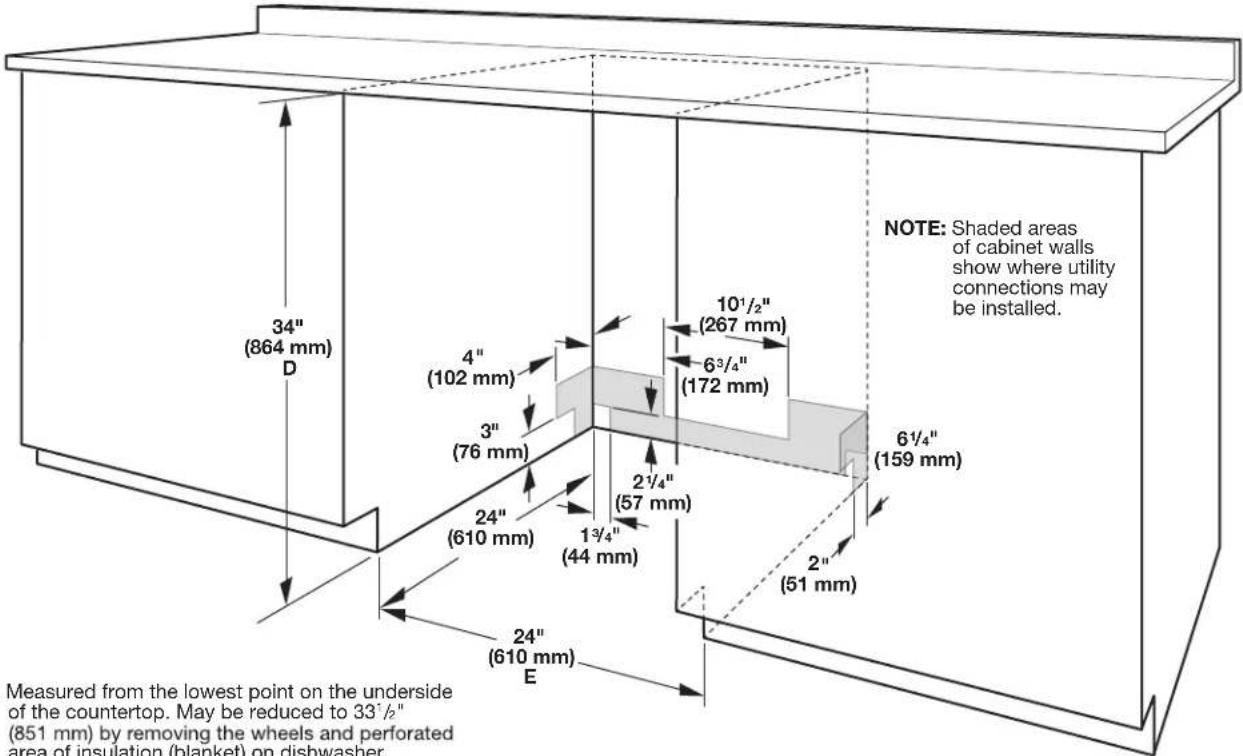

(102 mm) A. Insulation may be compressed (not used on all models). B. For panel-ready models, dishwasher depth is 24" (610 mm), not including the

" (19 mm) custom door panel. C. Door handles may protrude forward of the face of the dishwasher, varies by model. For 4 (113 mm) toe kick, height of cabinet opening is

" (876 mm). Check that all surfaces have no protrusions that would prohibit dishwasher installation. D. Measured from the lowest point on the underside of the countertop. May be reduced to 33

area of insulation (blanket) on dishwasher. E. Minimum, measured from narrowest point of opening NOTE: Shaded areas of cabinet walls show where utility connections may be installed.8 ELECTRICAL REQUIREMENTS Be sure that the electrical connection and wire size are adequateand in conformance with the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes andordinances. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 You Must Have: ■ 120 V, 60 Hz, AC-only, 15- or 20 A, fused electrical supply ■ Copper wire only ■ A maximum of 2 field wiring supply conductors (12AWGlargest size) plus 1 grounding conductor arepermitted in the terminal box. We Recommend: ■ A time-delay fuse or circuit breaker ■ A separate circuit If Connecting Dishwasher with a Power Cord: ■ Use UL Listed power cord kit marked for use with dishwasher. See the “Tools and Parts” section at the front of the guide for part details and orders. ■ Plug into a grounded 3prong outlet. Outlet must meet all localcodes and ordinances. If Connecting Dishwasher with Direct Wiring: ■ Use exible, armored, or nonmetallic sheathed copper wire with grounding wire that meets the wiring requirements for your home and local codes and ordinances. ■ Use a UL Listed/CSA Approved metallic strain relief. Seethe“Tools and Parts” section at the front of the guideforpart details and orders. DRAIN REQUIREMENTS ■ A new drain hose is supplied with your dishwasher. Ifdrainhose is not long enough, use a new drain hose witha maximum length of 12 ft (3.7 m) that meets all currentAHAM/ IAPMO test standards, is resistant to heat and detergent, and ts the 1" (25 mm) drain connector of thedishwasher. See the “Tools and Parts” section at the front ofthe guide for part details and orders. NOTE: Do not connect multiple drain hoses together. ■ Make sure to connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20" (508 mm) minimum above the oor. It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter or be connected to an air gap. ■ Make sure to use an air gap if the drain hose is connected tohouse plumbing lower than 20" (508 mm) above suboororoor. ■ If required, the air gap should be installed in accordance withthe air gap installation instructions. When you are connecting the air gap, a rubber hose (not provided) will beneeded to connect to the waste tee or disposer inlet. ■ Use

/2" (12.7 mm) minimum I.D. drain line fittings.

WATER SUPPLY REQUIREMENTS

■ This dishwasher has a water heating feature and also requires a connection to a hot water supply line. ■ A hot water line with 20 to 120 psi (0. 138 to

waterpressure can be verified by a licensed plumber. ■ 120°F (49°C) water at dishwasher ■ 3

(9.5 mm) O.D. copper tubing with compression fitting or flexible braided water supply line. See the “Tools and Parts” section atthe front of the guide for part details and orders. NOTE:

/2" (12.7 mm) minimum plastic tubing is not recommended. ■ A 90° elbow with

/4" (19 mm) hose connection with rubber washer. See the “Tools and Parts” section at the front of the guide forpart details and orders. ■ Do not solder within 6" (152 mm) of the water inlet valve. ■ If installed in new construction, make sure the house watersupply lines have been flushed prior to connecting thedishwasher to remove any debris that may exist in thesupply line. NOTE: If replacing an existing dishwasher, it is recommended to install a new water line (see the “Tools and Parts” section at the front of the guide for part details) and drain hose (supplied) with the new dishwasher. Use of air gap Air gap9

PREPARE CABINET OPENING –

NEW UTILITIES NOTE: Refer to the “Product and Cabinet Opening Dimensions” section for the correct hole placement and dimensions of the shaded area.Drill a 1

" (38 mm) drain hose hole in the side or rear of cabinet, depending on location of drain hose routing and drain hose connection location.Drill a

" (12.7 mm) water supply hose hole in the side or rear of cabinet, depending on location of water supply routing and connection locationDrill a 1

" (38 mm) electrical conduit hole in the right-hand side or rear of cabinet. WARNING Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.Failure to do so can result in death or electrical shock.Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

2. Shut off water supply

Shut off the water supply to the dishwasher.

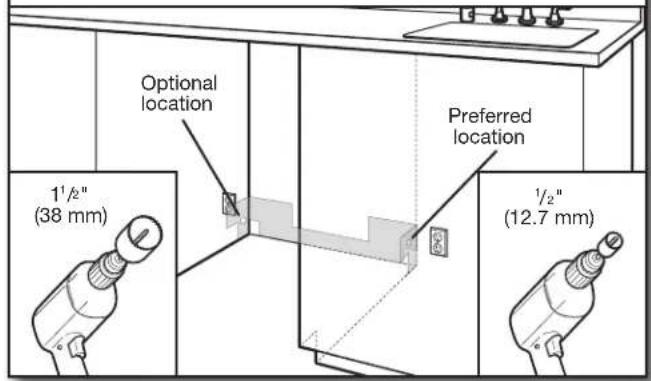

3. Drill hole locations -

new construction Preferred locationOptional location

" (12.7mm)Wood cabinet: Sand the hole until smooth.Metal cabinet: Cover edges of hole with grommet included withpower cord kit. See the “Tools and Parts” section at thefront of the guide forpart details.Helpful Tip: Wiring the dishwasher will be easier if you route thecable into the cabinet opening from the right-hand side.

See the “Tools and Parts” section at the front of the guide for part details and orders. Make sure the area under the cabinet is clean and dry for installation of the moisture barrier. Remove the backing of the moisture barrier, and apply to underside of thecountertop along the front edge of the counter.NOTE: Install wood shims if side anchoring and the gap between the sides of the cabinet and sides of the dishwasher are greater than

" (12.7 mm) on each side or are greater than the length of the side anchor screws.

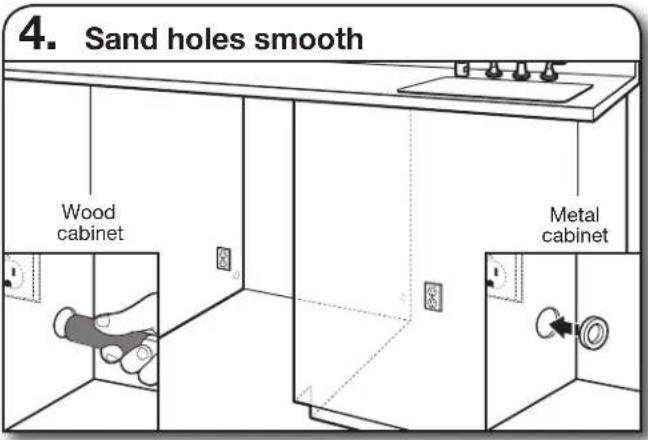

4. Sand holes smooth

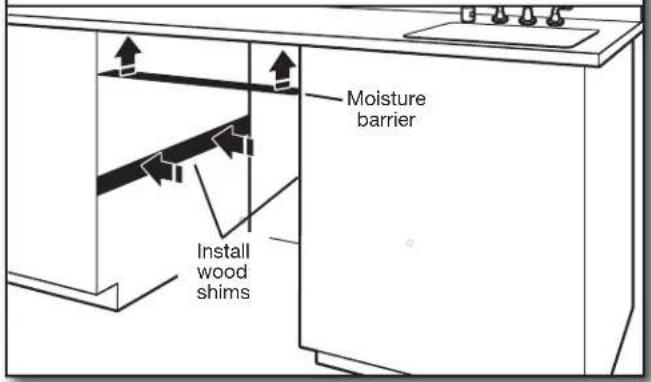

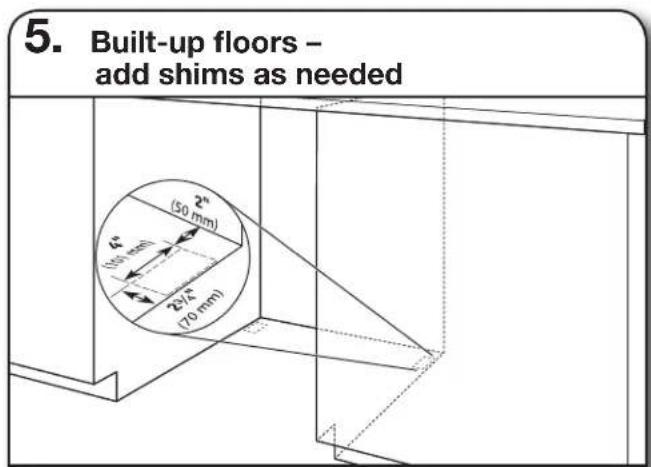

Metal cabinetWood cabinet Moisture barrier/wood shims Moisture barrierInstall wood shims INSTALLATION INSTRUCTIONS10 Built-up oors: If the kitchen oor is higher than the cabinet opening’s oor - for example, the kitchen oor tile does not extend into the cabinet opening - add shims, as needed, in the area shown to bring the dishwasher up to 34" (864 mm) below the countertop. NOTE: Shims must be securely attached to oor to avoid movement when the dishwasher is in use. Remove and discard the foam blocks (if blocks are present; notall models have them) located above the front legs on eachside of the dishwasher. The blocks cover the rope/link pulleys on the dishwasher.

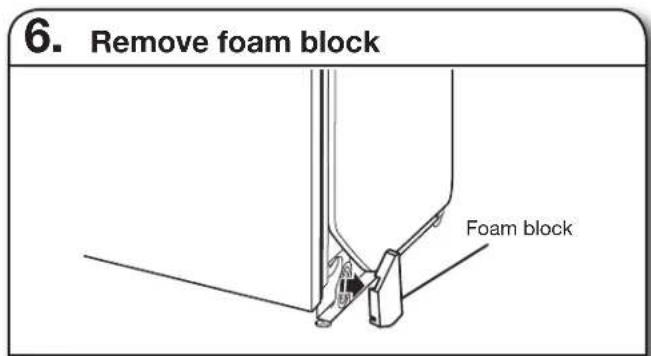

6. Remove foam block

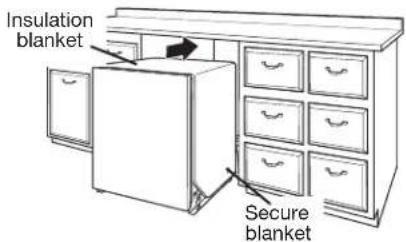

Foam block Cut insulation blanket along perforation for cabinet opening height of 33

" (851 mm). For other cabinet opening heights, donot cut the insulation blanket. ELECTRICAL CONNECTION – For Direct Wire, begin with Step 7 – For Power Cord, wait until Step 22 If installing with direct wire, route the cable as shown. Route cable from power supply through cabinet hole. (Cable must extend to the right front side of cabinet opening.) Tape cable to the oor in area shown. This will prohibit cable from moving when dishwasher is moved into cabinet opening. NOTE: If removing a previous dishwasher with a power cord, you will need to transfer the power cord to the new dishwasher. If installing into a

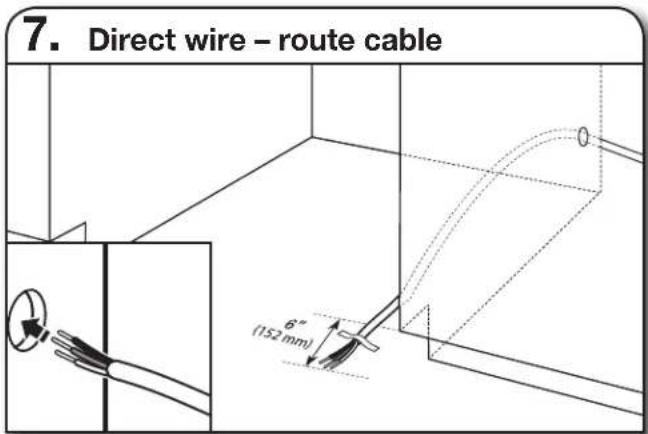

7. Direct wire – route cable11

PREPARE DISHWASHER Helpful Tip: Place cardboard under dishwasher until installed incabinet opening to avoid damaging oor covering. Using 2 or more people, grasp sides of dishwasher door frame,and place the dishwasher on its back. Do not use the door panel as a worktable without rst coveringitwith a towel to avoid scratching the door panel. NOTE: On some models, once the dishwasher is on its back, pull on the door handle to remove it from the access panel. WARNING Tip Over Hazard Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts. WARNING Excessive Weight Hazard Use two or more people to move and install dishwasher. Failure to do so can result in back or other injury.

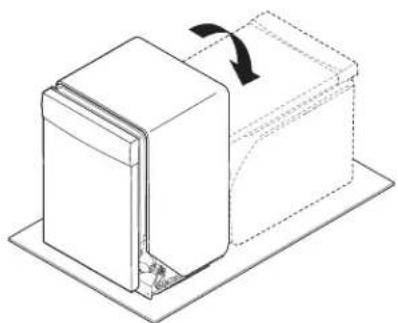

8. Put dishwasher on its back

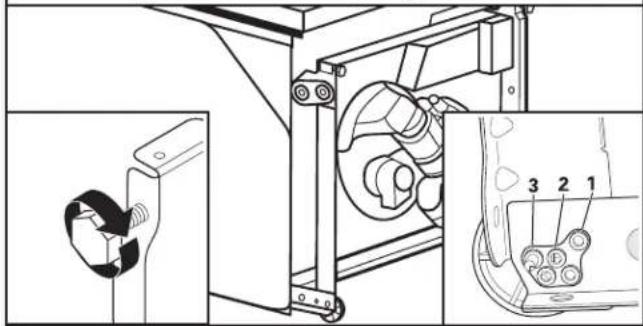

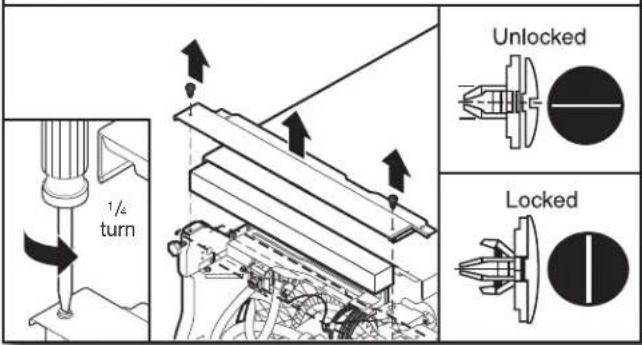

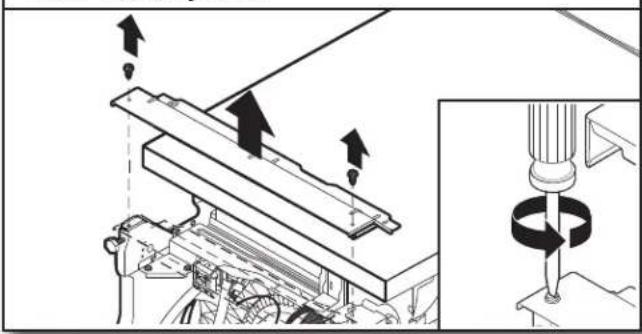

– For Plastic Access Panels, go to Step 9 – For Metal Access Panels, go to Step 10 Using a at-blade screwdriver, turn the plastic fasteners

turn counterclockwise to unlock them. Remove panel. Do not remove tech sheet from access panel. Go to Step 11. Using a

4" ( 6.35 mm) nut driver or Phillips screwdriver, remove 2 screws attaching access panel to dishwasher. Do not remove tech sheet from access panel.

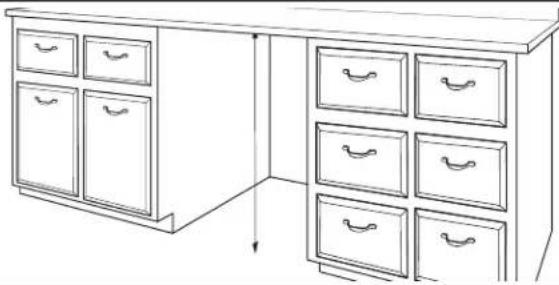

Measure height of cabinet opening from underside of countertop to oor where dishwasher will be installed. Be sure to measure the lowest point on the underside of the countertop and the highest point on the oor. Adjust both front leveling legs to the same height. Put the rear wheels in the correct position according to the “Dishwasher Height Adjustment Chart.” NOTE: If the minimum cabinet opening height is less than 34" (864 mm), the rear wheels can be removed for additionalclearance. This will allow the dishwasher to t into a 33

" (851 mm) highcabinet opening, but the dishwasher will be more difculttomove. Measurements are approximate.

11. Measure cabinet opening

Dishwasher Height Adjustment Chart Cabinet opening height Front legs height Wheel position Insulation blanket

" (9.8 mm) Removed Cut 34" (864 mm)

" (27 mm) 3 No Cut Front legs – A Refer to the “Dishwasher Height Adjustment Chart” for wheel position and for height of front legs needed for your cabinet opening height. Remove and discard the plastic rail cover on each side of thedishwasher frame. To remove the plastic rail cover, push upward and back to unsnap it from the dishwasher frame.

CONNECT WATER LINE TO FILL VALVE

– For Copper line, begin with Step 14 – For Flexible line, begin with Step 16 If using copper tubing, measure overall length of copper tubing required to reach the water supply, cut to length, and attach with compression ttings.

12. Adjust wheels and legs

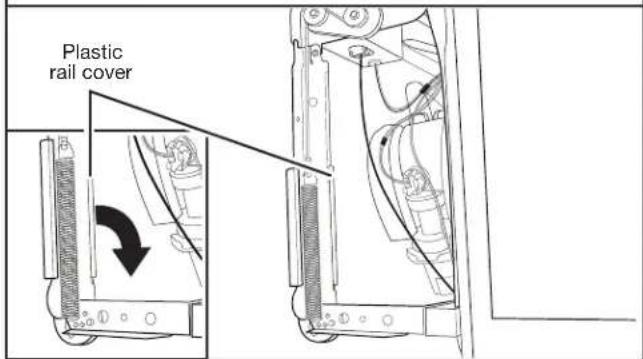

13. Remove plastic rail cover

(only on certain models) Plastic rail cover

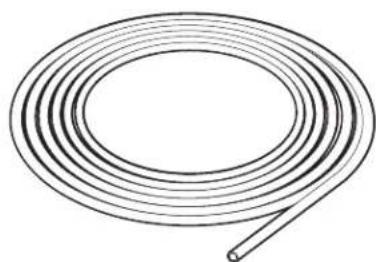

14. Copper water line13

Copper tubing only: Put the tubing into the 90° elbow tting as far as it will go. (The copper tubing bends and kinks easily.) Slide the nut and ferrule forward and start the nut onto the elbowthreads. NOTE: To avoid vibration during operation, route the water supply line so that it does not touch the dishwasher base, frame,or motor. Go to Step 17. Flexible braided line: Conrm the exible braided line is long enough. See the “Tools and Parts” section at the front of the guide for part details and orders. Get

/4" (19 mm) hose fitting with 90° elbow. See the “Tools and Parts” section at the front of the guide for part details and orders. Connect the

/8" (9.5 mm) compression fitting of the 90° elbow fitting to the water supply line. Attach such that the 3

" (19 mm) connection is facing upward as shown above.

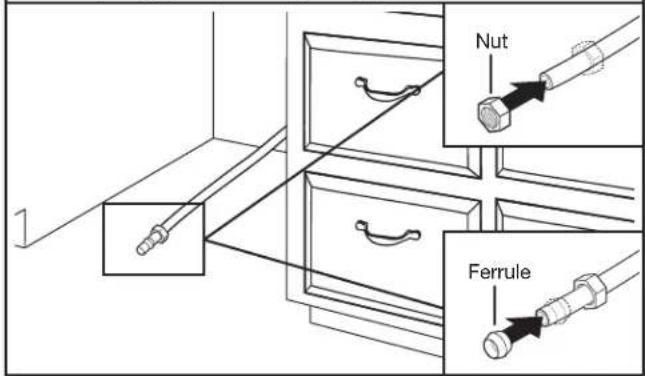

15. Slide nut and ferrule onto tubing

(copper tubing only) Nut Ferrule

Be sure rubber washer is properly seated in fitting. Slide the

" (19 mm) fitting of the 90° elbow up to the valve and hand tighten to avoid cross-threading. Hand tighten until the coupling is tight. Using pliers, check the tightness of the coupling. An additional

(12.7 mm) turn may be required to seal the rubber gasket. Route fill hose out the rear left side of unit. NOTES: ■ Do not use Teon

tape with compression ttings. ■ Do not over-tighten. Damage to the coupling can result.

DRAIN HOSE CONNECTION

Place towel under drain hose to catch any water in drain hose. Place the small (green) drain hose clamp onto the small end ofthe drain hose. Push the new drain hose into the rubber drainhose connector up to the drain hose stop. Using pliers, squeeze open the small drain hose clamp and slide it onto the connector between stops.

TEFLON is a registered trademark of Chemours.

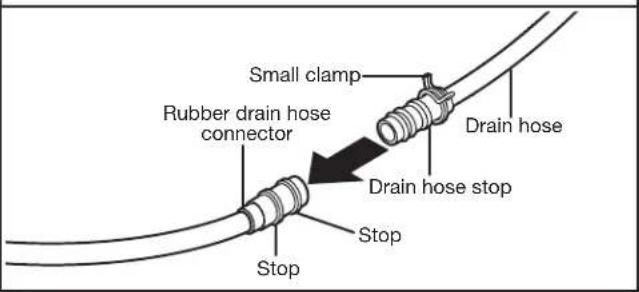

Stop Stop Drain hose stop Drain hose Rubber drain hose connector Small clamp

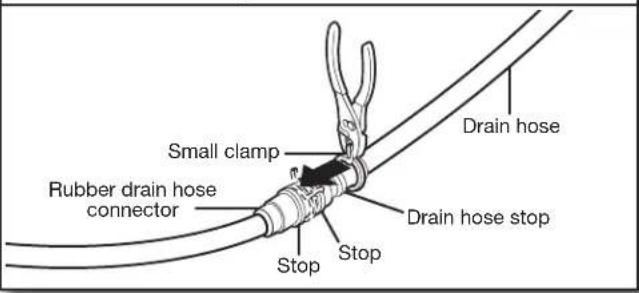

20. Slide clamp onto connector

Stop Stop Drain hose stop Drain hose Rubber drain hose connector Small clamp14 NOTE: Route drain hose out the rear of the dishwasher.

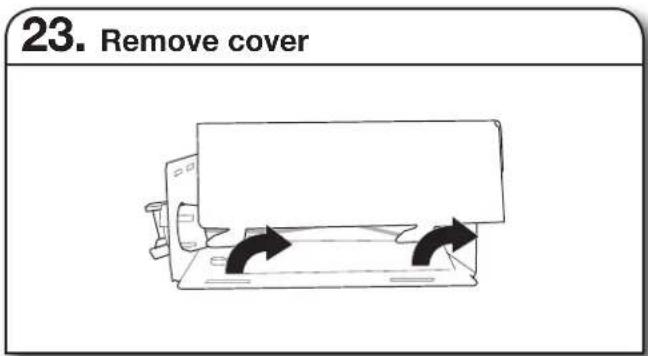

POWER CORD CONNECTION

NOTE: If removing a previous dishwasher with a power cord, you will need to transfer the power cord to the new dishwasher. Use a

" ( 6.35 mm) nut driver or

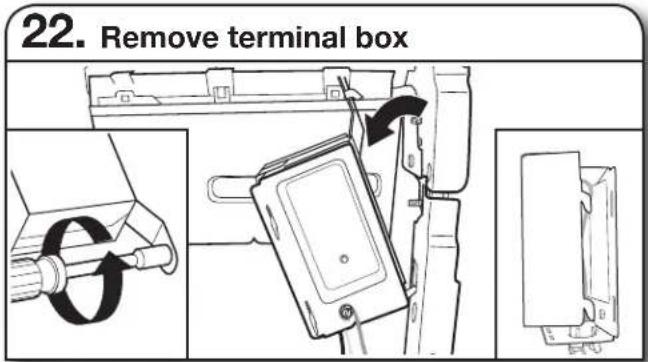

/4" (6.35 mm) hex head socket wrench to remove the screw that holds the terminal box to the cross brace. Then, tilt the terminal box, free the tab, and lift the terminal box away from the crossbar. Remove the cover by sliding it up and lifting its hooks out oftheslot. Retain cover for later use.

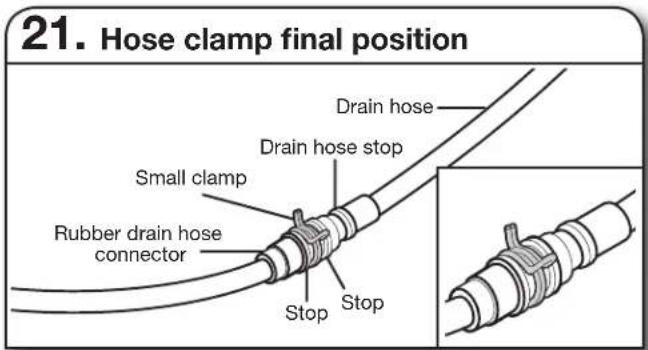

21. Hose clamp nal position

Stop Stop Drain hose stop Drain hose Rubber drain hose connector Small clamp

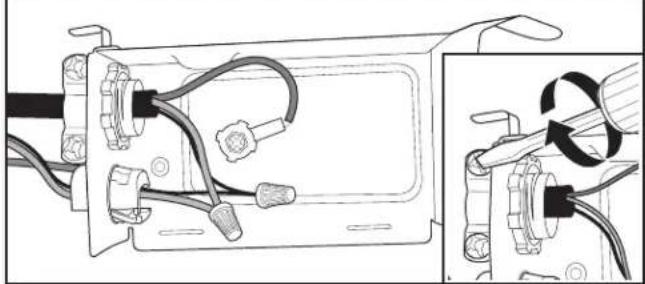

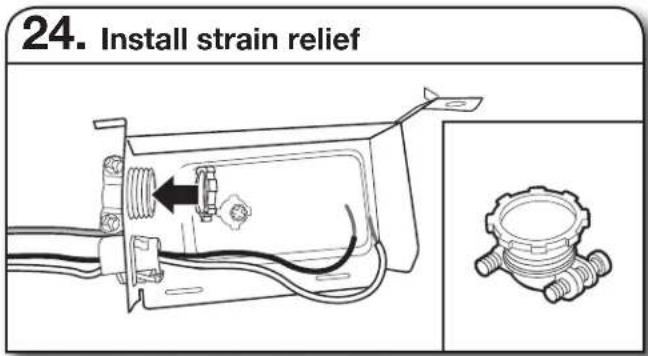

Install a UL Listed/CSA Approved metallic strain relief. Make sure screw heads are facing up when tightening conduit nut. Strain relief is provided with the power cord kit. See the “Toolsand Parts” section at the front of the guide for part detailsand orders. Route cord so that it does not touch dishwasher motor or lowerpart of dishwasher tub. Pull cord through strain relief interminal box. NOTE: A maximum of 2 power cord supply conductors (12AWG largest size) plus 1 grounding conductor are permitted in the terminal box.

24. Install strain relief

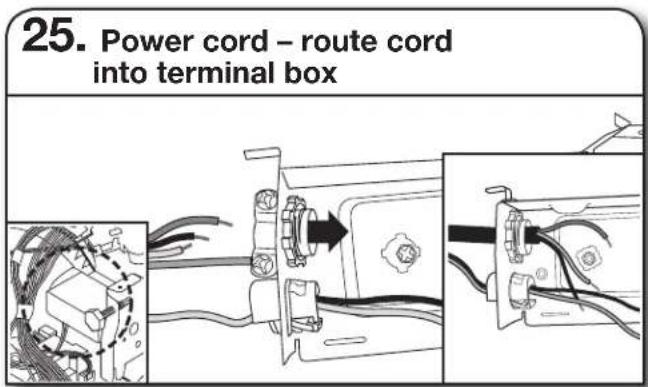

25. Power cord – route cord

intoterminal box15 Tighten strain relief screws to secure cord. Place wires inside terminal box. Replace the cover by inserting the hooks of the terminal cover into the slots in the oor of the terminal box and sliding the cover tight against the back wall where wires come in. Make sure wires are tucked inside the box and not pinched by the cover. Put the terminal box back on the crossbar with the tab in place. Use a

/4" (6.35 mm) nut driver and the screw removed in Step 22 to secure the terminal box to the crossbar. Once the terminal box has been remounted on the dishwasher, tuck any excess length or slack over nearby components or clip them back into the nearby clips to help keep them off the oor. NOTE: Route power cord out the rear of the dishwasher. Do not plug cord into an outlet until instructed to do so. Wiring conguration

boxcover and wires Remove the ground connector screw on the raised oor inside the box and place it through the ring terminal of the green ground wire of power cord. Reattach and tighten the ground connector screw to the raised oor of the box. Select UL Listed/CSA Approved twist-on wire connectors of the proper size. See the “Tools and Parts” section at the front of the guide for part details. Connect wires, black-to-black and white-to-white, using the twist-on wire connectors. NOTE: Do not pre-twist stranded wire. Twist on wire connector. Gently tug on wires to be sure both are secured. WARNING Electrical Shock Hazard Electrically ground dishwasher. Connect ground wire to green ground connector in terminal box. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

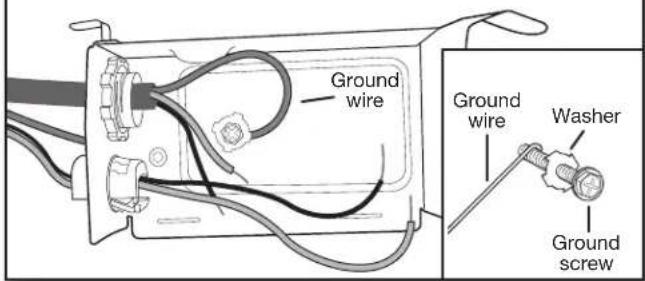

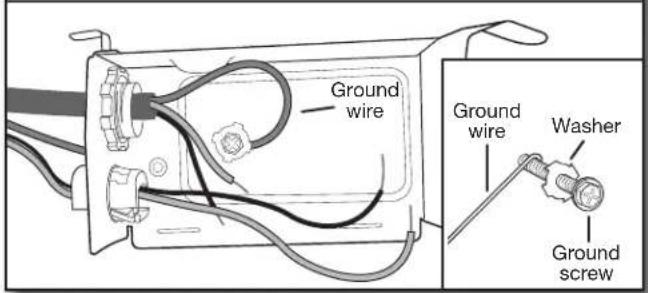

26. Power cord – connect ground wire

Ground wire Ground wire Ground screw Washer

27. Power cord – connect

remainingwires16 It is all right if dishwasher ts tightly into cabinet opening. Do not remove insulation blanket – the blanket reduces the sound level. NOTE: Route water supply, drain hose, and power cord out the rear of the dishwasher. Route the utilities through the holes in the cabinet, and pull theslack out at the same time as the dishwasher is pushed intothe cabinet. If using a power cord, make sure to route end through hole in cutout before sliding dishwasher into cabinet opening. NOTE: Make sure insulation blanket is secured at both left and right rear corners before pushing into cabinet opening to keep the blanket from bunching up in a tight tting cabinet.

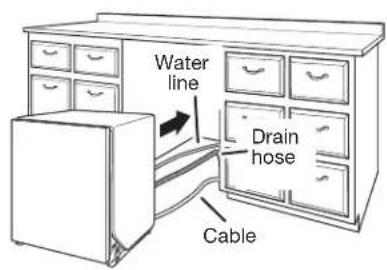

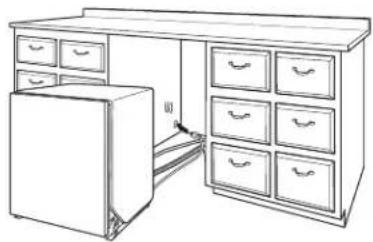

32. Move dishwasher close

tocabinetopening Water line Drain hose Cable

33. Route power cord

(ON SOME MODELS) IMPORTANT: Do not scratch the front panel during this procedure. If door panel has a protective lm, peel lm back pastthe point of the handle studs before installing handle. Handle iseasiest to install while unit is on its back. Remove the door handle and hex key from the packaging. Setscrews are already installed in the handle. Place handle onmounting studs with the setscrews facing down. Push thedoor handle tightly against the door. Insert the short end ofthehex key into the setscrews. Tighten the setscrews

turnpast snug. Retain hex key with Installation Instructions.

PLACE DISHWASHER IN CABINET

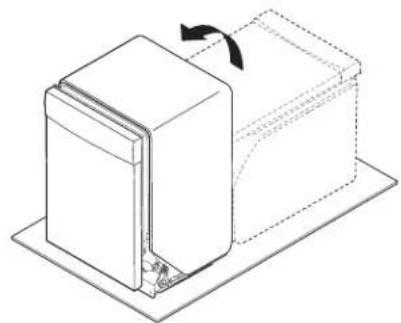

Using 2 or more people, stand the dishwasher up. NOTE: Do not install kick plate until instructed to do so. IMPORTANT: If wheels were removed, cover the oor when moving the dishwasher. Slowly move dishwasher completely into cabinet opening. Do not kink or pinch water line, drain hose, power cord, or direct wire between dishwasher and cabinet. Remove cardboard from under dishwasher.

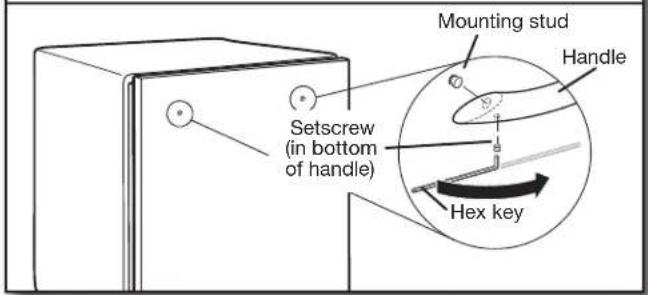

30. Install door handle

HandleMounting studSetscrew (in bottom of handle)Hex key WARNING Excessive Weight Hazard Use two or more people to move and install dishwasher. Failure to do so can result in back or other injury.

31. Stand dishwasher upright17

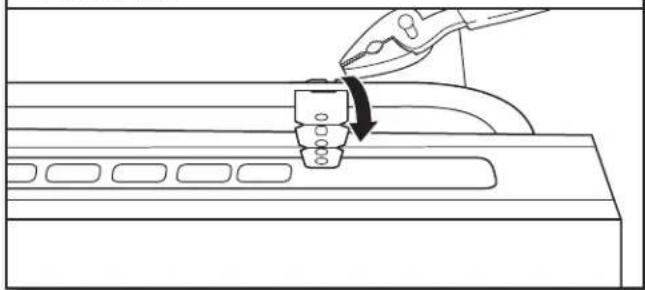

Countertop Attachment: Remove the brackets from the package, and insert into the openslots on the left- and right-hand top of the dishwasher collaras shown. Go to Step 41.Using pliers, bend/twist tab to lock the brackets in place. Side Attachment: Break off the end of the bracket along the scored line usingpliers.

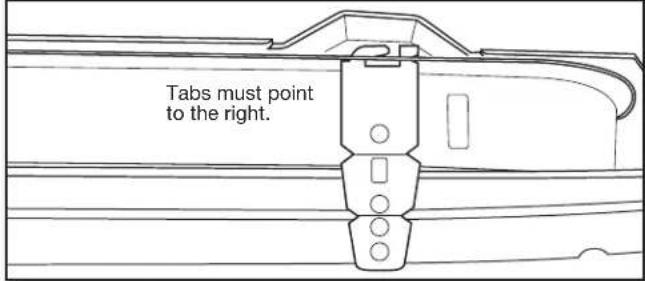

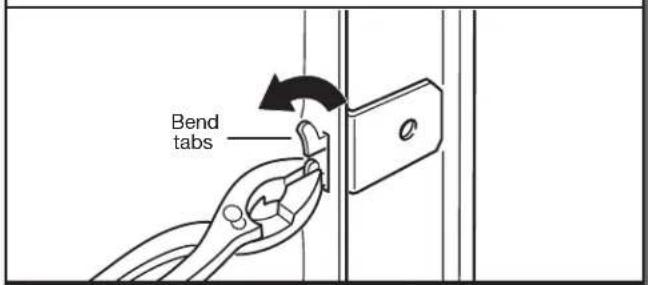

Tabs must point to the right. Bend tab

38. Break end of bracket

Score lineNOTE: Leave unit about 6" (152 mm) out from cabinet in order to install anchor brackets and adjust door tension if needed.NOTE: Pull slack out of utilities at the same time the dishwasher is pushed into the cabinet opening to avoid any kinks.

CUSTOM PANEL INSTALLATION

(CUSTOM PANEL MODELS ONLY) For custom panel installation, refer to the Custom Panel Installation Instruction Sheet. Complete custom panel installation before proceeding to the“Choose Anchor Attachment Method” section.

CHOOSE ANCHOR ATTACHMENT METHOD

IMPORTANT: The dishwasher must be secured to the cabinet as one of the nal steps. Prepare the dishwasher for this by attaching the 2 brackets found in the parts bag to thedishwasher. – For countertops that are wood, laminate or another similar surface, use Countertop Attachment: go to Step 37. – For countertops that are marble, granite, or another hard surface, use Side Attachment: go to Step 38. NOTE: If the gap between the top of the door and the underside of the counter top is tight (less than /4" [6.35 mm]), we suggest using Side Attachment to keep from scratching the User Interface or console with the anchor screws.

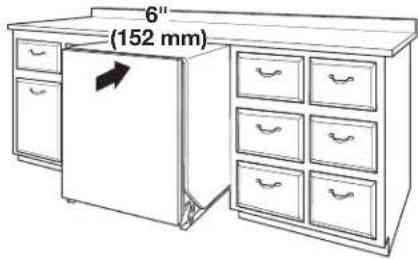

35. Move dishwasher all but 6" (152mm)

intocabinet opening 6" (152 mm)

36. Pull slack from utilities18

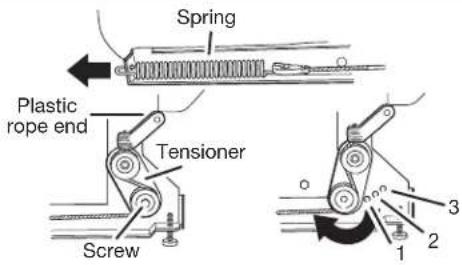

If door closes too quickly or falls, open and adjust spring tension. To adjust the door spring tension, remove the white plastic rope end attached to the door hinge. Using a

/16" (8 mm) nut driver or hex socket, remove the screw from the tensioner. The screw can be put into one of 3 holes (1, 2, 3) in the front leg of the dishwasher. If the door closes by itself: Move the tensioner to a lower- numbered hole and replace the screw. Reattach the white plastic rope end to the door hinge. If the door opens by itself: Move the tensioner to a higher numbered hole and replace the screw. Reattach the white plastic rope end to the door hinge. NOTE: Tensioners on both sides of dishwasher should be secured at same holes. Align front of dishwasher door panel with front of cabinet doors. You may need to adjust alignment to be even with your cabinets.

42. Door spring tension adjustment

43. Align front of dishwasher

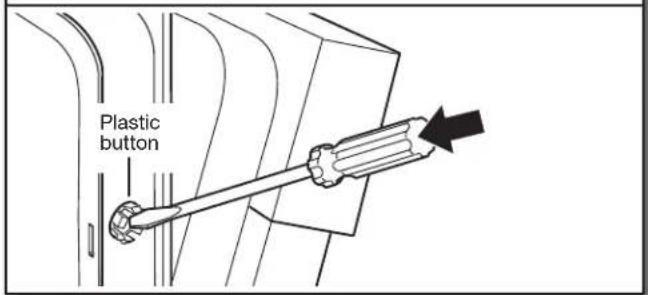

withfrontof cabinet doors Push the plastic buttons out of the side of the tub. NOTE: Save the buttons to cover the holes after dishwasher is installed. Push bracket into slot on the side of dishwasher, and bend tab in toward the side of the dishwasher so that it keeps the bracket in place. Repeat this step for the other side of the dishwasher. NOTE: Install wood shims to the inside of the cabinets if the gap between the sides of the cabinet and the sides of the dishwasher are greater than

" (13 mm) on each side. NOTE: Do not attach the dishwasher. This will be done later.

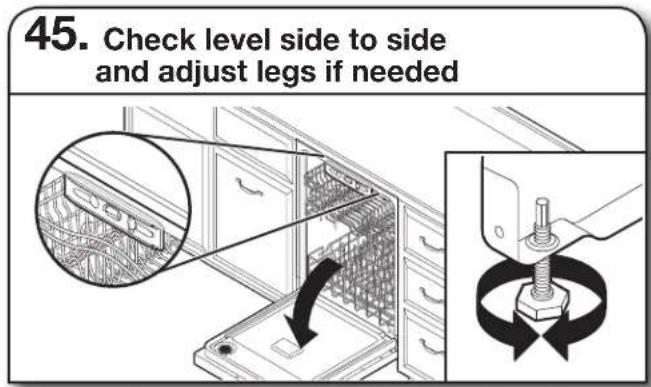

Check that dishwasher is still level front to back and side-to-side in the cabinet opening. Open dishwasher door and place towel over pump assembly and spray arm of dishwasher. This will keep screws from falling into pump area when you are securing dishwasher to cabinet. Open dishwasher door to prepare for securing the dishwasher tothe countertop or side cabinet. NOTES: ■ The dishwasher must be secured to keep it from shifting whenthe door is opened or closed. ■ Do not drop screws into bottom of dishwasher. ■ Locate brackets installed in the “Choose Anchor Attachment Method” section, either on top or on thesidesofthe dishwasher. ■ If countertop anchoring: Secure dishwasher to the countertop with two #10 x

/2" (12.7 mm) Phillips-head screws(included). ■ If side anchoring: Drill pilot holes in cabinet to avoid splittingthe wood. Secure dishwasher to cabinet with two #10x

2" (12.7 mm) Phillips-head screws (included). Remove upper rack for easier access. See the Use and Care Guide for instructions how to remove the upper rack if needed.

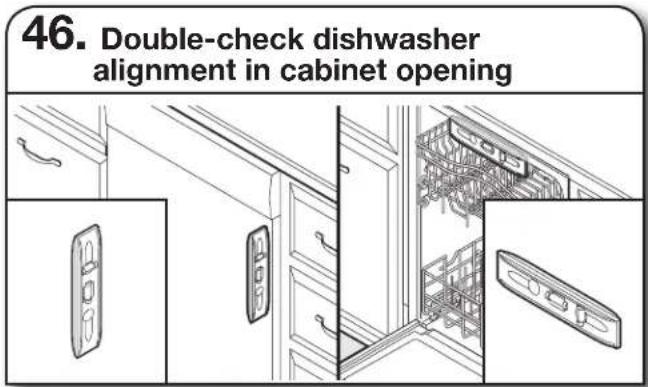

46. Double-check dishwasher

alignmentin cabinet opening

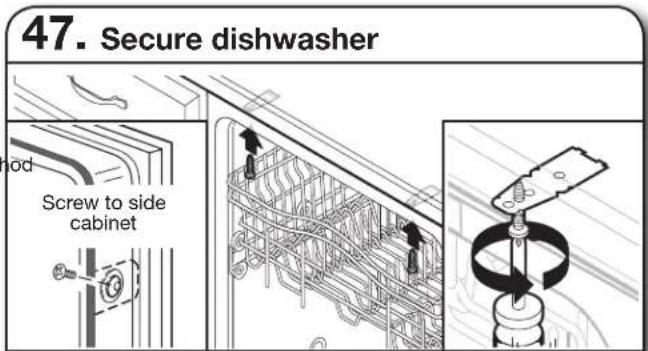

47. Secure dishwasher

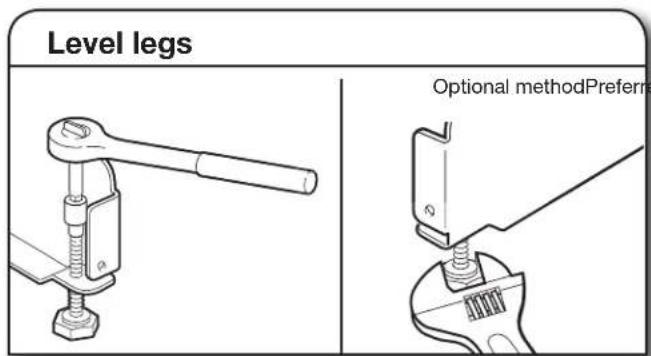

Screw to side cabinet Check that leveling legs are rmly against the oor. Close and latch the door and place level against the front panel. Check that dishwasher is centered from front to back in the opening. Ifneeded, adjust leveling leg until dishwasher is plumb. Repeat for other side of dishwasher. Helpful Tip: Push up on front of dishwasher to raise dishwasher off the ground to adjust front legs. With some installations, it may be easier to adjust the front leg using a

/16" (4.76 mm) hex head socket or adjustable wrench. If the gap between the top of the door and the underside of the counter top is tight (less than 1/4" [6 mm]), we suggest side anchoring to keep from scratching the User Interface or console. Place level against top front opening of tub. Check that dishwasher is level from side to side. If dishwasher is not level,adjust front legs up or down until dishwasher is level.

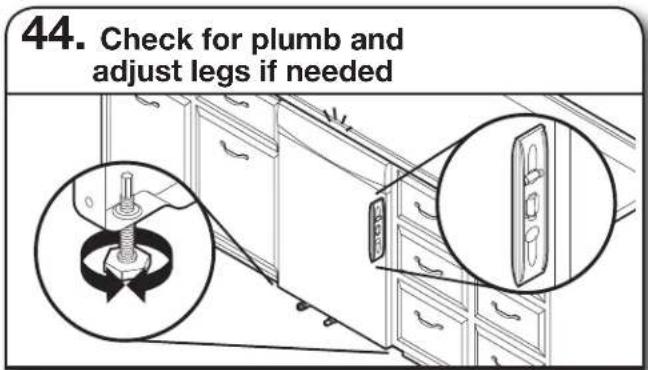

44. Check for plumb and

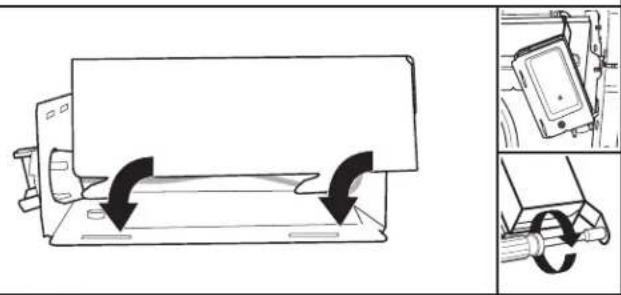

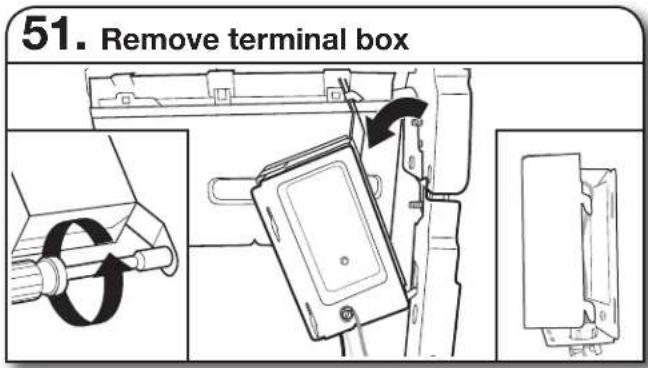

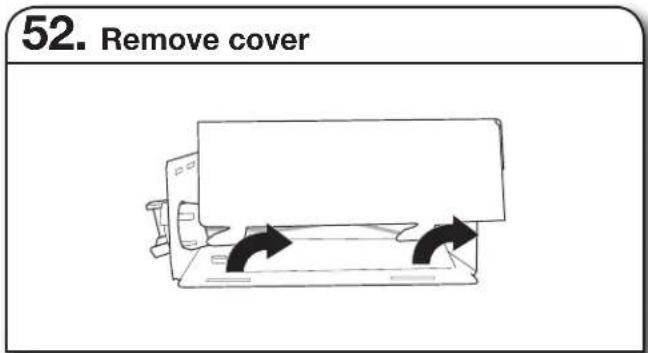

/4" (6.35 mm) hex head socket wrench to remove the screw that holds the terminal box to the cross brace. Then, tilt the terminal box, free the tab, and lift the terminal box away from the crossbar. Remove the cover by sliding it up and lifting its hooks out of the slots. Retain cover for later use. There should be adequate length in the wires to pull the terminalbox out from under the dishwasher. Lift the wires offofthe nearby clips or components to extend the length ofwire harness for easier access.

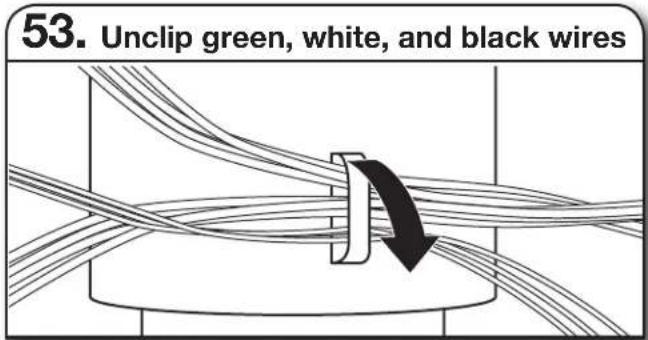

53. Unclip green, white, and black wires

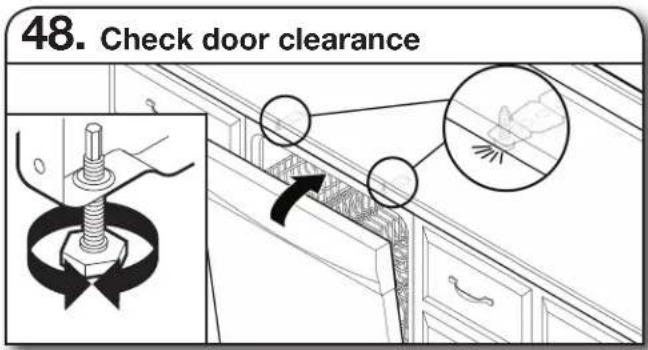

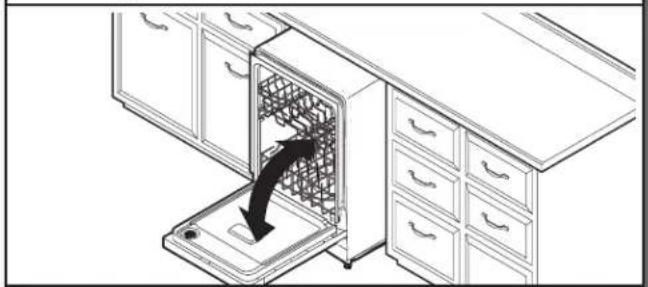

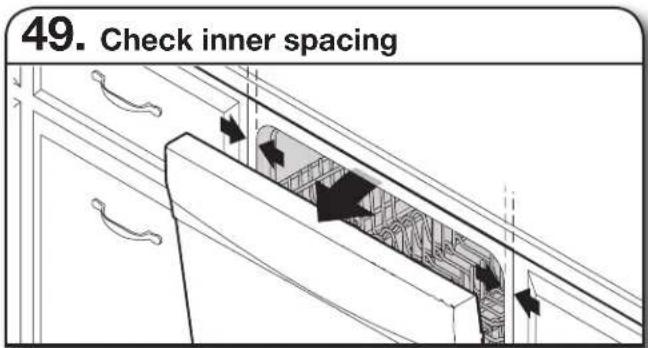

IMPORTANT: Check that top of door does not contact screws, brackets, or countertop. If it does, adjust leveling legs or use the side attachment option. Open door and check that space between dishwasher cabinet opening and tub is equal on both sides. If spacing is not equal, loosen bracket screws and shift tub. Tighten bracket screws. If side attachment method was used, reinstall the gray plastic buttons removed in Step 39 to hide the screw holes.

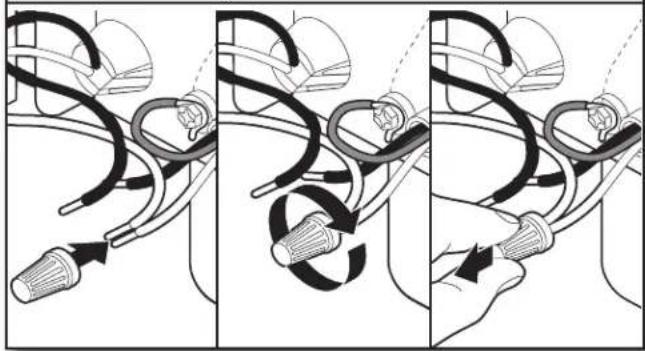

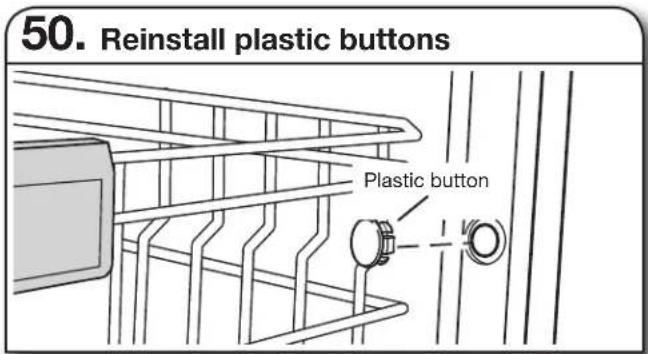

Plastic button21 Select UL Listed/CSA Approved twist-on wire connectors of the proper size. See the “Tools and Parts” section at the front of the guide for part details. Connect wires, black-to-black and white-to-white, using the twist-on wire connectors. NOTE: Do not pre-twist stranded wire. Twist on wire connector. Gently tug on wires to be sure both are secured. Place wires inside terminal box. Replace the cover by inserting the hooks of the terminal cover into the slots in the oor of the terminal box and sliding the cover tight against the back wall where wires come in. Make sure wires are tucked inside the box and not pinched by the cover. Put the terminal box back on the crossbar with the tab in place. Use a

/4" (6.35 mm) nut driver and the screw removed in Step 51 to secure the terminal box to the crossbar. Once the terminal box has been remounted on the dishwasher, tuck any excess length or slack over nearby components or clip them back into the nearby clips to help keep them off the oor.

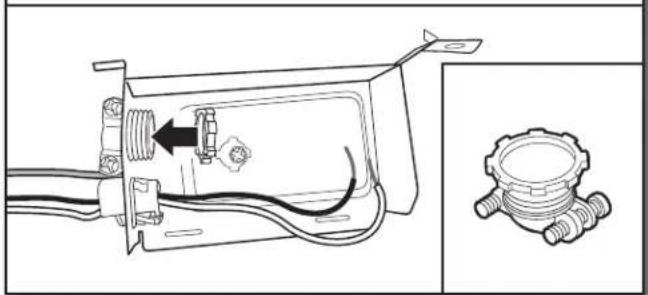

boxcover and wires Install a UL Listed/CSA Approved metallic strain relief. Seethe“Tools and Parts” section at the front of the guide forpart details and orders. Form bare ground wire into a U-shaped hook. Wrap ground wire hook clockwise around the ground connector screw on the raised oor inside the box and under the dishwasher. Securely tighten ground connector.

54. Install strain relief

WARNING Electrical Shock Hazard Electrically ground dishwasher. Connect ground wire to green ground connector in terminal box. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

55. Direct wire – connect ground wire

Ground wire Ground wire Ground screw Washer22 Helpful Tip: Remove disposer knockout plug.

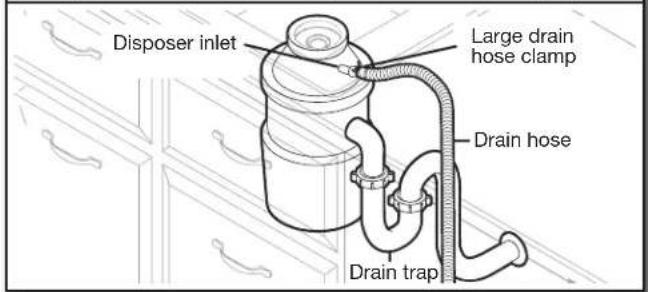

1. Using a hammer and screwdriver, knock

3. Attach drain hose to disposer inlet with

large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. Option A: Waste disposer – no air gap Large drain hose clamp Drain hose Drain trap Disposer inlet

SHUT-OFF VALVE NOTE: If using a exible braided hose, replace inlet hose after 5 years to reduce the risk of hose failure. Record hose installation or replacement dates on the hose for futurereference. Attach the water supply line (copper tubing or exible braided line) to the hot water line using a connection conguration that is in compliance with local codes and ordinances. The water supply to the dishwasher should have a manual shut-off valve located under the sink.

IMPORTANT: The drain hose connection of the disposer or a waste tee must be made before the drain trap and at least 20" (508 mm) above the oor where the dishwasher will be installed. Helpful Tip: To reduce vibration of the hose, keep the hoseawayfrom the oor.

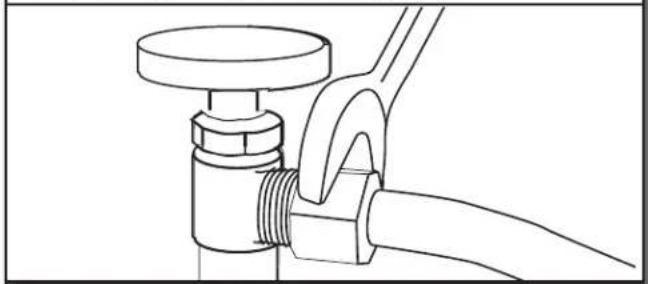

58. Attach water supply line

59. Connect drain hose

Connect drain hose to waste tee or waste disposer using one of the following options: ■ Option A: Waste disposer – no air gap ■ Option B: No waste disposer – no air gap ■ Option C: Waste disposer – with air gap ■ Option D: No waste disposer – with air gap23 Helpful Tip: Remove disposer knockout plug.

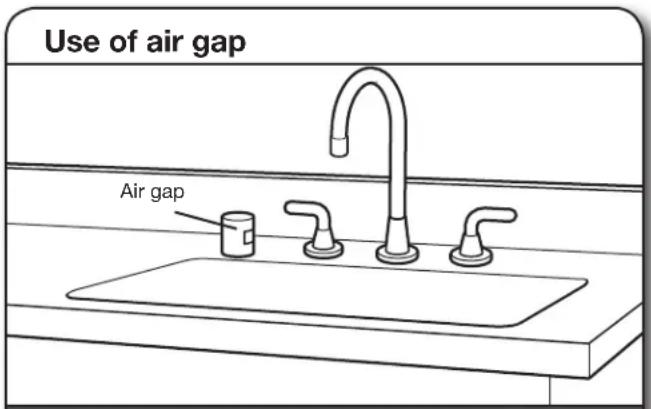

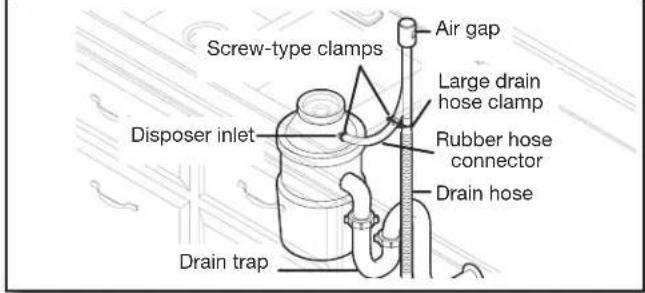

1. Using a hammer and screwdriver, knock

3. Connect rubber end of drain hose

toairgap and cut if needed. NOTE: Do not cut ribbed section.

4. Attach drain hose to air gap with large

drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use

" to 2" (38 to 50 mm) screw-type clamp (not provided).

5. Use a rubber hose (not provided) with

screw-type clamps (not provided) to connect from air gap to disposer inlet. Option C: Waste disposer – with air gap Large drain hose clamp Drain hose Screw-type clamps Air gap Rubber hose connector Drain trap Disposer inlet

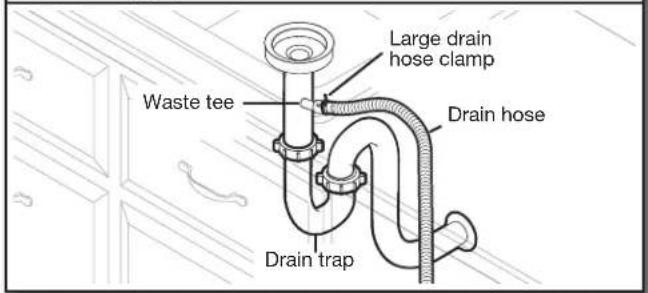

1. Fit rubber end of drain hose

towasteteeand cut if needed. NOTE: Do not cut ribbed section.

2. Attach rubber end of drain hose to

waste tee with a large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1

" to 2" (38 to 50mm) screw-type clamp (not provided). Option B: No waste disposer – noairgap Large drain hose clamp Drain hose Drain trap Waste tee

COMPLETE INSTALLATION Check that the power supply wire or cord does not touch dishwasher motor or the lower part of the dishwasher tub. Plug into a grounded 3 prong outlet. NOTE: With the access panel off, start the dishwasher and allow it to complete the shortest wash cycle. After the rst 2 minutes, unlatch door, wait 5 seconds, then open door. Check that there is water in the bottom of the dishwasher tub. Check that dishwasher is working properly.

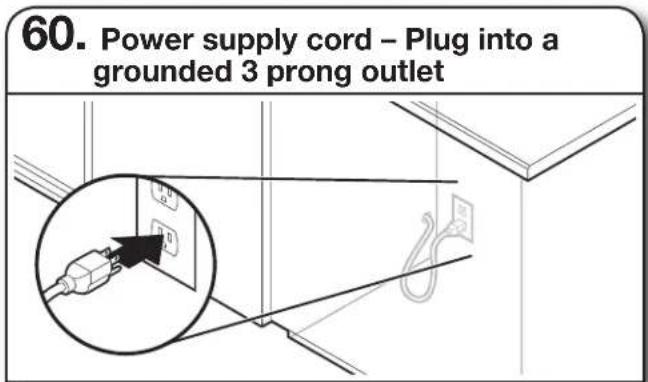

60. Power supply cord – Plug into a

grounded 3 prong outlet

Reconnect electrical power at the fuse box or circuit breaker box.

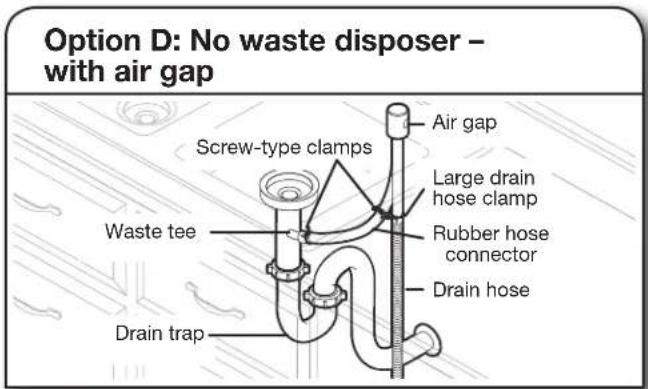

1. Connect rubber end of drain hose

toairgap and cut if needed. NOTE: Do not cut ribbed section.

2. Attach drain hose to air gap with large

drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1

" to 2" (38 to 50 mm) screw-type clamp (not provided).

3. Use a rubber hose (not provided) with

screw-type clamps (not provided) to connect from waste tee to air gap. Option D: No waste disposer – withairgap Large drain hose clamp Drain hose Screw-type clamps Air gap Rubber hose connector Drain trap Waste tee

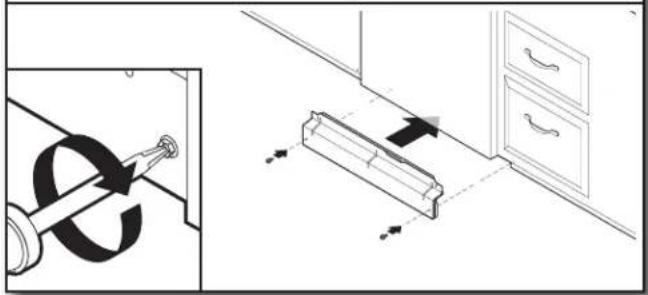

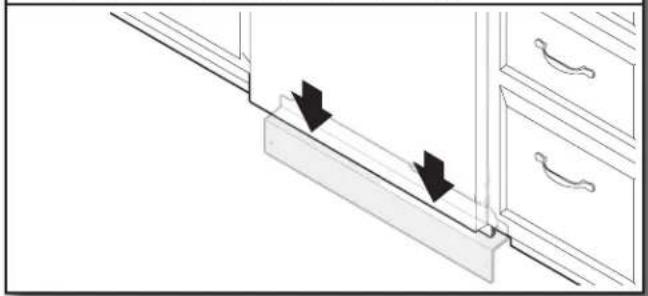

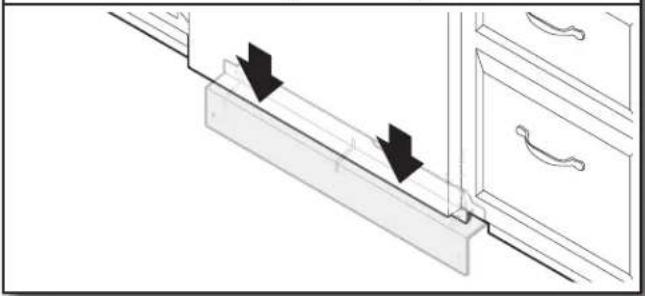

Metal Panel: Place the panel against dishwasher legs. Using a Phillips screwdriver or 1/4" (6.35 mm) nut driver, reinstall the screws through the holes in the access panel. Check that the lower edge of the access panel touches the oor. Adjust if necessary. Tighten access panel screws.

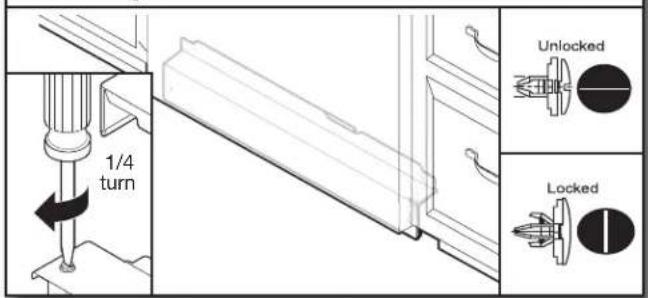

– For Plastic: Begin with Step 62 – For Metal: Begin with Step 65 Plastic Panel: Place the plastic access panel against the dishwasher leg. Make sure insulation does not interfere with the oat assembly. Check that the lower edge of the access panel touches the oor. Adjust if necessary. Using a at-blade screwdriver, turn the fasteners

turn clockwise to lock into place. The fastener slot will be straight up and down when properly locked. Go to Step 67.

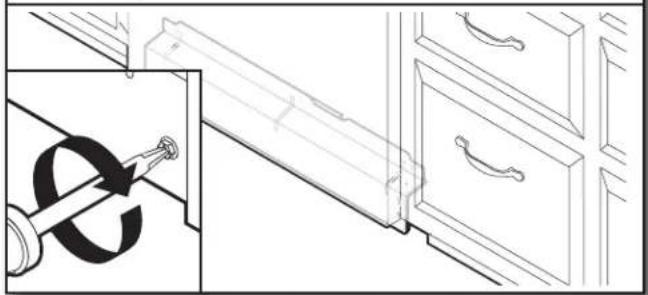

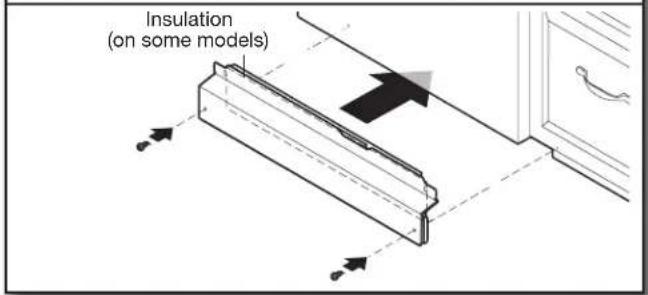

62. Reinstall access panel and fasteners

Insulation (onsomemodels)

63. Check access panel edge

64. Tighten fasteners

1/4 turn26 ADDITIONAL TIPS Expect longer wash times. Your new dishwasher will average 2-5 hours per load but use nearly 40% less energy than older models. Designed with a low wattage, low energy consumption motor, your dishwasher washes longer to ensure exceptional cleaning. Certain models are equipped with an optical water sensor, so the rst cycle will run longer to calibrate to optical sensor. Selecting certain options could increase cycle time past3.5 hours. Rinse Aid is necessary for good drying results: This dishwasher is designed to be used with rinse aid for good drying performance and controlling hard water deposit buildup. Energy efcient dishwashers use less water and energy, so theydepend on the water sheeting action of rinse aid for good drying performance. Start/Resume light may ash: When pressing Start/Resume, you must make sure the door isclosed within 3 seconds. If you do not close the door within 3seconds, the Start/Resume light will ash until you press it again. (You must also do this when adding a dish during the middle of a cycle.) CHECK OPERATION ■ Read the dishwasher User Guide that came withyourdishwasher. ■ Check that all parts have been installed and no steps wereskipped. Check that you have all tools used. If the dishwasher is not working properly, disconnect power or unplug dishwasher and refer to the “If Dishwasher Does Not Operate” section.

IF DISHWASHER DOES NOT OPERATE

First try the solutions suggested here to possibly avoid the cost of a service call. ■ Has the circuit breaker tripped or the house fuse blown? ■ Is the door closed tightly and latched? ■ Has the cycle been set correctly to start the dishwasher? ■ Is the water turned on? If none of these possible solutions work, please see the UserGuide for service contact information.27 ÍNDICE
