USER MANUAL DW9800.0G Küppersbusch

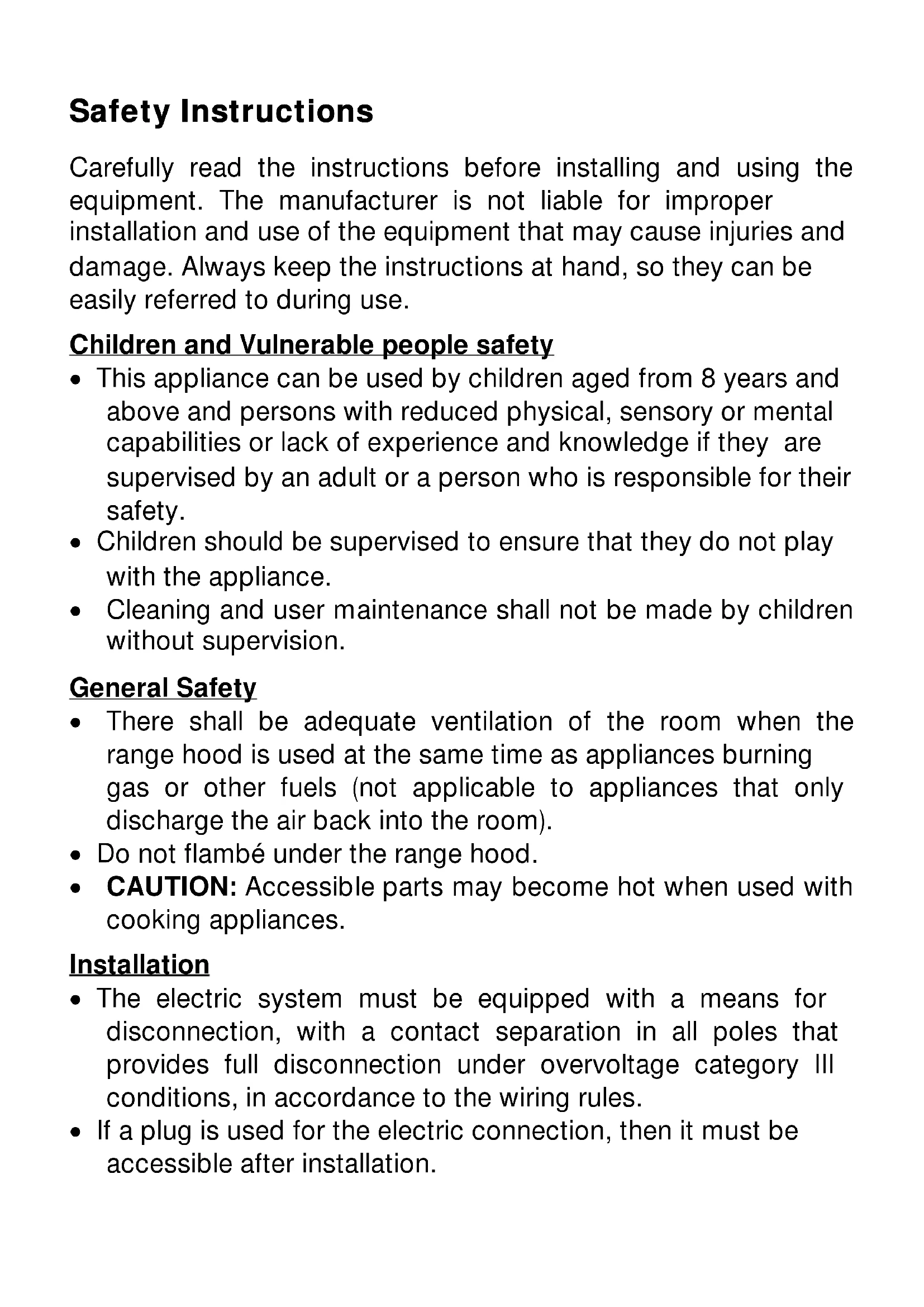

Eliminación del embalaje El embalaje está marcado con el Punto Verde. Para eliminar todos los materiales de embalaje, como el cartón, poliuretano y las películas, utilice contenedores adecuados. Así se garantiza la reutilización de los materiales de embalaje. Eliminación de aparatos fuera de uso En base a la Norma europea 2012/19/UE de Residuos de Aparatos Eléctricos y Electrónicos (RAEE), los electrodomésticos viejos no pueden ser arrojados en los contenedores municipales habituales; tienen que ser recogidos selectivamente para optimizar la recuperación y reciclado de los componentes y materiales que los constituyen, y reducir el impacto en la salud humana y el medioambiente. El símbolo del cubo de basura tachado se marca sobre todos los productos para recordar al consumidor la obligación de separarlos para la recogida selectiva. El consumidor debe contactar con la autoridad local o con el vendedor para informarse en relación a la correcta eliminación de su electrodoméstico viejo. Antes de eliminar su aparato, inutilícelo. Tire el cable de alimentación, córtelo y elimínelo.Safety Instructions Carefully read the instructions before installing and using the equipment. The manufacturer is not liable for improper installation and use of the equipment that may cause injuries and damage. Always keep the instructions at hand, so they can be easily referred to during use. Children and Vulnerable people safety This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. General Safety There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). Do not flambé under the range hood. CAUTION: Accessible parts may become hot when used with cooking appliances. Installation The electric system must be equipped with a means for disconnection, with a contact separation in all poles that provides full disconnection under overvoltage category III conditions, in accordance to the wiring rules. If a plug is used for the electric connection, then it must be accessible after installation.english The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). The lower part of the extractor must be located at a minimum height of 60 cm above the hob for electric cookers and 65 cm for gas cookers. If the instructions of a gas cooker indicate a greater distance these must be observed. Before installing the extractor consult the local rules and regulations in force with respect to the discharge of air and fumes. When the extractor is working at the same time as other non- electrical cooking equipment, the outlet air pressure must not exceed 4 Pa (4x10-5 bar). Before connecting the extractor to the mains, check that both the voltage and the frequency conform to that shown on the characteristics label located inside the extractor. To achieve optimum performance the length of the outlet hose should not exceed 4 meters, or include more than two 90º angles (elbows). Although venting to the outside is recommended, activated carbon filter may be used to allow the gas to be returned to the kitchen through the outlet pipe. NOTE: For more Installation information, refer to the end of this user manual. Cleaning There is a fire risk if cleaning is not carried out in accordance with the instructions. Do not allow grease to accumulate in any part of the extractor, especially in the grease filters as this COULD PRODUCE A FIRE RISK! The grease filters and the internal part of the extractor must be cleaned at least once a month depending on how often the extractor is used. Note that grease is deposited in the extractor when cooking, whether it is switched on or not. We recommend the use of gloves and caution when cleaning the inside of the extractor. Repairs If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not switch on the extractor if the supply cord is worn or has cuts or if there are signs of deterioration around the control panel. If the LED module is malfunctioning, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. If the extractor stops working or functions abnormally, unplug it from the mains and contact the technical service. Please contact the nearest Qualified Technical Assistance Service for any repairs always using original spare parts. Repairs and modifications carried out by others could damage the extractor or cause it to malfunction and cause safety risks.

By pressing the button shown in the figure 1, you will be able to control the functions of the extractor. To achieve better extraction, we recommend switching on the extractor a few minutes before starting to cook (3 - 5 minutes) so that the air flow is continuous and stable when extracting the fumes. Likewise, keep the extractor switched on for a few minutes when cooking is complete to allow all fumes and odours to be expelled. Important note: Blowers equipped with brushless motor take some time to start rotating.english

Program the working time

1) Switch on the cooker hood and choose

the required aspiration speed.

3) Select the required programming time

from 1 to 99 minutes by using the buttons

4) The display will show the remaining

programming time.The maximum speed be changed automatically to the second speed level after 7 minutes. When the sign is on, the filters should be cleaned. After cleaning the filters, simultaneously

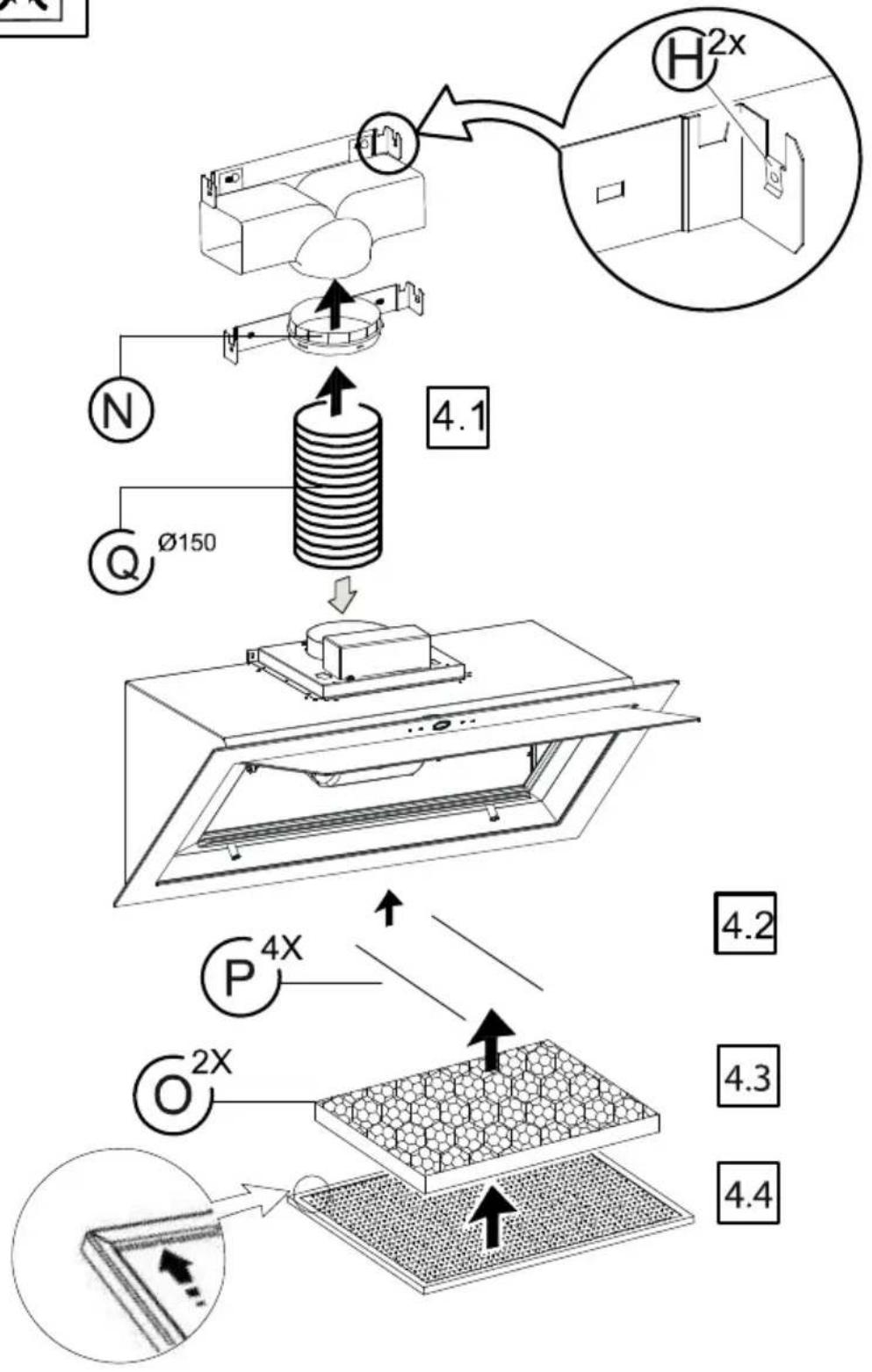

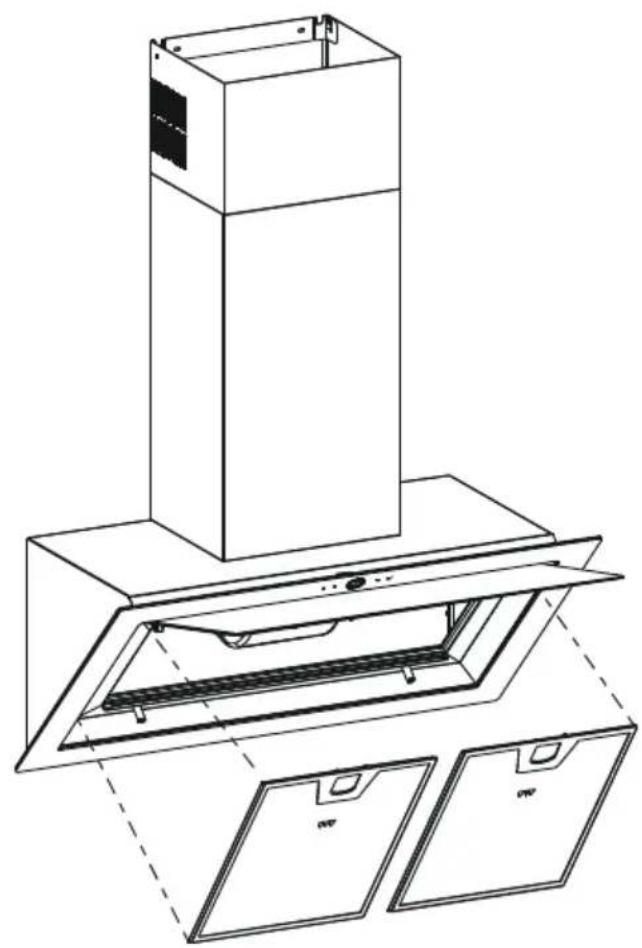

whereupon the sign will be switched off. Before carrying out any cleaning or maintenance activities, ensure that the extractor is disconnected from the mains. To carry out cleaning and maintenance, follow the Safety Instructions. Fire risk exists in case that cleaning does not take place according to the instructions. Filter cleaning To withdraw the filters from their locations release the anchoring points. Clean the filter, either by putting it in the dishwasher (see notes) or leaving it standing in hot water to simplify the removal of grease or, if wished, by means of special sprays (protecting the non metallic parts). Once clean, leave it to dry. Attention: the cooker hood will not work until the main filter was reinstalled. Notes: cleaning in the dishwasher with aggressive detergents may blacken the surface of metallic parts, without this affecting its gas retaining properties. N.B. The filter must be cleaned at least once a month depending on how often the extractor is used. It must be remembered that grease is deposited in the extractor when cooking, whether it is switched on or not. Cleaning of the extractor body The use of warm (40ºC approx.) soapy water is recommended. A cloth moistened in this water is used for cleaning the extractor, paying special attention to the grids. Afterwards, dry it using a lint-free cloth. Note: Never use metallic scouring pads or abrasive products that could damage the surface. Do not use scrapers with metallic surfaces such as knives, scissors etc. Activated charcoal filter To install the charcoal filter, please follow the instructions supplied with it. The carbon filter lasts from three to six months depending on the particular conditions of use. The activated carbon filter can neither be washed nor regenerated. Once it is exhausted, it must be changed. To replace exhausted filters with new ones, withdraw the old one in the reverse order to that of installation.

Electrical characteristics:

Before seeking technical assistance carry out the following checks first: Defect Possible cause Solution The extractor does not work The cable is not connected Connect the mains cable No current is reaching the plug Revise/repair the electricity circuit The extractor does not blow enough or vibrates Filter saturated with grease Clean or substitute the filter Outlet obstructed Eliminate obstructions Inadequate air conduit Contact the installer and follow instructions of this manual The lamps do not light Lamp broken Contact the Customer Service ILCOS D Code: DSL-9-S-500

AN EYE-LEVEL GRILL. This appliance must be connected by a competent person, using fixed wiring via a

DOUBLE POLE SWITCHED FUSED SPUR
