MXFC2770 - Fondue, raclette and wok appliance Mx Onda - Free user manual and instructions

Product type	Multifunctional appliance: chocolate fountain, fondue, raclette and wok
Brand	Mx Onda
Model	MXFC2770
Power supply	230 V ~ 50 Hz
Power	85 W
Chocolate capacity	Approximately 1 kg
Dimensions (L × W × H)	210 × 210 × 385 mm
Weight	1.5 kg
Cable length	0.9 m
Main base material	Polished stainless steel
Column and spiral material	Stainless steel
Cups material	Polished stainless steel
Controls	Independent switches for motor and heating base
Indicator light	Yes, for the heating base
Adjustable feet	Yes, for leveling
Use	Indoor only, on stable and level surface
Cleaning of removable parts	Wash with soapy water; do not use abrasives
Cleaning the base	Damp cloth, do not immerse
Safety	Earth connection mandatory; do not open or repair yourself
Compliance	RoHS, EU directives 2014/30/EU and 2014/35/EU
After-sales service	Contact MX ONDA: [phone] or [e-mail]

Frequently Asked Questions - MXFC2770 Mx Onda

How to use the chocolate fountain?

Place the fountain on a flat and stable surface. Plug the appliance into a 230 V grounded outlet. Pour pre-melted chocolate into the main base (leave 1 cm from the edge). First turn on the motor (MOTOR position) to raise the chocolate, then the heating base (HEAT position) to keep it warm. Add melted chocolate if the level drops. To turn off, first turn off the heating then the motor.

How much chocolate to use?

The maximum capacity is approximately 1 kg of chocolate. Do not fill the base beyond 1 cm from the edge to avoid overflow. Use special fountain chocolate or couverture chocolate, pre-melted.

Can I melt chocolate directly in the base?

No, the heating base is designed only to keep the chocolate warm and liquid. Do not attempt to melt chocolate pieces in the base, as the temperature is not high enough and could damage the appliance. Melt the chocolate separately (in a bain-marie or microwave) before pouring.

How to clean the fountain?

Unplug the appliance and wait for the chocolate to cool down (or clean while it is still liquid). Remove the spiral and column by pulling them upwards. Wash these parts with soapy water, without using steel wool or abrasives. Clean the main base with a damp soapy cloth, then wipe with a clean cloth. Never immerse the base in water.

What to do if the chocolate does not flow?

Check that the motor is on (MOTOR position). Ensure that the spiral is correctly inserted into the outlet and rotates freely. If the motor is running but the chocolate does not rise, the chocolate may be too thick; add a little oil or cocoa butter to thin it. Also check that the heating base is on to keep the chocolate liquid.

How to assemble the fountain?

Place the column on the base by aligning the three shafts with the holes. Then insert the spiral into the chocolate outlet and gently turn it until it engages the motor shaft. Ensure the assembly is stable and the feet are adjusted for a level surface.

Can I use the fountain for something other than chocolate?

This appliance is designed for chocolate, but can also be used for cheese fondue or sauces if the consistency is suitable. However, the heating base is not intended for cooking food; it only maintains temperature. For raclette or wok, additional accessories would be needed. Consult the manual for recommended uses.

How to adjust the feet for a level surface?

If the fountain is unstable (it wobbles), turn the adjustable feet located under the base to adjust the height on each side. Continue until the fountain is perfectly level on the surface.

What to do in case of breakdown or malfunction?

In case of breakdown, damaged cord or any other defect, do not attempt to repair the appliance yourself. Unplug it and contact an authorized MX ONDA service center (phone: [phone], email: [e-mail]). Do not open the appliance.

Where to find spare parts or accessories?

Spare parts (spiral, column, cups) are available from the MX ONDA after-sales service. Contact them using the details provided in the manual. Only use accessories recommended by the manufacturer to avoid risks.

USER MANUAL MXFC2770 Mx Onda

Exterior view of a stainless steel coffee pot with a tiered top, labeled 'Mix Onda' (no additional text or symbols visible)

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

ATENCIÓN

Exterior view of a stainless steel coffee pot with a tiered top, labeled 'Mix Onda' (no additional text or symbols visible)

CE

BEFORE USE READ THIS INSTRUCTION MANUAL

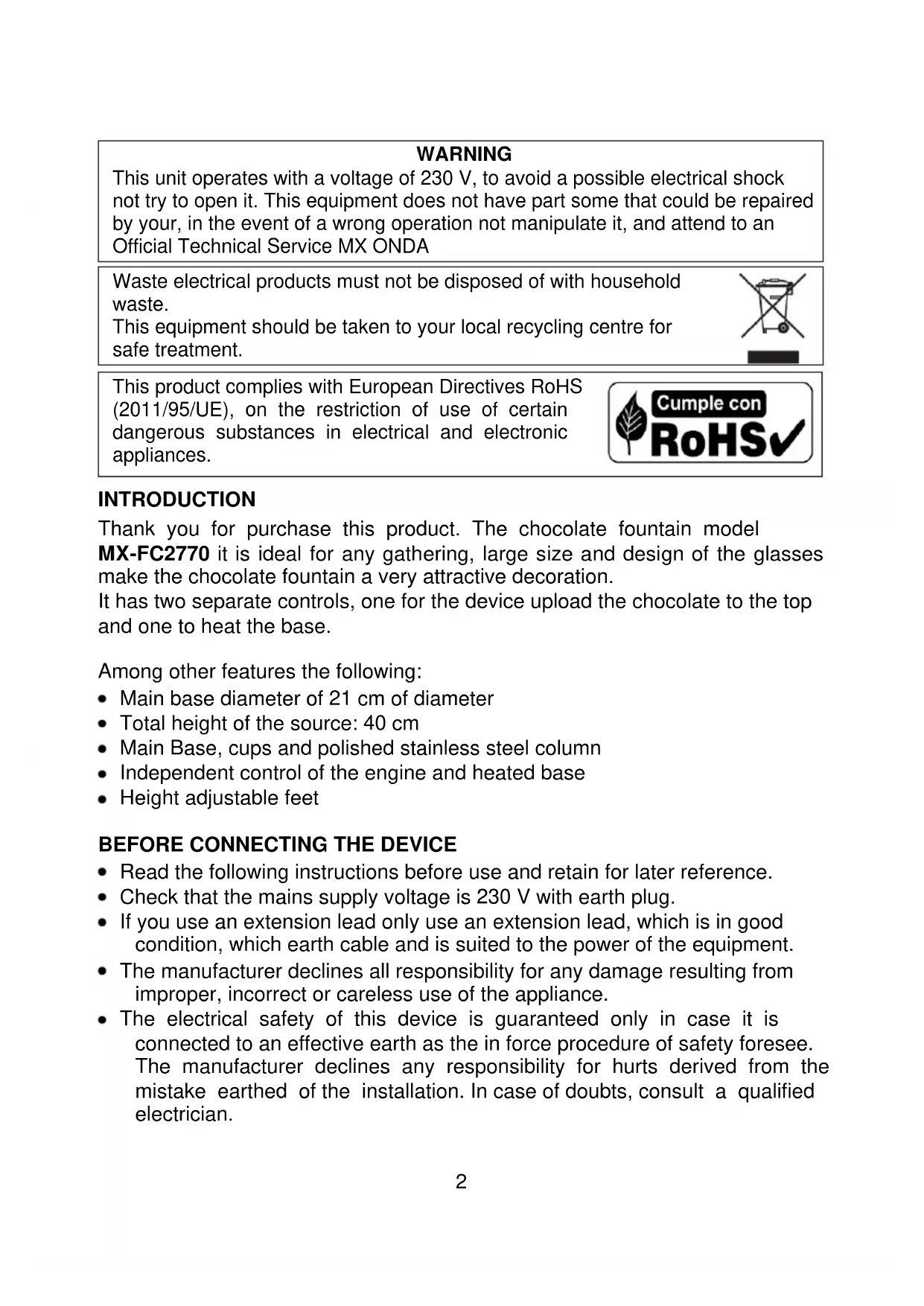

WARNING

This unit operates with a voltage of 230 V, to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/95/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.

Cumple con RoHS✓

INTRODUCTION

Thank you for purchase this product. The chocolate fountain model MX-FC2770 it is ideal for any gathering, large size and design of the glasses make the chocolate fountain a very attractive decoration.

It has two separate controls, one for the device upload the chocolate to the top and one to heat the base.

Among other features the following:

• Main base diameter of 21 cm of diameter
  • Total height of the source: 40 cm
• Main Base, cups and polished stainless steel column
• Independent control of the engine and heated base
  • Height adjustable feet

BEFORE CONNECTING THE DEVICE

• Read the following instructions before use and retain for later reference.
• Check that the mains supply voltage is 230 V with earth plug.
• If you use an extension lead only use an extension lead, which is in good condition, which earth cable and is suited to the power of the equipment.
• The manufacturer declines all responsibility for any damage resulting from improper, incorrect or careless use of the appliance.

- The electrical safety of this device is guaranteed only in case it is connected to an effective earth as the in force procedure of safety foresee. The manufacturer declines any responsibility for hurts derived from the mistake earthed of the installation. In case of doubts, consult a qualified electrician.

• After unpacking, check the appliance for damage. If in doubt, do not use the appliance; contact a qualified technician.
• When use extension lead extreme the precautions and prevent the cable from hanging for the table, since the children might pull him or one might stumble someone with him.
• To be protected from the risk of electrical exhausts and from corporal personal injuries, never introduce the cord, plug or base unit into water or any other liquid.
• Packaging materials (plastic bags, polystyrene foam, etc.) are a potential source of danger and must be kept out of reach of children.

SECURITY MEASURES

• This appliance can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved, children shall not play with the appliance. Cleaning an user maintenance shall not be made by children without supervision.
• This appliance is designed for domestic use only and not for commercial applications. No responsibility is accepted for damage resulting from improper use or non-compliance with the instructions.
• The breach of these warnings and instructions of security could give as result serious burns or injuries.
• When the chocolate fountain is connected or hot, do not go and supervise it does not leave come bear the children.
• Place always the chocolate fountain on a stable and levelled surface, do not use in the outside.
• To disconnect the device of the power supply, pull softly of the plug. Never do it stretching of the cord.
• Unplug the chocolate fountain and wait for the chocolate is still warm before cleaning it.
• This appliance is designed to woks to high temperatures, for which, during his manipulation does not touch the main base. Hold it by the handle.
• This device has moving parts that can cause injury, pay special attention when handling.
• Prevent the cord hang over the edge of the table top or counter, or touch hot surfaces.
• Do not place the chocolate fountain above or near burners to gas, electrical plates or warm ovens.
• Do not use attachments not recommended by the manufacturer.
• Unplug the chocolate fountain, if you are not using, when a power outage occurs, "skip" a fuse or circuit and prior to self maintenance cleaning.

- The use of attachments not recommended by the appliance manufacturer may cause fire, electric shock or personal injury.

- In the event of failure or malfunction, switch off the appliance and do not attempt to carry out repairs. Contact an authorised Service Centre and insist on original spare parts. Failure to observe the above points may affect the safety of the appliance.

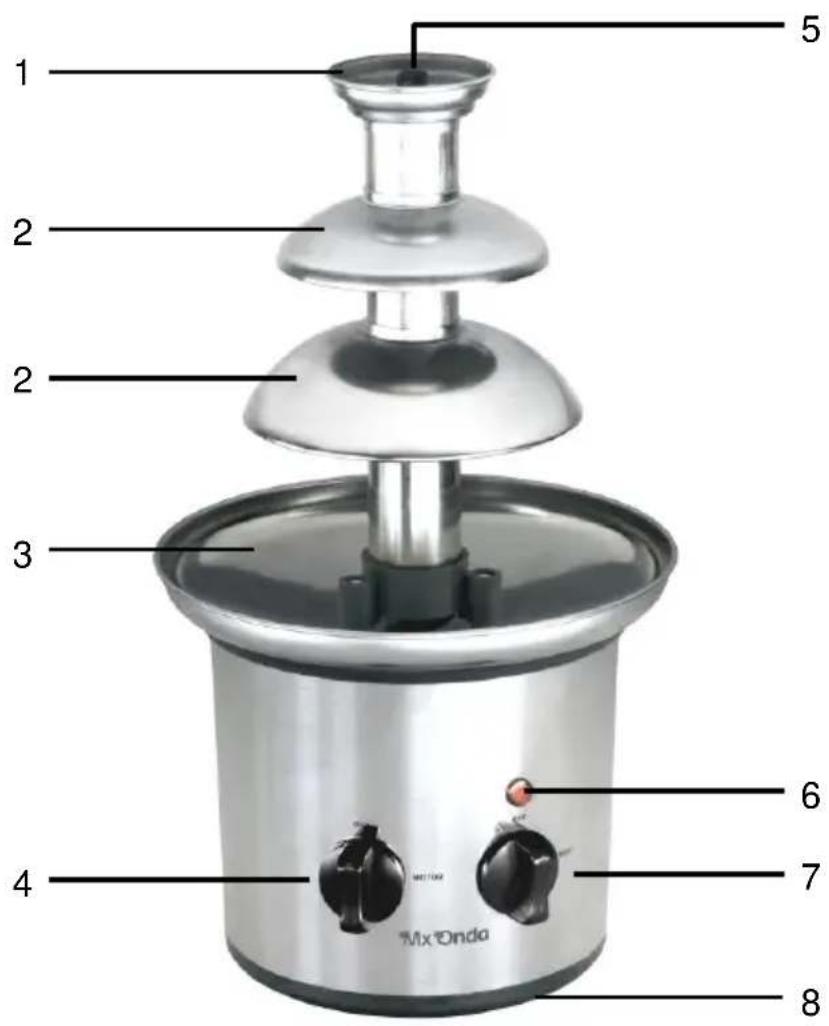

CONTROLS AND FUNTIONS

1 2 3 4 5 6 7 8 Mix Onda

1. Outlet
2. Polished Steel Cups
3. Main Base heated
4. Power on / off motor
5. Spiral
6. Light base heated
7. Power / heated base
8. Adjustable feet in height

BEFORE USING THE CHOCOLATE FOUNTAIN FOR THE FIRST TIME

• Read all sections of this manual.
• Remove the spiral 5 by pulling it upwards.
• Remove the column to form the top of the chocolate fountain.
• Wash with soapy water and the spiral and column, DO NOT use steel wool or abrasive cleaning fluids, then carefully dry all surfaces.
• The main base 3 can be cleaned with a cloth or sponge slightly moistened with a little soap, then rinse with a damp cloth and wipe the main base with a cloth.
• To assemble the chocolate fountain, place the column in the main base so that its three axes coincide with the three holes in the column. Enter the spiral 5 for the outlet 1 and turn it gently until you feel it engage in the motor shaft.

INSTALLING THE CHOCOLATE FOUNTAIN

For proper operation of the chocolate fountain and avoid spillage or splashing, is very important to be on a smooth, horizontal surface.

If you still see that the chocolate fountain is not seated correctly will need to adjust the high with the feet. Turn right or left foot to check that the chocolate fountain is not balanced.

USE OF CHOCOLATE FOUNTAIN

1. Place the chocolate fountain in the desired location, DO NOT attempt to move the fountain with chocolate as it can cause burns or spilling chocolate. Note that it is easier to transfer the melted chocolate in a bowl and then pour into the fountain.
2. Insert the plug of the power cord into an electrical outlet of 230 V, provided ground.
3. Make the chocolate according to your preference and taste, when the chocolate is completely melted pour over the main base 3. Do not overfill the main base, leave at least 1 cm between the level of chocolate and the edge of the main base 3.
4. Turn the on/off motor control 4 to MOTOR position and will start rotating spiral 5.
5. After a few seconds the chocolate will flow through the outlet 1 will be covering cups 2.
   You can note that the level of chocolate on the main base decrease, so you need to add more chocolate trying not overflow.

6. Turn the ON/OFF heated base 7 to the HEAT position and light 6 turn on. Thus, the hot chocolate can flow properly be maintained.

7. When you need to add more chocolate should melt previously NEVER insert pieces of unmelted chocolate, because the base heated only serves to maintain the liquid chocolate and not to melt.

8. To turn off the chocolate fountain turn the switch ON/OFF heated base 7 so as the ON/OFF engine 4 to the OFF position.

Warning:

The base heated only works for keep the liquid hot chocolate accordingly. Do not try to melt chocolate in it and also add chunks of chocolate in order to melt because the temperature is not high enough to melt them.

CLEANING AND MAINTENANCE

We recommend that you clean the chocolate fountain as soon as possible and preferably when the chocolate is still warm (liquid), because when the chocolate cools and solidifies cleaning becomes more difficult.

1. Unplug the power from the chocolate fountain.
2. Remove the spiral 5 by pulling it upwards.
3. Remove the column to form the top of the chocolate fountain.
4. Wash with soapy water and the spiral column, DO NOT use steel wool or abrasive cleaning fluids, then carefully dry all surfaces.
5. Clean the main base 3 with a cloth or sponge slightly moistened with a little soap, then rinse with a damp cloth and wipe the main base with a cloth.
6. Ride the chocolate fountain again, placing the column on the main base so that its three axes to match the three holes in the column and enter the spiral 5 for the outlet 1 and turn it gently until you feel it engage in motor shaft.
7. Do not immerse the base of the chocolate fountain in water or under running water.
8. The plastic surface of the base of the chocolate fountain can be cleaned with a damp cloth. Do not use abrasives.

STORAGE OF CHOCOLATE FOUNTAIN

• Before placing the chocolate fountain, it must be completely clean and dry.
• Keep the chocolate fountain in a dry, dust-free in their own packaging or cover with plastic wrap, paper, etc..

TECHNICAL SPECIFICATIONS

Power supply 230 V \~ 50 Hz

Power consumption 85 W

Maximum capacity 1 liters of chocolate approximately

Cable length 0.9 m approximately

Dimensions 210 x 210 x 385 mm (w, d, h)

Weight 1.5 Kg

Technical specifications are subject without notice.

This product complies with the European Directives 2014/30/EC (EMC-Electromagnetic Compatibility) and the 2014/35/EC (LVD - Low Voltage Directive) relative to Low-Tension security.

"MX, MX ONDA" and his logos are trademarks of MX ONDA, S.A.

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

E-MAIL: [e-mail]

http://www.mxonda.es

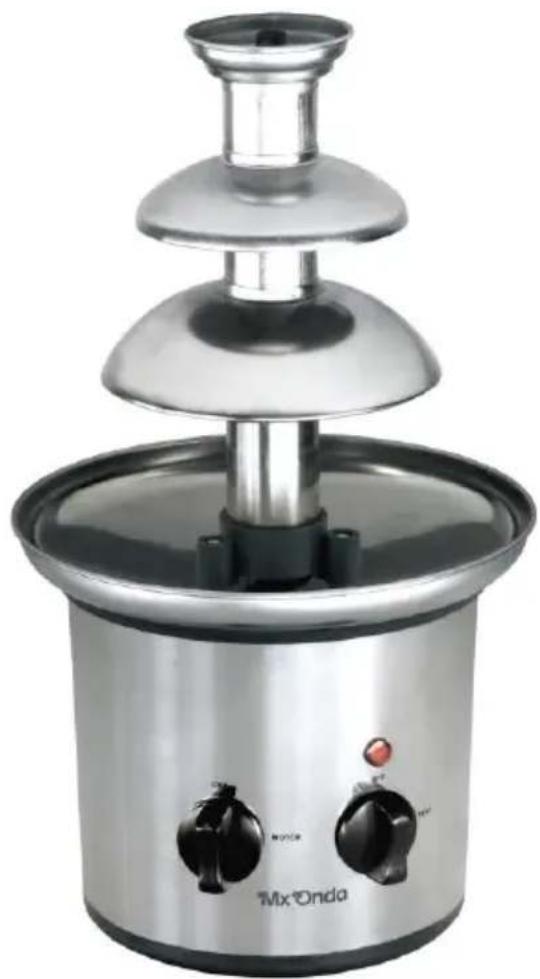

MANUAL DE INSTRUÇÕES
