ARPHON02 - Hair dryer ARDES - Free user manual and instructions

Product type	Hair dryer
Brand	Ardes
Model	ARPHON02
Power	2000 W (estimate)
Power supply	220-240 V ~ 50/60 Hz (estimate)
Number of speeds	2 (medium, high) + off
Number of temperatures	3 (low, medium, high)
Cool shot function	Yes, dedicated button
Accessories included	Air concentrator, diffuser
Intake filter	Removable and washable with clean water
Hanging loop	Yes
Power cord length	1.8 m (estimate)
Weight	0.5 kg (estimate)
Dimensions (L x W x H)	25 x 8 x 20 cm (estimate)
Use in bathroom	Not recommended near water
Child safety	Use by children over 8 under supervision
Recommended protection	Residual current device 30 mA
Cleaning	Damp cloth, no abrasives
Warranty	2 years
Filter maintenance	Wash with clean water, dry, reinstall
Protection class	II (double insulation, estimate)

Frequently Asked Questions - ARPHON02 ARDES

How do I clean the filter of my Ardes ARPHON02 hair dryer?

Unplug the device and let it cool down. Remove the intake filter, wash it with clean water only, dry it thoroughly, then reinstall it.

What accessories are included with the ARPHON02?

The hair dryer comes with an air concentrator for targeted drying and a diffuser for adding volume to the hair.

How do I use the cool shot function?

While drying with hot air, press the cool shot button (3) to set the style. Release to return to the previous temperature.

Can I use the hair dryer in the shower or bathtub?

No. The appliance must never be used near a bathtub, shower, sink, or any container holding water.

What is the power of the ARPHON02?

The power is not explicitly stated in the manual, but a hair dryer of this category typically provides 2000 W.

How do I adjust the speed and temperature?

Use the speed switch (1) to choose between off, medium, or high flow. The temperature switch (2) allows you to select low, medium, or high temperature.

Is the power cord detachable?

No, the cord is fixed. Do not wrap it around the device when storing to avoid damage.

What should I do if the device stops working?

First check the outlet and cord. If the problem persists, contact an authorized service center. Do not open the device yourself.

Is the diffuser suitable for all hair types?

The diffuser is recommended for curly hair or for adding volume. Use it with a medium airflow and low temperature.

How do I maintain the device after use?

Unplug it and let it cool down. Clean it with a slightly damp cloth. Never immerse the appliance in water and do not use abrasive products.

USER MANUAL ARPHON02 ARDES

(IT) ISTRUZIONI PER L'USO
(EN) INSTRUCTIONS FOR USE
(FR) MODE D'EMPLOI
(DE) GEBRAUCHSANWEISUNG
(ES) INSTRUCCIONES PARA EL USO
(HU) HASZNÁLATI ÚTMUTATÓ
(RO) INSTRUCTIUNI DE UTILIZARE

ARPHON02

(IT) ASCIUGACAPELLI

(EN) HAIRDRAYER

Line drawing of a hair dryer with a hand holding a cord (no text or symbols)

Prohibition sign showing a showerhead spraying over water, with no text present.

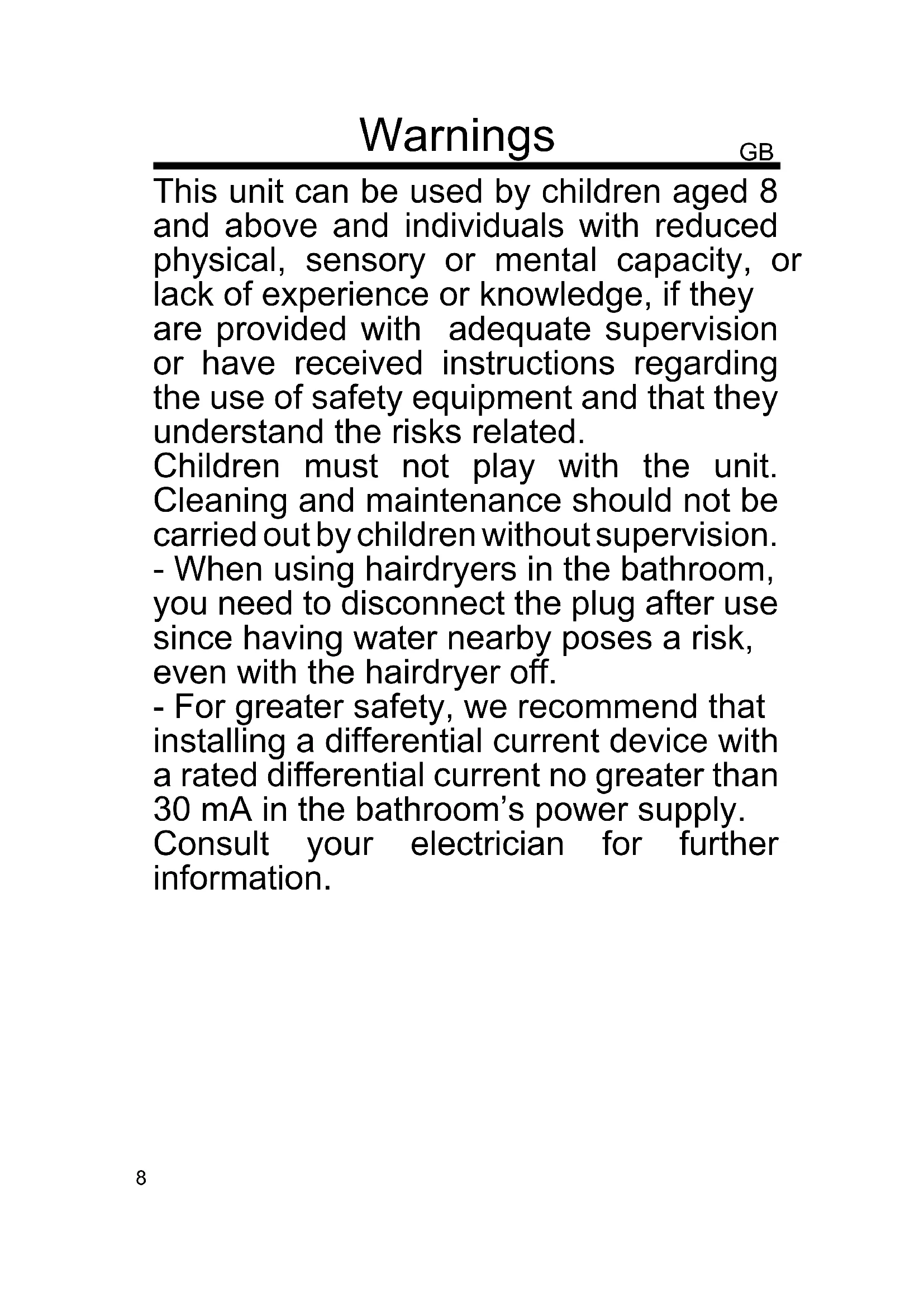

This unit can be used by children aged 8 and above and individuals with reduced physical, sensory or mental capacity, or lack of experience or knowledge, if they are provided with adequate supervision or have received instructions regarding the use of safety equipment and that they understand the risks related.

Children must not play with the unit. Cleaning and maintenance should not be carried out by children without supervision.

- When using hairdryers in the bathroom, you need to disconnect the plug after use since having water nearby poses a risk, even with the hairdryer off.

- For greater safety, we recommend that installing a differential current device with a rated differential current no greater than 30 mA in the bathroom's power supply.

Consult your electrician for further information.

Prohibition sign showing a showerhead spraying over water, with no text present

Do not use this appliance while bathing or in a shower.

WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer in order to prevent any risks.

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference.

Keep handy the guarantee, receipt of payment and these instructions for future use and reference.

After removing the packaging, check the appliance for any signs of damage.

In case of visible damage, do not use it and contact a qualified technician. Keep all parts of the packaging out of the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

If the plug and socket are not compatible, replace the socket with a suitable type, applying to skilled people.

Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

When you don't use the appliance disconnect it from the power supply and assure that the interruptor is off (position 0).

Do not tug on the power cable or the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires to respect of basic rules, namely:

- Never touch the appliance with wet or humid hands.

- Do not leave the appliance exposed to weathering (rain, sunlight).

- Do not subject it to rough handling.

The power cable should be extended to its full lenght to avoid over heating.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once.

Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide not to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

For safety reasons, the appliance should never be opened.

When is hot ,do not place the appliance directly upon any kind of surface.

The surface of the appliance surrounding the air outlet mouth may be hot.

Do not touch it or bring it close to your eyes. Always use the handle.

Do not obstruct the air inlets and keep them free of dust and hair.

Do not use hairspray while the appliance is in use.

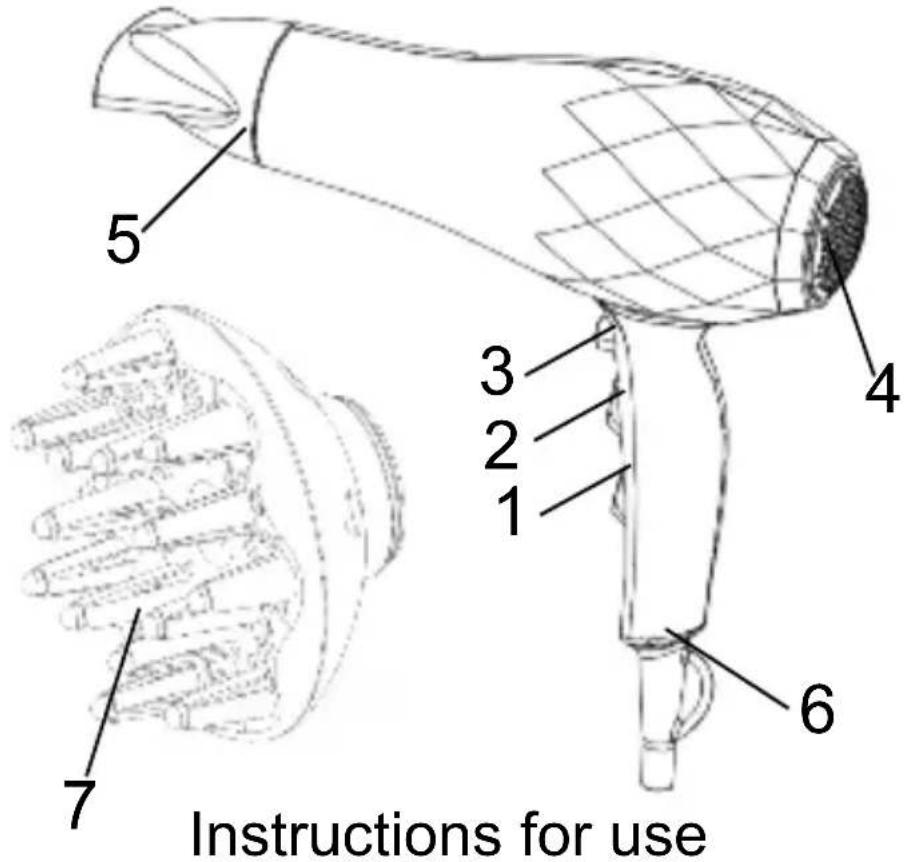

1 - Air flow speed control switch
2 - Temperature control switch
3 - Cold shot button
4 - Air inlet filter
5 - Air concentrator
6 - Hook
7 - Diffuser

Technical data indicated on the appliance.

5 3 2 1 4 6 7 Instructions for use

GB

The appliance has two separate switches for regulating the speed and air temperature.

1. Air flow switch:

x	x	0
Strong air flow Medium air flow		OFF

1. Temperature switch:

High temperature Medium temperature Low temperature

The appliance has a button (3) for a blast of cold air during hot air operation, used to fix the hairstyle.

Releasing the button returns to the previously set mode.

The concentrator (5) for directing the air flow on the hair and the diffuser (7 – to be used with medium air flow and low temperature) for giving the hair volume are supplied with the appliance.

To switch off the appliance, set the Air Flow Switch to "0".

Disconnect the plug after use.

WARNING:

• Let the appliance cool down before storing it.
• Do not wrap the power cord around the appliance.

Maintenance

GB

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasive products or chemical solvents.

Attention: keep dry the appliance.

NEVER DIP THE APPLIANCE INTO THE WATER.

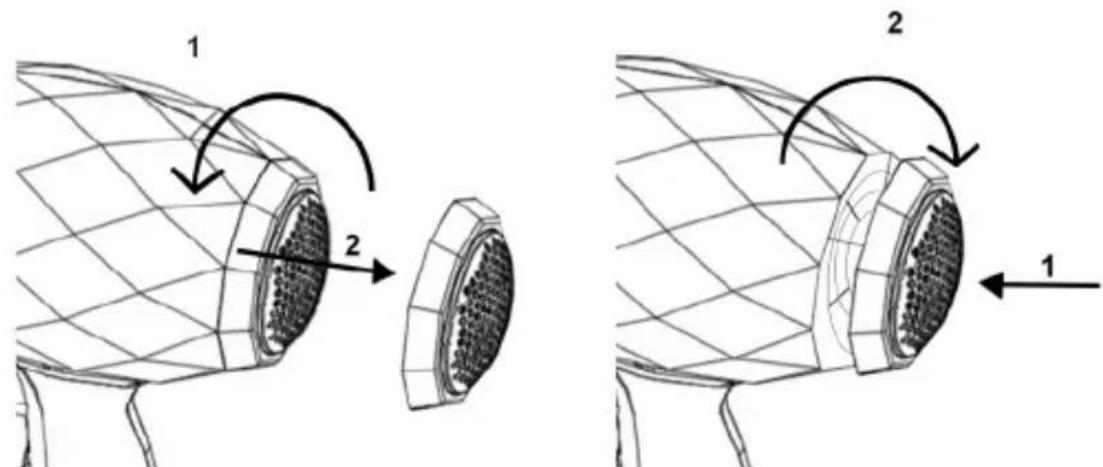

Cleaning the air inlet filter:

Make sure that the appliance is switched off and unplugged.

Remove the filter (Fig. A) and wash it with water only.

After carefully drying the filter, replace it correctly (Fig. B).

Technical diagram showing two views of a meshed cylindrical component with labeled parts and directional arrows indicating rotation or assembly.

FIG. A
FIG. B

PACKAGING

In order to respect the environment, packaging material must be disposed of properly in accordance with separate collection.

Check local regulations.

USER INFORMATION

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal.

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

GUARANTEE

GB

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

Prohibition sign showing a shower above water with no text or symbols

Prohibition sign showing a showerhead spraying over water, with no text present

Technical diagram showing two views of a meshed cylindrical component with labeled parts 1 and 2, likely illustrating a mechanical or structural assembly.

FIG. A
FIG. B

VERPACKUNG

Prohibition sign showing a showerhead spraying over water, with no text present

Technical diagram showing two views of a meshed cylindrical component with labeled parts and directional arrows indicating rotation or assembly.

FIG. A
FIG. B

EMBALAJE

Prohibition sign showing a showerhead spraying over water, with no text present

Technical diagram showing two views of a meshed component with labeled parts 1 and 2, likely illustrating a mechanical or structural assembly.

FIG. A
FIG. B

CSOMAGOLÁS

Prohibition sign showing a shower above water with no text or symbols

Technical diagram of a mechanical component with labeled parts 1 and 2, showing mesh structure and directional arrows.

FIG. B

AMBALARE
