USER MANUAL SRLCDMOUNT Tripp Lite

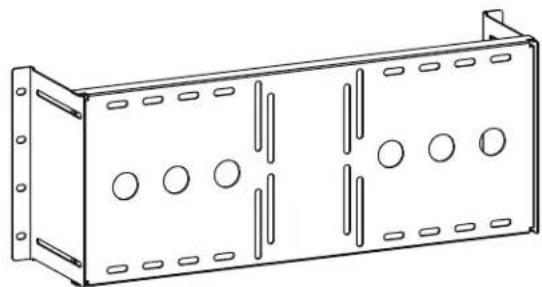

LCD Panel Fixed Mount for 19” Racks

Model: SRLCDMOUNT

Espanol 5 • Français 9 • Pycckn 13

Tripp Lite SRLCDMOUNT - LCD Panel Fixed Mount for 19” Racks - 1

Tripp Lite SRLCDMOUNT - LCD Panel Fixed Mount for 19” Racks - 2

75x75 / 100x100 /

100x150

Tripp Lite SRLCDMOUNT - LCD Panel Fixed Mount for 19” Racks - 3

For INSIDE

Rack Installations

Tripp Lite SRLCDMOUNT - LCD Panel Fixed Mount for 19” Racks - 4

For OUTSIDE

Rack Installations

Without Doors

Tripp Lite SRLCDMOUNT - LCD Panel Fixed Mount for 19” Racks - 5

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.triplite.com/warranty

Tripp Lite SRLCDMOUNT - PROTECT YOUR INVESTMENT! - 1

Tripp Lite SRLCDMOUNT - PROTECT YOUR INVESTMENT! - 2

Tripp Lite SRLCDMOUNT - PROTECT YOUR INVESTMENT! - 3

Tripp Lite SRLCDMOUNT - PROTECT YOUR INVESTMENT! - 4

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

Important Safety Instructions

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

  • Do not begin the installation until you have read and understood the instructions and warnings contained in this guide. If you have any questions regarding any of the instructions or warnings, please visit www.triplite.com/support.
    This mounting bracket was designed to be installed and utilized ONLY as specified in this guide. Improper installation of this product may cause damage or serious injury.
    This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
  • Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
  • Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
  • Tighten screws firmly, but do not over-tighten. Over-tightening can damage the items, greatly reducing their holding power.
  • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty & Product Registration

5-Year Limited Warranty

Sell warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTYES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTIBILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

  • No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Component Checklist

IMPORTANT: Ensure all parts according to the component checklist have been received prior to installation. If any parts are missing or faulty, visit www.triplite.com/support for service.

Tripp Lite SRLCDMOUNT - Component Checklist - 1
LCD Mounting Plate (x1)

Tripp Lite SRLCDMOUNT - Component Checklist - 2

Tripp Lite SRLCDMOUNT - Component Checklist - 3

Tripp Lite SRLCDMOUNT - Component Checklist - 4

Tripp Lite SRLCDMOUNT - Component Checklist - 5
M6x16 (x8)Rack BrackM6(x2)pM6 Cage Washer (x8)
Nuts (x8)

Tripp Lite SRLCDMOUNT - Component Checklist - 6
M5x10 (x8) M5 Flat

Tripp Lite SRLCDMOUNT - Component Checklist - 7
Washer (x8)

Installation

Tripp Lite SRLCDMOUNT - Installation - 1

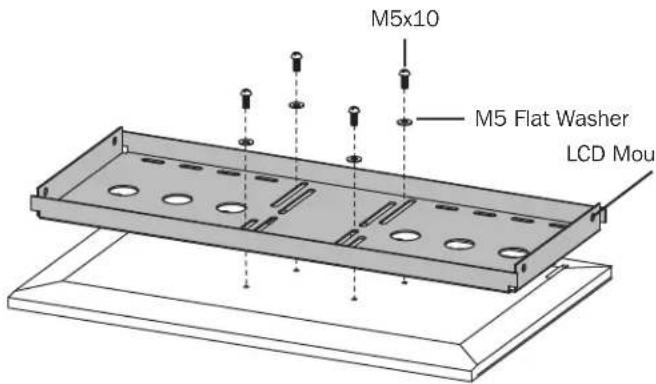

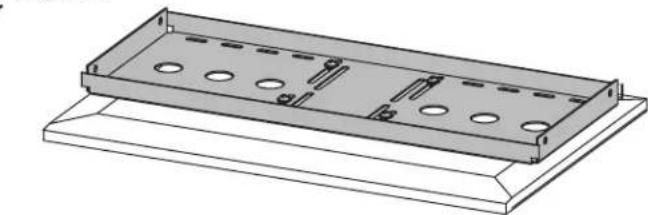

Attach LCD Mounting Plate to LCD Panel

Tripp Lite SRLCDMOUNT - Installation - 2

Tripp Lite SRLCDMOUNT - Installation - 3

Tripp Lite SRLCDMOUNT - Installation - 4

Tripp Lite SRLCDMOUNT - Installation - 5

Tripp Lite SRLCDMOUNT - Installation - 6

Installation

Tripp Lite SRLCDMOUNT - Installation - 1

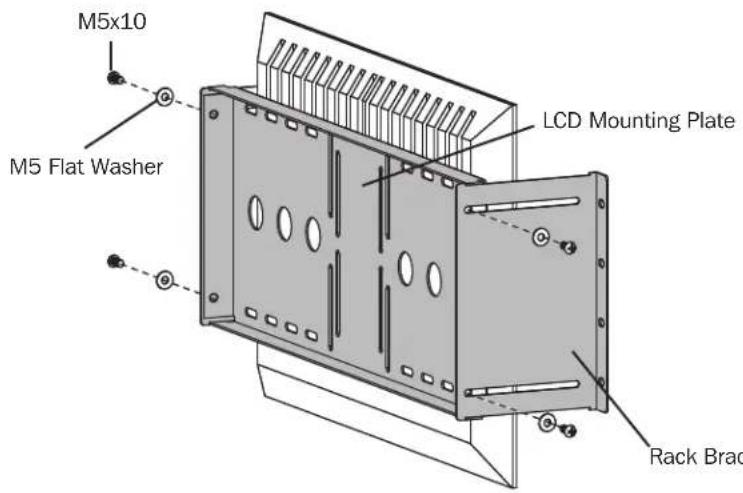

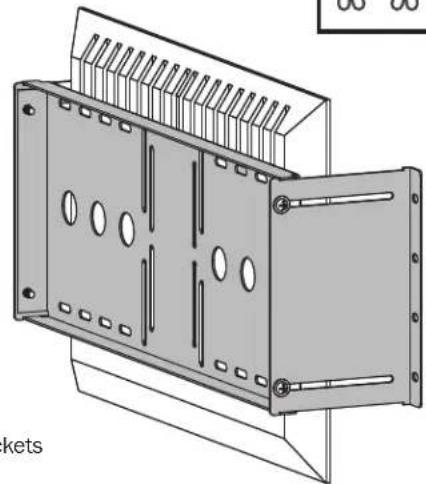

2 Attach Rack Brackets to LCD Mounting Plate

Tripp Lite SRLCDMOUNT - Installation - 2

Tripp Lite SRLCDMOUNT - Installation - 3

Tripp Lite SRLCDMOUNT - Installation - 4

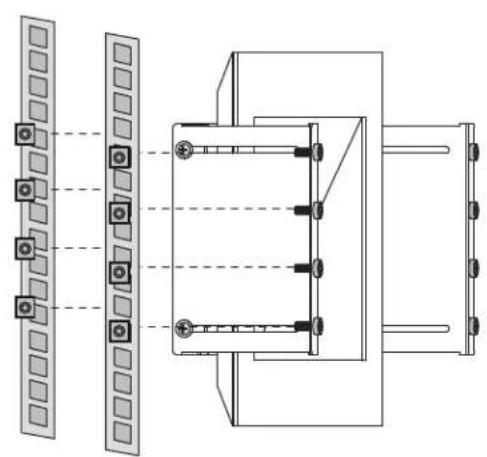

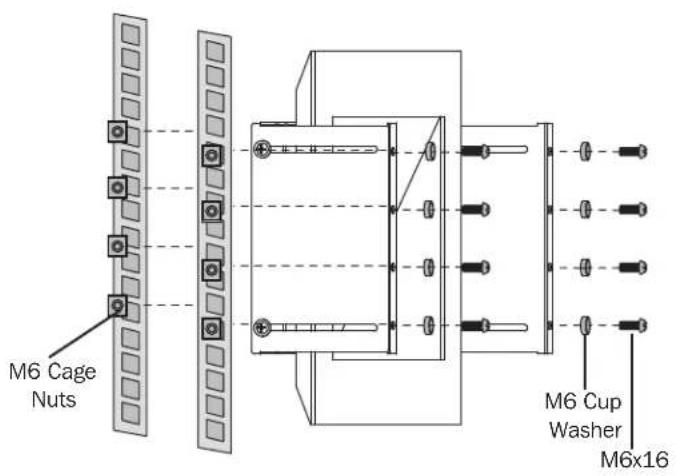

3 Attach Assembly and LCD Panel to Rack

Tripp Lite SRLCDMOUNT - Installation - 5

Maintenance

  • Check that the bracket is secure and safe to use at regular intervals (at least every three months).
  • Please visit www.triplite.com/support if you have any questions.

Tripp Lite SRLCDMOUNT - Maintenance - 1

Tripp Lite SRLCDMOUNT - Maintenance - 2

1111 W. 35th Street, Chicago, IL 60609 USA · www.triplite.com/support

Guía de Instalación

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

OxpaHareTcABTOPCKIM npabOM 2018 Tripp Lite. Pepeneuatka zanpeuaetca.

Baxhhie yka3aHnno texHnke 6e30nacHOCTN

PIMUEAHHE. Neped Hauanom yctaHOBKn i cboPKM MOyTHB NHMaTeNbHO n3uyte BCE pa3dEby pykoBocCTBa.

Tripp Lite SRLCDMOUNT - Baxhhie yka3aHnno texHnke 6e30nacHOCTN - 1

BHIMAHNE

He naHnHaTe yctaHOBky do Tex nop, noka He 03NaKOMITcB co BcEMN yka3aHnA Mn I npdynpexdeHnMn, nIIOKeHHbIMn HacToaMe pykoBOcCTBe, n He noiMete nx Cmblc. B clyae Bo3HKnHObeHn y Bac KaKx-JIn6o BOpocob OTHOCHTbHo IIObix Yka3aHn IIN npdynpexdHn nprrnaaem Bac nocetntb CTpaHnuy www.triplite.com/support.
3TOT MOHTAXHbIK POKHITeIH NPeDHa3HauHcENIy yCTaHOBKN INCIOJIb3OBAHnraTOJbKO B COOTBEcTBn C yka3AHnMn, INIOXeHHbIMN B HACTOUIEM pyKOBoDCBe. HenpaBnJIbHnA yCTaHOBKa DaHHORMOyJRA MoKet pINBecTN K pInuHHeHNO MaTePnAJIbHO rO yIep6a INI CyIeCTBeHHOrO BpeDa 3dOpOBbIIOJeI.
- YctahOBKa DaHHoro I3dEINNA DOJNKA HPOIN3BOOHTBC TOJIbKO CNEUANCTOM CDOCTaTOHNO TexNHueCKO KBAIINPKAUNe N 6a30BbIMN HABbIKAMN CTPOITbCTBa, B NOHHO MEpe NOHMauoUM CMBCL INHOFOPMaUN, IN3IOXeHHO B HAcTOraIeM pyKOBODCTBE.
- Y6eIITcB TOM, YTO ONOPHAR IOBepXHOCTb C 3aIacom BbIDepKNT cymMapHyIO HArpy3KY, co3daBaemyIO O6OpyIOBaHHeM IN BCEMN BXOJIAUMN B KOMIINEKT DeTJIAMM OCHACTKN IpyIMM KOMIOHEHTAMN.
- ⅡIa630nachoro noJbema nHaJIeXaUero pa3MeueHnro o6OpyObaHnro 68a3aTeJbHO 6paauTecb 3a nomoubno nIN nonb3yntecb MExAHueckmN rpy3oNoDbemHbIMn cpeCTBaMn.
BnHt b cneIyET 3aTnBaTb nIoTHo, Ho He nepeTnBaHx. NepTeRnBaHne KpEnKhbx BNHTOB MOkET npNBecTN NOBpeXdHIO 3JeMeHTOB, TTO 3NaHTeNbHO yXuDnT npOuHcT kpeJIeHnA.
- DAnHoe n3dennne npedHa3NaHeo nIa IcNoJIb3OBAHn ToIbKo B 3akpbIbIX NOMEeHNx. IcNoJIb3OBAHn DaHHoro n3dEINr Ha OTKpbITOM BO3dyX MoKeT npBecnK eero BbIXOy n3CTPOI IN pUInHeHIO Bpea 3doOpOBIOIHOe.
