USER MANUAL U261001BT5 Tripp Lite

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Copyright © 2022 Tripp Lite. All rights reserved.

Product Features

• Compliant with Bluetooth 5.0 LE+EDR Class 2
• Adds Bluetooth wireless capabilities to a laptop or desktop computer's USB port
• Wirelessly communicates with Bluetooth 5.0-enabled printers, tablets, smartphones, headsets, keyboards/mice and more
• Backwards compatible with Bluetooth 4.0, 3.0, 2.0, 1.2 and 1.1 devices
• Wireless range of up to 50 m (165 ft.)
• Support for Enhanced Data Rate (EDR) up to 3 Mbps
• Connects to up to 7 devices at the same time
• Built-in security protects your communication pairing, encryption and authentication
• Low-profile design blends in with your computer; no need to unplug from your device when traveling
• Ultra-low power consumption

System Requirements

• USB-enabled computer with available USB-A port
• Windows® 8.x/10/11, Linux

Package Includes

U261-001-BT5
- Quick Start Guide

Installation and Pairing

1. Download the driver files from the U261-001-BT5 product page on the Tripp Lite website (tripplite.com).
2. Follow the prompts to install the driver.
3. Restart your computer after successfully installing the driver.

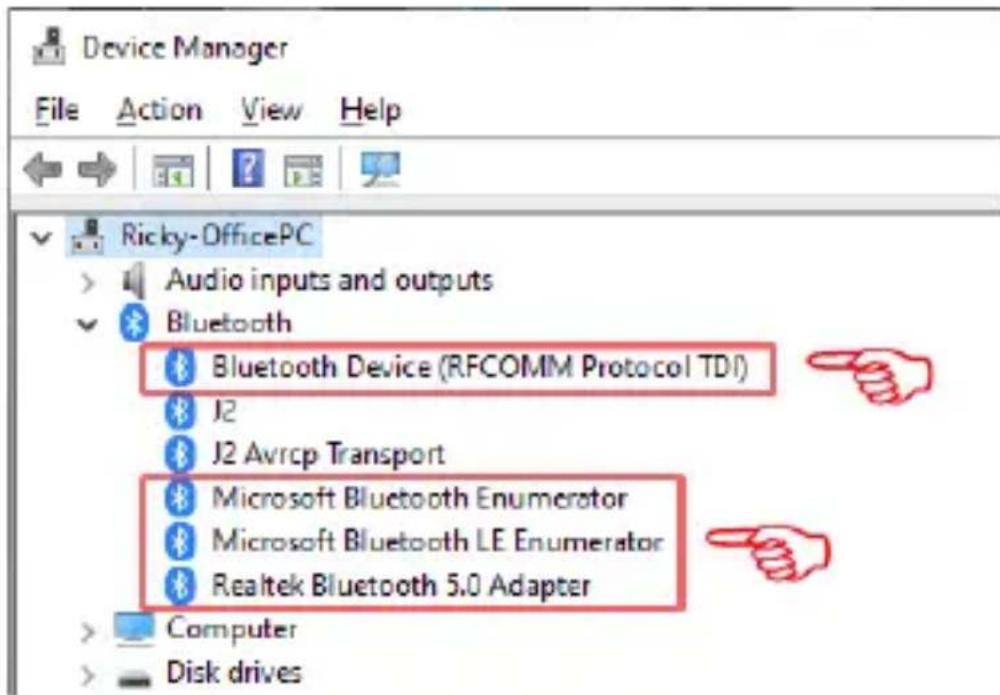

4. After restarting, go to your computer's Device Manager. Ensure the following devices are installed.

1. Go to Settings - Bluetooth & Other Devices.
2. Select the Bluetooth device that you wish to pair.

Specifications

Input USB-A (Male)
Output Bluetooth
Color Black
Material Steel, PVC
Unit Dimensions(H x W x D)	0.25 x 0.54 x 0.74 in. / 0.63 x 1.38 x 1.50 cm
Unit Weight 0.01 lb. (2 g)
Data Transfer Rates 3 Mbps
Frequency 2.402-2.48 GHz
Input Power 5V (USB power)
Signal Range 164 ft. (50 m)
Power Consumption (Watts)	0.35W
BTU's 1.2 BTU/Hr
Bluetooth Version 5.0
Operating Temperature Range	32° to 122°F(0° to 50°C)
Storage Temperature Range	-4° to 158°F(-20° to 70°C)
Relative Humidity 20%	to 90% RH, Non-Condensing
Certifications CE, FCC, RoHS, REACH
Warranty	3 Years

Warranty and Product Registration

3-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of three (3) years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.) WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Warranty and Product Registration

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warranty and Product Registration

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA

triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

KpaTKoe pyKOBoIDCTBO NOIb30BaTeJIa

USB-aДaПТeР Mini Bluetooth 5.0 (Class 2)

Mодель: U261-001-BT5

English 1 • Espanol 9 • Français 17 • Deutsch 33

1111 W. 35th Street, Chicago, IL 60609 USA

triplite.com/support

Oxpanyetca ABTopcIM npaBOM © 2022 Tripp Lite. Iepeneutka zanpeuaetca.

XapakTepnCTnKn n3dennia

• CootBetCTByeT Tpe6ObaHnIaM cTaHapTa Bluetooth 5.0 LE+EDR Class 2
  Pacunparet yHKnOHaJ USB-nopTa hactoBHO nIIN nopTaTUBHOro KOMbIOTepa 3a cuet DOIOHNTEbHO B03MOXHOCTN 6ecnpoBOdHOI nepedau nn daHHbIX uepe3 INTEpfeic Bluetooth
• 06ecneuBaet B3aHMoJeCTBHe c npHTepaMn, PnaHseTaMn, CmapTfoHaMn, raphNtypaMn, KlaBNaTypaMn/MbIaMaN IN dpyRIMN yctpoiCTBaMn, OchaueHHbIMN MoDyJem Bluetooth 5.0
• 06paTHo COBMeCTnM CyCTpOiCTBaMn, OCHaUeHHbIMN MoDyJIaMn Bluetooth Bepcni 4.0, 3.0, 2.0, 1.2 n 1.1
  06ecneuBaet 6ecnpoBOnHyI nepeaay daHbIX ha pacctOarHne do 50 M
• ПордерхиBaet поьшенист корости посяпданьixdo3M6nt/c
  -ПодклюаетсяК7устpoиCTBaM OДНоврЕмнHO
  BcTpoEHbIe yHKuIM oecneueHn 6e3oNaChOCTN 3aunuaOT npouceCbI copjKeHn nap, ufoPoBaHn daHHbIX n ayTeHTnfoKaun
  Hn3KoIpoΦnIbHa KOnCTpyKcIy aIaITepa N03B0JIeT emy opraHnUHO BnncbIBaTbcR B Dn3aH KOMNbIOTepa, YTO IckJIIOuAeT Heo6XoIMMoCTb erO n3BHeueHn Ha BpeM nepeBO3Kn
  Cbepxmaanar noTpe6nemam MOHoctb

TapaHTnHbIe 06aTeJIbCTBa

BHIMAHHE! Do nayana nCnoJb3OBAHnJa daHHoro yCTpoiCTBa noJb3oBaTeNb doJxKeH y6eIITbcra B TOM, qTO OHO YBJIaETcra npiroDhbIM, COOTBeTCTByIOUmm IIN 6e30NaChbIM dIy npednonaraemoro npimHeHHa. B CBa3n c 6oJbShm pa3Hoo6pa3nem KOHKpeTHbIX npimHeHH npoN3BOdntelb He daet KaKHX-1n60 3aBepeHHu IIN rapaHTn OTHCNTeBJHO npiroDHOCTn DaHHbIX N3deJIu IJIa KaKOrO-1n60 KOHKpeTHoro npimHeHH uII INX COOTBeTCTBnA KaKIM-1n60 KOHKpeTHbIM Tpe6OBaHHaM.

TapaHTHbIe 06aTeIbCTBa

Информаця по Вьлоченю Требовий Дуpeктувы WEEE张家界notkaynepepa6otukob npodukuni kompanuH Tripp Lite (Явлиошихся рezиendeTamMu Ebponeckoro co103a)

Cornacno noIooKeHnM DnpeKtNBbI 06 yTuIN3aunn OTxOIOB
JNeKtpuueckoro n JNeKtpoHHoro o6OpydoBaHna (WEEE) n
NcNoHNHeJIbHbIX paCnopJxKeHn Ioo ee npImeHnIO, pni NOKynke
NOTpe6nteMaHn HOBO rNeKtpuueckoro nn JNeKtpoHHoro o6OpydoBaHna
PpOn3BODCTBa KOMpaHnn Tripp Lite OHn nonUyaIOT npaBO Ha:

• Празусторо обopyдовая по пиниу "ODIN 3a OIN" n/ни Н ЗКВИBAJIENTHО OCHOBE (B 3aBICMOCTN OT KOHKpeTHOCTpaHbl)
• OtnpaBky HOBoro obopydobAHna Ha nepepa60kny nocne okOHaTeIbHOB Bbypa60kno erO pecypca

He pekomeHdyetc nCnoB30BaHne daHHoro 6OpydoBaHn B CnCTeMax K nepe6oM B pa6Ote 6OpydoBaHn Kn3Heo6ecneueHn Nn B 3HaHTeHn Mepe CHN3NTb ero 6e30NaCHocTb nn EeKTHBHOCTb.

KoMaHnra Tripp Lite noctoHHo coBepueHCTByeT cBOIO npOdyKun. B cBa3n C 3TMM BO3MOxHO u3MeHeHne TexHuecknx XapaKTepnCTNK 6e3 ppeBapntelbHorO yBeOMJIeHnRA. BHeuHn BvI peaJbHbIX u3DeJIM MOKeT HeCKoJbKO OTnUaTbcr O T ppeCTaBLeHHoro Ha fOTorpaqnx n UllIOCTpaunax.
