USER MANUAL ESV243C1WAI ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

1. SAFETY INSTRUCTIONS

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

1.2 Installation and Use

WARNING!

Risk of suffocation, injury or permanent disability.

• Contact an authorised installer for installation of this unit.
• Contact an authorised service technician for repair or maintenance of this unit.
• The socket outlet required to supply power must be connected and commissioned by a licenced contractor.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Installation work must be performed in accordance with the national wiring standards and the electricity suppliers

service rules by authorised personnel only.

• If the unit is to be moved to another location or disposed of, only a suitably qualified person is permitted to undertake such work.
• If you notice an unusual situation, such as a burning smell, please switch off the power to the air conditioner and contact an Electrolux service agent. If this abnormal status continues the air conditioner may be damaged or even cause electric shock or fire.

- Do not operate the air conditioner with wet hands. This may cause electric shock.

- Do not damage or cut off the power cord or other wires. If this occurs, please have it repaired or replaced by an accredited technician.

- Do not connect this air conditioner to a multi outlet power board.

- Please switch off the power supply to the air conditioner if it is not to be used for an extended period. Otherwise, it will accumulate dust and may cause a fire.

- Before cleaning the air conditioner, please disconnect the power supply in order to eliminate the possibility of electric shock.

- The power supply should be matched with the air conditioner. Air conditioners provided with a supply cord should be connected directly to a power outlet with a suitable safety switch. Air conditioners that are hard wired must be connected to a suitable safety circuit breaker.

- Please ensure that the power supply to the air conditioner is stable and meets the requirements set out in the installation manual.

- Always ensure the product is installed with appropriate earthing.

- For safety, be sure to turn off the circuit breaker before performing any maintenance or cleaning or when the

product is not used for an extended period of time. Accumulated dust may cause fire or electric shock.

- Select the most appropriate temperature. It can save electricity.

- Do not keep windows and doors open for a long time during operation. It will result in insufficient performance.

- Do not block the air inlet or outlet. It will result in insufficient performance and cause malfunctions.

- Keep combustible materials away from the units at least 1 meter. It may cause fire.

- Do not step on the top of the outdoor unit or place heavy things on it. It may cause damage or injury.

- Do not attempt to repair the air conditioner by yourself. Incorrect repairs may cause electric shock or fire. Please contact your local authorised service centre.

- Do not insert your hands or objects into the air inlet or outlet. It may cause injury.

- Do not expose animals or plants directly to the airflow.

- Do not use the unit for any other purpose, such as preserving food or drying clothes.

- Do not splash water on the air conditioner. It may cause electric shock or malfunction.

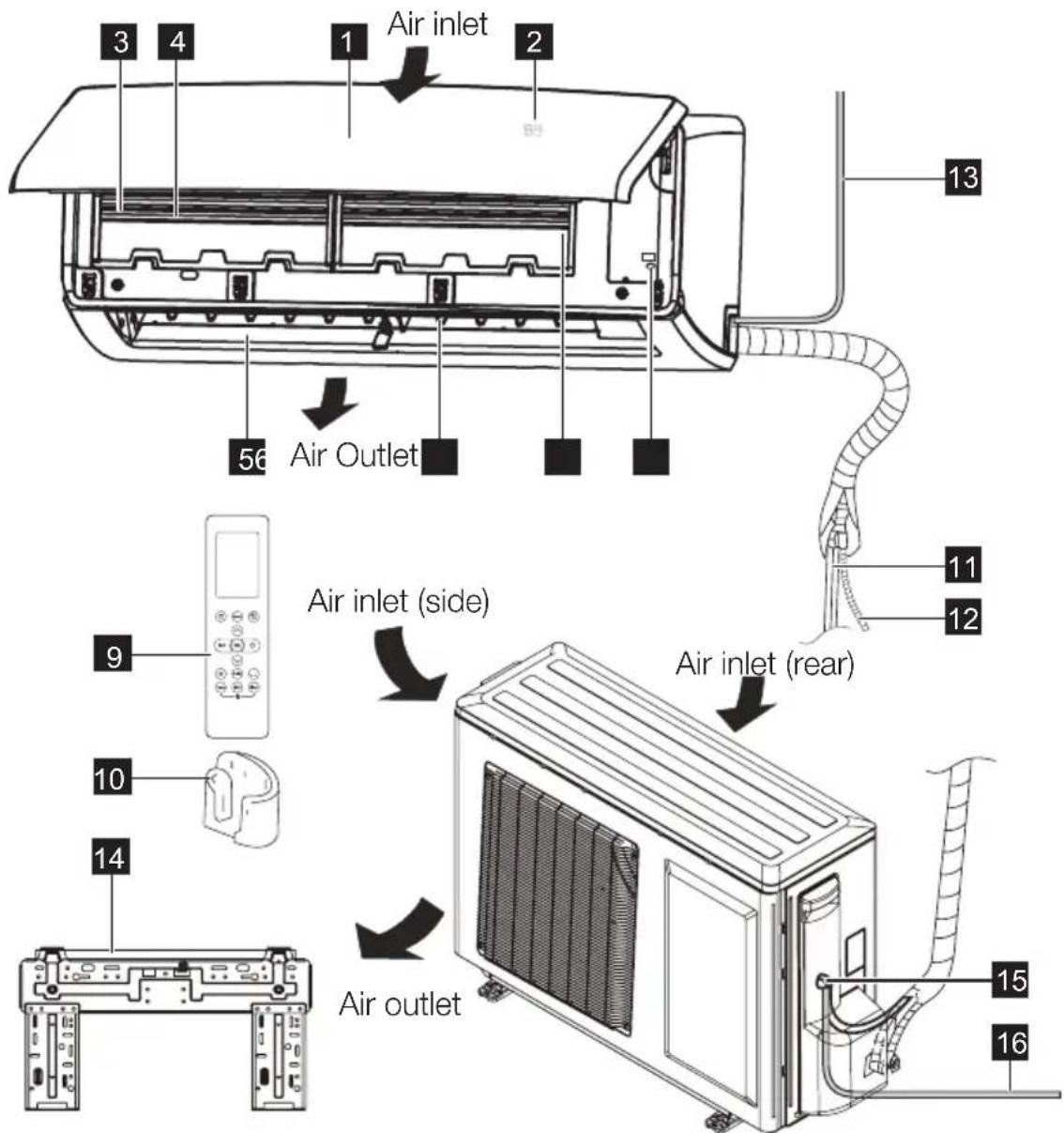

2. PRODUCT DESCRIPTION

All the pictures in this manual are for explanation purposes only. The actual shape of the indoor unit you purchased may be slight different on front panel and display window. The actual shape shall prevail.

Air inlet 3 4 1 2 56 Air Outlet 13 11 12 9 Air inlet (side) 10 14 Air inlet (rear) 15 16

1 Front panel
2 Digital display
3 Air filter
4 Pre-dust filter
5 Horizontal air flow louver
6 Vertical air flow louver (inside)
7 Manual control button
8 Ion generator (if applicable)

9 Remote controller
10 Remote controller Holder (some units)
11 Refrigerant pipe
12 Drain hose
13 Power cable (some units)
14 Mounting plate
15 Connecting cable
16 Power cable (some units)

3. INDOOR UNIT DISPLAY

1 2 88

4. REMOTE CONTROLLER

4.1 How to use the Remote controller

1. Keep the remote controller where its signal can reach the receiver of the indoor unit.
2. When operate the air conditioner, make sure the remote controller is pointing to the signal receiver of the indoor unit.
3. When the remote controller sends out a signal, the symbol will blink in the display of the remote controller.
4. The indoor unit will acknowledge the signal with a beep sound when it receives the signal from the remote controller.
5. Please press the button of the remote controller and resend the signal if you did not hear a beep sound from the indoor unit.

1 TEMPERATURE indication lamp

• Displays the setting or room temperature when the unit is operational.
• Displays the malfunction code when fault occurs.
• Displays the feature code when some feature is activated.

2 Wireless indication lamp (optional)

- Lights up when Wireless feature is activated.

\*\*Feature code in indoor unit display

"ON" Displays for 3 seconds when Timer on is set or the feature Swing, Turbo or Quiet is turned on.

"OF" Displays for 3 seconds when Timer off is set or the feature Swing, Turbo or Quiet is turned off.

“cF” Displays when anti-cold air feature is turned on.

“df” Displays when unit is in defrosting.

“” Displays when Self Clean feature is turned on (Inverter split type). Displays when unit is in self-cleaning (Fixed-speed type).

“FP” Displays when 8°C heating feature is turned on (some units).

• The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit.
• Prevent any liquid from falling into the remote controller. Do not expose the remote controller to direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner may not function properly. Use curtains to prevent the receiver being exposed to sunlight.
• If other electrical appliances react to the remote controller, either move these appliances or consult your local dealer.

4.2 Location of the Remote Controller

Max. 8m

• Keep the remote controller where its signal can reach the receiver of the indoor unit (a maximum distance of 8 m is allowed).
• When the remote controller sends out a signal, the symbol will blink on the display. The indoor unit will acknowledge the signal with a beep sound when it receives an effective signal.

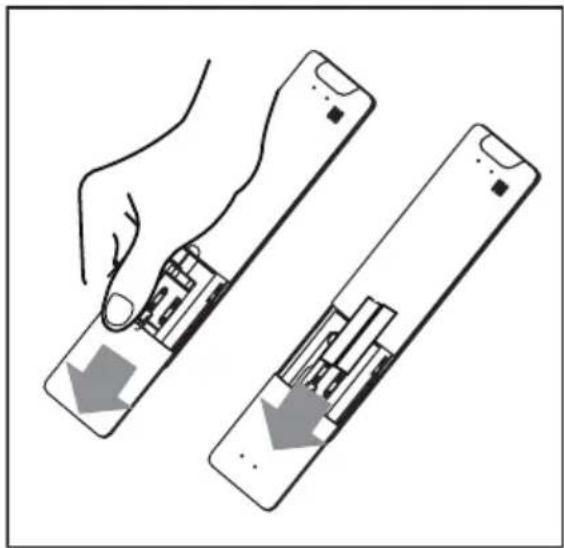

4.3 Battery installation/replacement

Illustration of a hand holding two remote control devices with gray arrows indicating movement or change (no text or symbols present)

• Remove the back cover from the remote controller, exposing the battery compartment and insert two new alkaline dry batteries (2x AAA 1.5 Volt). Make sure that the polarity of (+) or (-) is installed correctly.
• Slide the battery compartment cover back on.

• When changing batteries, do not use old or varied ones, otherwise, it may cause problems with the remote controller.
• If the remote controller is not used for a long time, remove the batteries as old batteries may leak or corrode and damage the remote controller.
• The battery life during normal use is about six months.
• If the remote controller does not operate normally, please remove and refit the batteries. If abnormal operation continues, replace with new batteries.

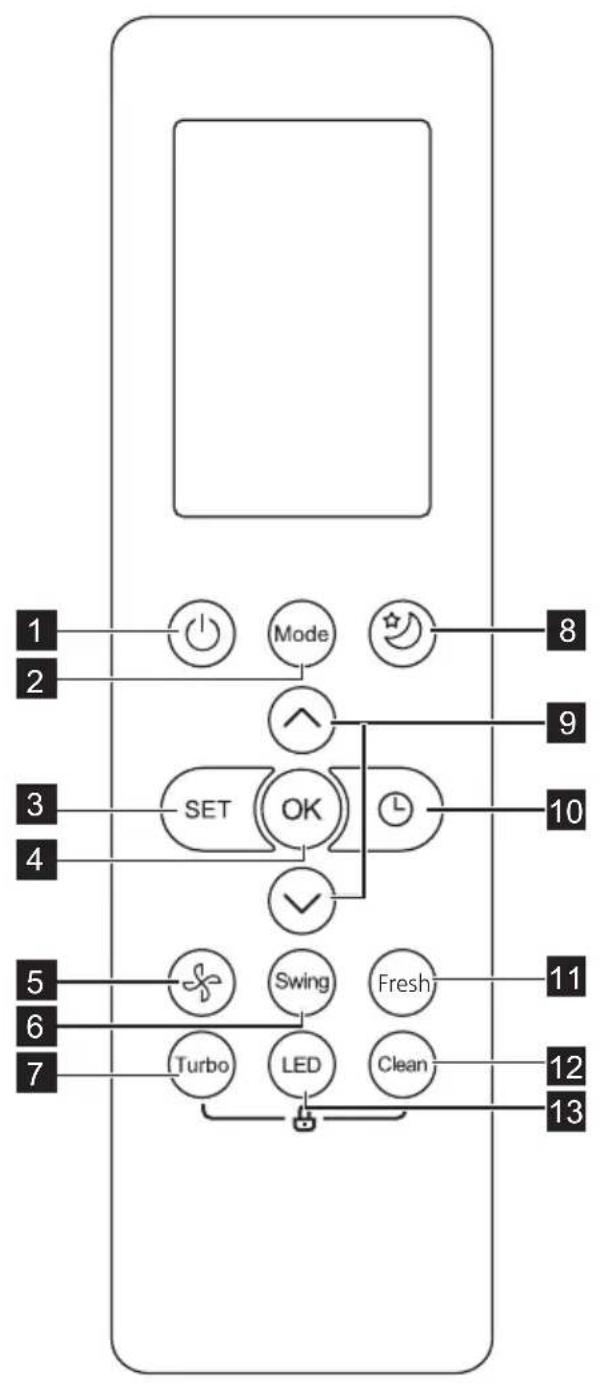

5. REMOTE CONTROLLER DESCRIPTION


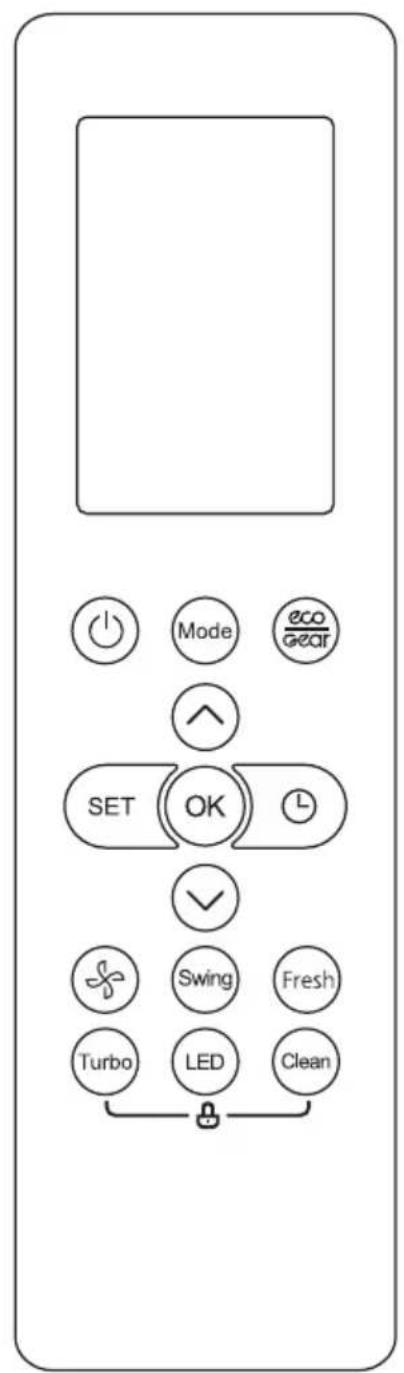

Type A

8 Mode eco gear SET OK 11 ✓ Swing Turbo LED Clean

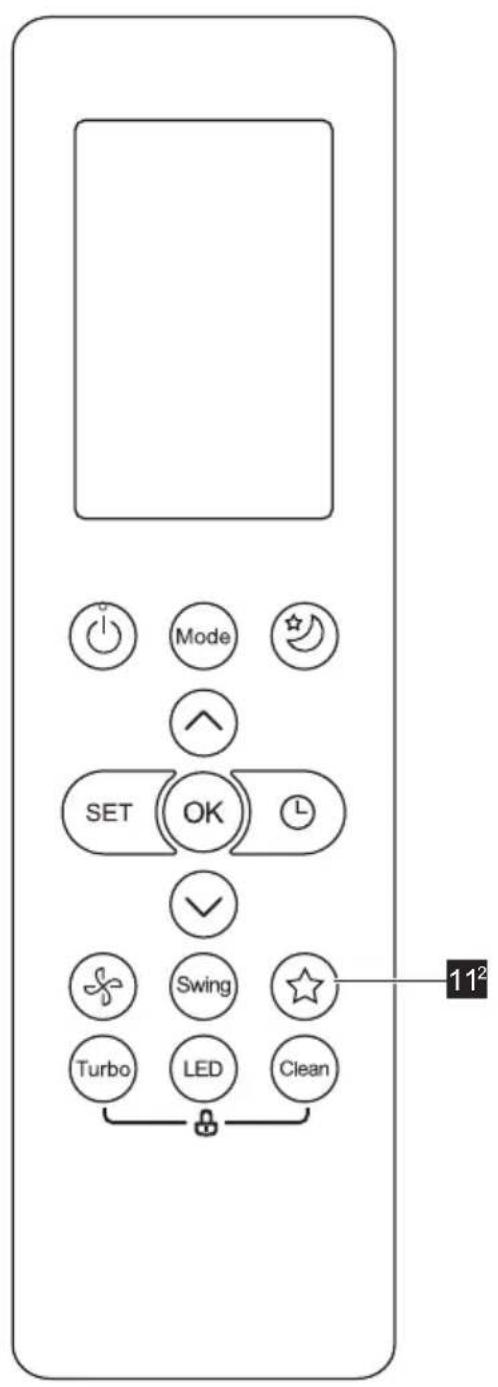

Type B

Mode SET OK ✓ Swing Turbo LED Clean 11²

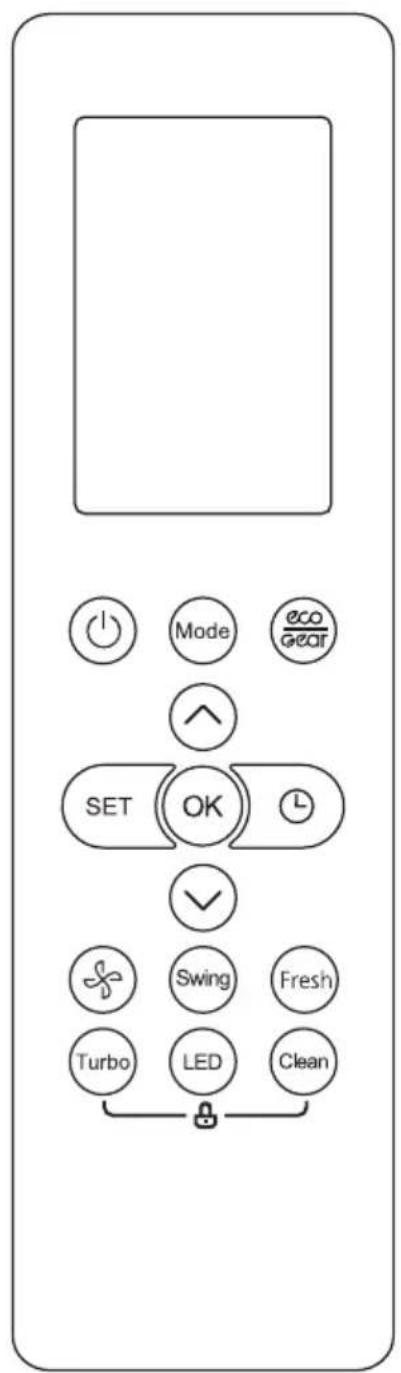

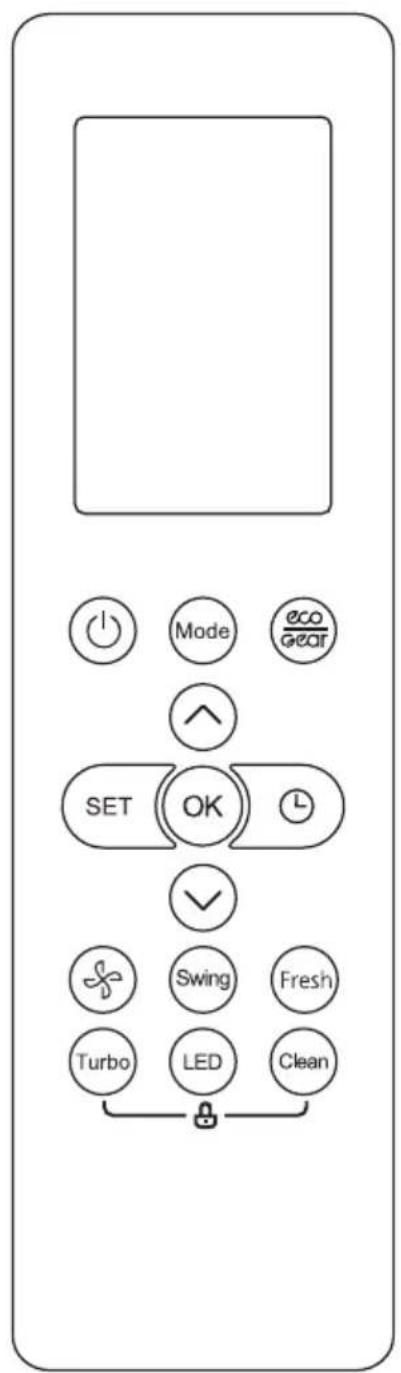

Type C

Mode eco Gear SET OK ✓ Swing Fresh Turbo LED Clean

Type D

23 24 26 728 9 AUTO COOL DRY HEAT FAN SET TEMP. COO GEAR ON 8.8.8 °C OFF AUTO AUTO 20 2

1. ON/OFF BUTTON

Press the button to switch on or off the unit

2. MODE BUTTON

Press the button to set the operation mode: AUTO, COOL, DRY, HEAT and FAN. Default setting: AUTO.

AUTOHEATCOOLFANDRY

• For Cooling only models, there is no HEAT mode available.
• In AUTO mode, user can still set desired temperature.

3. SET BUTTON

Press the button to select some advance functions.

The select function symbol will flash on the display, press OK button to confirm it.

See section "How to use the remote controller" for the SET function description

in details.

4. OK BUTTON

press the button to confirm the function you chosen in SET function.

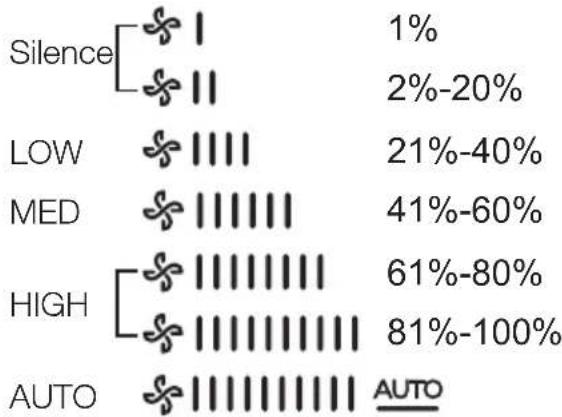

5. FAN BUTTON

Press the button to set the fan speed: AUTO, LOW, MEDIUM and HIGH. Default setting: AUTO. In the AUTO and DRY mode, fan speed can not be set.

- For some models, there have no fan speed values showed between AU-100%.

6. SWING BUTTON

Press the button to stop or start vertical louver movement or set the desired left/right air flow direction.

Press the button more than 2 seconds to stop or start horizontal louver auto swing feature.

Default setting: OFF.

7. TURBO BUTTON

In COOL or HEAT mode, press the button to enable or disable the turbo function. If the turbo function is enabled, the unit will operate at turbo speed to cool or heat rapidly so that the ambient temperature approaches the set temperature as soon as possible.

8. SLEEP BUTTON

Press the button to enable or disable Sleep function. If the Sleep function is enabled, the Sleep symbol "💡" will be shown. Default setting: OFF.

8 ^1 . ECO/GEAR BUTTON

Press the button to activate the ECO or GEAR energy efficient mode.

9. TEMP BUTTON

Press the button to increase/decrease the temperature. Keep the button pressed for two seconds to accelerate the process.

Temperature range: 16-30°C (60-86°F).

Temperature range (30-36K models): 17-30°C (62-86°F).

Temperature range (UAE models): 20-28°C (68-82°F).

In Timer function, use the button to set the timer adjustment.

10. TIMER BUTTON

Press the button to set the timer function for switching on/off the unit.

See section "How to use the remote controller" for the Timer function description in details.

11. FRESH BUTTON

Press the button to enable/disable the fresh function. Default setting: OFF.

11 ^1 . BREEZE AWAY BUTTON

Press the button to enable the Breeze Away function. Default setting: OFF.

11 ^2 . SHORT CUT BUTTON

Press the button to enable Short cut function.

12. SELF CLEAN BUTTON

Press the button to enable/disable the self clean function. Default setting: OFF.

13. LED BUTTON

Press the button to switch the display of the indoor unit on or off. Default setting: ON.

14. MODE DISPLAY

Displays the current selected mode. Including AUTO, COOL, DRY, HEAT and FAN.

15. TRANSMISSION INDICATOR

Displays when the remote controller transmits signals to the indoor unit.

16. TIMER-ON DISPLAY

Displays when the Timer-On function is enabled.

17. TIMER-OFF DISPLAY

Displays when the Timer-Off function is enabled.

18. FAN SPEED DISPLAY

Displays the selected fan speed: AUTO, LOW, MED and HIGH. When AUTO or DRY Mode is selected, the signal "AUTO" will be displayed.

19. QUIET DISPLAY

Displays when Quiet function is activated. The unit will run with the lowest fan speed.

20. SWING UP/DOWN DISPLAY (OPTIONAL)

Displays when Swing function is activated, display matched symbol if you select different up/down direction.

1. 3D SWING DISPLAY (OPTIONAL)

Displays when 3D Swing function is activated.

1. TURBO DISPLAY (OPTIONAL)

Displays when Turbo function is enabled.

1. BREEZE AWAY DISPLAY

Displays when Breeze Away function is enabled.

1. SELF CLEAN DISPLAY (OPTIONAL)

Displays when Self Clean function is enabled.

1. FRESH DISPLAY (OPTIONAL)

Displays when Fresh function is enabled.

1. SLEEP DISPLAY

Displays when Sleep function is enabled.

1. FOLLOW ME DISPLAY

Displays when Follow Me function is enabled.

1. WIRELESS CONTROL DISPLAY

Displays when Wireless Control function is enabled.

1. BATTERY DISPLAY

Displays the battery status, remind you to replace the battery.

1. ECO DISPLAY

Displays when Eco function is enabled.

1. GEAR DISPLAY

Displays when Gear function is enabled.

1. °C/°F DISPLAY

°C/°F can be switched by pressing ∧ and √button at the same time for 3 seconds.

- For some models, there have no this function.

1. LOCK DISPLAY

Displays when Lock function is enabled.

1. TEMPERATURE/TIMER/FAN SPEED DISPLAY

Displays the set temperature by default, or Fan speed or Timer setting when using Timer functions.

Timer setting range: 0-24 hours

Fan speed setting range: AU -100% (some models)

This display is blank when operating in FAN mode.

- See section "How to use the remote controller" for the functions description in details.

6. HOW TO USE THE REMOTE CONTROLLER

Ensure the unit is plugged in and power is available. The OPERATION indicator on the display panel of the indoor unit illuminates.

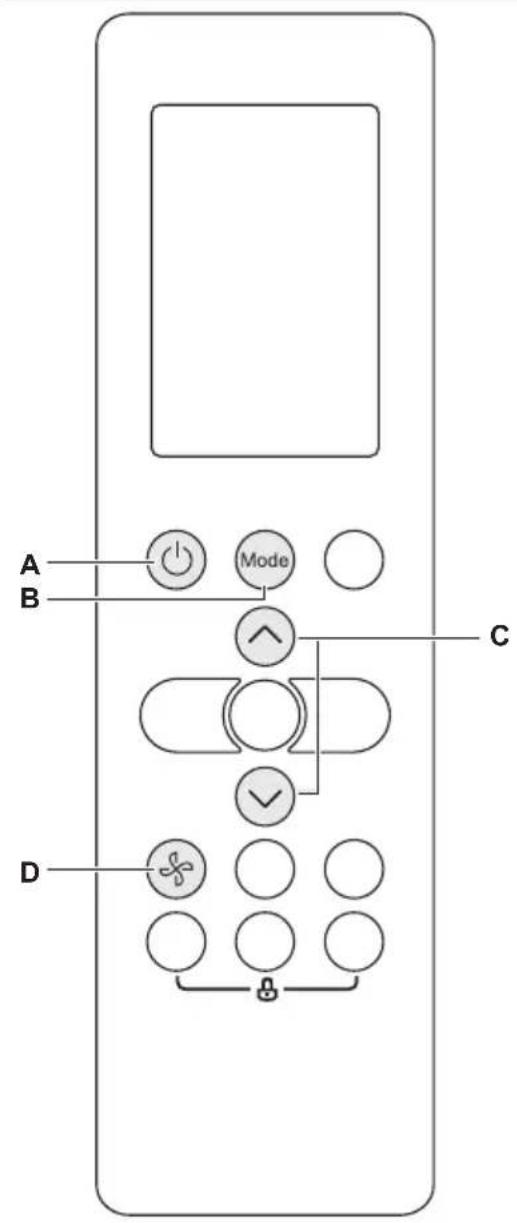

Basic Operation

A B Mode C D

1. Press the ON/OFF button (A) to start the air conditioner.

2. Press the MODE button (B) to select Auto, Cool, Dry, Fan or Heat mode.

3. Press the + / -button (C) to set the desired temperature. The temperature can be set in 1°C increments. Keep the button pressed for two seconds to accelerate the process.

4. Press the FAN SPEED button (D) to select the fan speed.

5. Press the ON/OFF button (A) to turn the air conditioner off.

- In the Auto mode, the air conditioner can logically choose the mode of Cool, Fan, and Heat by sensing the difference between the actual ambient room temperature and the set temperature on the remote controller.

- In the Auto and Dry mode, the fan speed can not be switched.

- In the Fan mode, you can not adjust the setting temperature.

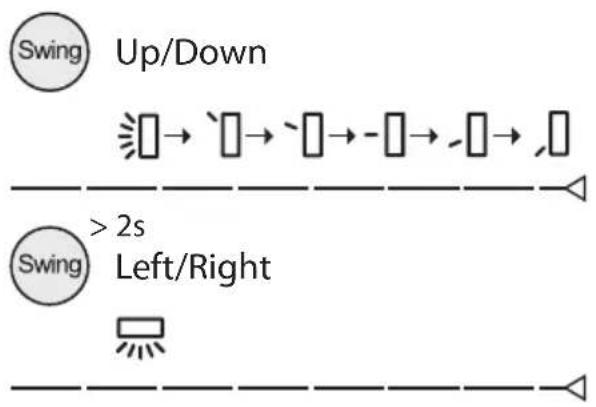

Swing Operation

Press the Swing button to adjust the desired airflow direction.

1. The horizontal louver will swing up and down automatically when pressing Swing button. Press again to make it stop.
2. Each time when you press the button, the louver moves with an angle. (For some models, there have no this function and the screen will not display the specify angle.)
3. If keep pressing more than 2 seconds, 3D swing function (Optional) is activated, the louver will swing left and right automatically. Keep pressing more than 2 seconds to make it stop.

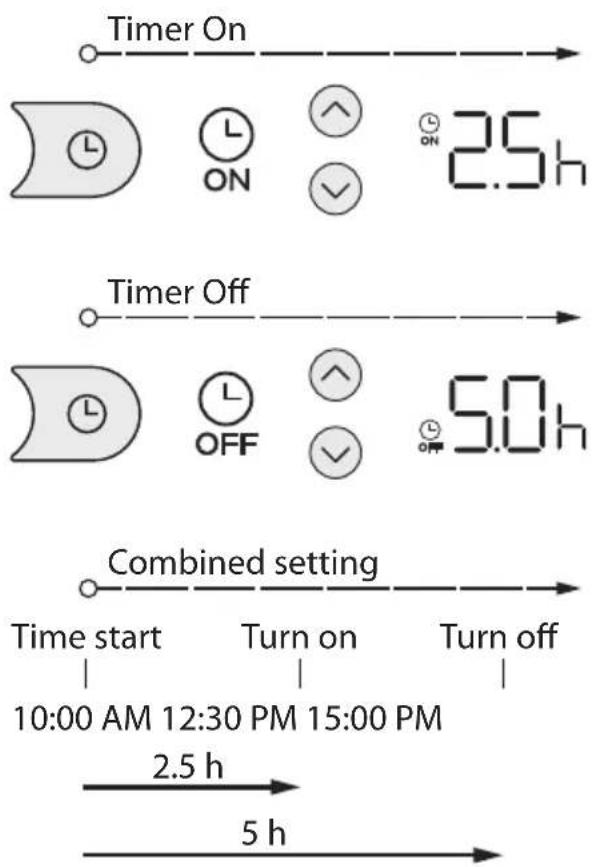

Timer Operation

Timer On ON 2.5 h Timer Off OFF 5.0 h Combined setting Time start Turn on Turn off 10:00 AM 12:30 PM 15:00 PM 2.5 h 5 h

Press the Timer button can set the auto-on time and the auto-off time of the unit.

Example of Timer on setting

1. Press the Timer button. The Timer on symbol and time will show on the display.
2. Press the ∧ or √ button to set desired Timer on time to turn on the unit after 2.5 hours.
3. Point the remote controller to indoor unit and wait 1 second, then the Timer on function will be activated. The digital display on your remote controller will then return to the temperature display. The Timer on indicator remains on and this function is activated.

Example of Timer off setting

1. Press the Timer button till the Timer off symbol and time show on the display.

2. Press the ∧ or √ button to set desired Timer off time to turn off the unit after 5 hours.

3. Point the remote controller to indoor unit and wait 1 second, then the Timer off function will be activated. The digital display on your remote controller will then return to the temperature display. The Timer off indicator remains on and this function is activated.

• When setting the Timer on or Timer off functions, up to 10 hours, the time will increase in 30 minute increments with each press. After 10 hours and up to 24, it will increase in 1 hour increments. The timer will revert to zero after 24 hours.
• You can cancel either function by setting its timer to "0.0h".

Exsample of Combined Timer setting

It is 10:00 AM and you want to start the air conditioner after 2.5 hours and stop it after 5 hours.

1. Follow the Timer on setting to set the turn on time to 2.5 hours.
2. Continue press the Timer button to set the turn off time to 5 hours.
3. Both the Timer on and Timer off indicators display on the remote controller, the combined Timer setting is activated.
4. Then the unit will turn on at 12:30 PM and turn off at 15:00 PM.

Advanced Functions Operations

ButtonDisplay

1. Turbo function (optional)

Press the Turbo button to enable or disable the turbo function. The Turbo function makes the unit work extra hard to reach your set temperature in the shortest time as soon as possible. When you need fast cool or heat, you can choose this function.

2. Self Clean function

Press the Clean button to activate the Self Clean feature, your unit will clean itself automatically. After cleaning, unit will turn off automatically. Airborne bacteria can grow in the moisture that condenses around heat exchanger in the unit. With regular use, most of this moisture is evaporated from the unit. You can use self clean feature as often as you like.

3. Quiet function

Press the Fan button for more than 2 seconds to enable or disable the Quiet function.

When in Quiet function, the fan will run in slowest speed. This function is aim to give you a comfortable low noise environment.

4. 8°C Heating function (optional)

When the air conditioner operates under heat mode with the temperature of minimum setting, press “√” button twice in one second will activate 8°C Heating function. The unit will operate at a setting temperature 8°C and the indoor unit display shows “FP”.

5. ECO/GEAR function (optional)

In Cool mode, press ECO/GEAR button to enter the energy efficient mode in a sequence as following:

ECO function: Under cooling mode, press the button, the remote controller will adjust the temperature automatically to 24^ C/ 75^ F, fan speed of Auto to save energy (only when the set temperature

is less than 24^ C/75°F). If the set temperature is above 24^ C/75°F, press the button, the fan speed will change to Auto, the set temperature will remain unchanged.

- Pressing the ECO button, or modifying the mode or adjusting the set temperature to less than 24^ C/ 75^ F will stop ECO operation.

- Under ECO operation, the set temperature should be 24°C/75°F or above, it may result in insufficient cooling. If you feel uncomfortable, just press the ECO button again to stop it.

GEAR function: Press the button to active the GEAR function, 75% means up to 75% electrical energy consumption and 50% means up to 50% electrical energy consumption.

- Under GEAR operation, the display on the remote controller will alternate between electrical energy consumption and set temperature.

6. Breeze Away function (optional)

Press the Breeze Away button to active the function. This feature avoids direct air flow blowing on the body and makes you feel indulging in silky coolness.

7. Fresh function (optional)

Press the Fresh button to active the Health function. When the function is initiated, the Ionizer/Plasma Dust Collector(depending on models) is energized and will help to clean the air. This function is recommended when the indoor air quality is in bad condition.

8. Sleep function

When you press the Sleep button, the economic running function will be activated, the set temperature will increase (cooling) or decrease (heating) by 1^ C( 2^ F) per hour over a 2 hour period. The final

temperature will then be maintained till further changes made by the user.

The SLEEP function is not available in FAN or DRY mode.

Set Tem. Cooling 1°C 1hour 1hour Set Tem. Heating 1°C 1hour 1hour

9. Follow Me function

Keep pressing Turbo button for more than 7 seconds to activate memory feature of Follow Me function. The Follow Me function enables the remote control to measure the temperature at its current location and send this signal to the air conditioner every 3 minutes interval. When using AUTO, COOL or HEAT modes, measuring ambient temperature from the remote controller (instead of from the indoor unit itself) will enable the air conditioner to optimize the temperature around you and ensure maximum comfort.

- If the memory feature is activated, "ON" displays for 3 seconds on the screen.

- Press the Set and OK buttons to inactivate the Follow Me feature, refer to Set function description for the details.

- If the memory feature is inactivated, "OF" displays for 3 seconds on the screen.

- While the memory feature is activated, press the ON/OFF button, shift the mode or power failure will not cancel the Follow me function.

10. Wireless function (optional)

Continuous pressing LED button 7 times in 10s, then enter the wireless binding status.

- Please refer to the "Quick Connection Guide" for the Wireless connection details.

11. Short Cut function (optional)

Press the Short cut button to enable or disable the Short cut function.

On the first time connecting to the power, if press the Short cut button, the unit will operate on AUTO mode, 26 °C, and fan speed is Auto.

Press this button when remote controller is on, the system will automatically revert back to the previous settings including operating mode, setting temperature, fan speed level and sleep feature (if activated).

If pressing more than 2 seconds, the system will automatically restore the current operation settings including operating mode, setting temperature, fan speed level and sleep feature (if activated).

12. Lock function

Press Turbo and Clean buttons at the same time for 5 seconds, you can lock the remote controller, and press Turbo and Clean buttons at the same time for 1 second to unlock it.

13. Set function

Press the Set button to enter the function selection, then press Set button or ∧ and ∨ button to select the desired function. The matched symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above.

- If your remote controller already has Breeze Away button, Fresh button or Sleep button, you can not use the SET button to select the Breeze Away, Fresh or Sleep feature.

7. HOW TO USE THE INDOOR UNIT

Vertical louver

1. Adjust the air flow direction properly otherwise it might cause discomfort or cause uneven room temperatures.
2. Adjust the horizontal louver using the remote controller.
3. Adjust the vertical louver using the remote controller.
4. Adjust the vertical louver manually (For models without 3D Swing function).

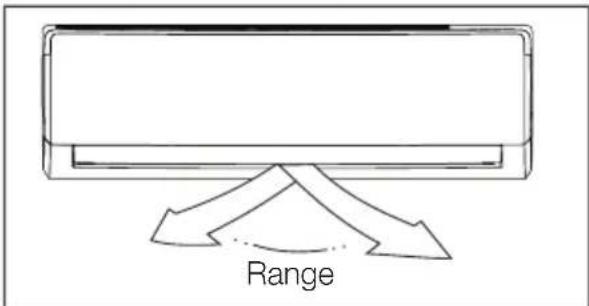

Range

To set the vertical air flow (Up - Down) direction

Perform this function while the unit is in operation. Use the remote controller to adjust the air flow direction. The horizontal louver can swing up and down automatically.

Range

To set the horizontal air flow direction (Left - Right)

Perform this function while the unit is in operation. Use the remote controller to adjust the air flow direction. The vertical louver can swing left and right automatically.

For models without 3D Swing function, you need to move the vertical louver manually to adjust the air flow in the direction you prefer.

WARNING!

• Do not operate the air conditioner for long periods with the air flow direction set downward in cool or dry mode. Otherwise, condensation may occur on the surface of the horizontal louver causing moisture to drop on to the floor or on furnishings.
• When the air conditioner is started immediately after it was stopped, the horizontal louver might not move for approximately 10 seconds. Louver in closed position.

IMPORTANT!

Do not put your fingers into the panel of blower and suction side. The high-speed fan inside may cause danger.

• Open angle of the horizontal louver should not be set too small, as COOLING or HEATING performance may be impaired due to too restricted air flow area.
• Do not move the horizontal louver manually, otherwise the horizontal louver will be out of sync. Please cease operating, unplug power for a few seconds, then restart the air conditioner.
• Do not operate unit with horizontal louver in closed position.

Operating temperature ranges
Model climate Type	Ambient temperature (Cooling)	Ambient temperature (Heating)
T1	18°C~43°C (Fixed speed) -7°C~24°C (Fixed speed)
	0°C~50°C (Inverter Type) -15°C~30°C (Inverter Type)
T3	18°C~52°C (Fixed speed) -7°C~24°C (Fixed speed)
	0°C~52°C (Inverter Type) -15°C~30°C (Inverter Type)

Important!

1. Optimum performance will be achieved within these operating temperatures. If air conditioner is used outside of the above conditions, certain safety protection features might come into operation and cause the unit to function abnormally.

2. If the air conditioner runs for a long time in cooling mode and the humidity is high, condensed water may drip out of the unit. Please sets the vertical air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.

Units are equipped with a switch to run emergency operation mode. It can be accessed by opening the front panel. This switch is used for manual operation in case the remote controller fails to work or maintenance necessary.

1. Open and lift the front panel up to an angle until it remains fixed with a clicking sound.

2. One press of the manual control switch will lead to the forced AUTO operation. If press the switch twice within five seconds, the unit will operate under forced COOL operation.

3. Close the panel firmly to its original position.

• The unit must be turned off before operating the manual control button. If the unit is operational, continue pressing the manual control button until the unit is off.
• This switch is used for testing purposes only. You had better not choose it.
  • To restore the remote controller operation, use the remote controller directly.

10. CLEANING AND MAINTENANCE

10.1 Before Maintenance

Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives.

WARNING!

Power supply must be disconnected before cleaning the indoor unit.

- A cloth dampened with cold water may be used on the indoor unit if it is very dirty. Then wipe it with a dry cloth.

- Do not use a chemically treated cloth or duster to clean the unit.

- Do not use benzine, thinner, polishing powder, or similar solvents for cleaning. These may cause the plastic surface to crack or deform.

- Never use water hotter than 40^ / 104^ to clean the front panel, it could cause deformation and discoloration.

10.2 Cleaning the Unit

Wipe the unit with a soft dry cloth only. If the unit is very dirty, wipe it with a cloth soaked in warm water.

10.3 Cleaning the Filters

A clogged air filter reduces the cooling efficiency of this unit. Please clean the filter once every 2 weeks.

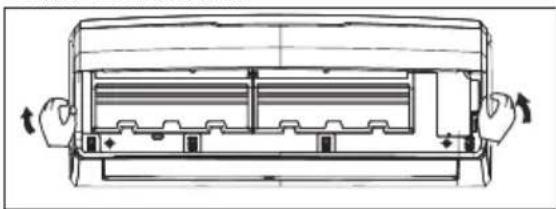

1. Lift the indoor unit front panel up to an angle until it stops with a full support from the bracket.

Technical line drawing of a car air conditioner unit with hands operating the panel (no text or symbols)

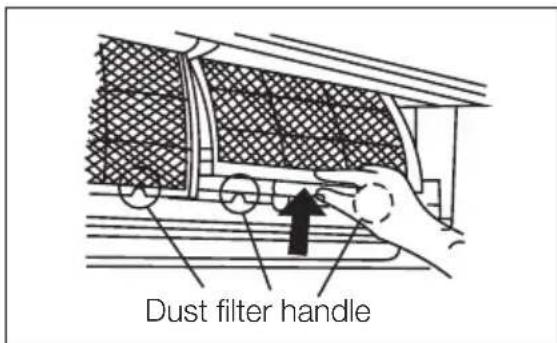

1. Hold the dust filter handle and lift it up slightly to take it out from the filter holder.

Dust filter handle

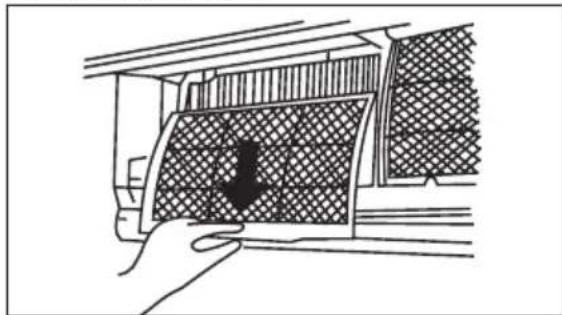

1. Then pull the dust filter downwards out of the indoor unit.

Line drawing of a hand holding a meshed panel with a black silhouette inside, no text or symbols present

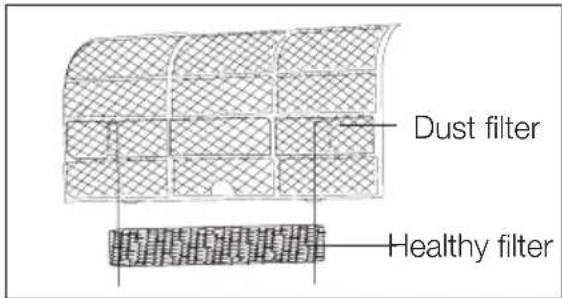

1. The healthy air freshening filter (if applicable) are fixed on the dust filter.

- Remove the healthy filter from the support frame of the dust filter.

Dust filter Healthy filter

- Clean the healthy filter at least every 3 months and replace every 6 months.

- Clean with vacuum cleaner if possible.

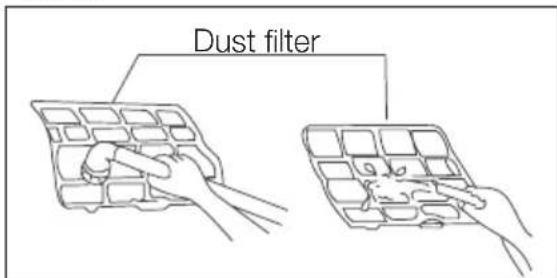

Clean the Dust filter with a vacuum cleaner or water, then dry it up in cool place.

Dust filter

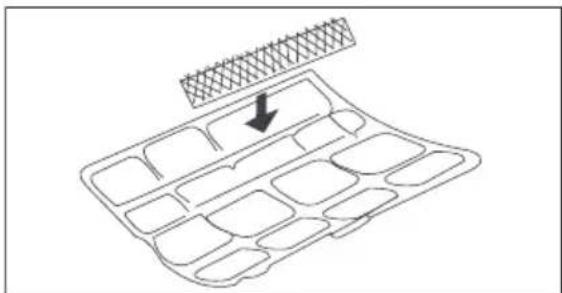

1. Install the air freshening filter back into position.

Diagram of a grid-like structure with an arrow pointing to a textured top layer (no text or symbols)

1. Insert the upper portion of air filter back into the unit, taking care that the left and right edges line up correctly and place filter into position.

Line drawing of a hand pressing down on a grid-patterned air vent (no text or symbols)

10.4 Cleaning the air outlet and the panel

1. Use a dry and soft cloth to wipe it.
2. Pure water or mild detergent may be used if it is very dirty.

WARNING!

• Do not use benzine, thinner, polishing powder, or similar solvents for cleaning. These may cause the surface to crack or deform.
  • To avoid the risk of electrical shock or fire, do not let water fall into the indoor unit.
• Never wipe the air flow louver violently.
• An air conditioner without air filter can not expel the dust out of the room, which would cause malfunctions by accumulation.

10.5 Replacement the filters

1. Remove the air filter.

2. Remove the air freshening filter.

3. Install a new air freshening filter.

4. Reinstall the air filter and securely close the front panel.

10.6 Preparation for extended non-operation

If you plan to idle the unit for a long time, perform the following:

1. Clean the indoor unit and filters.
2. Operate the fan for about half a day to dry the inside of the unit.
3. Stop the air conditioner and disconnect power.
4. Remove the batteries from the remote controller. The outdoor unit requires periodic maintenance and cleaning. Do not attempt to do this yourself. Contact your dealer or service provider.

10.7 Pre-season inspection

1. Check that the wiring is not broken off or disconnected.
2. Clean the indoor unit and filters.
3. Check that the air filter is installed.
4. Check if the air outlet or inlet is blocked after the air conditioner has not been used for a long time.

WARNING!

• Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges.
• Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.
• When cleaning the unit, first make sure that the power and circuit breaker are turned off.
• Do not wash air filter with hot water at more than 40^ C/104°F. Shake off moisture completely and dry it in the shade. Do not expose it directly to the sun, it may shrink.

The following events may occur during normal operation.

1. Protection of the air conditioner Compressor

- The compressor can't restart for 3-4 minutes after it stops.

2. Anti-cold air (Cooling and heating models only)

- The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached.

A) When heating has just started.
B) Defrosting.
C) Low temperature heating.

- The indoor or outdoor fan stop running when defrosting (Cooling and heating models only).

3. Defrosting (Cooling and heating models only)

• Frost may be generated on the outdoor unit during heat cycle when outdoor temperature is low and humidity is high resulting in lower heating efficiency of the air conditioner.
• During this condition air conditioner will stop heating operation and start defrosting automatically.
• The time to defrost may vary from 4 to 10 minutes according to the outdoor temperature and the amount of frost built up on the outdoor unit.

4. A white mist coming out from the indoor unit

• A white mist may generate due to a large temperature difference between air inlet and air outlet on COOL mode in an indoor environment that has a high relative humidity.
• A white mist may generate due to moisture generated from defrosting process when the air conditioner restarts in HEAT mode operation after defrosting.

5. Abnormal noise of the air conditioner

• You may hear a low hissing sound when the compressor is running or has just stopped running. It is the sound of the refrigerant flowing or coming to a stop.
• You can also hear a low “squeak” sound when the compressor is running or has just stopped running. This is caused by heat expansion and cold contraction of the plastic parts in the unit when the temperature is changing.
• A noise may be heard due to louver restoring to its original position when power is turned on.

6. Dust is blown out from the indoor unit

This is a normal condition when the air conditioner has not been used for a long time or during first use of the unit.

7. A peculiar smell comes out from the indoor unit

This is caused by the indoor unit giving off smells permeated from building material, from furniture, or smoke.

8. The air conditioner turns to FAN only mode from COOL or HEAT (For cooling and heating models only) mode

When indoor temperature reaches the temperature setting on air conditioner, the compressor will stop automatically, and the air conditioner turns to FAN only mode. The compressor will start again when the indoor temperature rises on COOL mode or falls on HEAT mode (For cooling and heating models only).

9. Insufficient Heat (For cooling and heating models only)

The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit during heating operation. When the outdoor temperature falls, heat drawn in by the

air conditioner decreases accordingly. At the same time, heat loading of the air conditioner increases due to larger difference between indoor and outdoor temperature. If a comfortable temperature can't be achieved by the air conditioner, we suggest you use a supplementary heating device.

10. Auto-restart function

- Power failure during operation will stop the unit completely.

- For the unit without Auto-restart feature, when the power restores, the OPERATION indicator on the indoor unit will flash for 1 second. To restart the operation, push the ON/OFF button on the remote controller. For the unit with Auto-restart feature, when the power restores, the unit restarts automatically with all the previous settings preserved by the memory function.

12. TROUBLESHOOTING

Trouble	OPERATION (RUN) indicator or other indicators continue flashing.	The unit may stop operation or continue to run in a safety condition(depending on models). Waiting for about 10 minutes, the fault may be recovered automatically, if not, disconnect the power and then connect it in again. If the problem still exists, disconnect the power and contact the nearest customer service center.
	If one of the following code appears on the display area:• E(x), P(x), F(x)• EH(xx), EL(xx), EC(xx)• PH(xx), PL(xx), PC(xx)
	Fuse blows frequently or circuit breaker trips frequently.	Stop the air conditioner immediately, disconnect the power and contact the nearest customer service center.
	Other objects or water fall into the air conditioner.
	Terrible odors are smelled or abnormal sounds are heard.

Malfunctions Cause What should be done?
Unit does not start	Power cut Wait for power to be restored.
	Unit may have become Unplugged.	Check that plug is securely in wall receptacle.
	Fuse may have blown. Replace the fuse.
	Battery in Remote controller may have been exhausted.	Replace the battery.
	The time you have set with timer is incorrect.	Wait or cancel timer setting.
Unit not cooling or heating (Cooling/heating models only) room very well while air flowing out from the air conditioner	Inappropriate temperature setting.	Set temperature correctly. For detailed method please refer to “HOW TO USE THE REMOTE CONTROLLER” section.
	Air filter is blocked. Clean the air filter.
	Doors or Windows are open. Close the doors or windows.
	Air inlet or outlet of indoor or outdoor unit has been blocked.	Clear obstructions away first, then restart the unit.
	Compressor 3 minutes protection has been activated.	Wait
If the trouble has not been corrected, please contact a local dealer or the nearest customer service center. Be sure to inform them of the detailed malfunctions and unit model number. Do not attempt to repair the unit yourself. Always consult an authorized service provider.

13. CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or man health from uncontrolled waste disposal, recycle it responsibly to promote the obtainable reuse of material resources. To return your used device, please use the return of collection systems or contact the retailer where the product was purchased. They take this product for environmental safe recycling.

www.electrolux.com/productregistration

8¹ Mode eco Gear SET OK 11¹ ✓ Swing Turbo LED Clean

Type B

Mode SET OK ✓ Swing Turbo LED Clean 11²

Type C

Mode eco gear SET OK ✓ Swing Fresh Turbo LED Clean

Type D

atmospheric en demand to minimize the purpose. Quiet.

بأقل سرعة.

SWING UP/DOWN .20

(اختياري)

Line drawing of a hand holding a textured rectangular object with a small black object inside (no text or symbols)

قلتر الغبار.

. 3 youth men trillion females who are

Diagram of a grid-like structure with an arrow pointing to a textured top layer (no text or symbols)

Hand placing a grid-patterned object into a car air vent (no text or symbols visible)

www.electrolux.com/productregistration

Illustration of a hand holding a remote control panel with two views showing internal components (no text or symbols)

8¹ Mode eco Gear SET OK 11¹ ✓ Swing Turbo LED Clean

Type B

Mode SET OK ✓ Swing Turbo LED Clean 11²

Type C

Mode eco Gear SET OK ✓ Swing Fresh Turbo LED Clean

Type D

23 24 26 728 9 AUTO COOL DRY HEAT FAN SET TEMP. COO GEAR MARCHE 8.8.8 °C ARRÊT 34 AUTO 20 2

1. TOUCHE MARCHE/ARRÊT

Volet vertical

Technical line drawing of a car air conditioner unit with hands operating the panel (no text or symbols)

Line drawing of a hand holding a meshed panel with a black silhouette inside, no text or symbols present

Diagram of a grid-like object with an arrow pointing to a textured top surface (no text or symbols)

Hand placing a grid-patterned panel with an upward arrow, no text or symbols visible

13. MISE AU REBUT CORRECTE DE CE PRODUIT

Repeating pattern of gray geometric shapes on white background, no text or symbols present
