USER MANUAL M320G LG

MFL71100201 (1.0) USER GUIDE FRANÇAISENGLISH LG-M320G www.lg.com/ca Copyright ©2018 LG Electronics, Inc. All Rights Reserved.1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use.

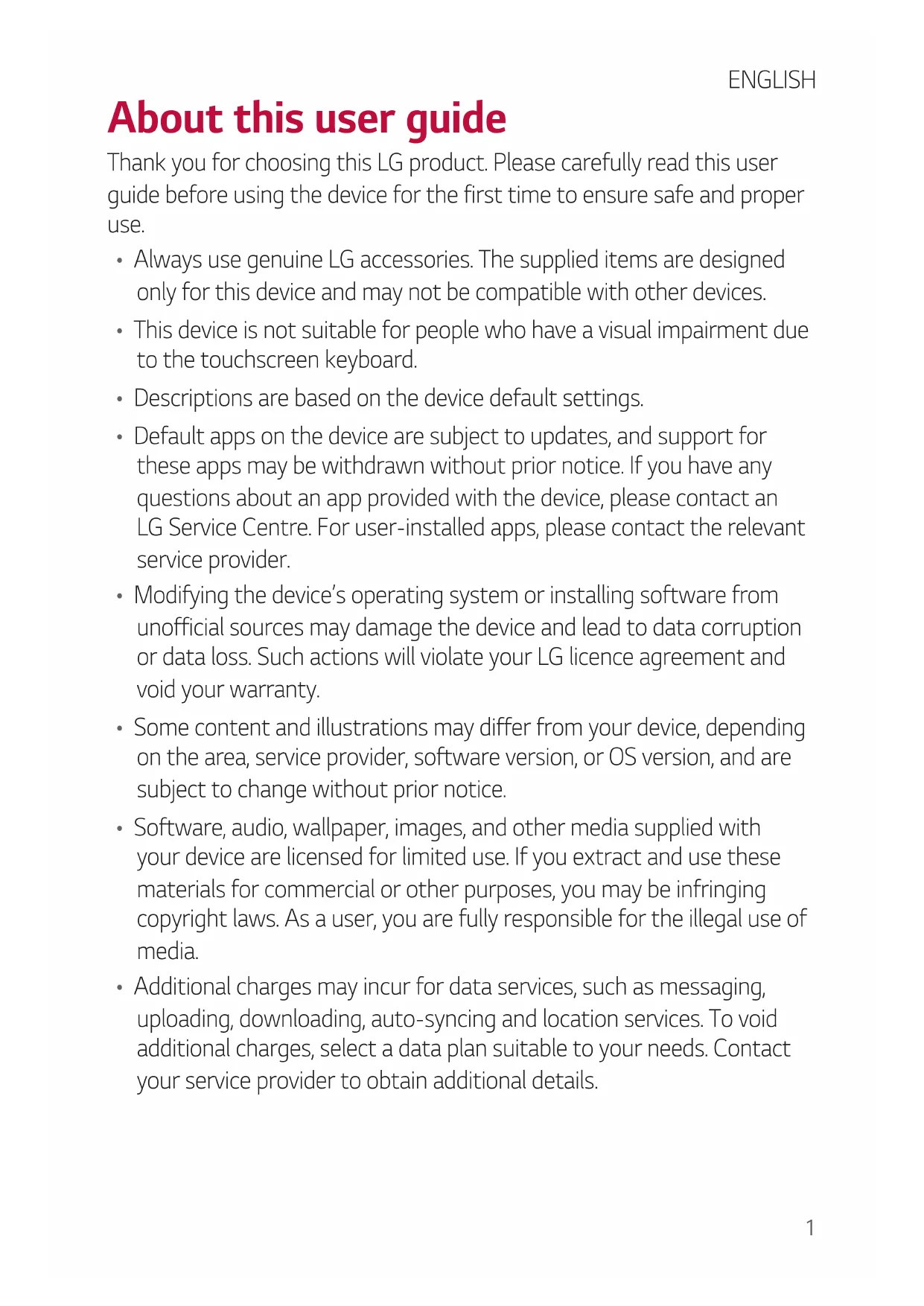

• Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices.

• This device is not suitable for people who have a visual impairment due to the touchscreen keyboard.

• Descriptions are based on the device default settings.

• Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Centre. For user-installed apps, please contact the relevant service provider.

• Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty.

• Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice.

• Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media.

• Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To void additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. ENGLISH2 Instructional notices

WARNING: Situations that could cause injury to the user and third parties.

CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information.3 Table of contents

Custom-designed Features 6 quick share 7 QuickMemo+ 10 Multi-tasking feature 11 QSlide

Basic Functions 13 Product components and accessories 14 Parts overview 16 Turning the power on or off 17 Installing the SIM card 19 Inserting the memory card 20 Removing the memory card 20 Charging the battery 22 Touch screen 26 Home screen 34 Screen lock 38 Memory card encryption 39 Taking screenshots 39 Do not disturb

Safety GuidelinesCustom-designed Features 01Custom-designed Features 6 quick share You can share a photo or video to the app you want immediately after taking it.

Tap the app icon that appears on the screen to share it using that app. You can also swipe the icon towards the opposite direction to see what other apps you can use to share your photos and videos. quick share icon

• The app displayed by the quick share icon may vary, depending on the type and frequency of access to the apps installed on the device.Custom-designed Features 7 QuickMemo+ QuickMemo+ overview You can make creative notes by using a variety of options on this advanced notepad feature, such as image management and screenshots, which are not supported by the conventional notepad. Creating a note

Tap to create a note.

: Enter a note by using the keypad.

: Write notes by hand.

: Zoom in or out, rotate or erase the parts of a handwritten note.

: Access additional options, including sharing and locking notes, changing the note pad style and inserting content.

Tap to save the note.Custom-designed Features 8 Writing notes on a photo

Tap to take a photo, then tap OK.

• The photo is automatically attached into the notepad.

Tap or to write notes on the photo.

• Write notes by hand on the photo.

Tap to save the note. Writing notes on a screenshot

While viewing the screen you want to capture, drag the status bar downwards and then tap

• The screenshot appears as the notepad background theme. Memo tools appear at the top of the screen.

Take notes as desired.

• Write notes by hand on the photo.

Tap and save the notes to the location you want.

• Saved notes can be viewed in either QuickMemo+ or Gallery.

• To save notes in the same location all the time, select the Use as default app checkbox and select an app.Custom-designed Features 9 Managing folders You can view notes grouped by the type of the notes.

At the top of the screen, tap and select a menu item:

• All memos: View all notes saved in QuickMemo+.

• My memos: View notes created by QuickMemo+.

• Photo memos: View notes created by

• Capture+: View notes created by

• Trash: View deleted notes.

: Rearrange, add or delete categories. To change the name of a category, tap the category.

• Some folders do not appear when launching QuickMemo+ for the first time. Disabled folders are enabled and appear when they contain at least one related note.Custom-designed Features 10 Multi-tasking feature Multi window You can use two apps at the same time by separating the screen into the multiple windows. While using an app, touch and hold from the Home touch buttons, then select an app from the recently used apps list.

• You can use two apps displayed on the main screen at the same time.

• To stop the Multi window feature, touch and hold

• You can use this feature in an app that supports the Multi window feature.

• The Multi window feature is not supported by some apps, including downloaded apps.Custom-designed Features 11 Overview screen The Overview screen provides a preview of your recently used apps. To view the list of recently used apps, tap on the Home, then tap the displayed app.

• Touch and hold an app and drag it to the top of the screen to start the app with the Multi window. You can also tap at the top of each app. QSlide You can start apps by using QSlide to use them while other apps are running. For example, use the calculator or calendar when a video is playing. When an app is running, tap QSlide.

• This feature may not be supported by some apps.

• : Turn off the QSlide mode to switch to full-screen mode.

: Adjust the opacity of the QSlide window. If the QSlide window is transparent, it will not respond to touch inputs.

: Adjust the size of the QSlide window.Basic Functions 02Basic Functions 13 Product components and accessories The following items are included with your device.

• The items described above may be optional.

• The items supplied with the device and any available accessories may vary depending on the area and service provider.

• Always use genuine LG Electronics accessories. Using accessories made by other manufacturers may affect your device's call performance or cause malfunctions. This may not be covered by LG's repair service.

• If any of these basic items are missing, contact the dealer from which you purchased your device.

• To purchase additional basic items, contact an LG Customer Service Centre.

• To purchase optional items, contact an LG Customer Service Centre for available dealers.

• Some items in the product box are subject to change without notice.

• The appearance and specifications of your device are subject to change without notice.

• Device specifications may vary depending on the area or service provider.

• Be sure to use authentic accessories provided by LG Electronics. Using third-party accessories may damage the device or cause malfunctions.Basic Functions 14 Parts overview Touch screen Microphone Proximity/Ambient light sensor Flash Front camera lens SIM/microSD card tray Earpiece Stereo headset jack Charger/USB cable port Power/Lock key Flash Speaker Rear camera lens Volume keys (+/-)Basic Functions 15

• Proximity/Ambient light sensor - Proximity sensor: During a call, the proximity sensor turns off the screen and disables touch functionality when the device is in close proximity to the human body. It turns the screen back on and enables touch functionality when the device is outside a specific range. - Ambient light sensor: The ambient light sensor analyzes the ambient light intensity when the auto-brightness control mode is turned on.

• Volume keys - Adjust the volume for ringtones, calls or notifications. - While using the Camera, gently press a Volume key to take a photo. To take continuous shots of photos, press and hold the Volume key. - Press the Volume Down (-) key twice to launch the Camera app when the screen is locked or turned off. Press the Volume Up (+) key twice to launch Capture+.

• Power/Lock key - Briefly press the key when you want to turn the screen on or off. - Press and hold the key when you want to select a power control option.

• This device has a non-removable battery. Do not attempt to remove the back cover.

• Some functions may be restricted for access, depending on the device specifications.

• Do not put heavy objects on the device or sit on it. Failure to do so may damage the touch screen.

• Screen-protective film or accessories may interfere with the proximity sensor.

• If your device is wet or is being used in a humid place, the touch screen or buttons may not function properly.Basic Functions 16 Turning the power on or off Turning the power on When the power is turned off, press and hold the Power/Lock key.

• When the device is turned on for the first time, initial configuration takes place. The first booting time for the smart phone may be longer than usual. Turning the power off Press and hold the Power/Lock key, then select Power off. Power control options Press and hold the Power/Lock key, then select an option.

• Power off: Turn off the device.

• Power off and restart: Restart the device.

• Turn on Airplane mode: Block telecommunication-related functions, including making phone calls, messaging and browsing the Internet. Other functions remain available.Basic Functions 17 Installing the SIM card Insert the SIM card provided by the device service provider to start using your device.

• Be careful with the ejection pin since it has a sharp edge.

• Do not insert a memory card into the SIM card slot. If a memory card happens to be lodged in the SIM card slot, take the device to an LG Service Centre to remove the memory card.

Insert the ejection pin into the hole on the card tray.

Pull out the card tray.Basic Functions 18

Put the SIM card on the card tray with the gold-coloured contacts facing downwards.

Insert the card tray back into the slot.

• This device supports only Nano SIM cards.

• For problem-free performance, it is recommended to use the phone with the correct type of SIM card. Always use a factory-made SIM card supplied by your service provider.

• If you insert the card tray into your device while the card tray is wet, your device may be damaged. Always make sure the card tray is dry. Precautions when using the SIM card

• Do not lose your SIM card. LG is not responsible for damage and other issues caused by loss or transfer of a SIM card.

• Be careful not to damage the SIM card when you insert or remove it.Basic Functions 19 Inserting the memory card The device supports up to a 2 TB microSD card. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.

• It is recommended to use exFAT file system when using external memory more than 32GB.

• Some memory cards may not be fully compatible with the device. If you use an incompatible card, it may damage the device or the memory card, or corrupt the data stored in it.

Insert the ejection pin into the hole on the card tray.

Pull out the card tray.

Put the memory card on the card tray with the gold-coloured contacts facing downwards. Memory card (optional) SIM card

• The memory card is an optional item and is sold separately.

• Frequent writing and erasing of data may shorten the memory card lifespan.

Insert the card tray back into the slot.

• Some memory cards may not be fully compatible with the device. If you use an incompatible card, it may damage the device or the memory card, or corrupt the data stored in it.Basic Functions 20 Removing the memory card Unmount the memory card before removing it for safety.

Tap Settings General Storage .

Insert the ejection pin into the hole on the card tray.

Pull out the card tray and remove the memory card.

• Do not remove the memory card while the device is transferring or accessing information. This may cause data to be lost or corrupted, or may damage the memory card or the device. LG is not responsible for losses that result from the abuse or improper use of memory cards, including the loss of data. Charging the battery Before using the device, fully charge the battery. Connect one end of the charging cable to the charger, insert the other end of the cable into the cable port, and then plug the charger into a power socket.Basic Functions 21

• Make sure to use the USB cable provided with your device.

• Make sure to use an LG-approved charger and charging cable. Charging the battery with a third-party charger may cause the battery to explode or may damage the device.

• Using the device when it is charging may cause electric shock. To use the device, stop charging it.

• This device has a non-removable battery. Do not attempt to remove the back cover.

• Remove the charger from the power socket after the device is fully charged. This prevents unnecessary power consumption.

• A charging adapter that supports fast charging is included with the product.

• The fast charging feature may not work if a fast charging adapter other than the genuine adapter provided with the product is used.

• Another way to charge the battery is by connecting a USB cable between the device and a desktop or laptop computer. This may take a longer time than plugging the adapter to a wall outlet.

• Do not charge the battery by using a USB hub that is unable to maintain the rated voltage. Charging may fail or unintentionally stop. Precautions when using the device

• Ensure that the inside of the device does not make contact with a metallic object or water.

• Make sure to use the USB cable provided; do not use third party USB cables or chargers with your device. The LG limited warranty does not cover the use of third party accessories.

• Failure to follow the instructions in this guide and improper use may damage the device.Basic Functions 22 Using the battery efficiently Battery lifespan may decrease if you keep many apps and functions running simultaneously and continuously. Cancel background operations to increase battery life. To minimize battery consumption, follow these tips:

• Set the screen timeout to as short a time as possible.

• Minimize the screen brightness.

• Set a screen lock when the device is not used.

• Check the battery usage details and close any downloaded apps that are draining the battery. Touch screen You can familiarize yourself with how to control your device by using touch screen gestures. Tapping Lightly tap with your fingertip to select or run an app or option.Basic Functions 23 Touching and holding Touch and hold for several seconds to display a menu with available options. Double-tapping Tap twice quickly to zoom in or out on a web page or map.Basic Functions 24 Dragging Touch and hold an item, such as an app or widget, then move your finger to another location in a controlled motion. You can use this gesture to move an item. Swiping Tap the screen with your finger and move it quickly without pausing. You can use this gesture to scroll through a list, a web page, photos, screens, and more.Basic Functions 25 Pinching and spreading Pinch two fingers to zoom out such as on a photo or map. To zoom in, spread your fingers apart.

• Do not expose the touch screen to excessive physical shock. You might damage the touch sensor.

• A touch screen failure may occur if you use the device near a magnetic, metallic or conductive material.

• If you use the device under bright lights, such as direct sunlight, the screen may not be visible, depending on your position. Use the device in a shady location or a location with an ambient light that is not too bright and bright enough to read books.

• Do not press the screen with excessive force.

• Gently tap with your fingertip on the option you want.

• Touch control may not work properly if you tap while wearing a glove or by using the tip of your fingernail.

• Touch control may not work properly if the screen is moist or wet.

• The touch screen may not function properly if a screen-protective film or accessory purchased from a third party store is attached to the device.

• Displaying a static image for extended periods of time may result in afterimages or screen burn-in. Turn off the screen when you do not use the device for a long time.Basic Functions 26 Home screen Home screen overview The Home screen is the starting point for accessing various functions and apps on your device. Tap on any screen to directly go to the Home screen. You can manage all apps and widgets on the Home screen. Swipe the screen left or right to view all installed apps at a glance. Home screen layout You can view all apps and organize widgets and folders on the Home screen. Status bar Weather widget Folder Home touch buttons Google search widget Page icon Quick access area

• The Home screen may vary, depending on the service provider or software version.

• Status bar: View status icons, the time and the battery level.

• Weather widget: View the information of weather and time for a specific area.Basic Functions 27

• Google search widget: Perform a Google search by inputting spoken or written keywords.

• Folder: Create folders to group apps by your preferences.

• Page icon: Display the total number of Home screen canvases. Tap the desired page icon to go to the page you selected. The icon reflecting the current canvas will be highlighted.

• Quick access area: Fix main apps at the bottom of the screen so that they can be accessed from any Home screen canvas.

: Return to the previous screen. Close the keypad or pop-up windows.

: Tap to go to the Home screen. To launch Google Assistant, touch and hold.

: Tap to view a list of recently used apps or run an app from the list. To delete all the recently used apps, tap CLEAR ALL. To use two apps at the same time with the Multi-Window feature, touch and hold the button while using an app. Editing the Home touch buttons You can rearrange the Home touch buttons or add frequently used functions to the Home touch buttons area. Tap Settings Display Home touch buttons Button combination and customize the settings.

• Several functions, including QSlide, Notification panel and Capture+, are provided. A maximum of five items can be added.Basic Functions 28 Status icons When there is a notification for an unread message, calendar event or alarm, the status bar displays the corresponding notification icon. Check your device’s status by viewing notification icons displayed on the status bar. No signal Data is being transmitted over the network Alarm is set Vibrate mode is on Bluetooth is on Connected to a computer via USB Battery level Airplane mode is on Missed calls Wi-Fi is connected Mute mode is on GPS is on Hotspot is on No SIM card

• Some of these icons may appear differently or may not appear at all, depending on the device's status. Refer to the icons according to the actual environment in which you are using the device.

• Displayed icons may vary, depending on the area or service provider.Basic Functions 29 Notifications panel You can open the notifications panel by dragging the status bar downward on the main screen.

• To open the quick access icons list, drag the notifications panel downwards or tap

• If you touch and hold the icon, the settings screen for the corresponding function appears. EDITBasic Functions 30 Switching the screen orientation You can set the screen orientation to automatically switch according to the device’s physical orientation. On the notification panel, tap Rotation from the quick access icon list. You can also tap Settings Display and activate Auto-rotate screen. Editing the Home screen On the Home screen, touch and hold on an empty space, then select the desired action from below.

• To rearrange the Home screen canvases, touch and hold on a canvas, then drag it to another location.

• To add a widget to the Home screen, touch and hold on a blank area of the Home screen, then select Widgets.

• To change a theme, touch and hold on a blank area of the Home screen, then select Theme. You can also tap Settings Display Theme, then select a theme to apply to the device.

• To configure the Home screen settings, touch and hold on a blank area of the Home screen, then select Home screen settings. See Home screen settings for details.Basic Functions 31

• To view or reinstall the uninstalled apps, touch and hold on a blank area of the Home screen, then select App trash. See Setting a screen lock for details.

• To change the default screen, touch and hold on a blank area of the Home screen, move to desired screen, tap , then tap the screen once more. Default screenBasic Functions 32 Viewing the background theme You can view only the background image by hiding the apps and widgets on the Home screen. Spread two fingers apart on the Home screen.

• To return to the original screen, which displays apps and widgets, pinch your fingers on the Home screen or tap

Moving apps on the Home screen On the Home screen, touch and hold an app, then drag it to another location.

• To keep frequently used apps at the bottom of the Home screen, touch and hold an app, then drag it to the quick access area at the bottom.

• To remove an icon from the quick access area, drag the icon to the Home screen.Basic Functions 33 Using folders from the Home screen Creating folders On the Home screen, touch and hold an app, then drag it over another app.

• A new folder is created and the apps are added to the folder. Editing folders On the Home screen, tap a folder and do one of the following actions.

• To edit the folder name and colour, tap the folder name.

• To add apps, touch and hold an app, then drag it over the folder and release it.

• To remove an app from the folder, touch and hold the app and drag it to outside the folder. If the removed app is the only one app that existed in the folder, the folder is removed automatically.

• You can also add or remove apps after tapping in the folder.

• You cannot change the folder colour while using downloaded theme. Home screen settings You can customize Home screen settings.

Tap Settings Display Home screen.

Customize the following settings:

• Select Home: Select a Home screen mode.

• Wallpaper: Change the Home screen background wallpaper.

• Screen swipe effect: Select an effect to apply when the Home screen canvas switches.Basic Functions 34

• Icon shape: Change to a different shape of icons.

• Sort apps by: Set how apps are sorted on the Home screen.

• Grid: Change the app arrangement mode for the Home screen.

• Hide apps: Select which apps you want to hide from the Home screen.

• Loop Home screen: Enable to allow continuous Home screen scrolling (loop back to first screen after the last screen).

• Search: Search by swiping down on the Home screen. Screen lock Screen lock overview Your device’s screen turns off and locks itself if you press the Power/Lock key. This also happens after the device is left idle for a specified period of time. If you press the Power/Lock key when a screen lock is not set, the Home screen appears immediately. To ensure security and prevent unwanted access to your device, set a screen lock.

• Screen lock prevents unnecessary touch input on the device screen and reduces battery consumption. We recommend that you activate the screen lock while not using the device.Basic Functions 35 Setting a screen lock There are several options available for configuring the screen lock settings.

Tap Settings General Lock screen & security Select screen lock and then select the method you prefer.

Customize the following settings:

• None: Deactivate the screen lock function.

• Swipe: Swipe on the screen to unlock the screen.

• Knock Code: Tap the spaces of the screen in a pattern to unlock the screen.

• Pattern: Draw a pattern to unlock the screen.

• PIN: Enter a numeric password to unlock the screen.

• Password: Enter an alphanumeric password to unlock the screen.

• If you incorrectly attempt to unlock the device 5 times, the screen is blocked for 30 seconds. Secure start-up settings When you select Knock Code, Pattern, PIN or Password as a screen lock method, you can configure your device to be locked whenever turning on the device in order to secure your data.

• You cannot use all functions, except for emergency calls until you unlock the device.

• If you forget your decryption password, you cannot restore encrypted data and personal information.Basic Functions 36 Precautions for the secure start-up feature

• If you forget your decryption password, you cannot restore encrypted data and personal information.

• Be sure to keep your screen lock passwords separately.

• If you enter the screen lock passwords incorrectly more than the specified times, the device automatically resets itself and the encrypted data and your personal information are deleted automatically and they cannot be restored.

• Be cautious not to enter incorrect screen lock passwords more than the specified times.

• When you turn on the device right after the device resets, encryption also starts. If you stop the encryption arbitrarily, the data may be damaged. Be sure to wait until the reset is completed. KnockON You can turn the screen on or off by double-tapping the screen.

• This option is available only on the Home screen provided by LG. It may not function properly on a custom launcher or on the Home screen installed by the user.

• When tapping the screen, use your fingertip. Do not use a fingernail.

• To use the KnockON feature, make sure that the proximity/light sensor is not blocked by a sticker or any other foreign substance. Turning on the screen Double-tap the middle of the screen.

• Tapping the top or bottom of the screen may decrease the recognition rate. Turning off the screen Double-tap on an empty space on the Home screen and Lock screen. You can also double-tap an empty space on the status bar.Basic Functions 37 Knock Code You can unlock the screen by creating your own Knock Code. When the screen is off, you can directly access the Home screen by tapping the screen in a specified sequence.

• You can use your Knock Code together with the KnockOn feature.

• Make sure to use your fingertip when tapping the screen. Creating a Knock Code

Tap Settings General Lock screen & security Select screen lock Knock Code.

Tap the squares in a pattern of your choice to create a Knock Code and tap NEXT.

Input the created Knock Code again for verification, then tap CONFIRM. Unlocking the screen with a Knock Code Unlock the screen by inputting the Knock Code you have created. Input your Knock Code on the touch screen when the screen is turned off.

• It is also possible to enter a Knock Code when the lock screen is turned on.Basic Functions 38 Memory card encryption You can encrypt and protect data saved on the memory card. The encrypted data in the memory card cannot be accessed from another device.

Tap Settings General Lock screen & security Encryption & credentials Encrypt SD card.

Read the on-screen overview of memory card encryption and then tap CONTINUE to continue.

Select an option and tap ENCRYPT NOW.

• New data encryption: Encrypt only data that is saved on the memory card after encryption.

• Full encryption: Encrypt all the data currently saved on the memory card.

• Exclude media files: Encrypt all files, except for media files such as music, photos and videos.

• To encrypt the memory card, make sure that a screen lock is set using a PIN or password.

• Once memory card encryption starts, some functions are not available.

• If the device is turned off while encryption is underway, the encryption process will fail, and some data may be damaged. Therefore, be sure to check if the battery level is sufficient before starting encryption.

• Encrypted files are accessible only from the device where the files were encrypted.

• The encrypted memory card cannot be used on another LG device. To use the encrypted memory card on another mobile device, format the card.

• You can activate memory card encryption even when no memory card is installed into the device. Any memory card that is installed after encryption will automatically be encrypted.Basic Functions 39 Taking screenshots You can take screenshots of the current screen you are viewing. Via a shortcut Press and hold the Power/Lock key and the Volume Down (-) key at the same time for at least two seconds.

• Screenshots can be viewed from the Screenshots folder in the Gallery. Via Capture+ On the screen where you want to take a screenshot, drag the status bar downwards, then tap

• When the screen is turned off or locked, you can access Capture+ by pressing the Volume Up (+) key twice. To use this feature, tap Settings General and turn on Shortcut keys.
• See Writing notes on a screenshot for details. Do not disturb You can limit or mute notifications to avoid disturbances for a specific period of time.

Tap Settings Sound Do not disturb and then tap to activate it.

Tap Mode and select the mode you want:

• Priority only: Receive sound or vibrate notifications for the selected apps. Even when Priority only is turned on, alarms still sound.

• Total silence: Disable both the sound and vibration.Useful Apps 03Useful Apps 41 Installing and uninstalling apps Installing apps Access an app store to search and download apps.

• You can use SmartWorld, Play Store or the app store provided by your service provider.
• Some app stores may require you to create an account and sign in.• Some apps may charge fees.• If you use mobile data, you may be charged for data usage, depending on your pricing plan.• SmartWorld may not be supported depending on the area or service provider. Uninstalling apps Uninstall apps that you no longer use from your device. Uninstalling with the touch and hold gesture On the Home screen, touch and hold the app to uninstall, then drag it over Delete at the top of the screen.

• If apps were uninstalled within 24 hours from now, you can reinstall them. See App trash for details. Uninstalling by using the settings menu Tap Settings General Apps & notifications App info, select an app, then tap Uninstall.Useful Apps 42 Uninstalling apps from the app store To uninstall an app, access the app store from which you download the app and uninstall it.
• Some apps cannot be uninstalled by users. Installing and uninstalling apps during the setup When you turn on the device for the first time, you can download recommended apps. You can skip to the next step without installation. App trash You can view the uninstalled apps on the Home screen. You can also reinstall apps which were uninstalled within 24 hours from now.

Tap App trash. You can also touch and hold an empty area of the Home screen, then tap App trash.

: Remove the uninstalled apps permanently from the device.

• Uninstalled apps are automatically removed from the device 24 hours after they were uninstalled. If you want to reinstall the uninstalled apps, you must download them again from the app store.• This feature is activated on the default Home screen only. If you uninstall apps while using the EasyHome screen or other launcher, they are immediately and permanently removed from the device.Useful Apps 43 App Shortcuts On the Home screen, touch and hold an app icon such as Call, Message, Camera, Gallery and Settings to display a quick access menu. Use apps more easily through App Shortcuts.

• This feature is available only on some apps.Useful Apps 44 Phone Voice call Make a phone call by using one of the available methods, such as manually entering a phone number and making a call from the contact list or the list of recent calls. Making a call from the keypad

Make a call by using a method of your choice:

• Enter a phone number and tap

• Touch and hold a speed dial number.

• Search for a contact by tapping the initial letter of a contact name in the contact list, and then tap

• To enter “+” when making an international call, touch and hold number

• See Adding contacts for details on how to add phone numbers to the speed dial list. Making a call from the contact list

From the contact list, select a contact and tap .Useful Apps 45 Answering a call To answer a call, drag on the incoming call screen.

• When the stereo headset is connected, you can make calls by using the call/end button on the headset.

• To end a call without turning off the screen, tap Settings Network Call Answer and end calls and then activate End call with the Power key. Rejecting a call To reject an incoming call, drag across the incoming call screen.

• When a call is coming in, press the Volume Up (+), Volume Down (-) or Power/Lock key to mute ringtone or vibration, or to hold the call. Checking an incoming call while using an app When a call comes in while using an app, a pop-up notification can be displayed at the top of the screen. You can receive the call, reject the call, or send message from the pop-up screen.

• Tap Settings Network Call More Incoming voice call pop-up and then select the desired way you would like to display the incoming call while using an app.Useful Apps 46 Viewing missed calls If there is a missed call, the status bar at the top of the screen displays . To view missed call details, drag the status bar downwards. You can also tap Call logs. Functions accessible during a call During a call, you can access a variety of functions by tapping the on-screen buttons:

• Hold: Place the current call on hold.

• Contacts: View the contact list during a call.

• Speaker: Turn on the speakerphone function.

• Mute: Mute your voice so that your voice cannot be heard by the other party.

• Bluetooth: Switch the call to a Bluetooth device that is paired and connected.

: Access additional call options.

• Available settings items may vary depending on the area or service provider.Useful Apps 47 Making a three-way calling You can make a call to another contact during a call.

During a call, tap Add call.

Enter a phone number and tap .

• The two calls are displayed on the screen at the same time, and the first call is put on hold.

To start a conference call, tap Merge calls.

• You may be charged a fee for each call. Consult with your service provider for more information. Viewing call records To view recent call records, tap Call logs. Then, you can use the following functions:

• To view detailed call records, select a contact. To make a call to the selected contact, tap

• To delete call records, tap Delete.

• The displayed call duration may differ from the call charge. Consult with your service provider for more information. Configuring call options You can configure various call options.

Tap Dial or Call logs.

Tap Call settings and then configure the options to suit your preferences.Useful Apps 48 Messaging Sending a text message Quickly compose and send text messages (SMS) on your phone.

• See your service plan for applicable charges for text messaging.

Tap the To field and enter a contact’s names, phone numbers, or email addresses that you’d like to message. You can also pick from your top contacts or your whole contact list.

Tap the desired number or contact.

Tap the text field and enter your message.

Review your message and tap . Reading a message You can view exchanged messages organized by contact.

Select a contact from the message list. Configuring messaging settings You can change messaging settings to suit your preferences.

Tap Settings from the message list.Useful Apps 49 Camera Starting the camera You can take a photo or record a video to cherish all of your memorable moments. Tap

• Before taking a photo or recording a video, wipe the camera lens with a soft cloth.

• Be careful not to stain the camera lens with your fingers or other foreign substance.

• Images included in this user guide may be different from the actual device.

• Photos and videos can be viewed or edited from the Gallery. See Gallery overview for details. Auto mode You can take photos or record videos by selecting a variety of camera modes and options. Change the camera options.Apply a film filter effect. Turn the flash on or off.Switch between front and rear cameras.Back to the previous screen.Take photos.Record videos.Open Gallery.Useful Apps 50 Taking a photo

Select a camera mode and tap the subject to focus the camera on.

Tap to take a photo.

• You can also press the Volume Down (-) or Volume Up (+) key to take a photo.

• When the screen is turned off or locked, start the camera by pressing the Volume Down (-) key twice. Tap Settings General Shortcut keys. Recording a video

Select a camera mode and tap the subject to focus the camera on.

• To take a photo while recording a video, tap

• To pause the video recording, tap . To resume the video recording, tap

Tap to end the video recording. Customizing the camera options You can customize a variety of camera options to suit your preferences. Tap on the screen.

• Available options vary depending on the selected camera (front or rear camera) and the selected camera mode.Useful Apps 51 Photo size Select values for aspect ratio and size for taking photos. Video resolution Select values for resolution and size for recording videos. HDR Obtain photos in vivid colours and get compensated effects even when they are taken against the light. These functions are provided by the high dynamic range (HDR) technology equipped in the camera. Timer Set the timer to automatically take photos after a specified period of time. Cheese shutter Take photos with voice commands. Tag locations Save the image with GPS location data. Grid Display guide grids so that you can take photos or record videos based on the horizontal and vertical reference lines. Storage Select if you want to store the pictures and videos in the Internal storage or SD card. (Available when the memory card is inserted.) Simple view Hide all menus from the camera screen. Additional options on the front camera Selfie shot Take a selfie by selecting its option between Gesture shot and Auto shot. Save as flipped Save as flipped images after taking selfies.

• When using the front camera, you can adjust the filter and skin tone.Useful Apps 52 Burst shot You can take continuous shots of photos to create moving pictures. On the camera screen, touch and hold

• Continuous shots are taken at a fast speed while is held down.

• You can take up to 30 photos. Simple view Tap Simple view to hide menus on the camera screen. Tap to display them. AE/AF lock You can fix the current exposure level and focus position by touching and holding the screen on the camera screen. To turn off the feature, tap a blank area on the screen. Other useful features in the Camera app Switching between cameras You can switch between the front and rear cameras to suit your environment.Useful Apps 53 On the camera screen, tap or drag the screen in any direction to switch between the front and rear cameras.

• Use the front camera to take selfies. See Selfie shot for details. Zoom in or out You can use zoom in or out on the camera screen while taking a photo or recording a video.

• On the camera screen, pinch or spread two fingers to zoom in or out, then use the displayed +/- slide bar.

• The zoom feature is not available when using the front camera in selfie mode.Useful Apps 54 Selfie shot You can use the front camera to view your face on the screen and take selfies. Gesture shot You can take selfies by using gestures. Show your palm to the front camera and then clench your fist. You can also clench your fist and then open it towards the front camera.

• In three seconds, a photo is taken.

• To use this feature, switch to the front camera mode, then tap Selfie shot Gesture shot.

• Make sure that your palm and fist are within the reference line so that the camera can detect them.

• This feature may not be available while using some of the camera features.Useful Apps 55 Auto shot You can use the face detection feature to take selfies easily and conveniently. You can set the device so that, when you look at the screen, the front camera detects your face and takes a selfie automatically.

• The white coloured guide frame appears when the front camera detects your face. If the subject within the guide frame stops moving, the guide frame colour turns blue, then the camera takes a photo.

• Tap Selfie shot Auto shot to enable the Auto shot feature. Interval shot You can take selfies at an interval. While using the front camera, you can show your palm to the camera, then clench your fist twice quickly.

• Four photos are taken at regular intervals after a timer delay of three seconds.Useful Apps 56 Gesture view After taking a selfie with the front camera, you can preview the selfie immediately by placing the screen close to your face.

• Tap Gesture view to enable the Gesture view feature.

• Only one preview is available each time a photo is taken.

• If you rotate the device while in preview screen, the screen switches to camera mode. Save as flipped Before taking a photo with the front camera, tap Save as flipped. The image is flipped horizontally.

• When using the front camera, you can change how selfies are taken in the camera options. See Customizing the camera options for details.Useful Apps 57 Gallery Gallery overview You can view and manage photos and videos saved on your device.

• Saved photos and videos are displayed by folder.

Tap a folder and select a file.

• View the selected file in full-screen mode.

• While viewing a photo, swipe left or right to view the previous or next photo.

• While viewing a video, swipe left or right to rewind or fast-forward the video.

• Some file formats may not be supported, depending on the installed software.

• Some files may not be opened due to encoding.

• Files that exceed the size limit may cause an error.Useful Apps 58 Viewing photos Start the camera.Access additional options.Delete images.Share images.View related content.Write a memo on a photo.Back to the previous screen.Add to or remove from your favourites.
• To display the menu items, gently tap the screen. To hide the menu items, tap the screen again. Writing a memo on the photo

While viewing a photo, tap .

Write a memo on the photo and tap SAVE.

• The memo is applied to the photo.

• Some photos may not support the photo memo feature. Editing photos

While viewing a photo, tap .

Use a variety of effects and tools to edit the photo.

Tap SAVE to save changes.

• The changes are overwritten to the original file.

• To save the edited photo as another file, tap Save copy.Useful Apps 59 Playing a video Open with QSlide.Access additional options.Fast-forward the video.Lock or unlock the screen. Edit the video. Choose screen ratio.Rewind the video.Pause or play the video. Making a GIF file.

• To adjust the sound volume, drag the right side of the video screen up or down.

• To adjust the screen brightness, drag the left side of the screen up or down. Editing videos

While viewing a video, tap .

Use a variety of effects and edit tools to edit the video. Automatically create a 15 sec, 30 sec or 60 sec video clip.Revert the edit.Adjust the resolution. Create a movie using various effects.Select a section to change the play speed.Adjust the video duration.Launch the KineMaster video editor.

Tap SAVE to save changes.Useful Apps 60 Deleting files You can delete files by using one of the following options:

• Touch and hold a file from the file list, then tap Delete.

• Tap from the file list and delete the desired files.

• Deleted files are automatically moved to Trash and they can be restored to the Gallery within 7 days.

• Tap to completely delete the files. In this case, the files cannot be restored. Sharing files You can share files by using one of the following options:

• While viewing a photo, tap to share the file by using the method you want.

• While viewing a video, tap Share to share the file by using the method you want.

• Tap from the file list to select files and share them using the method you want.Useful Apps 61 Contacts Contacts overview You can save and manage contacts. Tap LG Contacts. Adding contacts Adding new contacts

Enter contact details and tap SAVE. Importing contacts You can import contacts from another storage device.

On the contact list screen, tap Manage contacts Import.

Select the source and target locations of the contact you want to import, and then tap OK.

Select the contacts and tap IMPORT. Adding contacts to the speed dial list

On the contact list screen, tap Speed dial.

Tap Add contact from a speed dial number.

• While adding a new contact, tap to add a speed dial number.Useful Apps 62 Searching for contacts You can search for contacts by using one of the following options:

• Tap from the top of the contacts list and then enter the contact information or phone number.

• Scroll the contact list up or down.

• From the index of the contact list screen, tap the initial letter of a contact.

• Tap from the top of the contacts list and then enter the contact information or phone number to display all search details from call logs, contacts and groups. Contacts list Editing contacts

On the contact list screen, select a contact.

On the contact detail screen, tap and edit details.

Tap SAVE to save changes. Deleting contacts You can delete contacts by using one of the following options:

• On the contact list screen, touch and hold a contact you want to delete, then tap Delete contact.

• Tap Delete on the contact list screen. Adding favourites You can register frequently used contacts as favourites.

On the contact list screen, select a contact.

On the contact detail screen, tap .Useful Apps 63 Creating groups

On the contacts group list, tap .

Tap Add members, select contacts, then tap ADD.

Tap SAVE to save the new group. Clock Alarm You can set an alarm to trigger it at a specified time.

Tap Tools Clock Alarm.

Tap to add a new alarm.

Configure the alarm settings and tap SAVE.

• If you select a previously set alarm, you can edit the alarm.• To delete an alarm, tap at the top of the screen. You can also touch and hold the alarm. World clock You can view the current time in cities around the world.

Tap Tools Clock World clock.

Tap and add a city.Useful Apps 64 Timer You can set the timer to trigger an alarm after a specified period of time.

Set the time and tap Start.

Tap Stop to stop the timer alarm. Stopwatch You can use the stopwatch to record a lap time.

Tap Tools Clock Stopwatch.

Tap Start to initiate the stopwatch.

• To record a lap time, tap Lap.

Tap Pause to suspend the stopwatch.

• To resume the stopwatch, tap Resume.

• To clear all the records and restart the stopwatch, tap Reset.Useful Apps 65 Calendar Calendar overview You can use the calendar to manage events and tasks. Adding events

Select a date and then tap .

Enter event details and tap SAVE. Syncing events Tap Calendars to sync, and select a calendar to sync.

• When your events are saved from the device to your Google account, they are automatically synced with the Google calendar, too. Then, you can sync other devices with the Google calendar in order to make those devices have the same events that your device has and to manage your events on those devices. Tasks You can register tasks to your device to easily manage schedules.

Enter task details and then tap SAVE.Useful Apps 66 Music You can play and manage songs or music albums.

Select a music file. Switch to the playlist. Play in random order. Pause or play. Select a repeat mode. Tap to play the next file / Touch and hold to fast forward. Tap to play from the beginning of the current file / Double-tap to play the previous file / Touch and hold to rewind. Adjust the sound volume. Back to the previous screen. Add to or delete from your favourites. Access additional options. Set sound effects.

• Some file formats may not be supported, depending on the installed software.

• Files that exceed the size limit may cause an error.

• Music files may be protected by international copyright owners or copyright laws. You may have to obtain legal permission before copying a music file. To download or copy a music file, first check the copyright law for the relevant country.Useful Apps 67 Calculator You can use two types of calculators: the simple calculator and the scientific calculator.

Use the keypad to make a calculation.

• To use scientific calculator, drag the slide bar located in the right side of the screen to the left.

• To restart a calculation, touch and hold the DEL button. E-mail Use the Email application to send and receive emails from your webmail or other accounts, using POP3 or IMAP, or access your Exchange account for your corporate email needs. Set up E-mail account Your phone supports several types of email accounts and allows you to have multiple email accounts set up at one time. Before setting up an email account, make sure you have the username (user ID), password, server name, etc., so you can get set up successfully.

Follow the onscreen instructions to set up your email account.

• The email account is set up and you will begin receiving email.Useful Apps 68 Voice Recorder You can record and save your voice or others’ voices from important events. Recorded voice files can be played back or shared.

Tap Tools Voice Recorder.

• To pause recording, tap

• To save the location details of recording, tap Location.

• To sync and save the event duration details which you added in Calendar, tap Event.

Tap to end recording.

• The file is saved automatically and the pre-listen screen appears.

Tap to play the recorded voice.

• If you tap , recorded voice files appear. You can play a recorded voice file from the list. FM Radio You can listen to FM radio. Tap Tools FM Radio.

• To use this app, first connect earphones to the device. The earphones function as the radio antenna.

• This function may not be supported depending on the area.Useful Apps 69 File Manager You can view and manage files saved on your device or cloud.

Tap Tools File Manager.

Tap and select the desired storage location. LG Mobile Switch Easily transfer data from a used device to a new device via LG Mobile Switch.

Tap Management LG Mobile Switch. You can also tap Settings General Backup LG Mobile Switch.

Follow the on-screen instructions to select a desired method for transfer.

• Data in a Google account will not be backed up. When you synchronize your Google account, Google apps, Google contacts, Google calendar, Google memo app data and apps downloaded from the Play Store are stored on the Drive app automatically.

• Fully charge the battery before transferring data to avoid unintentional powering off during the process. Downloads You can view, delete or share files downloaded via the Internet or apps. Tap Tools Downloads.Useful Apps 70 SmartWorld You can download a variety of games, audio content, apps and fonts provided by LG Electronics. Customize your device to suit your preferences by using Home themes and fonts.

• If you use mobile data, you may be charged for data usage depending on your pricing plan.

• This feature may not be supported depending on the area or service provider.

Tap LG Account, then sign in.

Select and download the desired content items. RemoteCall Service Your device can be remotely diagnosed for resolving issues. First, make a phone call to an LG Customer Service Centre as follows:

• To use this function, first you must agree to usage of the function.

• If you use mobile data, you may be charged for data usage depending on your pricing plan.

Connect a call to an LG Customer Service Centre.

After the call connects, follow the service associate’s instructions to enter a six-digit access number.

• Your device is remotely connected and the remote support service starts.Useful Apps 71 Chrome Sign in to Chrome and import opened tabs, bookmarks and address bar data from a computer to your device. Facebook You can use a social networking service to update, view and share posts, photos and videos with your online contacts. Tap Recommended Facebook. Google apps You can use Google apps by setting a Google account. The Google account registration window appears automatically when you use a Google app for the first time. If you do not have a Google account, create one from your device. For details on how to use an app, see the Help in the app.

• Some apps may not work depending on the area or service provider. Docs Create documents or edit documents created online or from another device. Share and edit documents together with others. Drive Upload, save, open, share and organize files from your device. Files accessible from apps can be accessed from anywhere, including online and offline environments.Useful Apps 72 Duo Make a video call with your family, friends and anyone else who uses the app. Gmail Register your Google email account to your device to check or send email. Google Use the Google to search for web pages, images, news and more by entering or speaking keywords. Maps Find your location or the location of a place on the map. View geographical information. Photos View or share photos or albums saved on your device. Play Movies & TV Use your Google account to rent or purchase movies. Purchase content and play it anywhere. Play Music Purchase music files from the Play Store. Play music files saved on your device. Sheets Create spreadsheets or edit spreadsheets created online or from another device. Share and edit spreadsheets together with others.Useful Apps 73 Slides Create presentation material or edit presentation material created online or from another device. Share and edit presentation material together with others. YouTube Search and play videos. Upload videos on YouTube to share them with people around the world. Google Assistant Your device has the Google Assistant built in. Ask it questions. Tell it to do things. It’s your own personal Google. Touch and hold the and then you will see “Hi, how can I help?”, after which you can say your voice command.

• The Google Assistant is not available in all languages.Settings 04Settings 75 Settings You can customize the device settings in accordance with your preferences. Tap Settings.

• Tap and enter a keyword in the search box to access a setting item.
• Tap to change the view mode. This user guide assumes that you are using the Tab view. Network Wi-Fi You can connect to nearby devices over a Wi-Fi network. Connecting to a Wi-Fi network

• Available Wi-Fi networks appear automatically.

• You may need to enter the network’s Wi-Fi password.

• The device skips this process for previously accessed Wi-Fi networks. If you do not want to automatically connect to a certain Wi-Fi network, tap the network and then tap FORGET.Settings 76 Wi-Fi network settings On the settings screen, tap Network Wi-Fi.

• Switch to mobile data: If the mobile data connection function is activated but the device cannot connect to the Internet via Wi-Fi connection, the device automatically connects to the Internet via the mobile data connection.

• This feature depends on the service provider.

• : Customize Wi-Fi network settings. Wi-Fi Direct You can connect your device to other devices that support Wi-Fi Direct to share data directly with them. You do not need an access point. You can connect with more than two devices by using Wi-Fi Direct.

On the settings screen, tap Network Wi-Fi Advanced Wi-Fi Wi-Fi Direct.

• Nearby devices that support Wi-Fi Direct automatically appear.

• Connection occurs when the device accepts the connection request.

• The battery may drain faster when using Wi-Fi Direct.Settings 77 Bluetooth You can connect your device to nearby devices that support Bluetooth to exchange data with them. Connect your device to a Bluetooth headset and a keyboard. This makes it easier to control the device. Pairing with another device

On the settings screen, tap Network Bluetooth.

• Available devices appear automatically.

• To refresh the device list, tap

• Only devices set as visible are displayed on the list.

Select a device from the list.

Follow the on-screen instructions to perform authentication.

• This step is skipped for previously accessed devices. Sending data via Bluetooth

• You can send multimedia files or contacts.

Select a target device for the file.

• The file is sent as soon as the target device accepts it.

• File sharing processes may differ, depending on the file.Settings 78 Mobile data You can turn mobile data on and off. You can also manage mobile data usage. Turning on mobile data

Tap to activate it. Customizing mobile data settings

Customize the following settings:

• Mobile data: Set to use data connections on mobile networks.

• Limit mobile data usage: Set a limit for mobile data usage to block mobile data if the limit is reached.

: Customize mobile data settings. Call You can customize call settings, such as voice call and international call options.

• Some features may not be supported depending on the area or service provider.

On the settings screen, tap Network Call.

Customize the settings.Settings 79 Tethering USB tethering You can connect the device to another device via USB and share mobile data.

Connect your device and other devices via USB cable.

On the settings screen, tap Network Tethering USB tethering and then tap to activate it.

• This option uses mobile data and may incur data usage fees, depending on your pricing plan. Consult with your service provider for more information.• When connecting to a computer, download the USB driver from www.lg.com and install it on the computer.• You cannot send or receive files between your device and a computer while USB tethering is turned on. Turn off USB tethering to send or receive files.• Operating systems that support tethering are Window XP or higher, or Linux.Settings 80 Wi-Fi hotspot You can set the device as a wireless router so that other devices can connect to the Internet by using your device’s mobile data.

On the settings screen, tap Network Tethering Wi-Fi hotspot and then tap to activate it.

Tap Set up Wi-Fi hotspot, and enter the Wi-Fi name (SSID) and password.

Turn on Wi-Fi on the other device, and select the name of the device network on the Wi-Fi list.

Enter the network password.

• This option uses mobile data and may incur data usage fees, depending on your pricing plan. Consult with your service provider for more information.• More information is available at this web site: http://www.android.com/tether#wifi Timeout When the Wi-Fi hotspot has not been used for a specific period of time, it is automatically disconnected. You can set the time for automatic disconnection.Settings 81 Bluetooth tethering A Bluetooth-connected device can connect to the Internet by using your device’s mobile data.

On the settings screen, tap Network Tethering Bluetooth tethering and then tap to activate it.

Turn on Bluetooth on both devices and pair them.

• This option uses mobile data and may incur data usage fees, depending on your pricing plan. Consult with your service provider for more information.• More information is available at this web site: http://www.android.com/tether#Bluetooth_tethering Help You can view help on using tethering and hotspots. On the settings screen, tap Network Tethering Help. Sharing panel You can share contents from Gallery, Music and File Manager with nearby devices. Also you can share content with specific people in apps that work with Google Direct Share.

On the settings screen, tap Network Sharing panel.

Tap to deactivate each option.Settings 82 Printing You can connect your device to a Bluetooth printer and print photos or documents saved on the device.

On the settings screen, tap Network Printing.

• If the desired printer is not in the list, install the printer driver from the app store.

Select print service.

Select a printer from the printer list screen.

• To add a printer, tap Add printer.

• Tap Settings from the printer list screen.

Select a file and tap Print.

• The document prints.

• If you do not have a Google account, tap Add account to create an account. Airplane mode You can turn off the call and mobile data functions. When this mode is on, functions that do not involve data, such as games and music playback, remain available.

Tap TURN ON in the confirmation screen.Settings 83 Mobile networks You can customize the mobile networks settings.

On the settings screen, tap Network Mobile networks.

Customize the following settings:

• Mobile data: Turn mobile data on or off.

• Data roaming: Browse the web, use emails, multimedia messages and other data services overseas.

• Network mode: Select a network type.

• Access Point Names: View or change the access point for using mobile data services. To change the access point, select a choice from the access point list.

• Network operators: Search for network operators and connect automatically to a network. VPN You can connect to a safe virtual network, such as an intranet. You can also manage connected virtual private networks. Adding VPN

• This feature is available only when the screen lock is activated. If the screen lock is deactivated, a notification screen appears. Tap SETTINGS from the notification screen to activate the screen lock. See Setting a screen lock for details.

Tap a VPN from the VPNS list.

Enter the VPN user account details and tap CONNECT.

• To save the account details, select the Save account information checkbox. Sound You can customize sound, vibrate and notification settings. On the settings screen, tap Sound and customize the following settings:

• Sound profile: Change the sound mode to Sound, Vibrate only, or Silent.

• Volume: Adjust the sound volume for various items.

• Ringtone: Select a ringtone for incoming calls. Add or delete ringtones.

• Ringtone ID: Create a ringtone for an incoming call from a particular contact.

• Ring with vibration: Set the device to vibrate and play a ringtone simultaneously.

• Notification sound: Select a notification ringtone. Set music saved on the device as a notification ringtone.

• Do not disturb: Set the time, range and app type to receive notification messages. Receive notification messages only on particular days of the week.

• Vibration type: You can select the type of vibration when receiving calls.

• Vibrate on tap: Set the device to vibrate when you tap certain items on the screen.

• Dialing keypad sound: Select the keypad sound effect.

• LG Keyboard sound: Select LG keyboard sound effect.

• Touch sound: Select a sound effect for tapping an item.

• Screen lock sound: Select a sound effect when the screen is locked or unlocked.Settings 85 Display You can customize detailed settings for each screen type. On the settings screen, tap Display and customize the following settings:

• Home screen: Customize settings for the Home screen. See Home screen settings for details.

• Theme: Select a screen theme for your device.

• Font: Change the font size, boldness, or type.

• Home touch buttons: Rearrange Home touch buttons or change their background colours.

• Display size: Set the items on the screen to a size easy for you to see. Some items may change position.

• Comfort view: Set the device to reduce amount of blue light on screen to reduce eye strain.

• Brightness: Use the slide bar to change the device’s screen brightness. To automatically adjust screen brightness according to ambient light intensity, tap the Auto switch.

• Auto: Set the device so that the screen brightness is automatically adjusted in accordance with the ambient light intensity.

• Auto-rotate screen: Automatically rotate the screen according to the device’s orientation.

• Screen timeout: Automatically turn off the screen when the device is left idle for a specified period of time.

• Screen saver: Display a screen saver when the device is connected to the holder or charger. Select a screen saver type to display.Settings 86 General Lock screen & security You can customize lock screen and security settings.

• Google Play Protect: Scan the device periodically for potentially harmful codes or apps.

• Find My Device: Remotely track the device location. You can also protect your data securely if you lost your device.

• Security update: Check for software update and configure automatic installation settings.

• Select screen lock: Select the desired screen lock method. See Setting a screen lock for details.

• Customize Lock screen: Change the information displayed on the locked screen.

• Secure lock settings: Change the secure lock settings.

• Content lock: Allows you to set a lock type (PIN or pattern) for your QuickMemo+.

• Location: You can customize how your location information is used by particular apps.

• Encryption & credentials: Configure the settings for SD card encryption and credentials. - Encrypt SD card: Encrypt the memory card to prevent use on another device. See Memory card encryption for details. - Secure start-up: Protect your device with a lock when it powers on. See Secure start-up settings for details. - Credential protection: View the type of the storage where the security certificate will be saved. - Trusted credentials: View your system’s root CA certificates and user-installed CA certificates.Settings 87 - User credentials: View and change secure certificate information stored on your device. - Install from storage: Install a secure certificate from a storage. - Clear credentials: Delete user-installed secure certificates and related credentials.

• Set up SIM card lock: Lock or unlock the USIM card, or change the password (PIN).

• Make passwords visible: Enable this option to briefly show each character of the password as you type it so you can see what you’ve entered.

• Phone administrators: Allow privileges to restrict the control or use of the device to particular apps.

• Trust agents: View and use trust agents installed on the device.

• Screen pin: Fix the app screen so that only the currently active app can be used.

• Usage access: View details on usage of apps on the device. Apps & notifications You can check a list of installed apps, and configure the settings for notifications, app permissions, and more.

On the settings screen, tap General Apps & notifications.

Customize the settings.Settings 88 Battery You can view the current battery information or turn on power-saving mode.

On the settings screen, tap General Battery.

Customize the following settings:

• Battery usage: View the battery usage details. To view more details, select a specific item.

• Battery percentage on status bar: Display the remaining battery level as a percentage on the status bar.

• Battery saver: Reduce battery consumption by cutting down some device settings, such as the display brightness, speed and vibration intensity.

• Power saving exclusions: Select apps to use without any functional limitation while in power saving or battery optimization mode. Storage You can view and manage internal storage on the device or storage space of the memory card.

On the settings screen, tap General Storage.

Customize the following settings:

• Internal storage: View the total storage space and free space in the device’s internal storage. View a list of apps in use and the storage capacity for each app.

• SD card: View the total storage space and free space in the memory card. This option appears only when a memory card is inserted. To unmount the memory card, tap .Settings 89 Accounts You can add users to share your device and register a cloud account.

On the settings screen, tap General Accounts.

Customize the settings. Accessibility You can manage accessibility plug-ins installed on your device.

On the settings screen, tap General Accessibility.

Customize the following settings:

• Vision TalkBack: Set the device to notify screen status or actions via voice.

• Vision Voice notifications: Set the device to read caller information and messages via voice.

• Vision Font: Change the font size, boldness, or type.

• Vision Display size: Set the items on the screen to a size easy for you to see. Some items may change position.

• Vision Touch zoom: Zoom in or out by tapping the screen three times.

• Vision Window zoom: Zoom in or out within a window and invert the colour.

• Vision Large mouse pointer: Magnify the mouse pointer.

• Vision High contrast screen: Turn the background colour into black for a high contrast screen.

• Vision Screen colour inversion: Increase the display colour contrast for people with low vision.

• Vision Screen colour adjustment: Adjust the display colour.

• Vision Grayscale: Switch the screen to grayscale mode.

• Vision End call with the Power key: End a call by pressing the Power/Lock key.Settings 90

• Hearing Captions: Turn on the subtitle service when playing videos for the hearing impaired.

• Hearing Flash alerts: Set the device to notify you with a blinking light for incoming calls, messages and alarms.

• Hearing Mute all sounds: Mute all sounds and lower volume on the receiver.

• Hearing Audio channel: Select the audio type.

• Hearing Sound balance: Adjust the audio output balance. Use the slide bar to change the balance.

• Motor & cognition Touch assistant: Turn on the touch board to make buttons and gestures easier to use.

• Motor & cognition Touch input: Set the desired delay time for touching and holding or adjust the touch input to ignore repeated taps.

• Motor & cognition Physical keyboard: Customize the keyboard settings.

• Motor & cognition Auto mouse click: Automatically click the mouse pointer in case of no movement.

• Motor & cognition Touch and hold for calls: Answer or decline calls by touching and holding the call button instead of dragging it.

• Motor & cognition Screen timeout: Turn off the screen automatically when the device is left idle for a specified period of time.

• Motor & cognition Touch control areas: Limit the touch area so that only a particular portion of the screen can be controlled by touch input.

• Accessibility features shortcut: Quickly access a frequently used function by tapping three times.Settings 91

• Auto-rotate screen: Automatically change the screen orientation according to the physical position of the device.

• Select to Speak: Allows you to tap items to hear spoken feedback.

• Switch Access: Create key combinations to control your device. Google You can use Google settings to manage your Google apps and account settings. On the settings screen, tap General Google. Smart cleaning You can clean up temporary files or apps that are no longer used to free up storage space. On the settings screen, tap General Smart cleaning. Shortcut keys You can customize the shortcut keys settings.

• Press the Volume Down (-) key twice to launch the Camera app when the screen is locked or turned off. Press the Volume Up (+) key twice to launch Capture+. KnockON Double-tap the screen to turn the screen on or off. See KnockON for details.Settings 92 Update centre You can check and install the latest version of the app or software provided by LG.

On the settings screen, tap General Update centre.

Customize the following settings:

• App Updates: Check if an app update is available. If available, you can install the update.

• Software Update: Check if a software update is available. If available, you can install the update. Language & input You can customize language and keyboard settings for your device.

Customize the following settings:

• Language: Select a language to apply for the device.

• Current keyboard: View the keyboard currently in use. Select a keyboard to use when entering text.

• On-screen keyboard: Change the LG keyboard settings or voice recognition feature of Google Voice.

• Physical keyboard: Select to use the physical keyboard, or check keyboard shortcut keys.

• Spelling correction: Allows you to set various options for the Google Spell Checker.

• Autofill service: Enable this option to enter your information saved in your account such as password, address, or credit card number with a single tap. You can also disable this option, use Google Autocomplete, or add a new service account.

• Text-to-speech output: Configure the settings for text-to-speech output.Settings 93

• Pointer speed: Adjust the pointer speed of a mouse or trackpad.

• Reverse mouse buttons: Reverse the right mouse button to perform primary direct-manipulation actions. Date & time You can customize date and time settings for your device.

On the settings screen, tap General Date & time.

Customize the settings. Memory You can view the average amount of memory usage over a certain period of time and the memory occupied by an app.

On the settings screen, tap General Memory.

Tap to set a time slot to retrieve data. Backup You can back up data saved on your device to another device or account.

On the settings screen, tap General Backup.

Customize the following settings:

• LG Mobile Switch: Allows you to transfer data from an old LG device to your new LG device. See LG Mobile Switch for details.

• Backup & restore: Back up your device data or restore data to your device from a backup.

• Resetting your device may delete backup files saved in storage. Make sure to copy and store the important backup files to your PC.

• Google backup: Change Google drive backup settings. You can also check the backup account currently used, or add a new backup account.Settings 94 Reset You can restart and reset the device including network and app settings.

On the settings screen, tap General Reset.

Customize the following settings:

• Network settings reset: Reset Wi-Fi, Bluetooth and other network settings.

• Reset app preferences: Reset the settings for an app. The data saved in the app will not be deleted.

• Factory data reset: Reset all settings for the device and delete data.

• Resetting your device deletes all data on it. Enter your device name, Google account and other initial information again. About phone You can view information about your device, such as the name, status, software details and legal information. On the settings screen, tap General About phone and view information. Regulatory & safety You can view regulatory marks and related information on your device. On the settings screen, tap General Regulatory & safety.Appendix 05Appendix 96 LG Language Settings Select a language to use on your device.

• Tap Settings General Language & input Language ADD LANGUAGE, and select a language. - Touch and hold and drag it to the top of the language list to set it as a default language. LG Bridge LG Bridge overview LG Bridge is an app that helps you manage the photos, music, videos and documents saved on your LG smartphone from your computer conveniently. You can back up contacts, photos and more to the computer or update the device software.

• See LG Bridge help for details.

• The supported features may vary depending on the device.

• LG USB driver is a necessary program to connect your LG smartphone with the computer and is installed when you install LG Bridge. LG Bridge functions

• Manage the files on the device from a computer via Wi-Fi connection or mobile data connection.

• Back up data from the device to a computer or restore data from a computer to the device via USB cable connection.

• Update the device software from a computer via USB cable connection.Appendix 97 Installing LG Bridge on a computer

Go to www.lg.com/ca from your computer.

Select your region and click .

In the search bar, enter the name of your device.

Click Support Software & Firmware.

Download LG BRIDGE setup file. Phone software update LG Mobile phone software update from the Internet For more information about using this function, please visit http://www.lg.com/common/index.jsp , select your country and language. This feature allows you to conveniently update the firmware on your phone to a newer version from the Internet without needing to visit a service centre. This feature will only be available if and when LG makes a newer firmware version available for your device. Because the mobile phone firmware update requires the user’s full attention for the duration of the update process, please make sure you check all instructions and notes that appear at each step before proceeding. Please note that removing the USB cable during the upgrade may seriously damage your mobile phone.

• LG reserves the right to make firmware updates available only for selected models at its own discretion and does not guarantee the availability of the newer version of the firmware for all handset models.Appendix 98 LG Mobile Phone software update via Over- the-Air (OTA) This feature allows you to conveniently update your phone’s software to a newer version via OTA, without connecting a USB cable. This feature will only be available if and when LG makes a newer firmware version available for your device. To perform the phone software update, tap Settings General Update centre Software Update Check now for update.

• Your personal data from internal phone storage—including information about your Google account and any other accounts, your system/ application data and settings, any downloaded applications and your DRM licence—might be lost in the process of updating your phone’s software. Therefore, LG recommends that you backup your personal data before updating your phone’s software. LG does not take responsibility for any loss of personal data.

• This feature depends on the area or service provider.Appendix 99 FAQ This chapter lists some problems you might encounter when using your device. Some problems require you to call your service provider, but most are easy to fix yourself. SIM card error Make sure the SIM card is correctly inserted. No network connection or dropped network Signal is weak. Move to a window or an open area. You are outside the carrier network area. Move and check the network. Calls are not available New network not authorized. Make sure you have not set call barring for the incoming number. Make sure you have not set call barring for the number you are dialling. Device cannot be turned on When the battery is completely discharged, your device will not turn on. Fully charge the battery before turning on the device. Charging error Make sure device is charging at a normal temperature. Check the charger and its connection to the device. Use only in-box accessories which are authorized by LG.Appendix 100 The battery depletes faster than when first purchased When you expose the device or the battery to very cold or hot temperatures, the battery life may be reduced. Battery consumption will increase when you use certain features or apps, such as GPS, games or the Internet. The battery is consumable and the battery life will get shorter over time. Error messages appear when launching the camera Charge the battery. Free some memory by transferring files to a computer or deleting files from your device. Restart the device. If you are still having trouble with the camera app after trying these tips, contact an LG Electronics Service Centre. The photo quality is poor The quality of your photos may vary, depending on the surroundings and the photography techniques you use. If you take photos and videos, standard angle quality is better than wide- angle. If you take photos in dark areas, at night or indoors, image noise may occur or images may be out of focus. If you have any problems, reset the options.Appendix 101 The touch screen responds slowly or incorrectly If you attach a screen protector or optional accessories to the touch screen, the touch screen may not function properly. If you are wearing gloves, if your hands are not clean while touching the touch screen or if you tap the screen with sharp objects or your fingertips, the touch screen may malfunction. The touch screen may malfunction in humid conditions or when exposed to water. Restart your device to clear any temporary software bugs. If the touch screen is scratched or damaged, visit an LG Electronics Service Centre. Hangs or freezes Restart the device

• If your device freezes or hangs, you may need to close apps or turn the device off and then on again. Perform a boot-up

• A soft reset may be used to reset the device if the screen freezes, or the buttons, touch screen or device are no longer responding.

• To perform a soft reset of your device, simply press and hold the Volume Down and Power keys until the device restarts. Reset the device

• If the methods above do not solve your problem, perform a factory data reset.

• On the settings screen, tap General Reset Factory data reset. - This method resets all settings for the device and deletes data. Before performing the factory data reset, remember to make back- up copies of all important data stored in the device. - If you registered a Google Account to the device, you must sign in to the same Google Account after resetting the device.Appendix 102 Bluetooth device is not located Make sure the Bluetooth wireless feature is activated on your device. Make sure the Bluetooth wireless feature is activated on the device you wish to connect to. Make sure your device and the other Bluetooth device are within the maximum Bluetooth range (10 m). If the tips above do not solve your problem, contact an LG Electronics Service Centre. A connection is not established when you connect the device to a computer Make sure the USB cable you are using is compatible with your device. Make sure you have the proper driver installed and updated on your computer. Downloaded application causes a lot of errors Application has problems. Remove and reinstall the application.Appendix 103 Anti-Theft Guide Set up your device to prevent other people from using it if it's been reset to factory settings without your permission. For example, if your device is lost, stolen, or wiped, only someone with your Google account or screen lock information can use the device. All you need to make sure your device is protected is:

• Set a screen lock: If your device is lost or stolen but you have a screen lock set, the device can't be erased using the Settings menu unless your screen is unlocked.

• Add your Google account on your device: If your device is wiped but you have your Google account on it, the device can't finish the setup process until your Google account information is entered again. After your device is protected, you'll need to either unlock your screen or enter your Google account password if you need to do a factory reset. This ensures that you or someone you trust is doing the reset.

• Do not forget your Google account and password you had added to your device prior to performing a factory reset. If you can't provide the account information during the setup process, you won't be able to use the device at all after performing the factory reset.Appendix 104 More information Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail] . This offer is valid for three (3) years from the date on which you purchased the product. Regulatory information (FCC/IC ID number, etc.) For regulatory details, go to Settings General Regulatory & safety. Trademarks

• Copyright ©2018 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities.

is a registered trademark of Bluetooth SIG, Inc. worldwide.

and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.

• All other trademarks and copyrights are the property of their respective owners.For Your Safety 06For Your Safety 106 Important Information This user guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Before You Start Safety Instructions

• To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as the bathroom, swimming pool, etc. Always store your phone away from heat. Never store your phone in settings that may expose it to temperatures less than 32°F (0°C) or greater than 104°F (40°C), such as outside during extreme weather conditions or in your car on a hot day. Exposure to excessive cold or heat will result in malfunction, damage and/or catastrophic failure. Be careful when using your phone near other electronic devices. RF emissions from your mobile phone may affect nearby in adequately shielded electronic equipment. You should consult with manufacturers of any personal medical devices such as pacemakers and hearing aides to determine if they are susceptible to interference from your mobile phone. Turn off your phone in a medical facility or at a gas station. Never place your phone in a microwave oven as this will cause the battery to explode.For Your Safety 107 Safety Information Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this user guide.

• Never place your phone in a microwave oven as it will cause the battery to explode.

• Your phone contains an internal battery. Do not dispose of your battery by fire or with hazardous or flammable materials.

• Make sure that no sharpedged items come into contact with the battery. There is a risk of this causing a fire.

• Be careful that children do not swallow any parts such as rubber plugs (earphone, connection parts of the phone, etc.). This could cause asphyxiation or suffocation.

• Unplug the power cord and charger during lightning storms to avoid electric shock or fire.

• When riding in a car, do not leave your phone or set up the hands-free kit near to the air bag. If wireless equipment is improperly installed and the air bag is activated, you may be seriously injured.

• Do not use a hand-held phone while driving.

• Do not use the phone in areas where its use is prohibited. (For example: aircraft).

• Do not expose the battery charger or adapter to direct sunlight or use it in places with high humidity, such as a bathroom.

• Never store your phone in temperatures less than -4°F (-20°C) or greater than 122°F (50°C).

• Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. There is a risk of this causing a fire.

• Do not drop, strike, or shake your phone severely. Such actions may harm the internal circuit boards of the phone.For Your Safety 108

• Do not use your phone in high explosive areas as the phone may generate sparks.

• Do not damage the power cord by bending, twisting, pulling, or heating.

• Do not use the plug if it is loose as it may cause a fire or electric shock.

• Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as it may cause fire or electric shock.

• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone.

• Do not disassemble the phone.

• Do not place or answer calls while charging the phone as it may short-circuit the phone and/or cause electric shock or fire.

• Only use the batteries, antennas, and chargers provided by LG. The warranty will not be applied to products provided by other suppliers.

• Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty.

• Do not hold or let the antenna come in contact with your body during a call.

• An emergency call can be made only within a service area. For an emergency call, make sure that you are within a service area and that the phone is turned on.

• Use accessories, such as earphones and headsets, with caution. Ensure that cables are tucked away safely and do not touch the antenna unnecessarily.For Your Safety 109 FCC RF Exposure Information

• Read this information before operating the phone. In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1 cm (0.39 inches) between the user’s body and the back of the phone. To comply with FCC/ISEDC RF exposure requirements, a minimum separation distance of 1 cm (0.39 inches) must be maintained between the user’s body and the back of the phone. Any belt-clips, holsters, and similar accessories containing metallic components may not be used. Body-worn accessories that cannot maintain 1 cm (0.39 inches) separation distance between the user’s body and the back of the phone, and have not been tested for typical bodyworn operations may not comply with FCC/ISEDC RF exposure limits and should be avoided. FCC Part 15 Class B Compliance This device complies with part 15 of FCC rules and ISEDC licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.For Your Safety 110

Part 15.105 statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, you can try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Cautions for Battery

• Do not expose to high temperature: 140°F (60°C).

• Do not incinerate. Battery Disposal

• Please dispose of your battery properly or bring to your local wireless carrier for recycling.

• Your phone contains an internal battery. Do not dispose of your battery by fire or with hazardous or flammable materials.For Your Safety 111 Adapter (Charger) Cautions

• Using the wrong battery charger could damage your phone and void your warranty.

• The adapter or battery charger is intended for indoor use only.

• Do not expose the adapter or battery charger to direct sunlight or use it in places with high humidity, such as the bathroom. Avoid damage to your hearing

• Damage to your hearing can occur if you are exposed to loud sounds for long periods of time. We therefore recommend that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level.

• If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is particularly imperative when attempting to cross the street.Safety Guidelines 07Safety Guidelines 113 TIA Safety Information Provided herein is the complete TIA Safety Information for Wireless Handheld phones. Inclusion of the text covering Pacemakers, Hearing Aids, and Other Medical Devices is required in the owner’s manual for CTIA Certification. Use of the remaining TIA language is encouraged when appropriate. Exposure to Radio Frequency Signal Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies: ANSI C95.1 (1992) * NCRP Report 86 (1986) ICNIRP (1996) Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). *AmericanNationalStandardsInstitute;NationalCouncilonRadiationProtection and Measurements; International Commission on Non-Ionizing Radiation Protection The design of your phone complies with the FCC guidelines (and those standards). Phone Operation NORMAL POSITION: Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder.Safety Guidelines 114 Tips on Efficient Operation For your phone to operate most efficiently:

• Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed. Driving Check the laws and regulations on the use of wireless phones in the areas where you drive. Always obey them. Also, if using your phone while driving, please:

• Give full attention to driving - driving safely is your first responsibility;

• Use hands-free operation, if available;

• Pull off the road and park before making or answering a call if driving conditions so require. Electronic Devices Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Pacemakers The Health Industry Manufacturers Association recommends that a minimum separation of six (6”) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers:

• Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON;

• Should not carry the phone in a breast pocket.

• Should use the ear opposite the pacemaker to minimize the potential for interference.

• If you have any reason to suspect that interference is taking place, turn your phone OFF immediately.Safety Guidelines 115 Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Health Care Facilities Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may use equipment that could be sensitive to external RF energy. Vehicles RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle. Posted Facilities Turn your phone OFF in any facility where posted notices so require. Aircraft FCC regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an aircraft. Blasting Areas To avoid interfering with blasting operations, turn your phone OFF when in a blasting areas or in areas posted: ‘Turn off two-way radio’. Obey all signs and instructions.Safety Guidelines 116 Potentially Explosive Atmosphere Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, marked clearly. Potential areas may include: fueling areas (such as gasoline stations); below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or particles (such as grain, dust, or metal powders); and any other area where you would normally be advised to turn off your vehicle engine. For Vehicles Equipped with an Air Bag An air bag inflates with great force. DO NOT place objects, including either installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result. Safety Information Please read and observe the following information for safe and proper use of your phone and to prevent damage. Also, keep the user guide in an accessible place at all times after reading it. Charger and Adapter Safety The charger and adapter are intended for indoor use only. Battery Information and Care

• Please dispose of your battery properly or take it to your local wireless carrier for recycling.

• The battery does not need to be fully discharged before recharging.

• Use only LG-approved chargers specific to your phone model since they are designed to maximize battery life.

• Do not disassemble or impact the battery as it may cause electric shock, short- circuit, and fire.Safety Guidelines 117

• Replace the battery when it no longer provides acceptable performance. The battery can be recharged several hundred times before replacement.

• Recharge the battery after long periods of non-use to maximize battery life.

• Battery life will vary due to usage patterns and environmental conditions.

• Use of extended backlighting, Media Net Browsing, and data connectivity kits affect battery life and talk/ standby times.

• Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions.

• Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger. Notice for Battery replacement

• Li-Ion Battery is a hazardous component which can cause injury.

• Battery replacement by non-qualified professional can cause damage to your device.

• Your device has an internal battery. For your safety, do not remove the back cover. If you need to replace the battery, take it to the nearest authorized LG Electronics service point or dealer for assistance. Explosion, Shock, and Fire Hazards

• Do not put your phone in a place subject to excessive dust and keep the minimum required distance between the power cord and heat sources.

• Unplug the power cord prior to cleaning your phone, and clean the power plug pin when it is dirty.

• When using the power plug, ensure that it is firmly connected. If it is not, it may cause excessive heat or fire.

• If you put your phone in a pocket or bag without covering the receptacle of the phone (power plug pin), metallic articles (such as a coin, paperclip or pen) may shortcircuit the phone. Always cover the receptacle when not in use.

• Do not short-circuit the battery. Metallic articles such as a coin, paperclip or pen in your pocket or bag may short-circuit the + and – terminals of the battery (metal strips on the battery) upon moving. Short-circuiting of the terminal may damage the battery and cause an explosion.Safety Guidelines 118 General Notice

• Using a damaged battery or placing a battery in your mouth may cause serious injury.

• Do not place items containing magnetic components such as a credit card, phone card, bank book or subway ticket near your phone. The magnetism of the phone may damage the data stored in the magnetic strip.

• Talking on your phone for a long period of time may reduce call quality due to heat generated during use.

• When the phone is not used for a long period time, store it in a safe place with the power cord unplugged.

• Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference to the phone.

• Do not immerse your phone in water. If this happens, turn it off immediately. If the phone does not work, take it to an LG Authorized Service Centre.

• Do not paint your phone.

• The data saved in your phone might be deleted due to careless use, repair of the phone, or upgrade of the software. Please backup your important phone numbers. (Ring tones, text messages, voice messages, pictures, and videos could also be deleted.) The manufacturer is not liable for damage due to the loss of data.

• When you use the phone in public places, set the ring tone to vibration so as not to disturb others.

• Do not turn your phone on or off when putting it near your ear.

• Your phone is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your phone during or immediately after operation.

• Do not attempt to repair or modify the device yourself. Your device is equipped with an internal rechargeable battery which should be replaced only by LG or an authorized LG repair centre. You should never attempt to open or disassemble this device yourself and doing so may cause damage that will void your warranty.Safety Guidelines 119 FDA Consumer Update The U.S. Food and Drug Administration Centre for Devices and Radiological Health Consumer Update on Mobile Phones.

1. Do wireless phones pose a health hazard?

The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the standby mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.

2. What is the FDA’s role concerning the safety of wireless

phones? Under the law, the FDA does not review the safety of radiation emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, the FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace, or recall the phones so that the hazard no longer exists. Although the existing scientific data do not justify FDA regulatory actions, the FDA has urged the wireless phone industry to take a number of steps, including the following:

• Support needed research into possible biological effects of RF of the type emitted by wireless phones;

• Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and

• Cooperate in providing of wireless phones with the best possible information on possible effects of wireless phone use on human health.Safety Guidelines 120 The FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:

• National Institute for Occupational Safety and Health

• Environmental Protection Agency

• Occupational Safety and Health Administration (Administración de la seguridad y salud laborales)

• Occupational Safety and Health Administration

• National Telecommunications and Information Administration The National Institutes of Health participates in some interagency working group activities, as well. The FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. The FCC relies on the FDA and other health agencies for safety questions about wireless phones. The FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the subject of the safety questions discussed in this document.

3. What kinds of phones are the subject of this update?

The term ‘wireless phone’ refers here to handheld wireless phones with builtin antennas, often called ‘cell’, ‘mobile’, or ‘PCS’ phones. These types of wireless phones can expose the user to measurable radiofrequency energy (RF) because of the short distance between the phone and the user’s head. These RF exposures are limited by FCC safety guidelines that were developed with the advice of the FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person’s RF exposure decreases rapidly with increasing distance from the source. The so- called ‘cordless phones,’ which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures far below the FCC safety limits.Safety Guidelines 121

4. What are the results of the research done already?

The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer causing chemicals so as to be predisposed to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don’t know with certainty what the results of such studies mean for human health. Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about longterm exposures, since the average period of phone use in these studies was around three years.

5. What research is needed to decide whether RF exposure

from wireless phones poses a health risk? A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but 10 or more years follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.Safety Guidelines 122

6. What is the FDA doing to find out more about the possible

health effects of wireless phone RF? The FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency energy (RF). The FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The project has also helped develop a series of public information documents on EMF issues. The FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. The FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA funded research is conducted through contracts with independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.

7. How can I find out how much radiofrequency energy

exposure I can get by using my wireless phone? All phones sold in the United States must comply with Federal Communications Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures. The FCC/ISEDC established these guidelines in consultation with the FDA and the other federal health and safety agencies. The FCC/ISEDC limit for RF exposure from wireless telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC/ISEDC limit is consistent with the safety standards developed by the Institute of Electrical and Electronic Engineering (IEEE) and the National Council on Radiation Protection and Measurement. The exposure limit takes into consideration the body’s ability to remove heat from the tissues that absorb energy from the wireless phone and is set well below levels known to have effects. Manufacturers of wireless phones must report the RF exposure level for each model of phone to the FCC/ISEDC. The FCC website ( http://www.fcc. gov/oet/rfsafety ) gives directions for locating the FCC identification number on your phone so you can find your phone’s RF exposure level in the online listing.Safety Guidelines 123

8. What has the FDA done to measure the radiofrequency

energy coming from wireless phones? The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for measuring the radiofrequency energy (RF) exposure from wireless phones and other wireless handsets with the participation and leadership of FDA scientists and engineers. The standard, ‘Recommended Practice for Determining the Spatial- Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques,’ sets forth the first consistent test methodology for measuring the rate at which RF is deposited in the heads of wireless phone users. The test method uses a tissue simulating model of the human head. Standardized SAR test methodology is expected to greatly improve the consistency of measurements made at different laboratories on the same phone. SAR is the measurement of the amount of energy absorbed in tissue, either by the whole body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of matter. This measurement is used to determine whether a wireless phone complies with safety guidelines.

9. What steps can I take to reduce my exposure to

radiofrequency energy from my wireless phone? If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure. If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna. Again, the scientific data does not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.Safety Guidelines 124

10. What about children using wireless phones?

The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure. Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.

11. What about wireless phone interference with medical

equipment? Radiofrequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, the FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by the FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. The FDA has tested hearing aids for interference from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a ‘compatible’ phone and a ‘compatible’ hearing aid at the same time. This standard was approved by the IEEE in 2000. The FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, the FDA will conduct testing to assess the interference and work to resolve the problem.Safety Guidelines 125

12. Where can I find additional information?

For additional information, please refer to the following resources: FDA web page on wireless phones ( http://www.fda.gov/

Federal Communications Commission (FCC) RF Safety Program

International Commission on Non-lonizing Radiation Protection

World Health Organization (WHO) International EMF Project

National Radiological Protection Board (UK)

10 Driver Safety Tips Your wireless phone gives you the powerful ability to communicate by voice almost anywhere, anytime. An important responsibility accompanies the benefits of wireless phones, one that every user must uphold. When operating a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:

1. Get to know your wireless phone and its features such as speed dial and redial.

Carefully read your instruction manual and learn to take advantage of valuable features most phones offer, including automatic redial and memory. Also, work to memorize the phone keypad so you can use the speed dial function without taking your attention off the road.

2. When available, use a handsfree device. A number of handsfree wireless phone

accessories are readily available today. Whether you choose an installed mounted device for your wireless phone or a speaker phone accessory, take advantage of these devices if available to you.

3. Position your wireless phone within easy reach. Make sure you place your

wireless phone within easy reach and where you can reach it without removing your eyes from the road. If you get an incoming call at an inconvenient time, if possible, let your voicemail answer it for you.

4. Suspend conversations during hazardous driving conditions or situations. Let the

person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow and ice can be hazardous, but so is heavy traffic. As a driver, your first responsibility is to pay attention to the road.Safety Guidelines 126

5. Do not take notes or look up phone numbers while driving. If you are reading an

address book or business card, or writing a “to-do” list while driving a car, you are not watching where you are going. It is common sense. Don’t get caught in a dangerous situation because you are reading or writing and not paying attention to the road or nearby vehicles.

6. Dial sensibly and assess the traffic; if possible, place calls when you are not

moving or before pulling into traffic. Try to plan your calls before you begin your trip or attempt to coincide your calls with times you may be stopped at a stop sign, red light or otherwise stationary. But if you need to dial while driving, follow this simple tip — dial only a few numbers, check the road and your mirrors, then continue.

7. Do not engage in stressful or emotional conversations that may be distracting.

Stressful or emotional conversations and driving do not mix; they are distracting and even dangerous when you are behind the wheel of a car. Make people you are talking with aware you are driving and if necessary, suspend conversations which have the potential to divert your attention from the road.

8. Use your wireless phone to call for help. Your wireless phone is one of the

greatest tools you can own to protect yourself and your family in dangerous situations — with your phone at your side, help is only three numbers away. Dial 911 or other local emergency number in the case of fire, traffic accident, road hazard or medical emergency. Remember, it is a free call on your wireless phone!

9. Use your wireless phone to help others in emergencies. Your wireless phone

provides you a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 911 or other local emergency number, as you would want others to do for you.

10. Call roadside assistance or a special wireless nonemergency assistance number

when necessary. Certain situations you encounter while driving may require attention, but are not urgent enough to merit a call for emergency services. But you can still use your wireless phone to lend a hand. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a vehicle you know to be stolen, call roadside assistance or other special non-emergency wireless number. For more information, please call to 888- 901-SAFE.Safety Guidelines 127 Consumer Information on SAR (Specific Absorption Rate) This Model Phone Meets the Government’s Requirements for Exposure to Radio Waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. Because the phone is designed to operate at multiple power levels to use only the power required to reach the network, in general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR values for Canada are:

• Body (Body-worn/Hotspot): 0.58 W/kg (Body measurements differ among phone models, depending upon available accessories and FCC/ISEDC requirements).Safety Guidelines 128 While there may be differences between SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/ea/fccid after searching on FCC ID: ZNFM320G. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) website at http://www.ctia.org/

• In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

• Product meets current FCC & ISEDC Radio Frequency Exposure Guidelines.

Access to latest firmware releases, new software functions and improvements.

• Select the software update in settings menu on your device.

• Update your device by connecting it to your PC. For more information about using this function, please visit http://www.lg.com/common/index.jsp select country and language.Safety Guidelines 129

LIMITED WARRANTY STATEMENT

1. WHAT THIS WARRANTY COVERS:

LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions:

1. The limited warranty for the product extends for ONE (1) year beginning on the

date of purchase of the product by the original end user.

2. The limited warranty extends only to the original end user of the product and is

not assignable or transferable to any subsequent purchaser/end user.

3. This warranty is good only to the original end user of the product during the

warranty period as long as it is in Canada.

4. Upon request from LG, the consumer must provide information to reasonably

prove the date of purchase.

5. During the applicable warranty period, LG will repair or replace at LG’s sole option,

without charge to the original end user, any defective component part of the phone or accessory.

6. LG may use rebuilt, reconditioned or new parts or components when repairing

any product or replace a product with a rebuilt, reconditioned or new product.

2. WHAT THIS WARRANTY DOES NOT COVER:

1. Defects or damages resulting from use of the product in other than its normal

and customary manner.

2. Defects or damages from abnormal use, abnormal conditions, improper storage,

exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation or other acts which are not the fault of LG, including damage caused by spills of food or liquids.

3. Breakage or damage to antennas unless caused directly by defects in material or

4. The fact that the Customer Service Department at LG was not notified by the

original end user of the alleged defect or malfunction of the product, during the warranty period.Safety Guidelines 130

5. Products which have had their serial numbers removed or made illegible.

6. Damage resulting from use of non-LG approved accessories.

7. All plastic surfaces and all other externally exposed parts that are scratched or

damaged due to normal customer use.

8. Products serviced by non-authorized persons or companies.

1. This limited warranty supersedes all other warranties, expressed or implied either

in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose.

2. Shipping damage is the sole responsibility of the shipping company.

3. EXCLUSION OF LIABILITY:

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS CANADA, INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT.

• National Institute for Occupational Safety and Health

• Environmental Protection Agency

• Occupational Safety and Health Administration (Administración de la seguridad y salud laborales)

• Occupational Safety and Health Administration

International Commission on Non-lonizing Radiation Protection ( http://www.icnirp.de
