USER MANUAL Café CXE22DP3PD1 GE

Owner’s Manual49-1000329 Rev. 6 08-22 GEA Write the model and serial numbers here: Model # _______________________________ Serial # _______________________________ Find these numbers on a label on the left side, near the middle of the refrigerator compartment. Owner's Manual and Installation Instructions

• Bottom Freezer Refrigerators Models CVE, CXE and CQE Contents Safety Information p. 3
• Using the Refrigerator Features p. 6
• Controls p. 9
• Dispenser p. 11
• AutoFill p. 11
• WiFi p. 12
• Demand Response p. 13
• Water Filter p. 14
• Refrigerator Storage p. 15
• Automatic Icemaker p. 20
• Care And Cleaning p. 21
• Replacing the Lights p. 22
• Installation Instructions Preparing to Install the Refrigerator p. 23
• Installing the Refrigerator p. 26
• Installing the Water Line p. 36
• Troubleshooting p. 38
• Normal Operating Conditions p. 38
• Troubleshooting Tips p. 39
• Truth or Myth p. 41
• Limited Warranty p. 43
• Consumer Support XWFE Water Filter Cartridge Limited Warranty p. 44
• Performance Data Sheet p. 45

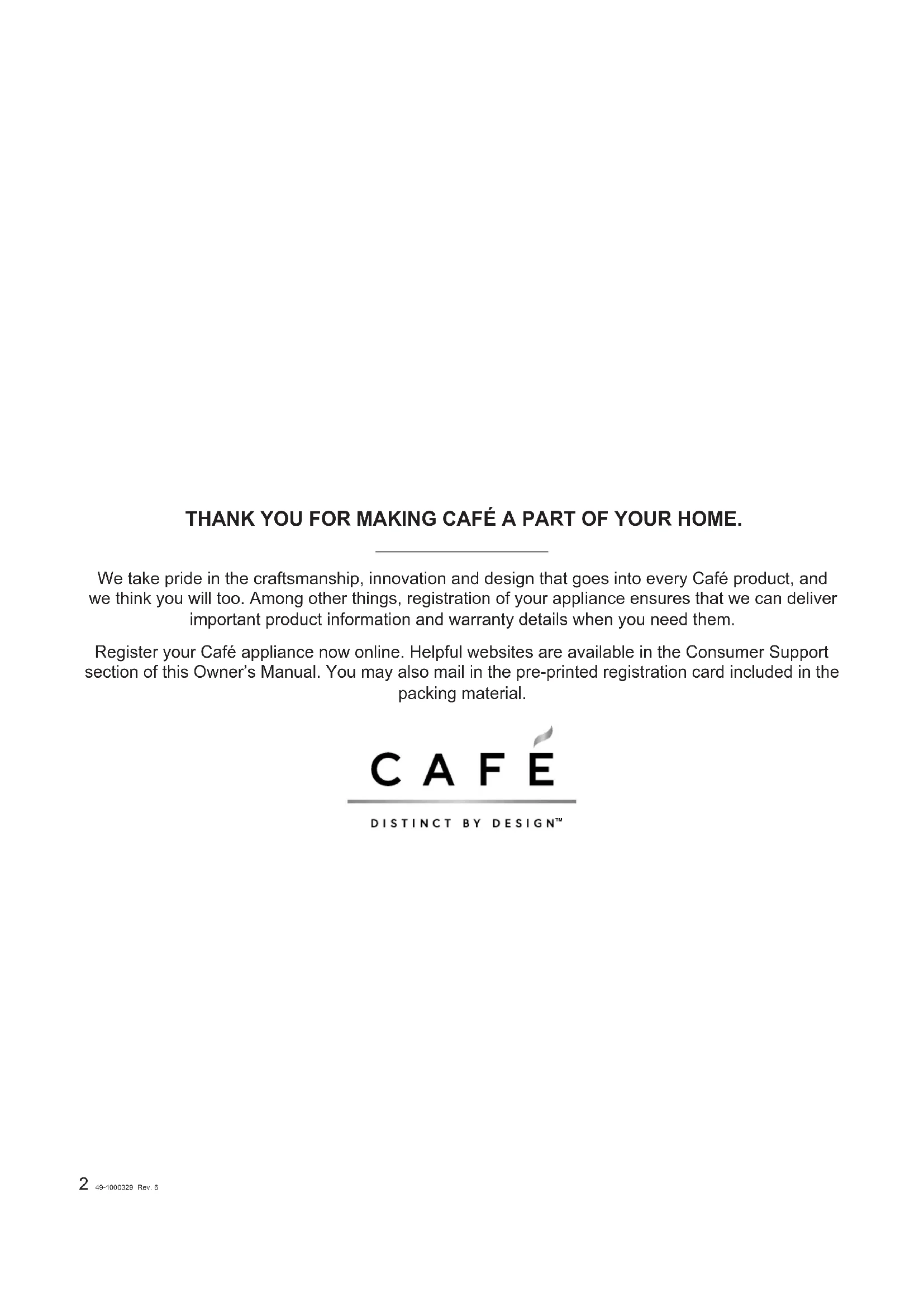

• Consumer Support 49-1000329 Rev. 6 THANK YOU FOR MAKING CAFÉ A PART OF YOUR HOME. We take pride in the craftsmanship, innovation and design that goes into every Café product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them. Register your Café appliance now online. Helpful websites are available in the Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration card included in the packing material. TM49-1000329 Rev. 6 3 SAFETY INFORMATION p. 462

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions:Ŷ 7KLVUHIULJHUDWRUPXVWEHSURSHUO\LQVWDOOHGand located in accordance with the Installation Instructions before it is used.Ŷ 8QSOXJWKHUHIULJHUDWRUEHIRUHPDNLQJUHSDLUVRUcleaning. NOTE: Power to the refrigerator cannot be disconnected by any setting on the cont rol panel. NOTE: Repairs must be performed by a qualified Service Professional.Ŷ 5HSODFHDOOSDUWVDQGSDQHOVEHIRUHRSHUDWLQJŶ 'RQRWXVHDQH[WHQVLRQFRUGŶ .HHSIODPPDEOHPDWHULDOVDQGYDSRUVDZD\IURPWKHrefrigerator.Ŷ 'RQRWVWRUHH[SORVLYHVXEVWDQFHVVXFKDVDHURVROcans with a flammable propellant in this appliance.Ŷ 7RSUHYHQWVXIIRFDWLRQDQGHQWUDSPHQWKD]DUGVWRFKLOGUHQUHPRYHWKHUHIULJHUDWRUDQGIUHH]HUdoors from any refrigerator before disposing of it or discontinuing its use.Ŷ 7RDYRLGVHULRXVLQMXU\RUGHDWKFKLOGUHQVKRXOGQRWstand on, or play in or with the appliance.Ŷ &KLOGUHQDQGSHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe XVHDQGXQGHUVWDQGWKHKD]DUGVLQYROYHGŶ 7KLVDSSOLDQFHLVLQWHQGHGWREHXVHGLQKRXVHKROGand similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments; catering and similar non-retail applications.Ŷ &RQQHFWWRSRWDEOHZDWHUVXSSO\RQO\$FROGZDWHUsupply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).Ŷ 'RQRWDSSO\KDUVKFOHDQHUVWRWKHUHIULJHUDWRUCertain cleaners will damage plastic which may cause parts such as the door or door handles to detach unexpectedly. See the Care and Cleaning section in your Owner’s Manual for detailed instructions.CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.Ŷ Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.Ŷ.HHSILQJHUVRXWRIWKH³SLQFKSRLQW´DUHDVclearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.Ŷ'RQRWWRXFKWKHFROGVXUIDFHVLQWKHIUHH]HUcompartment when hands are damp or wet, skin may stick to these extremely cold surfaces.Ŷ'RQRWUHIUHH]HIUR]HQIRRGVZKLFKKDYHWKDZHGcompletely.Ŷ In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. WARNING

FIRE OR EXPLOSION HAZARD

WARNING TIP OVER HAZARD. If an anti-tip floor bracket was included with your refrigerator, install it to prevent the refrigerator from tipping forward, which could result in death or serious injury. Read and follow the entire installation instructions for installing the anti-tip floor bracket packed with your refrigerator.4 49-1000329 Rev. 6 SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard SURQJJURXQGLQJZDOORXWOHWWRPLQLPL]HWKHSRVVLELOLW\RIHOHFWULFVKRFNKD]DUGIURPWKLVDSSOLDQFHHave the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter.The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.$9ROW$&+]RUDPSIXVHGJURXQGHGelectrical supply is required. This provides the best performance and also prevents overloading house ZLULQJFLUFXLWVZKLFKFRXOGFDXVHDILUHKD]DUGIURPoverheated wires.Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.Immediately discontinue use of a damaged supply cord. If the supply cord is damaged, it must be replaced by a qualified service professional with an DXWKRUL]HGVHUYLFHSDUWIURPWKHPDQXIDFWXUHUWhen moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. CONNECTING ELECTRICITY WARNING ELECTRICAL SHOCK HAZARDPlug into a grounded 3-prong outletDo not remove the ground prongDo not use an adapterDo not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING FIRE OR EXPLOSION HAZARD Flammable RefrigerantThis appliance contains isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.1. When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.2. 6HUYLFHVKDOORQO\EHSHUIRUPHGE\DXWKRUL]HGVHUYLFHSHUVRQQHO8VHRQO\PDQXIDFWXUHUDXWKRUL]HGservice parts.3. Dispose of refrigerator in accordance with Federal and Local Regulations. Flammable refrigerant and insulation material used require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator.4. .HHSYHQWLODWLRQRSHQLQJVLQWKHDSSOLDQFHenclosures or in the built-in structure clear of obstruction.5. To remove frost,scrape with a plastic or wood spatula or scraper. Do not use an ice pick, metal, or sharp-edged instrument as it may puncture the IUHH]HUOLQHUDQGWKHQWKHIODPPDEOHUHIULJHUDQWtubing behind it.6. Do not use electrical appliances inside the food storage compartment of the appliance.7. Do not use any electrical device in defrosting your IUHH]HU49-1000329 Rev. 6 5

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Failure to follow these disposal instructions can result in death or serious injuryIMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit IRU³MXVWDIHZGD\V´,I\RXDUHJHWWLQJULGRI\RXUROGrefrigerator, please follow the instructions below to help prevent accidents.Before You Throw Away Your Old ApplianceŶ7DNHRIIWKHUHIULJHUDWRUDQGIUHH]HUGRRUVŶ Leave the shelves in place so that children may not easily climb inside.Refrigerant and Foam Disposal:Dispose of appliance in accordance with Federal and Local Regulations. Flammable refrigerant and insulation material used requires special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator.6 49-1000329 Rev. 6 Features USING THE REFRIGERATOR: Features Model CVE and CXE Space-saving ice maker Ice maker and bin are located on the door creating more usable storage space. Showcase LED lighting LED lighting is positioned throughout the interior to spotlight areas in the refrigerator. LEDs are located under the fresh food door to light the convertible drawer, and LEDs are under the convertible drawer to OLJKWWKHIUHH]HUGUDZHU QuickSpace™ shelf )XQFWLRQVDVDQRUPDOIXOOVL]HGVKHOIZKHQQHHGHG and easily slides back to store tall items below. Spillproof shelves Designed to capture your spills for easier clean up. Removable door bin Can be removed for those with a wall limiting the door opening. HCS (Humidity Control System) Sealed HCS bin prolongs produce preservation by maintaining humidity in the bin. Vented Bin Vented bin for storing fruits and vegetables. Water filter Filters water and ice. Convertible drawer Select the best temperature to store your food.49-1000329 Rev. 6 7 Features Model CQE Space-saving ice maker Ice maker and bin are located on the door creating more usable storage space. Showcase LED lighting LED lighting is positioned throughout the interior to spotlight areas in the refrigerator. QuickSpace™ shelf )XQFWLRQVDVDQRUPDOIXOOVL]HGVKHOIZKHQQHHGHG and easily slides back to store tall items below. Spillproof shelves Designed to capture your spills for easier clean up. Removable door bin Can be removed for those with a wall limiting the door opening. HCS (Humidity Control System) Sealed HCS bin prolongs produce preservation by maintaining humidity in the bin. Vented Bin Vented bin for storing fruits and vegetables. Water filter Filters water and ice. Freezer

1. Open left refrigerator door.

2. Pull down latch to release bin door.

brackets and push until the ice bucket seats properly.

5. If bucket cannot be replaced, rotate the Ice Bucket

Fork 1/4 turn clockwise. Ice/water filter Certified to reduce chlorine-resistant cysts, lead, select pharmaceuticals, and more. For easy filter replacement instructions see page 10. Freezer door bin 0LGGOHDQGERWWRPELQVRQWKHIUHH]HUGRRUFDQEH tilted out for easy access. Ice bucket Latch USING THE REFRIGERATOR: Features49-1000329 Rev. 6 9 Controls NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now. The temperature controls are preset in the factory at 37°F (3°C) for the refrigerator compartment and 0°F

&IRUWKHIUHH]HUFRPSDUWPHQW$OORZKRXUVIRU

WKHWHPSHUDWXUHWRVWDELOL]HWRWKHSUHVHWUHFRPPHQGHG settings. To Change the Refrigerator Temperature: Press the Settings button ( ) XQWLO³)ULGJH´LV

KLJKOLJKWHG3UHVVWKH8SRU'RZQDUURZEXWWRQVWR

increase or decrease temperature settings. To Change the Freezer Temperature: Press the Settings button ( ) XQWLO³)UHH]HU´LV

KLJKOLJKWHG3UHVVWKH8SRU'RZQDUURZEXWWRQVWR

increase or decrease temperature settings. The cooling system can be turned off by pressing the Settings button ( XQWLOHLWKHU³)ULGJH´RU³)UHH]HU´

the system is off. Turning the cooling system off stops the cooling to the refrigerator, but it does not shut off the electrical power. The cooling system can be turned RQE\UHWXUQLQJWRWKH³)ULGJH´RU³)UHH]HU´VHWWLQJDQG pressing the On button. Control Settings Settings ( ) - Press the Settings symbol ( ) to scroll through the refrigerator functions.

Ɣ&RQWURO/RFN3UHVV21WRORFNRXWLFHDQGZDWHU

dispenser and all feature and temperature buttons. Press and hold OFF for 3 seconds to deactivate.

alert by pressing any key. Press On or Off to activate or deactivate Door Alarm while an alert is not active.

Ɣ,FHPDNHU3UHVV2QRU2IIWRVWDUWVWRS,FHPDNHU

Ɣ:L)L3UHVVOn to start the WiFi connection process per the instructions on Page 13. Press Off to disable WiFi. Note that restarting WiFi requires repeating the WiFi connection process. Water ( ) - Press to select Ice or Water to dispense when the paddle is pressed. AutoFill - Press to initiate automatic sensing to fill from dispenser. Ice ( ) - Press to select crushed or cubed ice when the paddle is pressed. Light ( ) - Press to illuminate dispenser. Chime will accompany each press. Fahrenheit / Celsius: Temperature display can be switched between Fahrenheit and Celsius. Press Settings button ( ) to

QDYLJDWHWR³)ULGJH´RU³)UHH]HU´WKHQSUHVVDQGKROGWKH

Ice button and Light button for three seconds. Volume Control: Alert volume can be adjusted from High to Low and Off. Press Settings button ( ) WRQDYLJDWHWR³,FHPDNHU´ then press and hold the Ice button and Light button for three seconds. Sabbath Mode: Simultaneously hold the Settings ( ), Water, and Light buttons for three seconds to enter and exit Sabbath

PRGH'LVSOD\ZLOOVKRZ³6$´DQGPRGHZLOODXWRPDWLFDOO\

exit after 3 days. All Models We are continuously updating our software. Please reference the full owner's manual online for the latest functionality at cafeappliances.com. In Canada, visit cafeappliances.ca. The recommended temperature settings, preset from the factory, are 37°F (3°C) for the refrigerator and 0°F (-18°C) IRUWKHIUHH]HU USING THE REFRIGERATOR: Controls10 49-1000329 Rev. 6 Controls USING THE REFRIGERATOR: Controls Model CVE and CXE Convertible Drawer Temperature in the Convertible Drawer is selected by pressing the food item to be kept in the drawer. 6RIW)UHH]H )°C) Meat 29°F (-2°C) Beverages 33°F (1°C) Snacks 37°F (3°C) Wine 42°F (6°C) The temperature setting is locked by default. Button must be pressed for 3 seconds to unlock. Model CQE Convertible Zone The Convertible Zone control panel is in the top of the lower right-hand door. Select the desired temperature for the compartment. )UHH]HU )°C) Refrigerator 37°F (3°C) Chiller 42°F (6°C) The temperature setting is locked by default. Button must be pressed for 3 seconds to unlock. The Warmer (+) and Cooler (-) buttons can be used to adjust the temperature of each setting.49-1000329 Rev. 6 11 Important Facts About Your Dispenser Ŷ Do not add ice from trays or bags to the door icemaker bucket. It may not crush or dispense.Ŷ Avoid overfilling glass with ice and use of narrow glasses. Backed-up ice can jam the chute or cause the GRRULQWKHFKXWHWRIUHH]HVKXW,ILFHLVEORFNLQJWKHchute remove the ice bucket, poke it through with a wooden spoon.Ŷ Beverages and foods should not be quick-chilled in the door icemaker bin. Cans, bottles or food packages in the storage drawer may cause the icemaker or auger to jam.Ŷ To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser opening.Ŷ Some crushed ice may be dispensed even though you selected CUBED. This happens occasionally when a few cubes accidentally get directed to the crusher.Ŷ After crushed ice is dispensed, some water may drip from the chute.Ŷ Sometimes a small mound of snow will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.Water & Ice Dispenser(See About the controls with temperature settings & About the control features) WARNING Laceration HazardŶ Never put fingers or any other object into ice crusher discharge opening. Doing so can result in contacting the ice crushing blades and lead to serious injury or amputationŶ8VHDVWXUG\JODVVZKHQGLVSHQVLQJLFH$GHOLFDWHglass may break and result in personal injury.If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser paddle for at least five minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six full glasses of water. Dispenser AutoFill To Use HANDS FREE AutoFill: Ŷ Center container on Recess Dispenser Tray as far back as possible without activating paddle and remove hand from containerŶ Press AutoFill. To Stop AutoFill Ŷ Press ANY key, including AutoFill, to stop. Important Facts about AutoFill Ŷ For optimum results, use a uniform container between ´FPWDOODQG´FPZLGHŶ Fill level and functionality may vary on containers taller WKDQ´FPRUZLGHUWKDQ´FPŶ&RQWDLQHUYROXPHVPD\YDU\,I³(5525´PHVVDJHLVgiven, try a different container. Ŷ AutoFill will time out. Ŷ Handles, straws, and garnishes on the rim of the container my cause overfilling or variation in fill volumes.Ŷ Splashing may occur depending on the location of the container, water flow rate, container shape, and ice cubes.Ŷ.HHSVHQVRUVFOHDQZLWKDFOHDQGDPSFORWKDQGGRnot spray liquid or cleaners directly on sensorsŶ AutoFill works best with household water pressure of 60 to 100 psi (414 to 689 kPa).Ŷ Ice in container may affect fill volume. If issues are experienced, use less ice. USING THE REFRIGERATOR: Dispenser AutoFill Sensors12 49-1000329 Rev. 6 USING THE REFRIGERATOR: WiFi WiFi (for customers in the United States, its territories, and Canada) REGULATORY INFORMATION FCC/IC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help. Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment. SOFTWARE UPDATES

2QHRIWKHIHDWXUHVRIWKH.LWFKHQ$SSLVWKHDELOLW\WRDFFHSWUHIULJHUDWRUVRIWZDUHXSGDWHV:KHQWKHXVHUDFFHSWV

the updates, refrigerator lights will appear to turn off, and all features are not be available during the update. This is QRUPDOEHKDYLRUGXULQJVRIWZDUHXSGDWHV8VHUVDUHHQFRXUDJHGWRFKHFNWKHUHIULJHUDWRUVHWWLQJVDIWHUDQVRIWZDUH update. If your refrigerator has a Conneted Appliance Information label, then it can be connected to your WiFi network, allowing it to communicate with your mobile device for remote monitoring, control and notifications. Please visit GEAppliances.com/connect to learn more about connected appliance features and learn what connected appliance apps work with your mobile device.49-1000329 Rev. 6 13 Demand Response (some models) USING THE REFRIGERATOR: Demand Response What is Demand Response? Some utilities vary their electricity rates based on the time of day. Some utilities offer Demand Response programs to reduce energy usage during certain times of the day. Some utilities may do both things. This refrigerator has a Demand Response feature to help control energy usage. Using Demand Response without a Utility Program The Demand Response feature allows the user to shift high energy features, like defrost, for a 4-hour window. This window corresponds to the average peak energy usage. This feature is enabled or disabled with the Café Appliances app and requires the Café Appliances app to operate. It does not depend on the local utility, or whether it varies the electricity rates. Demand Response with your Utility If your utility has a compatible Demand Response program, and you are signed up with the utility, this refrigerator can modify its energy usage based on commands received from the utility. The Café Appliances app can be used to override the Demand Response program, if desired. Please note that there are many different Demand Response programs, and many are not compatible with kitchen appliances. Please check with your local utility.The demand response level is displayed in the mobile app. Delay appliance load mode (DAL) reduces power consumption by delaying defrost and ice production for 4 hours. Temporary appliance load reduction (TALR) reduces the power consumption by delaying defrost, ice production, and stopping cooling for 10 minutes.Estimated energy consumption in Watt-hour(Wh) is reported in the mobile app. Installing Demand Response Install the Café Appliances app per the instructions on the previous page. Select the Demand Response page, and choose from the available Demand Response options. The app provides more information on the operation of each Demand Response option. Demand Response Communication Protocols This refrigerator uses the following IETF open standard protocols for the WiFi communication. Consult the online user manual for the latest protocol updates:Ŷ;033https://tools.ietf.org/html/rfc6120Ŷ7/6https://tools.ietf.org/html/rfc5246GEA API for demand response:Ŷ:ULWHGHPDQGUHVSRQGVWDWXV,QDFWLYH'$/DQGTALR)Ŷ*HWGHPDQGUHVSRQVHVWDWXV,QDFWLYH'$/7$/5RUDelay Defrost)Ŷ*HWHVWLPDWHGHQHUJ\FRQVXPSWLRQLQ:DWWKRXUŶ*HWHYHQWIRU'RRU2SHQŶ*HWHYHQWIRU+LJKWHPSHUDWXUHDOHUWŶ:ULWHGHPDQGUHVSRQVH'$/RU7$/5VWDUWWLPHDQGduration time period.Ŷ*HWGHPDQGUHVSRQVH'$/RU7$/5VWDUWWLPHDQGduration time period.Ŷ'HOHWHGHPDQGUHVSRQVH'$/RU7$/5VFKHGXOH14 49-1000329 Rev. 6 USING THE REFRIGERATOR: XWFE Water Filter XWFE Water Filter Water Filter Cartridge The water filter cartridge is located in the left-hand refrigerator door behind the rectangular access panel. When to Replace the Filter Cartridge The Replace Water Filter message on the control panel will illuminate when the water filter cartridge needs to be replaced soon. The Water Filter Expired message will illuminate when the water filter cartridge needs to be replaced. The water filter can be replaced earlier if the flow of water to the dispenser or icemaker decreases. Once either message is illuminated, dispensing water will show Confirm Filter Change; do not confirm until the water filter is replaced

If you are replacing the filter, first remove the previous one by gently grasping the filter and slowly turning it to the left, about a ¼ turn. The filter should automatically release itself when you have rotated it far enough to the left. A small amount of water may drip down. CAUTION If air has been trapped in the system, the filter cartridge PD\EHHMHFWHGDVLWLVUHPRYHG8VHFDXWLRQZKHQremoving.

To reduce the risk of property damage due to water OHDNDJH\RX0867XVHWKHILOWHUE\SDVVSOXJZKHQDreplacement filter cartridge is not available. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.692.6630 and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. The dispenser and icemaker will not operate without either the filter or bypass plug installed. The bypass plug is installed in the same way as a filter cartridge.

INSTALLING THE FILTER IN A BOTTOM

FREEZER REFRIGERATOR 1. Open the filter cartridge housing by pulling the door open. 2. Line up the ports on the filter with the ports on the filter cartridge holder, and gently insert the filter.3. Slowly turn the filter to the right until it stops. DO NOT OVERTIGHTEN. As you turn the filter, it will automatically adjust itself into position. The filter will move about a ¼ turn or 90 degrees, until the filter cannot be turned, and the label faces outward.4. Slowly push the filter up into the clips.5. Close the filter cartridge housing by gently pushing the door closed until the tabs lock into place. 6. Run water from the dispenser for 2 gallons or approximately 5 minutes to clear the system. Water may spurt out and air bubbles may be visible during this process. If water is not flowing, check to make sure the filter has been fully rotated to the right.7. When dispensing water, press the button underneath the Confirm Filter Change message. If replacing the water filter before the message appeared, press the Settings ( ) EXWWRQXQWLO³,FHPDNHU´LV highlighted, then hold down the Water and Ice buttons simultaneously for 3 seconds. Application Guidelines/Water Supply WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.For the maximum benefit of your filtration system, Café Appliances recommends the use of GE Appliances-branded ILOWHUVRQO\8VLQJ*($SSOLDQFHVEUDQGHGILOWHUVLQ&DIpUHIULJHUDWRUVSURYLGHVRSWLPDOSHUIRUPDQFHDQGUHOLDELOLW\ GE Appliances filters meet rigorous industry NSF standards for safety and quality that are important for products that are filtering your water. Café Appliances has not qualified non-GE Appliances-branded filters for use in Café refrigerators and there is no assurance that non-GE Appliances-branded filters meet Café standards for quality, performance and reliability.If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com. Customers in Canada should consult the yellow pages for the nearest Camco Service Center.Service Flow 0.5 gpm (1.89 lpm)Water Supply Potable WaterWater Pressure 25-120 psi (172-827 kPa)Water Temperature 33°F-100°F (0.6°C-38°C)Capacity 170 gallons (643.5 liters)Sign-up for TEXT REMINDERS by texting REPLACE to 70543.49-1000329 Rev. 6 15 Refrigerator Storage Options Rearranging the Shelves Shelves in the refrigerator compartment are adjustable. To remove: Remove all items from the shelf. Tilt the shelf up at the front. Lift the shelf up at the back and bring the shelf out. To replace: While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track. Lower the front of the shelf until the bottom of the shelf locks into place. Spillproof Shelves Spillproof shelves have special edges to help prevent spills from dripping to lower shelves. Quick Space Shelf This shelf splits in half and slides under itself for storage of tall items on the shelf below. This shelf can be removed and replaced or relocated (just like spillproof shelves). NOTE: The back half of the Quick Space Shelf is not adjustable. USING THE REFRIGERATOR: Refrigerator Storage Options16 49-1000329 Rev. 6 Refrigerator Storage Options Door Bins Fixed bins can easily be carried from refrigerator to work area. To remove: Lift bin straight up, then pull out. The door bins are not interchangeable, note the location upon removal and replace the bin in its proper location. Climate Zone Bins .HHSIUXLWVDQGYHJHWDEOHVRUJDQL]HGLQVHSDUDWH compartments for easy access. Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry. Sealed HCS bin prolongs produce preservation by maintaining humidity in the bin. Vented bin for storing fruits and vegetables USING THE REFRIGERATOR: Refrigerator Storage Options49-1000329 Rev. 6 17 USING THE REFRIGERATOR: Refrigerator Storage Options How To Adjust Drawer Dividers Grasp divider at the top and slide to the left or right. How to Remove and Replace Drawer To remove:

1. Pull the drawer out to the stop position.

2. Remove the convertible drawer basket by lifting while

rotating the basket upward To replace:

1. Place drawer back in first and rotate drawer front down to

2. Push the drawer in to closed position.

Convertible drawer basket will be loose if re-installed

EDFNZDUGV/RRNIRU³)5217´HPERVVWRKHOSZLWK

re-installation. Refrigerator Storage Options CONVERTIBLE DRAWER - Model CVE and CXE Only18 49-1000329 Rev. 6 Freezer Basket and Drawer Basket. 3L]]DWUD\ Drawer Tilt-Out Bin in the Freezer To remove: Press the tab on the right side bracket to remove the IUHH]HUGUDZHUELQ To replace: Slide bin into location until it locks into place. Basket Removal To remove:

then up and out of the drawer. To replace:

1. Place drawer back in first and rotate drawer front down to

seat on slide. Bottom freezer drawer basket must be in place before installing the pizza drawer. Refrigerator Storage Options BASKETS, DRAWERS, AND BINS - Model CVE and CXE Only USING THE REFRIGERATOR: Refrigerator Storage Options49-1000329 Rev. 6 19 USING THE REFRIGERATOR: Refrigerator Storage Options Freezer Baskets Select Zone Baskets, Shelf, and Wine Rack Basket or Shelf Removal To remove:

1. Pull basket or shelf out all the way.

2. Slightly lift front of basket or shelf and pull out.

1. Reverse the removal steps.

Refrigerator Storage Options BASKETS, SHELF, AND BINS - Model CQE Only20 49-1000329 Rev. 6 USING THE FREEZER: Automatic Icemaker Ice Bucket and Dispenser

• Open the ice box door on inside of the left door.• Pull up and out on the ice bucket in the left hand door to remove it from the compartment .• To replace the ice bucket, set it on the guide brackets and push until the ice bucket seats properly.Lift and pullIce Box Door Automatic Icemaker A newly installed refrigerator may take 12 to 24 hours to begin making ice. Automatic Icemaker The icemaker will produce seven cubes per cycle approximately 100–130 cubes in a 24-hour period, GHSHQGLQJRQIUHH]HUFRPSDUWPHQWWHPSHUDWXUHURRPtemperature, number of door openings and other use conditions.The icemaker will fill with water when it cools to 15°F (-10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.If the refrigerator is operated before the water line connection is made to the unit or if the water supply to an operating refrigerator is turned off, make sure that the icemaker is turned off. Once the water has been connected to the refrigerator, the icemaker may be turned on using the controls.<RXPD\KHDUDEX]]LQJVRXQGHDFKWLPHWKHLFHPDNHUfills with water.To fill the bucket to maximum capacity after installation, dispense 3-4 cubes at 12 hours and 18 hours. Allow 1-2 days for the bucket to completly fill with ice.Throw away the first few batches of ice to allow the water line to clear.Be sure nothing interferes with the sweep of the feeler arm.When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together.If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice. CAUTION 7RPLQLPL]HWKHULVNRISHUVRQDOLQMXU\avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. To turn the icemaker ON/OFF, use the Settings button to navicate to the Icemaker selection. w WARNING Connect to potable water supply only.A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).49-1000329 Rev. 6 21 Care and Cleaning Cleaning the Inside To help prevent odors, leave an open box of baking VRGDLQWKHUHIULJHUDWRUDQGIUHH]HUFRPSDUWPHQWVUnplug the refrigerator before cleaning.If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.8VHDQDSSOLDQFHZD[SROLVKRQWKHLQVLGHVXUIDFHbetween the doors.8VHZDUPZDWHUDQGEDNLQJVRGDVROXWLRQ²DERXWDtablespoon (15 ml) of baking soda to a quart (1 liter) of ZDWHU7KLVERWKFOHDQVDQGQHXWUDOL]HVRGRUV5LQVHDQGwipe dry.To clean the inside metal panel*, open the outer door using the Door in Door Latch. Clean the panel with a mild detergent and then wipe dry with a soft cloth. Do not use any stainless steel cleaner on the panel as it may damage the surrounding plastic. CAUTION Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks. Do not wash any plastic refrigerator parts in the dishwasher.DO USE DO NOT USESoft, clean cloth or spongeMicrofiber clothAbrasive cloths, paper towels, scrubbing sponges (with or without soap), scouring or steel wool padsMild detergent mixed with warm waterAbrasive powders, liquids, or spraysWindow sprays, ammonia, or bleachCitrus or plant oil-based cleanersAcidic or vinegar-based cleanersOven cleanersAlkaline cleanersStainless steel cleanersDO NOT use Stainless Steel cleaners on the door surfaces. IMPORTANT: The use of incorrect products may damage the outer finish of Fingerprint Resistant Stainless and Black Stainless models. Please follow these instructions and use only the appropriate items below to clean your appliance surfaces. Ɣ&OHDQLQWHULRUH[WHULRUVXUIDFHVZLWKZDUPZDWHUPLOGVRDSRUGHWHUJHQWDQGDVRIWRUPLFURILEHUFORWKWRDYRLG damage. Ɣ:LSHWKHDSSOLDQFHVXUIDFHGU\ZLWKDVRIWFOHDQFORWKRUPLFURILEHUWRZHOWRDYRLGVWUHDNLQJRUZDWHUVSRWWLQJ DO USE DO NOT USESoft, clean cloth or sponge Abrasive cloths, scrubbing sponges (with or without soap), scouring or steel wool padsMild detergent mixed with warm waterApproved stainless steel cleaners; For approved stainless steel cleaners, visit cafeappliances.com.&OHDQHUVZLWKR[DOLFDFLGVXFKDV%DU.HHSHUV)ULHQG6RIWCleanser™ can be used to remove surface rust, tarnish and small blemishes on stainless steel surfaces only.Abrasive powders or spraysWindow Sprays or AmmoniaCitrus or plant oil-based cleanersAcidic or vinegar-based cleanersOven cleanersCleaners containing acetone (propanone)Any cleaner with WARNING about plastic contact NOTE: DO NOT allow stainless steel cleaner to come in contact with any plastic parts such as trim pieces, handle hardware and liners. If unintentional contact of cleaners with plastic parts does occur, clean plastic part with a sponge and mild detergent mixed with warm water. STAINLESS STEEL - Outside surfaces, door handles, and trim FINGERPRINT RESISTANT STAINLESS STEEL*, BLACK STAINLESS, SLATE, DARK SLATE, PAINTED, GLASS - Outside surfaces, door handles, and trim Cleaning the Outside *Easily wipe away smudges and fingerprints. CARE AND CLEANING22 49-1000329 Rev. 6

Behind the Refrigerator Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Raise the leveling legs located at the bottom front of the refrigerator.Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.Lower the leveling legs until they touch the floor. WARNING

ELECTRICAL SHOCK HAZARD

When pushing the refrigerator back, make sure you don’t roll over the power cord or water supply line. Preparing for Vacation For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.,IWKHWHPSHUDWXUHFDQGURSEHORZIUHH]LQJKDYHDqualified service technician drain the water supply system to prevent serious property damage due to flooding.1. Turn refrigerator off (see CONTROLS, page 9) or unplug the refrigerator.2. Empty ice bucket3. Turn water supply offIf you cut the water supply off, turn off the icemaker.8SRQUHWXUQLQJIURPYDFDWLRQ1. Replace the water filter.2. Run 2 gallons (7.57 liters) of water through the cold water dispenser (about 5 minutes) to flush the system. Preparing to Move Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator.Be sure the refrigerator stays in an upright position during moving. Care and Cleaning Replacing the Lights Refrigerator Lights (LEDs) Appearance may vary by model.There is LED lighting in the refrigerator compartment, the bottom of the left-hand refrigerator door, and the bottom of the convertible drawer.$QDXWKRUL]HGWHFKQLFLDQZLOOQHHGWRUHSODFHWKH/('light.If this assembly needs to be replaced, visit cafeappliances.com/service to place a service call. In Canada, visit cafeappliances.ca/service.49-1000329 Rev. 6 23

Read these instructions completely and carefully.WARNING Tip Over Hazard. If an anti-tip floor bracket was included with your refrigerator, install it to prevent the refrigerator from tipping forward, which could result in death or serious injury. Read and follow the entire installation instructions for installing the anti-tip floor bracket packed with your refrigerator.

IMPORTANT — Observe all governing codes and ordinances. Save these instructions for local inspector’s use.• Note to Installer – Be sure to leave these instructions with the Consumer.• Note to Consumer –.HHSWKHVHLQVWUXFWLRQVIRUfuture reference.• Skill level – Installation of this appliance requires basic mechanical skills.• Completion time – Refrigerator Installation can vary Water Line Installation 30 minutes• Proper installation is the responsibility of the installer. • Product failure due to improper installation is not covered under the Warranty. PREPARATION MOVING THE REFRIGERATOR INDOORSIf the refrigerator will not fit through a doorway, WKHUHIULJHUDWRUGRRUVDQGIUHH]HUGUDZHUFDQEHremoved.• To remove the refrigerator doors, see the Installing the Refrigerator section. 7RUHPRYHWKHIUHH]HUGUDZHUVHHWKH5HPRYLQJWKH)UHH]HU'UDZHUVHFWLRQWATER SUPPLY TO THE ICEMAKER AND DISPENSERIf the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE Appliances water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our website at cafeappliances.com/parts (in Canada at cafeappliances.ca/parts).Adjustable Wrench1/4´ Outer Diameter Compression Nut and Ferrule (sleeve) Phillips-Head Screwdriver´´6RFNHW Ratchet/Driver1/8´´´1/4´& ´Allen WrenchesPencil1/8´Drill Bit and Electric or Hand DrillTape Measure1/4´Nut DriverPliersLevelFlat-Head ScrewdriverTorx T20, T25 Installation Instructions Refrigerator Questions? Visit our Website at: cafeappliances.com In Canada, visit cafeappliances.ca INSTALLATION INSTRUCTIONS24 49-1000329 Rev. 6 Installation Instructions INSTALLATION INSTRUCTIONS 8VLQJWKHFKDUWEHORZWRGHWHUPLQHLISDVVDJHZD\V can accommodate the width of the refrigerator. 8VHDSDGGHGKDQGWUXFNRUPRYLQJVWUDSVWRPRYH this refrigerator. Place the hand truck to the side of the refrigerator.

• We strongly recommend the refrigerator be moved by two people.

• Leave tape, film, and other packaging on the refrigerator until in it’s final location.

• Refer to sections 2 through 5 for handle, door, and drawer removal if needed. Otherwise, skip to

• Consider recycling options for your appliance packaging material. NOTE: It is recommended that the floor be protected with a plastic covering throughout the installation process. NOTE: Not recommended for installation on carpeted flooring.

refrigerator. Ensure you have clearance to prevent damage to the refrigerator before safely moving it to the final location.

• If passageways are large enough to accommodate the refrigerator without removing the handles skip to Step 6. Leave tape, film and all packaging on doors until the refrigerator is in the final location.

• NOTE: Use a padded hand truck or moving straps to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that two people move and complete this installation. If your opening is less than the following dimensions, remove door parts in order until dimension is less than the opening.

REFRIGERATOR LOCATION Ŷ Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures. Ŷ Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly. Ŷ Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight. Ŷ Install it on a floor strong enough to support it fully loaded. CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections. 6LGHV ´PP

(943 mm) deep (refer to chart on previous page). Doors and passageways leading to the installation ORFDWLRQPXVWEHDWOHDVW´PPZLGH in order to leave the doors and handles attached to the refrigerator while transporting it into the installation location. If passageways are less WKDQ´PPWKHUHIULJHUDWRUGRRUVDQG handles can easily be scratched and damaged. The top cap and doors can be removed to allow the refrigerator to be safely moved indoors. If

SDVVDJHZD\VDUHOHVVWKDQ´PP

start with Step 1. Ŷ If it is not necessary to remove doors, skip to Step

11. Leave tape and all packaging on doors until the

refrigerator is in the final location. Ŷ NOTE:8VHDSDGGHGKDQGWUXFNWRPRYHWKLV refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that TWO PEOPLE move and complete this installation. INSTALLATION INSTRUCTIONS

HANDLE INSTALLATION (on some models) Before You Start…. Ŷ To avoid injury, wear closed-toe shoes when installing the handles. Ŷ While installing the handle, grasp the handle firmly to ensure it does not fall or scratch the appliance’s finish. Ŷ IMPORTANT: To make sure the handles are accurately installed, please review the instructions and graphics before you begin installation. Ŷ IMPORTANT: Do not use power tools to tighten set screws. Tools Provided: Ŷ´KH[NH\ Handle appearance may vary based on model; however, the installation process is the same.

1. Remove any protective film from the door

or drawer fronts before installing handles (if applicable).

2. Remove handle from packaging and locate the

3. Place the handle over the mounting fasteners

until it is flush against the surface of the door.

4. Tighten both set screws in the handle end

FDSVE\WXUQLQJWKH´KH[NH\FORFNZLVHXQWLO

the handle will not hang loose or fall from its mounting. Do not fully tighten yet.

Hold the handle firmly against the door, make sure there are no gaps between the handle end caps and the door, and fully tighten the set screws. To remove the handles, reverse the installation process.49-1000329 Rev. 6 27 INSTALLATION INSTRUCTIONS Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

WARNING Follow all steps for removing and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.1. Loosen the icemaker water supply tube.Ɣ/RRVHQDQGUHPRYHWKHWXELQJFODPSZKLFKholds the water supply tube to the back of the refrigerator. Ɣ5HPRYHWKHEODFNFROODUIURPZDWHUVXSSO\WXEHconnector at the top right back of the refrigerator.Ɣ3UHVVWKHZKLWHIODQJHGRZQDQGVHSDUDWHWKHwater supply line from the connector.2. Remove the left hinge cover by removing 2 hinge cover screws with a Phillips head screwdriver and lifting from the left side. Disconnect electrical connectors and pull the water supply tube through the case.3. Securely tape the door shut with masking tape or have a second person support the door.5HPRYHVFUHZVKROGLQJKLQJHZLWKD´VRFNHWLift hinge from refrigerator and door.CollarConnectorWater Supply TubeTubing ClampElectrical ConnectionsHinge ScrewsGround Screws

(cont.) For proper installation later, please follow these next steps carefully: Ŷ Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.

Ŷ Remove right hinge cover.Ŷ Securely tape the door shut with masking tape or have a second person support the door.Ŷ5HPRYHVFUHZVKROGLQJKLQJHZLWKD´VRFNHWLift hinge from refrigerator and door.For proper installation later, please follow these next steps carefully: Ŷ Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.To reassemble doors, reverse removal steps.

REMOVING CONVERTIBLE DRAWER (on some models)

1. Remove the convertible drawer basket by lifting

while rotating the basket upward.

2. Disconnect the wiring control connection for the

convertible drawer. Ɣ8VLQJDIODWKHDGVFUHZGULYHUUHPRYHFRYHU over electric connectors on inside right of the drawer frame. The cover hooks through the drawer frame toward the inside of the refrigerator. Ɣ3UHVVWKHWDELQWKHFHQWHURIWKHFRQQHFWRUWR separate.

3. Remove 2 screws from each side of the frame

4. Remove door by lifting off hooks.

then up and out of the drawer.

5. Pull the lower basket and slide mechanism to full

extension using both hands.

6. Remove the basket resting on the slides.

INSTALLATION INSTRUCTIONS Control Connection CoverRemove these screws

DRAWER (on some models)

from each side of the IUDPHZLWKD´ socket. CAUTION Lifting Hazard Freezer door is heavy Use both hands to secure the door before lifting.49-1000329 Rev. 6 29 INSTALLATION INSTRUCTIONS

DRAWER (on some models) (Cont.)

3. Remove the door by lifting off hooks.4. Push the bottom basket slides back until the slide mechanism self retracts.

Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

REMOVE LOWER LEFT-HAND

DOOR (on some models) WARNING Follow all steps for removing and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.1. Securely tape the door shut with masking tape or have a second person support the door.5HPRYHWKHFHQWHUKLQJHZLWKD´VRFNHWDQGPhillips head screwdriver.3. Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.

DOOR (on some models) 1. Open lower right-hand door 90°.2. Remove lower hinge cover by removing Phillips head screw and unsnapping cover from hinge.3. Disconnect 2 harnesses.4. Securely tape the door shut with masking tape or have a second person support the door.5HPRYHWKHFHQWHUKLQJHZLWKD´VRFNHWDQGPhillips head screwdriver.6. Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting HazardFreezer door is heavy Use both hands to secure the door before lifting.1. Pull the lower basket slide mechanism to full extension with both hands./LIWWKHIUHH]HUGRRUDQGDOLJQWKHKRRNVZLWKWKHnotches on the slide mechanisms. NOTE: Place one side in first, then align the other side.3. Replace the attachment screws and torque the screws to 65 in-lb (7.34 N-m).To reassemble doors, reverse removal steps. Be careful wires pass through bottom hight-hand hinge. 930 49-1000329 Rev. 6 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

(if necessary) (on some models) Remove screws that secure hinge to the cabinet. ,QQHUVFUHZVQHHGD´VRFNHW2XWHUVFUHZQHHGVD3KLOOLSV´

RE-INSTALL CONVERTIBLE DRAWER (on some models) To reassemble doors, reverse removal steps. Convertible drawer basket will be loose if re-installed EDFNZDUGV/RRNIRU³)5217´HPERVVWRKHOSZLWKre-installation.

(on some models) CAUTION Lifting HazardFreezer door is heavy Use both hands to secure the door before lifting.1. Pull the lower basket slide mechanism to full extension with both hands./LIWWKHIUHH]HUGRRUDQGDOLJQWKHKRRNVZLWKWKHnotches on the slide mechanisms. NOTE: Place one side in first, then align the other side.3. Replace the attachment screws and torque the screws to 65 in-lb (7.34 N-m).

RIGHT-HAND DOORS (on some models) WARNING Follow all steps for removing and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage. CAUTION Lifting HazardA single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.1. Reinstall lower hinges first (if necessary) and torque WKH´VFUHZVWRLQOE1PDQGVPDOOscrew to 25 in-lbs (2.82 N-m). Rotating the screw by 1/3 turn after it is flush with mating surface will achieve these torques.2. With the door at 90° to the front of the case, lower the refrigerator door onto the lower hinge, carefully pulling the harness through the right-hand hinge. Close the door and tape closed.3. Reinstall the center hinge per step #1 above.4. Remove the tape.5. Open the lower right-hand door 90°.6. Connect the two harnesses.7. Replace both lower hinge covers (if necessary).)UHH]HUGRRUhook and slide mechanism notch49-1000329 Rev. 6 31

REINSTALLING THE UPPER LEFT AND RIGHT-HAND DOORS WARNING Follow all steps for removing and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage. CAUTION Lifting HazardA single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.5HLQVWDOOFHQWHUKLQJHILUVWDQGWRUTXHWKHó´VFUHZWR65 in-lbs (7.34 N-m) and small screw to 25 in-lbs (2.82 N-m). Rotating the screw by 1/3 turn after it is flush with mating surface will achieve these torques.2. Lower the refrigerator door onto the center hinge.3. Securely tape the door shut with masking tape or have a second person support the door.4. Reinstallation is the reverse of the removal instructions.

5. Be sure to reinstall the ground wire and strain relief

6. Reinstall hinge cover. NOTE: Ensure wires are not

pinched or under screw bosses before tightening screws. Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

CONNECTING REFRIGERATOR TO THE HOUSE WATER LINE A cold water supply is required for automatic icemaker operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section.NOTES:• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using SmartConnect

5HIULJHUDWRU7XELQJ.LW\RXZLOOQHHGDQadditional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.• Before connecting the water line to the house, purge the house line for at least 2 minutes.1. If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply. If you are using the SmartConnect tubing, the nuts are already assembled to the tubing.2. If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting.If you are using SmartConnect tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Over tightening may cause leaks.3. Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp. WARNING Electrical Shock Hazard.Attach tubing clamp using existing hole only. DO NOT drill into the refrigerator. WARNING Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals)SmartConnect

TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

See the grounding information attached to the power cord.

The leveling legs have 2 purposes:

1. Leveling legs adjust so the refrigerator is firmly

positioned on the floor and does not wobble. /HYHOLQJOHJVVHUYHDVDVWDELOL]LQJEUDNHWR hold the refrigerator securely in position during operation and cleaning. The leveling legs also prevent the refrigerator from tipping. Ŷ Turn the leveling legs clockwise to raise the refrigerator, counterclockwise to lower it. NOTICE: To avoid possible property damage, the leveling legs must be firmly touching the floor.

DOORS Remember a level refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator. For 2 drawer models:

screws by opening the convertible drawer. ,QVHUW´$OOHQZUHQFK into the shaft of the center hinge.

3. Adjust the height by

turning clockwise or counterclockwise. When you turn counterclockwise, the door will move up. For 4 door models: 8VLQJDó´RSHQHQG wrench or flat-head screwdriver, turn the slotted wheel to adjust doors up or down. To adjust the height of the lower doors: Ŷ5HPRYHWKHOHIWKDQGDQG right-hand hinge covers with a Phillips head screwdriver, WKHQXVHD´RSHQHQG wrench to adjust the doors up or down. Raise Flat-Head Screwdriver Adjustment points Adjustment points When the left door is lower than the right door. When the left door is higher than the right door. INSTALLATION INSTRUCTIONS49-1000329 Rev. 6 33 INSTALLATION INSTRUCTIONS Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) To place bins into doors: Match your bin with the letter shown. Position the bins over the bin locator and push forward until inserted fully. Push bin down until locked into position. CVE and CXE Models34 49-1000329 Rev. 6 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) CQE Models To place bins into doors: Match your bin with the letter shown. Position the bins over the bin locator and push forward until inserted fully. Push bin down until locked into position. INSTALLATION INSTRUCTIONS49-1000329 Rev. 6 35 INSTALLATION INSTRUCTIONS Installation Instructions

Refrigerator Tubing NLW´RXWHUGLDPHWHUWRFRQQHFWWKHUHIULJHUDWRU to the water supply. If using copper, be sure both ends of the tubing are cut square. To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation. SmartConnect

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are SmartConnect

Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025). When connecting your refrigerator to a GE Appliances Reverse Osmosis Water System, the only approved installation is with a GE Appliances

59.LW)RURWKHUUHYHUVHRVPRVLVZDWHUV\VWHPV

follow the manufacturer’s recommendations. If the water supply to the refrigerator is from a Reverse Osmosis (RO) Water Filtration System AND the refrigerator also has a water filter, use

WKHUHIULJHUDWRU¶VILOWHUE\SDVVSOXJ8VLQJWKH

refrigerator’s water filtration cartridge in conjunction with the RO water filter can result in hollow ice cubes. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.692.6630 and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow

WKHVHLQVWUXFWLRQVFDUHIXOO\WRPLQLPL]HWKHULVNRI

expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line. If the refrigerator is operated before the water connection is made to the icemaker, see Controls section on page 9 to turn icemaker off. Do not install the icemaker tubing in areas where WHPSHUDWXUHVIDOOEHORZIUHH]LQJ When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the

KD]DUGRIHOHFWULFVKRFNRULVEDWWHU\SRZHUHG

All installations must be in accordance with local plumbing code requirements.

INSTALLING THE WATER LINE

WARNING Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals)36 49-1000329 Rev. 6 WHAT YOU WILL NEED (Cont.) NOTE: The only Café approved plastic tubing is that supplied in SmartConnect

Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE Appliances water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or by visiting cafeappliances.com (in Canada, cafeappliances.ca).

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

• Power drill. ´RUDGMXVWDEOHZUHQFK

• Straight and Phillips blade screwdriver. 7ZR´RXWHUGLDPHWHUFRPSUHVVLRQQXWV DQGIHUUXOHVVOHHYHV²WRFRQQHFWWKHFRSSHU tubing to the shutoff valve and the refrigerator water valve.

• If you are using a SmartConnect

Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

• If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from SmartConnect

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet ZLWKDPLQLPXPLQVLGHGLDPHWHURI´DWWKH point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

SHUT OFF THE MAIN WATER

SUPPLY Turn on the nearest faucet long enough to clear the line of water.

LOCATION Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to FRQQHFWLQWRDKRUL]RQWDOZDWHUSLSH make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

VALVE 'ULOOD´KROHLQWKHZDWHUSLSHHYHQLIXVLQJD self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill.

)DLOXUHWRGULOOD´KROHPD\UHVXOWLQUHGXFHGLFH

production or smaller cubes. Installation Instructions Install the shutoff valve on the nearest frequently used drinking water line. INSTALLING THE WATER LINE (Cont.) INSTALLATION INSTRUCTIONS49-1000329 Rev. 6 37 INSTALLATION INSTRUCTIONS Installation Instructions Washer Inlet End Pipe Clamp Clamp Screw INSTALLING THE WATER LINE (Cont.)

1. Fasten the shutoff valve to the cold water pipe

with the pipe clamp. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

THE VALVE Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely. For plastic tubing from a SmartConnect™ Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Over tightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Tighten the clamp screws until the sealing washer begins to swell. NOTE: Do not over tighten or you may crush the tubing.

Route the tubing between the cold water line and the refrigerator. Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

Turn the main water supply on and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart (1 liter), or 2 minutes, of water has been flushed through the tubing. To complete the installation of the refrigerator, go back to Step 12 in Installing the Refrigerator. Pipe Clamp Vertical Cold Water Pipe Saddle-Type Shutoff Valve Saddle-Type Shutoff Valve Compression Nut Packing Nut Outlet Valve Ferrule (sleeve) SmartConnect

Tubing38 49-1000329 Rev. 6 TROUBLESHOOTING: Normal Operating Conditions Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology. HUMMM... WHOOSH... Ŷ The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.Ŷ <RXPD\KHDUDZKRRVKLQJVRXQGZKHQWKHGRRUVFORVH7KLVLVGXHWRSUHVVXUHHTXDOL]LQJZLWKLQWKHrefrigerator.Ŷ $IWHUGLVSHQVLQJLFHDPRWRUZLOOFORVHWKHLFHFKXWHto keep warn room air from entering the ice bucket, PDLQWDLQLQJLFHDWDIUHH]LQJWHPSHUDWXUH The hum of the motor closing the ice chute is normal, shortly after dispensing ice.

You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator RUIUHH]HUFRPSDUWPHQWV7KHIDQVDUHKHOSLQJWRmaintain the correct temperatures.

The fans change speeds in order to provide optimal cooling and energy savings. CLICKS, POPS, CRACKS and SNAPS Ŷ You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.Ŷ The compressor may cause a clicking or chirping sound when attempting to restart (this could take up to 5 minutes).Ŷ Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.Ŷ On models with an icemaker, after an ice making cycle, you may hear the ice cubes dropping into the ice bucket.Ŷ After dispensing ice, a motor will close the ice chute to keep warm room air from entering the ice bucket, PDLQWDLQLQJLFHDWDIUHH]LQJWHPSHUDWXUH WATER SOUNDS Ŷ The flow of refrigerant through the cooling coils may make a gurgling noise like boiling water.Ŷ Water dropping on the defrost heater can cause DVL]]OLQJSRSSLQJRUEX]]LQJVRXQGGXULQJWKHdefrost cycle.Ŷ A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.Ŷ Closing the door may cause a gurgling sound due to SUHVVXUHHTXDOL]DWLRQ Do you hear what I hear? These conditions are normal.

It can take up to 24 hours for the refrigerator temperatures to reach the set temperatures. During WKDWWLPHUHIULJHUDWRUDQGIUHH]HUGRRURSHQLQJVVKRXOGEHPLQLPL]HG Normal Operating Conditions.49-1000329 Rev. 6 39 Problem Possible Causes What to Do Not filtering Filter bypass installed Install correct water filter Reset Water Filter Water Filter Expired Water filter leaking or needs replacing Replace water filter, or install filter bypass

then hold down the Water and Ice buttons VLPXOWDQHRXVO\IRUVHFRQGV´ Water filter indicator light is not lit This is normal. This indicator will turn on to tell you that you need to replace the filter soon. See Water Filter for more information. Handle is loose/handle has a gap. Handle needs adjusting See Installing the Refrigerator section for detailed instructions. Refrigerator beeping The door alarm is beeping -Turn off or disable with door closed -If door open and alarm is sounding, you

FDQRQO\VQRR]HWKHDODUP

5HIULJHUDWRUOLJKWVRIIDQG³6$´ shown in display 8QLWLVLQ6DEEDWKPRGH Simultaneously hold the Settings ( ) button, Water, and Light buttons for three seconds to exit Sabbath mode Not cooling The cooling system is off See Controls. Water has poor taste/odor Water dispenser has not been used for a long time Dispense water, until all water in system is replenished. Water in glass is warm Normal when refrigerator is first installed Wait 24 hours for the refrigerator to completely cool down. Water dispenser has not been used for a long time Dispense water, until all water in system is replenished Water system has drained Allow several hours for replenished supply to chill Water dispenser does not work Water supply line turned off or not connected See Installing the Water Line Water filter clogged or filter/bypass plug not installed Replace filter cartridge or remove filter and install bypass plug* Air may be trapped in the water system Press the dispenser arm for at least 5 minutes. :DWHULQUHVHUYRLULVIUR]HQEHFDXVH the controls are set too cold Set the refrigerator control to a warmer setting and wait 24 hours. If the water does not dispense after 24 hours, call for service Water spurting from dispenser Newly installed filter cartridge Run water from the dispenser for 5 minutes (about 2 gallons) No water or ice cube production Supply line or shutoff valve is clogged Call a plumber Water filter is clogged Replace filter cartridge or remove filter and install bypass plug* Filter cartridge not properly installed Remove and reinstall filter cartridge, being certain that it locks in place. Icemaker is turned off Check that the icemaker is turned on. See Controls *Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.692.6630 and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. Troubleshooting Tips... Before you call for service Save time and money! Review the charts on the following pages first and you may not need to schedule service. TROUBLESHOOTING40 49-1000329 Rev. 6 TROUBLESHOOTING Problem Possible Causes What to Do Water is leaking from dispenser Air may be present in the water line system, causing water to drip after being dispensed Dispense water for at least 5 minutes to remove air from system AUTO FILL under fill/no fill Not all containers work with AutoFill Try different container Error message See page 12 Clean sensor. See page 12 AUTO FILL overfills Not all containers work with AutoFill Try different container 8VHOHVVLFH Ensure hands are away from the cup prior to pressing the AutoFill key )UHH]HUFRROLQJUHIULJHUDWRUQRW cooling Normal, when refrigerator first plugged in or after extended power outage Wait 24 hours for temperature in both compartments to reach selected temperatures. Ice dispenser opens after closing IUHH]HUGUDZHU Normal The ice dispenser door may open after FORVLQJIUHH]HUGRRUWRDOORZDFFHVV My refrigerator door squeaks Diminished lubricant because of accidental cleaning of the lubricant on the hinge It is best to order GEA lubricant service part number WR97X166 and apply on the hinge at specified location. It is possible to spray some non-toxic lubricant such as silicone based non- stick cooking spray, petroleum jelly or NSF approved food grade lubricants. IMPORTANT: Do not use WD-40 as it will remove any remaining grease in or around the hinge Improper leveling Make sure the unit is leveled If doors were removed and re- assembled during installation process, waterline and/harness under Top Hinge cover may get out of position and rub against door while door swivels. Remove the Top Hinge cover and make sure the waterline and harness that passes through the hinge pin has been properly seated and does not touch the any of the door parts during rotation. Applying some food grade lubricant around door thimble area will also help. Troubleshooting Tips... Before you call for service49-1000329 Rev. 6 41Truth or Myth? Answer ExplanationThe refrigerator water filter may require replacement, even though the filter indicator KDVQRWWXUQHGUHGRUUHDGV³)LOWHU([SLUHG´758( The water filter indicator will indicate the need to replace the water filter every six months. Water quality varies from city to city; if water flow from the dispenser slows, or ice production decreases, the water filter should be replaced, even though the filter indicator may not indicate the need for replacement.The automatic ice maker in my refrigerator will produce ice when the refrigerator is plugged in to a power receptacle.MYTH The refrigerator must be connected to water, and the ice maker must be turned on. Make sure the ice maker is turned on, only after the water line is connected and water is turned on. The ice maker can be turned on/off from the controls and ensure the ice maker is on, as indicated on the refrigerator control panel. See Automatic Ice Maker section in the full owner’s manual available online.After the refrigerator has been plugged in and connected to water, I will immediately have unlimited chilled water available from the water dispenser.MYTH The water dispenser tank located inside the refrigerator stores water for dispensing. The water in this tank requires 24 hours to chill after installation. High usage conditions will not allow time for the water to chill.After water dispenses, a few drops of water are normal.758( A few drops of water may fall from the dispenser, after the dispenser SDGGOHKDVEHHQUHOHDVHG7RPLQLPL]HWKHGURSVUHPRYHWKHJODVVslowly from the dispenser.,ZLOOQHYHUVHHIURVWLQVLGHWKHIUHH]HUcompartment.MYTH )URVWLQVLGHWKHIUHH]HUW\SLFDOO\LQGLFDWHVWKDWWKHGRRULVQRWproperly sealed, or has been left open. If frost is found, clear the frost using a plastic spatula and towel, then check to ensure that no IRRGSDFNDJHVRUFRQWDLQHUVDUHSUHYHQWLQJWKHIUHH]HUGRRUIURPclosing. Check the refrigerator control panel to ensure the door alarm is on.When the refrigerator is installed, or after replacing the water filter, I must dispense water for five minutes. 758( A newly installed refrigerator or water filter contains air in the water lines. Press the dispenser paddle and dispense cold water for at least 5 minutes to remove air from the water line, and flush the filter.To fill the ice bucket to the maximum capacity, I should dispense 12 and 18 hours after installation.758( Dispensing 3-4 cubes 12 hours and 18 hours after installation, allows ice to disperse within the ice bucket, which in turns calls on the ice maker to produce additional ice. Normal ice production = 100 cubes in 24 hours.I can use the water filter bypass plug to determine if the filter requires replacement.758( Decrease in flow from the water dispenser, or decreased ice production, may indicate the need to replace the water filter. Install the water filter bypass plug (provided with the refrigerator on some models*), and check flow from the dispenser. If water flow returns to normal with the bypass plug in place, replace the water filter.The top of the refrigerator doors will always be aligned.MYTH Several things can affect the refrigerator door alignment, including the floor the refrigerator is installed on and loading of doors. If the WRSRIWKHUHIULJHUDWRUGRRUVDUHQRWDOLJQHGXVHD´DOOHQZUHQFKto adjust the right/left hand door. The adjustment screw is located on the bottom right or left hand side of the door. Refrigerator doors VKRXOGEHRSHQGXULQJKHLJKWDGMXVWPHQW2SHQWKHIUHH]HUGRRUWRaccess the screw. See Step 15.Refrigerator door handles can be easily tightened.758( If door handles are loose or have a gap, the handle can be adjusted XVLQJD´DOOHQZUHQFKRQVHWVFUHZVORFDWHGRQWKHHQGVRIWKHhandles.There may be odor and taste problems with your ice.758( After starting the ice maker throw away 24 hours of ice production to avoid odor and taste problems.I can make fine adjustments to the refrigerator doors to align them. 758( ,IWKHUHIULJHUDWRUGRRUVDUHQRWDOLJQHGXVHD´$OOHQZUHQFKWRadjust the right hand door. The adjustment screw is located on the ERWWRPRIWKHULJKWGRRU2SHQWKHIUHH]HUGRRUWRDFFHVV6HHVWHS Truth or Myth Truth or Myth SERVICE Save time and money! Review the charts on the following pages first and you may not need to schedule service. TROUBLESHOOTING/TRUTH OR MYTH42 49-1000329 Rev. 6

TROUBLESHOOTING/TRUTH OR MYTH

Truth or Myth SERVICE Save time and money! Review the charts on the following pages first and you may not need to schedule service. Truth or Myth? Answer ExplanationDoor handles should always be removed for installation.MYTH Check chart on reverse side of this instruction. If the doors must be removed do not remove the handles, or if the refrigerator will fit easily through the passage way opening. Adjust handles that are loose or have a gap, E\DGMXVWLQJ´VHWVFUHZVRQHLWKHUHQGRIKDQGOHVDoor removal is always required for installation.MYTH Check chart on reverse side of this instruction. Doors should only be removed when necessary to prevent damage from passage way or access to final location. Refrigerator doors will self-close if left open.MYTH Refrigerator doors need to be closed by consumer. A gentle bounce back is a designed feature on some models that gives a positive feedback to the user so that they can initiate and complete the door closing action.There is an adjustment to rear wheels. MYTH Front leveling legs are adjustable and should be used to balance the refrigerator. Leveling legs are used to make initial refrigerator door adjustment.Check for leaks after all water connections are made.758( While purging the air from the water system, check all water line connections for leaks. Check the connection to the household water supply at back of refrigerator, and door water line connect.Any packaging residue can be cleaned off the refrigerator using any cleaner.MYTH Do not use wax, polish, bleach, or other products containing chlorine on Stainless Steel panels, door KDQGOHVDQGWULP&KHFNWKLVLQVWUXFWLRQXQGHU³&OHDQLQJWKH2XWVLGH´IRUIXOOGHWDLOV *Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.692.6630 and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. Truth or Myth49-1000329 Rev. 6 43

Ŷ6HUYLFHWULSVWR\RXUKRPHWRWHDFK\RXKRZWRXVH

the product. Ŷ,PSURSHULQVWDOODWLRQGHOLYHU\RUPDLQWHQDQFH Ŷ)DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGRU used for other than the intended purpose or used commercially. Ŷ/RVVRIIRRGGXHWRVSRLODJH Ŷ5HSODFHPHQWRIKRXVHIXVHVRUUHVHWWLQJRIFLUFXLW breakers. Ŷ'DPDJHWRILQLVKVXFKDVVXUIDFHUXVWWDUQLVKRU small blemishes not reported within 48 hours of delivery. Ŷ5HSODFHPHQWRIWKHZDWHUILOWHUFDUWULGJHLI included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply. Ŷ5HSODFHPHQWRIWKHOLJKWEXOEVLILQFOXGHGRU water filter cartridge, if included, other than as noted above. Ŷ'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUH floods or acts of God. Ŷ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\ possible defects with this appliance. Ŷ3URGXFWQRWDFFHVVLEOHWRSURYLGHUHTXLUHGVHUYLFH

Ŷ'DPDJHFDXVHGE\DQRQ*($SSOLDQFHV%UDQG

water filter. What Café Will Not Cover: For the Period of: Café Will Replace One Year From the date of the original purchase Any part of the refrigerator which fails due to a defect in materials or workmanship. During the limited one-year warranty, Café will also provide, free of charge, all labor and related service to replace the defective part. Thirty Days (Water filter, if included) From the original purchase date of the refrigerator Any part of the water filter cartridge which fails due to a defect in materials or workmanship. During this limited thirty-day warranty, Café will also provide, free of charge, a replacement water filter cartridge. Five Years From the date of the purchase Any part of the sealed refrigerating system (the compressor, condenser, evaporator and all connecting tubing) which fails due to a defect in materials or workmanship. During this limited five-year sealed refrigerating system warranty, Café will also provide, free of charge, all labor and related service to replace the defective part in the sealed refrigerating system. cafeappliances.com $OOZDUUDQW\VHUYLFHLVSURYLGHGE\RXU)DFWRU\6HUYLFH&HQWHUVRUDQDXWKRUL]HGVHUYLFHWHFKQLFLDQ7RVFKHGXOHVHUYLFH online, visit us at cafeappliances.com/service. Please have your serial number and your model number available when scheduling service. In Canada, visit cafeappliances.ca/service. Café Appliances Refrigerator Limited Warranty

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products SXUFKDVHGIRUKRPHXVHZLWKLQWKH86$,IWKHSURGXFWLVORFDWHGLQDQDUHDZKHUHVHUYLFHE\D&DIp$XWKRUL]HG6HUYLFHU LVQRWDYDLODEOH\RXPD\EHUHVSRQVLEOHIRUDWULSFKDUJHRU\RXPD\EHUHTXLUHGWREULQJWKHSURGXFWWRDQ$XWKRUL]HG Café Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: GE Appliances, a Haier company Louisville, KY 40225 For Customers in Canada: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warrant service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Warrantor Canada: MC Commercial, Inc., Burlington, Ontario, L7R 5B6 Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a Café Factory Service technician the ability to quickly diagnose any issues with your appliance and helps Café improve its products by providing Café with information on your appliance. If you do not want your appliance data to be sent to Café, please advise your technician NOT to submit the data to Café at the time of service. Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. LIMITED WARRANTY44 49-1000329 Rev. 6 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

• If your GE Appliances part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a FRS\RIWKH³SURRIRISXUFKDVH´IRUWKHSDUW,IWKHSDUWLVGHIHFWLYHDQGVKRZVQRVLJQVRIDEXVHLWZLOOEHH[FKDQJHG7KHZDUUDQW\GRHVQRW cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. It does not cover the cost of returning the part to the supplier from whom it was purchased nor does it cover the cost of labor to remove or install it to diagnose the fault. It does not cover parts used in products in commercial use except in the case of air conditioning equipment. In no event shall GE Appliances be liable for consequential damages. Warrantor: GE Appliances, a Haier company Seller: Name AddressCity State ZipSignature Date Buyer: Name AddressCity State ZipSignature Date What GE Appliances will not cover: Ŷ Service trips to your home to teach you how to use the product. Ŷ Improper installation. Ŷ Failure of the product if it is abused, misused, used for other than the intended purpose or used commercially. Ŷ Replacement of house fuses or resetting of circuit breakers. Ŷ Damage to the product caused by accident, fire, floods, or acts of God. Ŷ Incidental or consequential damage caused by possible defects with this appliance. XWFE Water Filter Cartridge Limited Warranty This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use

ZLWKLQWKH86$,Q$ODVNDWKHZDUUDQW\H[FOXGHVWKHFRVWRIVKLSSLQJRUVHUYLFHFDOOVWR\RXUKRPH

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale. This form should be retained on file by the seller for a minimum of two years. For the period of GE Appliances will replace Thirty Days From the date of the original purchase Any part of the water filter cartridge which fails due to a defect in materials or workmanship during this limited thirty-day warranty.* Contact us at geapplianceparts.com.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law.49-1000329 Rev. 6 45 Performance Data Sheet Model: GE Appliances XWFE

Ŷ6\VWHPFHUWLILHGE\,$30257DJDLQVW16)$16,6WDQGDUGVDQG3IRUWKHUHGXFWLRQRIFODLPVVSHFLILHGRQWKH

performance data sheet and at iapmort.org.

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. NOTICE To reduce the risk of water leakage or flooding, and to ensure optimal filter performance:

• Read and follow use instructions before installation and use of this system.

• Installation and use MUST comply with all state and local plumbing codes.

• Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi (552 kPa), you must install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.

• Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.

• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 100º F (38º C).

• Protect filter from freezing. Drain filter when temperatures drop below 33ºF (0.6ºC).

• Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate.

• Failure to replace the disposable filter cartridge at recommended intervals may lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding.

• This System has been tested according to NSF/ANSI 42, 53, 401, and P473 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, 401, and P473. XWFE System is certified by IAPMO R&T against NSF/ANSI Standards 42, 53, 401, and P473 for the reduction of claims specified on the performance data sheet and at iapmort.org.46 49-1000329 Rev. 6

3ULQWHGLQ8QLWHG6WDWHV

CONSUMER SUPPORT Consumer Support Café Website Have a question or need assistance with your appliance? Try the Café website 24 hours a day, any day of the year! You can also shop for more great Café products and take advantage of all our on-line support services designed for your convenience. In the 86cafeappliances.com In Canada: cafeappliances.ca Register Your Appliance Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card LQFOXGHGLQWKHSDFNLQJPDWHULDO,QWKH86cafeappliances.com/register In Canada: cafeappliances.ca/registration Schedule Service Expert Café repair service is only one step away from your door. Get on-line and schedule your service at your convenience any GD\RIWKH\HDU,QWKH86cafeappliances.com/service In Canada: cafeappliances.ca/service Extended Warranties Purchase a Café extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. Café Service will still be there after your warranty expires. ,QWKH86cafeappliances.com/extended-warranty In Canada: cafeappliances.ca/extended-warranty Parts and Accessories Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day. ,QWKH86cafeappliances.com/parts Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Mabe service center, visit our website at cafeappliances. com/parts Contact Us If you are not satisfied with the service you receive from Café, contact us on our website with all the details including your phone number, or write to: ,QWKH86*HQHUDO0DQDJHU&XVWRPHU5HODWLRQV_&DIp$SSOLDQFHV$SSOLDQFH3DUN_/RXLVYLOOH.< cafeappliances.com/contact ,Q&DQDGD'LUHFWRU&RQVXPHU5HODWLRQV0DEH&DQDGD,QF_6XLWH)DFWRU\/DQH_0RQFWRQ1%(&0 cafeappliances.ca/contact49-1000329 Rev. 6 08-22 GEA

REFRIGERATOR LOCATION Ŷ Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures. Ŷ Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly. Ŷ Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight. Ŷ Install it on a floor strong enough to support it fully loaded.

Ŷ 5HHPSOD]RGHOFDUWXFKRGHOILOWURGHDJXDVLVHLQFOX\H
