Product Type	Dishwasher
Brand	JENN-AIR
Model	UDT518SAHP
Available Programs	Sensor, Heavy, Normal, 1-Hour Wash, Soak & Clean, Download & Go
Wash Options	Delay (2-4-8 h), Hi Temp Wash, Heat Dry, Extended Dry, Sani Rinse, Control Lock
Filtration Technology	Triple filtration system (upper and lower filter)
Connectivity	Built-in Wi-Fi, Whirlpool® app, Remote Enable, Download & Go, Smart Delay (based on electricity rates)

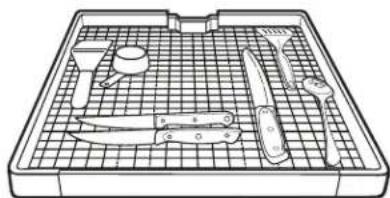

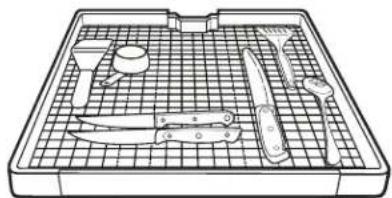

Third Level Rack	Removable (on some models)

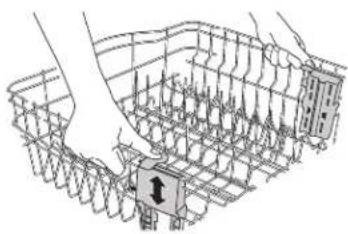

Upper Rack	Height adjustable (EZ-2-Lift™)

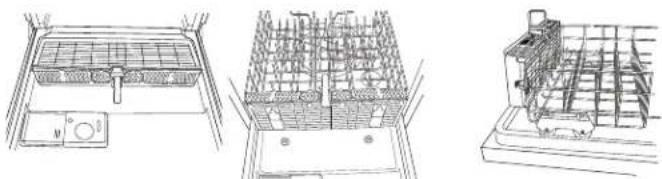

Cutlery Basket	AnyWare™ (positionable on door, lower rack, or inside)
Soil Sensor	Optical water sensor (adjusts cycle time and consumption)
Rinse Aid	Built-in dispenser with dosage adjustment (1-4)
Wash System	Resource-saving wash, total coverage spray arms
Safety	Overflow protection device, grounding, control lock
Power Supply	120 V, 60 Hz, 15 A (3-prong grounded outlet)
Water Consumption (Normal cycle)	9.09 to 28 liters (2.4 to 7.4 gallons)
Water Consumption (max)	29.8 liters (7.87 gallons) on 1-Hour Wash
Warranty	One-year limited warranty
Recommended Maintenance	Monthly filter cleaning, use of affresh® cleaner
Recommended Detergent	Premium premeasured tablets or packets

Frequently Asked Questions - UDT518SAHP JENN-AIR

The dishwasher does not start, what to do?

Check that the door is properly closed and latched. Make sure the control lock is disabled (press SANI RINSE for 3 seconds). Check that the dishwasher is plugged in and no circuit breaker has tripped. If the Start/Resume light is flashing, press Start/Resume and close the door within 4 seconds.

Why is there detergent left in the dispenser?

This can happen if items (baking sheets, large containers) prevent the dispenser from opening. Use fresh detergent without lumps. Make sure the cycle is complete (Clean light on). If not, press Start/Resume and close the door.

The cycle takes too long, is this normal?

Yes, water and energy efficient dishwashers run longer (up to 3 hours). Options like Heat Dry add about 45 minutes. For a quick wash, use the 1-Hour Wash cycle. Make sure the incoming water temperature is at least 120°F (49°C).

Dishes are not dry, how to improve drying?

Always use a rinse aid and activate the Heat Dry option. Load dishes by tilting glasses and cups. Unload the lower rack first. Plastic and non-stick items are difficult to dry; towel drying may be necessary.

White residues appear on dishes or inside, what to do?

This is due to hard water. Use a rinse aid, quality detergent, and clean filters monthly. Perform a vinegar rinse: place 2 cups of white vinegar in a glass on the lower rack, run a Normal cycle without detergent. If hardness exceeds 15 grains, install a water softener.

The dishwasher does not drain or water remains in the tub.

Check that the cycle is complete (Clean light). If the dishwasher is connected to a garbage disposal, remove the knockout plug from the disposal. Check that the drain hose is not kinked or clogged. If the problem persists, check the fuse or circuit breaker.

The dishwasher makes noise, is this normal?

Yes, pump sounds, water valve hissing, or a click when the dispenser opens are normal. If you hear a thumping sound, check that dishes are not hitting the spray arms. Reload dishes and make sure filters are properly installed.

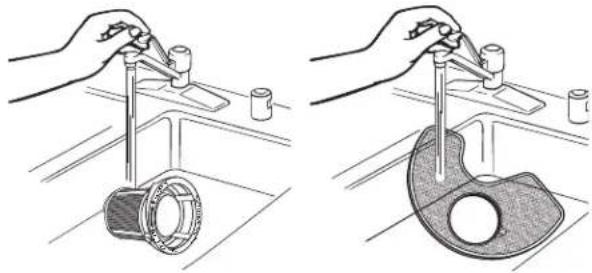

How to clean the dishwasher filter?

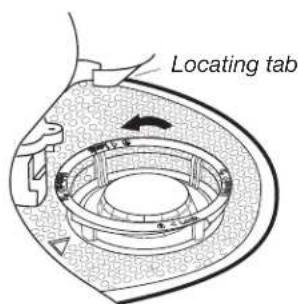

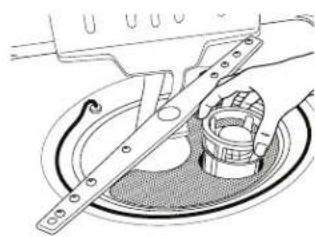

Turn the upper filter a quarter turn counterclockwise and lift it out. Rinse it under running water. If needed, separate it and use a soft brush to remove deposits. Reinstall the lower filter first, then the upper filter by turning clockwise until it locks. Clean at least once a month.

The sanitization light is flashing, what does it mean?

This means the load was not properly sanitized. The cycle may have been interrupted or the water may not have reached 156°F (69°C). Check that the water heater is set to 120°F (49°C). Rerun the cycle with the Sani Rinse option.

Can I use liquid or powder detergent?

Yes, but premium premeasured tablets or packets are recommended for better results and less residue. Follow the instructions on the package. Use only automatic dishwasher detergent.

USER MANUAL UDT518SAHP JENN-AIR

THANK YOU for purchasing this high-quality product. Register your new dishwasher at www.whirlpool.com. In Canada, visit our website at www.whirlpool.ca.

Get Internet connection instructions, terms of use, and privacy policy at www.whirlpool.com/connect. If you have any problems or questions, call the Whirlpool Connected Appliance Team at 1-866-333-4591. In Canada, visit www.whirlpool.ca/en_CA and click on the Whirlpool® Connected Appliances link.

For future reference please make a note of your product model and serial numbers. These can be located near the door on the right-hand or left-hand side of the dishwasher interior.

Model Number

Serial Number

Table of Contents

DISHWASHER SAFETY ....1

CONNECTED APPLIANCE REGULATORY NOTICE....3

WHAT'S NEW IN YOUR DISHWASHER....4

PARTS AND FEATURES ....5

QUICK STEPS 6

CONNECTIVITY FEATURES......6

CONNECTIVITY SETUP....7

DISHWASHER USE - BASIC OPERATION....8

DISHWASHER USE - SMART OPERATION ....10

CYCLE AND OPTION DESCRIPTIONS....11

DISHWASHER FEATURES....14

DISHWASHER CARE....17

TROUBLESHOOTING - CONNECTIVITY ....18

TROUBLESHOOTING....20

OPEN SOURCE LICENSE USAGE....23

WARRANTY....24

Dishwasher Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

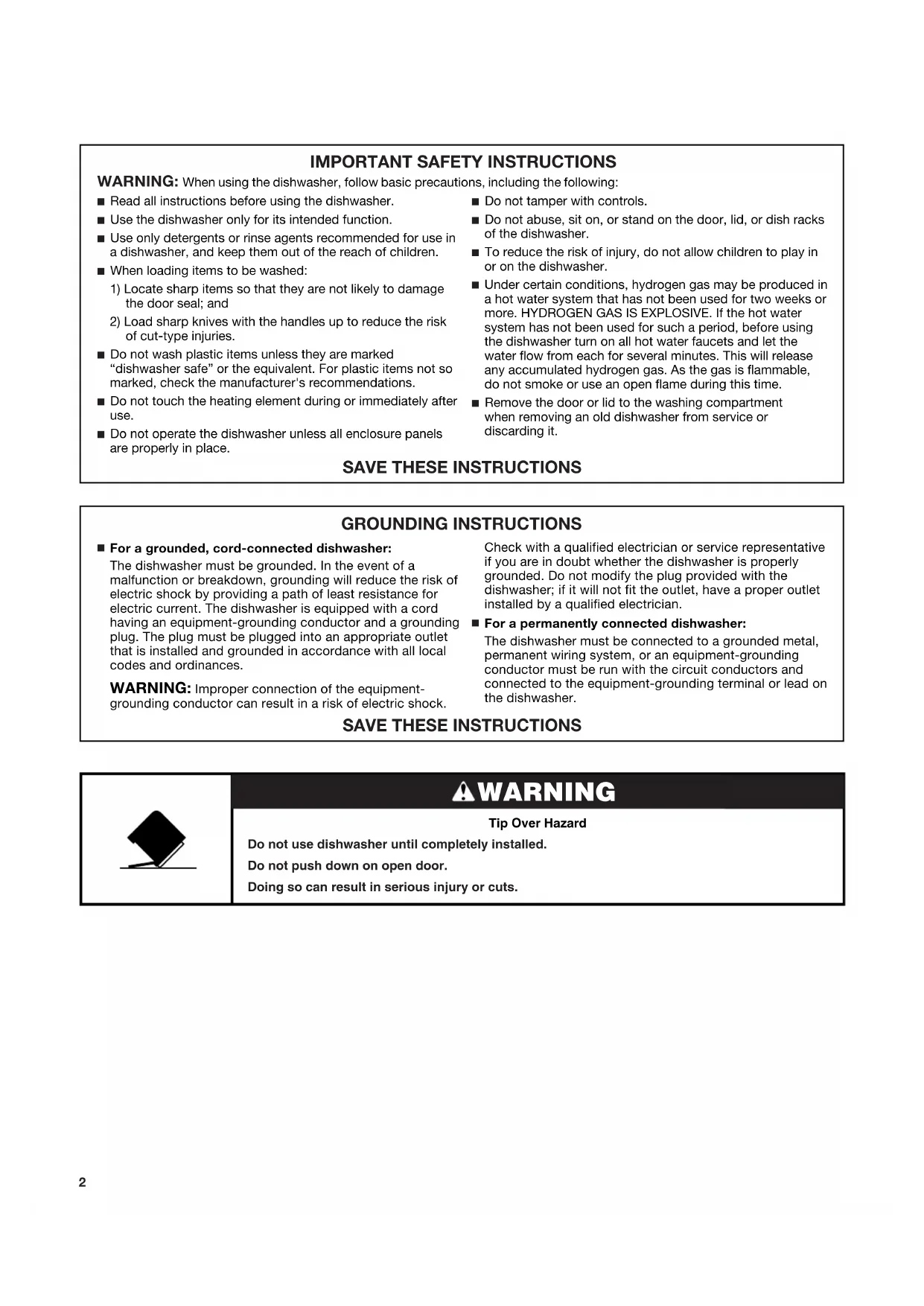

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
  ■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and
2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

- Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

■ Do not touch the heating element during or immediately after use.

■ Do not operate the dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
■ To reduce the risk of injury, do not allow children to play in or on the dishwasher.

■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

■ For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■ For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

Connected Appliance Regulatory Notices

Federal Communications Commission (FCC) Compliance Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Information

To comply with FCC/IC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20 cm separation distance between the antenna and all persons.

To comply with FCC/IC RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Industry Canada (IC) Compliance Notice

This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference,
2. This device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

The radio transmitters IC: 10248A-WICHAM01 and 10248A-FLDAAM01 have been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Antenna Type M	Maximum Permissible Antenna Gain (dBi)	Required Impendance (OHM)
Slot 1.2 50
Monopole (WICHAM01 only)	0.5 50
Dipole 3.0 50
F 1.60 50
Planar F 4.2 50

To comply with FCC and Industry Canada RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

OEM Responsibilities to comply with FCC and Industry Canada Regulations

The WICHAM01/FLDAAM01 Modules have been certified for integration into products only by OEM integrators under the following conditions:

1. The antenna(s) must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times.
2. The transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter.

As long as the two conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).

IMPORTANT NOTE: In the event that these conditions cannot be met (for certain configurations or co-location with another transmitter), then the FCC and Industry Canada authorizations are no longer considered valid and the FCC ID and IC Certification Number cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC and Industry Canada authorization.

End Product Labeling

The WICHAM01/FLDAAM01 Modules are labeled with FCC ID and IC Certification Number. If the FCC ID and IC Certification Number are not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the final end product must be labeled in a visible area or display the following:

"Contains FCC ID: A5UWICHAM01"

"Contains IC: 10248A-WICHAM01"

or

"Contains FCC ID: A5UFLDAAM01" "Contains IC: 10248A-FLDAAM01"

The OEM of the WICHAM01/FLDAAM01 Module must only use the approved antenna(s), which have been certified with this module. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module or change RF related parameters in the user manual of the end product.

The user manual for the end product must include the following information in a prominent location:

"To comply with FCC and Industry Canada RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20~cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter."

What's New in Your Dishwasher

Energy

Congratulations on purchasing your water and energy efficient dishwasher! This dishwasher cleans by spraying the dishes with water and pauses to allow the detergent to soak into and release the soils on the dishes. The cycles are longer due to the soak and pauses for exceptional cleaning. Your dishwasher contains an optical water sensor. The optical water sensor is used to determine the optimum water and energy consumption for great cleaning performance. Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. The first cycle using the sensor will run longer to calibrate the optical sensor.

Performance

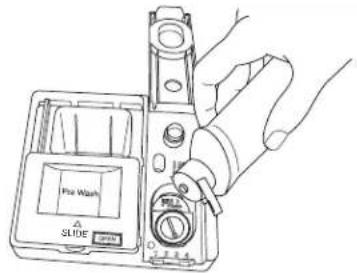

Rinse Aid

Using rinse aid will optimize your drying and wash performance. This dishwasher is specifically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Energy efficient dishwashers use less water and energy, so they depend on the water "sheeting" action of rinse aid for total optimal performance.

Fire Wash SLIDE

Detergent

The United States and Canada have passed regulations limiting the amount of phosphorus (phosphates) in the household dishwasher detergents. Major manufacturers have reformulated their dishwasher detergent for this change in detergents as another step in eco-conscious awareness. With these changes, we recommend quality tablets and packs for convenience and improved performance.

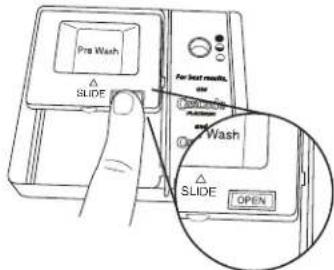

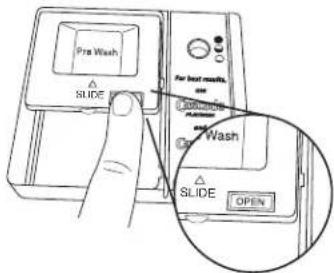

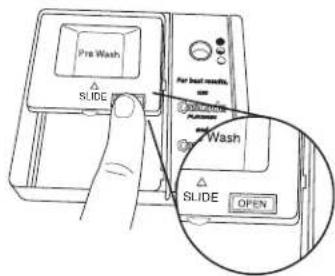

Pre Wash SLIDE OPEN For best results, or Cascade and Cascade Flow Aid LIFT

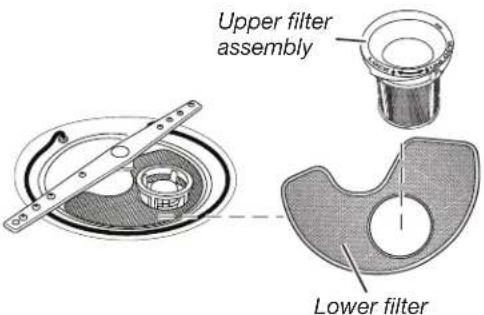

Filtration System

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy conservation while providing optimal cleaning performance. Maintenance of your filters regularly will sustain peak cleaning performance. We suggest you clean both your upper and lower filters and rinse under running water at least once a month.

Two technical illustrations showing hands operating a mechanical component on a sink, with no visible text or symbols.

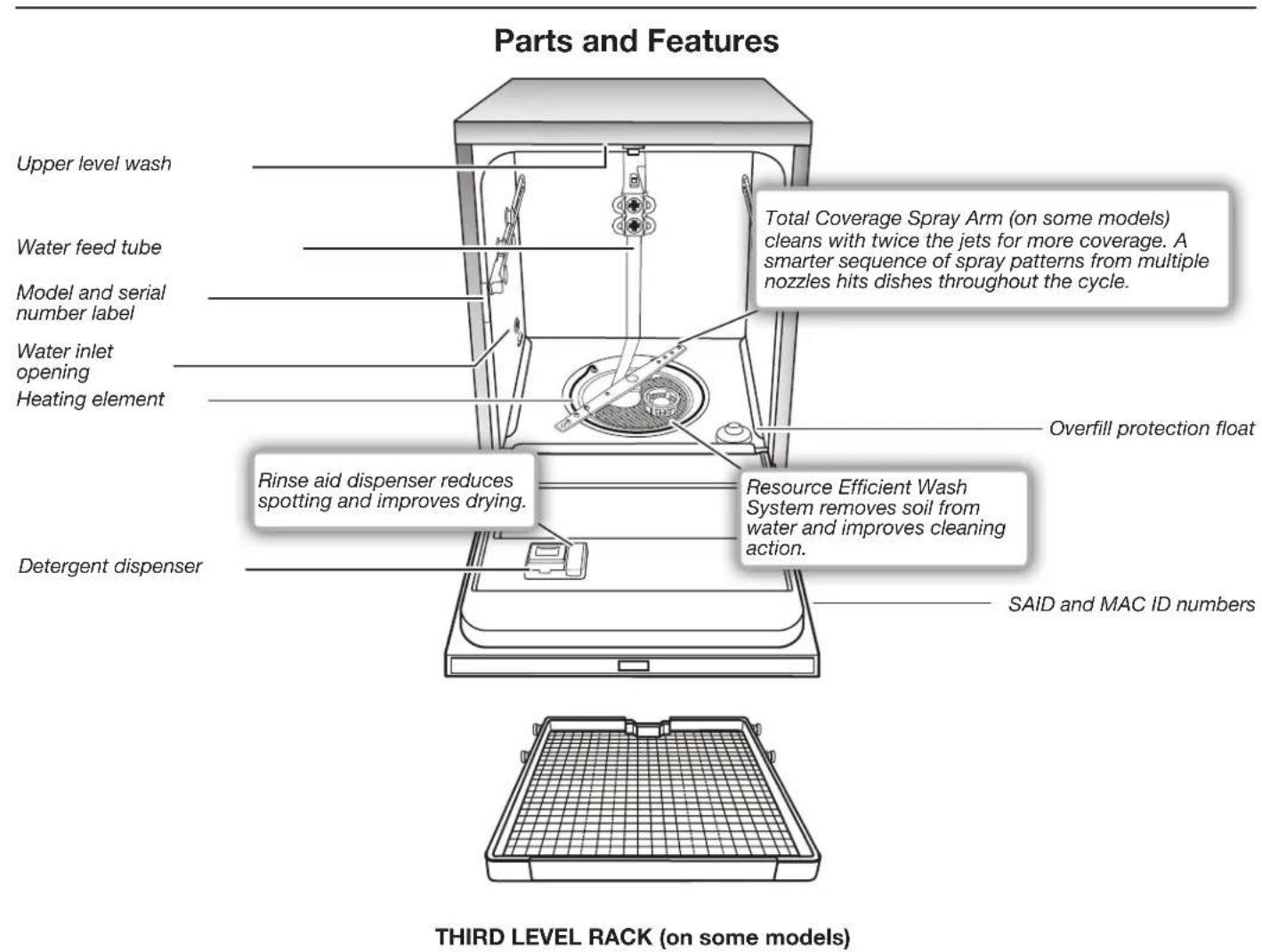

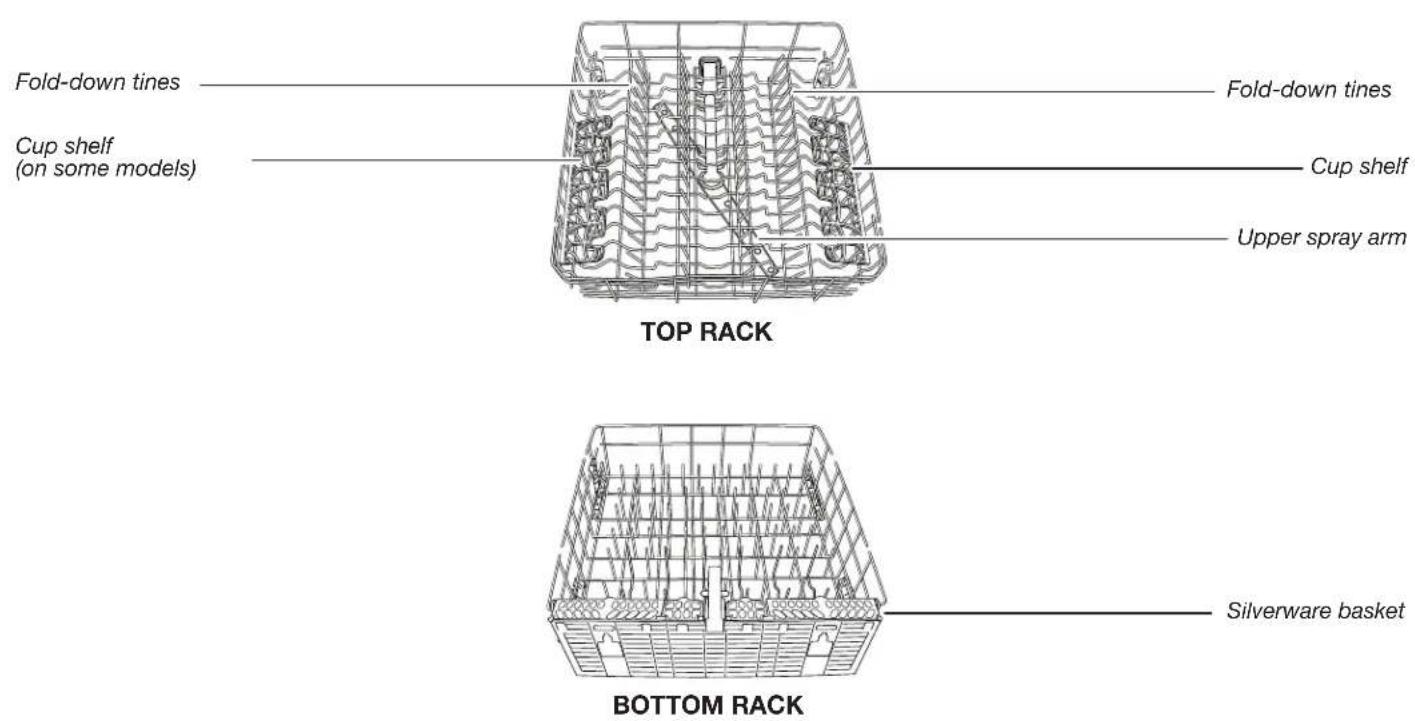

Parts and Features Upper level wash Water feed tube Model and serial number label Water inlet opening Heating element Total Coverage Spray Arm (on some models) cleans with twice the jets for more coverage. A smarter sequence of spray patterns from multiple nozzles hits dishes throughout the cycle. Overfill protection float Rinse aid dispenser reduces spotting and improves drying. Resource Efficient Wash System removes soil from water and improves cleaning action. Detergent dispenser Resource Efficient Wash System removes soil from water and improves cleaning action. SAID and MAC ID numbers THIRD LEVEL RACK (on some models)

Fold-down tines Cup shelf (on some models) Fold-down tines Cup shelf Upper spray arm TOP RACK BOTTOM RACK Silverware basket

Quick Steps

1 Remove bulk food and load dishwasher.

Scrape off excess food into garbage or food disposer.

Technical line drawing of a mechanical component with grid lines and internal components (no text or symbols)

Load dishes so that water spray will reach every surface.

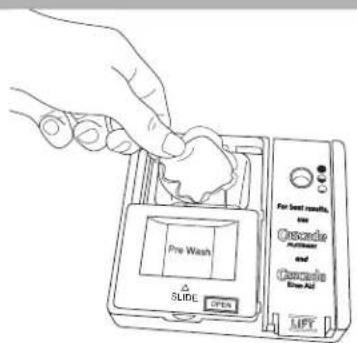

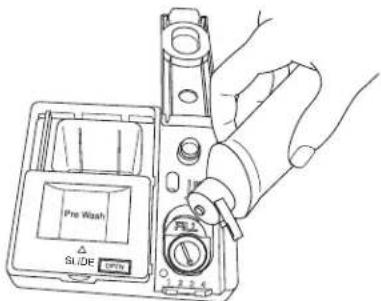

2 Add detergent and rinse aid.

Line drawing of a hand inserting a small component into an electronic device labeled 'Low mass' and 'High mass'.

Line drawing of a handheld device with a control panel and handle, no text or symbols present

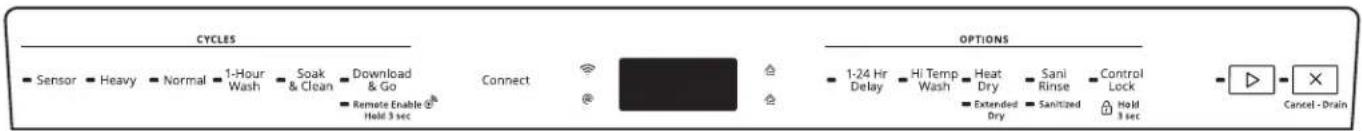

3 Select a cycle and options (varies by model).

CYCLES

$$ \begin{array}{c} \text { Sensor } \text { Heavy } \text { Normal } \text { 1 - Hour } \text { Wash } \text { Soak } \text { & Clean } \text { Download } \ \text { Remote Enable } \text { Hold 3 sec } \end{array} $$

OPTIONS

$$ \begin{array}{c c c c c} 2 - 4 - 8 \text {Hr} & \text {Hi Temp} & \text {Heat} & \text {Sani} & \text {Control} \ \text {Delay} & \text {Wash} & \text {Dry} & \text {Rinse} & \text {Lock} \ & & \text {Extended} & & \ & & \text {Dry} & & \text {Hold} \ & & & & 3 \text {sec} \end{array} $$

4 Start dishwasher.

To start and resume a cycle, press the (Start) keypad - ▶ and close the door within 4 seconds. If the door is not closed within 4 seconds, the Start keypad LED will flash, an audible tone will sound, and the cycle will not start.

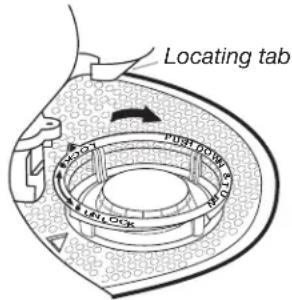

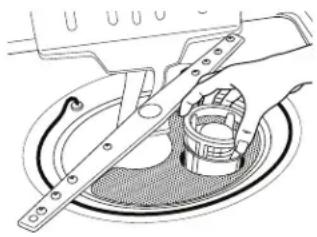

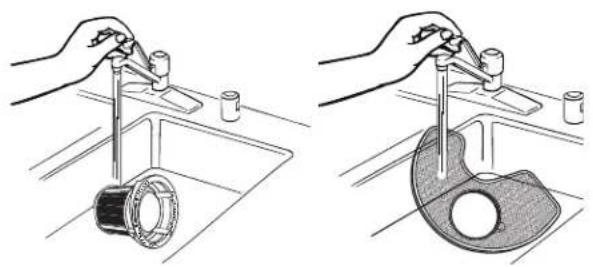

5 Unload dishwasher and clean the filter.

See “Recommended Time Interval to Clean Your Filter” in the “Filtration System” section for the recommended cleaning schedule.

Diagram of a hand holding a circular device with a handle, showing internal components and motion arrows (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Connectivity Features

Wi-Fi connectivity allows your Smart dishwasher to connect to the Internet and interact with the Whirlpool® app from your smartphone or mobile device. This connection opens up several Smart options to you. App features and functionality are subject to change. The options described are typical and may change. Please refer to the Whirlpool® app for up-to-date connectivity features.

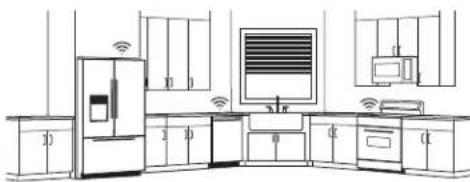

Line drawing of a modern kitchen appliance setup with appliances and appliances (no text or symbols)

SMART FEATURE

Smart features help make your every day more efficient by letting you remotely monitor, manage, and maintain your dishwasher. Your dishwasher may have additional features not mentioned here. Please refer to your app for a complete listing of additional features.

Use of your dishwasher for observance of the Sabbath.

GET STARTED

Refer to the "Connectivity Setup" section in this User Instructions and follow the instructions to get connected.

Check the Whirlpool® app frequently for additional information and features.

Connectivity Setup

Get the App and Get Connected

With your mobile device, get the app, connectivity setup instructions, terms of use, and privacy policy at:

www.whirlpool.com/connect

In Canada, visit

www.whirlpool.ca/en_CA

and click on the Whirlpool® Connected Appliances link.

IMPORTANT: Proper installation of your appliance prior to use is your responsibility. Be sure to read and follow the Installation Instructions that came with your appliance.

Connectivity requires Wi-Fi and account creation. App features and functionality subject to change. Data rates may apply. If you have any problems or questions, call Whirlpool Corporation Connected Appliances at 1-866-333-4591.

You Will Need:

A home wireless router supporting Wi-Fi, 2.4Ghz preferably with WPA2 security. If you are unsure of your router's capabilities, refer to the router manufacturer's instructions.
■ The router to be on and have a live internet connection.
■ The 10-character SAID code for your appliance. The SAID code is either printed on a label on the appliance or can be found on the LCD screen. Refer to the appliance User Guide for the location.

Once installed, launch the app. You will be guided through the steps to set up a user account and to connect your appliance. If you have any problems or questions, call Whirlpool Corporation Connected Appliances at 1-866-333-4591.

Dishwasher Use – Basic Operation

STEP 1

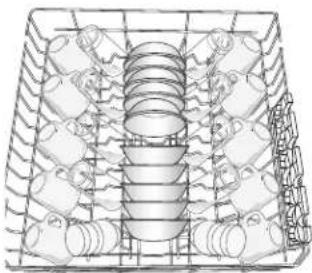

Prepare and Load the Dishwasher

IMPORTANT: Remove leftover food, bones, toothpicks, and other hard items from the dishes. Remove labels from containers before washing.

Technical line drawing of a mechanical assembly with multiple cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with multiple curved components and a central oval feature (no text or symbols)

Upper rack Lower rack

■ Check that nothing blocks the upper or lower spray arm.

Items in rack can block the spray arms.

Diagram illustrating a poultry breeding process with labeled stages and directional arrows indicating feeding, feeding, and breeding.

■ Check that when the dishwasher door is closed, no items are blocking the detergent dispenser.
■ Tough soiled items should be loaded with soiled surfaces facing down and inward to the spray. This will improve cleaning and drying results.
■ Avoid overlapping items like bowls or plates that may trap food.
■ Place plastics, small plates, and glasses in the upper rack. Wash only plastic items marked "dishwasher safe."
■ To avoid thumping/clattering noises during operation, load dishes so they do not touch one another. Make sure lightweight load items are secured in the racks.

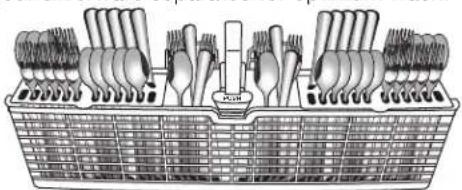

■ When loading silverware, always place sharp items pointing down. Mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items.
■ Use slots in the covers and suggested loading patterns to keep your silverware separated for optimum wash.

Cross-sectional diagram of a multi-chamber appliance with multiple kitchen utensils and a central fan (no text or labels)

NOTE: The AnyWare™ silverware basket will fit on the inner door, on the front of the lower rack, and inside the lower rack.

STEP 2

Add Detergent

Premeasured DetergentsSLIDE

High-quality premeasured tablets and packs are recommended for improved performance.

Quality tablets and packs have been proven better than powder, liquid, or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film. They are suitable for all hardness and soil levels. Also,

Pre Wash SLTCE LIFT For test results, and Circuits and Circuits with LIFT

by using a rinse aid, you can minimize repeat buildup of white film (not all packs and tablets contain rinse aid). Always place premeasured detergents in main compartment and slide lid closed.

NOTE: Follow instructions on the package when using other dishwasher detergent types.

■ Use automatic dishwasher detergent only. Add detergent just before starting a cycle.
■ Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool dry place.

Pre Wash For best results, and Concrete nutrition and Concrete Line Aid LIFT

Place selected detergent in the dispenser. Place finger, as shown, and slide lid closed. Press firmly until it clicks.

Pre Wash SLIDE For heat contents Wash SLIDE OPEN

Push OPEN, as shown, and the lid will slide open.

Powders and Gels

Water Hardness	Soil Level	Prewash Compartment*	Main Wash Compartment
Soft(0–4 grains per U.S. gallon)	Light None	“Soft” fill line
	Normal None	“Soft” fill line
	Heavy Full	“Soft” fill line
Medium(5–9 grains per U.S. gallon)	Light None	“Soft” fill line
	Normal Full	Full**
	Heavy Full	Full**
Hard(10–14 grains per U.S. gallon)	Light Full	Full**
	Normal Full	Full**
	Heavy Full	Full**

*The prewash compartment is on top of the sliding door of the dispenser.
**A full main wash compartment contains 2 Tbsp (30 ml).

IMPORTANT: Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difficult to achieve good results. A water softener is recommended to avoid damage and achieve good results.

NOTE: Follow instructions on the package when using other dishwasher detergent types.

STEP 3

Rinse Aid

Pre Wash SI/DE Drip FL2

IMPORTANT: Your dishwasher is designed to use rinse aid. The use of rinse aids greatly improves drying by allowing water to drain from the dishes after the final rinse. Rinse aid also keeps water from forming droplets that can dry as spots or streaks.

Filling the dispenser

The dispenser holds 5 oz (150 mL) of rinse aid. Under most conditions, this will last 1 to 3 months.

NOTE: Indicator reads correct fill level when door is completely opened.

1. To add rinse aid, open the rinse aid dispenser lid by gently pushing in the center of the lid with your thumb and pulling up on the edge.

2. Pour rinse aid into the opening until the dispenser is full. Do not overfill.

3. Clean up any spilled rinse aid. Spilled rinse aid can create excessive suds.

4. Close the dispenser by pushing down gently on the lid.

Hand-drawn diagram showing a hand inserting a device into a device with labeled parts and arrows indicating motion.

Rinse Aid Setting

Your rinse aid dispenser is adjustable. For most water conditions, the factory setting will give good results. If you have hard water and notice calcium buildup on your dishware, you may want to try a higher setting. If you notice foam in your dishwasher, use a lower setting.

To adjust the setting:

Turn the arrow adjuster to a higher number to increase the amount of rinse aid.

1 2 3 4

STEP 4

Select a Cycle (varies by model)

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves gas. Cycle times may increase or decrease depending on selections. Estimated cycle times after calibration are listed in the "Cycles" chart in the "Cycle and Option Descriptions" section.

Select the desired cycle by pressing a cycle keypad.

CYCLES

$$ \begin{array}{c c c c c} \square & \text {Sensor} & \square & \text {Heavy} & \square & \text {Normal} \ \hline \end{array} \begin{array}{c c c c c} \square & 1 - \text {Hour} & \square & \text {Soak} & \square \ & \text {Wash} & \square & \& \text {Clean} & \square \ & & & & \square \ & & & & \text {Remote Enable} \ & & & & \text {Hold 3 sec} \end{array} $$

Select Options (varies by model)

See the "Options" chart in the "Cycle and Option Descriptions" section.

You can customize the cycles by selecting the options desired.

OPTIONS

$$ \begin{array}{l} \begin{array}{c c c c} 2 - 4 - 8 \text {Hr} & \text {Hi Temp} & \text {Heat} \ \text {Delay} & \text {Wash} & \text {Dry} \end{array} \quad \begin{array}{c c c c} \text {Sani} & \text {Control} \ \text {Rinse} & \text {Lock} \end{array} \ \begin{array}{c c} \text { Extended } \ \text { Dry } \end{array} \quad \boxed {1} \quad \text { Hold } \ 3 \text { sec } \ \end{array} $$

STEP 5

Start or Resume a Cycle

■ If needed, run hot water at the sink nearest your dishwasher until the water is hot. Turn off water.
■ For best dishwashing results, water should be 120^ F ( 49^ C) as it enters the dishwasher.
■ Select the wash cycle and options desired Within 4 seconds of pressing Start/Resume you must firmly push the door closed. If the door is not closed within 4 seconds, the Start/Resume LED will flash, an audible tone will be heard, and the cycle will not start.

■ You can add an item at the beginning of the cycle. Open the door slowly and add the item. Press START/RESUME and close the door firmly within 4 seconds. If the door has been open more than 4 seconds, the LED will flash, a tone will sound and the dishwasher will not resume unless you press Start/Resume again.

IMPORTANT: If the door has been opened after starting a cycle (even during the Delay Hours option), the Start/Resume keypad must be pressed again.

Dishwasher Use - Smart Operation

NOTE: You must have successfully completed the "Connectivity Setup" section for the following features to function. Verify that the Wireless Status icon and either the Amber House icon or Blue House icon are illuminated. Check the Whirlpool® app for additional dishwasher features, including Remote Enable (B).

Wireless icon

Remote Enable icon

Amber House icon (peak electric rate)

Blue House icon (normal electric rates)

Set a Remote Enable

Remote Enable requires Wi-Fi and account creation. App features and functionality subject to change. Subject to Terms of Service are available at: www.whirlpool.com/connect. Data rates may apply. In Canada, visit www.whirlpool.ca/en_CA and click on the Whirlpool® Connected Appliances link.

Remote Enable hold 3 se

Remote Enable

Remote Enable mode allows you to start your dishwasher remotely from the Whirlpool® app.

After loading the dishwasher and selecting your cycle settings, press and hold DOWNLOAD & GO for 3 seconds. The Remote Enable icon will be solidly lit.

When a remote start command is received from the app, the dishwasher will start the cycle. The Remote Enable icon will remain lit.

NOTE: If no Wi-Fi connection is available, the Remote Enable will not be set and the Wireless icon will blink for 2 seconds, then go out.

HELPFUL TIP: Make sure that your dishwasher door remains closed and the cycle is not changed until you start the cycle. Opening the door after a Remote Enable has been set will cancel the Remote Enable. The Remote Enable will need to be reinitiated.

Follow Cycle Progress

Follow Cycle Progress lets you remotely monitor your dishwasher and anticipate when it will finish the current cycle. Open the app and select DISHWASHER. The cycle progress is displayed in the app.

Select or Deselect Push Notifications

Push notifications let you choose which events will be announced with a text message. Open the app and select DISHWASHER, then open PREFERENCES. Turn on the push notifications you want to receive.

Download a Specialty Cycle or My Cycle

Download & Go Remote Enable hold 3 sec

The Download & Go™ feature lets you select a Specialty cycle or you can design a My Cycle on the Whirlpool® app and send it to your dishwasher. When the dishwasher receives the cycle, the Download & Go LED lights up for several minutes to indicate the cycle has been received. When you want to use this cycle, press DOWNLOAD & GO to select the cycle, just as you would do for any other cycle. Press the Start/Resume keypad and close the door within 4 seconds to start the cycle.

HELPFUL TIP: The cycle will be remembered for future use until a different cycle is downloaded to the dishwasher.

NOTE: If Download & Go is pressed without a cycle ready for selection, the LED will blink and you will hear an "invalid key press" sound (if key activation sounds are turned on). When a remote start command is received from the app, the dishwasher will start the cycle. The Remote Enable icon will remain lit.

Enable Quiet Mode

Enable Quiet mode lets you remotely silence the on-dishwasher tones such as the end-of-cycle signal. Open the app and select QUIET MODE.

Issue Alerts

Issue Alerts lets you know by text message if something needs your attention and provides guidance about what to do. You may turn off Issue Alerts from the app by going to the Appliance Details page, choosing the Preferences option, and toggle off all notifications, and click save in the top right corner.

Smart Delay

(Opt-in through Whirlpool® app and when supported by your local utility)

During times of peak electrical rates (if you have opted in), you may see the Smart Delay icon. When this occurs, your dishwasher will delay according to your opt-in choices to help alleviate peak power demands on the local utility. The dishwasher will start up automatically when the peak power demand has decreased. You may override Smart Delay through the app.

Cycle and Option Descriptions

CYCLES Sensor Heavy Normal 1-Hour Wash Soak & Clean Download & Go Remote Enable @ Hold 3 sec Connect OPTIONS 1-24 Hr Delay Hi Temp Wash Heat Dry Sani Rinse Control Lock Extended Dry Sanitized Hold 3 sec Cancel - Drain

Estimated cycle times may increase or decrease depending on water temperature, soil conditions, dish load size, and options selected. You can customize your cycle by selecting an option.

See option selections. If you change your mind, press the option again to turn off the option, or select a different option. You can change an option anytime before the selected option begins. At each stage of the wash cycle, you may hear noises that you are not used to hearing in your previous dishwasher. Each cycle will provide a series of pauses and water sprays throughout the wash cycle. This is normal and will provide optimal cleaning performance.

CYCLE SELECTIONS

This information covers several different models. Your dishwasher may not have all of the cycles and options described.

IMPORTANT: The sensor in your dishwasher monitors the soil level. Cycle time and/or water usage can vary as the sensor adjusts the cycle for the best wash performance. If the incoming water is less than the recommended temperature or food soils are heavy, the cycle will automatically compensate by adding time, heat, and water as needed.

	CYCLES	ESTIMATED WASH TIME W/O OPTIONS (HH:MM)	WATER USAGE GALLONS (LITERS)
■ Sensor	This cycle senses the load size, soil amount, and toughness of soil to adjust the cycle for improved cleaning, using only the amount of water and energy needed. The Sensor cycle is automatically selected if you first press the Start/Resume keypad.*	2:10 to 3:15 3.38	to 7.4(12.8 to 28.0)
■ Heavy	Use for hard-to-clean, heavily soiled pots, pans, casseroles, and tableware.	2:45 to 3:25 7.4	(28.1)
■ Normal	This cycle is recommended for daily, regular, or typical use to completely wash and dry a full load of normally soiled dishes. This dishwasher's government energy certifications were based on the Normal cycle with only the Heated Dry option selected.**	2:00 to 3:10 2.4	to 7.4(9.09 to 28)
■ 1-Hour Wash	For fast results, 1-Hour Wash will clean dishes using slightly more water and energy. Select the Heat Dry or Extended Dry options for better drying performance.	0:55 to 1:05 7.87	(29.8)
■ Soak & Clean	This cycle quietly soaks dishes with an extended prewash, which eliminates the need to presoak dishes, saving personal time and effort. For optimal cleaning results during the Soak & Clean cycle, add prewash detergent. Use this cycle for loads with heavy amounts of dried-on or hard to clean baked-on food.	6:45 to 7:25 7.4	(28.0)
■ Download & Go ■ Remote Enable 0® Hold 3 sec	This is a specialty cycle that you select from the Whirlpool® app and download to your dishwasher. Your dishwasher remembers this cycle until you replace it by downloading another cycle from the Whirlpool® app.	Variable Variable up to 7.87 (29.8)

*The government energy certifications are not based on this cycle. See the Normal cycle description for the government energy certification cycle. Using the Sensor cycle may increase your energy usage.
**No other washing and drying temperature options were selected, and it was not subject to truncated testing. Rinse aid was not used, and there was no detergent used in the prewash.

OPTION SELECTIONS

	OPTIONS CAN BE	SELECTED WITH	WHAT IT DOES	ADDED TIME TO CYCLE	ADDED WATER GALLONS (LITERS)
1-24 Hr Delay2-4-8 Hr Delay(varies by model)	Runs dishwasher at a later time. Select a wash cycle and options. Each time you press the Delay keypad, it will display the next available delay time. Press START/RESUME, then close the door firmly.NOTES:■ The dishwasher remembers the last delay you selected. To reset the delay time to something other than what is displayed, continue to press the Delay keypad until the desired delay time is reached.■ Anytime the door is opened (such as, to add a dish), the Start/Resume keypad must be pressed again to resume delay countdown.	Available with any cycle	Delays start of a cycle up to 24 hours.	N/A N/A
Hi Temp Wash	Raises main wash temperature to improve cleaning for loads containing tough, baked-on food.	Sensor Heavy Normal Soak & Clean	Raises the main wash temperature to 135°F (57°C).	0:05 to 0:13 0 to 3.86(0 to 14.6)
Heat DryExtended Dry	Dries dishes with heat. This option, with the use of rinse aid, will provide better drying performance. Plastic items are less likely to deform when loaded in the top rack. Use Heat Dry for optimum dry performance. Turn the Heat Dry option off for air dry.Extended Dry lengthens the time that Heat Dry is active. This option with the use of rinse aid will provide better drying performance.	Sensor Heavy Normal Soak & Clean	Uses heating element to speed drying times. Heat Dry option defaults to on when any cycle is selected, except for 1-Hour Wash.	0:08 to 0:46 0
Sani RinseSanitized(location of “Sanitized” indicator varies by model)	Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certified dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy.At end of the cycle, the “Sanitized” indicator will glow. If your load did not properly sanitize, the indicator will flash at the end of the cycle. This can happen if the cycle is interrupted or if the water does not reach the required temperature. The light goes off when you open and close the door or press CANCEL.	Sensor Heavy Normal	Raises the main wash temperature to 135°F (57°C) and the final rinse temperature to 156°F (69°C).	0:05 to 1:06 0 to 3.86(0 to 14.6)
Control LockHold 3 sec	Avoids unintended use of dishwasher between cycles, or cycle and option changes during a cycle.To turn on Lock, press and hold CONTROL LOCK for 3 seconds. Control Lock light will stay on for a short time, indicating that it is activated and all keypads are disabled. If you press any keypad while your dishwasher is locked, light flashes 3 times. Dishwasher door can still be opened/closed while the controls are locked.To turn off Lock, press and hold CONTROL LOCK for 3 seconds. Light turns off.

CONTROLS AND CYCLE STATUS

			Press to start or resume a wash cycle.If the door is opened during a cycle or the power is interrupted, the Start/Resume indicator LED flashes.The cycle will not resume until door is closed and the Start/Resume keypad is pressed.NOTE:Push door firmly closed within 4 seconds of pressing the Start/Resume keypad or the dishwasherwill not start. If door is not closed within 4 seconds, the Start/Resume LED will flash and an audible tonewill sound when the door is closed.
Cancel - Drain			Press to cancel a wash cycle.Close the door firmly. The dishwasher starts a 2-minute drain (if needed). Let dishwasher drain completely.
Display varies by model The display allows you to follow the progress of the dishwasher cycle.
			Models with a numeric display count down while the cycle is running. If you open the door to view thisdisplay, you must resume the cycle by pressing the Start/Resume keypad and closing the door within4 seconds.
Drying Clean Sanitized			Models without a numeric display have indicators that glow for Drying, Clean, and Sanitized.
			If you select Sani Rinse option, when cycle is finished, the “Sanitized” indicator glows. If your dishwasherdid not properly sanitize your dishes, the light flashes at the end of the cycle. This can happen if the cycleis interrupted or water could not be heated to required temperature. The light goes off when you open andclose door or press Cancel.
SaniRinse
Sanitized
			The exterior status light on the front of the door panel will glow blue when washing, red while it is drying,and white when the cycle is complete.

Dishwasher Features

AnyWare™ Silverware Basket

The AnyWare™ silverware basket can be hung on the door, the bottom rack, or placed inside the bottom rack.

Door position Rack position Rack position side

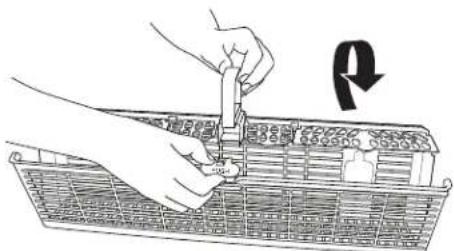

To open the AnyWare™ silverware basket:

To unlock, grasp the front panel, pull up, and rotate 90° as shown. Make sure the front panel is up all the way before rotating. To unlock and rotate the front panel, grasp the front panel as shown and pull it up and out.

Illustration of hands using a tool to adjust or install a grid inside a container (no text or symbols visible)

NOTE: Be sure the front panel of the silverware basket is completely locked into place before pulling out the bottom rack and before closing the dishwasher door.

To remove the basket from the door:

1. Grasp the silverware basket by the handle. Slide it toward the top of the door.
2. Lift the basket off the holding buttons.

To replace the basket in the door:

1. Slide the basket toward the bottom of the door until it locks into place.

Cup Shelves

Fold down the extra shelf on the left-hand or right-hand side of the top rack to hold additional cups, stemware, or long items such as utensils and spatulas. For best results on cups, stagger the spacing so that the cups on the shelf are not directly above the cups below.

Technical illustration of a mechanical device with internal components and mesh frame (no text or symbols)

Fold-Down Tines

The row of tines on the left-hand and right-hand sides of the upper, or in the back of lower rack can be adjusted to make room for a variety of dishes.

To adjust the fold-down tines:

1. Grasp the tip of the tine that is in the tine holder.
2. Gently push the tine out of the holder.
3. Lay the tines down, toward the center of the rack.

Technical line drawing of a mechanical assembly with a magnified inset showing a lever mechanism (no text or symbols)

EZ-2-Lift™ Top Rack Adjuster

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Adjusters are located on each side of the top rack.

To raise the rack:

Press both rack adjuster thumb levers and lift the rack until it is in the Up position and level.

Diagram of a container with arrows indicating flow or movement, no text or symbols present

To lower the rack:

Press both rack adjusters thumb levers and slide the rack to its Down position and level.

NOTE: The top rack must be level.

Easy-to-Remove Third Level Rack (on some models)

If additional space is needed in the upper rack, the third level rack can easily be removed.

To remove, fully extend rack until it stops. Then, open the track stops on each side and slide the rack out to remove.

Low-profile items, such as serving utensils and silverware, may be loaded on the third level rack.

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a motion or assembly process.

A. Track stop
B. Track

Line drawing of a mechanical tool tray with folding parts and a central knob (no text or symbols)

Removable Top Rack

The removable top rack allows you to wash larger items, such as pots, roasters, and cookie sheets in the bottom rack.

IMPORTANT: Remove dishes prior to removing the top rack from dishwasher.

To remove the rack:

1. To gain access to the track stops, pull the upper rack forward about halfway out of the tub.

2. Press on the edge of the ridged area on the track stop while tipping the track stop toward the center of the dishwasher. This action releases a small retaining tab that locks the track stop to the track (see Track stop – left).

NOTE: It is helpful to use 2 hands. Take special note of the orientation of the track stops.

Diagram of a mechanical clamp or bracket with a curved arrow indicating force or motion (no text or symbols present)

Track stop - left

1. With the retaining tab released, pull the track stop straight toward the opposite track to remove it.

2. After removing both track stops, gently pull the top rack out of the tracks by rolling it toward you.

3. Replace the track stops by coming up from under the track and slipping the lower tab of the track stop into the lower slot of the track (see Track stop – right) and rotate the track stop into place. Then press on the edge of the ridged area while pushing the track stop straight toward the track. This action locks the retaining tab back into place.

Illustration of hands using a tool to adjust or install a component, with no visible text or symbols.

Track stop - right

1. Test the track stop by pulling it toward the opposite track to ensure that it is locked in place.

To replace the rack:

1. Gently pull the tracks forward in dishwasher until they stop. Remove track stops. See steps 1 through 3 above.

2. Place the back wheels on each side of the rack into the track and roll the rack into the tracks, but do not push the rack all the way into the tub.

3. Insert front rack wheels on each side of the rack into the track.

4. Slide the rack into the dishwasher.

5. Replace the track stops. See steps 5 and 6 above. IMPORTANT: Be sure that the track stops are locked in place and cannot be easily removed. They keep the rack from coming out of the track.

Filtration System

Your dishwasher has latest technology in dishwasher filtration. This filtration system minimizes sound and optimizes water and energy conservation while providing superior cleaning.

The filter system consists of 2 parts an upper filter assembly and a lower filter.

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without filters properly installed. Be sure lower filter is securely in place and upper filter assembly is locked into place. If upper assembly turns freely, it is not locked into place.

The filters may need to be cleaned when:

■ Visible objects or soils are on the upper filter assembly.
■ Dishes feel gritty to the touch.

Upper filter assembly Lower filter

It is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency.

RECOMMENDED TIME INTERVAL TO CLEAN YOUR FILTER
Number of Loads Per Week If you only scrape before loading*	If you scrape and rinse before loading	If you wash before loading
8–12 Every 2 months Every 4 months Once per year
4–7 Every 4 months Once per year Once per year
1–3 Twice per year Once per year Once per year

*We recommend this practice because it will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort.

Very Hard Water

If you have hard water (above 15 grains), clean your filter at least once per month. Buildup of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see the "Troubleshooting" section.

Filter Removal Instructions

1. Turn the upper filter assembly 1/4 turn counterclockwise and lift out.

Locating tab

Technical line drawing of a mechanical assembly with a bearing and clamping mechanism (no text or symbols)

To remove upper filter assembly

Cleaning Instructions

IMPORTANTE: Do not use wire brush, scouring pad, etc., as they may damage the filters.

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

Two technical illustrations showing hands operating a mechanical component, one with a cylindrical part and the other a circular component (no text or symbols present)

1. Separate the upper filter assembly by gently pulling apart.
2. Clean the filters as shown.

Filter Reinstallation Instructions

1. Noting the previous illustrations, place the lower filter under the locating tabs in the bottom of the dishwasher, so the round opening for the upper filter assembly lines up with the round opening in the bottom of the tub.
2. Insert the upper filter assembly into the circular opening in the lower filter.

Technical line drawing of a mechanical assembly with no visible text or symbols

To replace upper filter assembly

Locating tab FULL DOOR TFL CLOCK

1. Slowly rotate the filter clockwise until it drops into place. Continue to rotate until the filter is locked into place. If the filter is not fully seated (still turns freely), continue to turn the filter clockwise until it drops and locks into place.

NOTE: The upper filter assembly arrow does not have to align with the arrow in the lower filter as long as the filter is locked.

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the filters properly installed. Be sure the lower filter is securely in place and the upper filter assembly is locked into place. If the upper filter assembly turns freely, it is not locked into place.

Dishwasher Care

Cleaning the Exterior

Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, a stainless steel cleaner, such as affresh ^® Stainless Steel Cleaner is recommended. Avoid using abrasive cleaning products on the exterior of the dishwasher.

Cleaning and Maintaining the Interior

Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh® Dishwasher Cleaner can help to remove the residue. Monthly use of affresh® Dishwasher Cleaner is recommended to help maintain the dishwasher.

To Use:

1. If cleaning without dishes, place one tablet in the detergent dispenser. Do not add detergent (If significant buildup is noticeable, a second tablet can be placed in the bottom of the dishwasher.)
2. If cleaning with dishes, place one tablet in the bottom of the dishwasher. Place detergent in the dispenser.
3. Run a Normal wash cycle.

Another method to remove white residue is to use a vinegar rinse. However, vinegar is an acid and using it too often could damage your dishwasher.

Place (do not pour), 2 cups (500 mL) white vinegar in a glass or dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water.

NOTE: Whirlpool recommends the use of high-quality, premeasured detergent tablets or packs, and the use of rinse aid for dishwasher cleaning and daily care.

If you have a drain air gap, check and clean it if the dishwasher isn't draining well.

Illustration of a kitchen sink with a faucet and a drain component, showing no text or symbols

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

■ When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.
■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home.
■ Damage from freezing is not covered by the warranty.
■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Troubleshooting – Connectivity

First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the "Connectivity Setup" section in this manual or contact the Connected Appliance Team.

In the U.S.A., contact the Connected Appliance Team:

Visit www.whirlpool.com/connect

Call: 1-866-333-4591 M-F 8 am - 8 pm EST

Email: [e-mail]

In Canada, contact the Connected Appliance Team:

Visit: www.whirlpool.ca/en_CA and click on the Whirlpool®

Connected Appliances link

Call: 1-866-333-4591 M-F 8 am - 8 pm EST

Email: [e-mail]

By mail: By mail:

Connected Appliance Team

Whirlpool Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in the correspondence.

Connected Appliance Team

Whirlpool Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Connect

A. Wireless Status icon

B. Remote Enable icon

A - B 8:88

C. Amber House icon (peak electric rates)

D. Blue House icon (normal electric rates)

CONNECTION STATUS CONTROL PANEL INDICATOR LIGHTS
Dishwasher is not connected All icons are off.
Dishwasher is attempting to connect to home Wi-Fi router Wireless icon is blinking slowly.
Dishwasher is connected to home Wi-Fi router, but Whirlpool® app or Smart Grid functions do not work	Wireless icon is on.Blue Internet icon is blinking slowly.
Dishwasher is connected to home Wi-Fi router and the Whirlpool® app works	Wireless icon is on.Blue or Amber House icon is on – it is not blinking

PROBLEM SOLUTION
DISHWASHER IS NOT CONNECTED TO HOME WI-FI ROUTER (WIRELESS ICON IS OFF)	The dishwasher may be in Standby mode. Press POWER on the dishwasher and observe indicators. All indicator lights are off when in Standby mode.
	Check that the dishwasher has been connected to the home Wi-Fi router. See the “Connectivity Setup” section.
	Press and hold CONNECT for 3 seconds. The Wireless Status icon should blink while connecting (this may take up to 2 minutes).
	Check whether the router connection is on and working with other computers or devices in the home (able to access the Internet). Have you changed the router or its password?
	There may be weak signal strength or signal interference between the dishwasher and router. Try to place the wireless router closer to the dishwasher. It may be necessary to install a Wi-Fi range extender.
	Check the mobile app to verify that the dishwasher is not offline. If it is offline, do the following to reconnect:1. Go to “Preferences” in the mobile app find and select DELETE APPLIANCE.2. Follow the mobile app instructions to add an appliance.
WIRELESS ICON DOES NOT LIGHT AT ALL AFTER PRESSING THE CONNECT KEYPAD
	Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock.
	Unplug or disconnect dishwasher power for 30 seconds, then reconnect power. Repeat Wi-Fi connect process. If there is no connection after several attempts, use alternate setup instructions available atwww.whirlpool.com/connect. In Canada, visitwww.whirlpool.ca/en_CAand click on the Whirlpool®Connected Appliances link.Appliance may be assigned to a Wi-Fi network that is not active. Verify that the network it is assigned to is operating properly.
	Verify that the dishwasher operates correctly, except for not being able to connect. Call for service.
DISHWASHER IS CONNECTED TO HOME WI-FI ROUTER (WIRELESS ICON IS ON), BUT WHIRLPOOL®APP OR SMART GRID FUNCTIONS DO NOT WORK	Check whether either the Blue or Amber House icon is on continuously; if not, press CONNECT to reestablish wireless connection.
	Connection to the Whirlpool®app and Smart Grid service may be unavailable. Check if the Blue House icon is off or blinking.
	Check that your user account is set up. See the “Connectivity Setup” section or the Whirlpool®app directly for account setup and dishwasher registration instructions.
	Verify that the dishwasher is paired with your account in the app.

Troubleshooting

If you have successfully connected your dishwasher previously and are experiencing difficulties, first try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual and scan the code with your mobile device, or visit www.whirlpool.com/product_help. In Canada, visit www.whirlpool.ca.Contact us by mail with any questions or concerns at the address below:

In the U.S.A.:

In Canada:

Whirlpool Brand Home Appliances

Whirlpool Brand Home Appliances

Customer eXperience Center

Customer eXperience Centre

553 Benson Road

200 - 6750 Century Ave.

Benton Harbor, MI 49022-2692

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in the correspondence.

PROBLEM SOLUTION
DISHWASHER DOES NOT RUN	NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle.If the Start/Resume light is blinking, press Start/Resume and close the door within 4 seconds. Be sure the door is closed and latched.■ Check that there is not an interference with large casserole dishes and the wash system at the back of the dishwasher.■ Check to see if any items are protruding through the bottom or back of the rack. Also check to see if tall items are hitting the upper rack or spray arm. Adjust loading as necessary to ensure door is closed and latched.Press the Start/Resume or Cancel keypad or open and close the door before selecting your cycle/option. Controls must be awakened after a period of inactivity.Be sure the Control/Lock feature is not on. If the control lock indicator is lit, press and hold SANI RINSE for 3 seconds. The Control Lock LED will turn off and you can then operate the controls.Be sure you have selected a cycle. See the “Cycle and Option Descriptions” section.Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped.If lights other than Start/Resume blink and the unit will not run, you will need to call for service.If the numeric display shows a code “F2E2”, you will need to call for service.
DETERGENT REMAINS IN THE DISPENSER OR TABLET IS ON BOTTOM OF TUB	Check for dishware, such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly.Be sure your detergent is fresh and lump free.Be sure the cycle has completed (the Clean light is on). If it has not completed, you will need to resume the cycle by pressing the Start/Resume keypad and closing the door within 4 seconds.
CYCLE RUNS TOO LONG NOTES:	■ To use less water and reduce energy consumption, you will encounter cycles that typically run for up to 3 hours.■ A water heater setting of 120°F (49°C) is best the dishwasher will delay longer while heating cooler water.■ Some options will add time to the cycle. See the “Cycle and Option Descriptions” section. The Heat Dry option adds approximately 45 minutes.Try the 1-Hour Wash cycle.Run the hot water at a faucet close to the dishwasher before starting the cycle.
DISHWASHER NOT DRYING	NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface, which tends to collect water droplets. Towel drying may be necessary.Use of rinse aid along with the Heat Dry option is needed for proper drying.Proper loading of items can affect drying. (See specific loading instructions within this guide.)Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading.■ Unload the bottom rack first.■ Locate these items on the more slanted side of the rack for improved results.
WILL NOT FILL Be sure the water to the dishwasher is turned on.Check that the overfill protection float is free from obstructions. See the “Parts and Features” section.Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate properly or may not fill with water. See “Blinking Lights” in the “Troubleshooting” section.
WATER REMAINS IN THE TUB/WILL NOT DRAIN	Be sure the cycle has completed (the Clean indicator is on). If it has not, you will need to resume the cycle by pressing the Start/Resume keypad and closing the door within 4 seconds.If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet.Check for kinks in the drain hose.Check for food obstructions in the drain or disposer.Check your house fuse or circuit breaker.
HARD WATER(WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)	NOTE:Extremely hard water mineral deposits can cause damage to your dishwasher and make it difficult to achieve good cleaning. A water softener is strongly recommended if your hardness is 15 grains or more. If a water softener is not installed, the following steps may help:Use a commercial cleaner designed for dishwashers once per month.Clean the upper and lower filters at least once per month. See “Cleaning Instructions” in the “Filtration System” section.Always use a rinse aid.Always use a high-quality, fresh detergent.Use a detergent booster/water softener additive designed for dishwashers.
ODORS	NOTE:If the dishwasher is not used daily, you can run a rinse cycle with the partial load until a full load is ready to run.Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a Normal cycle with the Heat Dry option turned off. Do not use detergent.The dishwasher may not be draining properly. See “Water Remains In The Tub/Will Not Drain” in the “Troubleshooting” section.
NOISY	Surging sounds can occur periodically throughout the cycle while the dishwasher is draining.Normal water valve hissing may be heard periodically.A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle.Improper installation will affect noise levels.Be sure the filters are properly installed.A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.
FOOD SOILS REMAIN ON DISHES	Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance. See the “Dishwasher Use” section.Check filter to ensure it is properly installed. Clean it if needed. See “Cleaning Instructions” in the “Filtration System” section for details.Select the proper cycle and option for the type of soils. The Heavy cycle with the Hi Temp Wash option can be used for tougher loads.Be sure the incoming water temperature is at least 120°F (49°C).Use the proper amount of fresh detergent. More detergent is needed for heavier soiled loads and hard water conditions.Scrape food from dishes prior to loading (do not prerinse).
DISHES DIRTY/SUDS IN DISHWASHER/CYCLE NOT COMPLETE	If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not fill with water.Suds can come from:Using the incorrect type of detergent, such as dish detergent for hand washing dishes, laundry detergent, or hand soap.Not replacing the rinse aid dispenser cap after filling (or refilling) the rinse aid.Using an excessive amount of dishwasher detergent.Inadequate rinsing off detergent from dishes washed by hand before loading them into the dishwasher.Call for service.If no water was present in the machine at any time during a heated wash cycle, the cycle will end and the Clean indicator will not come on. See “Will Not Fill” in the “Troubleshooting” section.
DID NOT SANITIZE	If the Sanitized light is blinking, the load is NOT sanitized. The cycle was interrupted in the final rinse or the temperature for your water heater is set too low. Set your water heater to 120°F (49°C).
DAMAGE TO DISHWARE	Improper loading can cause dishes to become chipped or damaged. (See specific loading instructions within this guide.)
BLINKING LIGHTS	Blinking indicators will occur when the cycle is paused or when the cycle has been interrupted by opening the door. If the Start/Resume light is blinking, press the Start/Resume keypad and close the door within 4 seconds.See “Start or Resume a Cycle” in the “Dishwasher Use” section.If the Clean light or any other lights are blinking and the dishwasher will not run, call for service.
CLOUDY OR SPOTTED DISHWARE (AND HARD WATER SOLUTION)	Add or adjust the amount of liquid rinse aid for better drying and to reduce spotting. See the “Detergent and Rinse Aid” section.Use the correct amount of detergent.Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. See “Hard Water (White Residue on Dishwasher Interior or Glassware)” in the “Troubleshooting” section. If it does not come clear, it is due to etching (see below).Be sure the incoming water temperature is set at 120°F (49°C).Try using the Hi Temp Wash and Sani Rinse options.To remove spotting, run a vinegar rinse through the dishwasher.Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack. Run a Normal cycle with the Heat Dry option turned off. No detergent is needed.
ETCHING (PERMANENT CLOUDINESS)	This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot, from using too much detergent with soft water, or by pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop pre-washing, and use water heating options only when incoming water temperature is below 120°F (49°C).
LEAKING WATER Be sure dish	washer has been installed properly and is level.Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues.To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overfilling.
TUB IS DISCOLORED High iron	content in the water can discolor the tub.Tomato-based foods can discolor the tub or dishware. Large amounts of tomato-based foods should be removed from the dishes before loading.A citrus-based cleaner can be used to clean.

Open Source License Usage

The following statements refer to the portions of this software based in part on FreeRTOS v7.0.2, http://www.freertos.org. The use of this software is governed by the terms of GNU General Public License v. 2, which is available at:

http://www.gnu.org/licenses/gpl-2.0.html. A copy of the source code may be obtained by written request for the software by name to [e-mail], along with the address for delivery.

The following statements refer to those portions of the software copyrighted by Eclipse Foundation, Inc. Copyright (c) 2007, Eclipse Foundation, Inc. and its licensors. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

■ Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.
■ Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution.
■ Neither the name of the Eclipse Foundation, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Portions of this software are copyright (c) Sawtooth Consulting Ltd. 2006-2015 All rights reserved.

Portions of this software are copyright (c) Arrayent, Inc. 2015 All rights reserved.

The following statements refer to those portions of the software copyrighted by Swedish Institute of Computer Science.

Copyright (c) 2001-2004 Swedish Institute of Computer Science. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The following statements refer to those portions of the software copyrighted by Marvell International Ltd. Copyright (c) Marvell International Ltd. All rights reserved.

DISCLAIMER. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

WHIRLPOOL® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address, and telephone number

■Model number and serial number

■A clear, detailed description of the problem

■ Proof of purchase, including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.whirlpool.com.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Whirlpool Customer eXperience Center

In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or, at its sole discretion, replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator, or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes, or correction of household electrical or plumbing (e.g., house wiring, fuses, or water inlet hoses).
4. Consumable parts (e.g., light bulbs, batteries, air or water filters, preservation solutions).
5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.
6. Conversion of products from natural gas or propane gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God, or use with products not approved by Whirlpool.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration, or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes, unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.
10. Discoloration, rust, or oxidation of surfaces resulting from caustic or corrosive environments including, but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pickup or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in fixtures (e.g., trim, decorative panels, flooring, cabinetry, islands, countertops, drywall) that interfere with servicing, removal, or replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered, or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES: EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

Pre Wash SLIDE OPEN For best results and Concrete Red Add Concrete Red Add LIFT

Two-step diagram showing hands using a tool to lift a mechanical component on a sink (no text or symbols present)

Line drawing of a rectangular tray with a grid pattern and a small protrusion (no text or symbols)

Technical line drawing of a rectangular container with internal structural framework (no text or symbols)

PANIER INFÉRIEUR

Étapes rapides

Technical line drawing of a mechanical component with multiple cylindrical parts and a grid-like structure (no text or symbols)

Electricity Control Pro Wash Electricity Control

Line drawing of a vintage camera with a box labeled 'Fire Wash' and a hand adjusting its case (no text or symbols beyond labels)

Technical diagram showing a hand holding a circular component with internal components, and a close-up of the mechanical assembly (no text or symbols present)

Line drawing of a modern kitchen appliance setup with appliances and appliances (no text or symbols)

FONCTIONS INTELLIGENTES

www.whirlpool.com/connect

Au Canada, visiter le

www.whirlpool.ca/en_CA

3D wireframe diagram of a container filled with various items, no text or symbols present

Technical line drawing of a mechanical component with helical grooves and a central shaft (no text or symbols)

Technical diagram illustrating a kitchen or dining setup with labeled components and directional arrows indicating movement or flow.

Cross-sectional diagram of a battery pack with multiple battery cells and a central DC motor (no text or labels)

Pre Wash S. Cu 2000 For test contents and Outside and Outside Non-All LPT

Pre Wash Gnish For best results, and Outside Purchases and Outside View Ad LIFT

Pre Wash SLIDE For best meals ON SLIDE Open

Pre Wash SLDC OPEN

Diagram showing a hand inserting a component into a device with labeled parts and a magnified view of the component.

Download & Go Remote Enable hold 3 sec

CYCLES Sensor Heavy Normal 1-Hour Wash Soak & Clean Download & Go Remote Enable @ Hold 3 sec Connect OPTIONS 1-24 Hr Delay Hi Temp Wash Heat Dry Sani Rinse Control Lock Extended Dry Sanitized Hold 3 sec Cancel - Drain

Illustration of hands using a tool to adjust or install a grid-like object on a wire rack (no text or symbols visible)

Illustration of a mechanical device with a wire cage and internal components (no text or symbols)

Tiges rabattables

Diagram of a mechanical device with a magnified inset showing a lever mechanism (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a cutting or fastening process.

Line drawing of a toolbox containing various kitchen utensils and tools (no text or labels)

Illustration of a hand tool interacting with a mechanical component (no text or symbols visible)

Illustration of hands holding a device with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and surrounding components (no text or symbols)

Two technical illustrations showing hands operating a mechanical component, one with a cylindrical part and the other with a circular component (no text or symbols present)

Mechanical assembly diagram showing a rotating component with a flanged shaft and central bearing (no text or symbols)

Illustration of a kitchen sink with a faucet and a sink with a downward arrow indicating a drop (no text or symbols)

Connected Appliance Team

Whirlpool Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Connected Appliance Team

Whirlpool Customer eXperience Centre

200 - 6750 Century Ave.

A Wireless @ B 8:18 C H D

Customer eXperience Centre

553 Benson Road

200 - 6750 Century Ave.

Benton Harbor, MI 49022-2692

Pre Wash SLIDE ONLY For best results, and Canada Nutritional and Canada Free Aid LIPT

Two illustrations showing hands using a tool to lift a pipe fitting into a sink (left) and clean the surface with a circular component (right), both without any text or symbols.

Line drawing of a rectangular tray with a grid pattern and a small protrusion on top (no text or symbols)

Technical line drawing of a wireframe basket structure with internal grid lines (no text or symbols)

CANASTA INFERIOR

Pasos rápidos

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Technical diagram showing a hand operating a circular component with a mechanical switch, and a close-up of the internal components (no text or symbols present)

Line drawing of a modern kitchen appliance setup with appliances and appliances (no text or symbols)

CARACTERÍSTICAS INTELIGENTES

www.whirlpool.com/connect

En Canadá, visite

www.whirlpool.ca/en_CA

3D wireframe diagram of a basket filled with various items, no text or symbols present

Technical line drawing of a mechanical component with multiple oval cavities and a central curved feature (no text or symbols)

Canasta superior Canasta inferior

Diagram illustrating food preparation steps with labeled components and directional arrows indicating processing or storage.

Cross-sectional diagram of a multi-chamber appliance with cylindrical components and a central fan (no text or labels)

Pre Wash S. V.5 Control LPT Operable Pumpers and Operable Load

Pre Wash OPSH For best results, use Outside purchases and Outside Use Aid LIFT

Pro Wash SLIDE For best meals. ON ON Wash SLIDE OPEN

Pre Wash SUDE

Hand-drawn diagram showing a hand inserting a card into a device with labeled parts and arrows indicating direction.

Download & Go Remote Enable hold 3 sec

Issue Alerts (Emitir alertas)

CYCLES Sensor Heavy Normal 1-Hour Wash Soak & Clean Download & Go Remote Enable @ Hold 3 sec Connect OPTIONS 1-24 Hr Delay Hi Temp Wash Heat Dry Sani Rinse Control Lock Extended Dry Sanitized Hold 3 sec Cancel - Drain

Illustration of hands using a tool to adjust or install a component inside a wire rack (no text or symbols visible)

Cross-sectional illustration of a mechanical component with layered structure (no text or symbols)

Puntas plegables

Technical line drawing of a mechanical device with a magnified inset showing a tool interacting with a bracket (no text or symbols)

Diagram of a hand holding a grid-like structure with arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a turning or cutting process.

A. Topedelaguía B. Guía

Line drawing of a mechanical tool kit with a grid tray and multiple blades (no text or symbols)

Canasta superior removable

Illustration of a hand tool interacting with a metallic object (no text or symbols visible)

Illustration of hands using a tool to adjust or install a component, no text or symbols visible

Technical line drawing of a mechanical assembly with a central bearing and surrounding components (no text or symbols)

Two technical illustrations showing hands operating a mechanical component with a circular base and cylindrical shaft (no text or symbols present)

Technical line drawing of a mechanical assembly with a bearing and clamping mechanism (no text or symbols)

Illustration of a kitchen sink with a faucet and a sink with a downward arrow indicating a drop (no text or symbols)

Visite www.whirlpool.com/connect

Connected Appliance Team

Whirlpool Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Connected Appliance Team

Whirlpool Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Customer eXperience Centre

553 Benson Road

200 - 6750 Century Ave.

Benton Harbor, MI 49022-2692

Mississauga, Ontario L5N 0B7

Copyright (c) 2001-2004, Swedish Institute of Computer Science. Derechos reservados.

®/TM ©2019 Whirlpool. Used under license in Canada. All rights reserved.
