Product type	Wall charger
Brand	Aukey
Model	PAY16
Number of ports	2 USB-C ports
Output power per port	18 W (Power Delivery)
Maximum total power	36 W
Charging technology	USB Power Delivery 3.0
Input voltage	100-240 V AC, 50/60 Hz
Output voltage (PD)	5V/3A, 9V/2A, 12V/1.5A
Dimensions (approx.)	70 x 40 x 25 mm
Weight (approx.)	80 g
Material	Flame-retardant plastic
Compatibility	Smartphones, tablets, PD-compatible laptops
Cable required	USB-C to USB-C (not included)
Maintenance	Keep away from liquids and extreme heat sources
Safety	Overvoltage, overheating, and short-circuit protection
Warranty	Contact [e-mail] for Amazon Europe orders
Package contents	Charger, user manual, warranty card
Certifications	CE, FCC, RoHS
Repairability	Not user-repairable, no spare parts available

Frequently Asked Questions - PAY16 Aukey

How to use the PAY16 charger?

Plug the charger into a wall outlet, connect a USB-C to C cable to an output port, then connect the other end to your device. Unplug once charging is complete.

Which devices are compatible with this charger?

All devices that support USB Power Delivery via a USB-C port, such as recent smartphones, tablets, and laptops.

Can I charge two devices at the same time?

Yes, both ports can charge simultaneously with a maximum total power of 36 W (18 W per port).

What is the maximum power delivered by each port?

Each USB-C port can provide up to 18 W with Power Delivery technology.

Do I need to use a specific cable?

Yes, a USB-C to USB-C cable is required to benefit from PD fast charging. The cable is not included.

What should I do if my device is not charging?

Check device compatibility with USB PD, try a different USB-C cable, and make sure the wall outlet works. If the problem persists, contact AUKEY customer service.

Does fast charging work with an iPhone?

Yes, the iPhone X / 8 / 8 Plus supports fast charging with this charger, provided you use the original Apple USB-C to Lightning cable.

How to maintain the charger?

Keep the charger away from liquids and extreme heat sources. Unplug it when not in use.

Is there a warranty for this product?

Yes, a warranty is offered. For any questions, contact [e-mail] providing the model number and Amazon order number.

Where can I download the user manual?

The manual is available for free on notice-facile.com in PDF format. You can also request a translation into another language.

USER MANUAL PAY16 Aukey

User Manual Dual 18W PD Charger

Contents

English 01\~03

Deutsch 04\~06

Français 07\~09

Español 10\~12

Italiano 13\~15

日本語 16\~18

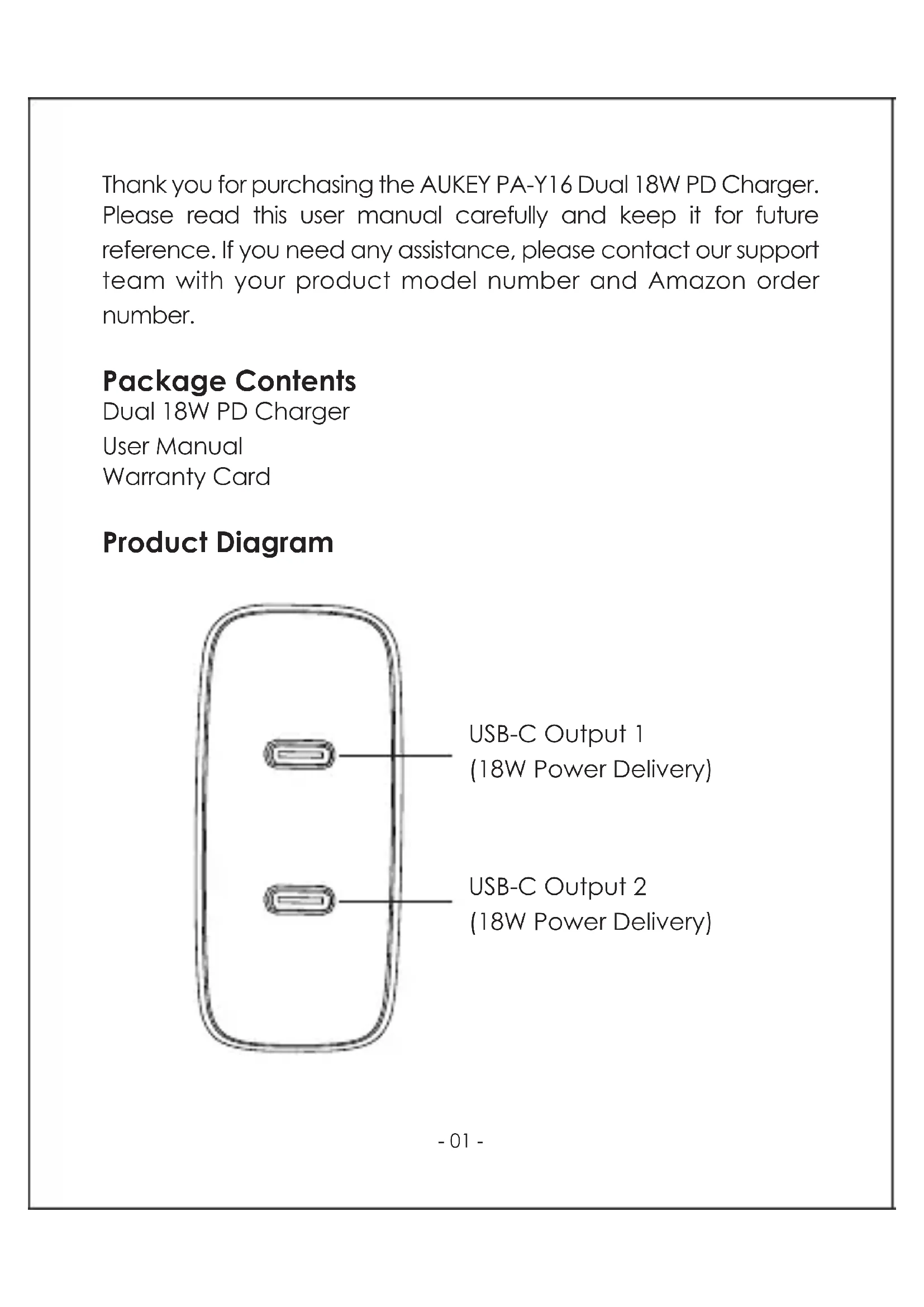

Thank you for purchasing the AUKEY PA-Y16 Dual 18W PD Charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Dual 18W PD Charger

User Manual

Warranty Card

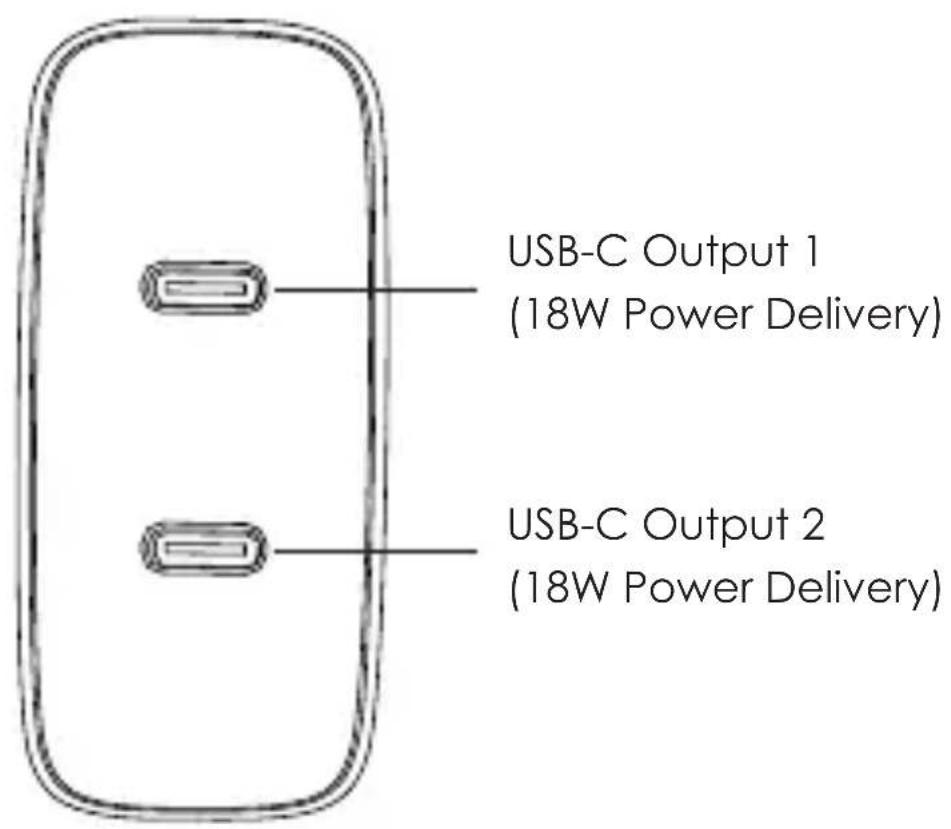

Product Diagram

USB-C Output 1 (18W Power Delivery) USB-C Output 2 (18W Power Delivery)

Specifications

Model	PA-Y16
Technology	Power Delivery 3.0
Input	AC 100–240V
Output 1/2	(PDO) 5V 3A, 9V 2A(PPS) 3V–5.9V 3A, 6V–11V 2A
Maximum Power Output	36W
Dimensions	64 x 63 x 29mm / 2.52" x 2.48" x 1.14"
Weight	106g / 3.74oz

Note: This charger does support up to 18W output from both ports simultaneously (36W total)

What is Power Delivery?

USB Power Delivery is a new, universal multi-voltage charging standard that dynamically negotiates power output over a USB Type-C connection to safely and efficiently recharge a wide range of compatible devices.

To get USB PD, the following are required:

• Device (phone, tablet, laptop) that supports USB PD
• USB-C Charger with USB PD
- USB-C to C cable

Getting Started

1. Plug the PA-Y16 into a wall outlet
2. Connect your charging cable to your device's charging port
3. Connect the other end of the cable to a USB-C output port on PA-Y16
4. Unplug your device when fully charged

Note: Fast charging supported for iPhone X / 8 / 8 Plus when used with original Apple USB-C to Lightning cable

Product Care

- Keep away from liquids and extreme heat

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

* Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

Simple line drawing of a door handle with two horizontal oval buttons (no text or symbols)

Sortie USB-C 1

(18W Power Delivery)

Sortie USB-C 2

(18W Power Delivery)

Spécifications

Modèle	PA-Y16
Technologie	Power Delivery 3.0
Entrée	AC 100–240 V
Sortie 1/2	(PDO) 5 V 3 A, 9 V 2 A(PPS) 3 V–5,9 V 3 A, 6 V–11 V 2 A
Puissance totale de sortie	36W
Dimensions	64 x 63 x 29 mm / 2,52" x 2,48" x 1,14"
Poids	106 g / 3,74 once

Salida USB-C 1 (18W Power Delivery) Salida USB-C 2 (18W Power Delivery)

Especificaciones

Modelo	PA-Y16
Tecnología	Power Delivery 3.0
Entrada	AC 100–240 V
Salida 1/2	(PDO) 5V 3 A, 9 V 2 A(PPS) 3 V–5,9 V 3 A, 6 V–11 V 2 A
Potencia de Salida Máxima	36W
Dimensiones	64 x 63 x 29 mm / 2,52" x 2,48" x 1,14"
Peso	106 g / 3,74 oz

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN
