Mounting Instructions

Flush mountable tubular switches / CSA Div. 2

efector100®

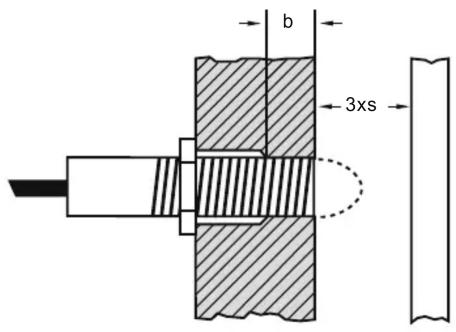

Flush mountable switches can be mounted so that the active face is flush with a metal surface. Any metal in front of the switch should be kept at a distance of three times the nominal sensing range.

s = nominal sensing range b = maximum thread length M8 - 8 mm, M12 - 8 mm M18 - 8 mm, M30 - 16 mm

Two flat nuts are provided to hold the installed switch in place.

When mounting tubular switches opposite each other, the spacing distance shown here should be maintained.

Sr = nominal sensing range

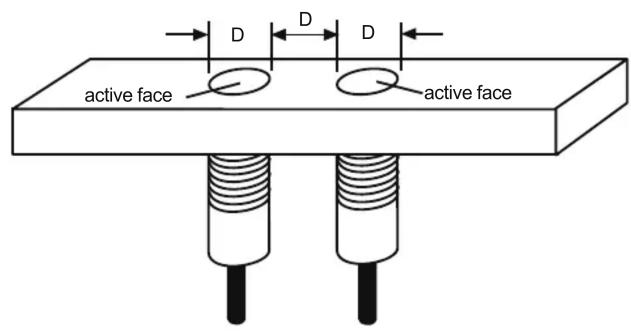

When mounting tubular switches next to each other, the spacing distance shown here should be maintained.

D = switch diameter

CSA for Hazardous Locations

When wired in accordance with CEC and this mounting instructions.

Class I, Div. 2, Groups A, B, C and D

Class II, Div. 2, Groups E, F and G

Class III, T4

Enclosure: Type 4/4x

Temp. range: -13° to 176° F ( -25° to 80° C)

WARNING

Explosion Hazard – substitution of components may impair suitability of Class 1, Div. 2. Do not disconnect while circuit is live unless area is known to be non-hazardous.

AVERTISSEMENT

DO NOT operate an incandescent light bulb as a load. The current inrush when the bulb is cold can cause a current overload.

DO NOT operate a proximity sensor directly from a voltage supply without a load. This is a short circuit and can cause damage. Note: insert a miniature fuse according to the technical data sheet, if specified.

Concerning Safety... ifm efector makes every effort to build a dependable product, but every product will eventually fail. Therefore, your equipment must be designed to prevent property damage and personal injury if our products fail. ifm efector proximity switches are not designed to be used as stand-alone devices to protect or guard human life or limb.
