USER MANUAL MMC07COAST MIDEA

Oven Capacity: 20 Liter

120V\~60Hz，10W

Read these instructions

carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

01

PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

SPECIFICATIONS

Model:	MMC07COAST
Rated Voltage:	120V~60Hz
Rated Input Power (Microwave):	1050W
Rated Output Power (Microwave):	700W

C

1. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.

2. To reduce the risk of fire in the oven cavity:

3. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

4. Remove wire twist-ties from paper or plastic bag before placing bag in oven.
5. If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.

6. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

7. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

8. Do not overheat the liquid.

9. Stir the liquid both before and halfway through heating it.
10. Do not use straight-sided containers with narrow necks.
11. After heating, allow the container to stand in the microwave oven for a short time before removing the container.
12. Use extreme care when inserting a spoon or other utensil into the container.

SAVE THESE INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING

Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If a long cord or extension cord is used:

(1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
(2) The extension cord must be a grounding-type 3-wire cord.
(3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:

(1) Clean door and sealing surface of the oven.
(2) Reorient the receiving antenna of radio or television.
(3) Relocate the microwave oven with respect to the receiver.
(4) Move the microwave oven away from the receiver.
(5) Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

CAUTION

Personal Injury Hazard

Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

UTENSILS	REMARKS
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

UTENSILS	REMARKS
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal trimmed utensils	Metal shields the food from microwave energy. Metal trim maycause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

06 SETTING UP YOUR OVEN

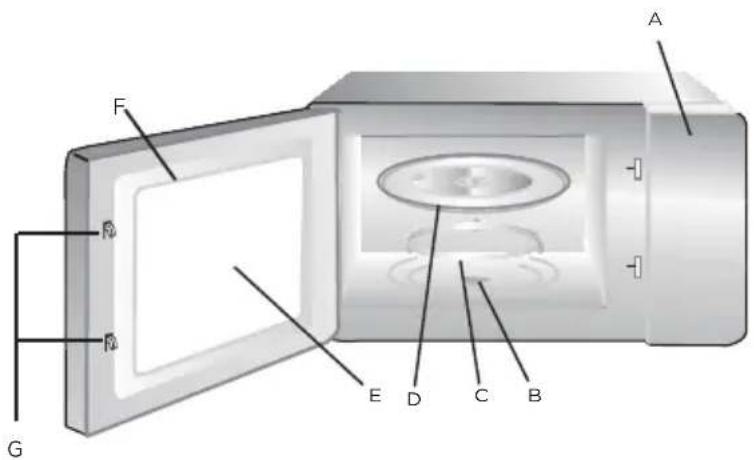

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

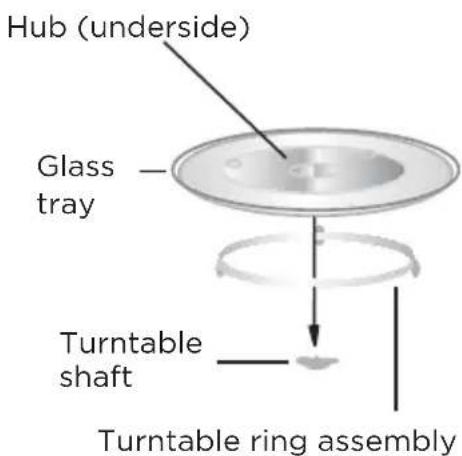

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

INSTALLATION

07

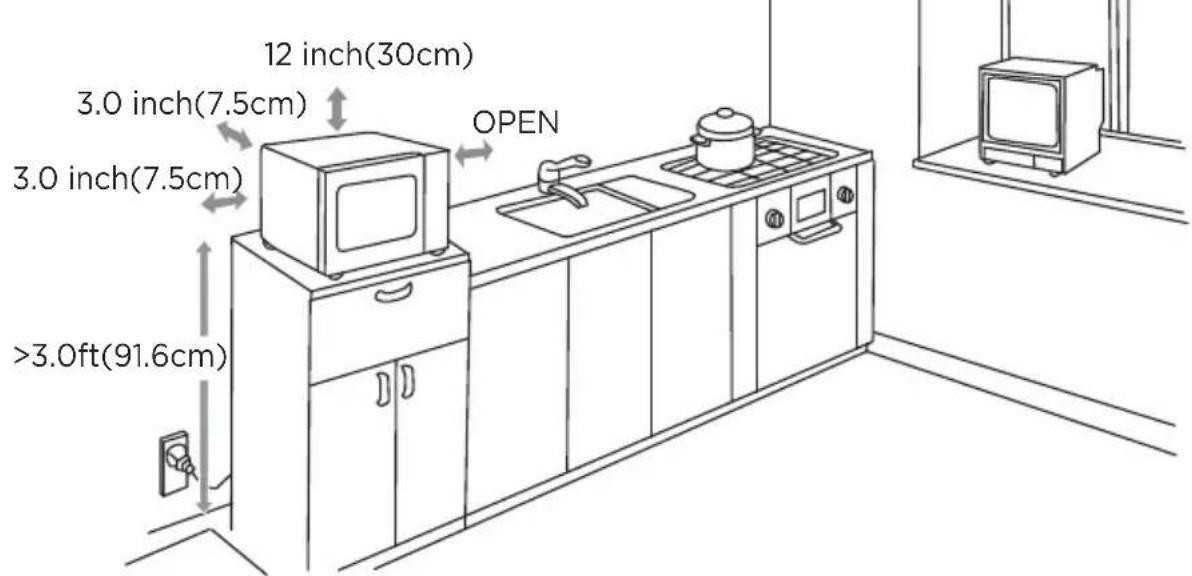

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

The minimum installation height is 3.0ft(91.6cm).

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.
(2) Do not remove the legs from the bottom of the oven.
(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet.

Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

08

11 power levels are available.

Level	10	9	8	7	6	5	4	3	2	1	0
Power	100%	90%	80%	70%	60%	50%	40%	30%	20%	10%	0%
Display	PL10	PL9	PL8	PL7	PL6	PL5	PL4	PL3	PL2	PL1	PLO

Clock Setting

(1) Press "CLOCK" once, "00:00" will display.
(2) Press the number keys and enter the current time. For example, time is 12:10 now, please press "1, 2, 1, 0" in turn.
(3) Press "CLOCK" to finish clock setting. "':" will flash and the clock will be lighted.
(4) If the numbers input are not within the range of 1:00--12:59, the setting will be invalid until valid numbers are input.

Note:

(1) In the process of clock setting, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically.
(2) If the clock need to be reset, please repeat step 1 to step 3.

Kitchen Timer

(1) Press "TIMER" once, the screen will display 00:00, the first hour figure flash.
(2) Press the number keys and enter the timer time. (The maximum cooking time is 99 minutes and 99 seconds.)
(3) Press "START/+30SEC." to confirm setting.
(4) When the timer time arrives, the buzzer will ring 5 times. If the clock has been set (12-hour system), the screen will display the current time.

Note:

(1) The kitchen time is different from 12-hour system. Kitchen Timer is a timer.
(2) During kitchen timer, any program cannot be set.

Microwave cook

(1) Press "COOK TIME" once, the screen will display "00:00".
(2) Press number keys to input the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
(3) Press "POWER LEVEL" once, the screen will display "PL10". The default power is 100% power. Now you can press number keys to adjust the power level.
(4) Press "START/+30SEC." to start cooking.

Example: to cook the food with 50% microwave power for 15 minutes.

a. Press "COOK TIME" once. "00:00" displays.
b. Press "1", "5", "0", "0" in order.
c. Press "POWER LEVEL" once, then press "5" to select 50% microwave power.
d. Press " START/+30SEC." to start cooking.

Note:

(1) In the process of setting, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically.
(2) If "PL 0" selected, the oven will work with fan for no power. You can use this level to remove the odour of the oven.
(3) During microwave cooking, " POWER LEVEL " can be pressed to change the power you need. After pressing " POWER LEVEL ",the current power flash for 3 seconds, now you can press number button to change the power The oven will work with the selected power for the rest time.

Speedy Cooking

(1) In waiting state, instant cooking at 100% power level can be started by select a cooking time from 1 to 6 minutes by pressing number pads1 to 6. Press "START/+30SEC." to increase the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can be started by pressing "START/+30SEC". Each press on the same button will increase cooking time by 30 seconds. the maximum cooking time is 99 minutes and 99 seconds.

Note:

during microwave cooking and time defrost, time can be added by pressing " START/+30SEC." button.

Weight Defrost Function

(1) Press "WEIGHT DEFROST" once, the screen will display "dEF1".
(2) Press numerical buttons to input weight to be defrosted.

Input the weight ranged between 4~100 Oz.

(3) Press " START/+30SEC." to start defrosting and the cooking

time remained will be displayed.

Time Defrost Function

(1) Press "TIME DEFROST" once, the screen will display "dEF2".
(2) Press number pads to input defrosting time. The effective time range is 0:01~99:99
(3) The default microwave power is power level 3. If you want to change the power level, press "POWER LEVEL" once, and the screen will display "PL 3", then press the number pad of the power level you wanted.
(4) Press "START/+30SEC." to start defrosting. The remained cooking time will be displayed.

Multi-stage cooking

At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then defrosting shall be placed at the first stage automatically.

Note:

Auto cooking cannot work in the multi-stage cooking.

Example: if you set the defrost for 10 Oz and cook with 80% power level for 7 minutes.

The cooking steps are as following:

(1) Press "WEIGHT DEFORST" once, then "DEF1" will display.
(2) Press "1", "0" to input the weight of food.
(3) Press "COOK TIME" once, then press "7", "0", "0" to set the cooking time;
(4) Press "POWER LEVEL" once, then press "8" to select 80% microwave power.
(5) Press "START/+30SEC." to start cooking.

PIZZA

(1) Press "PIZZA" repeatedly until the number you wish appears in the display, "4.0-", "8.0-", "14.0-" will display in order.

For example, press "PIZZA" once, "4.0-" appears.

(2) Press " START/ +30SEC." to cook, buzzer sounds once. When cooking finishes, buzzer sounds five times and then turn back to

waiting state.

Note: the default power is P70.

POPCORN

(1) Press "POPCORN" repeatedly until the number you wish appears in the display, "1.75", "3.0-?", "3.5-" will display in order. For example, press "POPCORN" once, "1.75" appears.
(2) Press "START/+30SEC." to cook, buzzer sounds once. When cooking finishes, buzzer will sound fiven times and then turn back to waiting state.

Note: the default power is P100.

Auto menu

(1) In waiting state, press "MENU" and then "A1" will display.
(2) Press " MENU" to choose the desired menu, A1~A4 are available.
(3) Press "Start/+30Sec./Confirm" to confirm.
(4) Press "MENU" again to choose the weight.
(5) Press "Start/+30Sec./Confirm" to start cooking.

Auto Menu Chart

Menu	Weight(g)	Display Power
A-1 Potato	1	1	P100
	2	2
	3	3
A-2 Frozen Vegetable	4 Oz	4.0	P100
	8 Oz	8.0
	16 Oz	16.0
A-3 Pizza	1 cup	1	P100
	2 cups	2
	3 cups	3
A-4 Dinner Plate	9 Oz	9.0	P70
	12 Oz	12.0
	18 Oz	18.0
	2 cups	2
	3 cups	3

LOCK FUNCTION FOR CHILDREN

Lock: In waiting state, press "STOP/CANCEL" for 3 seconds, there will be a long "beep" denoting the entering into the children-lock state; meanwhile, screen will display locked icon.

Lock quitting: In locked state, press "STOP/CANCEL" for 3 seconds, there will be a long "beep" denoting that lock is released.

INQUIRING FUNCTION

In cooking state, press "CLOCK", the oven will display clock for three seconds.

SLIDE MODE

To activate the silent mode:

In waiting state, press and hold "8" for 3 seconds.

A long beep will sound.

When you press the keys, it does not make a sound.

To deactivate the silent mode:

In silent mode, press and hold "8" for 3 seconds.

A long beep will sound.

ECO FUNCTION

To enter ECO mode:

In waiting state, press "0/ECO" twice within one second.

The screen will turn off.

To cancel ECO mode:

In ECO mode, press any keys or open or close the door.

MAINTENANCE

09

Troubleshooting

Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center.

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start	a. Electrical cord for oven is not plugged in. b. Door is open. c. Wrong operation is set.	a. Plug into the outlet. b. Close the door and try again. c. Check instructions.
Arcing or sparking	a. Materials to be avoided in microwave oven were used. b. The oven is operated when empty. c. Spilled food remains in the cavity.	a. Use microwave-safe cookware only. b. Do not operate with oven empty. c. Clean cavity with wet towel.
Unevenly cooked foods	a. Materials to be avoided in microwave oven were used. b. Food is not defrosted completely. c. Cooking time, power level is not suit ble. d. Food is not turned or stirred.	a. Use microwave-safe cookware only. b. Completely defrost food. c. Use correct cooking time, power level. d. Turn or stir food.
Overcooked foods	Cooking time, power level is not suitable.	Use correct cooking time, power level.
Undercooked foods	a. Materials to be avoided in microwave oven were used. b. Food is not defrosted completely. c. Oven ventilation ports are restricted. d. Cooking time, power level is not suitable.	a. Use microwave-safe cookware only. b. Completely defrost food. c. Check to see that oven ventilation ports are not restricted. d. Use correct cooking time, power level.
Improper defrosting	a. Materials to be avoided in microwave oven were used. b. Cooking time, power level is not suitable. c. Food is not turned or stirred.	a. Use microwave-safe cookware only. b. Use correct cooking time, power level. c. Turn or stir food.

make yourself at home

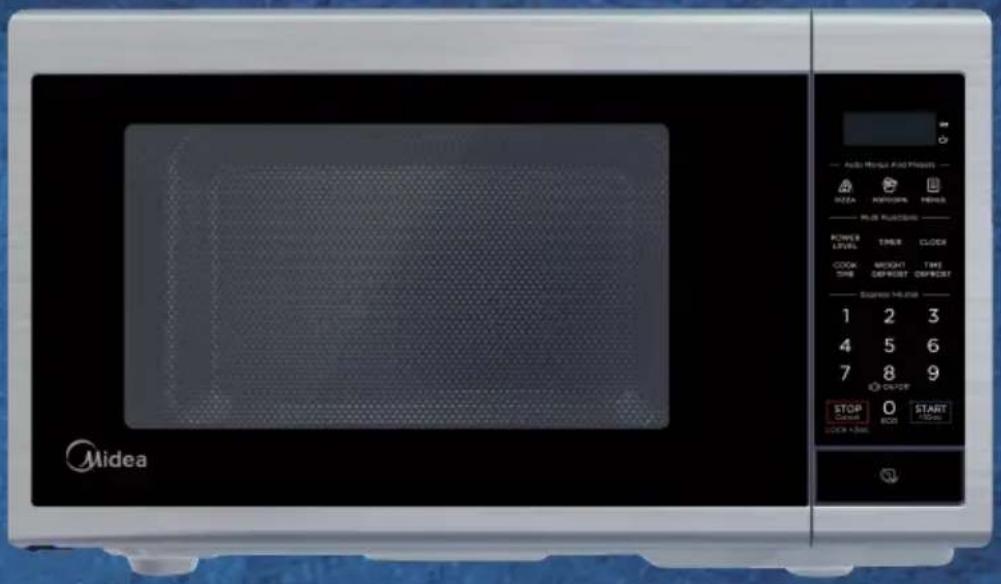

FOUR MICRO-ONDES MMC07COAST

MANUEL D'INSTRUCTIONS

make yourself at home
