M18 297422 - Inspection camera MILWAUKEE - Free user manual and instructions

Product Type	Wireless Pipe Inspection System
Model	M18 297422 (kit including monitor, Smart Hub, and reel)
Brand	Milwaukee
Power Supply	M18™ 18 V DC battery (rechargeable)
Monitor battery life	9 hours with fully charged battery
Smart Hub battery life	9 hours with fully charged battery
Built-in storage	500 GB internal hard drive (Smart Hub)
Connectivity	Wi-Fi (range 200 ft) and USB-C
Maximum video resolution	1080p at 30 frames per second
Maximum image resolution	1920 × 1080 pixels
Camera head diameters	25 mm and 34 mm
Available cable lengths	120 ft (36.5 m), 200 ft (60.9 m), 325 ft (99 m)
Key features	Video recording, image capture, audio and text annotations, cable locator (33/83 kHz), sonde (512 Hz, 640 Hz, 33 kHz), 4x digital zoom, screen rotation, image enhancement, gallery, cropping
Safety	Read manual, wear PPE, avoid conductive fluids, do not use in explosive atmosphere
Maintenance	Clean with mild soap and damp cloth; do not immerse; check cable for wear

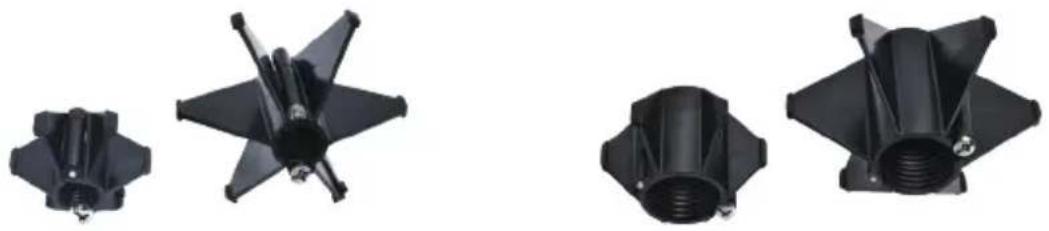

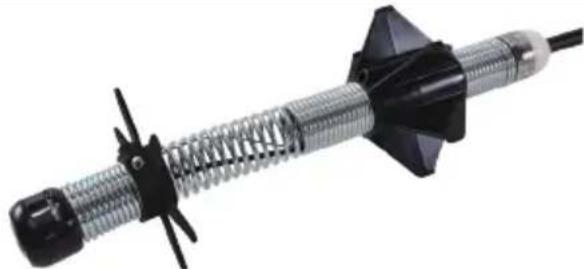

Replacement parts	Camera heads, spring assemblies, skids, protective guards, camera key
Warranty	5-year limited (power tool); 1 to 3 years depending on accessories

Frequently Asked Questions - M18 297422 MILWAUKEE

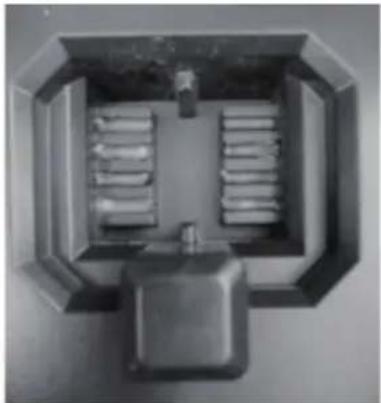

How to install the M18 wireless monitor on the reel?

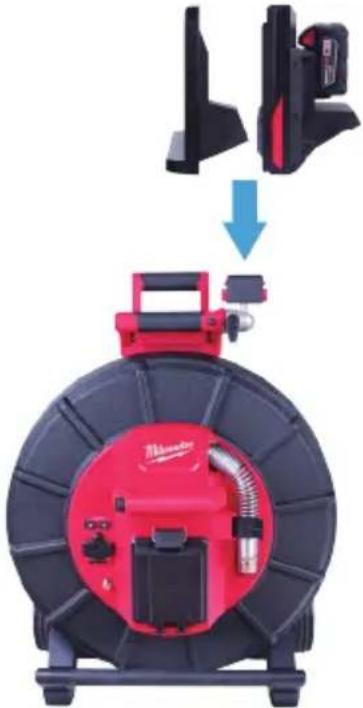

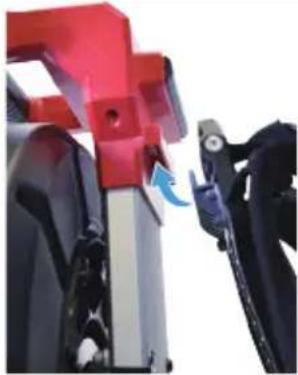

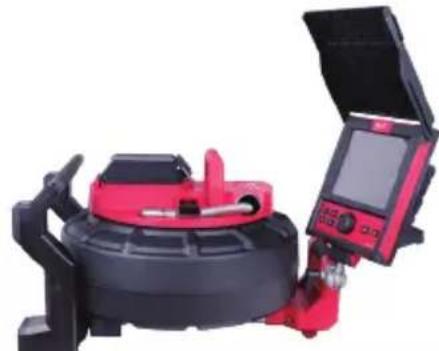

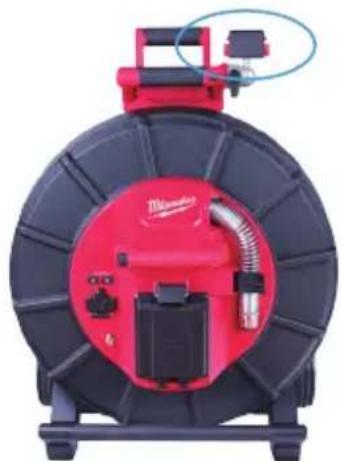

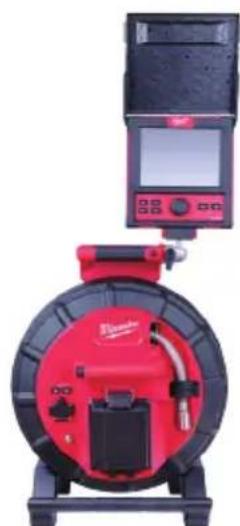

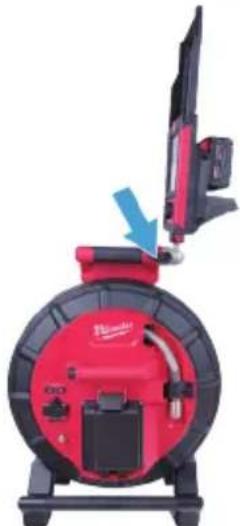

Align the monitor's mounting receptacle with the mounting block on the reel, lower it until you hear a locking click. Use the adjustment arm to tilt the screen to the desired angle.

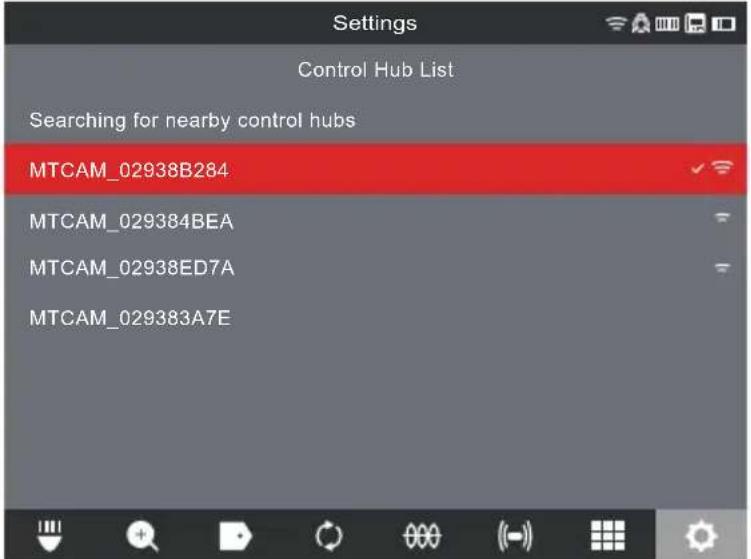

How to connect the monitor to the Smart Hub?

By default, the connection is via Wi-Fi. Turn on both devices, the monitor automatically detects the Smart Hub if within range (200 ft). If multiple hubs are detected, select yours from the list. The default password is 29702000. You can also use a USB cable.

How to record an inspection video?

Ensure the monitor is connected to the Smart Hub. Press the video recording button (red circle). If no job is selected, the system prompts you to create one (with date/time or custom name). Recording starts and a blinking icon appears. Press the button again to stop.

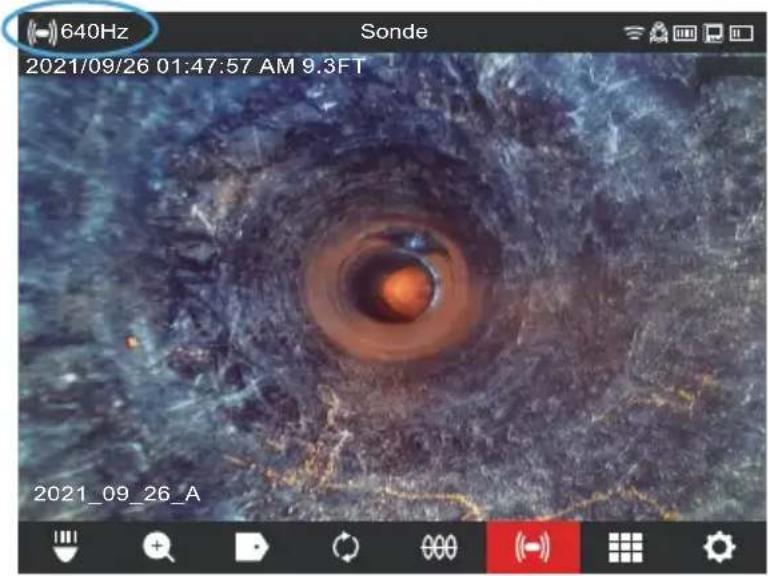

How to use the sonde function to locate the camera?

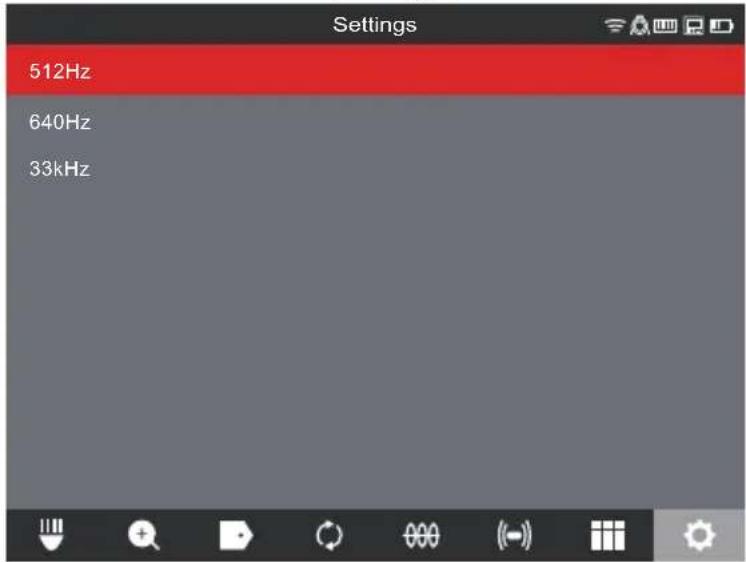

In the main menu, select the Sonde icon (←→) and press to activate. The frequency (512 Hz, 640 Hz, or 33 kHz) must be configured in settings. A transmitter in the camera head sends a signal that can be detected by a receiver above ground.

How to clean the camera and cable?

After each use, wipe the cable with a dry cloth during retraction. At the end of the day, rinse the camera head with low-pressure water, dry it with a clean cloth. Use mild soap if necessary. Never immerse the tool or battery. Inspect the cable for cuts or abrasions.

How to change the camera head?

Remove the protective guard if present. Use the provided camera key to loosen the head by turning left. Clean the contacts before unscrewing. To install, screw gently to the right then tighten with the key without forcing. Wear gloves to avoid oils on contacts.

What is the battery life of the monitor and Smart Hub?

With a fully charged M18 battery, the wireless monitor operates approximately 9 hours and the Smart Hub also 9 hours. The Smart Hub has a 9-minute internal backup battery if the main battery is removed.

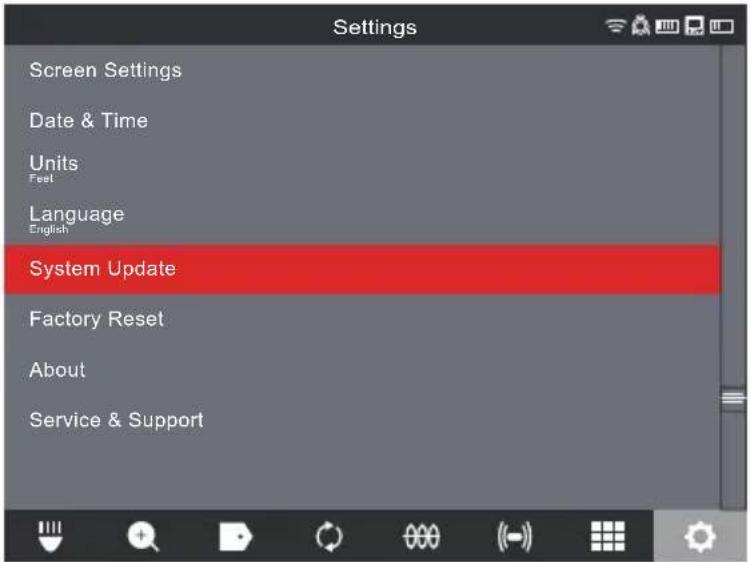

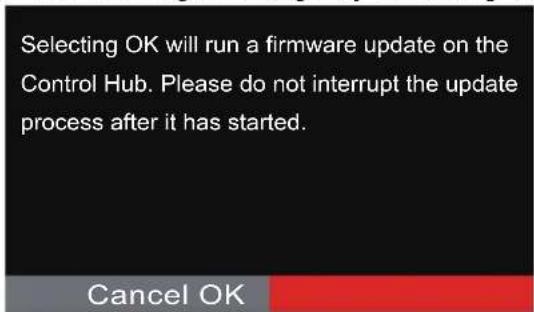

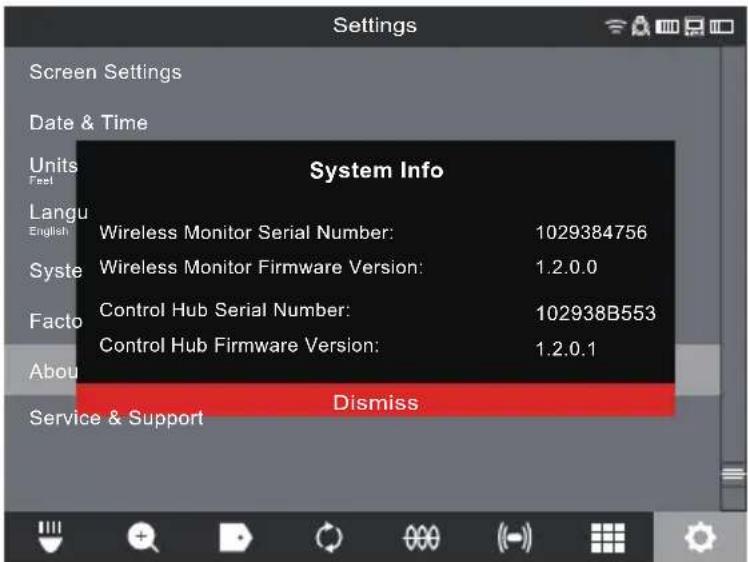

How to update the Smart Hub firmware?

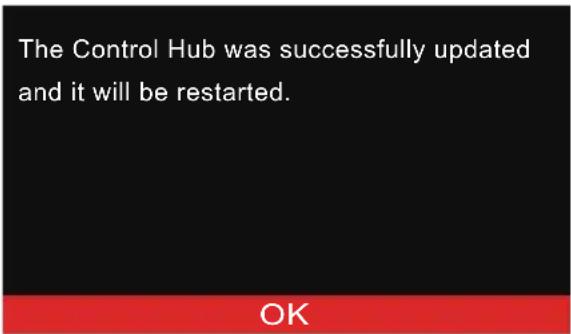

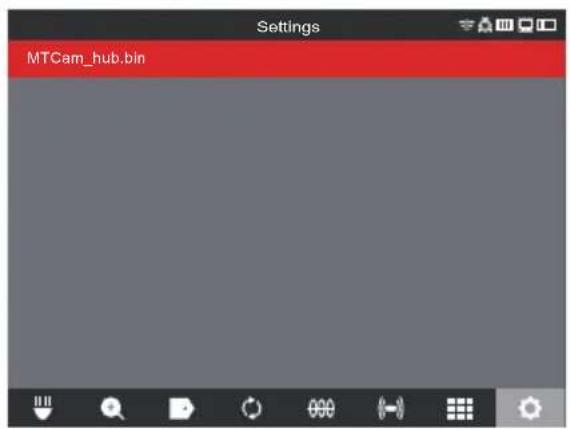

Download the update file from milwaukeetool.com onto a USB drive. Turn on the Smart Hub and monitor, connect them via Wi-Fi. Insert the USB drive into the Hub's USB-A port. Go to Settings > System Update > Smart Hub, select the file and confirm. Do not cut power during the update.

What to do if the camera image is blurry?

Check that the camera lens is clean and not scratched. Adjust the camera lighting in the menu (bulb icon). Enable image enhancement to increase contrast. If blurriness persists, inspect the cable for damage or a loose connection at the head.

How to export video or image files to a USB drive?

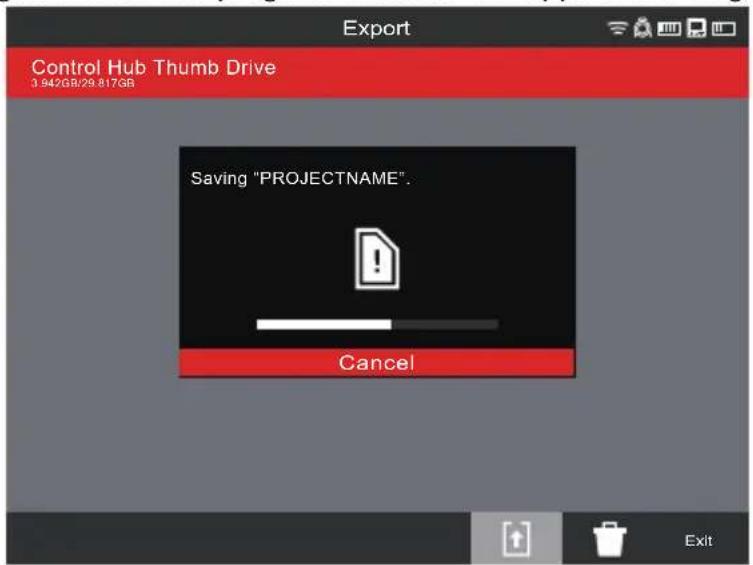

From the Gallery, select the file to export, then the Export icon. Choose the destination 'Smart Hub USB drive'. You can also export an entire folder via Settings > Manage Jobs > Export Job. The progress bar indicates when the transfer is complete.

USER MANUAL M18 297422 MILWAUKEE

2970-20: M18™ 500GB Control Hub

2971-20: M18 ^TM Wireless Monitor

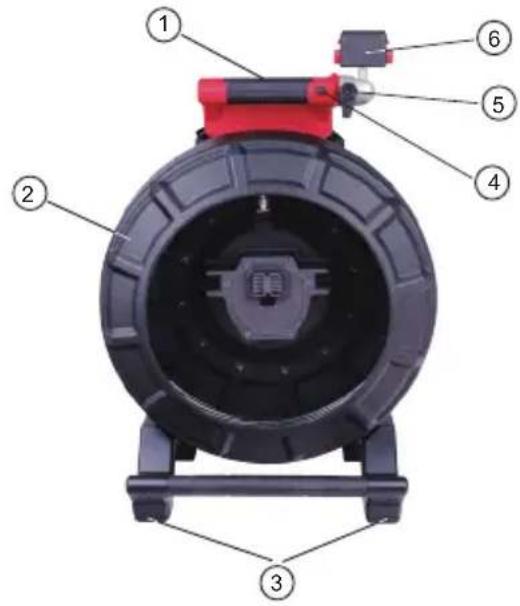

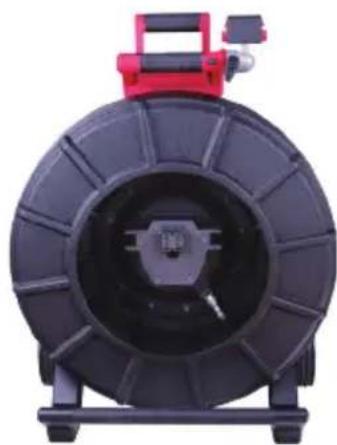

2973-20: 120' Mid-Stiff Pipeline Inspection Reel

2974-20: 200' Stiff Pipeline Inspection Reel

2975-20: 200' Mid-Stiff Pipeline Inspection Reel

2976-20: 325' Stiff Pipeline Inspection Reel

48-53-2970: Tablet Mount

2970-20 : Smart Hub de 500 Go M18™

WARNING To reduce the risk of injury, the user must read and understand this manual.

2973-20: 120' Mid-Stiff Pipeline Inspection Reel

2974-20: 200' Stiff Pipeline Inspection Reel

2975-20: 200' Mid-Stiff Pipeline Inspection Reel

2976-20: 325' Stiff Pipeline Inspection Reel

48-53-2970: Tablet Mount

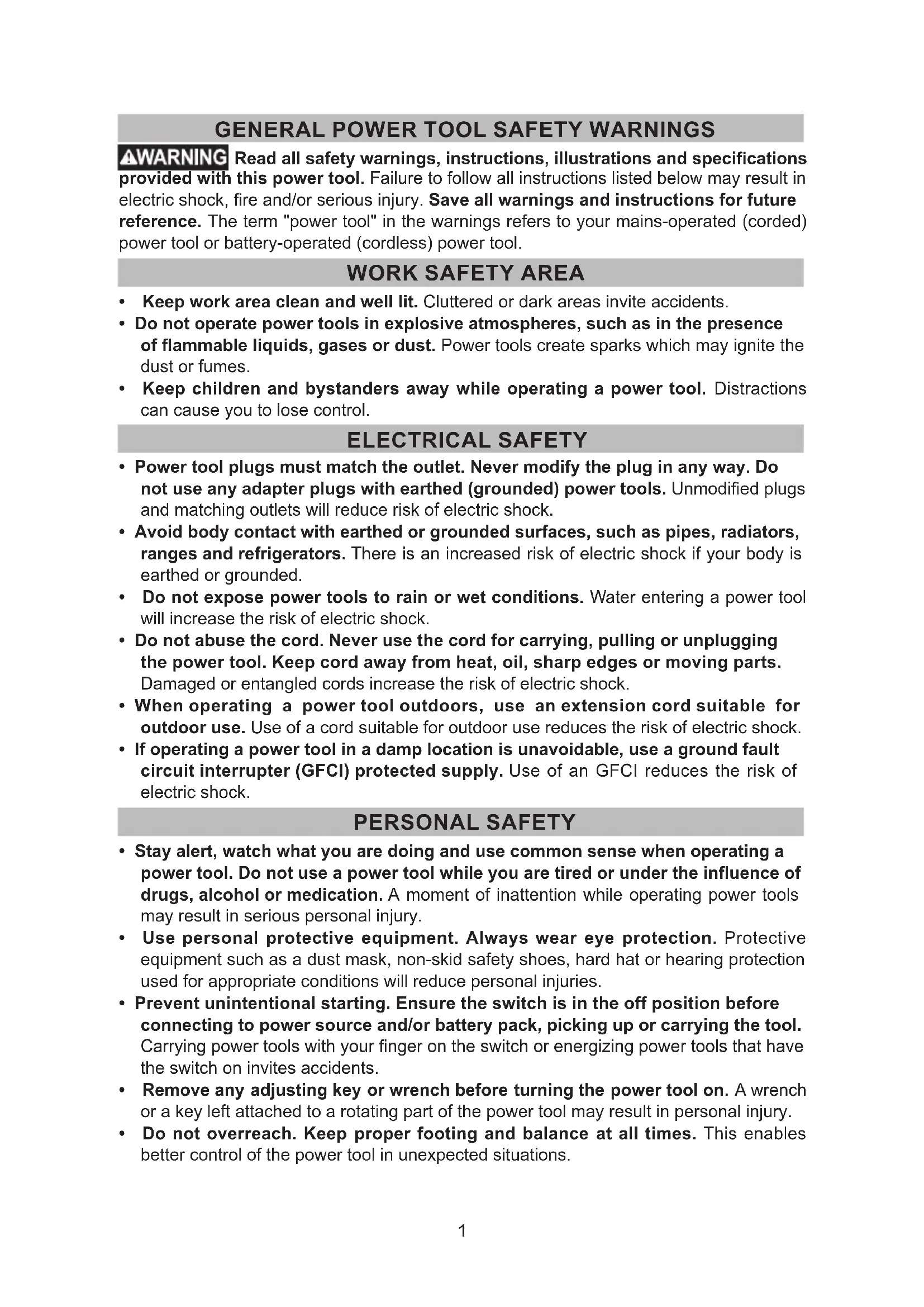

GENERAL POWER TOOL SAFETY WARNINGS

⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK SAFETY AREA

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES FOR PIPELINE INSPECTION SYSTEMS

• Use latex or rubber gloves, goggles, face shields, protective clothing, and respirator when chemicals, bacteria or other toxic or infectious substances are suspected to be in a drain line. Drains may contain chemicals, bacteria and other substances that may cause burns, be toxic or infectious or may result in other serious personal injury.
• Practice good hygiene. Do not eat or smoke while handling or operating the tool. After handling or operating equipment, use hot, soapy water to wash hands and other body parts exposed to drain contents. This will help reduce the risk of health hazards due to exposure to toxic or infectious material.
• Always check the work area before beginning a job. Do not allow cable to contact electrical, chemical, or moving hazards.
• Do not use the cable to clear clogs or move obstructions. This is not a drain cleaner!

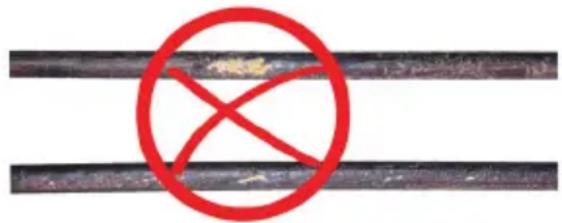

• Inspect cable for wear and damage before use. Do not twist, kink or over bend cables. Replace a worn or damaged cable before use.
• To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., can cause a short circuit.
• Recharge battery packs only with the charger specified for the battery. For specific charging instructions, read the operator's manual supplied with your charger and battery.

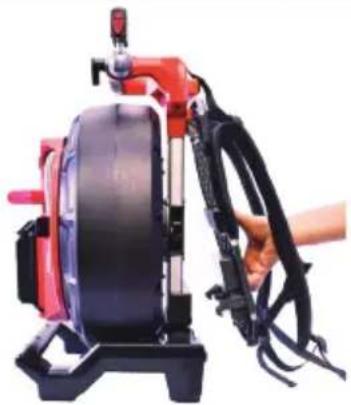

• CAUTION Use care when transporting this tool when the reel and backpack are connected. Tipping may occur.
• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.
• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

- ⚠️WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

FEDERAL COMMUNICATIONS COMMISSION

⚠ WARNING This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

SYMBOLOGY

Volts

Direct Current

Federal Communications Commission

Do not allow battery to contact corrosive or conductive fluid

To prevent electric shock, do not allow product to contact live electrical parts

Chemical Burn Hazard - Keep away from children

SPECIFICATIONS

Volts 18 DC

Battery Type...... M18™

Charger Type...... M18™

Recommended Ambient

Operating Temperature.... 0°F to 125°F

M18 ^TM BATTERIES

⚠ WARNING Recharge only with the charger specified for the battery. For specific charging instructions, read the operator's manual supplied with your charger and battery. Removing/Inserting the Battery.

To remove the battery, push in the release buttons and pull the battery pack away from the tool.

⚠ WARNING Always remove battery pack before changing or removing accessories.

To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place.

⚠ WARNING Only use accessories specifically recommended for this tool. Others may be hazardous.

ONE-KEY™

To learn more about the ONE-KEY ^™ functionality for this tool, go to milwaukeeetool.com/One-Key. To download the ONE-KEY ^™ app, visit the App Store or Google Play from your smart device.

ONE-KEY™ Indicator

Solid Blue Wireless	mode is active and ready to be configured via the ONE-KEYTM app.
Blinking Blue Is actively communicating with the ONE-KEYTM app.
Blinking Red Tool is in security lockout and can be unlocked by the owner via the ONE-KEYTM app.

INTERNAL BATTERY

⚠ WARNING Chemical Burn Hazard. This device contains a lithium button/coin cell battery. A new or used battery can cause severe internal burns and lead to death in as little as 2 hours if swallowed or enters the body. Always secure the battery cover. If it does not close securely, stop using the device, remove the batteries, and keep it away from children. If you think batteries may have been swallowed or entered the body, seek immediate medical attention.

An internal coin cell battery is used to facilitate full ONE-KEY ^™ functionality.

To replace the battery:

1. Remove the battery pack.
2. Remove the screw(s) and open the battery door.
3. Remove the old battery, keep it away from children, and dispose of it properly.
4. Insert the new battery (3V CR2032), with the positive side facing up.
5. Close the battery door and tighten the screw securely.

MAINTENANCE

⚠ WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs.

MAINTAINING TOOL

Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection.

If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs.

⚠ WARNING To reduce the risk of personal injury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to flow inside them.

CLEANING

Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

REPAIRS

For repairs, return the tool, battery pack and charger to the nearest authorized service center.

ACCESSORIES

⚠ WARNING Use only recommended accessories. Others may be hazardous.

For a complete listing of accessories, go online to www.milwaukeeetool.com or contact a distributor.

WIRELESS COMMUNICATION

For products provided with wireless communication features, including ONE-KEY™:

Pursuant to part 15.21 of the FCC Rules, do not modify this product. Modification could void your authority to operate the product. This device complies with part 15 of the FCC Rules and ISED-Canada's license exempt RSS standards. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

SERVICE – UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd

1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST

or visit www.milwaukeeetool.ca

LIMITED WARRANTY USA & CANADA

Every MILWAUKEE power tool* (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of five (5) years** after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover washers. *This warranty does not cover Air Nailers & Staplers; Airless Paint Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Hoist – Electric, Lever & Hand Chain; M12™ Heated Gear; Reconditioned Product; and Test & Measurement Products. There are separate and distinct warranties available for these products.

**The warranty period for Job Site Radios, M12™ Power Port, M18™ Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for the M18 FUEL™ 1" D-Handle High Torque Impact Wrenches, Drain Cleaning Cables, AIRSNAKE™ Drain Cleaning Air Gun Accessories, REDLITHIUM™ USB Laser Levels and TRAPSNAKE™ 25' Auger w/ CABLE DRIVE™ is two (2) years from the date of purchase. The warranty period for the M18™ Compact Heat Gun, 8 Gallon Dust Extractor, M18™ Framing Nailers, M18 FUEL™ 1/2" Ext. Anvil Controlled Torque Impact Wrench w/ ONE-KEY™, M18 FUEL™ 1" High Torque Impact Wrench w/ ONE-KEY™, M18 FUEL™ 2 Gal. Compact Quiet Compressor, M12™ Laser Levels, 165' Laser Detector, M12™ 23GA Pin Nailer, M18 FUEL™ 1/4" Blind Rivet Tool w/ ONE-KEY™, M12 FUEL™ Low Speed Tire Buffer, M18 FUEL™ Random Orbital Polishers, and the M18™ Utility Fencing Stapler is three (3) years from the date of purchase. The

warranty period for the LED in the LED Work Light and the LED Upgrade Bulb for the Work Light is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Bulb fails, the part will be replaced free of charge.

Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only.

Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool.

Model:

Date of Purchase: ____

Distributor or Store Stamp: ____

Table of Contents

1. Introduction....11

1.1 The M18™ Pipeline Inspection System....11

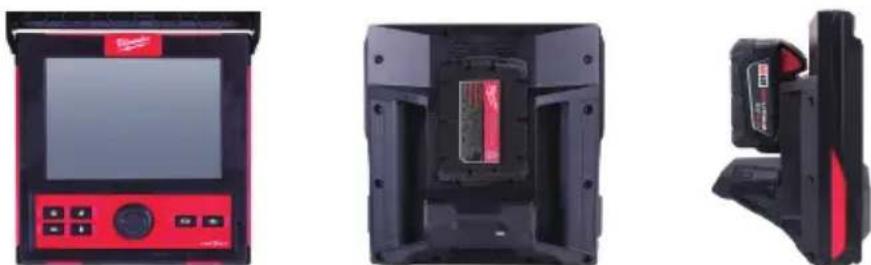

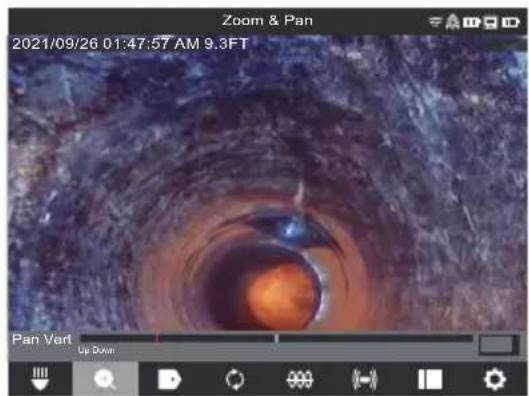

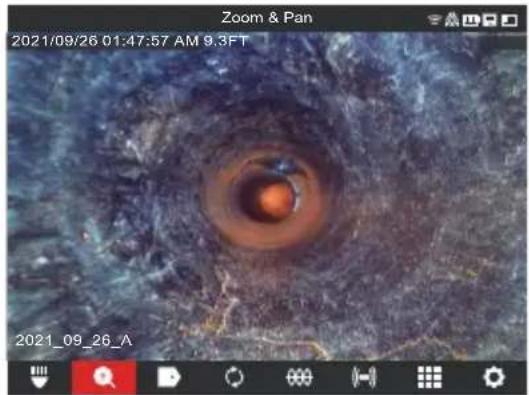

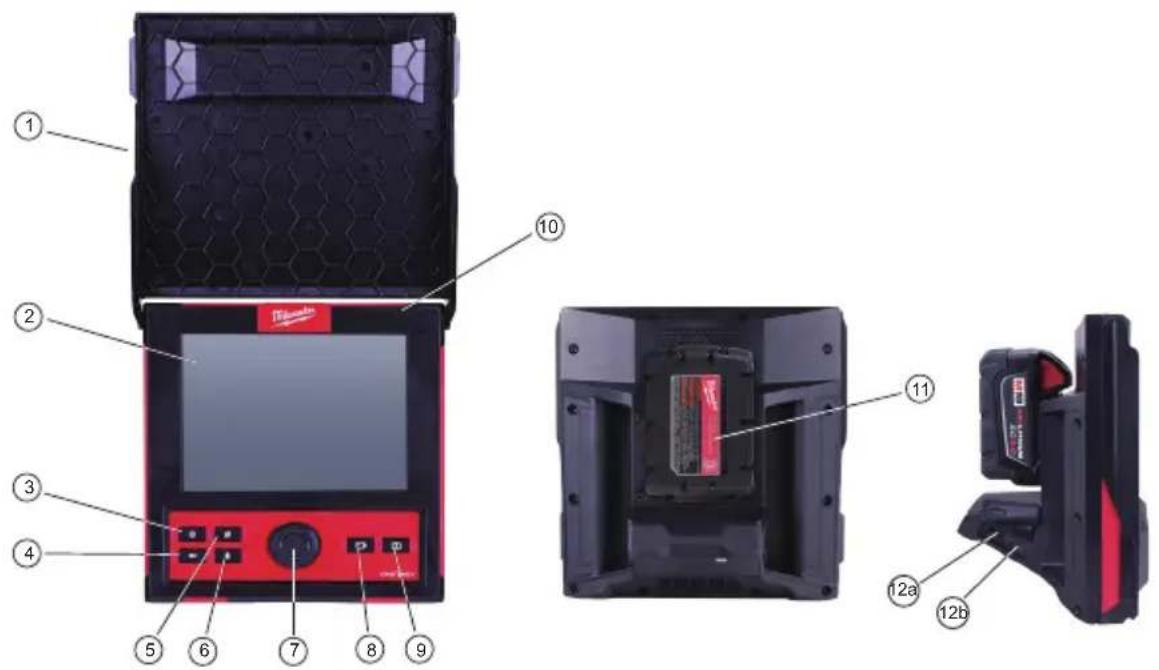

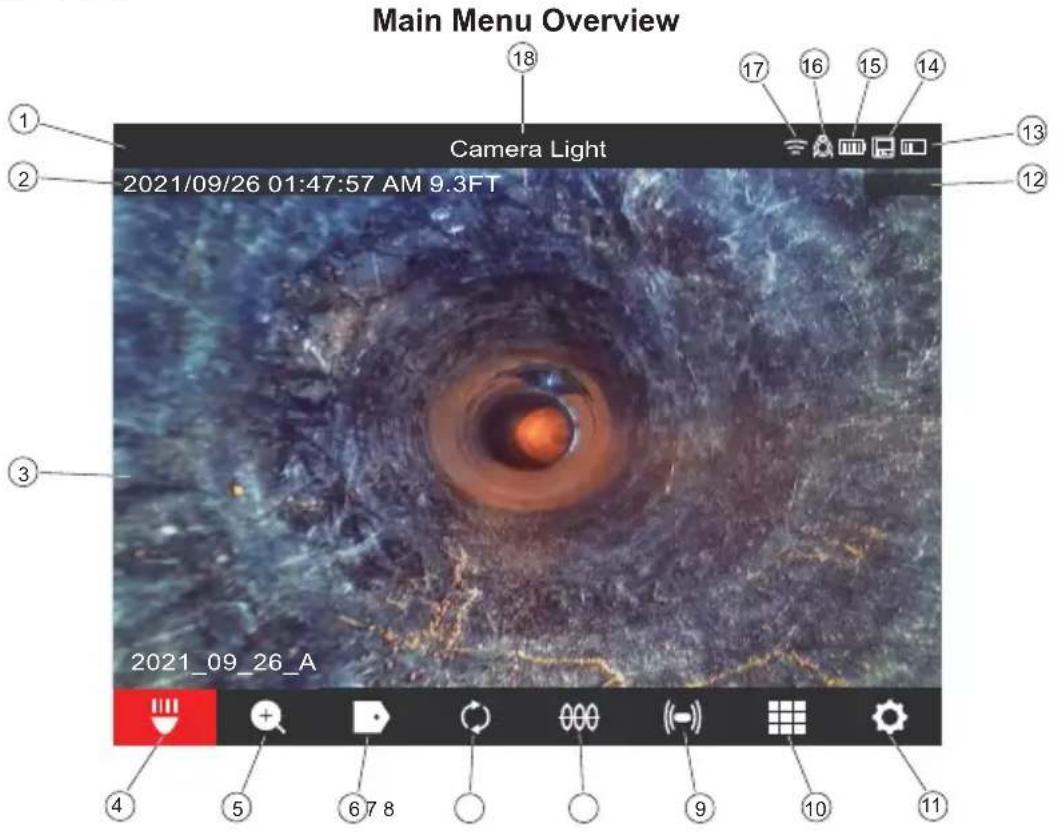

1.2 M18™ Wireless Monitor Overview....11

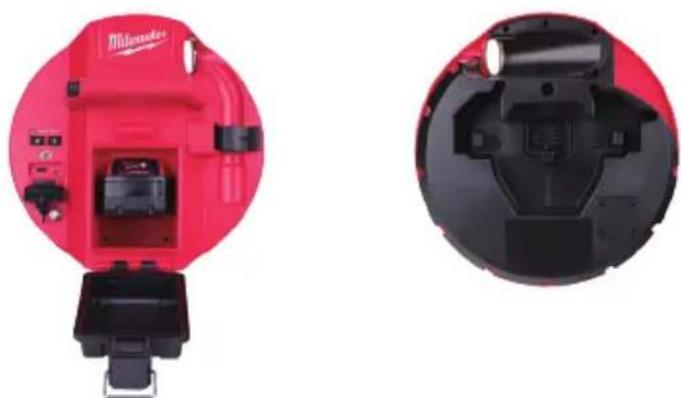

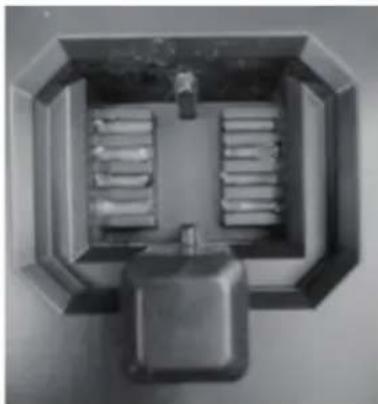

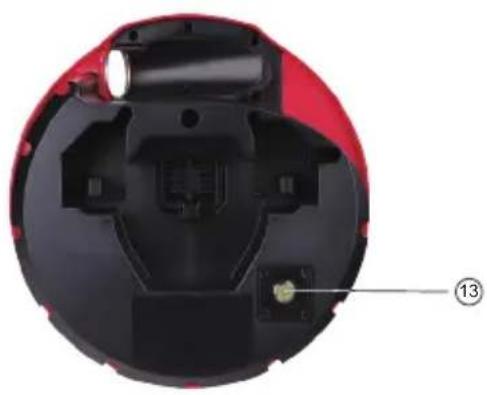

1.3 M18™ 500GB Control Hub Overview....11

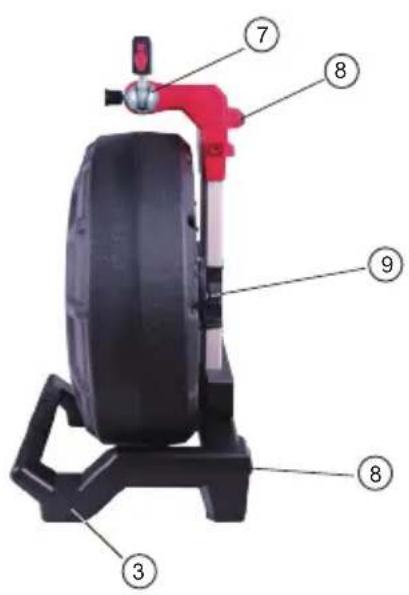

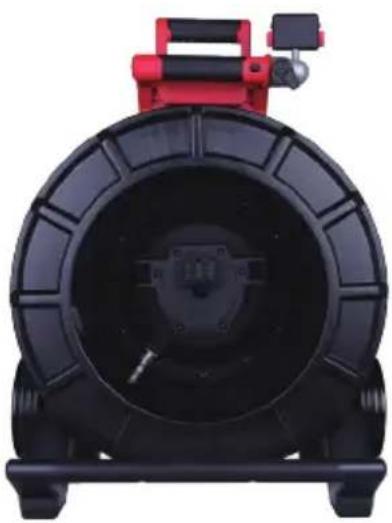

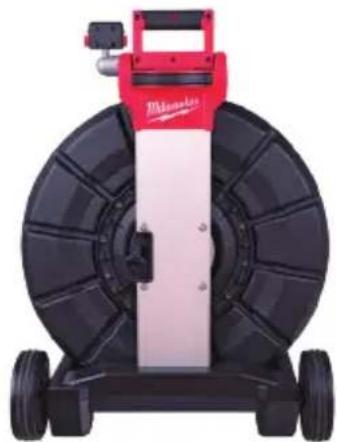

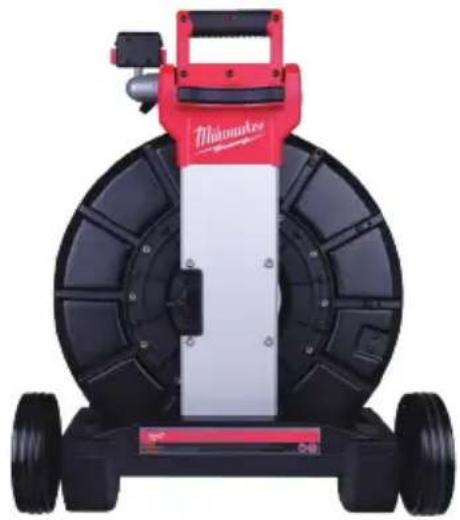

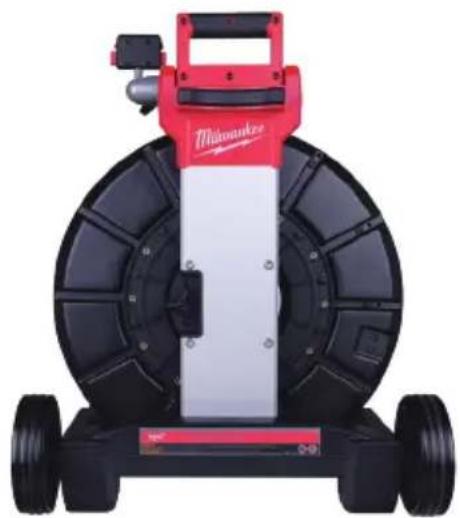

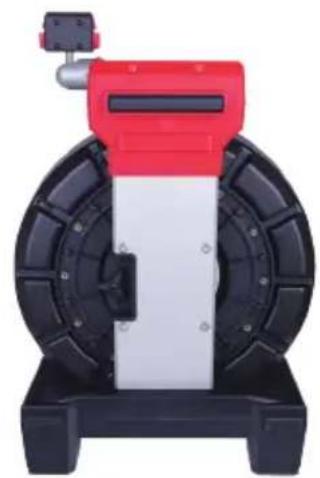

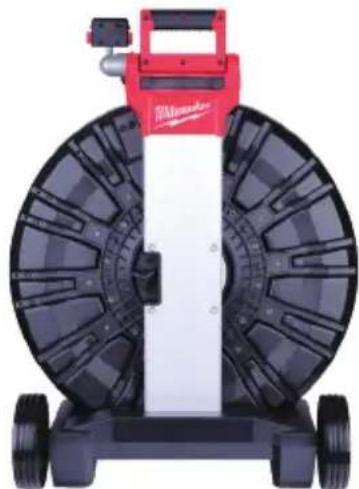

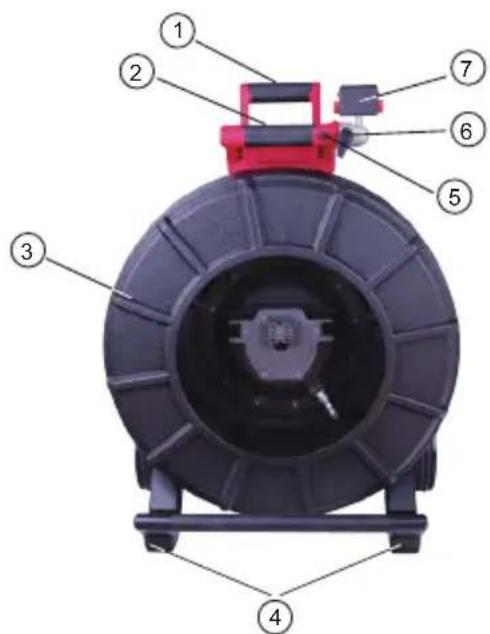

1.4 Pipeline Inspection Reel Overview....12

2. M18™ Wireless Monitor....14

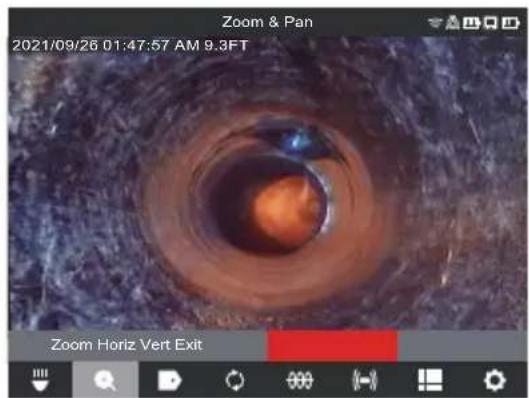

2.1 M18™ Wireless Monitor Overview....14
2.2 Setup of the M18™ Wireless Monitor....15

2.2.1 Power on/off....15

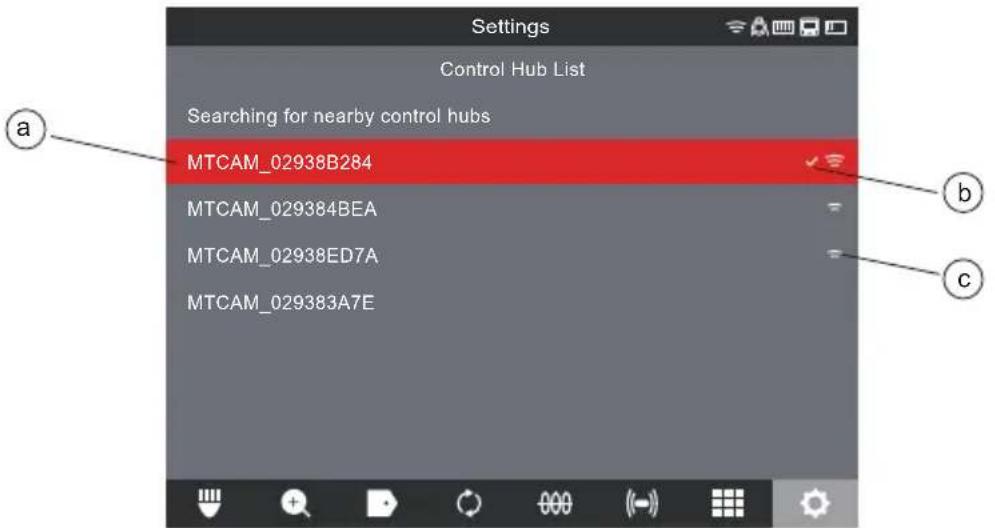

2.2.2 M18™ Wireless Monitor First Time Setup....15
2.2.3 Navigating through the Settings Menu....15

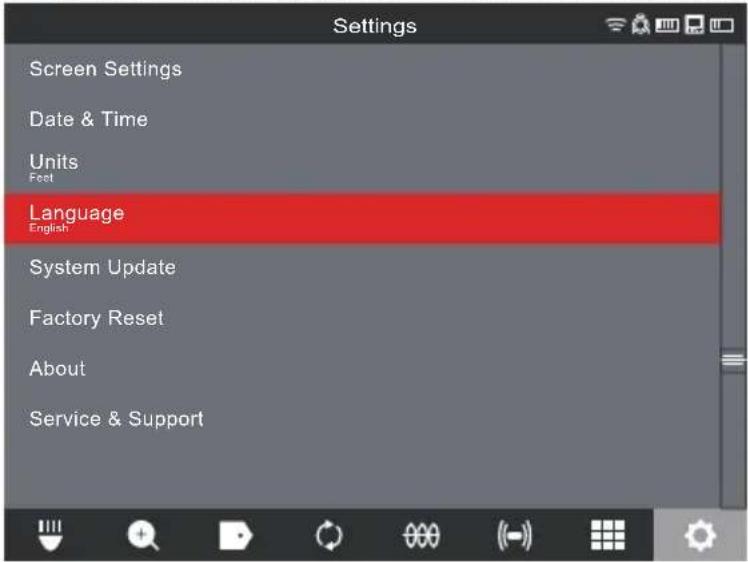

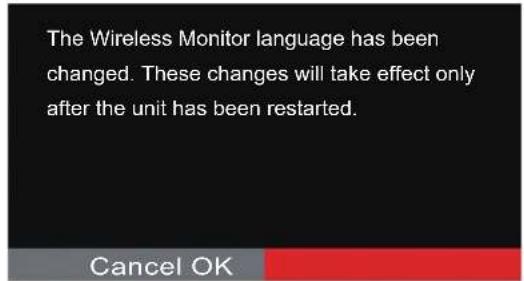

2.2.4 Setting the M18 ^TM Wireless Monitor Language....16

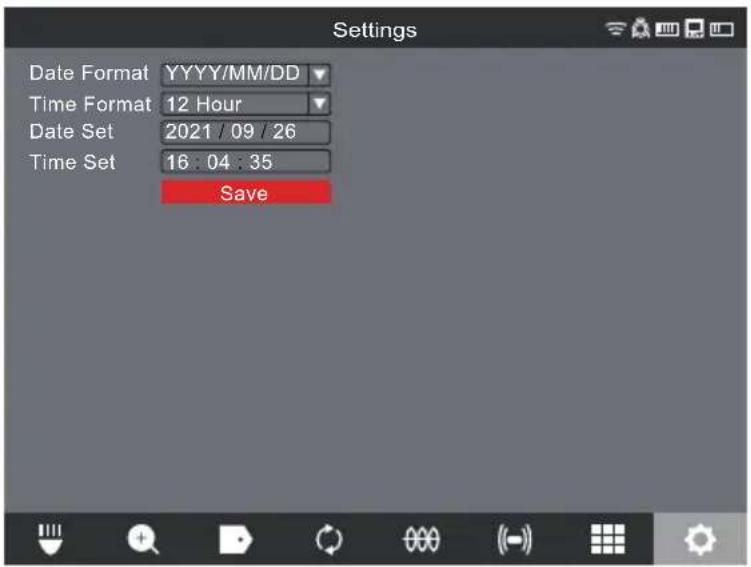

2.2.5 Setting the Date & Time....16

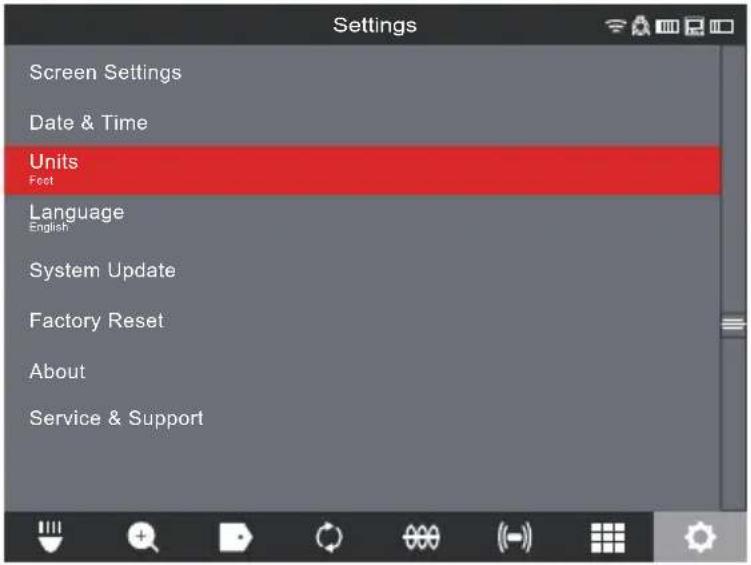

2.2.6 Setting the Units of Measure....17

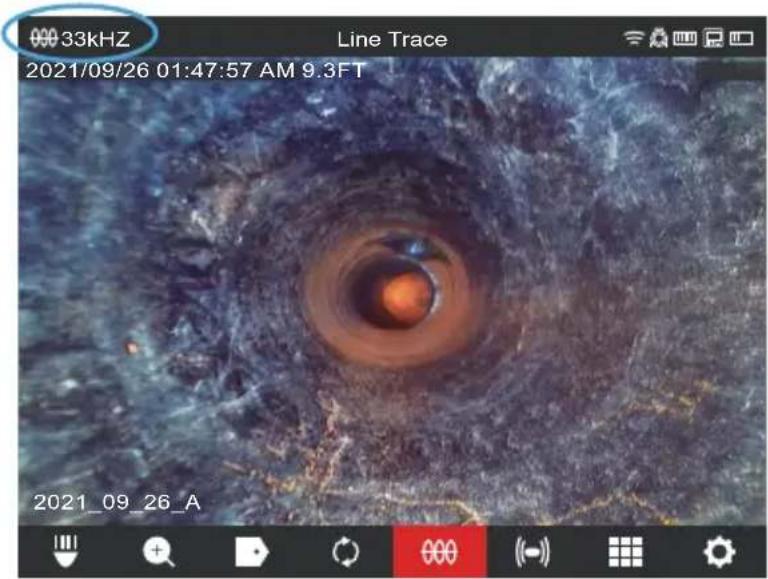

2.2.7 Setting the Sonde Frequency....18

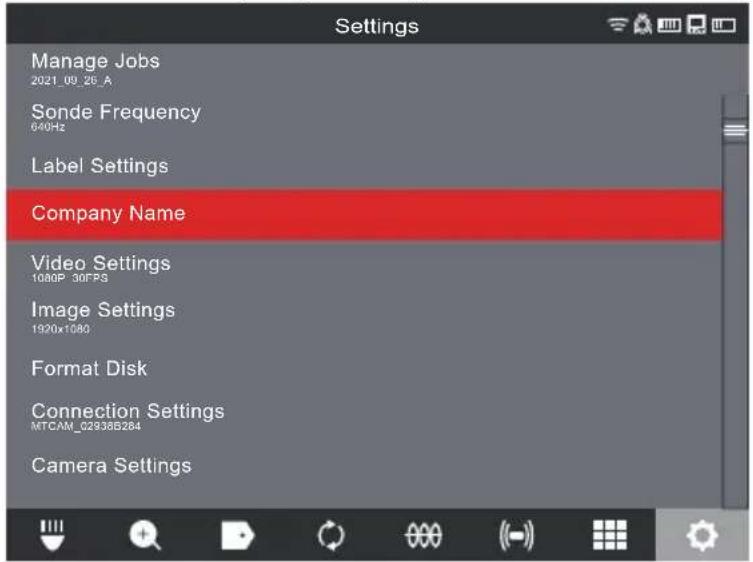

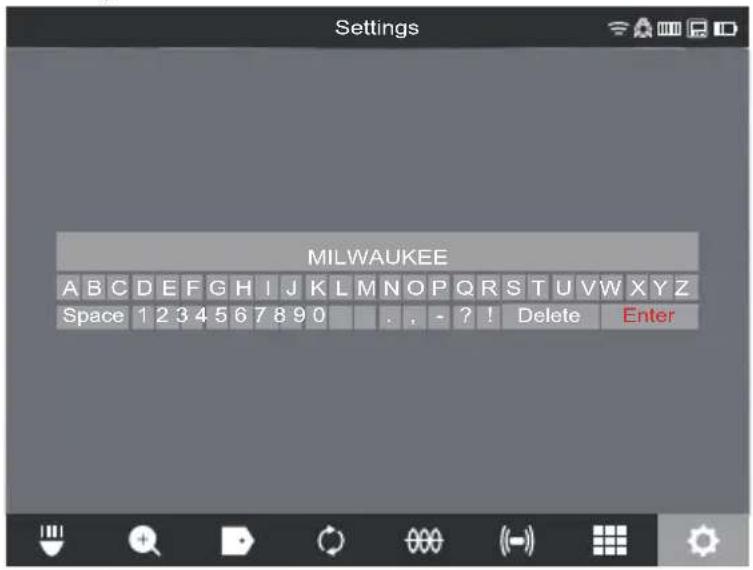

2.2.8 Setting the Company Name....19

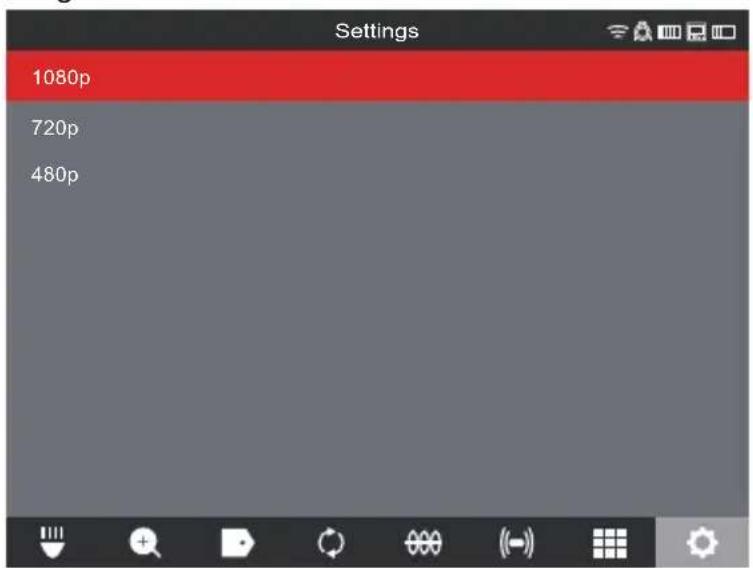

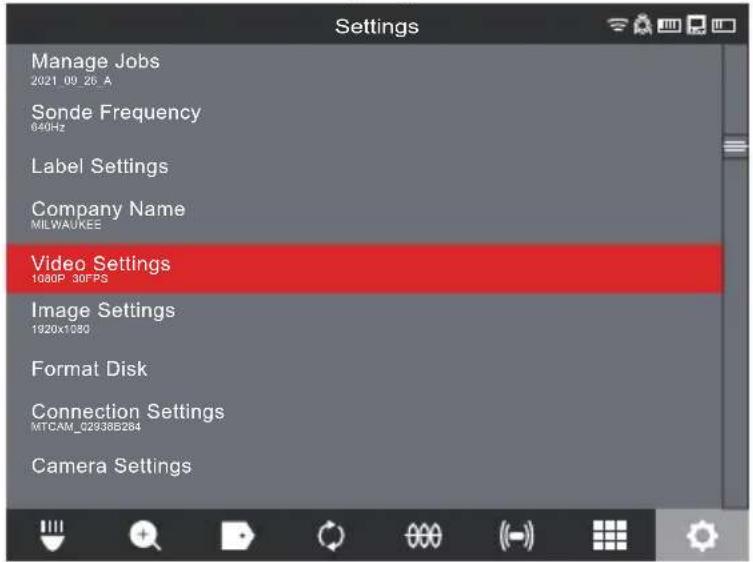

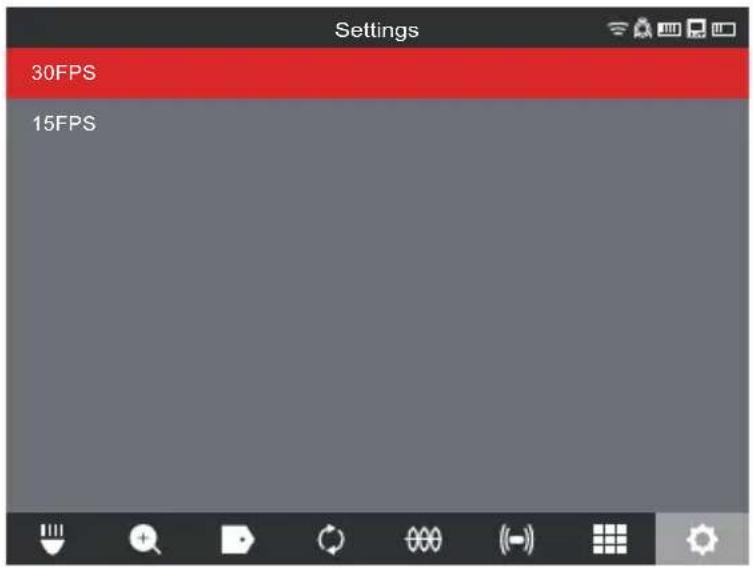

2.2.9 Video and Image Settings....20
2.2.10 Connection Settings....21

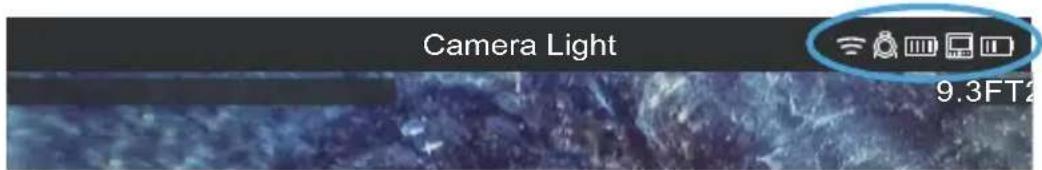

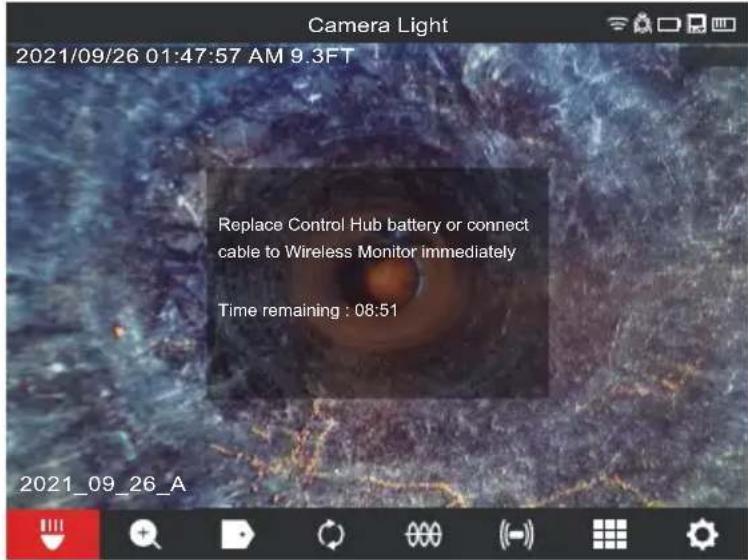

2.2.11 M18 ^TM Battery.....24

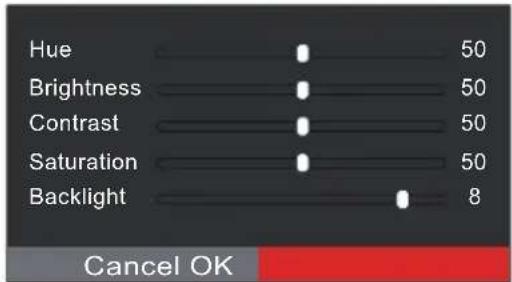

2.2.12 Setting the LCD Screen Settings....25

2.3 Using the M18™ Wireless Monitor....26

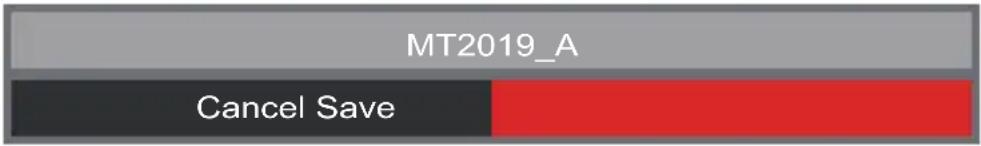

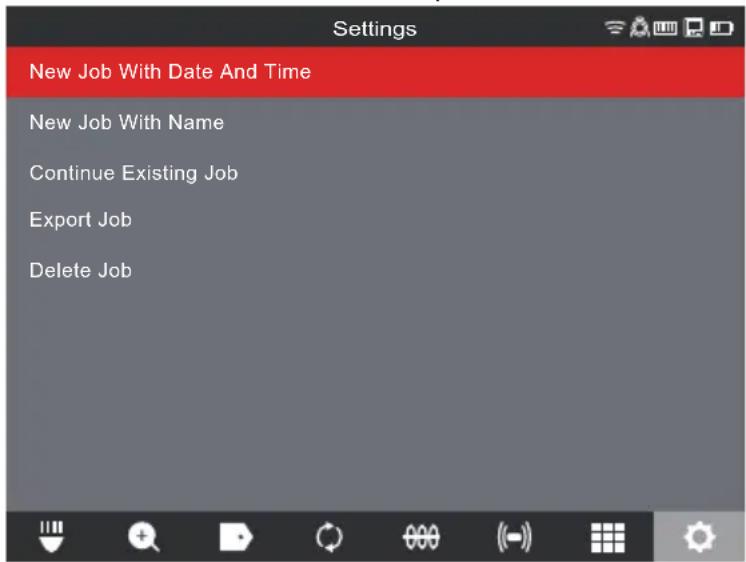

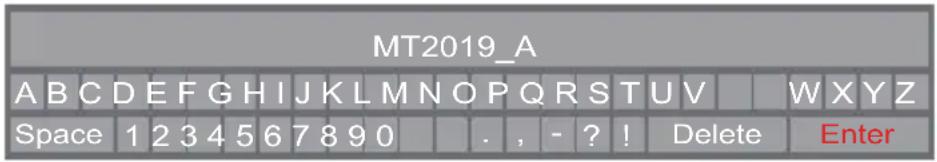

2.3.1 Using Jobs....27

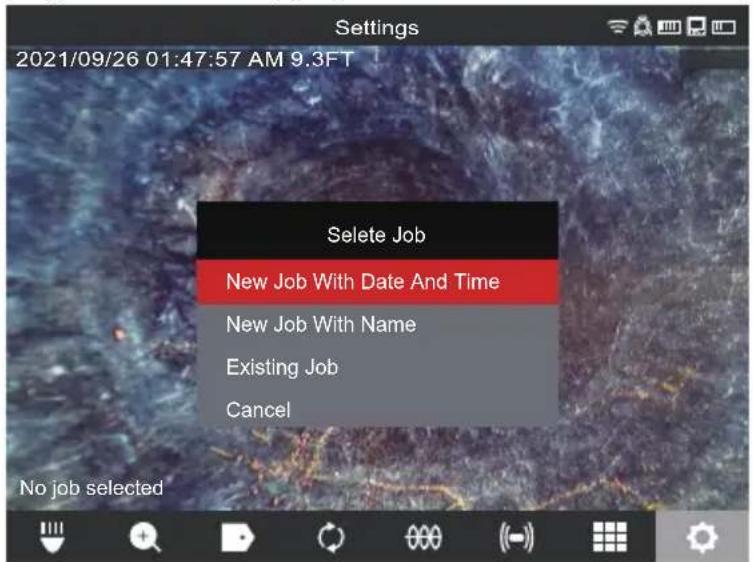

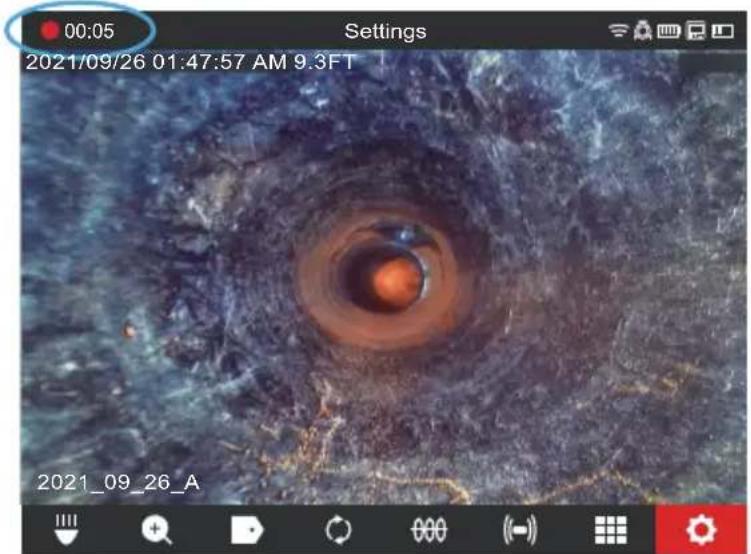

2.3.2 Creating a Video Recording and Image Capturing....28
2.3.3 Export Job....30

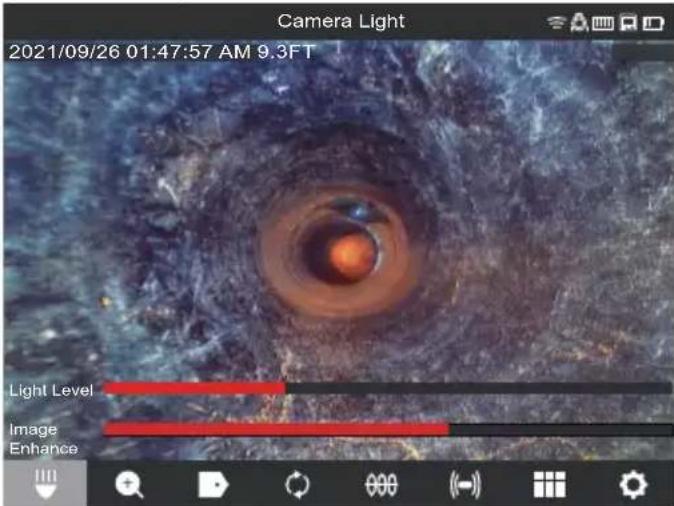

2.3.4 Adjusting the Camera Light....31
2.3.5 Image Enhance....31
2.3.6 Zoom & Pan....31

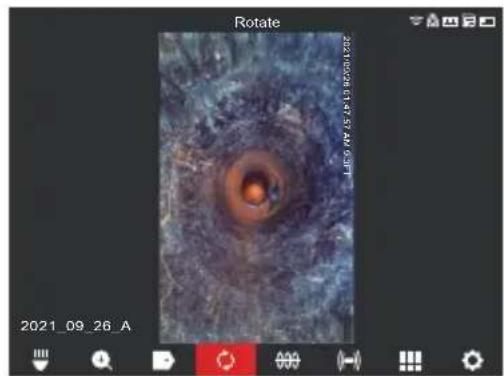

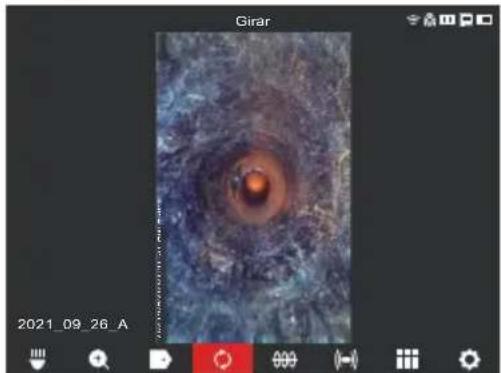

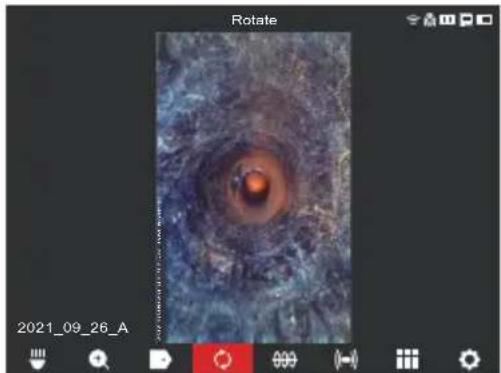

2.3.7 Screen Rotate....33
2.3.8 Line Trace....33
2.3.9 Sonde....34
2.3.10 Gallery Overview....35
2.3.11 Playback Highlights....36
2.3.12 Playing videos and viewing pictures....37
2.3.13 Rewind and Fast Forward....37

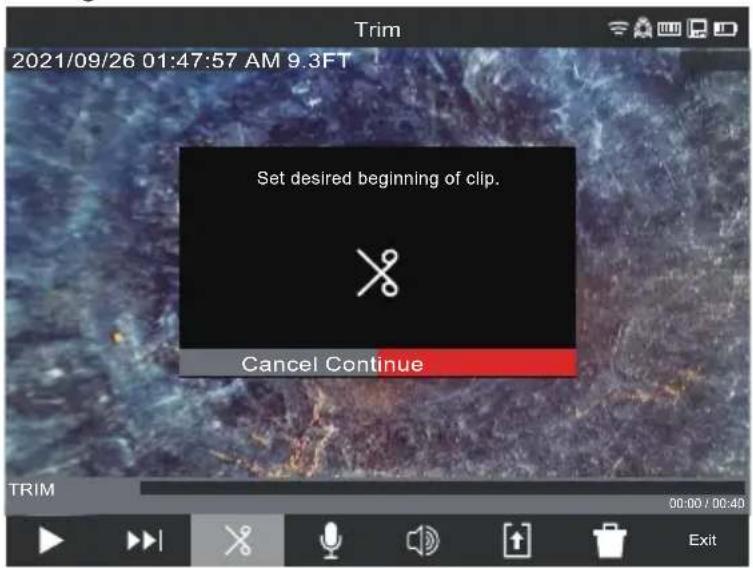

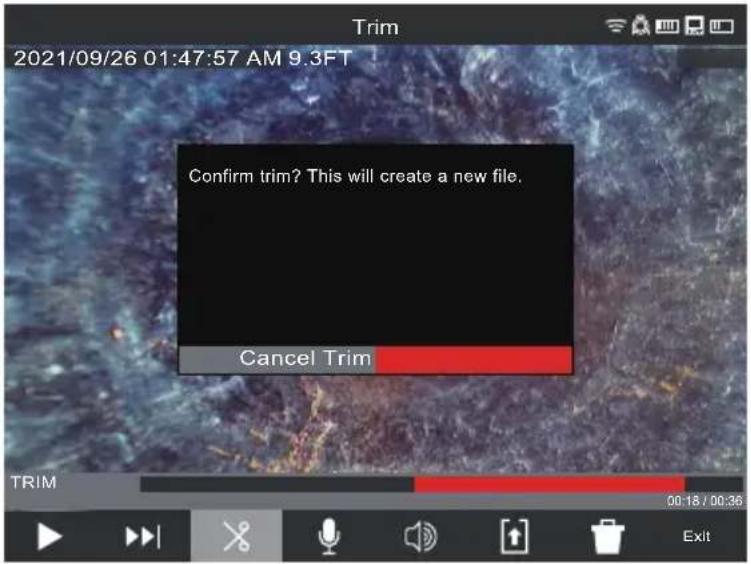

2.3.14 Trimming Video Files....38
2.3.15 Recording Audio....40
2.3.16 Speaker Volume....40

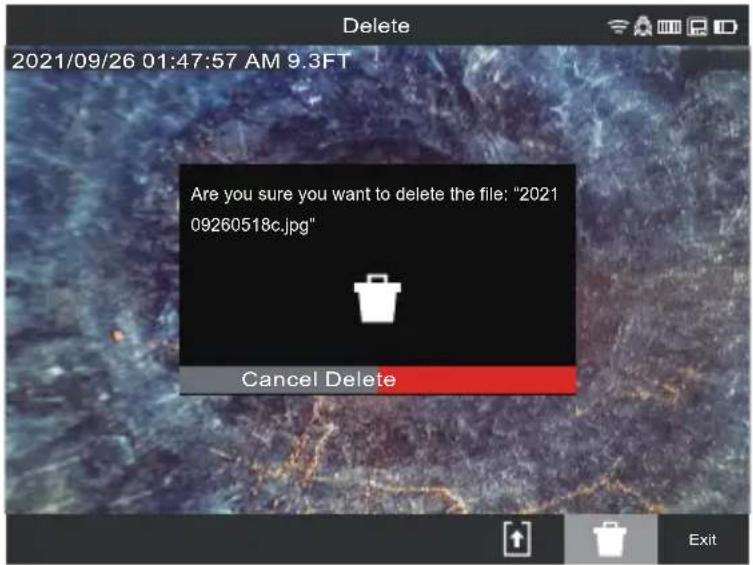

2.3.17 Delete Files....40

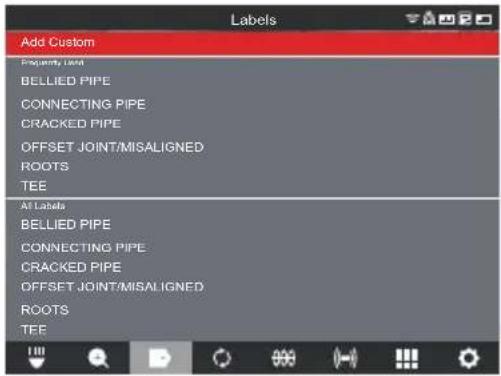

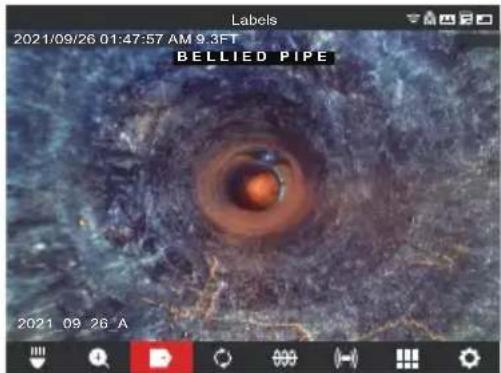

2.3.18 Using Labels....42

2.4 Factory Reset & Firmware Updates – M18 ^™ Wireless Monitor....45

2.4.1 Factory Reset – M18 ^TM Wireless Monitor....45
2.4.2 Firmware Updates – M18 ^™ Wireless Monitor....45

1. M18 ^TM 500GB Control Hub.....47

3.1 Overview....47

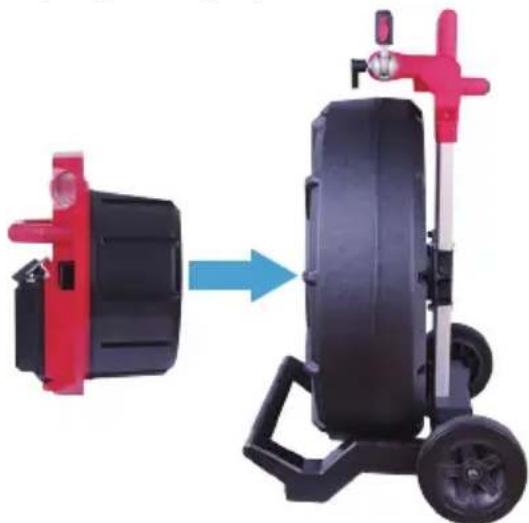

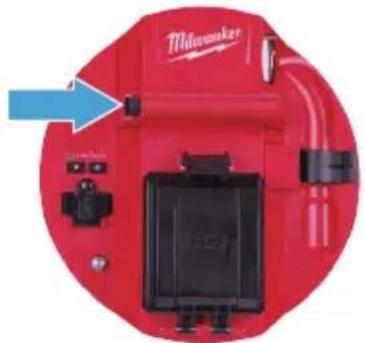

3.2 Installing and removing the M18 ^TM 500GB Control Hub....48
3.3 Using the M18™ 500GB Control Hub....49

3.3.1 Power on/off....49
3.3.2 USB Ports....49

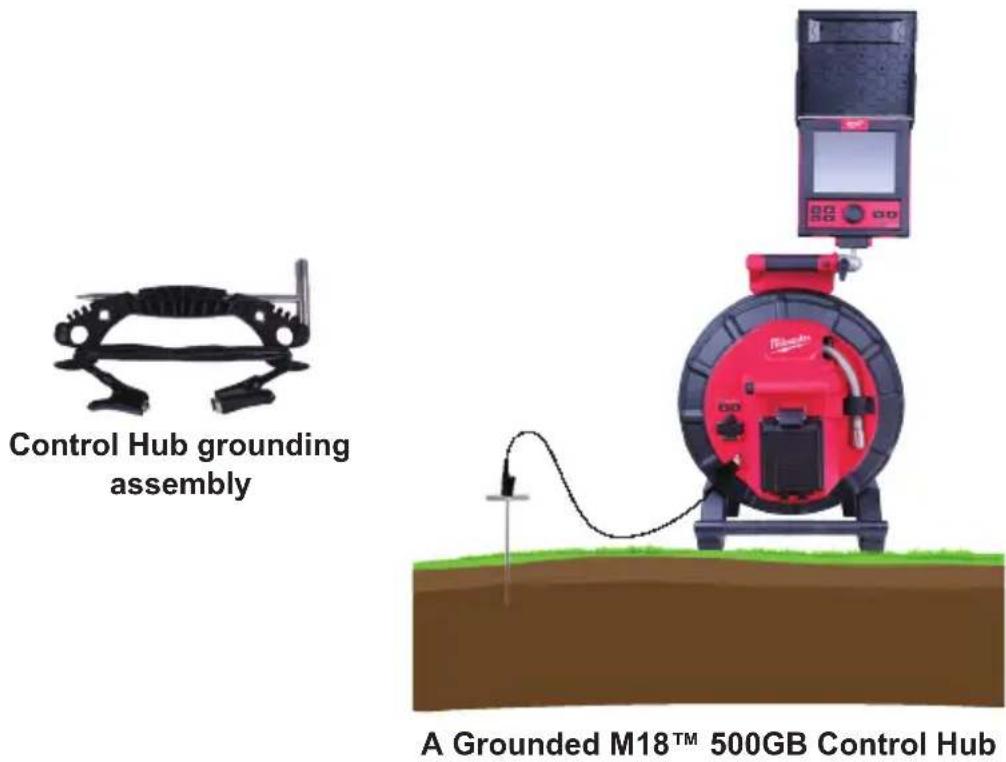

3.3.3 Grounding Post....50
3.3.4 Distance Counter Reset....50

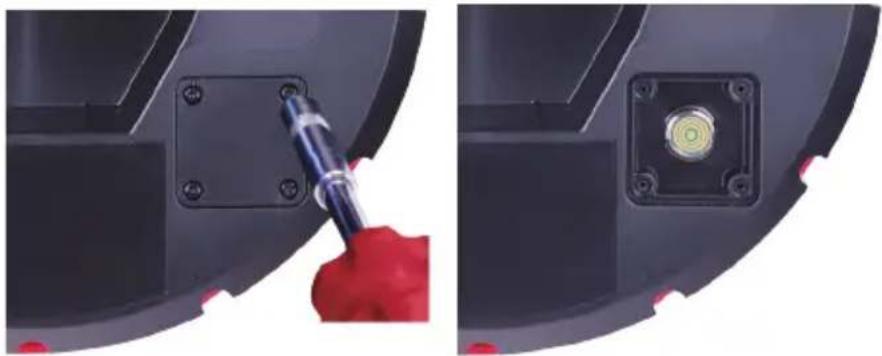

3.3.5 Camera Test Port....50

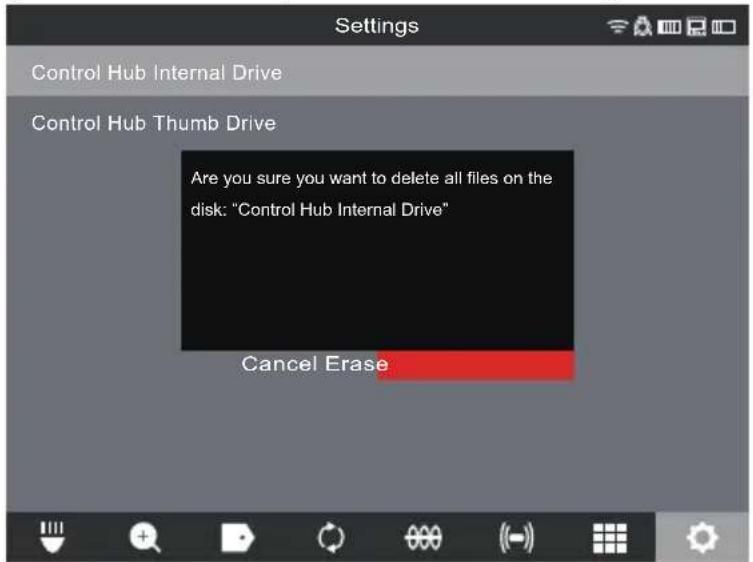

3.4 Formatting the M18™ Control Hub Internal and Thumb Drives....51
3.5 Factory Reset & System Update – M18 ^TM 500GB Control Hub....53

3.5.1 Factory Reset - M18 ^TM 500GB Control Hub....53
3.5.2 System Update - M18 ^TM 500GB Control Hub....54

1. Pipeline Inspection Reel....57

4.1 200' Mid-Stiff, 200' and 325' x Stiff Pipeline Inspection Reel Overview....57
4.2 120' Mid-Stiff Pipeline Inspection Reel Overview....58
4.3 Installing the Backpack Plate....59
4.4 Mounting the M18 ^™ Wireless Monitor....61
4.5 Using the Pipeline Inspection Reel....62
4.6 Push Cable....63

1. Camera Heads and Spring Assembly....64

5.1 Camera Heads....64
5.2 Parts of the Spring Assembly....65
5.3 Removing and Installing the Camera Heads....65

5.3.1 Camera Head Removal....65
5.3.2 Camera Head Installation....66

5.4 Removing and Installing the Spring Assembly....66

5.4.1 Spring Assembly Removal....66
5.4.2 Spring Assembly Installation....67

5.5 Camera Skids and Protective Covers....67

5.5.1 The Protective Covers....67
5.5.2 Removing the Protective Covers....68
5.5.3 Installing the Protective Covers....68
5.5.4 Camera Skids....69
5.5.5 Installing the Barrel Skid....69

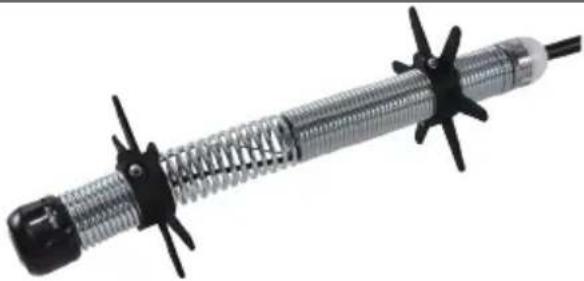

5.5.6 Installing the Star Skid....70

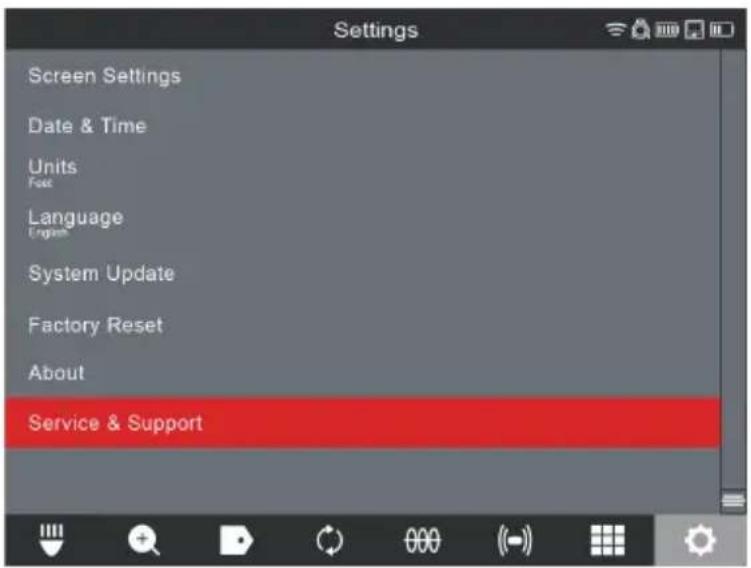

1. Service & Support....71

1. Introduction

1.1 The M18™ Pipeline Inspection System

The systems consist of three major modules, the M18™ Wireless Monitor, the M18™ 500GB Control Hub, and the Pipeline Inspection Reels.

1.2 M18™ Wireless Monitor Overview

The M18™ Wireless Monitor allows for viewing the raw video from the camera head, recording videos and capturing picture images and playback functions of video and picture files. During the recording of videos, audio comments can be captured through the internal microphone, and text comments can be added via the labels option. These text comments will appear in the recorded video and will show in the pictures along with the system time, system date and distance of deployed push cable.

Note that the Wireless Monitor or tablet running the Milwaukee ^ Pipeline Inspection App must be connected to the M18 ^TM 500GB Control Hub to create video recordings or capture pictures. Both the video and picture files are stored in the Control Hub Internal Drive or Control Hub Thumb Drive.

Three views of a black electronic device with red control panel and display screen, shown from front, side, and top angles (no visible text or symbols)

Front View Rear View Side View

1.3 M18™ 500GB Control Hub Overview

The M18™ 500GB Control Hub is the brain of the Pipeline Inspection System. The M18™ Wireless Monitor or tablet running the Milwaukee ^® Pipeline Inspection App connects to the Control Hub to receive the recording video and captured pictures. Both are stored in the Control Hub Internal Drive.

Two views of a red Milwaukee industrial machine (no visible text or symbols)

Front View Rear View

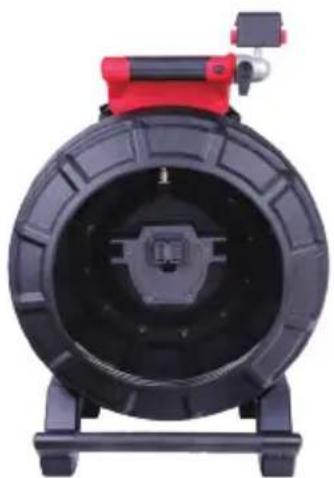

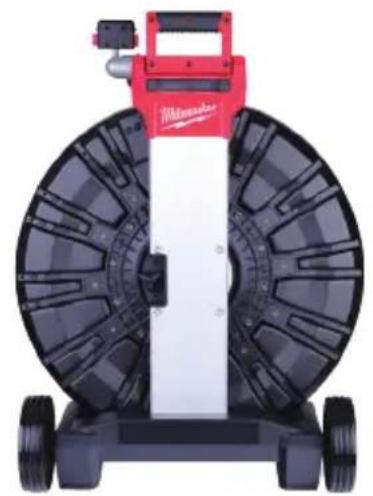

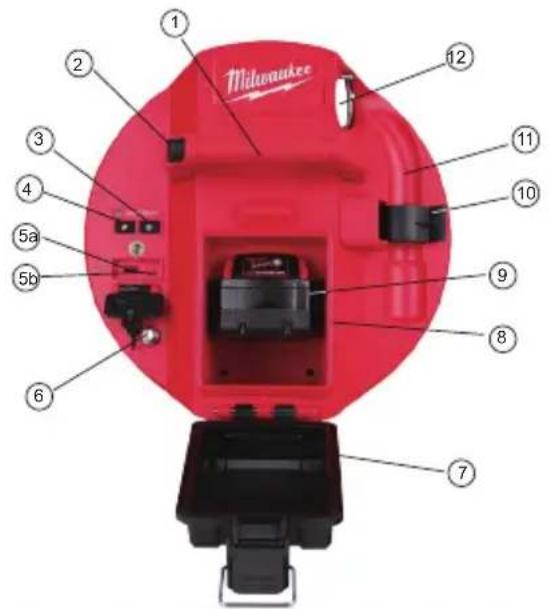

1.4 Pipeline Inspection Reel Overview

The Pipeline Inspection Reel stores and controls the deployment of the push cable. The reels are available in four sizes.

Reel Size Target Line Size

200' Stiff Pipeline Inspection Reel Three to ten inches

325' Stiff Pipeline Inspection Reel Three to ten inches

120' Mid-Stiff Pipeline Inspection Reel Two to six inches

200' Mid-Stiff Pipeline Inspection Reel Two to six inches

All reels include push cable with a spring assembly that the self-leveling camera head mounts on. The M18™ Wireless Monitor and M18™ 500GB Control Hub will work in all-size reels.

All reels can be used either in the vertical upright position or on its side in a horizontal position. The 120' Mid-Stiff Pipeline Inspection Reel has a mounting plate on the back to attach backpack straps.

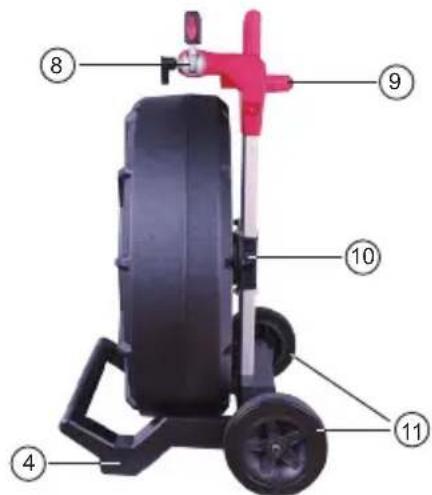

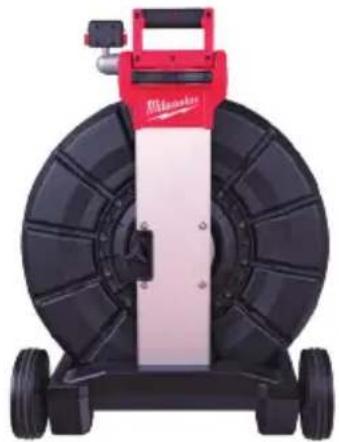

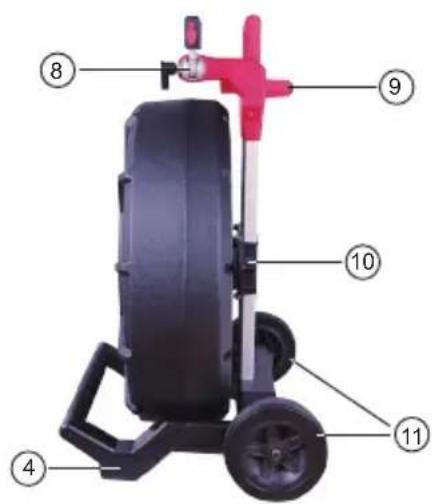

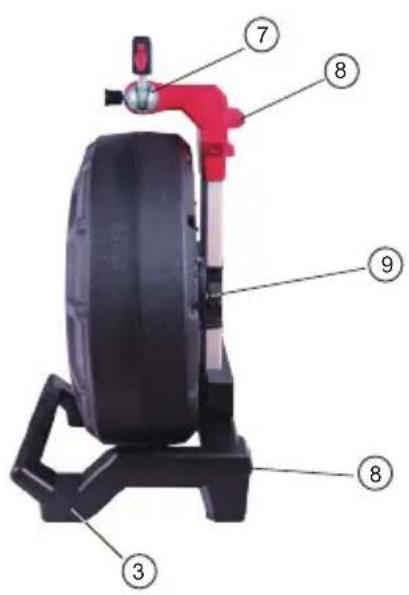

200' Stiff Pipeline Inspection Reel Overview

Close-up of a black industrial rotary switch with red handle and mounting base (no visible text or symbols)

Front view Rear view

Top-down view of a red and black fitness equipment with wheels and a central vertical panel (no visible text or symbols)

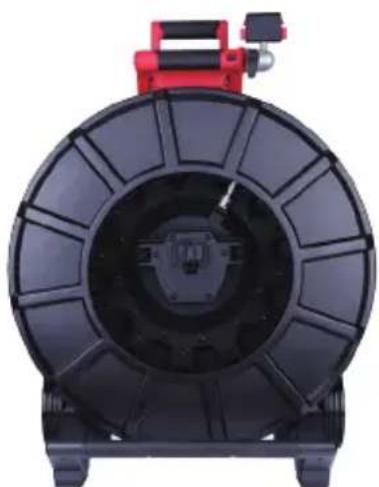

325' Stiff Pipeline Inspection Reel

Top-down view of a black industrial fan or motor with red handle and central hub (no visible text or symbols)

Front view Rear view

Top-down view of a Pilmoer 3 water exercise machine with black wheels and white central panel (no text or symbols visible)

120' Mid-Stiff Pipeline Inspection Reel Overview

Close-up of a black industrial fan or pump device with red and black components, no visible text or symbols.

Front view Rear view

Industrial pump device with red and black casing, no visible text or symbols

200' Mid-Stiff Pipeline Inspection Reel Overview

Top-down view of a black industrial fan or pump device with red handle and mounting bracket (no visible text or symbols)

Front view Rear view

Front view of a black and white industrial machine with red handle and wheels (no visible text or symbols)

2. M18™ Wireless Monitor

2.1 M18™ Wireless Monitor Overview

The M18 ^™ Wireless Monitor provides viewing, recording, and playback functions of video and picture files. During the recording of videos audio comments can be captured through the internal microphone, and text comments can be added via the Labels feature.

Note that the Wireless Monitor or tablet running the Milwaukee ^® Pipeline Inspection App must be connected to the M18 ^TM 500GB Control Hub in order to create a video recording or capture pictures. Both the video and picture files are stored in the Control Hub Internal Drive.

Labeled diagram of a device showing internal components and parts with numbered annotations

1. Sunshield 7. Navigation Dial
2. LCD 8. Record video button
3. Power button 9. Picture capture button
4. Back Button 10. Internal microphone
5. Distance reset button 11. M18TM Battery mounting area
6. Microphone button 12.		12a USB-A port12b USB-C port

⚠WARNING To reduce the risk of short circuit, when setting tool or battery down, do not allow the battery to contact corrosive or conductive fluid.

2.2 Setup of the M18 ^TM Wireless Monitor

This section of the manual covers setting up the features and options of the M18 ^™ Wireless Monitor. Mounting the Wireless Monitor to the Pipeline Inspection Reel is covered in section 4.4 of this manual.

2.2.1 Power on/off

Press the Power Ⓓ button on the M18™ Wireless Monitor. The buttons and navigation dial will illuminate, showing that the power is on. The Wireless Monitor icon will appear in the status bar of the LCD along with the battery state.

2.2.2 M18™ Wireless Monitor First Time Setup

All the settings are saved into the M18 ^™ Wireless Monitor's memory and will remain there until changed. Note that the settings will be lost if the unit is reset to factory defaults or by formatting the M18 ^™ 500GB Control Hub Internal Drive. The Pipeline Inspection Reel with camera does not need to be connected to for the first-time setup.

These initial Wireless Monitor settings will set the Units of distance measurement, Date & Time formats, Sonde frequencies, Video, and Image quality, Connection Settings and Language.

These settings can also be performed through a tablet running the Milwaukee® Pipeline Inspection App.

2.2.3 Navigating through the Settings Menu

Navigation Dial - Turn the navigation dial clockwise or counterclockwise to move through the menus. While rotating the Navigation Dial, the position/menu items will be highlighted by the red cursor line.

Press the Navigation Dial to select and accept the setup menu options.

Back Button - Pressing the Back button while in any menu or sub-menu will take the screen back to the previous menu. Press the Back Button repeatedly to return to the main viewing screen.

2.2.4 Setting the M18™ Wireless Monitor Language

It is recommended to set your Language first so that the other menus can be easily read and understood.

1. Turn the Navigation Dial to Settings press the navigation dial.
2. Turn the navigation dial to Language, press to enter the Language sub-menu.

Settings Screen Settings Date & Time Units Feet Language English System Update Factory Reset About Service & Support

1. Turn the navigation dial to select the desired Language and press the navigation dial.
2. Turn the navigation dial and press on OK to start the Language change.

The Wireless Monitor language has been changed. These changes will take effect only after the unit has been restarted. Cancel OK

1. The system will reboot and start in the Language selected.

2.2.5 Setting the Date & Time

The system offers Date Formats of MM/DD/YYYY, DD/MM/YYYY and YYYY/MM/DD with 12-Hour or 24-Hour Time Formats.

1. Turn the navigation dial to Settings ⚙, press the navigation dial.
2. Turn the navigation dial to Date & Time, press to enter the Date & Time sub-menu.
3. Turn the navigation dial to Date Format, press the navigation dial. Use the navigation dial to select the desired Date Format and press the navigation dial to accept. Repeat the same steps selecting the Date Format.

2 M18 ^TM Wireless Monitor

Settings Date Format YYYY/MM/DD Time Format 12 Hour Date Set 2021 / 09 / 26 Time Set 16 : 04 : 35 Save

1. Now use the navigation dial to enter the Date and Time values.
2. Turn the navigation dial to select Save and press the navigation dial.

The Date & Time are now set, and you will be returned to the Settings menu.

If using a tablet running the Milwaukee® Pipeline Inspection App, the Date & Time are taken from the tablet.

2.2.6 Setting the Units of Measure

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Units, press to enter the sub-menu.

Settings Screen Settings Date & Time Units Feet Language English System Update Factory Reset About Service & Support

1. Turn the navigation dial to select Feet or Meter and press the navigation dial.

2 M18 ^TM Wireless Monitor

Settings Feet Meter

The Units of measures are now set, and you will be returned to the Settings menu.

2.2.7 Setting the Sonde Frequency

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Sonde Frequency, press to enter the sub-menu.

Settings 512Hz 640Hz 33kHz

1. Turn the navigation dial to select the desired sonde frequency of 512Hz, 640Hz or 33kHz and press the navigation dial. The sonde frequency is now selected and you will be returned to the settings sub-menu.

2.2.8 Setting the Company Name

This setting saves a Company Name in the system's memory. The Company Name will splash on the video recordings start for 5 seconds and appear in all JPEG images.

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Company Name, press to enter the sub-menu.

Manage Jobs 2021 09 26 A Sonde Frequency 640Hz Label Settings Company Name Video Settings 1080P 30FPS Image Settings 1920x1080 Format Disk Connection Settings MTCAM_02938B284 Camera Settings

1. Use the navigation dial to navigate the on-screen keyboard pressing the navigation dial to accept each keyboard character.

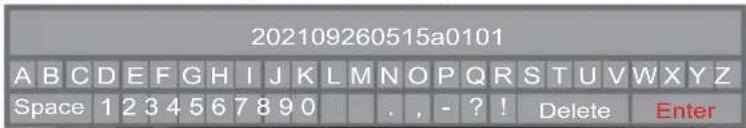

Settings MILWAUKEE A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Space 1 2 3 4 5 6 7 8 9 0 . . - ? ! Delete Enter

1. When finished with the Company Name, navigate to the Enter key, and press the navigation dial.

2. Select Save or cancel to continue.

2.2.9 Video and Image Settings

Video Settings

This setting allows for the selection of the video resolution. The video resolution will affect the video quality, which in turn affects the size of the video file. The choices for resolution and frames per second (FPS) are:

Video Settings choices - 1080p with 30 frames per second or 15 frames per second, 720p with 30 frames per second or 15 frames per second or 480p with 30 frames per second or 15 frames per second.

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Video Settings, press to enter the sub-menu.

Manage Jobs 2021 09 26 A Sonde Frequency 040Hz Label Settings Company Name MILWAUKEE Video Settings 1080P 30FPS Image Settings 1920x1080 Format Disk Connection Settings MTCAM_02938B284 Camera Settings

1. Use the navigation dial to navigate the resolution choices, select 1080p, 720p or 480p and press the navigation dial.

Settings 1080p 720p 480p

1. After a resolution of 1080p, 720p or 480p has been selected the next screen will require a selection of either 30 frames per second or 15 frames per second, select and press the navigation dial.

Settings 30FPS 15FPS

1. After the frames per second choice is selected, the system will return to the Settings menu.

Image Settings

This setting allows for the choice selection of the picture Image dimensions. These dimensions will affect the picture quality, which in turn affects the size of the picture file.

Image setting choices - 1920 x 1080, 1280 x 720 or 640 x 480

Turn the navigation dial to Setting press the navigation dial.

Turn the navigation dial to Image Settings, press to enter the sub-menu.

Use the navigation dial to navigate the dimension choices, select 1920x1080, 1280x720 or 640x480 and press the navigation dial.

After the Image setting choice is selected, the system will return to the Settings menu.

2.2.10 Connection Settings

The default connection method for M18 ^™ Wireless Monitor and M18 ^™ 500GB Control Hub is via Wi-Fi. The wireless range between the two units is 200'. If an active Control Hub is within the 200' range, it will show here in the Control Hub List. As a backup, the Wireless Monitor and Control Hub can be connected by using the provided USB cable.

First-time Wireless Monitor Paring

- If only one Control Hub is in range, the Wireless Monitor will automatically force pair with it without any user interaction.

- If there is more than one Control Hub in range, the Control Hub List will appear on the Wireless Monitor or Milwaukee® Pipeline Inspection App so the user can choose the desired Control Hub.

• If prompted for a password enter: 29702000

Settings Control Hub List Searching for nearby control hubs a MTCAM_02938B284 MTCAM_029384BEA MTCAM_02938ED7A MTCAM_029383A7E b c

Control Hub List

a. List of nearby Control Hubs with active Wi-Fi
b. Status – checkmark indicates as connected
c. Signal strength of nearby Control Hubs with active Wi-Fi
Battery Capacity - Both M18TM Battery icons have four segments in the icon. Each segment represents 25% of the battery's power capacity. A low battery warning will appear when the capacity reaches 10%
	Cable Connected icon – Shows the Wireless Monitor and Control Hub are connected by a USB cable.
	Control Hub connection status and wireless signal strength. This icon appears when the Control Hub is connected to the Wireless Monitor by Wi-Fi.
	Pipeline Inspection Reel icon – appears when the Wireless Monitor and Control Hub are connected by Wi- Fi or USB cable.
	Wireless Monitor icon – appears when the Wireless Monitor and Control Hub are connected by Wi-Fi or USB cable.
	M18TM Battery Status icon – two battery icons are show separated by the Wireless Monitor icon. The battery icon to the left of the monitor icon represents the Control Hub. The battery icon to the right of the monitor icon represents the Wireless Monitor.

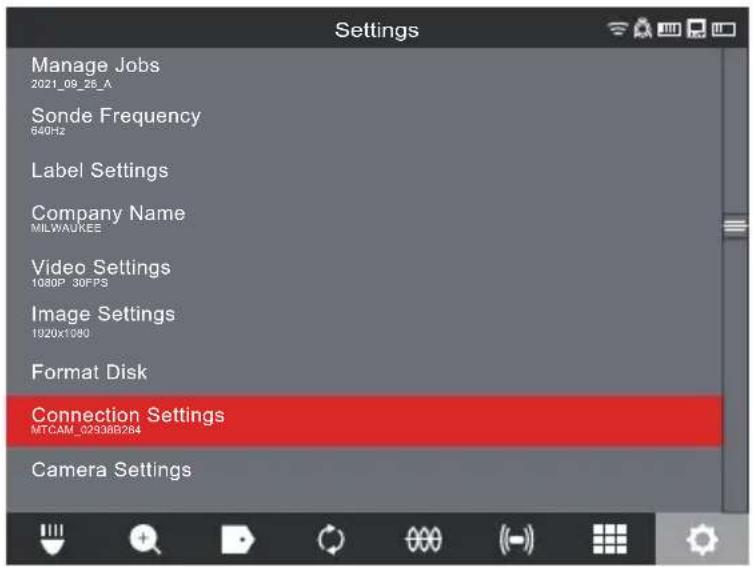

1. Turn the navigation dial to Settings, press the navigation dial.
2. Turn the navigation dial to Connection Settings, press to enter the sub-menu.

2 M18 ^TM Wireless Monitor

Manage Jobs 2021_08_26_A Sonde Frequency 640Hz Label Settings Company Name MILWAUKEE Video Settings 1080P 30FPS Image Settings 1920x1080 Format Disk Connection Settings MTCAM_02938B264 Camera Settings

1. Use the navigation dial to choose the desired available Control Hub, press to connect.

Settings Control Hub List Searching for nearby control hubs MTCAM_02938B284 MTCAM_029384BEA MTCAM_02938ED7A MTCAM_029383A7E

1. After selecting the Control Hub you will be returned to the main menu. The Control Hub name is shown in the menu bar under the Connection Settings.

Settings Manage Jobs 2021_08_26_A Sonde Frequency 640Hz Label Settings Company Name MILWAUKEE Video Settings 1080P 30FPS Image Settings 1920x1080 Format Disk Connection Settings MTCAM_029388264 Camera Settings

USB Cable Connection – The M18 ^™ Wireless Monitor can also be powered by the M18 ^™ 500GB Control Hub battery via the supplied USB cable. This is extremely useful in some emergency situations in case your battery runs low.

1. With the supplied USB cable, plug one end into the Control Hub and the other into the Wireless Monitor.

2. Confirm the USB connection by checking the icons in the status bar on the right. When connected by USB cable the Wi-Fi icon is now replaced by the cable-connect icon.

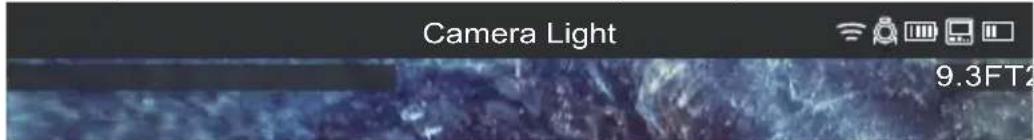

Camera Light 9.3FT2

The above illustration shows the Wireless Monitor and Control Hub connected by Wi-Fi with a weak monitor battery.

Camera Light 9.3FT2

The above illustration shows the Wireless Monitor and Control Hub connected by USB cable with the M18 ^™ Battery removed from the Wireless Monitor. The Wi-Fi icon is replaced by the cable-connect icon and the Wireless Monitor battery shows as empty.

2.2.11 M18 ^TM Battery

Both the M18 ^™ Wireless Monitor and M18 ^™ Control Hub are powered by an M18 ^™ Battery. The battery condition of both is always shown in the status bar on the Wireless Monitor screen.

⚠WARNING Recharge only with the charger specified for the battery. For specific charging instructions, read the operator's manual supplied with your charger and battery.

Camera Light 9.3FT2

Battery status – the icon to the left of the Wireless Monitor icon represents the battery status of the Control Hub while the icon to the right represents the Wireless Monitor.

M18™ 500GB Control Hub – The Control Hub is powered by its M18™ Battery which is hot-swappable. If the battery is removed from a running Control Hub, the below message will appear warning that the Control Hub is operating on the internal backup battery for a period of nine minutes. During these nine minutes a charged M18™ Battery must be installed, or a USB cable must be attached between the Wireless Monitor and Control Hub. The USB cable will now power the Wireless Monitor temporally.

Typical battery life: M18™ Wireless Monitor: Nine hours on a fully charged battery M18™ 500GB Control Hub: Nine hours on a fully charged battery

Camera Light 2021/09/26 01:47:57 AM 9.3FT Replace Control Hub battery or connect cable to Wireless Monitor immediately Time remaining : 08:51 2021_09_26_A

2.2.12 Setting the LCD Screen Settings

This setting adjusts the M18 ^™ Wireless Monitor LCD screen settings.

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.

2. Turn the navigation dial to Screen Settings, press to enter the sub-menu.

Hue 50 Brightness 50 Contrast 50 Saturation 50 Backlight 8 Cancel OK

1. Use the navigation dial to navigate through the menu choices, press the navigation dial to select one.

2. Turn the navigation dial left and right to adjust the setting, press the navigation dial to accept it.

3. Scroll to the bottom of the sub-menu and press the navigation dial on OK to accept the changes.

2.3 Using the M18™ Wireless Monitor

Many of these instructions also apply to the Milwaukee® Pipeline Inspection App. The Milwaukee® Pipeline Inspection App is available for download from the Apple App Store or at Google Play.

Main Menu Overview Camera Light 2021/09/26 01:47:57 AM 9.3FT 2021_09_26_A

Ref	Description Ref Description
1.	Status bar 10. Gallery
2.	Date and Time stamp 11. Settings menu
3.	Main viewing area 12. Distance out count
4.	Camera Light 13. Wireless Monitor battery status
5.	Zoom & Pan	14.	Wireless Monitor connection status icon
6.	Labels	15.	Control Hub battery status
7.	Screen Rotate	16.	Control Hub connection status icon
8.	Line Trace	17.	Wi-Fi status
9.	Sonde	18.	Menu location

1. Status bar – the status bar shows the running options, menu location, connection status and battery status of both the M18™ 500GB Control Hub and M18™ Wireless Monitor. The status bar is always shown regardless of what mode or option is being used.

2. Date & Time stamp – the Date & Time stamps are displayed from the system and will appear in all recorded videos image files.

3. Main viewing area – is the majority of the LCD and shows the raw video from the camera or videos being played back.

4. Camera Light – brightness of the cameras LED's are controlled here.
5. Zoom & Pan – allows for 4 x zooming with vertical and horizontal panning of the video feed.

2.3.1 Using Jobs

Before creating a video or image file, you can tell the system where to store the files. This is known as creating a New Job or Continue Existing Job. Creating a New Job will setup a container (folder) for both video and image files to be stored in. Continue Existing Job will route the recordings to a Job folder that already exists.

The system will automatically ask which Job to use in certain situations. Whenever the system clock changes to a new day. (after 11:59 PM) Whenever the M18 ^™ Wireless Monitor is restarted. (turned off and on again) Whenever the M18 ^™ 500GB Control Hub is restarted. (turned off and on again)

When the Record button is pressed under the above situations, the Select Job List will appear with options of: New Job With Date And Time, New Job With Name or Existing Job. From this point on the same Job will be used until changed.

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Manage Jobs, press the navigation dial to enter the sub-menu.
   The Manage Jobs sub-menu has five menu options.

Settings New Job With Date And Time New Job With Name Continue Existing Job Export Job Delete Job

a. New Job With Date And Time - Creates a New Job with the systems date and time as the prefix for all files in this folder.
b. New Job With Name - Creates a New Job with the text title entered via the on-screen keyboard.
c. Continue Existing Job – Send the new files to an Existing Job previously created.
d. Export Job – Copies the Job from the Control Hub Internal Drive to a Control Hub Thumb Drive.
e. Delete Job – Deletes the Job from the Control Hub Internal Drive.

2 M18 ^TM Wireless Monitor

1. Use the navigation dial to navigate the menu choices. Press the navigation dial to enter the desired sub-menu.
2. Scroll to the bottom of the sub-menu and press the navigation dial on OK to accept the final changes.

The changes will be saved into memory, and the system will return to the main viewing screen.

Creating a New Job

1. From the Job's sub-menu use the navigation dial to select New Job With Date And Time or New Job With Name.

If New Job With Date And Time is selected a Job folder with the system current date and time will be created and named YYYY_MM_DD_HH_MM_SS.

If a New Job With Name is selected, the next screen will be the on-screen keyboard.

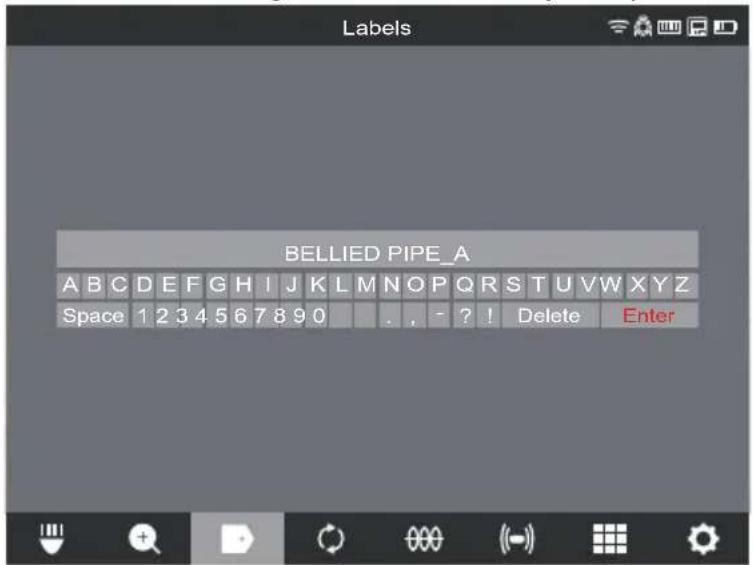

MT2019_A A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Space 1 2 3 4 5 6 7 8 9 0 . , - ? ! Delete Enter

1. Use the navigation dial to enter the name of the New Job With Name.
2. When finished entering the new job name use the navigation dial to Enter and press the dial.

MT2019_A Cancel Save

1. Use the navigation dial to select Save and press the navigation dial.

When a New Job With Name is selected a Job folder with the system current date and time will be used as a prefix. The folder created and named YYYY_MM_DD_NEW JOB NAME.

2.3.2 Creating a Video Recording and Image Capturing

By default, all videos and images recorded are saved to the M18 ^™ 500 GB Control Hub Internal Drive. If a thumb drive is plugged into the Control Hub, all videos and pictures can be saved to both the Control Hub Internal Drive and Control Hub Thumb Drive.

Filenames – the file names are automatically created by the system and consist of the year, month, day, time created, and or Job name. This will vary depending on the Job type selected.

If selecting New Job With Date And Time, the filename will look like this: 2019_10_01_12_50_10_2

2019 = Year, _10 = Month, _01 = Day, _12 = Hour, _50 = Minutes, _10 = Seconds and _2 = second file created.

If selecting New Job With Name, the filename will look like this: 2019_10_01_JOBNAME_1

2019 = Year, _10 = Month, _01 = Day, _JOBNAME and _3 = third file created.

If a file were saved as a Highlight video, the filename would be followed by "_h".

1. Press the Record button 📄 the M18™ Wireless Monitor to start the recording. If this is the first recording of the day or if the Wireless Monitor or Control Hub was restarted, when the record button is pressed the Select Job dialog box will appear to route the recording record to the appropriate Job folder.

Settings 2021/09/26 01:47:57 AM 9.3FT Delete Job New Job With Date And Time New Job With Name Existing Job Cancel No job selected

1. Choose the desired option and press the navigation dial.
2. After the Job option has been selected, a flashing recording icon will appear in the upper left corner of the status bar with the video recording length in minutes and seconds.

Close-up of a circular, textured object with a central orange glow, captured in a mobile app interface (no readable text or symbols on the main subject)

Recording icon and video length

Image Files – images can be captured while recording or viewing raw video from the camera. The image will be saved in the same Job folder as the video.

2 M18 ^TM Wireless Monitor

1. Press the Picture button to capture an image. The screen will flash red for a moment confirming that the image was captured.

At the end of the session, press the Record button again to end and save the video file.

2.3.3 Export Job

The Export Job allows for the copying of files from the M18 ^™ 500GB Control Hub Internal Drive to the Control Hub Thumb Drive.

From within the Gallery 📁 individual files can be exported one at a time.

From the Manage Jobs option, under Settings ⚙ entire folders of Jobs can be exported in one session.

Export Job from the Gallery

1. From the Gallery select the desired video or image.
2. Use the navigation dial to select Export ↑press the dial.
3. Use the navigation dial to select the export destination of Control Hub Thumb Drive, press the navigation dial. The progress indicator will appear showing the status.

Export Control Hub Thumb Drive 3.942GB/29.817GB Saving "PROJECTNAME". Cancel Exit

1. Wait for the progress indicator to run until completed.

Export from within the Settings menu

1. From the main viewing screen, turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Manage Jobs, press the navigation dial.
3. Turn the navigation dial to Export Job, press the navigation dial.
4. Turn the navigation dial to select the Job to export, press the navigation dial. The export destination of Control Hub Thumb Drive appears.
5. Press the navigation dial. The progress indicator will show the status.

2.3.4 Adjusting the Camera Light

1. Turn the navigation dial to Camera Light, press the navigation dial.
2. Turn the navigation dial to reach the desired light level.
3. Pressing the navigation dial again will select the Image Enhance option.

Camera Light 2021/09/26 01:47:57 AM 9.3FT Light Level Image Enhance

The Light Level and Image Enhance level

1. Press the Back button to exit and return to the main viewing area.

2.3.5 Image Enhance

The Image Enhance feature allows the LCD display to show more detail and depth from the camera head in different textures and colors of pipes. The Image Enhance feature automatically adjust the LCD's display brightness and contrast settings based on the light from the camera head.

1. Turn the navigation dial to Camera Light ☐, press the navigation dial.
2. Turn the navigation dial to reach the desired light level.
3. Press the navigation dial to move to Image Enhance.
4. Use the navigation dial to move the Image Enhance scale stopping on the best result. Press the navigation dial to accept the setting.
5. Press the Back button to exit and return to the main viewing area.

2.3.6 Zoom & Pan

1. Turn the navigation dial to Zoom & Pan ⭕, press the navigation dial.
2. Zoom - Turn the navigation dial to Zoom, press the navigation dial.
3. Turn the navigation dial to reach one of four Zoom levels and press the navigation dial. Turn the navigation dial to Zoom in or out, the graphic to the far right will grow or shrink according to the Zoom level.
4. Press the navigation dial.

2 M18 ^TM Wireless Monitor

Close-up of a circular, textured object with a central orange glow, captured in a video player interface (no readable text or symbols on the object itself)

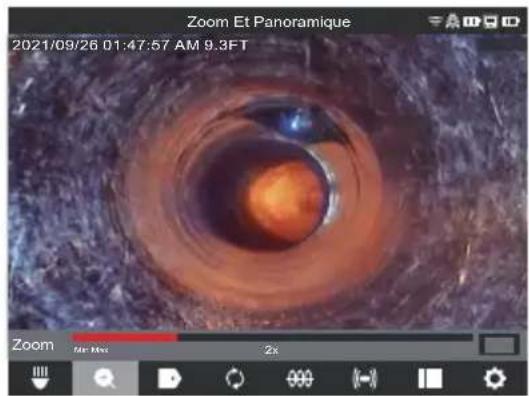

Standard Zoom Zoom X 2

Interior view of a circular pipe or canal with a bright orange core, captured in an endoscopic view (no visible text or symbols)

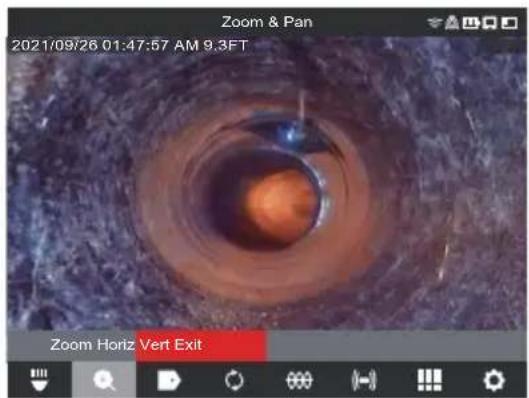

1. Pan - Turn the navigation dial to Horiz or Vert and press the navigation dial.

Zoom & Pan 2021/09/26 01:47:57 AM 9.3FT Zoom Horiz Vert Exit

Select Horiz or Vert and press the navigation dial

Interior view of a circular tunnel or pipe with visible corrosion and a blue object, captured at Zoom & Pan interface (no text or symbols on the main subject)

Pan Horizontal and Vertical – Panning horizontally moves the position in the image in right and left directions. Panning vertically moves the position in the image in up and down directions. In both options as the navigation dial is turned in Pan Horiz or Pan Vert, the graphic to the far right on will move with the vertical or horizontal panning showing where you are located within the image.

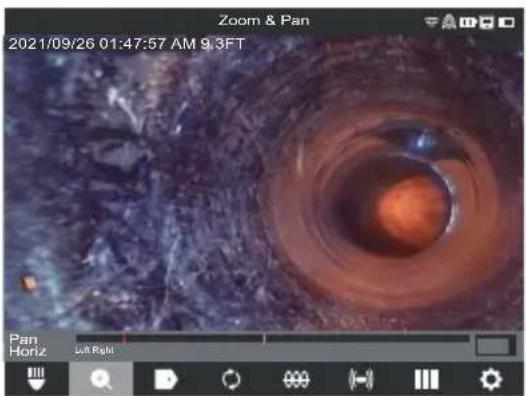

Pan Horiz Left Right

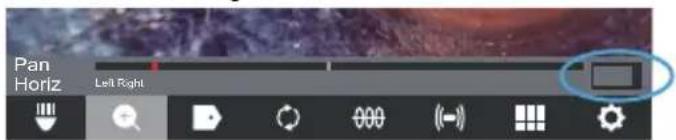

Pan location reference

Interior view of a biological or geological structure with a circular opening, showing textured surfaces and no visible text or symbols.

Interior view of a dimly lit tunnel or pipe with visible flame and water, captured in a video player interface (no readable text or symbols)

Example of Panning Horiz, to the left Example of Panning Vert, up

1. Press the Back button to exit and return to the main viewing area.

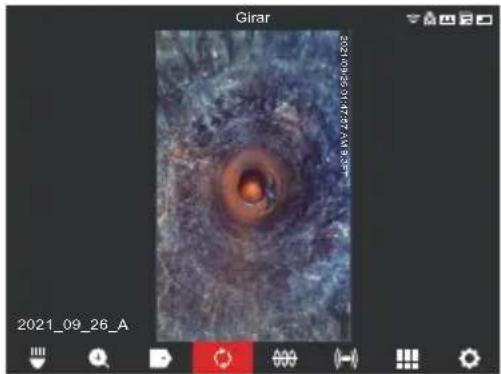

2.3.7 Screen Rotate

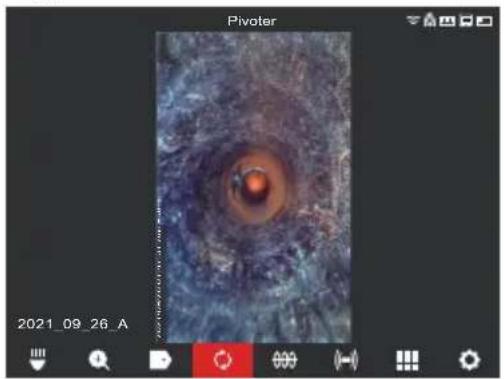

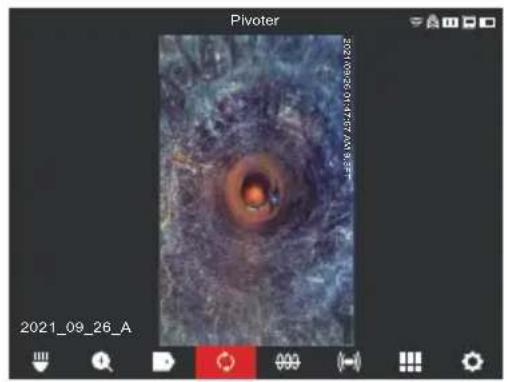

Screen Rotate – will invert the upright picture 90^ with each push of the navigation dial. This is helpful while using the reel in the horizontal position, and the monitor may not be in an upright position.

1. Turn the navigation dial to Rotate ⏻, press the navigation dial to start the screen Rotate option.
2. With each press of the navigation dial, the screen will Rotate 90° to the right.

Close-up of a circular, textured object with a central orange glow, captured in a circular frame (no visible text or symbols)

Aerial view of a circular object with a central orange glow, captured in a photo editing interface (no readable text or symbols on the object itself)

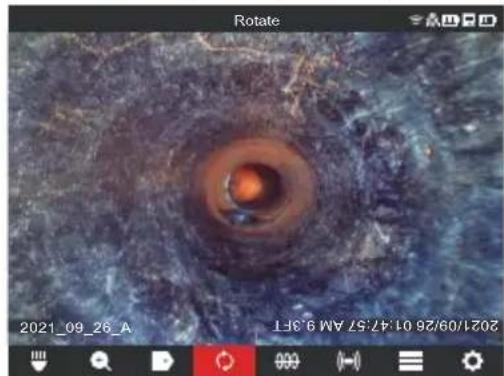

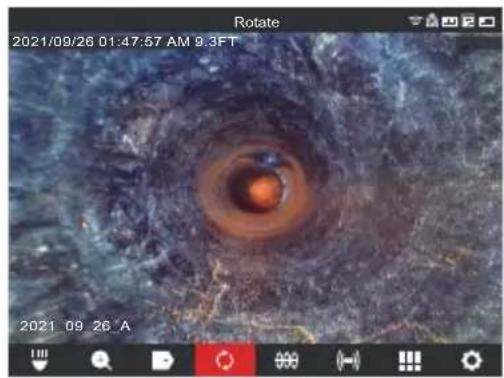

0 Degrees (default) 90 Degree position

Close-up of a circular, textured surface with a bright orange core and dark border, captured in a photo editing interface (no readable text or symbols on the main subject)

Aerial view of a circular orange glow on a textured, swirling surface, captured in a photo editing interface (no text or symbols on the image itself)

180-degree position 270-degree position

Note: The screen will remain in a Rotate position until it is adjusted back to the default in this setting.

2.3.8 Line Trace

Line Trace – activates the internal transmitter to inject a locate signal onto the push cable. The length of deployed push cable can now be located and traced above ground with a locator set to the matching Line Trace frequency. The M18™ 500GB Control Hub must be properly grounded when using the Line Trace feature. See section 3.3.3 in this manual covering the Grounding Post for additional information.

1. Turn the navigation dial to Line Trace, press the navigation dial.
2. Turn the navigation dial to select a Line Trace frequency of 33kHz or 83kHz and press the navigation dial.

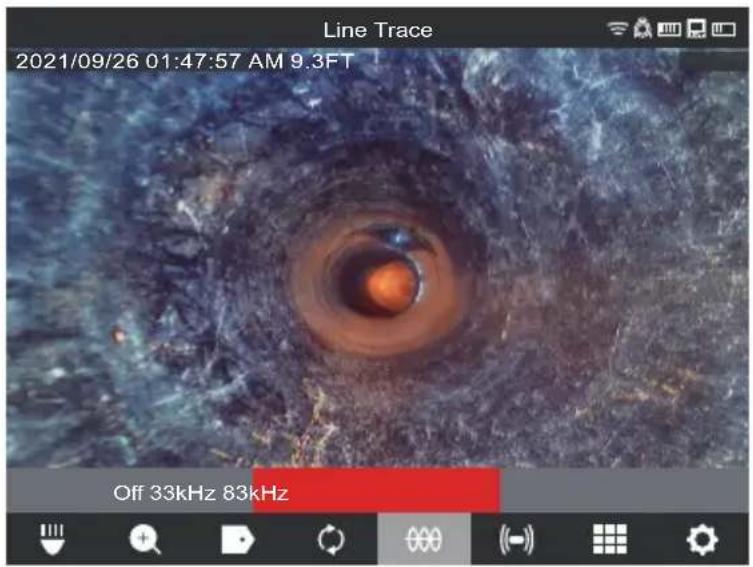

Line Trace 2021/09/26 01:47:57 AM 9.3FT Off 33kHz 83kHz

The Line Trace is now active, and the Line Trace icon with selected frequency will appear in the status bar.

33kHz Line Trace 2021/09/26 01:47:57 AM 9.3FT 2021_09_26_A

1. Deactivate the Line Trace mode by turning the navigation dial to Line Trace 🔍, press the navigation dial and select Off, and press.

2.3.9 Sonde

Sonde – activates the Sonde transmitter attached at the end of the Pipeline Inspection Reel termination spring to locate the approximate position of the Sonde in the pipe. The choice of the Sonde frequency was selected during setup and can be changed by going to Settings, and then Sonde Frequency. The choices of Sonde frequencies to use are 33kHz, 512Hz or 640Hz.

33kHz – is useable in non-metallic pipes.

512Hz – is mostly used in North America and is useable in both metallic and non-metallic pipes.

640Hz – is mostly used in Europe and is useable in both metallic and non-metallic pipes.

a. Turn the navigation dial to Sonde (○) and press the dial. The Sonde is now active, and the Sonde icon will appear in the status bar along with the frequency.

640Hz Sonde 2021/09/26 01:47:57 AM 9.3FT 2021_09_26_A

b. To deactivate the Sonde press the navigation dial when it shows the Sonde icon selected.

2.3.10 Gallery Overview

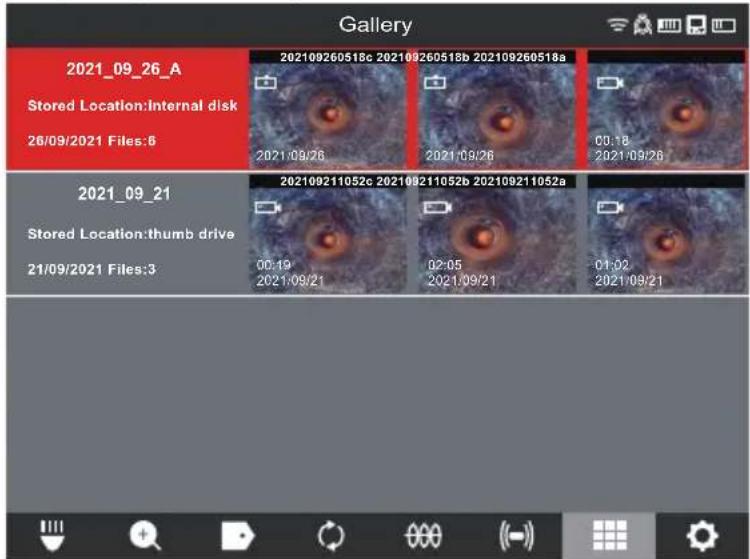

In the Gallery, all the videos and pictures are shown organized in folders and stored for reviewing, editing, exporting or deleting.

Gallery 2021_09_26_A Stored Location:Internal disk 26/09/2021 Files:6 202109260518c 202109260518b 202109260518a 2021 09/26 2021 09/26 00:18 2021/09/26 2021_09_21 Stored Location:thumb drive 21/09/2021 Files:3 202109211052c 202109211052b 202109211052a 00:19 2021/09/21 02:05 2021/09/21 01:02 2021/09/21

In the Gallery view, each Job folder is shown with the date and number of files in the job. The Saved Locations labels Gallery show if the files are located on the Control Hub Internal Drive or Control Hub Thumb Drive.

Gallery 2021_09_26_A 202109260518c 202109260518b 202109260518a 202109260516b_h 2021.09/26 00:18 2021.09/26/2021.09/26 00:20 2021.09/26 202109260516a 202109260515a 01:20 2021.09/26/2021.09/26

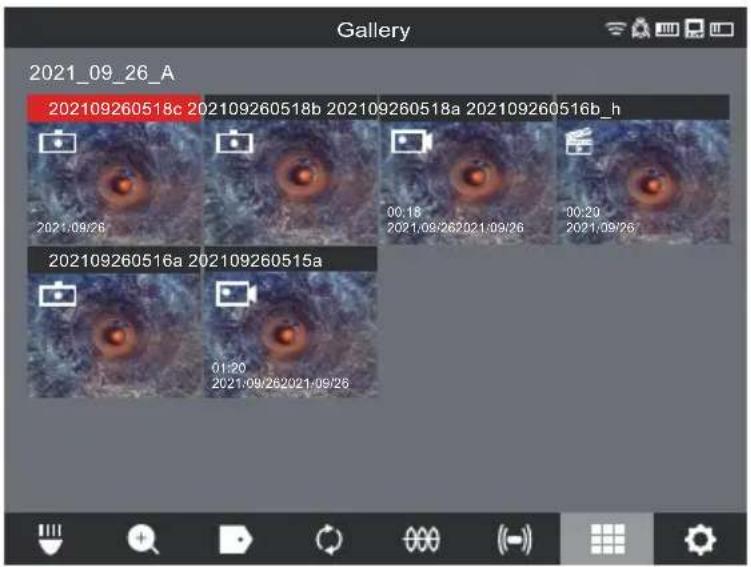

When entering the job folder, the individual files are shown with thumbnails. Each thumbnail shows an icon in the upper left corner. These icons represent a recorded video, a highlighted video and a JPEG picture.

Video file

A standard recorded video file

Highlighted Video file

A highlighted video file

JPEG file

A JPEG picture file

Options for files in the gallery include:

Playback		Plays back a recorded video file or views a jpg picture file
RW/FF		Rewind and fast forward
Trim		Edits the video length by selecting portions of the video to keep and portions to trim
Record Audio		Add audio comments on top of video files
Speaker Volume		Adjust the playback volume of video files
Export		Copies the files from the Control Hub Internal Drive to the Control Hub thumb drive or mobile device
Delete		Deletes the file(s) from the Control Hub Internal Drive or Control Hub thumb drive
Exit		Exits the Gallery menu and returns to the Job folder

2.3.11 Playback Highlights

When Labels (section 2.3.18) or audio comments (section 2.3.15) are added to recording videos via the internal microphone, these parts of the video where the label or audio was added are marked with a highlight marker in the video playback progress bar. These highlight markers are shown with a white bar in the playback progress bar.

Playback 00:00 / 00:40 Exit

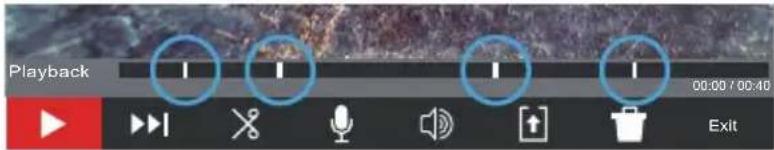

The progress bar with highlights shown

The highlighted files are shown in the gallery with the Scene Marker icon 📁 in the upper left corner of the thumbnail. The highlight video is a shorter length video because the video forwards fast while playing and only slows to normal speed when the highlighted segments with areas of interest are played.

This is extremely useful while reviewing videos as it shows a place of interest of comment in the video to fast forward or rewind.

2.3.12 Playing videos and viewing pictures

1. Turn the navigation dial to Gallery ☐, press the navigation dial to view the sub-menu.

Exit

Gallery sub-menu

1. Turn the navigation dial to the folder whose files are to be accessed, press the navigation dial.

2. Turn the navigation dial to select a file, press the navigation dial.

Play a video file – Select the video file using the navigation dial, press the dial to start the playback. Use the pause function to pause and resume playing the video file.

Viewing a picture file – Select the picture file using the navigation dial and press the navigation dial to view the picture.

1. When finished viewing the video or picture, rotate the navigation dial to Exit and press the navigation dial to return to the folders sub-menu. Use the back key to return to the main viewing screen.

2.3.13 Rewind and Fast Forward

Use the rewind and fast forward feature to move through a playing video.

1. From the Gallery use the navigation dial to select a video to play, press the navigation dial.
2. Select the RW/FF (rewind/fast forward) ▶□□ menu option and press the navigation dial.

Playback 00:14 / 00:40 Exit

1. Turn the navigation dial clockwise to fast forward or counterclockwise to rewind. While turning the navigation dial, the red bar progress indicator shows the place in the video recording. Each turn of the navigation dial advances or rewinds the video.
2. Press the navigation dial again to return to the sub-menu, scroll to Exit and press the navigation dial to exit to the Gallery.

2.3.14 Trimming Video Files

Use the Trim feature to edit the length of a video and save it as a new file.

1. From the Job folder in the Gallery use the navigation dial to select the video file to Trim, press the navigation dial.
2. Select the Trim ✗ menu option and press the navigation dial.
3. Press Continue at the "Set desired beginning of clip message". Turn the navigation dial clockwise while watching the advancement of the video to select the Trim starting point, press the navigation dial.

Trim 2021/09/26 01:47:57 AM 9.3FT Set desired beginning of clip. Cancel Continue TRIM 00:00 / 00:40 Exit

1. Press Continue at the "Set desired end of clip" message. Turn the navigation dial counterclockwise while watching the advancement of the video to select the Trim ending, press the navigation dial.

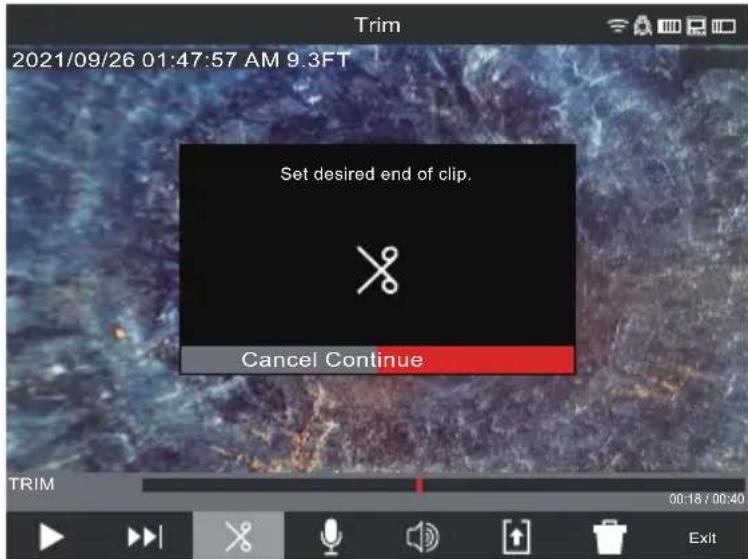

Set desired end of clip. Cancel Continue

1. Press Trim at the "Confirm trim" message, this will create a new trimmed video.

2 M18 ^TM Wireless Monitor

2021/09/26 01:47:57 AM 9.3FT Confirm trim? This will create a new file. Cancel Trim TRIM 00:18 / 00:36 Exit

1. Use the on-screen keyboard to enter the new file name, when finished with the new file name navigate to Enter and press the navigation dial.

202109260515a0101 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Space 1 2 3 4 5 6 7 8 9 0 . , - ? ! Delete Enter

1. Now select Save to save the new trimmed file. A dialog box will appear showing the file saving progress.

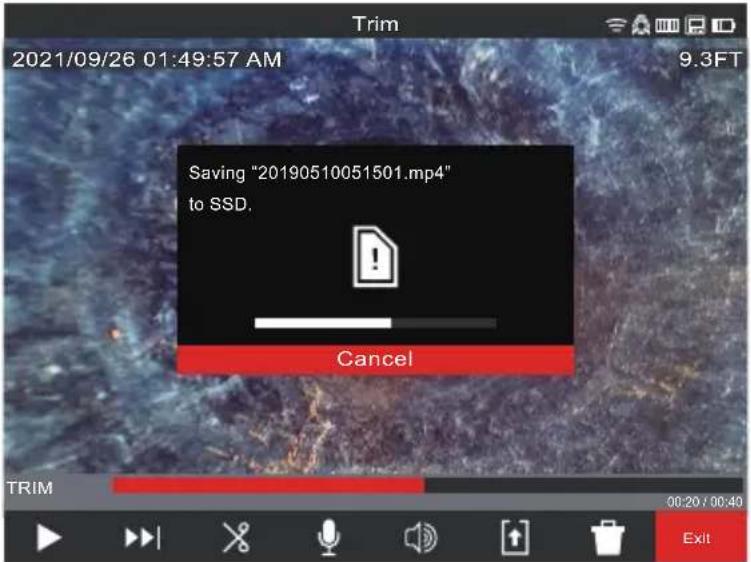

2021/09/26 01:49:57 AM Saving "20190510051501.mp4" to SSD. Cancel TRIM 00:20 / 00:40 Exit

1. The new trimmed file is now placed in the same Job folder as the original file.

2.3.15 Recording Audio

This feature adds audio comments to recording videos or to existing videos already in the gallery. This is useful to add audio annotations to accompany any labels used in the video or if something new was spotted during the review of the video. When adding annotations to an existing video file, the original file will remain the same, and a new file will be created with the annotations. You will have to name this new file at the end of the procedure.

Note that any Highlights from the original video will not be saved in the newly created video you are adding an audio comment to.

1. From the Gallery select the desired video to add annotations to.
2. Select Play ▷ to watch the video, press Pause □ at the spot to add the annotation. Use the RW/FF ▶ feature to reach highlighted parts of the video.
3. Turn the navigation dial to the Record Audio 📋 icon and press navigation dial to activate the microphone. Note that the Microphone Button will glow red when active.
4. Speak clearly facing the internal microphone (located in the top left corner of the M18 ^™ Wireless Monitor) and be in the range of 48 inches from it.
5. Press the navigation dial again (which is currently on Microphone) to deactivate the microphone.
6. Turn the navigation dial to select Save & Exit, press the navigation dial.
7. Select OK on the message to set a name for the new annotated file.
8. Use the on-screen keyboard to enter a name for the file, navigate to and select Return, then select Save.
9. Wait for the progress indicator to run until completed.

2.3.16 Speaker Volume

The Speaker Volume can be adjusted during video playback and while editing videos.

1. From the Gallery select the desired video.
2. Use the navigation dial to select Speaker Volume, press the navigation dial.
3. Use the navigation dial to set the Speaker Volume, then press the navigation dial and the system will return to the video sub-menu.

2.3.17 Delete Files

From within the Gallery individual files can be deleted one at a time.

From the Settings ☐ menu, select Manage Jobs and entire folders of jobs can be deleted in one session.

Deleting files from the Gallery

1. From the Gallery ☐ select the desired Job folder, then desired video folder from within the Job.
2. Use the navigation dial to select Delete ☐, press the navigation dial.
3. Acknowledge the deletion pop up message by pressing the navigation dial when Delete is selected.

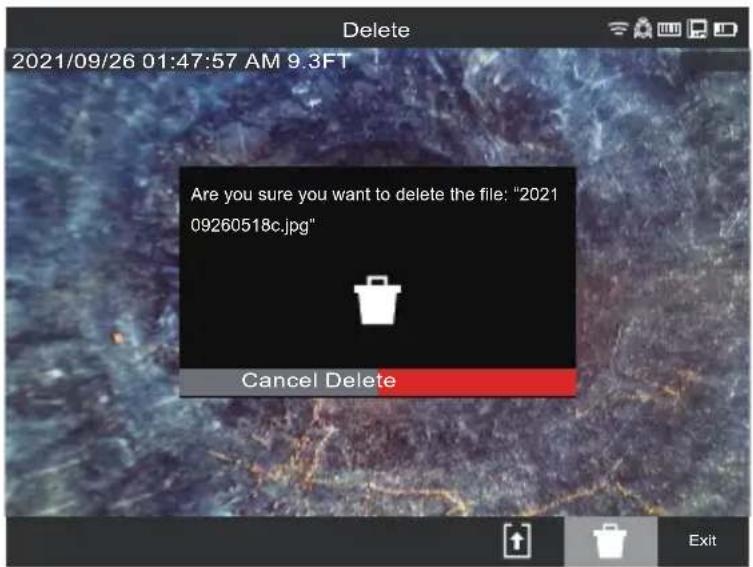

Delete 2021/09/26 01:47:57 AM 9.3FT Are you sure you want to delete the file: "2021 09260518c.jpg" Cancel Delete Exit

The file has been deleted, and the system returns to the gallery sub-menu.

Deleting Files from within the Settings menu

1. From the main viewing screen, turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Mange Job, press the navigation dial.
3. Turn the navigation dial to Delete Job, press the navigation dial.
4. Turn the navigation dial to select the Job to delete, press the navigation dial.
5. Acknowledge the deletion pop up message by pressing the navigation dial when Delete is selected.

Delete 2021/09/26 01:47:57 AM 9.3FT Are you sure you want to delete the file: "2021 09260518c.jpg" Cancel Delete Exit

The Job folder and files within it have been deleted, and the system returns to the Manage Jobs sub-menu. Press the Back key to exit the sub-menu, press again to return to the main viewing screen.

2.3.18 Using Labels

Labels are predefined observations that are splashed on the screen and appear in recorded videos and captured pictures. When a Label is selected, it will appear on the screen for 15-seconds and then disappear.

Labels Add Custom Frequency Label BELLIED PIPE CONNECTING PIPE CRACKED PIPE OFFSET JOINT/MISALIGNED ROOTS TEE All Labels BELLIED PIPE CONNECTING PIPE CRACKED PIPE OFFSET JOINT/MISALIGNED ROOTS TEE

Labels 2021/09/26 01:47:57 AM 9.3FT BELLIED PIPE 2021 09 26 A

List of created Labels The Label shown splashed on the screen

In the Labels sub-menu, the option of Add Custom allows the creation of a new label. Also shown on the screen is the list of Frequently Used and All Labels.

After a label is used more than five times, it will automatically be added to the Frequently Used list of labels.

Creating and saving a new label

1. Turn the navigation dial to the Settings ⚙️ option, press the navigation dial to enter the Settings sub-menu.
2. Turn the navigation dial to the Labels Settings option, press the navigation dial to enter the sub-menu.
3. Select Add Custom and press the navigation dial.
4. Use the navigation dial to navigate the on-screen keyboard pressing the navigation dial to accept each keyboard character.
5. When finished with the label, navigate to the Enter key and press the navigation dial.

BELLIED PIPE_A A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Space 1 2 3 4 5 6 7 8 9 0 . . - ? ! Delete Enter

1. Select Save or Cancel to the confirmation message and press the navigation dial to continue.

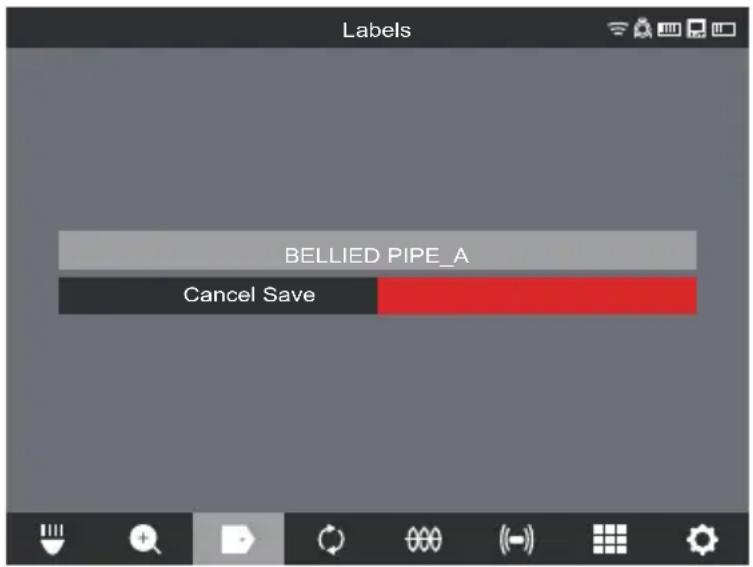

BELLIED PIPE_A Cancel Save

The label now appears in the All Labels list and is available to use with the Labels option from the main viewing screen

1. Press the Back ← key to return to the Labels sub-menu, press again to return to the main viewing screen.

Editing labels

Previously created Labels can be edited or deleted with this option.

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Labels Settings, press the navigation dial to enter the sub-menu.
3. Select Edit Labels and press the navigation dial.

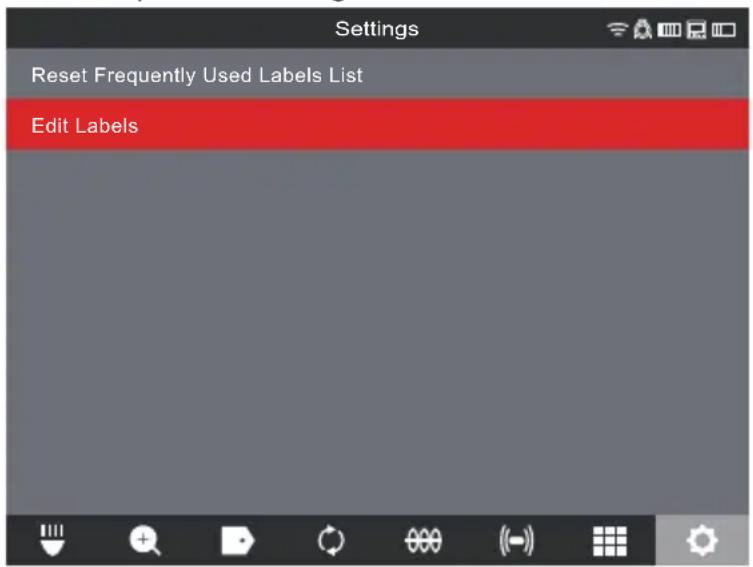

Settings Reset Frequently Used Labels List Edit Labels

1. Use the navigation dial to navigate to and select the label for editing or deletion, press the navigation dial.
2. Select Edit or Delete and press the navigation dial.

Editing – will bring up the on-screen keyboard, make the edits and navigate to the Enter key, press the navigation dial, then select Save to save the label changes.

Follow the instructions under "Creating and saving a new label" to edit and save.

Delete – Will delete the label from memory.

2 M18 ^TM Wireless Monitor

1. Press the Back ← key to return to the Labels sub-menu, press again to return to the main viewing screen.

Reset Frequently Used Labels List

This will remove previously used labels currently in the Frequently Used Labels List.

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.

2. Turn the navigation dial to the Labels Settings option, press the navigation dial to enter the sub-menu.

Select Reset Frequently Used Labels List and press the navigation dial.

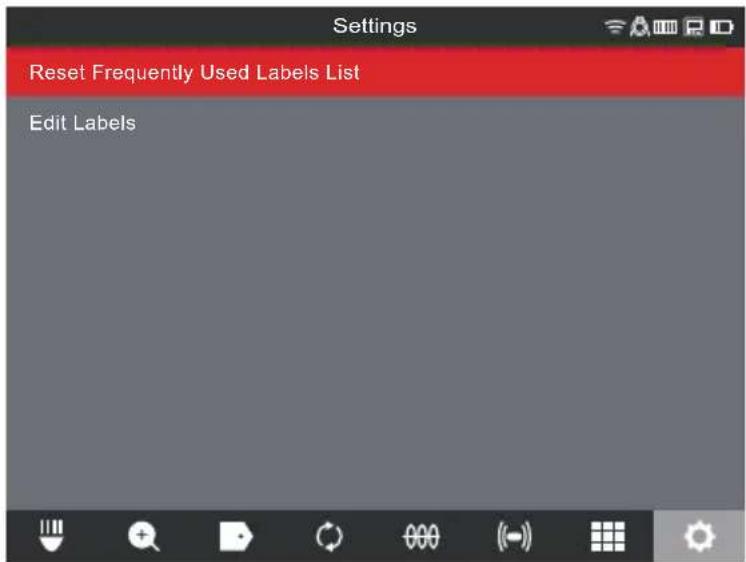

Settings Reset Frequently Used Labels List Edit Labels

1. Acknowledge the on-screen message by pressing the navigation dial again or turn the navigation dial to select Cancel.

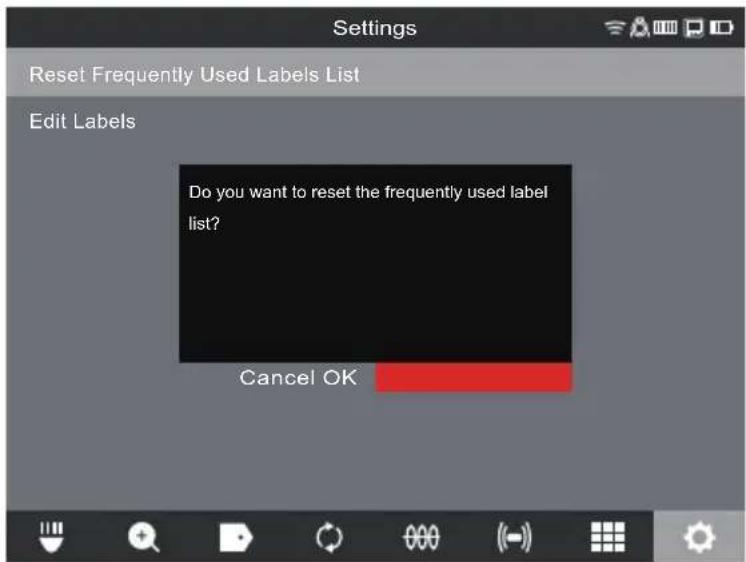

Settings Reset Frequently Used Labels List Edit Labels Do you want to reset the frequently used label list? Cancel OK

2.4 Factory Reset & Firmware Updates – M18™ Wireless Monitor

2.4.1 Factory Reset - M18™ Wireless Monitor

Performing a factory reset will reset the M18 ^™ Wireless Monitor to the factory defaults. On the Wireless Monitor, the functionality that will reset to the factory default will be:

• Backlight settings back to default
• Wireless Monitor /Control Hub connection settings

• System language

• Turn the navigation dial to Settings ⚙️, press the navigation dial.

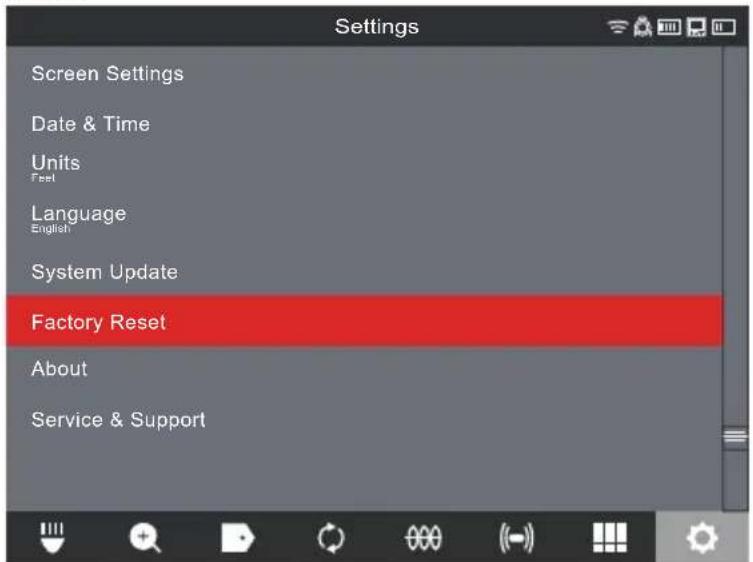

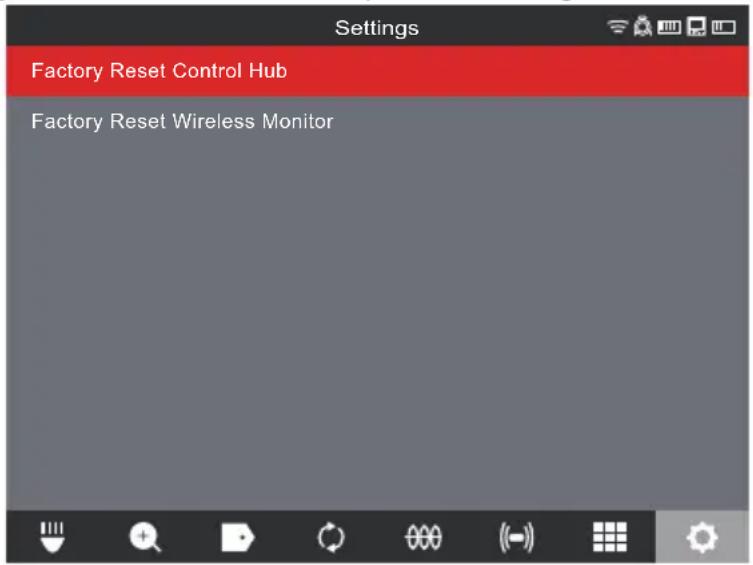

• Turn the navigation dial to Factory Reset press the navigation dial to enter the sub-menu.
• Select Factory Reset Wireless Monitor and press the navigation dial.
• Read and acknowledge the factory reset message by selecting OK.

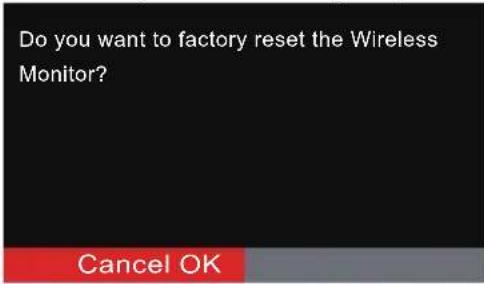

Do you want to factory reset the Wireless Monitor? Cancel OK

The factory reset is now complete, and the system is returned to the Factory Reset sub-menu.

2.4.2 Firmware Updates – M18 ^TM Wireless Monitor

Firmware updates are periodically released to introduce new features and optimizations. Before updating a system, go to the About section (found at the bottom of the Settings menu) of the Settings menu and make a note of the current firmware revisions in the system.

Screen Settings Date & Time Units Feet System Info Langu English Wireless Monitor Serial Number: 1029384756 Wireless Monitor Firmware Version: 1.2.0.0 Syste Facto Control Hub Serial Number: 102938B553 Control Hub Firmware Version: 1.2.0.1 Abou Dismiss Service & Support

System information is shown in the About screen

Firmware updates are found at www.milwaukeetool.com.

1. Go to the Milwaukee® website and click the SUPPORT link, then click on MANUALS AND DOWNLOADS.
2. Enter the CATALOG NUMBER, which can be found on the front cover of this manual, in the search box.
3. Select SOFTWARE DOWNLOAD and then click on GO.
4. Drag the downloaded firmware update file onto a USB thumb drive or right mouse click and select copy, then paste the firmware update file to a USB thumb drive.
5. Insert the USB stick containing the firmware update into the M18 ^™ Wireless Monitor's USB port.
6. Turn the navigation dial to Settings ⚙️, press the navigation dial.
7. Turn the navigation dial to the System Update option, press the navigation dial to enter the sub-menu.
8. Select Wireless Monitor and press the navigation dial. The file name of the update should be seen in this window.

Press the navigation dial when the update file is highlighted in red to begin the update.

Settings MTCam_monitor.bin

Update files end with a .bin file extension

1. Read and acknowledge the warning message by selecting OK.

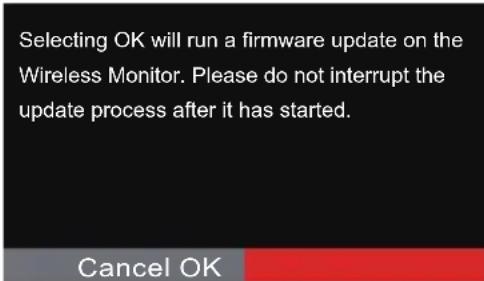

Selecting OK will run a firmware update on the Wireless Monitor. Please do not interrupt the update process after it has started. Cancel OK

1. A progress indicator will appear showing the progress of the update.

1. A confirmation message will appear when the update is complete, and the system will reboot.

The Wireless Monitor will now restart in order to complete the firmware update. OK

1. Go to the About option in the Settings menu to confirm that the firmware revision numbers have updated.

3. M18™ 500GB Control Hub

3.1 Overview

Milwaukee ① ② ③ ④ ⑤a ⑤b ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑫

Cross-sectional view of a red and black robotic device with internal components (no text or symbols visible)

Reference	Description
1. Handle
2.	Control Hub lock release button – push to unlock the Control Hub assembly from the Pipeline Inspection Reels
3. Power button - Press to turn on, press and hold to turn off
4. Distance reset button – resets the distance of deployed push cable to Zero
5.	USB compartment cover – is a watertight cover to keep debris out of the compartment.5a USB-A port - for direct saving of videos and pictures and to perform firmware updates.5b USB-C port – optional for supplying power and data between the Wireless Monitor and Control Hub.
6.	Grounding post – to ground the Control Hub to earth while tracing push cable
7.	Battery compartment cover-is awatertightcovertokeepdebrisoutofthe compartment.
8. Battery compartment – for M18TM Battery
9. M18TM Battery
10.	Spring locking clip - holds the spring and camera in place during transportation
11.	Spring recess – keeps the spring and camera in place during transportation and storage.
12.	Cable guide – feed the spring and push cable through the guide before locking the Control Hub in place
13.	Camera test port – is a troubleshooting tool for isolating the camera head's performance

3.2 Installing and removing the M18™ 500GB Control Hub

Installing the M18™ 500GB Control Hub

1. Grasp the Control Hub by the handle and present it to the Pipeline Inspection Reel.
2. On the back of the reel, turn the push cable drum brake locking knob counterclockwise to unlock it.
3. Reach into the reel and grab the spring termination assembly.
4. Feed the spring and one foot of push cable through the cable guide.
5. Push the Control Hub into the Pipeline Inspection Reel until the locking click sound is heard.
6. Push the push cable and spring termination back into the Pipeline Inspection Reel until the spring lines up with the spring holder.
7. Push the spring into the spring locking clip.

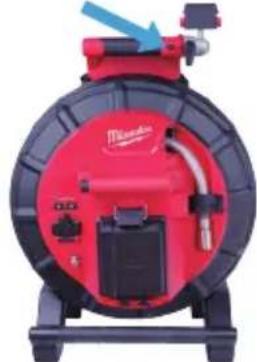

Mechanical device with red and black components, showing a blue arrow indicating transformation from left to right (no text or symbols visible)

Service Note - Dielectric grease is applied between the Hub-to-Reel connections in the Hub before the unit is shipped. Over time it may be necessary to re-apply this grease especially if you suspect any Hub-to-Reel connectivity issues or image quality issues.

Use Milwaukee type X Dielectric Grease (Part#: 49-08-5000) or equivalent to apply beads of grease to the Hub terminals as shown below. After adding the grease insert and remove the Hub a few times to adequately coat the terminals.

Close-up of a hand inserting a plastic tube into a black plastic container (no visible text or symbols)

Top-down view of a mechanical device with internal compartments and a handle (no visible text or symbols)

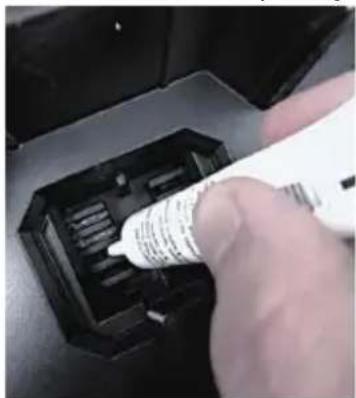

Apply dielectric grease to the Hub terminals

Removing the M18™ 500GB Control Hub

1. On the back of the reel, turn the push cable drum brake locking knob counterclockwise to unlock.
2. Remove the spring from the spring holder.
3. Push the push cable and spring into the push cable drum.
4. Press the unlock button and remove.

Red industrial machine component with blue arrow pointing to a component (no visible text or symbols)

3.3 Using the M18™ 500GB Control Hub

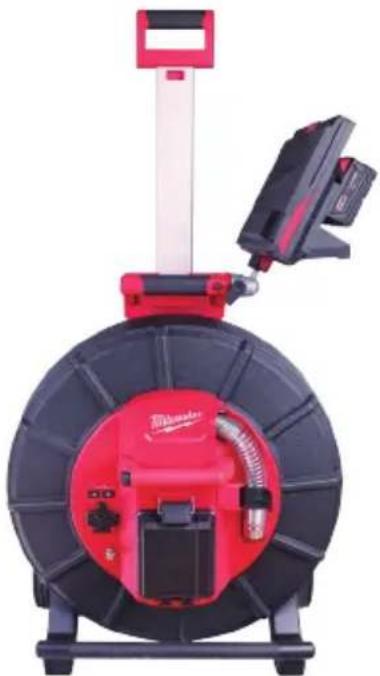

⚠WARNING Recharge only with the charger specified for the battery. For specific charging instructions, read the operator's manual supplied with your charger and battery.

3.3.1 Power on/off

Press the Power ① button on the M18™ 500GB Control Hub. The buttons on the Control Hub will illuminate, showing that the power is on. The Control Hub symbol will appear in the status bar of the M18™ Wireless Monitor along with the Control Hub's battery state.

3.3.2 USB Ports

Port Type Illustration Purpose
USB-A Port		The USB-A port is the day to day use port. It allows for direct recording of video and picture files or transferring files from the M18TM 500GB Control Hub Internal Drive.This drive is also used to perform firmware updates to Control Hub.
USB-C Port		The USB-C port is used for:Connecting the M18TM Wireless Monitor to the M18TM 500GB Control Hub bypassing a Wi-Fi connection.Power the M18TM 500GB Control Hub from the M18TM Wireless Monitor when no battery is present in the Hub or vice versa.

3.3.3 Grounding Post

The grounding post must be used while using the Line Trace feature to trace push cable. The M18™ 500GB Control Hub must be grounded to close the current loop to send out a good locate signal. Use the supplied grounding cable assembly with ground stake to ground the Control Hub to earth.

Control Hub grounding assembly A Grounded M18™ 500GB Control Hub

3.3.4 Distance Counter Reset

As the Pipeline Inspection Reel rotates, the distance of push cable deployed is shown on the status bar of the Wireless Monitor in Feet and 10th of an inch or Meters and 10th of a meter. When pulling back the push cable if the counter passes "0" it will begin to count in negative footage. For example -1.0FT, -2.0FT.

There are two methods to reset the distance count.

Press the Distance Reset 📄 button on the M18™ 500GB Control Hub or M18™ Wireless Monitor and the distance shown in the Wireless Monitor will reset to "0".

3.3.5 Camera Test Port

As a troubleshooting tool, on the rear of the M18™ 500GB Control Hub, a Camera Test Port is available. If ever any camera head problems occur, the user can isolate the camera head from the rest of the system for troubleshooting.

Close-up of a mechanical component with a red-handled tool inserted, showing a bolted joint and a circular button (no text or symbols visible)

Remove the four combination head screws to access the camera test port

1. With the Control Hub powered off, remove it from the reel.
2. On the rear of the Control Hub, remove the four combination head screws from the camera test port cover.
3. Screw the camera head onto the male threads of the test port. Hand tighten only.
4. Power on the Control Hub.
5. Power on the M18™ Wireless Monitor or tablet running the Milwaukee ^® Pipeline Inspection App, and connect to the Control Hub checking for picture and control of the cameras LED's.

3.4 Formatting the M18™ Control Hub Internal and Thumb Drives

This setting allows the formatting of the M18™ 500GB Control Hub's Internal 500GB Drive or a USB thumb drive. The system requires that USB thumb drives be formatted in the FAT32 file system.

Any new thumb drives should already be formatted in FAT32 but if the Control Hub does not recognize the USB Thumb Drive follow the below instructions making sure to select

Control Hub Thumb Drive. Alternatively, a USB thumb drive can be formatted in a desktop PC or laptop. See the end of this section on instructions on how to do this.

Formatting the M18™ Control Hub or Thumb Drives

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Format Disk, press the navigation dial to enter the sub-menu.
   Select the Control Hub Internal Drive (Hub SSD) or the Control Hub Thumb Drive (Hub USB) and press the navigation dial.

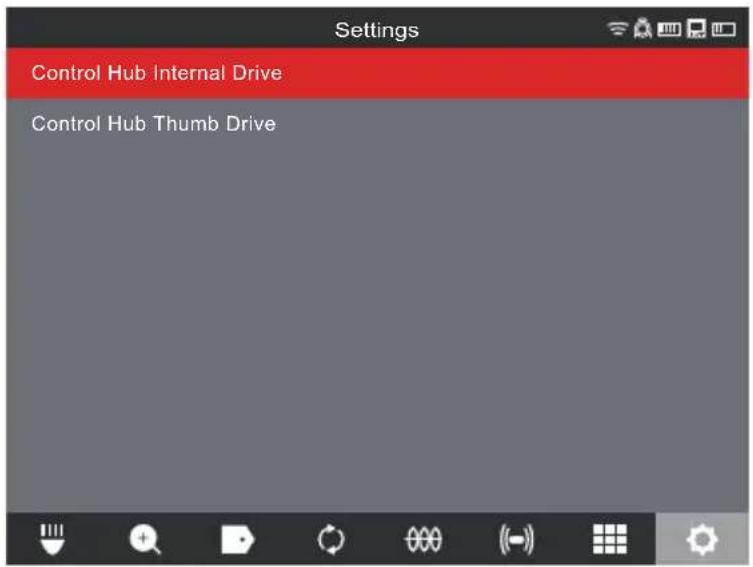

Settings Control Hub Internal Drive Control Hub Thumb Drive

1. Press the navigation dial and accept the on-screen message to continue.

Settings Control Hub Internal Drive Control Hub Thumb Drive Are you sure you want to delete all files on the disk: "Control Hub Internal Drive" Cancel Erase

1. The selected drive will be formatted, and the system will return to the Settings menu.
2. Press the Back to return to the main viewing screen.

Formatting USB thumb drives in a desktop PC or laptop

1. Insert the USB thumb drive into the PC or laptop
2. Right mouse click on the USB thumb drive and select Format
3. Select FAT32 under File System

Devices and drives (2) OS (C:) USB (F:) 63.8 GB free of 456 GB 7.40 GB free of 7.40 GB

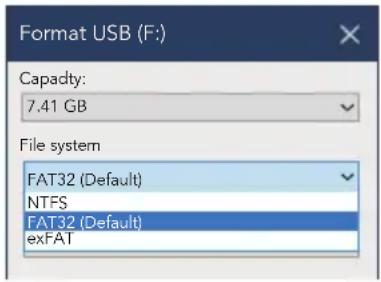

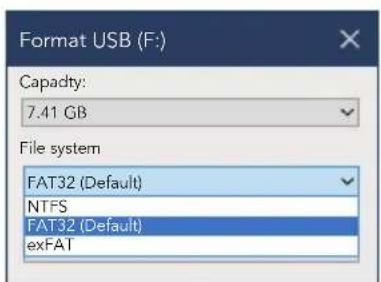

Format USB (F:) Capacity: 7.41 GB File system FAT32 (Default) NTFS FAT32 (Default) exFAT

1. Click Start. Acknowledge the warning message by clicking OK

2. The file format procedure will run and when finished the Format Complete message will appear.

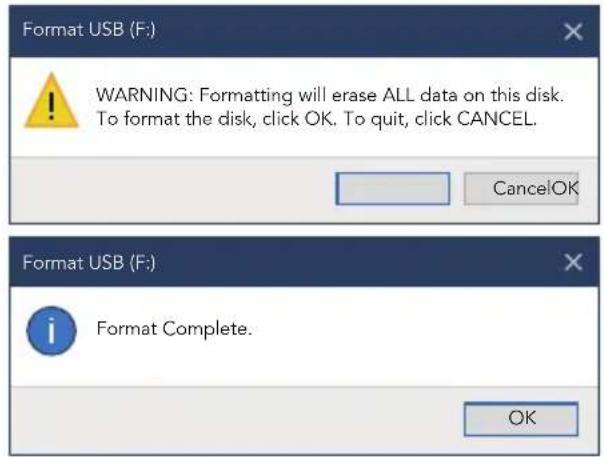

Format USB (F:) WARNING: Formatting will erase ALL data on this disk. To format the disk, click OK. To quit, click CANCEL. Cancel OK Format USB (F:) Format Complete. OK

3.5 Factory Reset & System Update – M18™ 500GB Control Hub

These two tasks can be accomplished by using the M18 ^™ 500GB Control Hub and M18 ^™ Wireless Monitor or a tablet running the Milwaukee ^® Pipeline Inspection App.

3.5.1 Factory Reset - M18™ 500GB Control Hub

Performing a factory reset will reset the M18 ^™ 500GB Control Hub to the factory defaults. In the Control Hub, the functionality that will reset to the factory default will be:

• Labels will be erased
  • Video and Image settings back to default :1080p
  • The Company Name is removed
• Sonde frequency back to default
  • Line Trace back to default
• Screen Settings back to default: Hue, Brightness, Contrast, Saturation.

• Units of measure

• On the M18™ Wireless Monitor, turn the navigation dial to Settings ⚙️, press the navigation dial. Turn the navigation dial to Factory Reset, press the navigation dial to enter the sub-menu.

Settings Screen Settings Date & Time Units Feet Language English System Update Factory Reset About Service & Support

1. Select Factory Reset Control Hub and press the navigation dial.

Settings Factory Reset Control Hub Factory Reset Wireless Monitor

1. Read and acknowledge the Reset message by selecting OK.

Do you want to factory reset the Control Hub? Cancel OK

The factory reset is now complete, and the system is returned to the Factory Reset sub-menu.

3.5.2 System Update - M18™ 500GB Control Hub

Firmware updates are periodically released to introduce new features and optimizations. Before updating a system, go to the About section of the Settings menu and make a note of the current firmware revisions in the system.

Firmware updates can be performed with the M18 ^™ Wireless Monitor or tablet running the Milwaukee ^® Pipeline Inspection App.

Firmware updates are found at www.milwaukeeetool.com.

1. Go to the Milwaukee ^® website and click the SUPPORT link, then click on MANUALS AND DOWNLOADS.
2. Enter the CATALOG NUMBER, which can be found on the front cover of this manual, in the search box.
3. Select SOFTWARE DOWNLOAD and then click on GO.
4. Drag the downloaded firmware update file onto a USB thumb drive or right mouse click and select copy, then paste the firmware update file to a USB thumb drive.
5. Turn on both the M18 ^™ 500GB Control Hub and M18 ^™ Wireless Monitor or tablet running the Milwaukee ^® Pipeline Inspection App.

3 M18 ^TM 500GB Control Hub

1. Check that the Wireless Monitor or tablet running the Milwaukee® Pipeline Inspection App is connected to the Control Hub by Wi-Fi. If it is not connected, you will need to connect it.
2. Insert the USB thumb drive containing the firmware update into the Control Hub's USB-A port.
3. Turn the navigation dial to Settings ⚙, press the navigation dial.
4. Turn the navigation dial to System Update, press the navigation dial to enter the submenu.

Settings Screen Settings Date & Time Units Feet Language English System Update Factory Reset About Service & Support

1. Select Control Hub and press the navigation dial. The filename of the update should be seen in this window. Press the navigation dial to begin the update.

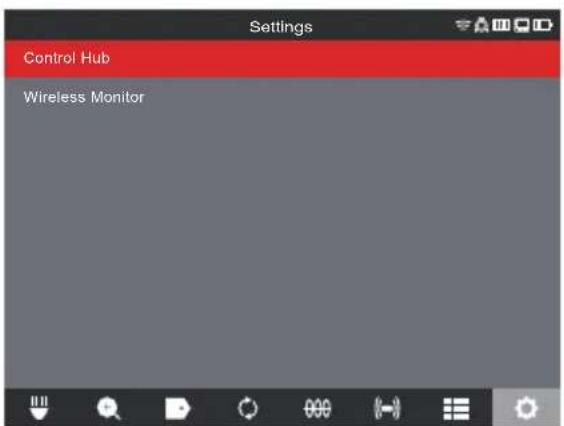

Settings Control Hub Wireless Monitor

Settings MTCam_hub.bin

Select Control Hub The firmware update is shown

1. Read and acknowledge the warning message by selecting OK.

Selecting OK will run a firmware update on the Control Hub. Please do not interrupt the update process after it has started. Cancel OK

1. A progress indicator will appear showing the progress of the update.

1. A confirmation message will appear when the update is complete. Select OK to reboot the system.

The Control Hub was successfully updated and it will be restarted. OK

1. Go to the About option in the Settings menu to check that the firmware revision numbers have updated.

4. Pipeline Inspection Reel

4.1 200' Mid-Stiff, 200' and 325' x Stiff Pipeline Inspection Reel Overview

Labeled diagram of a mechanical device with numbered components for identification

Labeled diagram of a portable electric vehicle with numbered parts for identification

Reference	Description
1. Retractable handle (shown in the lowered position)
2. Retractable handle lock and release button
3. Push cable drum and push cable
4. Vertical position feet
5. Wireless Monitor rotation lock
6. Tilt lock
7. Wireless Monitor mount/Tablet Mount connector
8. Wireless Monitor mount swivel
9. Horizontal position feet
10. Push cable drum brake
11. Wheels

4.2 120' Mid-Stiff Pipeline Inspection Reel Overview

Labeled diagram of a mechanical device with numbered parts for identification

Labeled diagram of a tire accelerator with numbered parts for identification

Reference	Description
1. Handle
2. Push	cable drum and push cable
3. Vertical position feet
4. Wireless Monitor rotation lock
5. Wireless Monitor tilt lock
6. Wireless Monitor/Tablet Mount connector
7. Wireless Monitor mount swivel
8. Horizontal position feet
9. Push	cable drum brake

4.3 Installing the Backpack Plate

The 120' Pipeline Inspection Reel comes with a backpack mounting plate which allows the reel to be carried as a backpack. This is useful for transporting the small reel to and from the job site. This is extremely helpful for climbing stairs or ladders.

NOTICE Use care when transporting this tool when the reel and backpack are connected. Tipping may occur.

The rear of 120' Pipeline Inspection with backpack plate installed	Backpack plate side view	Backpack plate rear view
1. Release lever 2. Top mounting	ting plate3. Bottom retaining hooks	4. Male mounting post

Removing the backpack plate

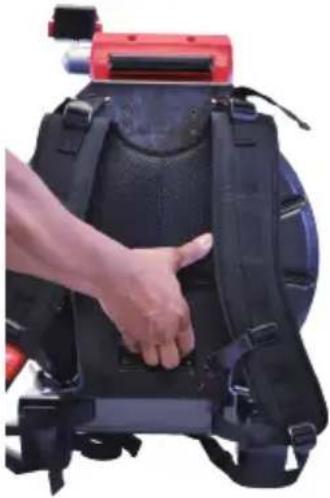

1. Lift the release lever to unlock the backpack plate.
2. Pull the bottom of the backpack plate away from the reel and downward in one motion.

4 Pipeline Inspection Reel

Installing the backpack plate
1. Push the top mounting plate into the reels top mounting receptacle.
2. Now push the bottom of the backpack into the reel lining up the male mounting post.
3. Push with the palm of the hand against the bottom of the backpack until it locks in place. Give a slight tug to make sure that it is locked in place.

4.4 Mounting the M18™ Wireless Monitor

The M18 ^™ Wireless Monitor or Tablet Mount can be mounted on both the mini and standard size Pipeline Inspection Reels. Once mounted, the monitor or tablet can be adjusted for the best viewing angle in both vertical and horizontal positions.

WARNING

To reduce the risk of short circuit, when setting tool or battery down, battery to contact corrosive or conductive fluid.

Mount receptacle on the bottom of Wireless Monitor and Tablet Mount	Wireless Monitor and Tablet Mount on Pipeline Inspection Reel
1. Line up the Wireless Monitor or Tablet Mount mounting receptacle with the mounting block on the Pipeline Inspection Reel.	2. Lower in place and press until the locking click is heard.

Adjust the viewing angle of the Wireless Monitor:

1. Loosen the adjustment arm by turning the arm clockwise.	2. Move the Wireless Monitor to the desired angle.3. Tighten the adjustment arm counterclockwise until tight.

Adjust the tilt angle of the Wireless Monitor:

1. Press the locking tilt button to unlock the adjustment block.	2. Turn the mounting block towards the opening of the drum until it locks in place.	3. Adjusting the tilt angle is useful when using the reel in the horizontal position.

4.5 Using the Pipeline Inspection Reel

⚠WARNING Use latex or rubber gloves, goggles, face shields, protective clothing, and respirator when chemicals, bacteria or other toxic or infectious substances are suspected to be in a drain line. Drains may contain chemicals, bacteria and other substances that may cause burns, be toxic or infectious or may result in other serious personal injury.

⚠ WARNING To reduce the risk of explosion, electric shock and property damage, always check the work area before beginning a job. Do not allow cable to contact electrical, chemical, or moving hazards.

Do not use the push cable to clear clogs or move obstructions. This is not a drain cleaner!

4 Pipeline Inspection Reel

1. Position the reel on a flat surface approximately three to six feet or one to two meters from the entry point. This will provide enough space to work with the push cable without a lot of slack dragging on the ground. Use the friction brake to slow down the movement of the push cable drum if needed.
   Using the reel in a horizontal position makes the width between the feet greater. This will give the reel more stability if on uneven surfaces and will lower the height when in confined spaces.
2. Unlock the spring then loosen the friction brake so that the push cable drum can spin.
3. The push cable is now ready to be deployed into the pipe.

4.6 Push Cable

Check Push Cable for Wear - Visually inspect the push cable for cuts, kinks, and abrasions as it is retrieved back into the cable cage. If the jacket is cut or worn to the point that the yellow or white Kevlar braid can be seen, then it is time to replace the push cable. Using the push cable with open cuts will result in water and moisture entering the push cable and eventually traveling through it, causing a degraded camera image, or total image failure.

The push cable sections shown below are examples of badly worn jackets. Push cable such as this should be replaced as soon as possible.

Image showing a red circle with an 'X' symbol crossed out by two dark metal rods, indicating a crossed-out or incorrect signal.

⚠WARNING To reduce the risk of fire, personal injury, and product damage, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them. Always remove battery pack before cleaning.

Keep the Push cable and Termination Spring Assembly dry and clean – When retrieving the push cable keep a clean, dry rag in one hand and wipe down the push cable as it moves through it. At the end of the day, use low-pressure water to rinse off the camera head and rinse away accumulated dirt and debris that may be caught in the spring. Shake dry or use low-pressure air to blow the excess water away and dry off the parts. The Camera Head, Push Cable and Termination Parts are exposed to very harsh chemicals in day-to-day use. Keeping a clean system will help prolong the life of these parts.

Maintain proper control of the push cable – Attempting to pull the push cable out of the reel while the reel is locked will result in the push cable collapsing in the reel and stressing the push cable. Pushing the push cable back into the reel while it is locked may cause the reel to tip over or kink the cable.

5. Camera Heads and Spring Assembly

5.1 Camera Heads

The 200' and 325' Stiff Pipeline Inspection Reels comes with a 34mm diameter camera head and the 120' and 200' Mid-Stiff Pipeline Inspection Reels come with a 25mm diameter version. A custom camera wrench is provided for their removal and installation. Both camera heads are provided with a plastic protective cover. Always use the protective cover while using the Pipeline Inspection Reel.

Face: 34mm 25mm
		1. Polycarbonate LED cover2. Sapphire glass lens

Body:	34mm	25mm
			1. Main Housing2. Serial number location3. Wrench Flats

Rear: 34mm 25mm
		1. Connecting contact pins2. Internal base threads

A custom camera wrench is supplied with the Pipeline Inspection Reel. Use the wrench to tighten and remove the spring assembly and camera head.

Pure black mechanical wrench symbol without any text or labels

NOTICE Do not overtighten or use excessive force!

Custom Camera Wrench

5.2 Parts of the Spring Assembly

The spring assembly is comprised of the parts that connect the camera head on one end to the push cable on the other. The reel end of the assembly has wrench flats for removal and installation.

The spring termination assembly consists of an all-in-one spring, coiled cable assembly, and steel lanyard.

Spring Assembly

Reel End 120'/200' Mid-Stiff Pipeline Inspection Reel Spring Assembly Camera End

Reel End 200'/325' Stiff Pipeline Inspection Reel Spring Assembly Camera End

Close-up of a coiled metal spring with no visible text or markings

5.3 Removing and Installing the Camera Heads

NOTICE Avoid touching the green circuit board or gold pins on the spring assembly or camera head with bare hands. Touching these will transfer oils from the fingers to these components, which may lead to premature corrosion. Wear clean, dry rubber gloves if possible.

5.3.1 Camera Head Removal

Before removing the camera head, wipe it dry, and remove any dirt that may fall into the camera connection areas.
1. Grasp the spring assembly close to the base of the camera head.
2. Use the camera wrench to loosen the camera head by turning in a counterclockwise direction.
3. After the camera head is loose, continue to unscrew the camera until removed.
Place the camera head in an area where the contact pins will not be damaged.

5.3.2 Camera Head Installation

1. Grasp the spring assembly close to the camera head end of the spring assembly.
2. Slowly screw on the camera head in a clockwise direction, being careful not to cross thread the connections.
3. Use the supplied wrench to tighten the camera head.NOTICE Do not overtighten or use excessive force!

5.4 Removing and Installing the Spring Assembly

NOTICE Avoid touching the green circuit board or gold pins of the spring assembly or camera head with bare hands. Touching these will transfer oils from the fingers to these components, which may lead to premature corrosion. Wear clean rubber gloves if possible.

5.4.1 Spring Assembly Removal

Before removing the spring assembly, wipe it dry and remove any dirt that may fall into either end of the spring's connections.
Remove the camera head following the instructions shown in 5.3.1
1. Grasp the sonde compartment at the base of the termination area where it connects to the push cable.
2. With the other hand, use the supplied wrench to loosen the spring assembly.
3. After the spring assembly is loose, continue to unscrew counterclockwise until removed.
Place the spring assembly in an area where the contact pins will not be harmed.

5.4.2 Spring Assembly Installation

1. Grasp the sonde compartment at the base of the termination area where it connects to the push cable.
2. Slowly screw the spring assembly on in a clockwise direction being careful not to cross thread the connections.
3. Use the supplied wrench to tighten.
4. The spring assembly is installed correctly when the Black O-Ring at the base of the sonde compartment is no longer visible.NOTICE Do not overtighten or use excessive force!

5.5 Camera Skids and Protective Covers

Protective Covers – are covers that fit over the 25mm and 34mm camera heads. The protective covers are provided with all Pipeline Inspection Reel systems or replacement camera heads.

Skids – are devices that attach to the spring assembly to keep the camera head off the floor of the pipe and prevent the camera head from making direct contact with the pipe.

5.5.1 The Protective Covers

These instructions apply to both the 25mm and 34mm camera heads.
		1. Top half, (front)2. Locking tab3. Wrench flats4. Tab receptacle5. Screwdriver slot

5.5.2 Removing the Protective Covers

1. Insert a flat screwdriver into the slot and lift until the locking tab releases.
2. Place your thumb against the locking tab to prevent it from falling back into place while moving to the next tab to unlock it.
3. Remove the top portion of the protective cover..

5.5.3 Installing the Protective Covers

1. Place the rear half of the protective cover on the back of the camera head.
2. Twist the camera while pressing down so the cameras wrench flats line up and lock into the cover.
3. Lineuptheprotectivecoverlockingtabsand press the top half into the bottom half. Press until all the locking tabs have snapped into place, locking the cover in place.

5.5.4 Camera Skids

There are three skids available for both the 25mm and 34mm camera heads. A small 3" and medium 4" Barrel skid and a 4" Star skid.

25mm Barrel Skid 34mm Barrel Skid

Four black plastic mechanical components with different star-shaped features, shown from different angles (no text or symbols visible)

34mm Star Skid

Two identical black star-shaped mechanical components with no text or symbols

5.5.5 Installing the Barrel Skid

1. Fully open the camera skid, place the spring into the skid.Position the skid so that the camera is level.
2. Close the camera skid and pinch the fins together while pushing the screw into the hole.
3. Screw until tightened.NOTICE Do not overtighten or use excessive force!

5.5.6 Installing the Star Skid

The Star skid can be used in various configurations, alone or combined with the barrel skid.

1. Fully open the star skid, place the spring into the skid. Position the skid so that the camera is level.
2. Close the star skid and pinch the ends together while pushing the screw into the hole.
3. Screw clockwise until tightened.NOTICE Do not overtighten or use excessive force!
Alternate skid configurations

6. Service & Support

If any part of your Pipeline Inspection System should require service, you will find Milwaukee Tool's service page and support number in the Service & Support directory.

1. Turn the navigation dial to Settings ⚙️, press the navigation dial.
2. Turn the navigation dial to Service & Support, press the navigation dial to enter the directory

Settings Screen Settings Date & Time Units Feet Language English System Update Factory Reset About Service & Support

Federal Communications Commission (FCC)

Milwaukee Tool (Canada) Ltd

1.800.268.4015

Close-up of a black industrial machine with red handle and control panel (no visible text or symbols)

Exterior view of a black and white wheeled exercise machine with red handle (no visible text or symbols)

Top-down view of a black industrial fan or motor with red handle and central hub (no visible text or symbols)

Top-down view of a black and white industrial machine with red top component (no visible text or symbols)

1 Introduction

Close-up of a black industrial fan or pump device with a red-mounted sensor mounted on top (no visible text or symbols)

Industrial pump or motor device with red and black casing, no visible text or symbols

Top-down view of a black industrial fan or pump device with red handle and mounting bracket (no visible text or symbols)

Front view of a black and white industrial machine with red top and wheels (no visible text or symbols)

Labeled diagram of a device showing internal components and parts with numbered annotations

Aerial view of a circular orange object on a textured, dark surface, captured in Zoom Et Panoramique (no visible text or symbols)

Zoom standard Zoom X 2

Interior view of a circular pipe with a glowing orange core, captured via a camera interface (no text or symbols on the main subject)

Interior view of a circular pipe or canal with visible corrosion and a small object inside (no text or symbols)

Close-up of a circular, textured object with a bright orange core and dark outer ring, captured in a video frame (no readable text or symbols)

Grayscale aerial view of a circular water feature with a central orange glow, captured in a Pivoter application window (no text or symbols on the main image area)

Close-up of a circular, textured object with a central orange glow, captured in a Pivoter camera interface (no readable text or symbols on the object itself)

Aerial view of a circular orange object with concentric rings, captured in a photo editing interface (no readable text or symbols on the object itself)

Cross-sectional view of a red and black robotic device with internal components (no text or symbols visible)

Two mechanical devices, one red and one black, with a blue arrow indicating transformation or change (no text or symbols visible)

Close-up of a hand inserting a plastic bottle into a black plastic container (no visible text or symbols)

Top-down view of a mechanical device with internal compartments and a handle (no visible text or symbols)

Red industrial machine component with blue arrow pointing to a component (no visible text or symbols)

Close-up of a mechanical component with a red-handled tool inserted, showing a bolted joint and a circular sensor on the side (no text or symbols visible)

Devices and drives (2) OS (C:) USB (F:) 63.8 GB free of 456 GB 7.40 GB free of 7.40 GB

Format USB (F:) Capacity: 7.41 GB File system FAT32 (Default) NTFS FAT32 (Default) exFAT

Labeled diagram of a mechanical device with numbered components for identification

Labeled diagram of a portable electric vehicle with numbered parts for identification.

Labeled diagram of a mechanical device with numbered parts for identification

Labeled diagram of a tire accelerator with numbered parts for identification

Image showing a red 'X' symbol crossed out by a circle, indicating a crossed-out or blocked signal.

Pure black wrench tool icon without any text or symbols

Four black plastic mechanical components with different mounting features, shown from different angles (front, side, top, and front) against a white background.

Two identical black star-shaped mechanical components with no text or symbols

Milwaukee Tool (Canada) Ltd

1800268.4015

Lunes a viernes, de 7:00 AM a 4:30 PM CST

o visite www.milwaukeetool.ca

Close-up of a black industrial fan or pump device with red handle and control panel (no visible text or symbols)

Vista delantera Vista trasera

Exterior view of a black and white wheeled exercise machine with red top and silver side panel (no visible text or symbols)

1 Presentación

Top-down view of a black industrial fan or motor housing with red clamps and a central hub (no visible text or symbols)

Top-down view of a red and black industrial machine with circular wheels and a central vertical shaft (no visible text or symbols)

Close-up of a black industrial machine with red top and black body, no visible text or symbols

Exterior view of a red and black industrial pump or motor device (no visible text or symbols)

Top-down view of a black industrial machine with red handle and circular base (no visible text or symbols)

Top-down view of a Milwaukee industrial machine with black wheels and red head cover (no visible text or symbols)

Vista delantera Vista trasera

2. Monitor inalámbrico M18™

Exploded view diagram of a device with numbered parts for identification and assembly reference.

Close-up of a circular, textured object with a bright orange spot at center, captured in Aumentar Y Girar interface (no readable text or symbols)

Zoom normal Zoom X 2

Interior view of a circular, textured cylindrical structure with a central orange glow, captured by Aumentar Y Girar (no visible text or symbols on the main subject)

Interior view of a biological or geological structure with a central circular opening, captured in Aumentar Y Girar (no visible text or symbols)

Interior view of a dimly lit, textured tunnel or canal with visible erosion and a small object inside (no text or symbols)

Close-up of a circular orange object on a textured surface, captured in Girar window (no readable text or symbols)

Close-up of a circular, textured object with a central orange glow, captured in Girar software interface (no readable text or symbols on the object itself)

Close-up of a circular, textured object with a central orange glow, possibly a vortex or tunnel (no visible text or symbols)

Aerial view of a volcanic crater with concentric rings, captured on a digital interface (no text or symbols on the image itself)

Rastreo De Cable 2021/09/26 01:47:57 AM 9.3FT Apagado 33kHz 83kHz

33kHz Rastreo De Cable 2021/09/26 01:47:57 AM 9.3FT 2021_09_26_A

Close-up of a circular, textured object with orange glow, possibly a tunnel or vortex, captured in an outdoor setting (no readable text or symbols)

Cross-sectional view of a red and black robotic device with internal components (no text or symbols visible)

Mechanical device with red and black components, showing a blue arrow indicating transformation (no text or symbols visible)

Close-up of a hand inserting a plastic tube into a black plastic housing (no visible text or symbols)

Top-down view of a mechanical or electrical enclosure with internal compartments and a central water outlet (no visible text or symbols)

Red industrial machine component with blue arrow pointing to a component (no visible text or symbols)

Close-up of a mechanical component with a red-handled tool inserted, showing a bolted joint and a circular sensor on the side (no text or symbols visible)

Devices and drives (2) OS (C:) USB (F:) 63.8 GB free of 456 GB 7.40 GB free of 700 GB

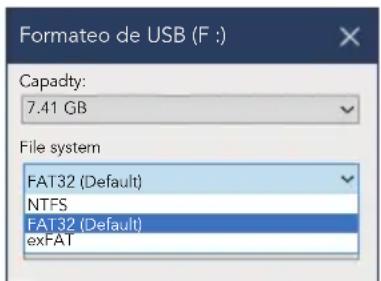

Formateo de USB (F :) Capacity: 7.41 GB File system FAT32 (Default) NTFS FAT32 (Default) exFAT

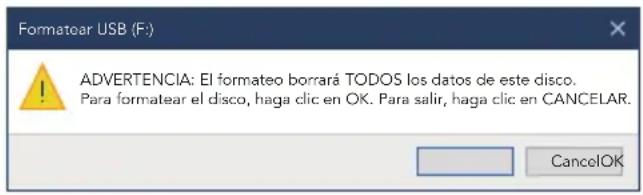

Labeled diagram of a mechanical device with numbered components for identification

Labeled diagram of a portable electric vehicle with numbered parts for identification.

Labeled diagram of a mechanical device with numbered parts for identification

Labeled diagram of a tire accelerator with numbered parts for identification

Image showing a red circle with an 'X' symbol crossed out by two dark metal rods, indicating a crossed-out or incorrect signal.

Pure black mechanical wrench symbol without any text or labels

Close-up of a coiled spring with visible teeth and central bore (no text or symbols)

Four black plastic mechanical components with different mounting features, shown from different angles (no text or symbols visible)

Two identical black star-shaped mechanical components with no text or symbols

13135 West Lisbon Road

Brookfield, WI 53005 USA
