Product Type	Magnetic contact (open/closed) for security alarm
Brand	Marmitek
Model	Sense MI
Dimensions (sensor)	54 x 22 x 13 mm
Dimensions (magnet)	33 x 10 x 13 mm
Power supply	2 CR1632 batteries
Wireless technology	Zigbee 3.0
Operating range	Up to 30 meters
Magnetic control distance	Greater than 20 mm
Standby current	Less than 5 µA
Battery life	Approximately 1 year at 30 triggers/day, 2 years at 15/day
Usage	Indoor only
Environment	Avoid extreme temperatures, direct sunlight
Main functions	Detection of door/window opening/closing, light indication, reset button, anti-tamper switch
Compatibility	Requires a Smart me Zigbee gateway (sold separately)
Installation	Via the Marmitek Smart me app (iOS/Android)
Maintenance and cleaning	Remove batteries if unused for a long time; clean with a dry cloth
Safety	Keep out of reach of children, do not expose to moisture
Batteries	Remove batteries if not used for a long time; observe polarity; dispose of as chemical waste
Reparability	Repairs by qualified personnel only

Frequently Asked Questions - Sense MI MARMITEK

How to install the Sense MI sensor?

Slide open the housing, remove the plastic strip to activate the battery. The LED should flash. Open the Smart me app, select your gateway, tap + and follow the instructions.

What to do if the LED does not flash?

Press the reset button for 5 seconds until the LED flashes rapidly.

What is the range of the Sense MI?

The operating range is up to 30 meters indoors with the Zigbee gateway.

What type of batteries to use and how long do they last?

The sensor uses 2 CR1632 batteries. Battery life is approximately 1 year at 30 triggers per day, or 2 years at 15 triggers per day.

Does the Sense MI work without a gateway?

No, it requires a Smart me Zigbee gateway (sold separately) connected to the Internet.

How to reset the sensor?

Press the reset button (located inside the housing) for 5 seconds until the LED flashes.

Can I use the Sense MI outdoors?

No, the product is intended for indoor use only.

How to configure the Sense MI in the app?

After installation, open the Smart me app, add the sensor and follow the instructions. You can configure alerts and scenarios.

What does the LED mean?

The LED flashes rapidly in pairing mode. Once connected, it may briefly light up during triggers.

Where can I find the detailed manual and declaration of conformity?

The complete manual and CE declaration are available at www.marmitek.com.

USER MANUAL Sense MI MARMITEK

real-time monitoring

scene activation

Package content

door alarm sensor

CR1632 battery 2x

3M adhesive tape

quick guide

This product requires a Zigbee gateway (sold separately).

Marmitek Smart me app Multi language user guide

Safety Instructions

Please read these instructions thoroughly before you use the device and keep them for future reference. Only for indoor use.

• Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.
• This product is not a toy. Keep out of reach of children.
• Dispose of batteries as chemical waste. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Repairs or service should only be performed by qualified personnel.

Requirements

This product requires a Smart me Zigbee Gateway (sold separately) that is connected to the Internet.

Installation of the Smart me app

Download and install the Marmitek Smart me app from the Apple app store or the Google Play store.

Launch the Smart me app after installation is completed.

Follow the instructions and register for a new account.

Installation of the Sense MI

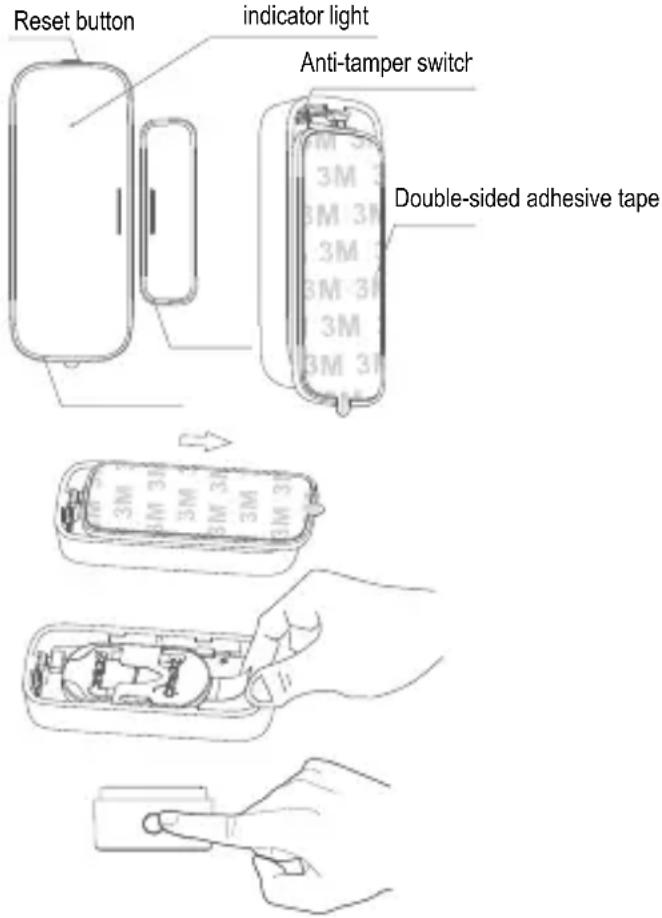

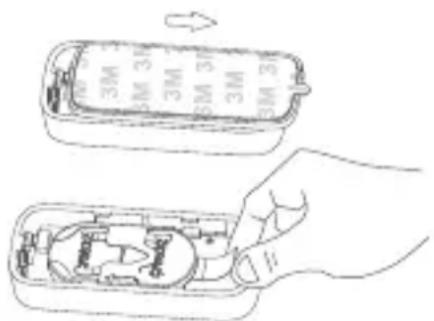

• • Open the housing of the Sense MI by sliding it in the direction indicated and pull the plastic battery strip to activate the battery.
• The indicator light should start flashing rapidly. If the light is not flashing, press the reset button for 5 seconds until it starts flashing.
• Launch the Smart me app from your smart phone or tablet.
• Select the Smart me Zigbee Gateway.
• Click on the + (at the bottom of the screen) to add a new product, confirm that the indicator light is flashing quickly and follow the instructions.
• Press Help button during installation for more information or when installation fails.

Notes for using the product

• After the installation is completed you can configure the Sense MI by using the app.
• Check our website www.marmitek.com for more details and how to use the Smart me products.

Technical specifications

Type Open/close

Battery life 10.000 triggers

-1year @ 30 per day
-2 years @ 15 per day

Wireless technology Zigbee 3.0

Operating range up to 30 meters

Power Battery CR1632 2x

Standby current < 5uA

Magnetic control distance >20mm

Use indoor use only

Dimensions (h x w x d) 54 x 22 x 13 mm

33× 10× 13mm

Declaration of Conformity

Hereby, Marmitek BV, declares that the Sense MI is in compliance with the essential requirements of the 2014/53/EU Directives.

Full Declaration of Conformity is available at

www.marmitek.com/en/declarations-of-conformity/

More detailed user guide and instructions are available on our website at www.marmitek.com
