Product Type	Air Purifier
Brand	Homedics
Model	TotalClean Desktop APDT10WTEU
Filtration Technology	All-in-One HEPA-type, pre-filter, activated carbon filter
UV-C Technology	Yes, with switch (eliminates germs, viruses, bacteria)
Ionizer	Yes, with switch (ozone production < 0.05 ppm)
Essential Oil Tray	Yes, with 3 pads included
Number of Speeds	3 (low, medium, high)
Timer	4, 8, or 12 hours
Filter Replacement Indicator	Yes
Maximum Effective Area	55.2 m² (595.2 ft²)
Air Changes per Hour	1 time per hour for 55.2 m² (ceiling height 2.43 m)
Air Flow Rate	134.1 m³/h (4761.6 ft³/h)
Replaceable HEPA Filter	Yes, every 12 months (ref. AP-T10FL)
Pre-filter Cleaning	Vacuum once a month
Power Supply	Mains (220-240 V)
Included Accessories	3 essential oil pads
Spare Parts Available	HEPA filter (AP-T10FL), pads (ARM-PAD3), tray (AP-T10WTARM)
Safety	UV-C switch, adjustable ionizer, pet recommendations

Frequently Asked Questions - TotalClean Desktop APDT10WTEU HOMEDICS

How to turn on the air purifier?

Press the power button to turn on the device. Make sure it is plugged into a mains socket.

How to adjust the fan speed?

Press the speed button repeatedly to switch from low speed (1) to medium (2) then high (3). The higher the speed, the faster the purification.

How to use the timer?

Press the timer button to select 4, 8, or 12 hours of operation. The purifier will automatically turn off after the selected time. To cancel, press until the LEDs turn off.

How to add essential oils?

Open the essential oil tray on the left side, place a diffuser pad (included) in the tray, add 5 to 7 drops of essential oil onto the pad (not directly into the tray), then close. The fragrance diffuses automatically when the device is running.

When and how to replace the HEPA filter?

Replace the filter every 12 months under normal conditions. When the replacement indicator lights up, unplug the device, open the rear grille, remove the old filter by pulling the tabs, insert the new filter (white side facing out) and close. Use only the HoMedics AP-T10FL replacement filter.

How to clean the pre-filter?

For best efficiency, vacuum the pre-filter once a month. To access it, unplug the device, remove the HEPA filter, then vacuum the pre-filter with your vacuum cleaner brush.

What to do if the device does not work?

Check that the device is plugged in and the power button is pressed. Try another mains socket or check the fuses. If the problem persists, consult the troubleshooting table in the manual.

How to reset the filter replacement indicator?

After replacing the filter, press and hold the ionizer button for 3 seconds until the replacement indicator turns off.

Is the ionizer safe for pets?

The ionizer produces ozone in small amounts (< 0.05 ppm). Ozone can be harmful to birds and small animals. Use the ionizer in a well-ventilated room and allow pets to freely leave the room.

What is the recommended coverage area?

This purifier is effective for a closed room up to 55.2 m² (ceiling height 2.43 m). It changes the air once per hour at maximum speed.

USER MANUAL TotalClean Desktop APDT10WTEU HOMEDICS

LEADERS IN HEALTH & WELLBEING

Register your product today at www.homedics.co.uk/product-registration

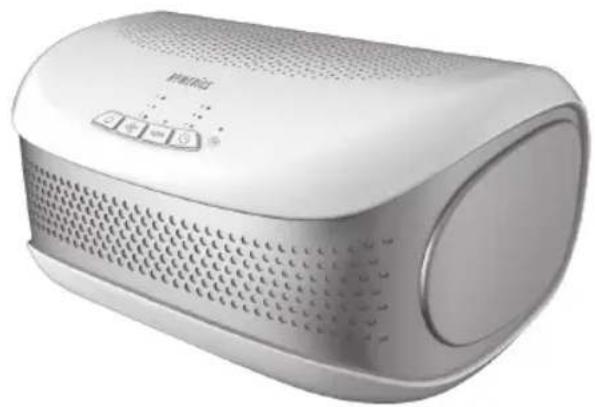

White portable electronic device with perforated grille and control buttons (no visible text or symbols)

TOTAL CLEAN AIRPURIFIER

instruction manual

3YEARGUARANTEE

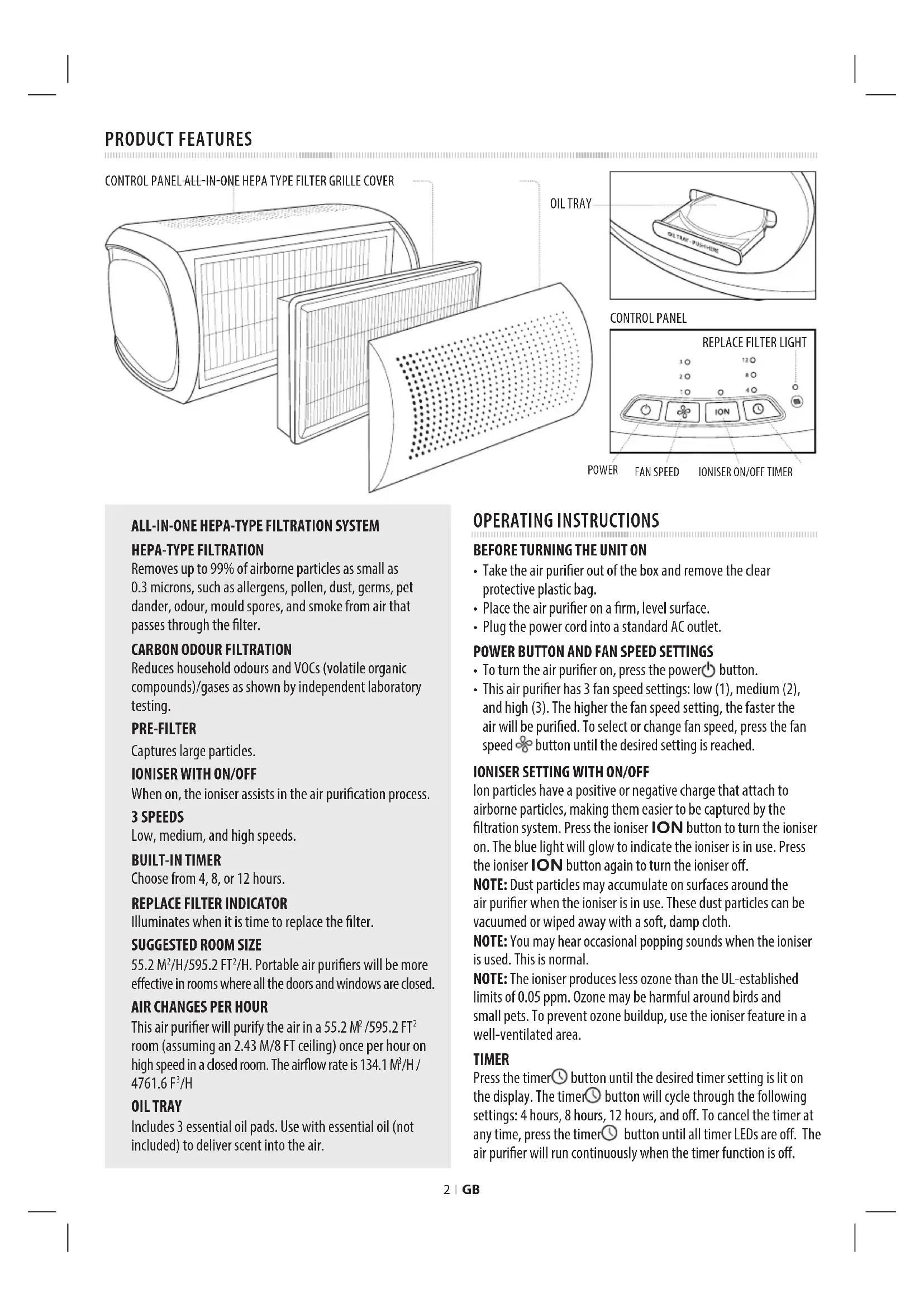

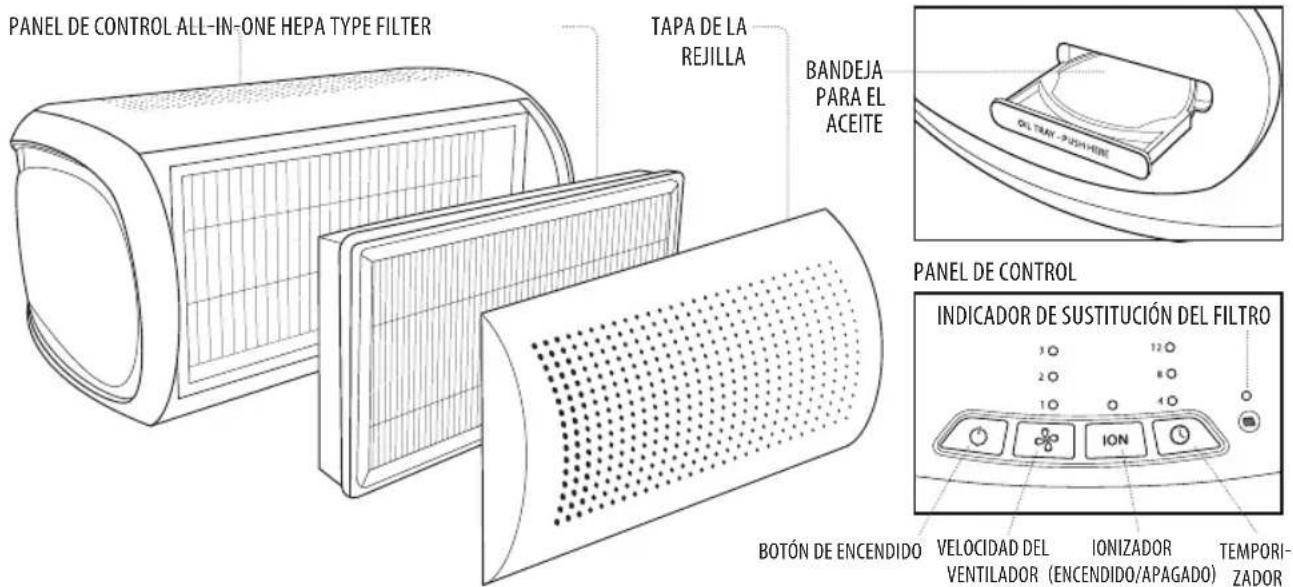

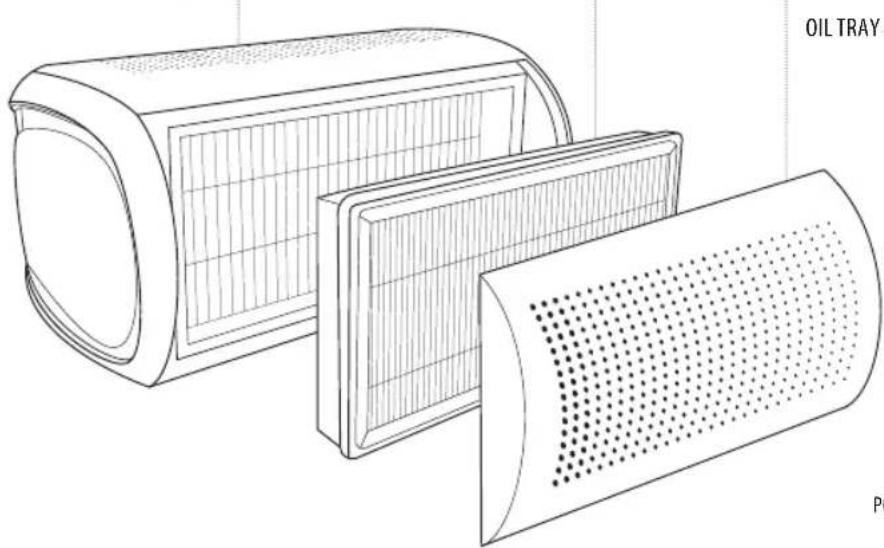

CONTROL PANEL ALL-IN-ONE HEPA TYPE FILTER GRILLE COVER

Technical line drawing of a cylindrical device with perforated panel and grid-patterned cover, labeled 'OIL TRAY' (no other text or symbols)

OILTAW-PUSHORE

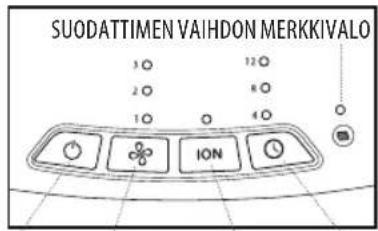

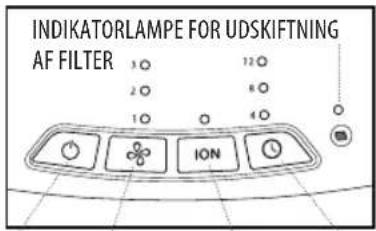

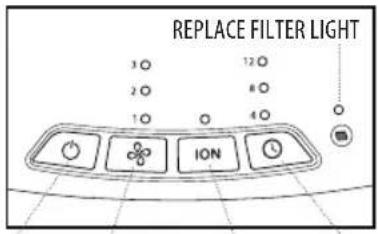

CONTROL PANEL

REPLACE FILTER LIGHT 3 O 12 O 2 O 8 O 1 O 4 O ION

POWER
FAN SPEED
IONISER ON/OFF TIMER

Removes up to 99% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odour, mould spores, and smoke from air that passes through the filter.

CARBON ODOUR FILTRATION

Reduces household odours and VOCs (volatile organic compounds)/gases as shown by independent laboratory testing.

PRE-FILTER

Captures large particles.

IONISER WITH ON/OFF

When on, the ioniser assists in the air purification process.

3 SPEEDS

Low, medium, and high speeds.

BUILT-IN TIMER

Choose from 4, 8, or 12 hours.

REPLACE FILTER INDICATOR

Illuminates when it is time to replace the filter.

SUGGESTED ROOM SIZE

55.2 M²/H/595.2 FT²/H. Portable air purifiers will be more effective in rooms where all the doors and windows are closed.

AIR CHANGES PER HOUR

This air purifier will purify the air in a 55.2 M ^2 /595.2 FT ^2 room (assuming an 2.43 M/8 FT ceiling) once per hour on high speed in a closed room. The airflow rate is 134.1 M ^3 /H / 4761.6 F ^3 /H

OIL TRAY

Includes 3 essential oil pads. Use with essential oil (not included) to deliver scent into the air.

OPERATING INSTRUCTIONS

BEFORE TURNING THE UNIT ON

• Take the air purifier out of the box and remove the clear protective plastic bag.
- Place the air purifier on a firm, level surface.
- Plug the power cord into a standard AC outlet.

POWER BUTTON AND FAN SPEED SETTINGS

• To turn the air purifier on, press the power button.
• This air purifier has 3 fan speed settings: low (1), medium (2), and high (3). The higher the fan speed setting, the faster the air will be purified. To select or change fan speed, press the fan speed ✿ button until the desired setting is reached.

IONISER SETTING WITH ON/OFF

Ion particles have a positive or negative charge that attach to airborne particles, making them easier to be captured by the filtration system. Press the ioniser ION button to turn the ioniser on. The blue light will glow to indicate the ioniser is in use. Press the ioniser ION button again to turn the ioniser off.

NOTE: Dust particles may accumulate on surfaces around the air purifier when the ioniser is in use. These dust particles can be vacuumed or wiped away with a soft, damp cloth.

NOTE: You may hear occasional popping sounds when the ioniser is used. This is normal.

NOTE: The ioniser produces less ozone than the UL-established limits of 0.05 ppm. Ozone may be harmful around birds and small pets. To prevent ozone buildup, use the ioniser feature in a well-ventilated area.

TIMER

Press the timer ⏻ button until the desired timer setting is lit on the display. The timer ⏻ button will cycle through the following settings: 4 hours, 8 hours, 12 hours, and off. To cancel the timer at any time, press the timer ⏻ button until all timer LEDs are off. The air purifier will run continuously when the timer function is off.

OIL TRAY

Use essential oil (not included) to deliver scent into the air.

NOTE: For use with the included HoMedics essential oil pads only. Do not add essential oils anywhere else in the unit as it may cause damage.

NOTE: Do not leave a filled essential oil pad in the air purifier if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

ADDING ESSENTIAL OILS

This air purifier has been certified by the European Centre for Allergy Research Foundation (ECARF) as an allergy-friendly product. Please note that allergy friendliness is no longer guaranteed if the Essential Oil Scent Tray function is used, since essential oils may lead to allergic reactions.

WARNING: Putting oil anywhere but the oil tray will damage the air purifier.

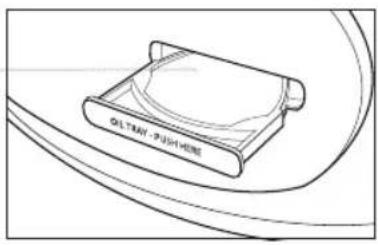

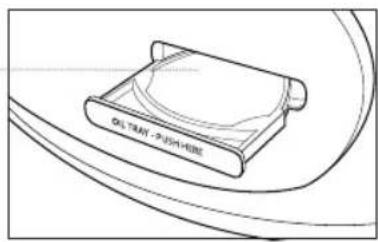

1. The oil tray is located on the left side of the air purifier.

1. Push to open and remove the tray.

Illustration of a hand pointing at a device with a black arrow indicating downward motion (no text or symbols)

1. Place 1 aroma pad (3 included) into the oil tray.

1. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference. On the pad and NOT directly into the tray.

2. Place the oil tray back in its compartment and push to close. The scent will start automatically when the air purifier is turned on.

WARNING: Only place es

FILTER REPLACEMENT

REPLACE FILTER LIGHT

The replace filter light illuminates when it is time to replace the HEPA-type filter based on the air purifier's hours of use.

REPLACING THE HEPA-TYPE FILTER

For optimal performance, replace every 12 months under normal usage conditions. Once the filter has been replaced, press and hold the ioniser ION button for 3 seconds to reset the indicator.

1. Unplug the air purifier. Open the filter grille cover on the back of the unit by pulling the tab located at the bottom of the cover.

2. Pull up until the grille easily slides away from the unit.

3. Pull the tabs to remove the old filter.

4. Install a new genuine HoMedics replacement filter with the white side facing out (tabs will be visible).

5. Align the tab at the top of the grille cover with the top of the unit. Gently push the grille cover until it snaps back into place.

6. Plug the power cord into a standard AC outlet. Press and hold the ioniser the indicator.

ION button for 3 seconds

CLEANING & MAINTENANCE

CLEANING THE HEPA-TYPE FILTER

NOTE: For best performance,

vacuum the HEPA-type filter once a month under normal usage.

1. Unplug the air purifier.
2. Remove the HEPA-type filter as described in the Replacing
3. Vacuum the white side of the HEPA-type filter using the brush attachment of your vacuum cleaner, cleaning it thoroughly.
4. Place the HEPA-type filter back into the air purifier and close grille.
5. Plug the power cord into a standard AC outlet.

Line drawing of a hand holding a curved object against a grid-patterned background (no text or symbols)

TO CLEAN THE OIL TRAY

Open the oil tray and remove the pad. Essential oil pads should be changed when switching to a different essential oil scent. If continuing to use the same scent, set the essential oil pad aside for reuse. Wipe down the inside of the

oil tray with a soft cloth. Place the essential oil pad back in the tray and close.

NOTE: Leave the essential oil pad out of the oil tray when storing.

Line drawing of a hand cleaning a circular object (no text or symbols)

FOR BEST PERFORMANCE

• NEVER use water or any household cleaners or detergents to clean the HEPA-type filter.
• Clean off the outside of the unit with a dry cloth as needed.
• NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit.
• Clean off the grille cover using a damp cloth or the brush attachment of your vacuum as needed.
  • Vacuum the pre-filter monthly under normal usage conditions.
• Replace the HEPA-type filter every 12 months under normal usage conditions.
  • Always use a genuine HoMedics replacement filter for optimal performance.

To purchase genuine HoMedics replacement/spare parts please visit www.homedics.co.uk

3 Pack of aroma pads - ARM-PAD3

Aroma tray - AP-DT10ARMTR

HEPA filter - AP-DT10FL

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Unit will not operate · Unit is not plugged inPower button not pressedNo power to unit		Plug unit inPress the power button to turn the power onCheck fuses, try a different outlet
Reduced airflow · The back grille may be blockedPre-filter needs vacuumingThe filter needs to be replaced		Check to make sure nothing is blocking the back grille and air outletVacuum the pre-filter with the brush attachment of your vacuum cleanerReplace the filter
Reduced odour removal · The filter needs to be replaced · Replace the filter
Excessive noise · The unit is not level · Place the unit on a flat, level surface
Replace filter light remains lit after filter replacement	· The replace filter indicator needs to be reset	· Press and hold the ioniser button for 3 seconds until the replace filter light turns off

CARACTÉRISTIQUES DU PRODUIT

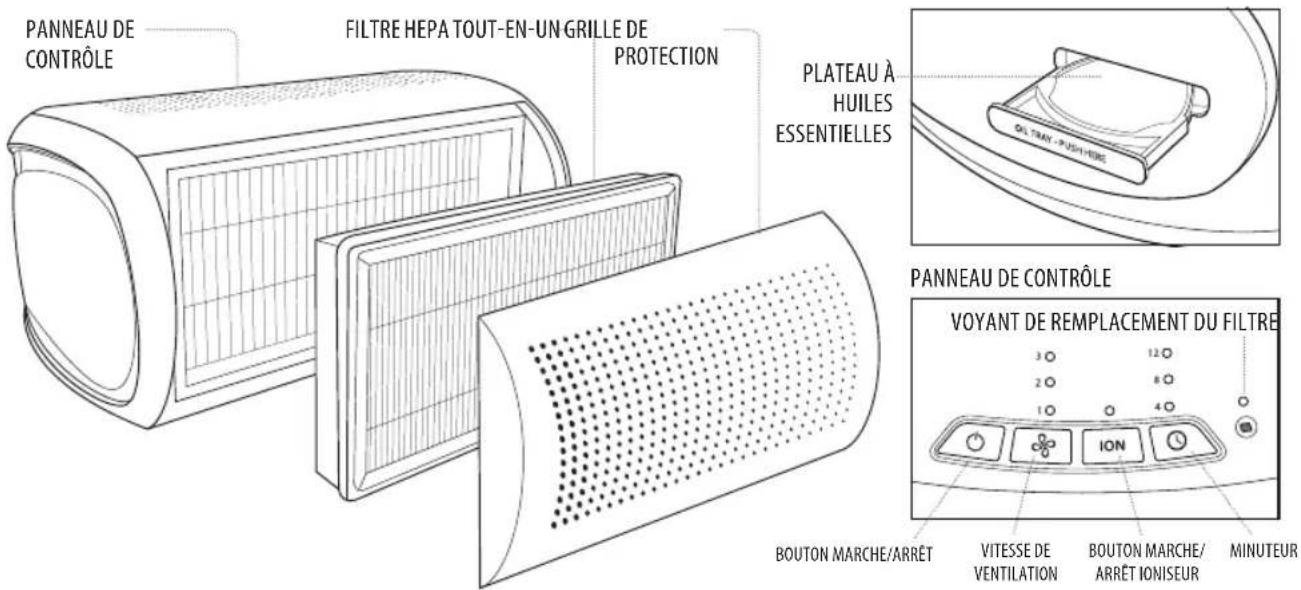

PANNEAU DE CONTROLE FILTRE HEPA TOUT-EN-UN GRILLE DE PROTECTION PLATEAU À HUILES ESSENTIELLES OIL TRAY PUSH FRETLE PANNEAU DE CONTROLE VOYANT DE REMPLACEMENT DU FILTRE 3 12 2 8 10 4 BOUTON MARCHE/ARRÊT VITESSE DE VENTILATION BOUTON MARCHE/ ARRÊT IONISEUR MINUTEUR

SYSTÈME DE FILTRATION HEPA TOUT-EN-UN

FILTRATION HEPA TOUT-EN-UN

A. 100% 100%

Hand pointing at a device component with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with an arrow pointing to it (no text or symbols visible)

REPLACEMENT DU FILTRE

VOYANT DE REMPLACEMENT DU FILTRE

Line drawing of a hand holding a textured object with vertical stripes (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

Diagram showing a finger pressing a component with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a black arrow pointing to it (no text or symbols visible)

Diagram of a hand holding a curved object over a grid-patterned panel (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

FEHLERBEHEBUNG

HEPA-Filter - AP-DT10FL

Hand pointing at a device component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with an arrow pointing to it (no text or symbols visible)

Line drawing of a hand holding a curved object against a grid-patterned background (no text or symbols)

LIMPIEZA DE LA BANDEJA PARA EL ACEITE

Line drawing of a hand cleaning a circular object (no text or symbols)

Diagram showing a finger pointing at a device with a black arrow indicating direction (no text or symbols present)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a black arrow pointing to it (no text or symbols visible)

Line drawing of a hand cleaning a circular object (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand pressing a button on a car wheel (no text or symbols visible)

Line drawing of a hand holding a curved object against a grid-patterned background (no text or symbols)

DE OLIETRAY REINIGEN

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

VOOR DE BESTE PRESTATIE

HEPA-filter - AP-DT10FL

PROBLEMEN OPLOSSEN

A. 100% 100%

Illustration of a finger pressing a device on a curved surface with a downward arrow (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small object on a curved surface with an arrow pointing to it (no text or symbols visible)

Diagram of a hand holding a curved object against a grid-patterned surface (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

WSKAZÓWKI ZAPEWNIAJĄCE NAJLEPSZE DZIAŁANIE

Diagram showing a finger pressing a component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with an arrow pointing to it (no text or symbols visible)

Diagram of a hand holding a curved object against a grid-patterned surface (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

ŘEŠENÍ POTÍŽÍ

Hand pointing at a device with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a curved arrow pointing to it (no text or symbols visible)

Line drawing of a hand holding a tool near a grid-patterned panel (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Hand pointing at a device with a black downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a hand holding a bag with arrows indicating force or movement (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with an arrow pointing to it (no text or symbols visible)

Diagram of a hand holding a curved object against a grid-patterned surface (no text or symbols)

3-pack aromkuddar - ARM-PAD3

Aromfack - AP-DT10ARMTR

HEPA-filter - AP-DT10FL

FELSÖKNING

OILTAW-PUSHIDE

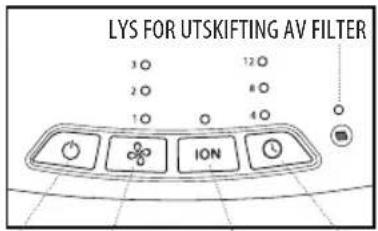

KONTROLLPANEL

LYS FOR UTSKIFTING AV FILTER 3 O 12 O 2 O 8 O 1 O 4 O

STR∅M

VIFTEHAS-

TIGHET

IONISERER

AV/PÅ

TIDSBRYTER

ALT-I-ETT HEPA-TYPE-FILTRERINGSSYSTEM

HEPA-TYPE-FILTRERING

F∅R APPARATET SLÅS PÅ

• Ta luftrenseren ut av esken og fjern den gjennomsiktige, beskyttende plastposen.
• Plasser luftrenser på en fast, jevn overflate.
• Koble strømledningen til en standard stikkontakt.

STR∅MKNAPP OG INNSTILLINGER FOR VIFTEHASTIGHET

IONISERER-INNSTILLING MED AV-PÅ-FUNKSJON

A. 100% 100%

1. Oljebeholderen er plassert på venstre side av luftrenseren.

Diagram showing a finger pressing a component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with arrows pointing to it, no text or symbols present

1. Plasser én aromapute (tre er inkludert) i oljebeholderen.

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a curved arrow pointing to it (no text or symbols visible)

Line drawing of a hand holding a tool interacting with a grid-patterned panel (no text or symbols)

SLIK RENGJ∅R DU OLJEBEHOLDEREN

Line drawing of a hand cleaning a circular object (no text or symbols)

FOR BEST YTELSE

HEPA-filter - AP-DT10FL

FEILS∅KINGSVEILEDNING

Technical line drawing of a portable electronic device with grid panels and perforated base (no text or symbols)

OIL TRAY PUSH-HIRE

OHJAUSPANEELI

SUODATTIMEN VAIHDON MERKKIVALO 3 O 12 O 2 O 8 O 1 O 4 O ION

VIRTA TUULETTIMEN IONISAATTORI AJASTIN KIERROSNOPEUS PÄÄLLE/POIS

ALL-IN-ONE-HEPA-SUODATUSJÄRJESTELMÄ HEPA-SUODATUS

Diagram showing a finger pressing a component with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a black arrow pointing to it (no text or symbols visible)

Diagram of a hand holding a curved object against a grid-patterned surface (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

PARHAAN SUORITUSKYVYN VARMISTAMINEN

CRONOMETRU INCORPORAT

Diagram showing a finger pressing a component with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a curved arrow pointing to it (no text or symbols visible)

Line drawing of a hand holding a curved object against a grid-patterned background (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

PENTRU CEA MAI BUNĂ PERFORMANTĂ

Hand pointing at a device with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small object with an arrow pointing to it, no visible text or symbols

1. Zásobník na olej umiestnite spät do priečinka a zatlačením ho zatvorte. Vôňa sa začne šírit automaticky po zapnutí čističa vzduchu.

VÝMENA FILTRA

KONTROLKA VÝMENY FILTRA

Kontrolka výmeny filtra sa rozsvieti, ked'je čas na výmenu filtra HEPA, a to podl'a počtu hodín používania čističa vzduchu.

VÝMENA FILTRA HEPA

Diagram of a hand holding a tool interacting with a grid-patterned panel (no text or symbols)

ČISTENIE ZÁSOBNÍKA NA OLEJ

Line drawing of a hand cleaning a circular object (no text or symbols)

ABY SA DOSIAHOL NAJLEPŠÍ VÝKON

Filter HEPA -AP-DT10FL

RIEŠENIE PROBLÉMOV

21.50-30.00 →

Hand pointing at a device with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a black arrow pointing to it (no text or symbols visible)

Diagram of a hand holding a tool interacting with a grid-patterned panel (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

Technical line drawing of a cylindrical device with grid pattern and perforated panel (no text or symbols)

OIL TAW PUSH HERE

KONTROLPANEL

INDIKATORLAMPE FOR UDSKIFTNING AF FILTER 3 O 12 O 2 O 8 O 1 O 4 O

STR∅M
VENTILATOR- IONISATOR TIL/FRA TIMER HASTIGHED

ALT-I-ÉT-FILTRERINGSSYSTEM AF HEPA-TYPEN

FILTRERING AF HEPA-TYPEN

Simple line drawing of a finger pressing a component with a downward arrow (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a curved arrow pointing to it (no text or symbols visible)

Diagram of a hand holding a tool interacting with a grid-patterned panel (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

SÄDAN OPNÅS DEN OPTIMALE EFFEKTIVITET

HEPA-filter - AP-DT10FL

FEJLFINDING

Hand pointing at a device with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Hand holding a small electronic component with a curved arrow pointing to it (no text or symbols visible)

Line drawing of a hand holding a curved object against a grid-patterned background (no text or symbols)

PARA LIMPAR O TABULEIRO DO ÓLEO

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

PARA MELHOR DESEMPENHO

Somerhill Business Park, Tonbridge, Kent TN11 0GP, UK

Customer Support: [phone]

[e-mail]
