Nova Y90 - Phone HUAWEI - Free user manual and instructions

Product Type	Mobile Phone
Brand	Huawei
Model	Nova Y90
Dimensions (H x W x D)	163.3 x 74.7 x 8.4 mm
Weight	193 g
Display	6.75 inches, HD+ resolution
Battery	Lithium-ion 5000 mAh (typical), built-in
Power Supply	USB-C power adapter, fast charging 22.5 W
Processor	Qualcomm Snapdragon 680
RAM Memory	4 GB
Internal Storage	128 GB
Network	4G LTE, dual nano-SIM
Connectivity	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, NFC, USB Type-C
Sensors	Side fingerprint, accelerometer, proximity, light
Main Camera	50 MP (wide-angle) + 2 MP (macro) + 2 MP (depth)
Front Camera	8 MP
Operating System	EMUI 12 (based on Android 12)
Main Features	Calls, SMS, Internet browsing, GPS, media player, fingerprint unlock
Safety	SAR head: 0.99 W/kg, SAR body: 1.10 W/kg (distance 0.5 cm)
Maintenance and Cleaning	Avoid dust, moisture and extreme temperatures; clean with a soft, dry cloth
Spare Parts and Repairability	Built-in non-removable battery, replacement only by Huawei authorized center
General Information	PDF user manual available, quick start guide included

Frequently Asked Questions - Nova Y90 HUAWEI

How to install the SIM card in the Huawei Nova Y90?

Use the provided eject pin to open the card tray. Insert the nano-SIM card with the notch correctly oriented. Do not use a cut or modified SIM card.

How to turn the phone on and off?

To turn on, press and hold the power button until the logo appears. To turn off, long press the same button, then tap Power off.

Does the Huawei Nova Y90 support 4G?

Yes, it is 4G LTE compatible. Availability depends on your operator and network coverage. Contact your operator to activate the service.

What are the SAR values of this phone?

The head SAR is 0.99 W/kg and the body SAR is 1.10 W/kg (at 0.5 cm distance). These values comply with the European limit of 2.0 W/kg.

Can I replace the battery myself?

No, the battery is built-in and non-removable. For your safety, have it replaced by an authorized Huawei center.

How to clean the screen and the phone?

Use a soft, dry, lint-free cloth. Avoid chemicals and moisture. Do not clean while the device is charging.

Does the phone have a headphone jack?

Yes, the Huawei Nova Y90 is equipped with a 3.5mm headphone jack.

How to set up fingerprint unlock?

Go to Settings > Security > Fingerprint. Follow the instructions to register your fingerprint. The sensor is integrated into the power button.

Where to find the complete user guide?

You can download the PDF manual for free from notice-facile.com or consult Huawei support at https://consumer.huawei.com/en/support.

How to perform a factory reset?

Go to Settings > System > Reset > Reset phone. Back up your data beforehand as this action erases all information.

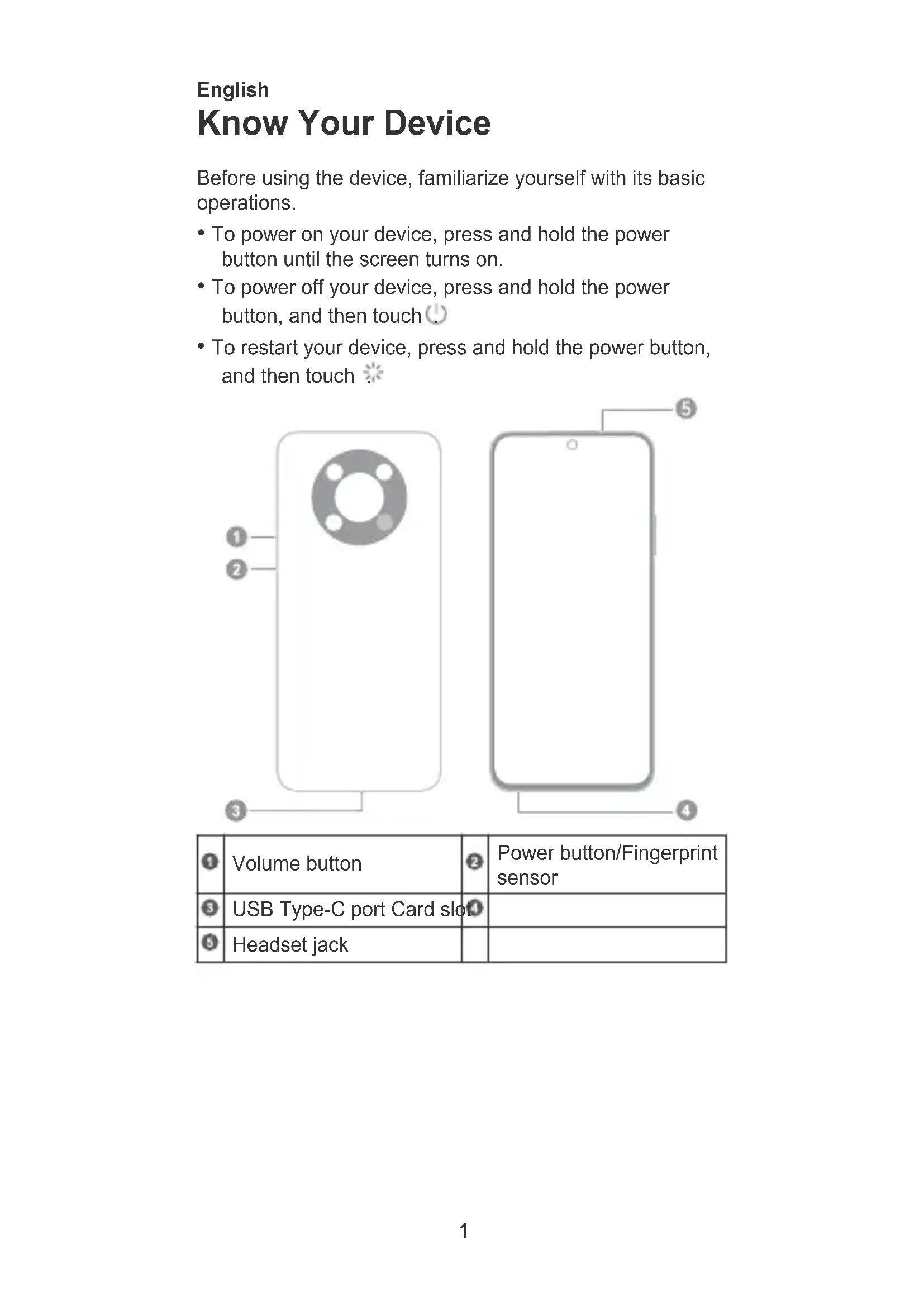

USER MANUAL Nova Y90 HUAWEI

Before using the device, familiarize yourself with its basic operations.

• To power on your device, press and hold the power button until the screen turns on.
- To power off your device, press and hold the power button, and then touch ⏻
- To restart your device, press and hold the power button, and then touch

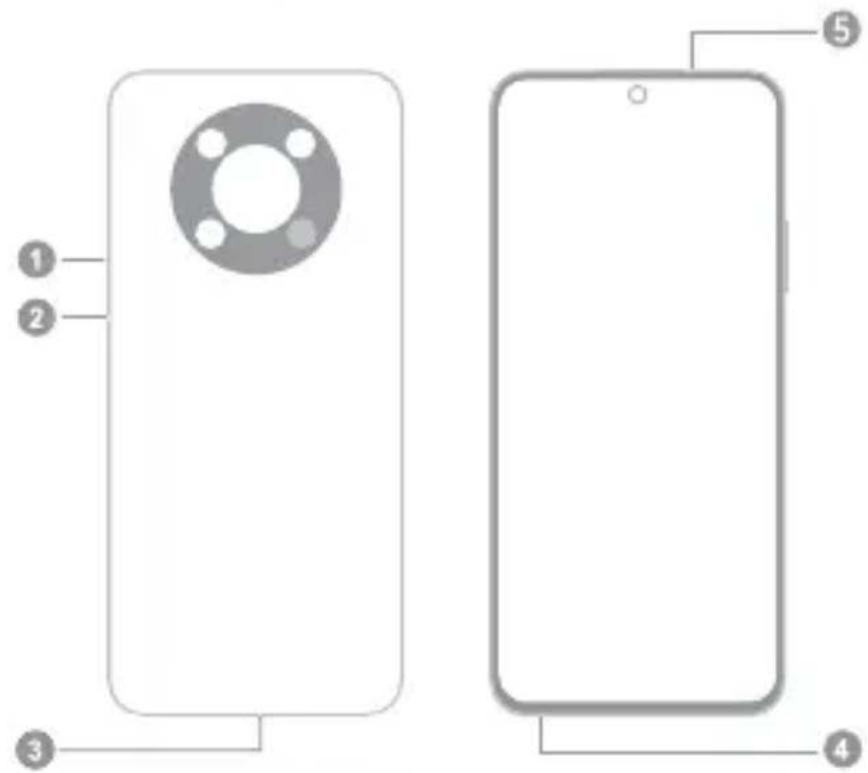

Diagram of a smartphone front view with labeled components: screen, battery cover, and screen edges.

1	Volume button	2	Power button/Fingerprint sensor
3	USB Type-C port Card slot	4
5	Headset jack

Getting Started

• Be careful not to scratch your device or hurt yourself when using the eject pin.
• Store the eject pin out of the reach of children to prevent accidental swallowing or injury.
• Do not use cut or modified SIM cards with your device as these may not be recognized and could damage the card tray (slot).
• If your SIM card does not match your device, please contact your carrier.

Follow the instructions in the following figures to set up your device. Please use the eject pin included.

Ensure that the card is correctly aligned and its notch is first inserted into the card tray.

Single-SIM card:

Illustration of a hand holding a small electronic component with an inset showing a measurement or adjustment (no text or symbols)

nano-SIM 1

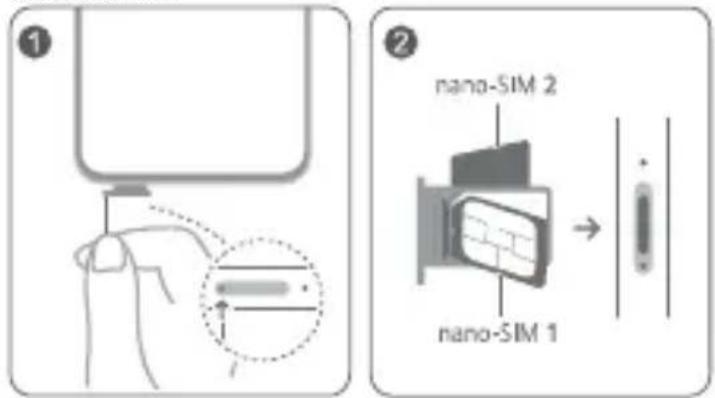

Dual-SIM card:

Diagram showing a hand holding a device with a magnified inset highlighting a measurement or adjustment point.

nano-SIM 2 nano-SIM 1

SIM Card Management

Select the default mobile data card and calling card as needed.

- 4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 4G service.

- 4G service may be unavailable in certain areas due to network interference.

- If this guide is inconsistent with the description on the official website, the latter prevails.

For More Information

If you encounter any problems while using your device, you can obtain help from the following resources:

• Visit https://consumer.huawei.com/en to view device information, frequently asked questions and other information.
• Visit https://consumer.huawei.com/en/support for the most up-to-date contact information for your country or region.
• Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal, Safety information, Authentication info, Certification logos.

Safety Information

Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.

Operation and safety

- To prevent possible hearing damage, do not listen at high volume levels for long periods.

- Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards.

- Ideal operating temperatures are 0^ to 35^ . Ideal storage temperatures are -20^ to +45^ .

- Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.

- Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators.

- Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.

- While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal.

- In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field.

- When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.

- Unplug the charger from electrical outlets and the device when not in use.

- Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil

depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire.

• Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode.
• Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards.
• Please consult your doctor and the device manufacturer to determine if using your device may interfere with the operation of your medical device.
• Adhere to any rules or regulations set forth by hospitals and health care facilities.
• This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact a Huawei authorized service center for a replacement.
• Ensure that the power adapter meets the requirements of Annex Q of IEC/EN 62368-1 and has been tested and approved according to national or local standards.

Potentially Explosive Atmosphere

Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the

air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.

Disposal and recycling information

The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment.

For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://consumer.huawei.com/en/.

Reduction of hazardous substances

This device and its electrical accessories comply with local applicable rules on the restricted use of certain hazardous substances in electrical and electronic devices, such as the Restriction of Hazardous Substances Directive (RoHS) and Batteries Directive (where batteries are included).

RF Exposure Information

The World Health Organization has stated that exposure can be reduced by limiting your usage or simply using a hands-free kit to keep the device away from the head and body.

Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

For the countries that adopted the SAR limit 2.0 W/kg over 10 grams of tissue.

The device complies with RF specifications when used near your ear or at a distance of 0.50 cm from your body. The highest reported SAR value: Head SAR: 0.99 W/kg; body SAR: 1.10 W/kg.

EU Regulatory Conformance

Hereby, Huawei Device Co., Ltd. declares that this device is in compliance with the Radio Equipment Directive 2014/53/EU (RED). For more details, please refer to the

EU Declaration of Conformity at https://consumer.huawei.com/certification.

Legal Notice

Trademarks and Permissions

LTE is a trademark of ETSI.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Huawei Device Co., Ltd. is an affiliate of Huawei Technologies Co., Ltd.

Wi-Fi ^® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance.

Copyright © Huawei 2022. All rights reserved.

ALL PICTURES AND ILLUSTRATIONS IN THIS GUIDE, INCLUDING BUT NOT LIMITED TO THE DEVICE COLOR, SIZE, AND DISPLAY CONTENT, ARE FOR YOUR REFERENCE ONLY. THE ACTUAL DEVICE MAY VARY. NOTHING IN THIS GUIDE CONSTITUTES A WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.

Privacy Policy

To better understand how we protect your personal information, please see the privacy policy at https://consumer.huawei.com/privacy-policy.
