USER MANUAL Rocket Pro Plus HV372 SHARK

IMPORTANT SAFETY INSTRUCTIONS

HOUSEHOLD USE ONLY

To reduce the risk of electric shock, this vacuum cleaner has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT force into outlet or try to modify to fit.

▲WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

GENERAL WARNINGS

When using an electrical appliance, basic precautions should always be followed, including the following:

1. Your vacuum cleaner may consist of a motorized nozzle, wand, hose, and/or vacuum pod. This device contains electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2. Use only identical replacement parts.
3. Carefully observe and follow the instructions provided below to avoid improper use of the appliance. DO NOT use the vacuum for any purpose other than those described in this manual.
4. Before use, carefully inspect all parts for any damage. DO NOT use if any parts are damaged.
5. The use of an extension cord is NOT recommended.
6. This vacuum cleaner contains no serviceable parts.

USE WARNINGS

1. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children. Keep the appliance and its cord out of reach of

children. DO NOT allow the appliance to be used by children. DO NOT allow to be used as a toy. Close supervision is necessary when used near children.

1. Always turn off the vacuum cleaner before connecting or disconnecting any motorized nozzles or other accessories.
   9.DONOT handle plug or vacuum cleaner with wet hands.
2. DO NOT use without filters in place.
3. Only use Shark ^® branded filters and accessories.
4. DO NOT damage the power cord:

a) DO NOT pull or carry vacuum cleaner by the cord or use the cord as a handle.
b) DO NOT unplug by pulling on cord. Grasp the plug, not the cord.
c) DO NOT run the vacuum cleaner over the power cord, close a door on the cord, pull the cord around sharp corners, or leave the cord near heated surfaces.

1. DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.

2. DONOT use if nozzle or accessory airflow is restricted. If the air paths or the motorized floor nozzle become blocked, turn the vacuum cleaner off and unplug from electrical outlet. Remove all obstructions before you plug in and turn on the unit again.

SAVE THESE INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

1. Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
2. DO NOT use if vacuum cleaner is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
3. Use extra care when cleaning on stairs.
4. DONOT leave the vacuum cleaner unattended while plugged in.
5. When powered on, keep the vacuum cleaner moving over the carpet surface at all times to avoid damaging the carpet fibers.
6. DO NOT place vacuum cleaner on unstable surfaces such as chairs or tables.

7. Your Shark® vacuum may not be designed to stand up on its own. When taking a break from cleaning, you may need to lean it against furniture or a wall, or lay it flat on the floor. Using the vacuum for an application where the unit lacks stability may result in personal injury.

8. DONOT use to pick up:

a) Liquids
b) Large objects
c) Hard or sharp objects (glass, nails, screws, or coins)
d) Large quantities of dust (drywall dust, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
e) Smoking or burning objects (hot coals, cigarette butts, or matches)
f) Flammable or combustible materials (lighter fluid, gasoline, or kerosene)
g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

1. DO NOT use in the following areas: a) Poorly lit areas

b) Wet or damp surfaces
c) Outdoor areas

d) Spaces that are enclosed and may contain explosive or toxic fumes or vapors (lighter fluid, gasoline, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

1. Turn off all controls before plugging in or unplugging the vacuum.
2. Unplug from electrical outlet when not in use and before any maintenance or cleaning.
3. Hand wash with water only. Washing with cleaning chemicals could damage the unit.
4. During cleaning or routine maintenance, DO NOT cut anything other than hair, fibers, or string wrapped around the brushroll.
5. Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
6. Make sure the dust cup and all filters are in place after routine maintenance.
7. If provided, secure the power cord around the two cord hooks during storage.

ASSEMBLY SETTINGS

(Click)

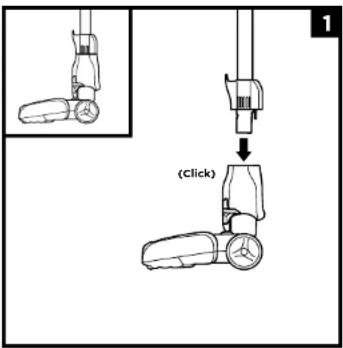

1. Insert Wand into Floor Nozzle.

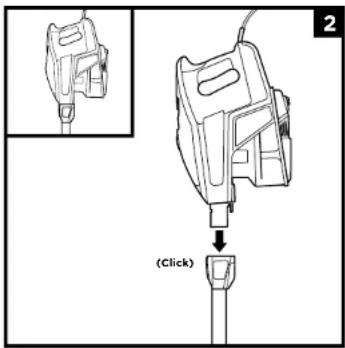

2. Insert Handheld Vacuum into wand.
   Ensure all connections click securely into place.

(Click)

BRUSHROLL INDICATOR LIGHT

INDICATOR LIGHT

WHAT DOES THE BRUSHROLL INDICATOR LIGHT MEAN?
Solid Green: The brushroll is spinning and working as it should.
Solid Red: There is a jam in the brushroll area. Turn your vacuum off and remove any blockages in the nozzle.
Flashing Red: The motorized floor nozzle is overheating. Turn your vacuum off and wait a minimum of 60 minutes for it to cool down.

sharkclean.com sharkclean.com

Slide switch to the bottom to turn off power. To begin vacuuming, slide switch to the appropriate setting.

Bare Floor/Small Area Rugs The brushroll spins slowly to clean bare floors and small area rugs.

Carpet The brushroll spins faster to pick up debris below the surface of your carpets.
NOTE: For deep cleaning per ASTM F 608 (embedded dirt in carpets) please use setting II. Carpet. NOTE: Select Carpet for stuck-on dust and debris.

CLEANING MODES

Line drawing of a person using a handheld device with an arrow indicating motion (no text or symbols)

To clean floors, step on floor nozzle and tilt handheld vacuum back.

ABOVE-FLOOR WITH WAND

Detach the wand for more reach to clean baseboards, ceiling fans, window sills, and other hard-to-access areas. Stand the vacuum upright, then step on the foot pedal of the floor nozzle and pull the wand up to detach it.

ABOVE-FLOOR HANDHELD

Press the Wand Release button to lift the handheld vacuum off the wand. Great for cleaning stairs and furniture.
NOTE: All accessories are compatible with both the wand and the handheld vacuum.

STORAGE

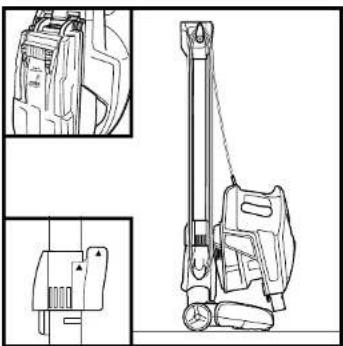

ONBOARD HOOK WALL MOUNT

Technical line drawing of a vacuum cleaner with attached components and mounting bracket (no text or symbols)

Press the wand release button on the top of the wand to detach the handheld vacuum. Align the catch on the bottom of the handheld vacuum with the storage hook on the wand. Slide the handheld vacuum down so it hangs from the hook. Wrap the cord around the two cord hooks, starting with the top hook, leaving a little slack.

Technical line drawing of a mechanical lifting device with a bracket and lever mechanism (no text or symbols)

For convenient storage above the floor, a wall mount is available for purchase on sharkaccessories.com. It comes with hardware and an instruction sheet with a mounting template.

AVAILABLE ACCESSORIES

NOTE: Not all accessories come with all units. For a list of the accessories included with this model, see the top inside flap of the box. To order additional accessories, visit sharkaccessories.com.

A Crevice Tool

Clean in corners and other tight spaces or reach baseboards and ceilings with this slim crevice tool.

⑧ DustingBrush

This brush dusts and cleans delicate surfaces. Great for use on fans, blinds, lampshades, and keyboards.

C UpholsteryTool

Picks up pet hair, dust, and large debris from mattresses, couches, curtains, and other delicate upholstered fabrics.

PetMulti-Tool

A single convertible tool for cleaning tough pet messes two ways: use the stiff bristle brush to clean stuck-on debris, or take off the bristles to reveal an upholstery tool perfect for removing stubborn pet hair and large piles of debris.

Pet Crevice Tool

Two cleaning tools in one. The crevice tool gives you extended reach to clean in tight spaces, while the soft brush is ideal for dusting delicate surfaces.

F Anti-Allergen Dust Brush

This brush features nylon fiber bristles specifically designed for removing fine dust and allergen particles from the most delicate surfaces.

© Mini Motorized Brush

Powered by a motor, this small brush removes the clingiest pet hair and extracts dirt, dust, dander, and allergens from deep inside pillows, upholstery, and carpets.

H Under-Appliance Wand

Clean under and behind hard-to-move appliances and furniture with this adjustable 36" tool. Flip the extension piece over to clean the underside of appliances.

Home & Car Detail Kit

Deep-clean your car like a professional detailer, or clean hard-to-reach areas in your home. Micro-sized tools let you clean around delicate objects and access the tightest spaces like car vents and computer keyboards.

J Large Accessory Bag

This convenient accessory storage bag measures 32 cm x 70 cm and fits the Under-Appliance Wand. Smaller size available at sharkaccessories.com

Onboard Storage Clip

This removable clip attaches to your vacuum. The clip can store up to two accessories at a time while you clean.

Wall Mount

Install the mount to hang your vacuum on the wall for convenient storage. Includes screws, anchors, and instruction sheet with mounting template for easy installation.

MAINTENANCE

IMPORTANT: Unplug the vacuum before performing any maintenance.

Empty the dust cup each time you vacuum and periodically during cleaning, when debris in the dust cup reaches the MAX fill line.

Technical line drawing of a car seat assembly with an inset showing the front view and a directional arrow indicating assembly (no text or symbols present)

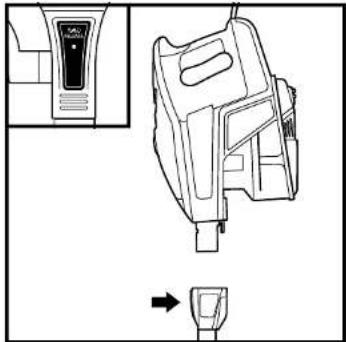

Press the wand release button and lift the handheld vacuum off the wand.

Technical line drawing showing a mechanical component with an inset view of a device (no text or symbols present)

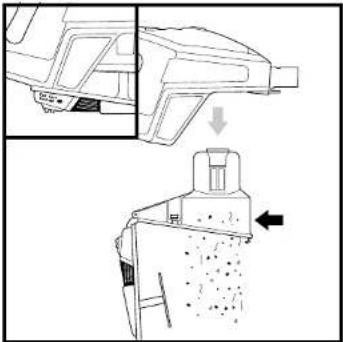

To remove the dust cup from the handheld vacuum, squeeze the two Dust Cup Release buttons at the same time and pull out the dust cup. Press the Empty button on the front of the dust cup.

OR

Empty

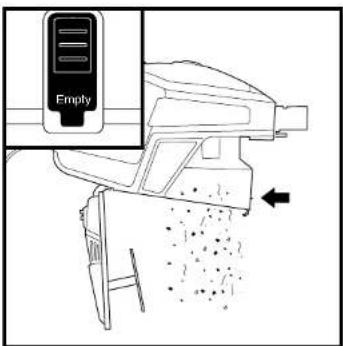

With the dust cup attached to the handheld vacuum, press the Empty button on the front of the dust cup.

MAINTENANCE

IMPORTANT: Unplug the vacuum before performing any maintenance.

CLEANING FILTERS

Regularly clean and replace the filters to keep your vacuum's suction power optimal.

IMPORTANT: To prevent damage, rinse filters with water ONLY. DO NOT use soap. Allow filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electric parts.

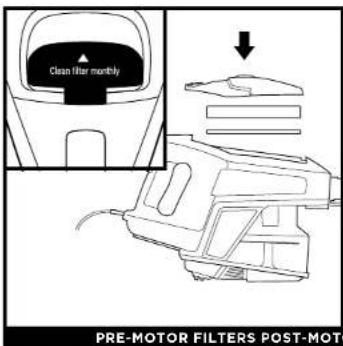

Clean filter monthly PRE-MOTOR FILTERS POST-MOT

The Pre-Motor Filters should be washed once a month.

Technical line drawing of a mechanical component with an inset view showing internal structure (no text or symbols)

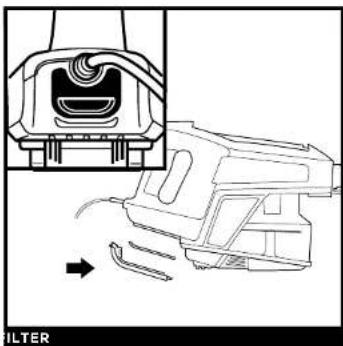

The Post-Motor Filter should be washed once every year.

REPLACEMENT FILTERS

Replacement Pre-Motor Filter Kit XPMFK320

NOTE: The pre-motor filters should be replaced every 2.5 years. The post-motor filter should be replaced every 3 years.

Replacement Post-Motor Filter 1084FTV320

MAINTENANCE

CHECKING FOR BLOCKAGES

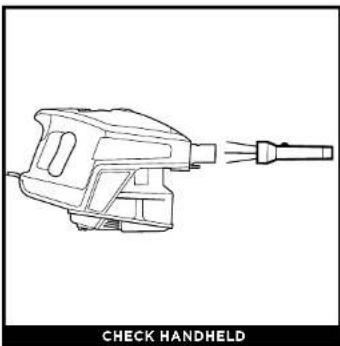

Line drawing of a handheld spray gun with a probe extending into it (no text or symbols on the diagram itself)

Remove the wand from the handheld vacuum and check all dust cup intake openings.

Line drawing of a mechanical clamp or connector with a labeled 'CHECK WAND' at the bottom (no other text or symbols)

Detach the wand and check it for blockages.

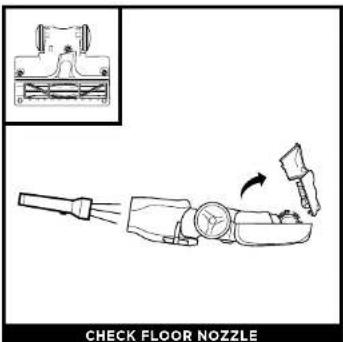

CHECK FLOOR NOZZLE

Detach the wand. Turn the floor nozzle over and use the edge of a coin to open the three locks on the bottom of the floor nozzle.
Tilt back the neck of the nozzle and check openings for blockages. To reinstall the cover, line it up, then press down until it clicks into place. Use the edge of a coin to close the three locks on the bottom of the nozzle.

MAINTENANCE

CLEANING THE BRUSHROLL

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or assembly.

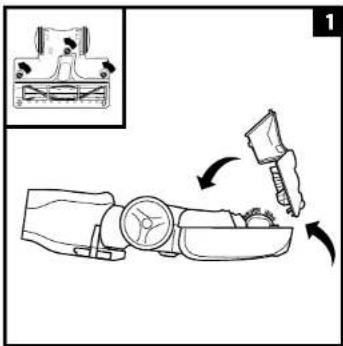

To access the brushroll, flip the floor nozzle over and use the edge of a coin to open the three locks on the bottom of the floor nozzle.

Technical line drawing of a mechanical clamp or clamp assembly with scissors, no text or symbols present

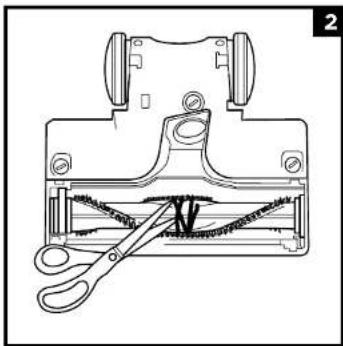

Run scissors along the groove in the brushroll to cut or clear away any string, carpet fibers, hair, or other debris.
To reinstall the cover, line it up, then rotate down until it clicks into place. Use the edge of a coin to close the three locks on the bottom of the nozzle.

TROUBLESHOOTING

Vacuum is not picking up debris. No suction or light suction.

(Refer to Maintenance section for more information.)

• Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinserting them in the vacuum.
• Dust cup may be full; empty dust cup.
• Check floor rozzle for blockages; clear blockages if required.
• Remove any string, carpet fibers, or hair that may be wrapped around the brushroll.

Vacuum lifts area rugs.

• Suction is powerful. Take care when vacuuming area rugs or rugs with delicately sewn edges.
• Turn off the unit to disengage the brushroll. To restart, slide the power switch to setting I, Bare Floor/Small Area Rugs.

Brushroll does not spin.

• If Brushroll Indicator light is red, that means there is a blockage in the brushroll area. Immediately turn off and unplug vacuum and remove blockage. Plug in vacuum and turn it on.
• If Brushrol Indicator Light on the floor nozzle is green, the blockage has been successfully cleared. If the light is still red, please contact Customer Service at 1-800-798-7398.

Vacuum turns off on its own or indicator light flashes red.

If your vacuum overheats, the thermostat will automatically turn off the motor.

Perform the following steps to restart:

1. Turn vacuum oil and unplug it.
2. Empty dust cup and clean filters (see Maintenance section).
3. Check for blockages in wand, accessories, and inlet openings.
4. Allow unit to cool for a minimum of 60 minutes.
5. Plug in vacuum and turn it on.

Shark NINJA

FIVE (5) YEAR LIMITED WARRANTY

The Five (5) Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC. Warranty coverage applies to the original owner and to the original product only and is not transferable.

SharkNinja warrants that the unit shall be free from defects in material and workmanship for a period of five (5) years from the date of purchase when it is used under normal household conditions and maintained according to the requirements outlined in the Owner's Guide, subject to the following conditions and exclusions:

What is covered by this warranty?

1. The original unit and/or non-wearable parts deemed defective, in SharkNinja's sole discretion, will be repaired or replaced up to five (5) years from the original purchase date.
2. In the event a replacement unit is issued, the warranty coverage ends six (6) months following the receipt date of the replacement unit or the remainder of the existing warranty, whichever is later. SharkNinja reserves the right to replace the unit with one of equal or greater value.

What is not covered by this warranty?

1. Normal wear and tear of wearable parts (such as foam filters, HEPA filters, pads, etc.), which require regular maintenance and/or replacement to ensure the proper functioning of your unit, are not covered by this warranty. Replacement parts are available for purchase at sharkaccessories.com.
2. Any unit that has been tampered with or used for commercial purposes.
3. Damage caused by misuse (e.g., vacuuming up water or other liquids), abuse, negligent handling, failure to perform required maintenance (e.g., not cleaning the filters), or damage due to mishandling in transit.
4. Consequential and incidental damages.
5. Defects caused by repair persons not authorized by SharkNinja. These defects include damages caused in the process of shipping, altering, or repairing the SharkNinja product (or any of its parts) when the repair is performed by a repair person not authorized by SharkNinja.
6. Products purchased, used, or operated outside North America.

How to get service

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit sharkclean.com/support for product care and maintenance self-help. Our Customer Service Specialists are also available at 1-800-798-7398 to assist with product support and warranty service options, including the possibility of upgrading to our VIP warranty service options for select product categories. So we may better assist you, please register your product online at registryyourshark.com and have the product on hand when you call.

SharkNinja will cover the cost for the customer to send in the unit to us for repair or replacement. A fee of \$24.95 (subject to change) will be charged when SharkNinja ships the repaired or replacement unit.

How to initiate a warranty claim

You must call 1-800-798-7398 to initiate a warranty claim. You will need the receipt as proof of purchase. We also ask that you register your product online at registryyourshark.com and have the product on hand when you call, so we may better assist you. A Customer Service Specialist will provide you with return and packing instruction information.

How state law applies

This warranty gives you specific legal rights, and you also may have other rights that vary from state to state. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

For all other issues, visit sharkclean.com/support.

NOTES

REGISTER YOUR PURCHASE

registryyourshark.com

n QR code using

mobile device

RECORD THIS INFORMATION

Model Number:

Date Code:

Date of Purchase:

(Keep receipt)

Store of Purchase:

Benefits of registering your product and creating an account:

- Get easier, faster product support and access to warranty information

- Access troubleshooting and product care instructions

- Be among the first to know about exclusive product promotions

TIP: The model number is on the rating label behind the dust cup.

TIP: The date code is on one of the prongs of the power cord plug.

TECHNICAL SPECIFICATIONS

Voltage: 120V\~, 60Hz

Watts: 500W

IMPORTANTES CONSIGNES DE SÉCURITÉ

USAGE DOMESTIQUE SEULEMENT

Line drawing of a person's leg and foot with a device attached, showing motion lines (no text or symbols)

Diagram of a mechanical device with an inset showing a component being inserted (no text or symbols present)

Technical line drawing of a vacuum cleaner with attached components and mounting bracket (no text or symbols)

Technical line drawing of a mechanical lifting device with a bracket and lever mechanism (no text or symbols)

ACCESSOIRES DISPONIBLES

Technical line drawing of a car seat assembly with an inset showing the front view and a directional arrow indicating assembly (no text or symbols present)

Technical line drawing showing a mechanical component with an inset view of a device (no text or symbols present)

Technical line drawing of a mechanical component with an inset view showing internal structure (no text or symbols)

Line drawing of a Vérifiez L'aspirateur portatif device with no text or symbols on the diagram itself

Line drawing of a laboratory probe with a labeled tube (no text or symbols on the diagram itself)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a mechanical clamp or clamp device with scissors inserted (no text or symbols)

LUZ INDICADORA

Line drawing of a vertical robotic arm with a hand and foot, no text or symbols present

Technical line drawing of a vacuum cleaner with internal components and mounting bracket (no text or symbols)

Technical line drawing of a mechanical lifting device with a bracket and lever mechanism (no text or symbols)

Technical line drawing of a car seatbelt device with an inset showing the front view and a close-up of the seat (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a close-up view of the part (no text or symbols present)

Technical line drawing of a Del Motor component showing internal structure and motion direction (no text or symbols)

Line drawing of a portable electric shaver with a handle, labeled 'REVISE LA PORTÁTIL' at the bottom (no other text or symbols)

Line drawing of a mechanical tool with a handle and lever, labeled 'REVISE EL VÁSTAGO' at the bottom (no other text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a mechanical clamp or clamp assembly with scissors inserted (no text or symbols)

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This Owner's Guide is designed to help you get a complete understanding of your new Shark® Rocket®.

SharkNinja Operating LLC

US: Needham, MA 02494

CAN: Ville St-Laurent, QC H4S 1A7

1-800-798-7398

sharkclean.com

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

For SharkNinja U.S. Patent information, visit sharkninja.com/patents

VEUILLEZ LIRE ATTENTIVEMENT LE PRÉSENT MODE D'EMPLOI ET LE CONSERVER À TITRE INFORMATIF.

SharkNinja Operating LLC

US: Needham, MA 02494

CAN: Ville St-Laurent, QC H4S 1A7

1-800-798-7398

sharkclean.com

SharkNinja Operating LLC

US: Needham, MA 02494

CAN: Ville St-Laurent, QC H4S 1A7

1-800-798-7398

sharkclean.com

ROCKET and SHARK are registered trademarks of SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

ROCKET y SHARK son marcas comerciales registradas de SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

HV370_Series_IB_EN_FR_SP_MP_Mv3

PRINTED IN CHINA / IMPRIMÉ EN CHINE / IMPRESO EN CHINA
