KXMB2545EU - Fax machine PANASONIC - Free user manual and instructions

Product type	Multifunction fax machine (printer, scanner, copier)
Brand	Panasonic
Model	KX-MB2545EU
Main functions	Fax, print, scan, copy
Printing technology	Laser
Print resolution	Up to 600 x 600 dpi (estimated)
Print speed	Up to 20 ppm (estimated)
Input tray capacity	250 sheets (standard)
Power supply	220-240 V AC, 50/60 Hz
Power consumption (printing)	Approx. 500 W (estimated)
Power consumption (standby)	Approx. 10 W (estimated)
Dimensions (W x D x H)	Approx. 420 x 430 x 350 mm (estimated)
Weight	Approx. 12 kg (estimated)
Connectivity	USB 2.0, Ethernet (RJ-45)
Toner cartridge	KX-FAT420X (1,500 pages), KX-FAT430X (3,000 pages), KX-FAT431X (6,000 pages)
Drum unit	KX-FAD422X
Maintenance and cleaning	Disconnect before cleaning; use a dry cloth; do not use liquids
Safety	Class 1 laser radiation; do not look directly at the LED indicator
Spare parts and repairability	Replaceable toner cartridge and drum; optional lower tray (KX-FAP107)
General information	Use on analog telephone network; compatible with European standards

Frequently Asked Questions - KXMB2545EU PANASONIC

How to change the display language?

Press the Menu key and navigate to setting #110. Select the desired language from the list.

What type of toner cartridge to use?

Use Panasonic cartridges: KX-FAT420X (1,500 pages), KX-FAT430X (3,000 pages) or KX-FAT431X (6,000 pages). The supplied cartridge is a starter cartridge.

How to install drivers on a computer?

Use the supplied CD-ROM. If your computer does not have a CD drive, download the drivers from: http://panasonic.net/pcc/support/fax/world.htm

What to do if the device emits smoke or an abnormal odor?

Immediately unplug the device from the mains and contact an authorized service center. Do not use the device until it has been checked.

Can I use the device wirelessly?

Only models with Wireless LAN allow this. Consult the user manual to set up the wireless network. Maintain a minimum distance of 20 cm between the antenna and the human body.

How to clean the device?

Turn off the device before cleaning. Use a dry cloth to wipe surfaces. Do not use liquid or aerosol products.

Can the device be used in all countries?

This fax machine is designed for analog telephone networks of the following countries: United Kingdom, France, Germany, Netherlands, Poland, Spain, Portugal, Belgium, Austria, Turkey, Czech Republic, Slovakia, Hungary, Slovenia, Lithuania, Latvia, Estonia, Cyprus.

How to set power saving?

Press the ECO key to activate eco mode. Consult the user manual for more details.

What to do if print quality is poor?

Check the toner level and replace the cartridge if necessary. Ensure the drum is in good condition. Consult the user manual for cleaning.

Can I send a fax from my computer?

Yes, if you install the appropriate software from the supplied CD-ROM. Follow the instructions in the user manual to set up faxing from the computer.

USER MANUAL KXMB2545EU PANASONIC

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Allemagne

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Hamburg, Allemagne

Cable USB/cable LAN/mémoire USB

PRODUIT LASER CLASSE 1

PRODUIT LED DE CLASSE 1

The connection to the telecommunication systems must not be hard wired and must be unplugged before the earth is disconnected.

Method of connection

This apparatus is connected to the exchange line or PABX/PMBX extension by the new standard British Telecom plug and socket.

Arrangements for provision of this type of termination can be made through the nearest British Telecom Sales Office.

This apparatus may be connected to the following types of installation.

a) For connection to the public switched telephone network (PSTN) and compatible PBX (Private Branch Exchange), which use DTMF signalling. (Please consult your supplier for an up to date list of compatible PBX's.)
b) The apparatus can be used on extension sockets connected to a direct exchange line (D.E.L.).
c) This apparatus is suitable for connection to the telecommunication system directly or via compatible private branch exchange as an extension. The supplier of the apparatus should be consulted for an up to date list of PBX's with which the apparatus is compatible.

It cannot be guaranteed that the apparatus will operate under all possible conditions of connection to compatible PBX's.

• This apparatus is suitable for connection to a PBX with or without initial proceed indication.
• This apparatus is suitable for connection to a PBX with or without secondary proceed indication.

Any cases of difficulty should be referred in the first instance to the supplier of the apparatus.

d) The apparatus must not be connected in the following manner:

-As an extension to a pay phone
-As a party line with shared service

NOTES:

• If you experience any problems with the normal use of your apparatus, you should unplug it from the telephone outlet and connect a known working telephone in its place. If the known working telephone still gives problems, then please contact the customer service department of your PSTN operator (e.g. BT etc.). If it operates properly, then the problems are likely to be a fault in your apparatus. In this case, consult your supplier for advice.
• Your PSTN operator may charge you if they attend a service call that is not due to apparatus supplied by them.

For your safety

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

Should the fuse need to be replaced please ensure that the replacement fuse is of the same rating and that it is approved by ASTA or BSI to BS1362.

Check for ASTA mark A or the BSI mark on

the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

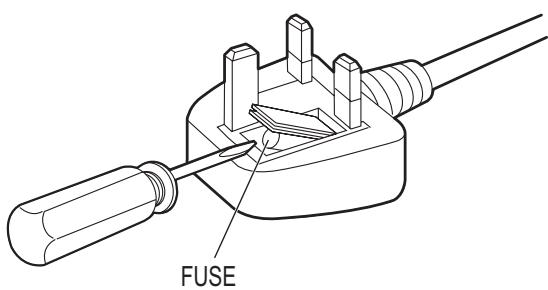

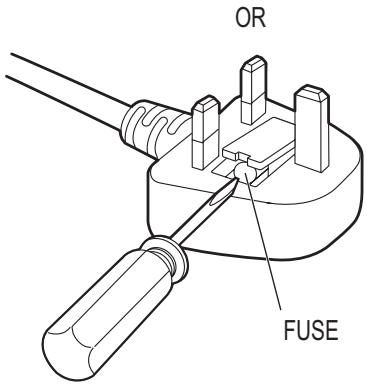

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse (and fuse cover).

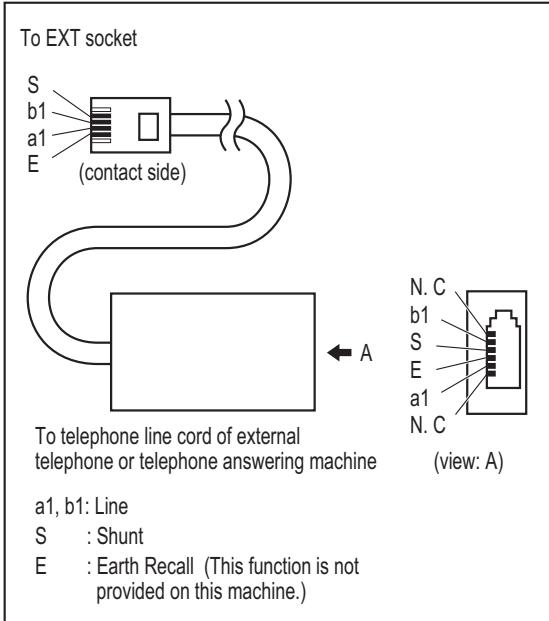

When using the unit with an external answering machine, please purchase an extension telephone adaptor.

Customer Care Centre

For customers within the UK: 0844 844 3867
For customers within the Republic of Ireland: 01 2898255
- Visit our website for product information
E-mail: [e-mail]

Direct Sales at Panasonic U.K.

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday - Thursday 9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding public holidays).
• Or go on-line through our Internet Accessory ordering application at www.panasonic.co.uk.
• Most major credit and debit cards accepted.
• All enquires transactions and distribution facilities are provided directly by Panasonic U.K.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Declaration of Conformity

C21344

Document No. PCTF-130048-01

(Issuer's name & address)

Panasonic System Networks Co., Ltd.

Hakata-ku, Fukuoka, Japan

(Object of the declaration)

(Product) : Multi-Function Printer

(Trade Name) : Panasonic

(Model Nr.) : KX-MB2230EU, KX-MB2230JT, KX-MB2270EU, KX-MB2270JT.

KX-MB2545EU, KX-MB2545JT, KX-MB2575EU, KX-MB2575JT,

DP-MB310EU, DP-MB310JT

Optional Lower Input Tray : KX-FAP107

The object of the declaration described above is in conformity with the requirements of the following EU legislations and harmonized standards. For the RoHS Directive, this declaration of conformity is issued under the sole responsibility of the manufacturer.:

(Council directive) : 1999/5/EC

(Council recommendation) : 1999/519/EC

(Harmonized standards) : EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011, < C >

EN 62479:2010, EN 50385:2002, EN 300 328 V1.8.1

EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1,

EN 55022:2010, EN 55024:2010

EN 61000-3-2:2006 + A1:2009 + A2:2009, EN 61000-3-3:2008

(Council directive) : 2009/125/EC

(Implementing Measure for ErP Directive): Commission Regulation(EC) No.1275/2008

(Council directive) : 2011/65/EU

(Harmonized standards) : EN 50581:2012

(the last two digits of the year in which the CE marking was affixed): 13

Signed for and on behalf of :

Printed Name : Masakiro Ezato

Title : Senior Technical Regulation Manager

Date of issue : 5th April, 2013

Authorised Representative in EU

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Hamburg, Germany

(Signature) N. (Printed name) NielsErdmann (Date) U8.April 2013

5232 BC's-Hertogenbosch, The Netherlands

92238 Gennevilliers Cedex, France

Fabricant :

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Site Web : http://www.panasonic.net/
