USER MANUAL H20MOWS3G HISENSE

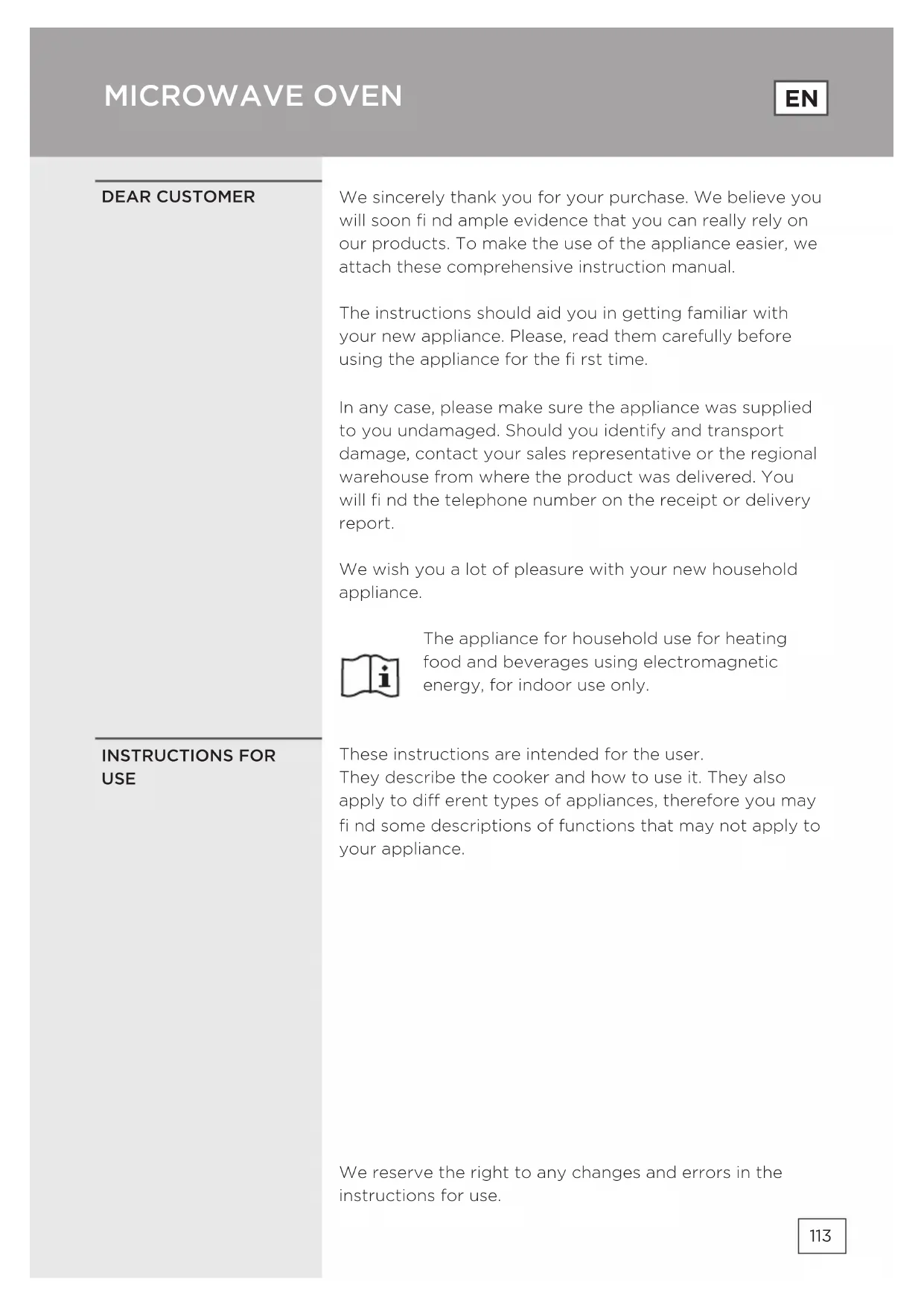

We sincerely thank you for your purchase. We believe you will soon fi nd ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual. The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the fi rst time. In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will fi nd the telephone number on the receipt or delivery report. We wish you a lot of pleasure with your new household appliance. The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only. These instructions are intended for the user. They describe the cooker and how to use it. They also apply to di erent types of appliances, therefore you may fi nd some descriptions of functions that may not apply to your appliance. DEAR CUSTOMER

INSTRUCTIONS FOR USE MICROWAVE OVEN We reserve the right to any changes and errors in the instructions for use.Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning! Microwave energy & High voltage! Do not remove the cover. WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

• Children should be supervised to ensure that they do not play with the appliance.

• Don't remove oven's feet, do not block air events of the oven.

• Only use utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

• If smoke is observed, switch o or unplug the appliance and keep the door closed in order to stifl e any fl ames;

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;116

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

• The oven should be cleaned regularly and any food deposits removed;

• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely a ect the life of the appliance and possibly result in a hazardous situation;

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard.

• Do not let the cord hang over the edge of the table or worktop.

• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.

• Never replace the light bulb inside the oven. It must always be replaced by Hisense service.

• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.117 Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and

roller track in place when operating the oven.

2. Do not use the oven for any reason other than food

preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.

3. Do not operate the oven when empty. This could

4. Do not use the oven cavity for any type of storage,

such a papers, cookbooks, etc.

5. Do not cook any food surrounded by a membrane,such

as egg yolks, potatoes, chicken livers, etc without fi rst being pierced several times with a fork.

6. Do not insert any object into the openings on the outer

7. Do not at any time remove parts from the oven such as

the feet, coupling, screws, etc.

8. Do not cook food directly on the glass tray. Place food

in/on proper cooking utensil before placing in the oven. IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN – Do not use metal pans or dishes with metal handles. – Do not use anything with metal trim. – Do not use paper covered wire twist-ties on plastic bags. – Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed. – Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used. – Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as they may explode if heated in a microwave oven. – Do not use conventional meat or candy thermometers. – There are the thermometers available specifi cally for microwave cooking. These may be used.

9. Microwave utensils should be used only in accordance

with manufacturer's instructions.

10. Do not attempt to deep-fry foods in this oven.

11. Please remember that a microwave oven only heats

the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

12. Always test the temperature of cooked food yourself

especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

13. Food containing a mixture of fat and water,

e.g.stock,should stand for 30-60 seconds in the oven after it has been turned o . This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

14. When preparing/cooking food/liquid and remember

that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

15. Cooking utensil may become hot because of heat

transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

16. To reduce the risk of fi re in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from bags before placing bag in oven. c) If materials inside the oven should ignite, keep oven door closed, turn the oven o at the wall switch, or shut o power at the fuse or circuit breaker panel.119 DISPLAY Shows the clock, cooking time and setting. COOKING TIME Use this key to cook food by time.

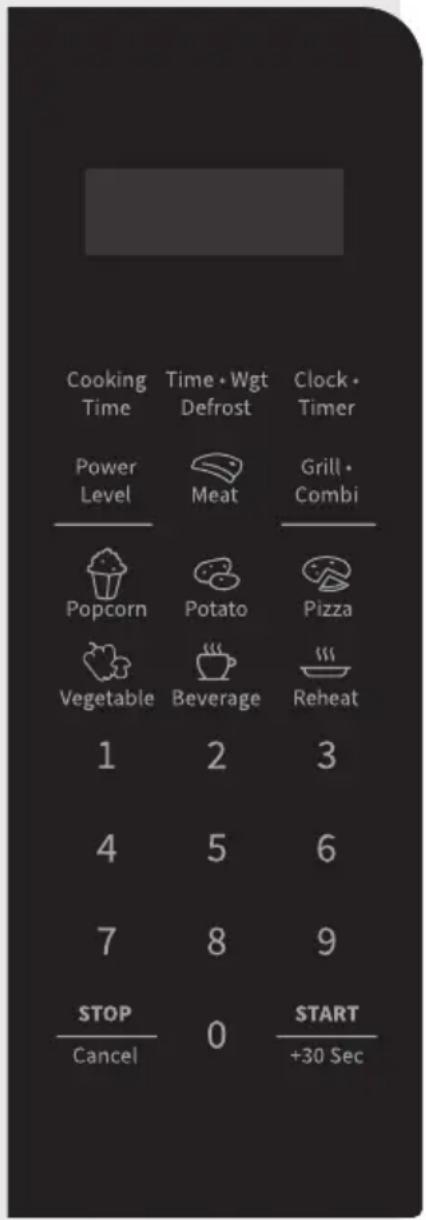

Use this key to defrost the food by time or by weight. CLOCK•TIMER Use this key to set the clock and cooking timer. POWER LEVEL Use this key to select the microwave power level. GRILL•COMBI Use this key to select grill or microwave and grill combinations. ICONS Use these keys to set time and food weight and to choose the auto menu programmes. 0 – 9 Use these keys to enter the cooking time and weight. STOP/CANCEL Use this key to defrost the food by weight. START/+30 SEC Use this key to do quick start cooking of 30 seconds, increase cooking time by 30 seconds (by each press), or confi rm cooking settings. CONTROL PANEL1. Door Safety Lock System

the mica plate covering the wave guide) The oven is fi tted with a digital clock. When the oven is in the standby mode, the clock can be set in the 12/24 hour mode by pressing the Clock•Timer key.

1. Press and hold the Clock•Timer for 3 seconds to set

the 12-hour clock mode (Hr12). Press the »Clock•Timer« key again to set the 24-hour clock mode (Hr24).

2. Press the Numeric (0-9) keys and enter the time. For

example, to input the current time 12:30, you need to press “1”, “2”, “3”, “0”. The input hour has to be within 1-12/1-24 and the input minutes has to be within 0-59.

3. Press the Clock•Timer key again to complete the

Clock•Timer. “:” will start fl ashing.The time is set. NOTE: Please ensure that you have set the clock prior to use. Use the countdown timer to set an alarm.

time. The longest time you can set is 99 minutes and 99 seconds.

3. Press the START key to confi rm the setting.

4. Once the elapsed time is reached, the microwave will

sound and return to its original state. CLOCK TIMER OPERATION INSTRUCTION

• When the Timer is running, other functions cannot be used.

• When the microwave is not in use, this feature allows you to use the microwave as a timer.

• Please make sure the clock has been set.

1. Press the Cooking Time key. The display will show “:”.

2. Press the Numeric (0-9) keys to enter the cooking

time. For example, enter the cooking time 5min by pressing “5”, “0”, “0”.

3. Press the Power key repeatedly to set the desired

4. Press the START key to confi rm and start cooking.

5. Press the STOP/Cancel key to pause the cooking.

Press the STOP/Cancel key again to cancel the setting. NOTE: When P-00 (0%) is selected, no microwave power will be present. This setting is for deodorizing purposes only. Input 1234567891011 Display P100 P-90 P-80 P-70 P-60 P-50 P-40 P-30 P-20 P-10 P-00 Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0% Grilling is especially suitable for thin slices of meat, escalopes or steaks, meat chops, skewers, sausages, or pieces of chicken. Grilling is also suitable for toasting bread or sandwiches and fi nishing dishes au gratin.

2. Press the Numeric (0-9) keys to enter the cooking

3. Press the START key to confi rm and start cooking.

NOTE: We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate. We recommend that you turn around the food from time to time to ensure more even grilling. COOKING GRILLThe oven will operate with microwaves 35 percent of the time, and with grill 65 percent of the time. This operating mode is suitable for cooking fi sh or dishes au gratin.

1. Press the Grill•Combi key twice and the display will

2. Press the Numeric (0-9) keys to enter the cooking

3. Press the START key to confi rm and start cooking.

NOTE: We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate. We recommend that you turn around the food from time to time to ensure more even grilling. The oven will operate with microwaves 67 percent of the time, and with grill 33 percent of the time. This operating mode is suitable for cooking pudding, sou és, omelets, baked potatoes, and poultry.

1. Press the Grill•Combi key three times and the display

2. Press the Numeric (0-9) keys to enter the cooking

3. Press the START key to confi rm and start cooking.

NOTE: We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate. We recommend that you turn around the food from time to time to ensure more even grilling. For the food in the auto menu, only the type of food and the weight/amount have to be set. The oven will aid you in the setting of power and time. For instance: If you want to cook 2 pieces of potato, please follow the steps below:

1. Press the Potato key repeatedly to select the weight

option of your food. Please refer to the auto-cook menu table for more information.

2. Press the START key to confi rm and start cooking.

• For some food, you may need to turn it over during cooking to ensure it is thoroughly cooked and browns evenly.

• The density and thickness of food can a ect its cooking time.

• All cooking times are approximate guides only; adjust to preferred tastes and recipes.

• Only use suitable microwavable containers and cling fi lm in the microwave. Pierce the fi lm with a fork before cooking. The oven allows defrosting of meat, poultry, and seafood. Defrosting time and operating power will be adjusted automatically according to the preset weight. Weight of the food to be defrosted may be between 100 g and 1800 g.

2. Press the numeric (0-9) keys to enter the weight. For

example, enter the weight by pressing “6”, “0”, “0” for 600g.

3. Press the START key to confi rm and start cooking.

NOTE: During defrosting, the oven will automatically beep twice when halfway through the progress. This is to remind you to turn around the food. After this is done, close the oven door and press the START key. Large items may be frozen in the center. Therefore, to ensure even thawing, turn them over from time to time and break them into smaller pieces during defrosting. Drain liquids during defrosting as the juices from food can get hot and cook the food. The oven also allows speed defrosting.

time. For example, enter the defrosting time by pressing “5”, “3”, “0” for 5minutes and 30 seconds

3. Press the START key to confi rm and start cooking.

NOTE: During defrosting, the oven will automatically beep twice when halfway through the progress. This is to remind you to turn around the food. After this is done, close the oven door and press the START key. WEIGHT (AUTO) DEFROST

Large items may be frozen in the center. Therefore, to ensure even thawing, turn them over from time to time and break them into smaller pieces during defrosting. Drain liquids during defrosting as the juices from food can get hot and cook the food. Tips for using the oven Use this function to rapidly heat (100% microwave power) or cook your food. In the standby mode, press the START key and the oven will operate for 30 seconds. With each consecutive press of the START key, the operating time will be extended by 30 seconds. NOTE: Pressing the START key again will prolong the cooking time by 30 seconds in all programs except in automatic mode, multi-step cooking, and in the auto defrost mode. This automatic safety function is activated one minute after the oven has returned to “stand by mode“. When the safety function is active the door must be opened and closed in order to start the cooking, otherwise the display will show “door”. Use this function to mute the keypad sound (beeps). Press the “8” key and hold it until you hear two short beeps. Keypad beeps are now muted (cooking end beeps stay on). To turn on the keypad beeps again, press the “8” key and hold it until you hear two short beeps. QUICK START CHILD LOCK KEYPAD SOUND SETTINGS1. Turn the oven o and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food

splatters of spilled liquids adhere to oven walls,wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.

3. The outside oven surface should be cleaned with

a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Do not allow the Control Panel to become wet. Clean

with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.

5. If steam accumulates inside or around the outside

of the oven door, wipe with a soft cloth.This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6. It is occasionally necessary to remove the glass tray

for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

7. The roller ring and oven cavity fl oor should be

cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapours collect during repeated use but in no way a ect the bottom surface or roller ring wheels. When removing the roller ring from cavity fl oor for cleaning, be sure to replace it in the proper position.

8. Remove odors from your oven by combining a cup of

water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth. Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an o cial collection point for recycling. By doing this, you help to preserve the environment. ENVIRONMENT

1. Make sure all the packing materials are removed from

the inside of the door.

2. Inspect the oven after unpacking for any visual damage

such as: – Misaligned Door – Damaged Door – Dents or Holes in Door Window and Screen – Dents in Cavity If any of the above are visible, DO NOT use the oven.

3. This Microwave Oven weighs 11 kg and must be placed

on a horizontal surface strong enough to support this weight.

4. The oven must be placed away from high temperature

5. DO NOT place anything on top of the oven.

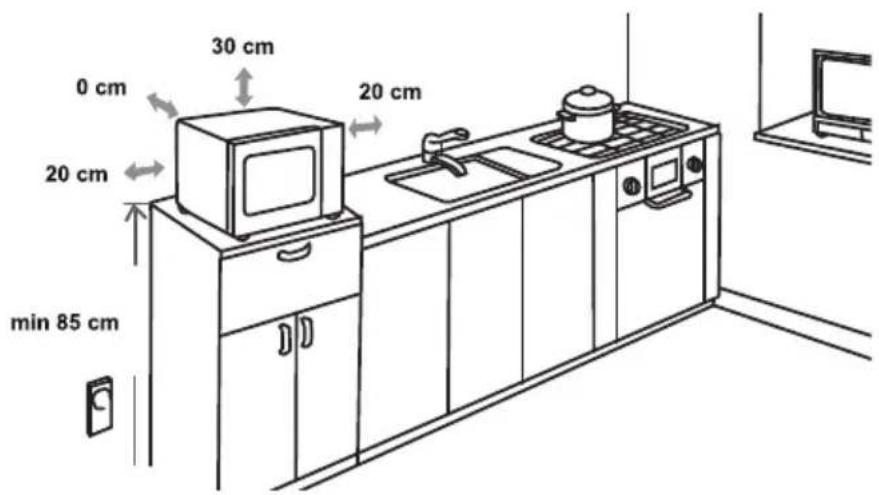

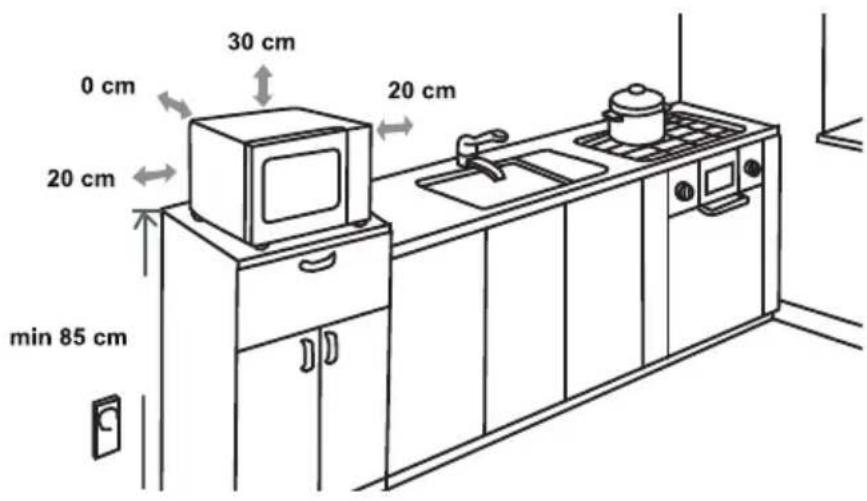

6. Keep the oven at least 20 cm away from both sidewalls

and 30 cm away from rear wall to ensure the correct ventilation.

7. DO NOT remove the turn -table drive shaft.

8. As with any appliance, close supervision is necessary

when used by children.

9. Make sure that the AC outlet is easily accessible so

that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered. The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz). WARNING! THIS APPLIANCE MUST BE EARTHED!

10. This oven requires 1.1 kVA for its input consultation with

service engineer is suggested when installing the oven. CAUTION: This oven is protected internally by a 250V, 8 Amp Fuse. INSTALLATION

MOUNTING THE MICROWAVE OVEN128

Power consumption ................................... 230-240V ~50Hz, 1100W Output power .......................................................................................700W Grill heater ..................................................................................... 900W Operating Frequency .................................................................2450MHz Outside Dimensions .......................................... 446 x 243 x 323 mm Oven Capacity .................................................................................. 20 litres Uncrated Weight ...................................................................Approx. 11 kg Noise level .............................................................................Lc < 58 dB (A) This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment. Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures. a) Clean the door and sealing surface of the oven. b) Place the radio, TV, etc. as far away from your microwave oven as possible. c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception. WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE. SPECIFICATIONS MOUNTING DIMENSIONS RADIO INTERFERENCE129

1. If the oven will not perform at all, the information on the

display does not appear or the display disappeared: a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

2. If the microwave power will not function:

a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not fl ow into the oven. If none of the above rectify the situation, then contact the nearest authorized service agent. The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only. If you need information or if you have a problem, please contact the Hisense Customer Care Centre in your country (you fi nd its phone number in the worldwide guarantee leafl et). If there is no Customer Care Centre in your country, go to your local Hisense dealer or contact the Service department of Hisense domestic appliances. For personal use only! WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE
