Redemption ANC 2 - Earphones HOUSE OF MARLEY - Free user manual and instructions

Product Type	In-ear wireless earbuds
Brand	House of Marley
Model	Redemption ANC 2
Active Noise Cancellation	Yes (ANC)
Connectivity	Bluetooth 5.0
Earbud battery life	Up to 8 hours (ANC on) / 10 hours (ANC off)
Total battery life with case	Up to 30 hours
Earbud charging time	Approximately 1.5 hours
Case charging time	Approximately 2 hours (via USB-C)
Battery indicator	Tap on the case to display battery status
Companion app	House of Marley (iOS and Android)
Factory reset	Yes (procedure described in the manual)
Auto pairing	Yes, as soon as taken out of the case
Force pairing	Tap 5 times on an earbud
Earbud weight	Approximately 5.5 g each
Charging case weight	Approximately 45 g
Earbud dimensions	30 x 22 x 18 mm each
Case dimensions	60 x 50 x 25 mm
Care	Clean with a dry, soft cloth
Safety	Do not listen at high volume for extended periods to prevent hearing damage
Spare parts	Contact customer service for replacement battery
Certification	Compliant with RF standards, SAR max 1.6 W/kg
Warranty	Check the official website for details
Box contents	Earbuds, charging case, USB-C cable, silicone tips, manual

Frequently Asked Questions - Redemption ANC 2 HOUSE OF MARLEY

How to set up the Redemption ANC 2 earbuds for the first time?

Open the case, remove the earbuds and remove the paper film at the bottom of the case. Place the earbuds back in the case and leave it closed for 15 minutes for the first charge. Then take out the earbuds: they automatically enter pairing mode (red/white light). Select Redemption ANC 2 from your device's Bluetooth menu.

How to charge the case and the earbuds?

The case is charged via a USB-C cable (not included? the manual mentions charging but not the connector type; assuming USB-C). The earbuds charge automatically when placed in the closed case.

How to check the battery level of the case?

Tap on the case to see the battery status. The lights on the case indicate the charge level.

How to reset the earbuds to factory settings?

Remove the earbuds from the case. Press each earbud for 10 seconds to turn them off (red light flashes 3 times). Wait 10 seconds, then press and hold both earbuds until the light flashes white and red, then until the red light flashes 3 times and the earbuds turn off. Place them back in the case and close the lid. The reset is completed on the next opening.

How to force pairing to a new device?

Open the case lid and place the earbuds in your ears. Tap one of the earbuds five times to activate pairing mode. An audio signal is heard and the LED light flashes red and white.

Can I use the House of Marley app?

Yes, download the House of Marley app from your device's app store for more features (equalizer, gesture control, etc.).

Are the earbuds water-resistant?

The manual does not mention water resistance. It is advised to protect them from moisture.

How to clean the earbuds?

Use a dry, soft cloth to clean the earbuds and case. Do not use liquid or abrasive products.

What is the battery life?

The earbuds provide up to 8 hours with ANC on, 10 hours without ANC. The charging case provides approximately 3 additional charges, for a total battery life of about 30 hours.

What to do if an earbud does not pair?

Make sure the earbuds are charged and in the case. Reset them according to the procedure above. If the problem persists, contact House of Marley customer service.

USER MANUAL Redemption ANC 2 HOUSE OF MARLEY

Line drawing of an earbuds with black plastic bands and a transparent case, no text or symbols present

REDEMPTION ANC 2

QUICK START GUIDE

GUIDE DE DÉMARRAGE RAPIDE

QR code image containing encoded data, no visible human-readable text

Line drawing of two wireless earbuds with a clip, no text or symbols present

Line drawing of a smart food appliance with a lid and control panel (no text or symbols)

Simple line drawings of five dome-shaped objects arranged in a row (no text or symbols)

Simple line drawing of a coiled cable or connector with two connectors (no text or symbols)

Scanned document page with two open pages and a barcode image, likely from an academic or legal document.

MARLEY

Diagram showing two rectangular objects with a diagonal line and a circular base, no text or symbols present.

Two technical line drawings of a cloud-based device with a lid and base, shown from different angles (no text or symbols)

Simple line drawing of a device with a finger pointing to it, no text or symbols present

White Blanco Blanc Weiß BIANCA Hvit Fehér Biały БЕЛЬИ Wit valkoinen Vit Дэукó Branco Beyaz 白色的 白い 하얀

Two battery icons with charging symbols below, no text or labels present

◇ ◆ ◆ ◆ ◆ = 0-20% ◇ ◆ ◆ ◆ ◆ = 20-40% ◇ ◆ ◆ ◆ ◆ = 40-60% ◇ ◆ ◆ ◆ ◆ ◆ = 60-80% ◇ ◆ ◆ ◆ ◆ ◆ = 80-100%

Simple line drawing of a hand holding a small object with a handle, no text or symbols present

Diagram of a handheld device with a red indicator light and label '2' (no text or symbols on the device itself)

3 + - +

Diagram of a smart earbuds with a rotating button and power switch (no text or symbols)

Diagram of a symmetrical mechanical or biological structure with two arms and two dots, connected by dashed lines to a red star-like symbol (no text or labels)

6 Redemption ANC 2

Line drawing of a finger holding a small object, labeled 'L' (no text or symbols on the object itself)

2x 3x1x 2s

Diagram of a finger pressing a curved mechanical component (no text or symbols)

1x 2x 3x 2s

PLAY/PAUSE

Diagram of a handheld ear with motion lines and triangular play button (no text or symbols)

Diagram of a hand holding an ear with motion lines and a directional arrow (no text or symbols)

Lecture/Pause

Reproducir/Pausar

Riproduzione/Pausa

Wiedergabe/Pause

Afspelen/Pauze

再生／一時停止

播放/暫停

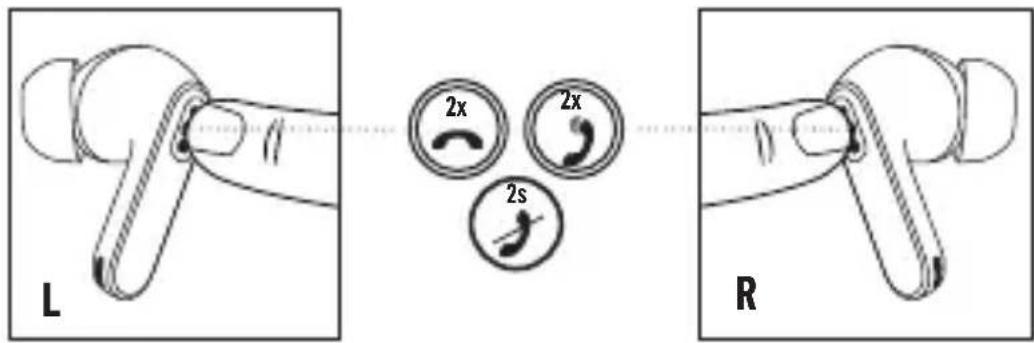

L 2x 2x 2s R

MONO MODE

Mode Mono / Modo monoaural / Modalità Mono / Mono-Modus / Mono-modus / モノモード / 單聲道模式

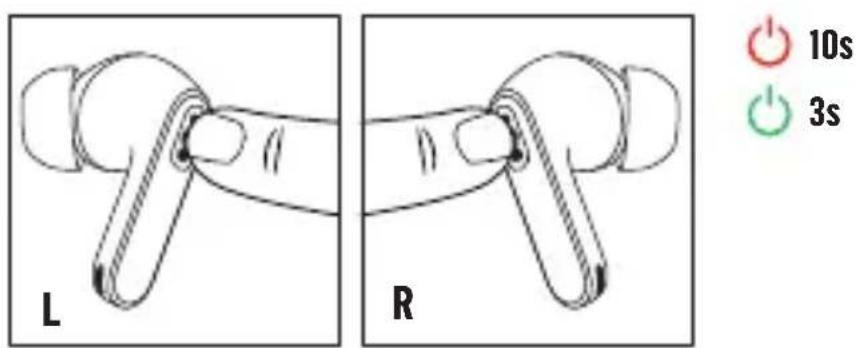

L R 10s 3s

1. Initial Set Up & Pairing:

• Open Case.
• Remove earbuds and remove paper film from the bottom.
• Place earbuds back into charging case and leave closed for 15 minutes before first pair.

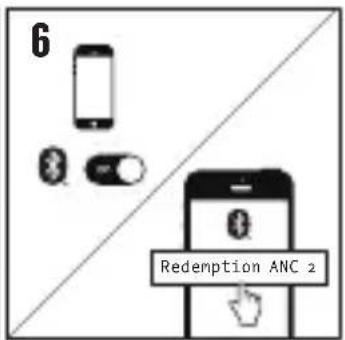

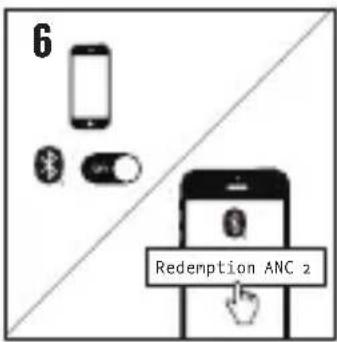

• Remove earbuds from the charging case and they will automatically go into pairing mode indicated by alternating red/white flashing on one of the earbuds.
  2" from your device's Bluetooth® menu.
• Once paired, simply removing earbuds from the case will automatically pair to your device
• Download the House of Marley app on your devices app store for added functionality.

- Select "Redemption ANC

2. Battery Life:

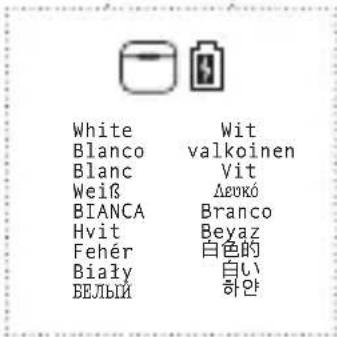

Tap case to check battery level. LEDs on case will indicate status.

3. Force pair to New Device:

- Open case lid and place earbuds in ears, tap either earbud 5 times, the pairing mode will sound and alternating red/white LED on earbud will begin.

4. Reset Earbuds to Factory Settings:

• Remove earbuds from case. Press and hold on each earbud for 10 seconds to force earbud to power off (3 red flashes will indicate power off).
• Wait 10 seconds
• Press and hold on both earbuds until white/red flashing is showing, continue to hold until earbuds flash red 3 times and power off.
• Return earbuds to case and close lid.

- Upon opening charging case, earbuds will be reset to factory settings.

1. Installation initiale et appairage:

©Fifty-Six Hope Road Music Ltd., 2011-2021. Right of Publicity and Persona Rights. Fifty-Six Hope Road Music Ltd. EM-DE031

Marley, the Marley logo, Bob Marley and the Bob Marley logo are registered trademarks of Fifty-Six Hope Road Music Limited and any use of such marks by The House of Marley is under license. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by The House of Marley is under license.

Line drawing of two wireless earbuds with a clip, no text or symbols present

이어폰 이어팀

Line drawing of a smart rice cooker with lid and buttons (no text or symbols)

여행용 케이스, 예비 배터리 포함

Simple line drawings of five dome-shaped objects arranged in a row (no text or symbols)

Simple line drawing of a coiled cable or hose with two connectors (no text or symbols)

Illustration of two open booklets with logos and text, likely representing a library or information card.

환영 카드 보증서

MARLEY

스티커 QSG(간단사용설명서)

Diagram showing two rectangular objects with a connecting rod, connected by a diagonal line (no text or symbols)

White
Blanco
Blanc
Weiß
BIANCA
Hvit
Fehér
Biały
ВЕЛЬИ
Wit
valkoinen
Vit
Левко
Branco
Beyaz
白色的
白い
하얀

○●●●● = 0-20%
=20-40%
=40-60%
◇ ◇ ◇ ◇ ◆ = 60-80%
=80-100%

Diagram of a dental implant device with a curved arrow indicating rotation (no text or symbols)

Diagram of a handheld device with a red button and arrow indicating rotation (no text or symbols)

3 • •

Diagram of a smart earbuds with a power button, no text or symbols present

Diagram of two symmetrical objects with red and black star symbols above, no text or labels present

6 Redemption ANC 2

Simple line drawing of a finger holding a curved object, labeled 'L' (no text or symbols on the object itself)

Diagram of a finger pressing a curved object with a labeled 'R' (no text or symbols on the object itself)

재생/일시정지

Diagram of a handheld electronic device with circular motion lines and triangular indicators (no text or symbols)

Diagram of a hand holding an ear with a device, showing motion lines and a directional arrow (no text or symbols)

L 2x 2x 2s R

모노 사용

Illustration of a hand holding an ear with a device, showing motion and 5x speed indicator (no text or symbols on the devices themselves)

케이스 켜기/끄기 금지

L R 10s 3s

1. 初回セットアップとペアリング

・ケースを開きます

Full instruction and warranty details can be found at https://www.thehouseofmarley.com/customer-support/instruction-books

Para obtener libro de instrucciones, detalles de garantía y excepciones, visite https://www.thehouseofmarley.com/customer-support/instruction-books

如需查看完整说明和质保详情，请访问 https://www.thehouseofmarley.com/ customer-support/instruction-books

如需完整說明與保固詳情·請瀏覽 https://www.thehouseofmarley.com/ customer-support/instruction-books

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING:

For Australia and New Zealand for charging this equipment, only use Australian approved detachable power supply unit with the output ratings of 5V DC, 500 mA.

FCC RF EXPOSURE STATEMENT:

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

CAUTION!

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ISEDC STATEMENT: This device complies with Innovation, Science, and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003.

ISEDC RF EXPOSURE STATEMENT:

The device is compliant with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.

End user must follow the specific operating instructions for satisfying RF exposure compliance.

The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA).

These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body.

LE PRÉSENT APPAREIL EST CONFORME

Your Redemption ANC 2 includes a rechargeable battery designed to last the lifetime of the product. In the unlikely event that you should require a replacement battery, please contact Consumer Relations who will supply details of the warranty and out-of-warranty replacement battery service.

CAUTION

Risk of explosion if the battery is replaced by an incorrect type

• replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types);
• disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
  – leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
• a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

BATTERY DIRECTIVE

This symbol indicates that batteries must not be disposed of in the domestic waste as they contain substances which can be damaging the environment and health. Please dispose of batteries in designated ection points.

WEEE EXPLANATION

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to environment or human health from uncontrolled waste disposal, recycle responsibly to promote the sustainable reuse of material resources.

Hereby, FKA Brands Ltd, declares that this radio equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of Conformity can be obtained from www.thehouseofmarley.co.uk/declaration-of-conformity

FR REDEMPTION ANC 2

LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION. LES CONSERVER POUR POUVOIR LES CONSULTER ULTÉRIEUREMENT.

DÉCLARATION ISEDC

REPLACEMENT DES PILES

https://tinyurl.com/GermanyWEEE

www.thehouseofmarley.co.uk/declaration-of-conformity

TR REDEMPTION ANC 2

KULLANMADAN ÖNCE TÜM TALİMATLARI OKUYUN. BU TALİMATLARI DAHA SONRA BAŞVURMAK ÜZERE SAK.

PIL DEĞİŞTIRME

www.thehouseofmarley.co.uk/declaration-of-conformity

DK REDEMPTION ANC 2

LÆS HELE VEJLEDNINGEN IGENNEM F∅R BRUG. GEM DENNE VEJLEDNING TIL SENERE BRUG.

UDSKIFTNING AF BATTERI

www.thehouseofmarley.co.uk/declaration-of-conformity

EL REDEMPTION ANC 2

www.thehouseofmarley.co.uk/declaration-of-conformity

CZ REDEMPTION ANC 2

PŘED POUŽITÍM ZAŘÍZENÍ SI PŘEČTĚTE VŠECHNY POKYNY. POKYNY USCHOVEJTE PRO BUDOUCÍ NAHLÉDNUTÍ.

VÝMĚNA BATERIE

www.thehouseofmarley.co.uk/declaration-of-conformity

SK REDEMPTION ANC 2

PRED POUŽITÍM ZARIADENIA SI PREČÍTAJTE VŠETKY POKYNY. POKYNY USCHOVAJTE NA NAHLIADNUTIE V BUDÚCNOSTI.

VÝMENA BATÉRIE

zhode získate na adrese www.thehouseofmarley.co.uk/declaration-of-conformity

PL REDEMPTION ANC 2

www.thehouseofmarley.co.uk/declaration-of-conformity

BG REDEMPTION ANC 2

ПРОЧЕТЕТЕ ВСИЧКИ ИНСТРУКЦИИ ПРЕДИ УПОТРЕБА И ГИ ЗАПАЗЕТЕ ЗА БЪДЕЩА СПРАВКА.

www.thehouseofmarley.co.uk/declaration-of-conformity

CN REDEMPTION ANC 2

FKA Distributing Co., LLC / China

제조년월:2020-09

인증번호: R-C-DMV-EM-DE031

모델명(Model):EM-DE031

Warning symbol with a sine wave inside a triangle, indicating sound or sound pressure.

To prevent possible hearing damage, do not listen at high volume levels for long periods. Full instruction and warranty details can be found at http://www.thehouseofmarley.com/instructionbooks.

http://www.thehouseofmarley.com/instructionbooks

http://www.thehouseofmarley.com/instructionbooks

http://www.thehouseofmarley.com/instructionbooks

http://www.thehouseofmarley.com/instructionbooks

Marley and the Marley logo are registered trademarks of Fifty-Six Hope Road Music Limited and the use of such marks by House of Marley is under license. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by The House of Marley is under license.

Operating frequency band: 2402 - 2480MHz

CE BT Max Power Transmitted Power:

Left Ear:11dBm, Right Ear:11dBm

Distributed by

House of Marley, LLC,

3000 N. Pontiac Trail, Commerce Township, MI 48390.

Distributed in Australia by

HoMedics Australia Pty Ltd,

14 Kingsley Close,

Rowville, Victoria 3178.

Distributed in New Zealand by

CDB Media Ltd,

4 Lovell Court,

Albany, Auckland, New Zealand 0800 232 633

Imported into the UK by

FKA Brands Ltd, Tonbridge, TN110GP, UK.

Imported into the EU by

FKA Brands Ltd, 29 Earlsfort Terrace, Dublin 2. IE

QS-EMDE031

Right Earbud EM-DE031R

FCC ID: PVB-EMDE031R

IC:10613A-EMDE031R

210-161438

Left Earbud EM-DE031L

FCC ID: PVB-EMDE031L

IC: 10613A-EMDE031L

210-161327

Charging Case EM-DE031

FCC ID: PVB-EMDE031

IC:10613A-EMDE031

Two identical crossed-out trash bins with no visible text or symbols

EM-DE031

© 2021 House of Marley, LLC.

All Rights Reserved.

Tanbridge, TN11 102, UK

29 Earlsfort Terrace, Dublin 2. IE
