Product type	Bagless cyclonic vacuum cleaner
Brand	H.Koenig
Model	SLX970
Power supply	Mains (check voltage on label)
Filter type	Washable foam
Included accessories	Double position floor brush, turbo brush, pet brush, crevice tool, upholstery brush
Features	Airflow adjustment on handle, safety valve, cord rewinder
Tank cleaning	Removable tank, emptying with trash button
Filter maintenance	Wash foam with water and dry naturally
Safety	Do not vacuum liquids, unplug before maintenance
Usage	Domestic use, unwind cord to red mark
Repairability	Contact the dealer or an authorized service center
Cord length	Not specified
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - SLX970 H.KOENIG

How to use the turbo brush?

The turbo brush is ideal for carpets, rugs, and upholstered furniture. Thanks to its rotating roller brush, it also cleans laminate floors, parquet, and tiles. Attach it to the tube and turn on the vacuum.

How to clean the vacuum filter?

Remove the foam from the dust tank. Wash it with clean water and let it dry naturally before reinstalling. Never use the vacuum without a dry filter.

Can I vacuum liquids with this vacuum?

No, it is strictly forbidden to vacuum liquids. This could damage the device and pose an electrical risk.

What to do if the power cord does not rewind?

Make sure there is no obstruction hindering the cord. Press the rewind button with one hand and gently guide the cable with the other to prevent it from whipping.

How to change accessories?

Accessories are simply attached by pushing them onto the end of the tube or handle. To remove them, pull firmly.

The vacuum makes an abnormal noise, what to do?

Check that the tank is properly closed and the filters are not clogged. If the noise persists, contact customer service.

Where to find spare parts or accessories?

For any request for spare parts or accessories, contact your dealer or an authorized H.Koenig service center.

How to empty the dust tank?

Press the trash button (J) to unlock the tank and empty it. Close it properly before using the vacuum again.

The vacuum does not turn on, what to check?

Make sure the plug is properly inserted and the switch (H) is in the on position. Also check that the cord is not damaged.

Can I use the vacuum for pet hair?

Yes, use the yellow turbo brush or the pink brush with bristles to vacuum hair directly from your pet or furniture.

USER MANUAL SLX970 H.KOENIG

Exterior view of a modern vacuum cleaner with red and blue casing (no visible text or symbols)

SLX970

Multicyclonic Vacuum Cleaner

DESCRIPTION

A. Handle & wind-force adjuster
B. Hose G. Du
C. Tool cover
D. Tube I. Safety valve
E. Floor brush J

F. Hose connector stbin

H. Power switch

. Dustbin button K. Cord rewind button

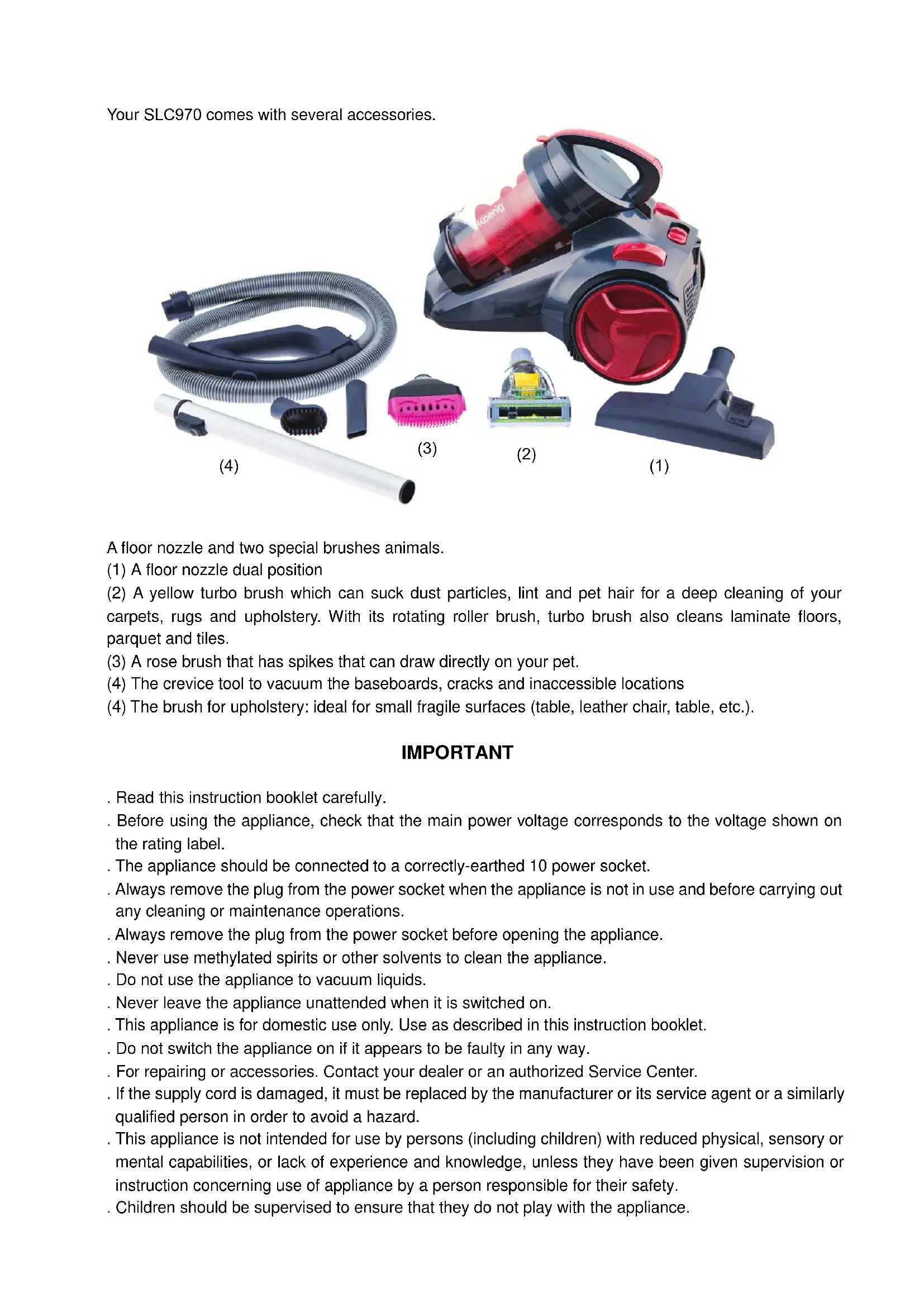

Your SLC970 comes with several accessories.

Product photo of a vacuum cleaner with labeled parts including hose, plug, socket, and air filter (no text or symbols on main objects)

A floor nozzle and two special brushes animals.

(1) A floor nozzle dual position
(2) A yellow turbo brush which can suck dust particles, lint and pet hair for a deep cleaning of your carpets, rugs and upholstery. With its rotating roller brush, turbo brush also cleans laminate floors, parquet and tiles.
(3) A rose brush that has spikes that can draw directly on your pet.
(4) The crevice tool to vacuum the baseboards, cracks and inaccessible locations
(4) The brush for upholstery: ideal for small fragile surfaces (table, leather chair, table, etc.).

IMPORTANT

. Read this instruction booklet carefully.
. Before using the appliance, check that the main power voltage corresponds to the voltage shown on the rating label.
. The appliance should be connected to a correctly-earthed 10 power socket.
. Always remove the plug from the power socket when the appliance is not in use and before carrying out any cleaning or maintenance operations.
. Always remove the plug from the power socket before opening the appliance.
. Never use methylated spirits or other solvents to clean the appliance.
. Do not use the appliance to vacuum liquids.
. Never leave the appliance unattended when it is switched on.
. This appliance is for domestic use only. Use as described in this instruction booklet.
. Do not switch the appliance on if it appears to be faulty in any way.
. For repairing or accessories. Contact your dealer or an authorized Service Center.
. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.
. Children should be supervised to ensure that they do not play with the appliance.

Do not remove the plug from by pulling the cable the or appliance itself

Do not run the appliance over the power eabl

Do not use the appliance to vacuum lighted matches, cigarette ends or hot ash.

Line drawing of a vacuum cleaner next to a small electronic device (no text or symbols)

Illustration of a vintage-style motorcycle with a cross-shaped object on top (no text or symbols)

Illustration of two cigarettes crossed with a diagonal line, emitting smoke (no text or symbols)

Do not use the appliance on wet surfaces.

Do not obstruct the air Do not use the appliance to intake or outlet vent. to vacuum needles. drawing -pins or string.

Simple line drawing of a device with a cross mark and cable, no text or symbols present

Line drawing of a mechanical component with intersecting blades (no text or symbols)

Abstract line drawing of crossed tools including a hammer, screwdriver, and wrench (no text or symbols)

ASSEMBLING THE VACUUM CLEANER

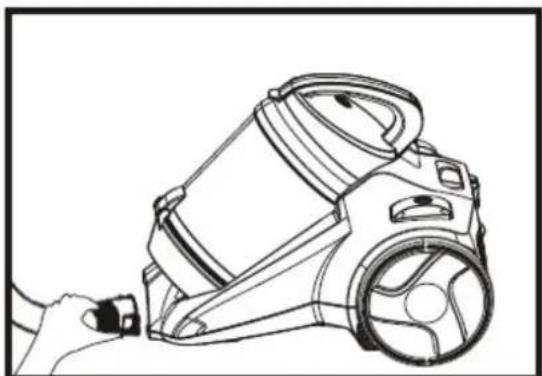

Removing the flexible hose

Remove the plug from the power socket. To release the flexible hose, press the button on the end of the tube and pull the tube firmly from the air intake duct.

Line drawing of a hand using a switch to adjust or install a vacuum cleaner's air vent (no text or symbols present)

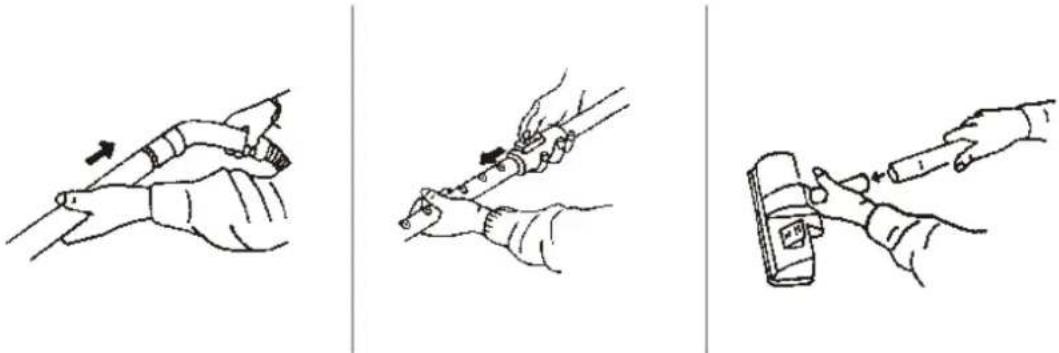

Fitting the extension tubes and accessories

Fitting the extension tube

Fitting the extension tubes

Fitting the accessories to the

The handle

extension tube

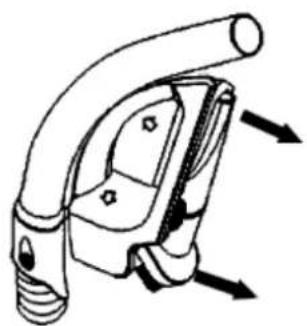

Take out the tools from the hose handle

Technical line drawing of a mechanical clamp or lever mechanism with directional arrows indicating movement (no text or symbols)

INSTRUCTION FOR USE

1, Before using the appliance .unwind length of cable and insert the plug into the power socket. Do not extend the cable beyond the RED mark.

To rewind the power cable, press the rewind button with one hand, and guide the other hand to ensure that it does not whip causing damage

1. Press the ON/OFF button to switch the appliance on.

USING THE CLEANING ACCESSORIES

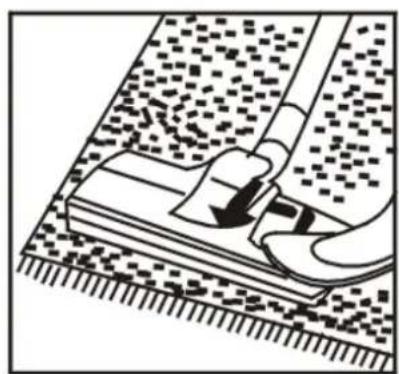

. Dual-position carpet/floor brush.

Pos. 1: bristles extended. for hard floors

Pos. 2: bristles retracted for carpets

Diagram showing a tool interacting with a grid-patterned surface, no text or symbols present

Narrow nozzle.

for cleaning radiators: corners. edges. drawers etc. furniture,

Illustration of a person using a tool to clean or slide on a tiled floor (no text or symbols visible)

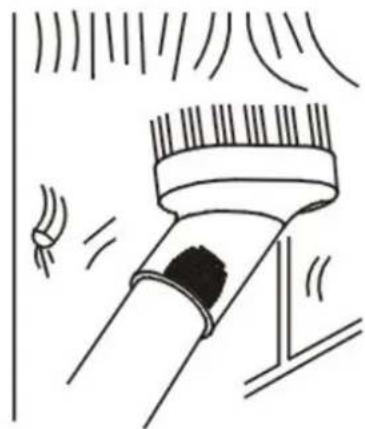

Small brush

for cleaning curtains, shelves, books, inlaid

lamps etc.

Technical line drawing of a mechanical component with grooves and a pointed tip (no text or symbols)

Illustration of a hairbrush cleaning a pipe with motion lines indicating spray (no text or symbols)

Clean the dust

1, Lift the form cover and take out the dust cup.
2, Take out the foam form dust cup.
3.clean off the dust inside the dust cup.

Line drawing of a vacuum cleaner device with no visible text or symbols

Simple line drawing of a fire extinguisher with handle and side arm (no text or symbols)

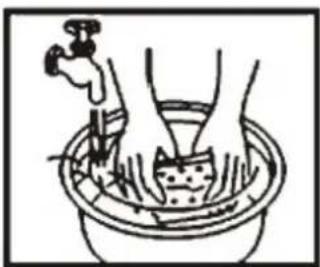

Clean the foam

1. Take out the foam when it's setting dirty
2. clean it in the water .dry it naturally before next use.

Line drawing of a thermos flask with handle and lid (no text or symbols)

Illustration of hands washing in a basin with a faucet (no text or symbols)

ENVIRONMENT

CAUTION :

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

DESCRIPTION

Product photo of a Knoeng vacuum cleaner with labeled parts including hose, plug, socket, and circuit board (no text or symbols on main objects)

Line drawing of a vacuum cleaner next to a small electrical box (no text or symbols)

Illustration of a vintage-style vacuum cleaner with a crossed handle and antenna (no text or symbols)

Simple line drawing of two cigarettes crossed with a diagonal X mark, no text or symbols present

Simple line drawing of a mechanical device with a cross mark, no text or symbols present

Line drawing of a mechanical component with intersecting lines (no text or symbols)

Illustration of crossed tools including a hammer, screwdriver, and nail (no text or symbols)

MONTAGE DE L'ASPIRATEUR

Line drawing of a hand inserting a small component into a vacuum cleaner's air vent (no text or symbols)

Technical line drawing of a mechanical clamp or lever mechanism with directional arrows indicating motion (no text or symbols)

MODE D'EMPLOI

Illustration of a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Illustration of a person using a tool to clean or repair a tiled floor (no text or symbols visible)

. Embout étroit.

Technical line drawing of a tool interacting with vertical bars (no text or symbols)

Illustration of a brush applying paint to a surface, showing motion and spray (no text or symbols)

Line drawing of a vacuum cleaner device with no visible text or symbols

Simple line drawing of a fire extinguisher with handle and outlet (no text or symbols)

Nettoyer la mousse

Simple line drawing of a thermospan with a handle (no text or symbols)

Illustration of hands washing in a basin with a faucet (no text or symbols)

ENVIRONNEMENT

ATTENTION :

BESCHREIBUNG

Product photo of a vacuum cleaner with labeled parts including hose, plug, and circuit board (no text or symbols on main objects)

Line drawing of a mechanical device next to a box with wires (no text or symbols)

Illustration of a vintage-style vacuum cleaner with a crossed blade and antenna (no text or symbols)

Illustration of two cigarettes crossed with a diagonal line, emitting smoke (no text or symbols)

Simple line drawing of a device with a cross mark and a loop, no text or symbols present

Gerät zusammenbauen

Line drawing of a mechanical component with intersecting lines and a central cross (no text or symbols)

Abstract line drawing of crossed tools including a hammer, screwdriver, and wrench (no text or symbols)

Line drawing of a hand using a vacuum cleaner to adjust the air gap (no text or symbols present)

Fitting the extension tubes and accessories

Three-step illustration showing a hand holding a tool, adjusting the tool with an arrow and a magnified view of the device (no text or symbols present)

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

BEDIENUNGSANLEITUNG

Diagram showing a tool interacting with a grid-patterned surface, no text or symbols present

Illustration of a person using a tool to clean or store floor tiles (no text or symbols visible)

Technical line drawing of a mechanical component with grooves and a pointed tip (no text or symbols)

Illustration of a spray gun with a brush and spray nozzle, showing motion lines (no text or symbols)

Line drawing of a vacuum cleaner device with no visible text or symbols

Line drawing of a fire extinguisher with handle and side arm (no text or symbols)

Simple line drawing of a thermospan with a handle (no text or symbols)

Illustration of hands washing in a basin with a faucet, no text or symbols present

UMWELT

ACHTUNG :

BESCHRIJVING

Product photo of a Koenig vacuum cleaner with labeled parts including hose, plug, socket, and bulb (no text or symbols on main objects)

Line drawing of a mechanical device next to a box with two small objects (no text or symbols)

Diagram of a digital camera with a screen and antenna, no text or symbols present

Illustration of a cigarette emitting smoke with a crossed X mark (no text or symbols)

Simple line drawing of a mechanical device with a cross mark, no text or symbols present

Line drawing of a mechanical component with intersecting rods and a central shaft (no text or symbols)

Illustration of crossed tools including screwdriver, hammer, and wrench (no text or symbols)

MONTAGE VAN DE STOFZUIGER

Line drawing of a hand using a vacuum cleaner to adjust the air gap (no text or symbols present)

Three-step illustration showing a hand holding a tool, adjusting the tool with an arrow, and adjusting a device (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

GEBRUIKSAANWIHZING

Diagram showing a tool interacting with a component on a grid-patterned surface (no text or symbols)

Illustration of a person using a tool to clean or repair floor tiles (no text or symbols visible)

. Smalle mondstuk.

Technical line drawing of a mechanical component with grooves and a pointed tip (no text or symbols)

Illustration of a hairbrush cleaning a wall with motion lines indicating texture (no text or symbols)

Line drawing of a vacuum cleaner device with no visible text or symbols

Line drawing of a fire extinguisher with handle and side arm (no text or symbols)

Reinig het filter

Line drawing of a thermos flask with lid and handle (no text or symbols)

Illustration of hands washing in a basin with a faucet (no text or symbols)

MILIEU

ATTENTIE :

DESCRIZIONE

Product photo of a Knoong vacuum cleaner with labeled parts including hose, plug, socket, and brush (no text or symbols on main objects)

Illustration of a robotic vacuum cleaner next to a battery pack (no text or symbols)

Diagram of a robotic vacuum cleaner with a crossed handle and attached device (no text or symbols)

Simple line drawing of two stacked cigarettes with a crossed-out arrow (no text or symbols)

Simple line drawing of a medical or electrical device with a cross mark and cable (no text or symbols)

Line drawing of a mechanical component with intersecting blades (no text or symbols)

Abstract line drawing of crossed tools including screw, hammer, and screwdriver (no text or symbols)

COME ASSEMBLARE L'APPARECCHIO

Line drawing of a hand using a vacuum cleaner to adjust the air gap (no text or symbols present)

Three-step illustration showing a hand holding a tool, adjusting the tool with a pen, and adjusting a device (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

ISTRUZIONI PER L'USO

Diagram of a tool interacting with a component on a grid-patterned surface (no text or symbols)

Illustration of a person using a tool to lift a shoe on a tiled floor (no text or symbols)

Beccuccio

Technical line drawing of a mechanical component with grooves and a shaft (no text or symbols)

Illustration of a hairbrush cleaning a wall with motion lines indicating texture (no text or symbols)

Come spolverare

Line drawing of a vacuum cleaner device with no visible text or symbols

Simple line drawing of a fire extinguisher with handle and outlet (no text or symbols)

Pulire la schiuma

Simple line drawing of a cylindrical container with a handle, no text or symbols present

Illustration of hands washing in a basin with a faucet, no text or symbols present

AMBIANTE

ATTENZIONE :

DESCRIPCIÓN

Product photo of a Koenig vacuum cleaner with labeled parts including hose, plug, socket, and air filter (no text or symbols on main objects)

Illustration of a vacuum cleaner next to a small electronic component (no text or symbols visible)

Diagram of a robotic vacuum cleaner with a crossed handle and propeller, no text or symbols present

Simple line drawing of two cigarettes crossed with a diagonal line, no text or symbols present

Simple line drawing of a medical or laboratory setup with a cross mark and curved lines, no text or symbols present.

Line drawing of a mechanical component with intersecting blades and gears (no text or symbols)

Abstract line drawing of crossed tools including a hammer, screwdriver, and wrench (no text or symbols)

Line drawing of a hand using a vacuum cleaner to adjust the air gap (no text or symbols present)

Illustration of a hand holding a pen or tool with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a tool with a handle and lever (no text or symbols)

Illustration of a hand using a tool to apply spray onto a spray can (no text or symbols present)

Technical line drawing of a mechanical clamp or lever mechanism with directional arrows indicating motion (no text or symbols)

INSTRUCCIONES DE USO

Diagram showing a tool interacting with a component on a grid-patterned surface (no text or symbols)

Illustration of a person using a tool to clean or repair floor tiles (no text or symbols visible)

Boquilla estrecha

Technical line drawing of a mechanical component with grooves and a central shaft (no text or symbols)

Illustration of a brush applying paint to a surface, showing motion and spray (no text or symbols)

Para aspirar polvo

Line drawing of a vacuum cleaner device with no visible text or symbols

Line drawing of a fire extinguisher with handle and outlet (no text or symbols)

Limpie la esponja
