Product type	Snow thrower
Brand	Troy-Bilt
Model	Arctic Storm 34
Clearing width	34 inches (86 cm)
Engine type	Gasoline, 4-stroke
Transmission	6-speed forward and 2-speed reverse mechanical or hydrostatic depending on version
Number of stages	2 or 3 depending on series (500, 600, 800)
Fuel tank capacity	Approximately 1.5 liters (estimated)
Chute direction	Manual or electric depending on model
Adjustable deflector	Yes, manual or remote control
Headlight	Yes, integrated, automatic activation
Heated handles	Optional, with switch
Chute clearing tool	Included, mounted to housing
Safety features	Auger and drive controls, quick stop, projection protection
Recommended maintenance	Seasonal lubrication of axles, auger shaft, belts
Common wear parts	Shear pins, belts, scraper blade, skid shoes
Repairability	Spare parts available; belt and friction wheel service possible by authorized center
Warranty	Manufacturer standard (see manual)
Weight	Approximately 130 kg (estimated for this type of machine)

Frequently Asked Questions - Arctic Storm 34 TROY-BILT

What to do if the engine does not start?

Check the fuel and oil levels. Make sure the key is inserted and the spark plug is connected. Consult the engine manual for starting procedures. If the problem persists, have it checked by an authorized center.

How to unclog the discharge chute?

Never put your hands in the chute. Stop the engine, remove the key, and use the provided clearing tool to remove snow and ice. Then restart and let the auger run to clear the rest.

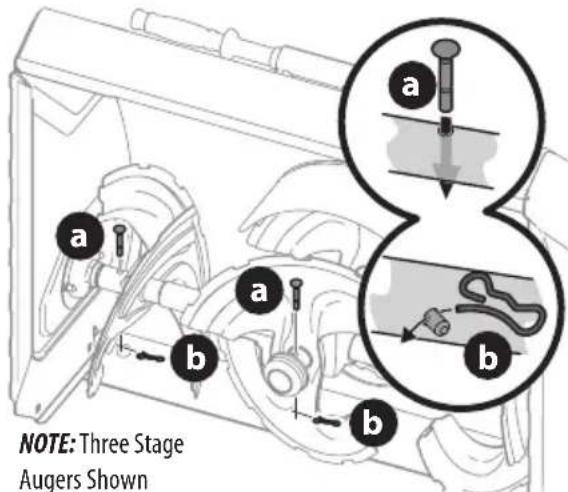

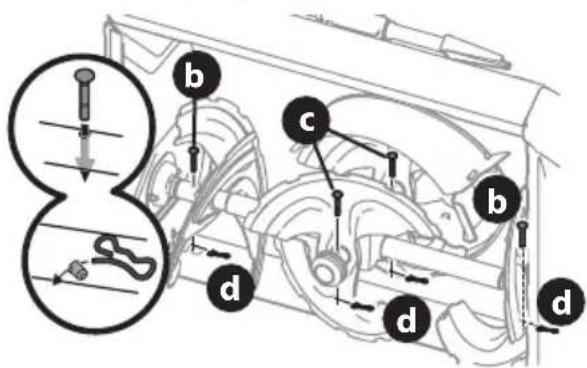

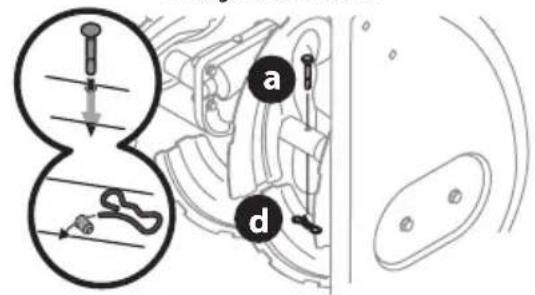

What is the procedure to change the shear pins?

Stop the engine and remove the key. Use only original replacement pins (ref. 738-04124A, 738-05273 or 738-06654). Replace the sheared pin and the cotter pin. Consult the manual page 83.

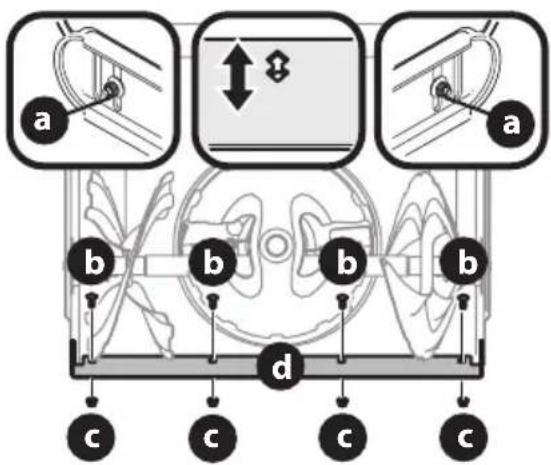

How to adjust the scraper blade height?

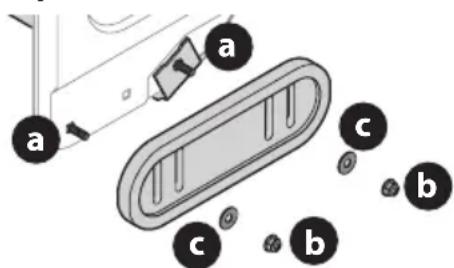

Loosen the rear skid shoe nuts and the blade bolts. Place the blade in one of the two mounting positions. Readjust the skid shoes to obtain a clearance of at least 3.18 mm from the ground on gravel.

Why does the snow thrower not move forward?

First check the drive cable adjustment (page 77). If the problem persists, the drive belt may be worn or the friction wheel damaged. Consult an authorized center.

How to maintain the snow thrower at the end of the season?

Run the engine until fuel is exhausted. Clean the machine, lubricate the axles and auger shaft. Store in a dry place with the wheels and housing resting on the ground.

What type of fuel to use?

Use regular unleaded gasoline. Let the engine cool down before refueling. Do not fill to the top (leave space under the filler neck). Consult the engine manual.

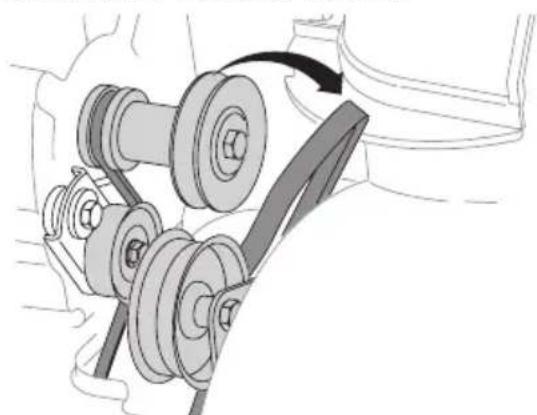

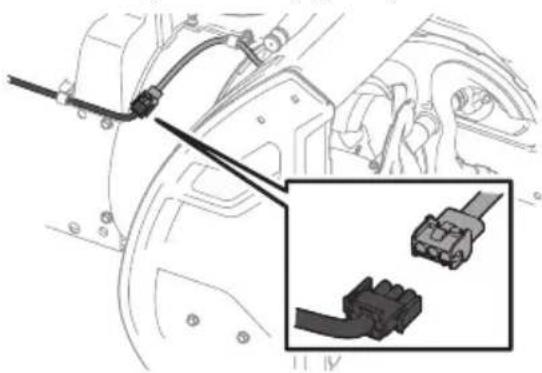

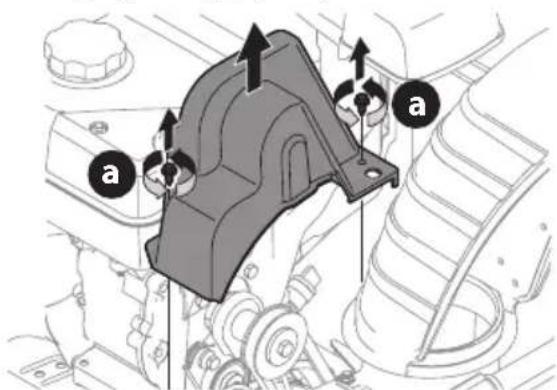

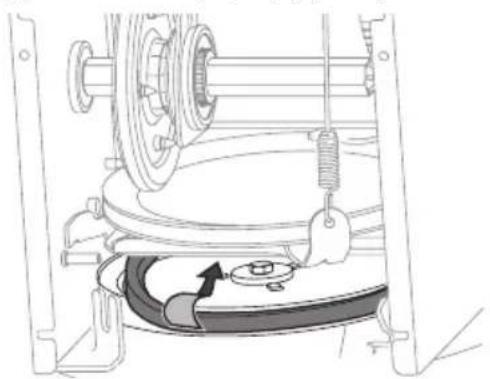

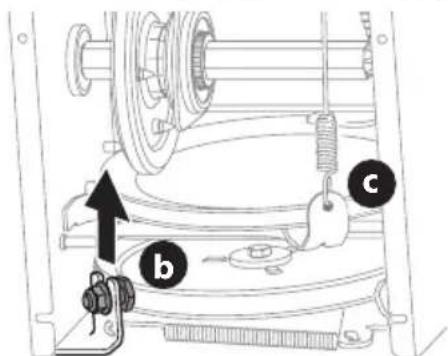

How to change the auger belt?

Drain the gasoline, remove the key and spark plug. Remove the belt cover, slide the belt off the engine pulley, then release it from the auger pulley. Install the new one by reversing the steps. Consult pages 86-87.

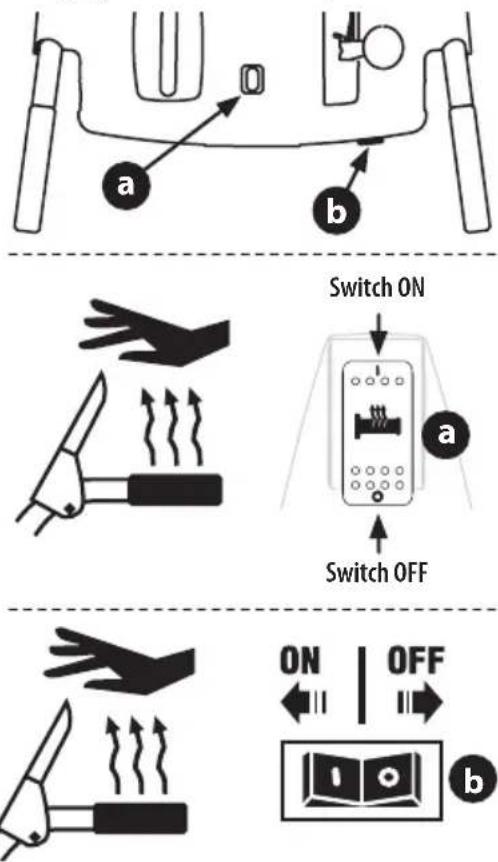

The heated handles do not work, what to do?

Check the switch located on or behind the control panel. If it is in the ON position and they do not heat, wear gloves and contact customer service.

What safety precautions should I take?

Read the entire manual. Wear safety glasses and fitted clothing. Never put your hands near the chute or augers. Keep a distance of 23 meters from bystanders. Stop the engine before any adjustment.

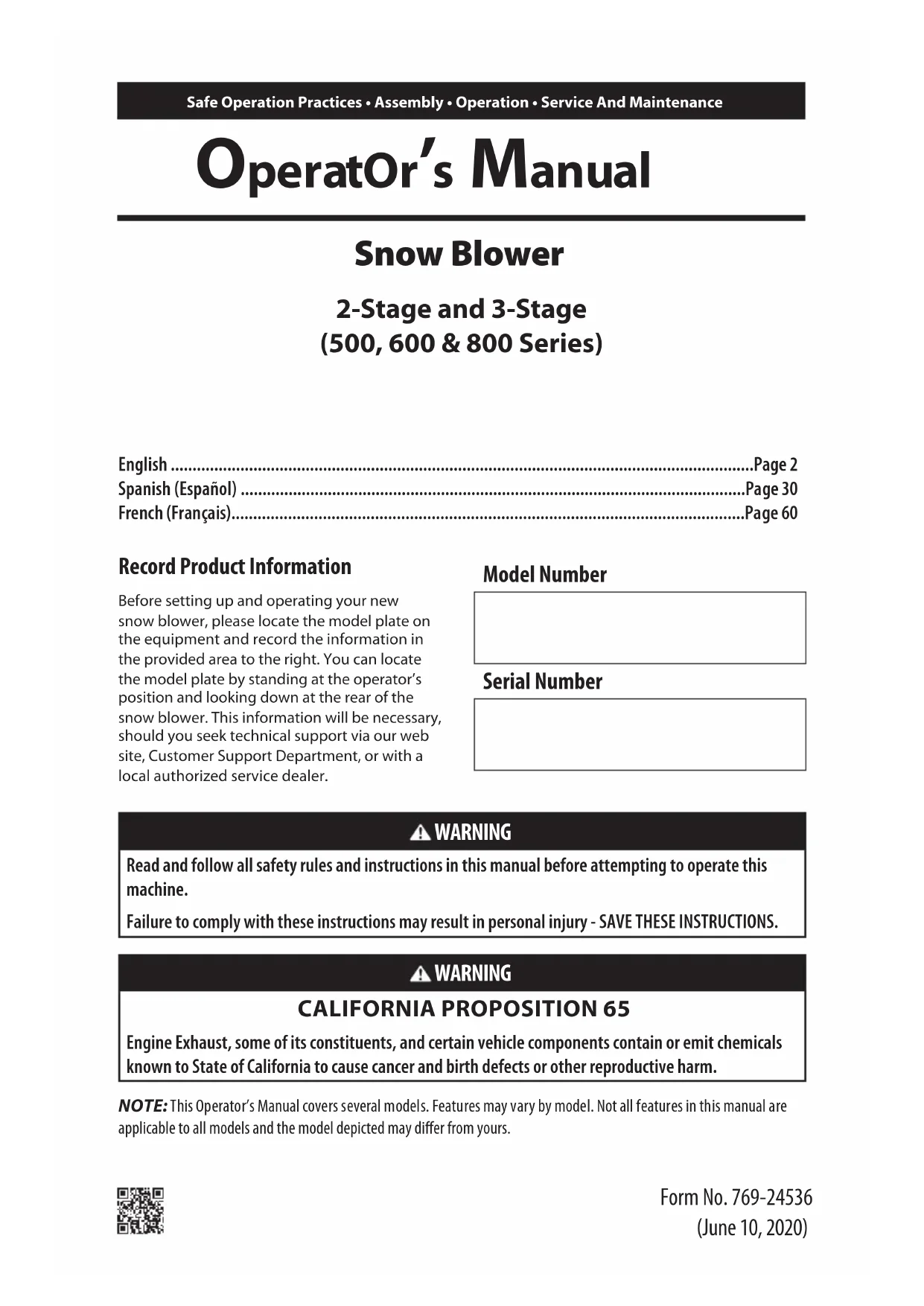

USER MANUAL Arctic Storm 34 TROY-BILT

2-Stage and 3-Stage (500, 600 & 800 Series)

English Page 2

Spanish (Español) Page 30

French (Français)......Page 60

Record Product Information

Before setting up and operating your new snow blower, please locate the model plate on the equipment and record the information in the provided area to the right. You can locate the model plate by standing at the operator's position and looking down at the rear of the snow blower. This information will be necessary, should you seek technical support via our web site, Customer Support Department, or with a local authorized service dealer.

Model Number

Serial Number

WARNING

Read and follow all safety rules and instructions in this manual before attempting to operate this machine.

Failure to comply with these instructions may result in personal injury - SAVE THESE INSTRUCTIONS.

WARNING

CALIFORNIA PROPOSITION 65

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

NOTE: This Operator's Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all models and the model depicted may differ from yours.

SAFE OPERATION PRACTICES

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

When you see this symbol, HEED ITS WARNING!

DANGER

This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating fingers, hands, toes and feet and throwing debris. Failure to observe the following safety instructions could result in serious injury or death.

TRAINING

1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.
3. Never allow children under 14 years of age to operate this machine. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the machine and be trained and supervised by an adult.
4. Never allow adults to operate this machine without proper instruction.
5. Thrown objects can cause serious personal injury. Plan your snow-blowing pattern to avoid discharge of material toward roads, bystanders and the like.
6. Keep bystanders, pets and children at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially when operating in reverse.

PREPARATION

Thoroughly inspect the area where the equipment is to be used. Remove all doormats, newspapers, sleds, boards, wires and other foreign objects, which could be tripped over or thrown by the machine.

1. Always wear safety glasses or eye shields during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.
2. Do not operate without wearing adequate winter outer garments. Do not wear jewelry, long scarves or other loose clothing, which could become entangled in moving parts. Wear footwear which will improve footing on slippery surfaces.
3. Use a grounded three-wire extension cord and receptacle for all machines with electric start engines.
4. Adjust auger housing height to clear gravel or crushed rock surfaces.
5. Disengage all control levers before starting the engine.
6. Never attempt to make any adjustments while engine is running, except where specifically recommended in the operator's manual.
7. Let engine and machine adjust to outdoor temperature before starting to clear snow.

SAFE OPERATION PRACTICES

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

1. Use only an approved gasoline container.
2. Extinguish all cigarettes, cigars, pipes and other sources of ignition.
3. Never fuel machine indoors.
4. Never remove gas cap or add fuel while the engine is hot or running.
5. Allow engine to cool at least 5 minutes before refueling.
6. Never over fill fuel tank. Fill tank to no more than 12 inch below bottom of filler neck to provide space for fuel expansion.

7. Replace gasoline cap and tighten securely.

8. If gasoline is spilled, wipe it off the engine and equipment. Move machine to another area. Wait 5 minutes before starting the engine. If fuel is spilled on clothing, change clothing immediately.

9. Never store the machine or fuel container inside where there is an open flame, spark or pilot light (e.g. furnace, water heater, space heater, clothes dryer etc.).

10. Allow machine to cool at least 5 minutes before storing.

11. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

12. If possible, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

13. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

OPERATION

1. Do not put hands or feet near rotating parts, in the auger housing or chute assembly. Contact with the rotating parts can amputate hands and feet.
2. The auger control lever is a safety device. Never bypass its operation. Doing so makes the machine unsafe and may cause personal injury.
3. The control levers must operate easily in both directions and automatically return to the disengaged position when released.
4. Never operate with a missing or damaged chute assembly. Keep all safety devices in place and working.
5. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
6. Do not operate machine while under the influence of alcohol or drugs.
7. Muffler and engine become hot and can cause a burn. Do not touch. Keep children away.
8. Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for hidden hazards or traffic.
9. Exercise caution when changing direction and while operating on slopes. Do not operate on steep slopes.
10. Plan your snow-blowing pattern to avoid discharge towards windows, walls, cars etc. Thus, avoiding possible property damage or personal injury caused by a ricochet.
11. Never direct discharge at children, bystanders and pets or allow anyone in front of the machine.
12. Do not overload machine capacity by attempting to clear snow at too fast of a rate.
13. Never operate this machine without good visibility or light. Always be sure of your footing and keep a firm hold on the handles. Walk, never run.
14. Release auger control lever to disengage power to the auger when transporting or not clearing snow.
15. Never operate machine at high transport speeds on slippery surfaces. Look down and behind and use care when backing up.
16. After striking a foreign object or if the machine should start to vibrate abnormally, stop the engine, remove the safety key or disconnect spark plug wire. Inspect thoroughly for damage. Repair any damage before starting and operating.

SAFE OPERATION PRACTICES

1. Disengage all control levers, stop engine, remove the safety key or disconnect spark plug wire before you leave the operating position (behind the handles). Wait until the auger comes to a complete stop before unclogging the chute assembly, making any adjustments, or inspections.
2. Never put your hand in the discharge or collector openings. Always use the clean-out tool provided to unclog the discharge opening. Do not unclog chute assembly while engine is running. Shut off engine, remove the safety key or disconnect spark plug wire. Remain behind handles until all moving parts have stopped before unclogging.
3. Use only attachments and accessories approved by the manufacturer (e.g. wheel weights, tire chains, cabs etc.).
4. When starting engine, pull cord slowly until resistance is felt, then pull rapidly. Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises or sprains could result.
5. If situations occur which are not covered in this manual, use care and good judgment. Contact Customer Support for assistance and the name of your nearest servicing dealer.

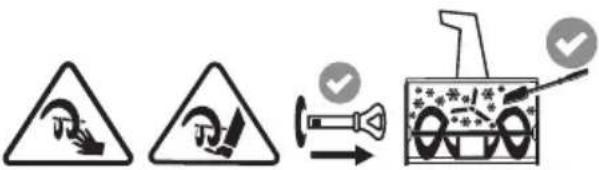

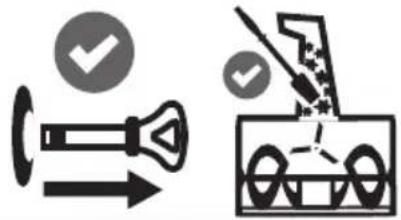

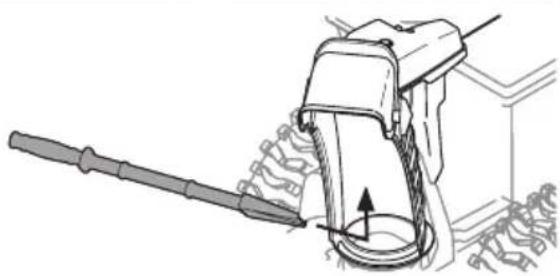

CLEARING A CLOGGED DISCHARGE CHUTE

Hand contact with the rotating impeller or auger inside the discharge chute is the most common cause of injury associated with snow blowers. Never use your hand to clean out the discharge chute.

To clear the chute:

1. SHUT THE ENGINE OFF!
2. Remove the safety key or disconnect spark plug wire.
3. Wait 10 seconds to be sure the impeller or auger has stopped rotating.
4. Always use a clean-out tool, not your hands.

1. Never tamper with safety devices. Check their proper operation regularly. Refer to the maintenance and adjustment sections of this manual.
2. Before cleaning, repairing, or inspecting machine, disengage all control levers, stop the engine, remove the safety key or disconnect spark plug wire. Wait until the auger comes to a complete stop.
3. Check bolts and screws for proper tightness at frequent intervals to keep the machine in safe working condition. Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed the engine. The governor controls the maximum safe operating

speed of the engine.

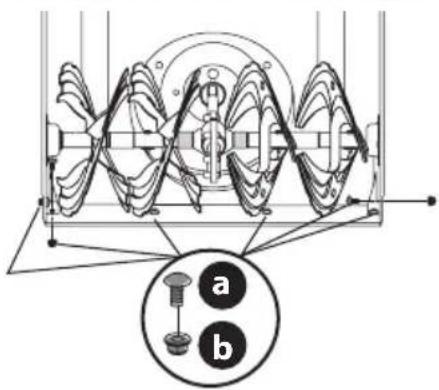

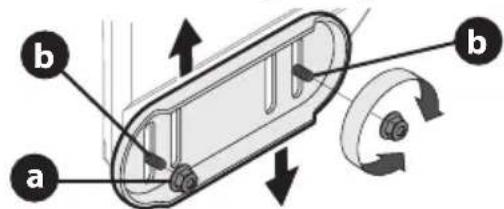

1. Snow blower shave plates and skid shoes are subject to wear and damage. For your safety protection, frequently check all components and replace with original equipment manufacturer's (OEM) parts only. "Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!"
2. Check control levers periodically to verify they engage and disengage properly and adjust, if necessary. Refer to the adjustment section in this operator's manual for instructions.
3. Maintain or replace safety and instruction labels, as necessary.
4. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
5. Prior to storing, run machine a few minutes to clear snow from machine and prevent freeze up of auger.
6. Never store the machine or fuel container inside where there is an open flame, spark or pilot light such as a water heater, furnace, clothes dryer, etc.
7. Always refer to the operator's manual for proper instructions on off-season storage.
8. Check fuel line, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.
9. Do not crank engine with spark plug removed.
10. According to the Consumer Products Safety Commission (CPSC) and the U.S. Environmental Protection Agency (EPA), this product has an Average Useful Life of seven (7) years, or 60 hours of operation. At the end of the Average Useful Life have the machine inspected annually by an authorized service dealer to ensure that all mechanical and safety systems are working properly and not worn excessively. Failure to do so can result in accidents, injuries or death.

DO NOT MODIFY ENGINE

To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor.

NOTICE REGARDING EMISSIONS

Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certified to operate on regular unleaded gasoline, and may include the following emission control systems: Engine Modification (EM), Oxidizing Catalyst (OC), Secondary Air Injection (SAI) and Three Way Catalyst (TWC) if so equipped.

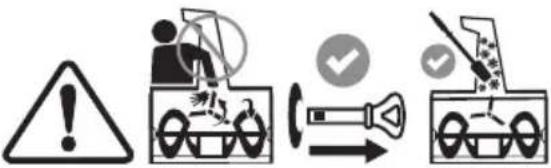

SAFETY SYMBOLS

This page depicts and describes safety symbols that may appear on the snow blower and engine. Read, understand, and follow all warnings and instructions on the snow blower and engine, along with the operator's manuals before attempting to operate.

Symbol Description

OPESymbol.com	WARNING – READ OPERATOR’S MANUAL: Read, understand and follow all the safety rules and instructions in the manual(s) and on the snow blower before attempting to operate this snow blower. Failure to comply with this information may result in personal injury or death. Keep this manual in a safe location for future and regular reference. Using a Smart Phone, scan the QR code symbol to learn more information concerning the warnings contained on this snow blower. You can also go to www.OPESymbol.com for more information.
	WARNING – AVOID AMPUTATION INJURY, DISCHARGE CHUTE: Do not put hands near or into the discharge chute while the engine is running. Contact with the rotating impeller or auger can amputate fingers and hands. Stop engine and remove safety key and wait until all moving parts have stopped rotating. Always use clean-out tool to clear the discharge chute, never use your hand.
	WARNING – AVOID AMPUTATION INJURY, AUGER HOUSING: Do not put hands or feet near or into the auger housing while the engine is running. Contact with the auger can amputate fingers, hands, toes and feet. Stop engine and remove safety key and wait until all moving parts have stopped rotating. Always use clean-out tool to clear the auger housing, never use your hands.
	WARNING— ELECTRICAL SHOCK: Do not plug in and use the engine’s electric starter in the rain or wet conditions.
	WARNING—GASOLINE IS FLAMMABLE: Allow the engine to cool at least five minutes before refueling.
	WARNING— CARBON MONOXIDE: Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
	WARNING— HOT SURFACE: The muffler and engine become very hot and can cause serious burn injuries. Do not touch. Allow the snow blower to cool for at least five minutes before storing or attempting any service.

WARNING

Your Responsibility—Restrict the use of the snow blower to persons who read, understand and follow all warnings and instructions on snow blower, along with the operator's manuals. - SAVE THESE INSTRUCTIONS!

Overview

• Remove packaging materials from snow blower.
• Rotate Handle into the upright position. Refer to Handle Assembly.
  • Install the chute. Refer to Chute Assembly Options.
• Complete snow blower assembly according to model and equipment. Refer to Set-up.
• If necessary make adjustments to ensure proper snow blower operation. Refer to Adjustments.
• Add fuel and oil. Refer to the Engine Operator's Manual shipped with snow blower.

Tools Required

• Adjustable Wrench or Socket Set
• Needle Nose Pliers

Handle Assembly

1. Cut cable ties securing chute control rod or upper handle to the lower handle (if applicable), set aside the chute control rod (if applicable) and remove the wrap around the handles (if applicable).

NOTE: Do not cut the cable tie securing the control cables to the engine, if equipped.

NOTE: On models with Overhead Chute Control (with Flex Shaft), Four-Way Chute Control, and Electric Chute Control cut cable ties securing flex shaft to the lower handle and set the flex shaft aside. Remove rubber bands securing cables to carriage bolts and cut cable tie securing shift rod to lower handle. Refer to Figure 7 to help identify the control styles.

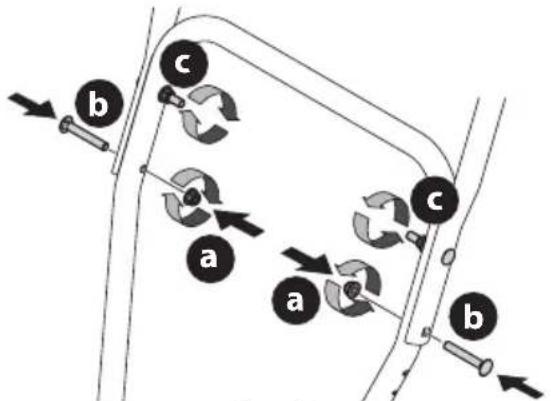

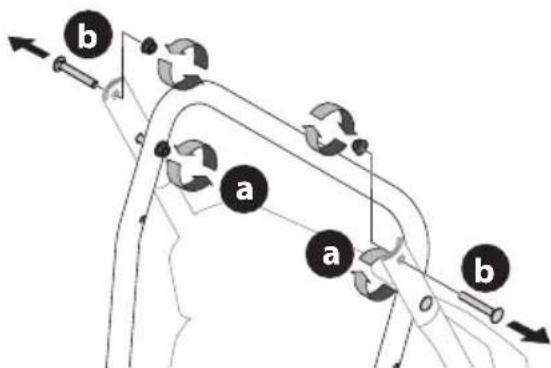

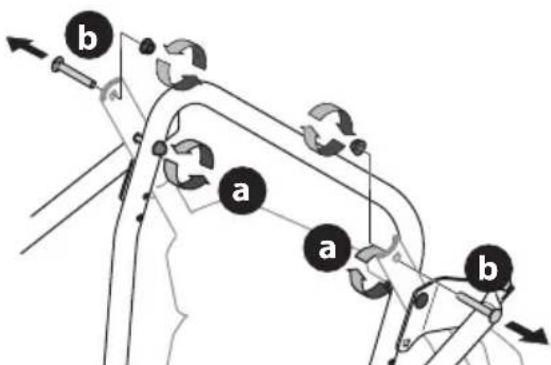

1. Loosen the top two nuts (a) securing the upper and lower handle and remove the two carriage bolts (b) from the upper handle and set aside as shown in Figure 1 or Figure 2 for models with side supports.

Figure 1

Figure 2

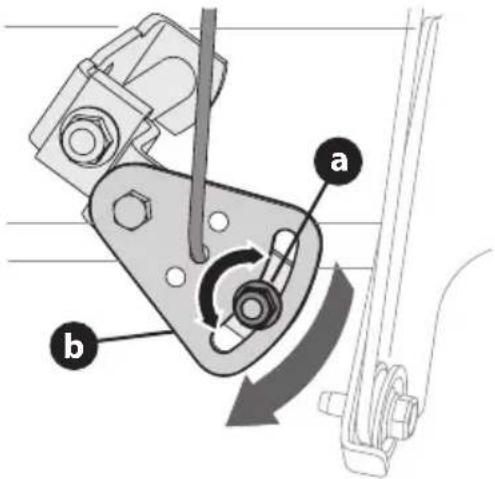

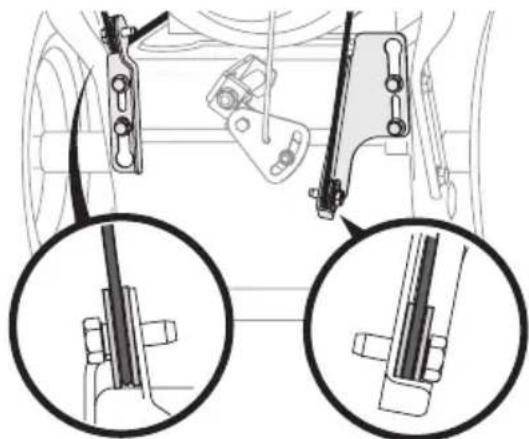

1. Place shift lever in Forward-6 position or fastest forward speed (if equipped).
2. Observe lower rear area of equipment to be sure both cables (if equipped) are aligned and seated properly in roller guides (Figure 3).

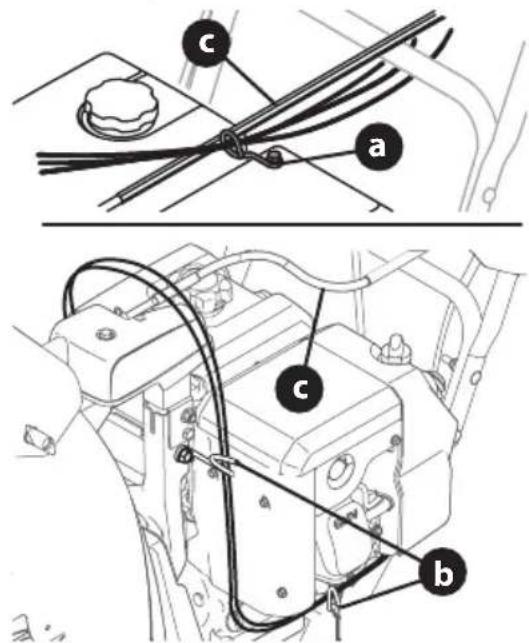

NOTE: On select models, chute-pitch control cables will be routed under the engine on the left side and will not use roller guides.

Mechanical assembly diagram showing two views of a vehicle's suspension components (no text or labels)

Figure 3

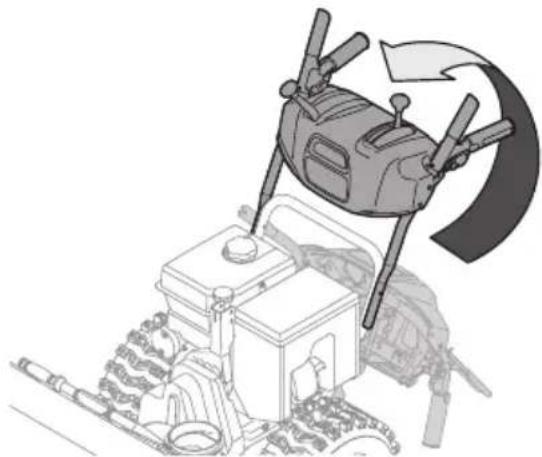

1. Pivot handle upward and align the lower handle (Figure 4). Remove and discard any rubber bands, if present. They are for packaging purposes only.

Illustration of a helicopter hovering above a tracked vehicle with a curved arrow indicating rotation (no text or symbols)

Figure 4

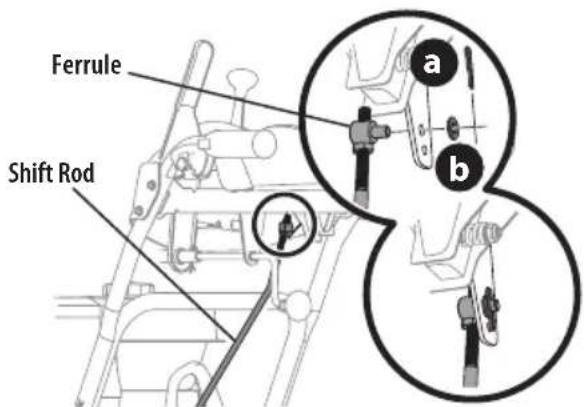

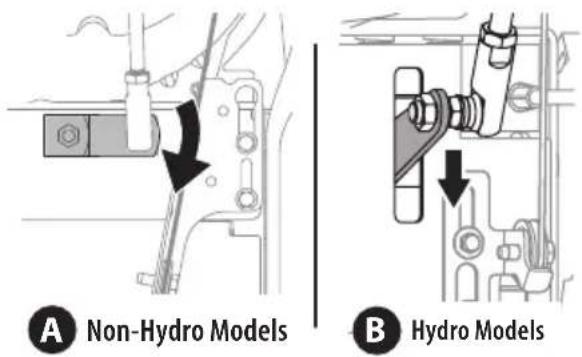

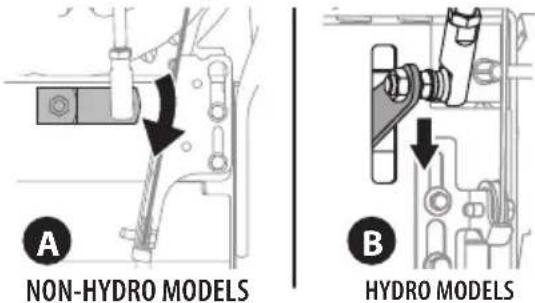

NOTE: On select models with steel rod speed selectors, you may need to lower shift rod to the side slightly to maneuver handle panel over it when pivoting handle upward.

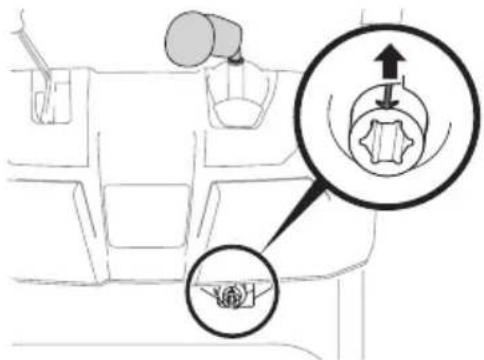

ASSEMBLY

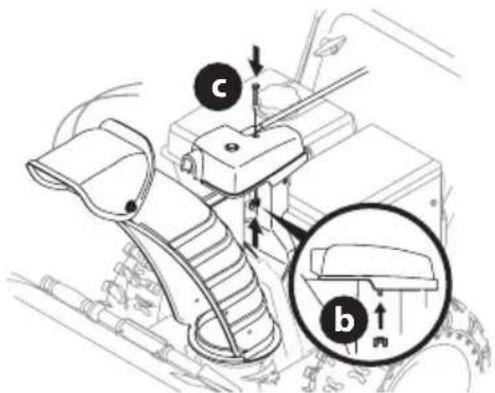

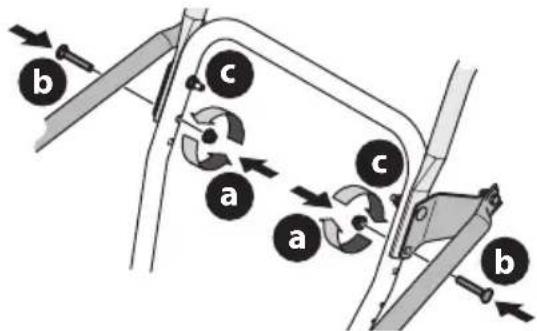

1. Attach the two carriage bolts (b) and nuts (a) removed in Step 2. Finish securing the handle by tightening the top two nuts (c) loosened in Step 2. See Figure 5 or Figure 6 for models with side supports.

Figure 5

a b c a b c

Figure 6

STOP

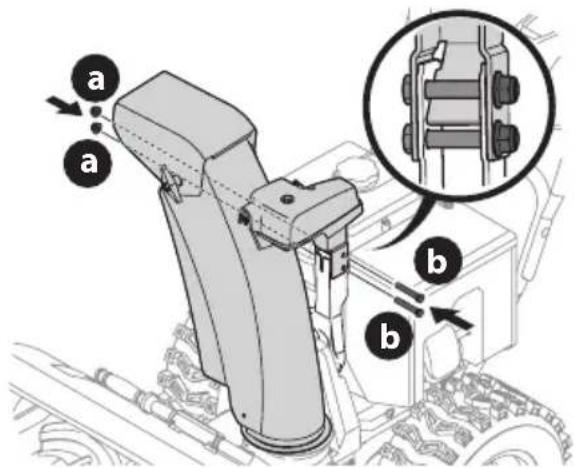

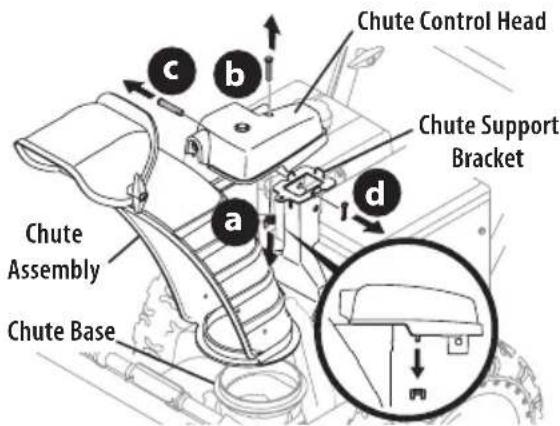

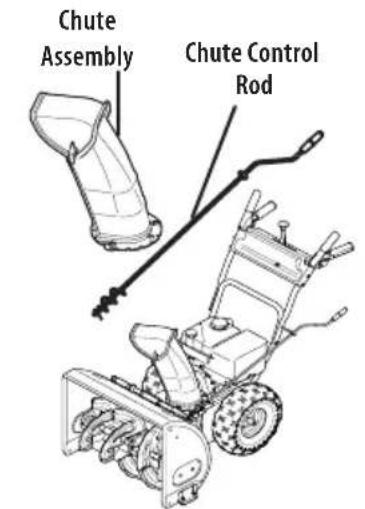

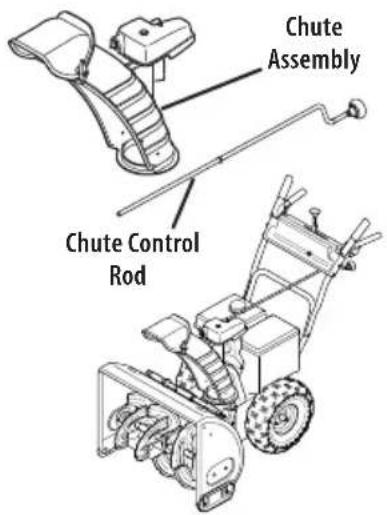

Refer to Figure 7 below to identify your "Chute Control Style" and continue to the "Assembly" instructions for your specific style on pages 8-13.

Chute Control Styles

Chute Assembly Chute Control Rod

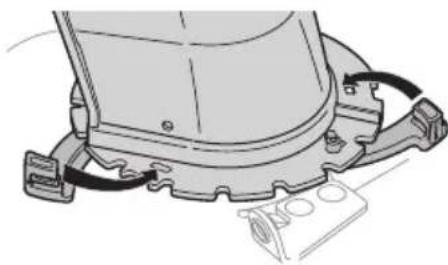

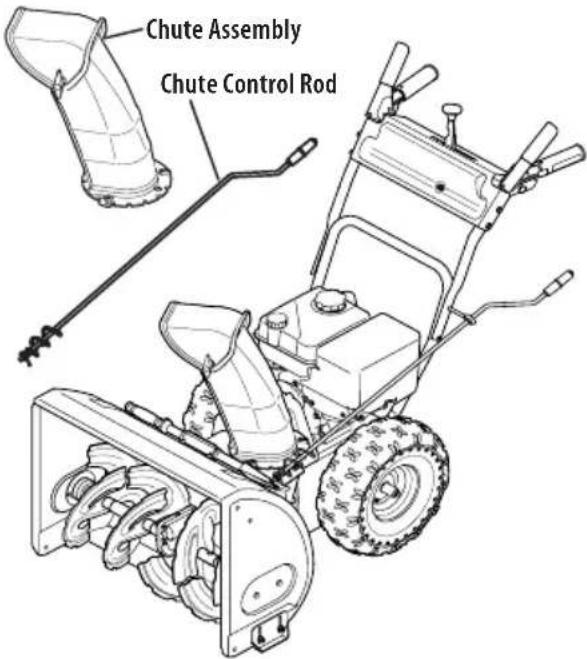

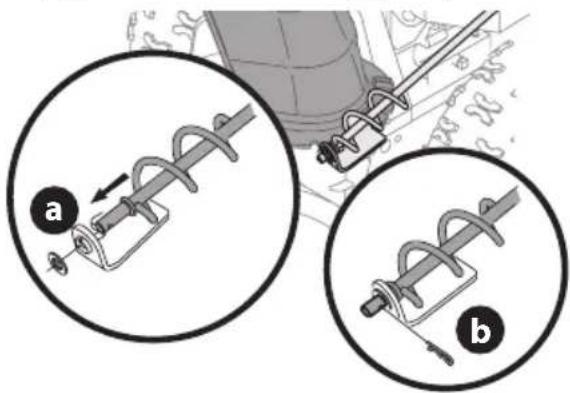

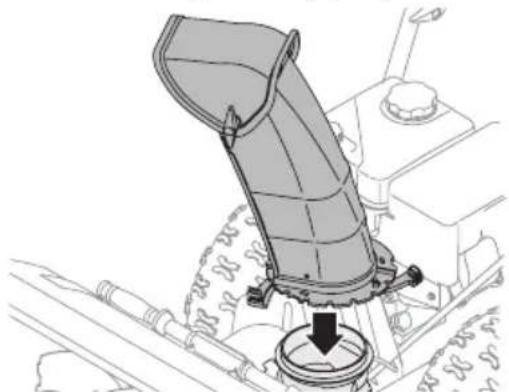

Side Mounted Chute Rotation Control w/ Manual Pitch on page 8

Chute Assembly Chute Control Rod

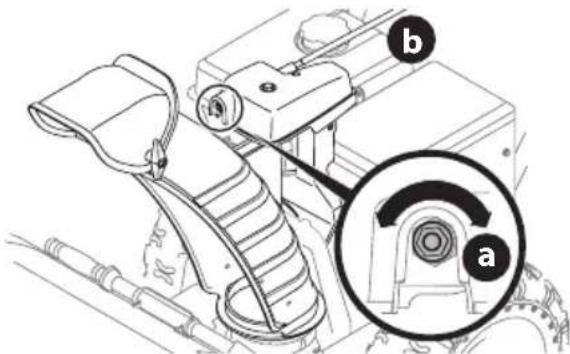

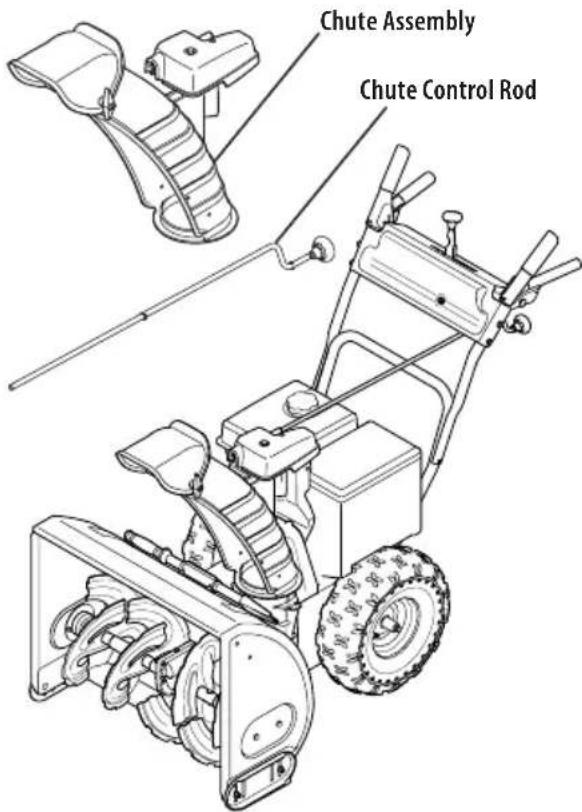

Overhead Chute Rotation Control w/ Manual Pitch on page 8

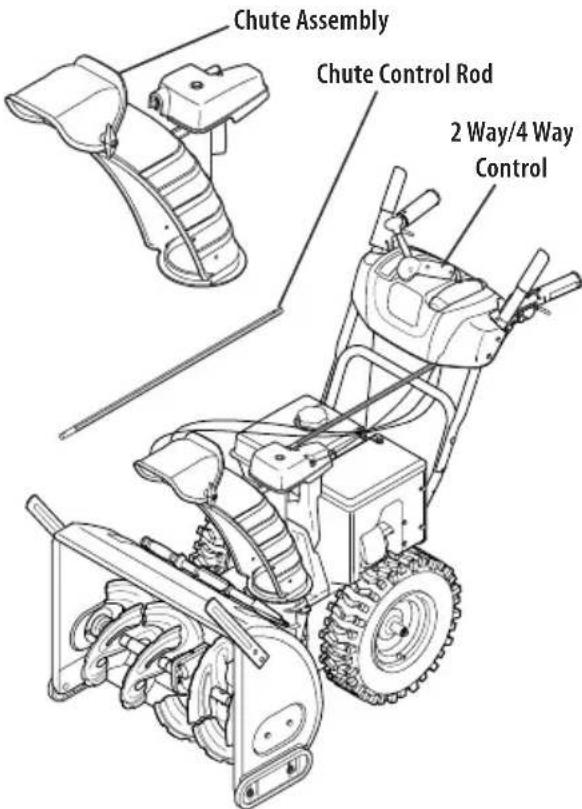

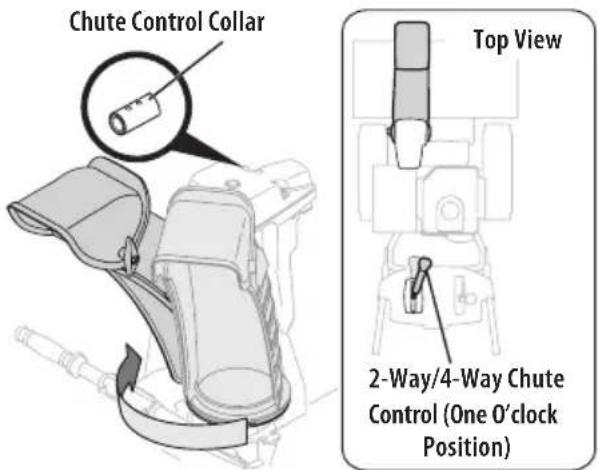

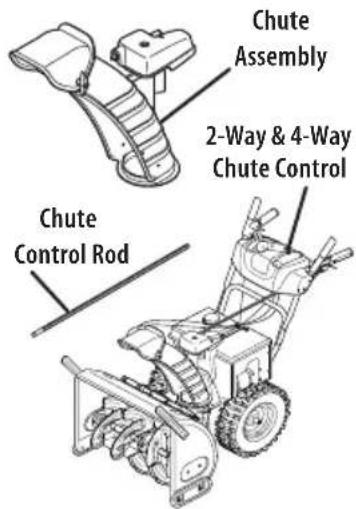

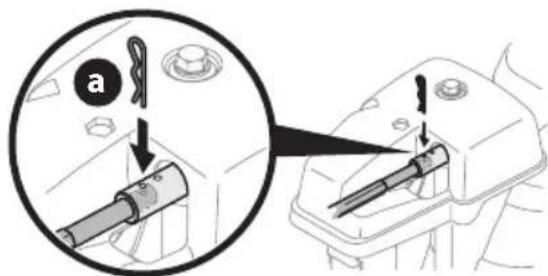

Chute Assembly 2-Way & 4-Way Chute Control Chute Control Rod

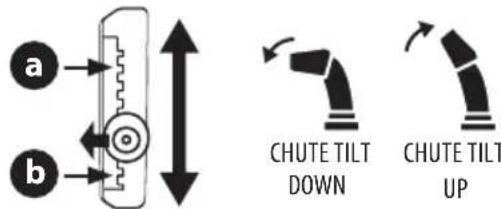

Overhead Chute Rotation Control w/ 2-Way Pitch or 4-Way Pitch & Rotation Control on page 9

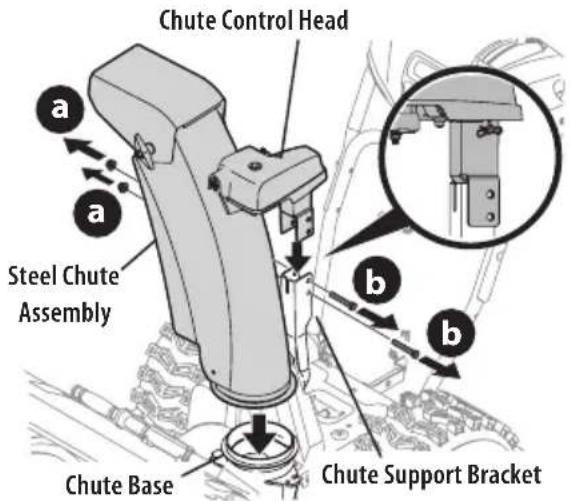

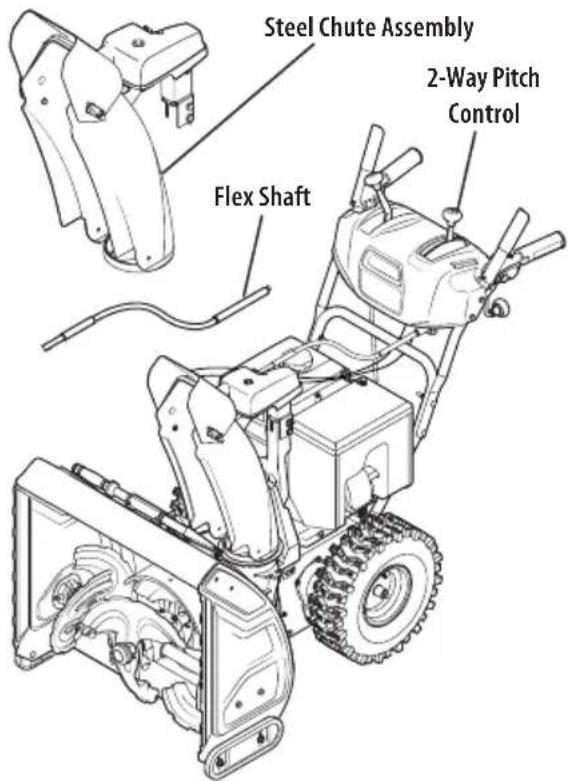

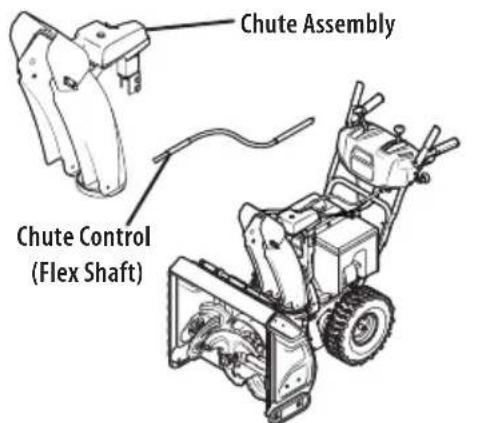

Chute Assembly Chute Control (Flex Shaft)

Overhead Chute Control (Flex Shaft) w/ Steel Chute & 2-Way Pitch Control on page 11

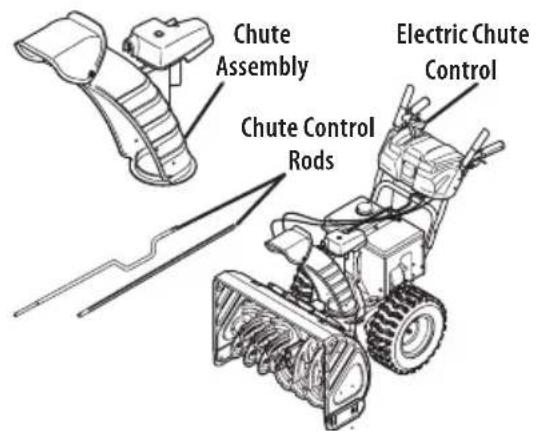

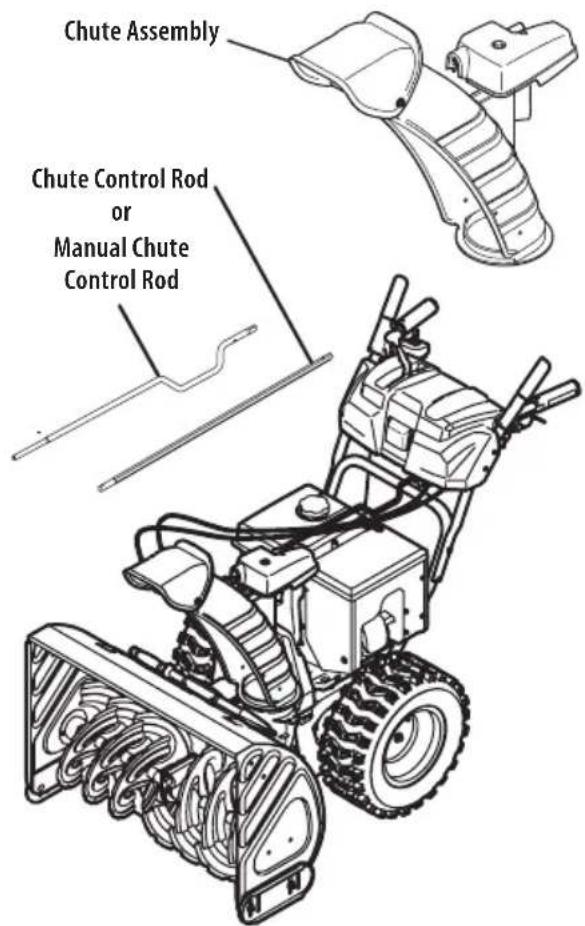

Chute Assembly Electric Chute Control Chute Control Rods

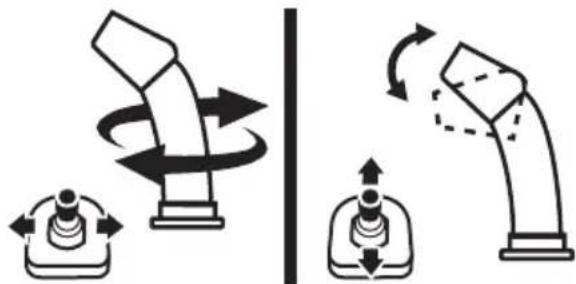

Overhead Chute Rotation Control w/ 4-Way Electric Pitch & Rotation Control on page 12
Figure 7

ASSEMBLY

Side Mounted Chute Rotation Control w/ Manual Pitch

Chute Assembly Chute Control Rod

Figure 8

1. Position chute assembly over base (Figure 9).

Technical line drawing of a mechanical assembly with a downward arrow indicating a component (no text or symbols present)

Figure 9

1. Close flange keepers to secure chute assembly to chute base. Flange keepers will click into place when properly secured (Figure 10).

Technical line drawing of a mechanical component with no visible text or symbols

Figure 10

NOTE: Ensure the lower chute is secured to the flange on the chute base. The lower edge of the chute keeper should be positioned below the flange on the chute base after being clicked into place. If flange keepers will not easily click into place, use palm of your hand to apply swift, firm pressure to the back of the keepers.

1. Remove plastic cap (if present), flat washer (a) and hairpin clip (b) from end of chute control rod (Figure 11).

Technical diagram showing two mechanical assembly steps labeled a and b, with arrows indicating motion direction.

Figure 11

1. Insert end of chute control rod into lower bracket and secure with flat washer (a), hairpin clip (b) and plastic cap (if present) removed in Step 1. If necessary, lower bracket can be adjusted. Refer to Side Chute Control on page 16.

STOP

Continue to Set-Up (page 14).

Overhead Chute Rotation Control w/ Manual Pitch

Chute Assembly Chute Control Rod

Figure 12

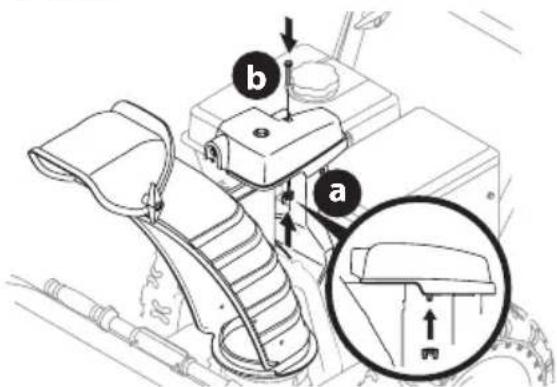

1. Remove wing nut (a) and hex screw (b) from chute control head and clevis pin (c) and cotter pin (d) from chute support bracket. Position chute assembly (forward-facing) over chute base and chute support bracket (Figure 13).

ASSEMBLY

Chute Control Head Chute Support Bracket Chute Assembly Chute Base a b c d

Figure 13

1. Secure chute control head to chute support bracket with clevis pin (c) and cotter pin (d) removed in Step 1 (Figure 14).

Technical diagram of a vehicle gear shift mechanism with labeled parts and a magnified inset showing the mechanism.

Figure 14

1. Finish securing chute control head to chute support bracket with wing nut (a) and hex screw (b) removed in Step 1 (Figure 15).

Technical diagram of a vehicle's seatbelt mechanism with labeled parts and an inset showing the mechanism with arrows.

Figure 15

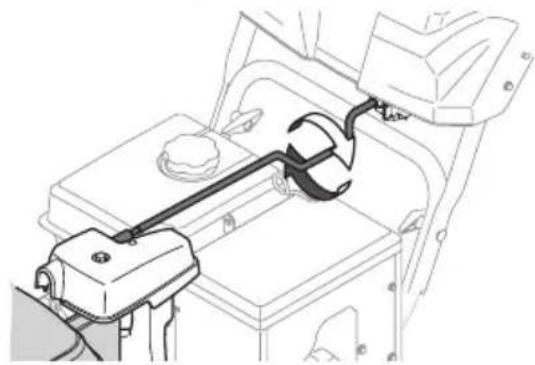

1. Insert chute control rod into the support bracket on rear of the dash panel (Figure 16).

Technical line drawing of a mechanical device with lever and handle (no text or symbols)

Figure 16

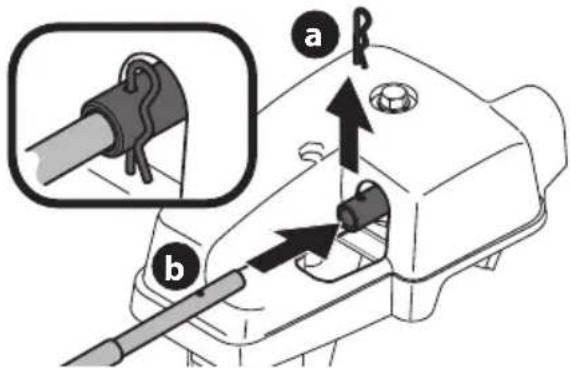

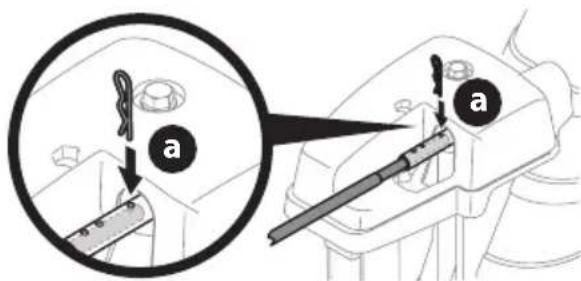

1. Remove hairpin clip (a) from rear of chute control head (Figure 17).

Technical diagram showing mechanical assembly with labeled parts (a) and (b), including a magnified inset view of the component.

Figure 17

1. Insert chute control rod (b) into rear of chute control head (Figure 17) and secure with hairpin clip (a) removed in Step 5.

STOP

Continue to Set-Up (page 14).

Overhead Chute Rotation Control w/ 2-Way Pitch or 4-Way Pitch & Rotation Control

Chute Assembly Chute Control Rod 2 Way/4 Way Control

Figure 18

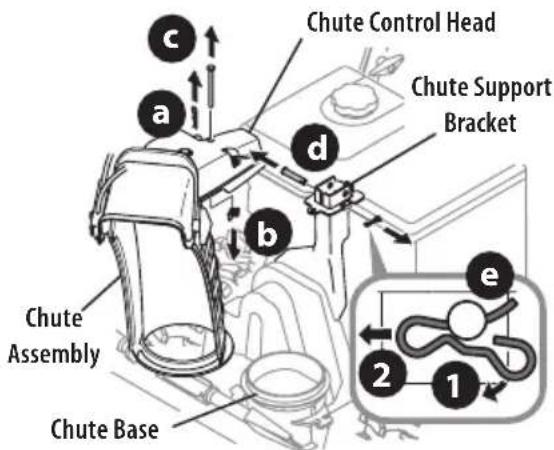

1. Remove hairpin clip (a), wing nut (b) and hex screw (c) from chute control head and clevis pin (d) and bow-tie cotter pin (e) from chute support bracket (Figure 19).

ASSEMBLY

Chute Control Head Chute Support Bracket Chute Assembly Chute Base 2 1 e

Figure 19
NOTE: For smoothest operation, cables should all be to the left of the chute control rod.
2. Insert chute control rod into chute control head. Push rod as far into chute control head as possible, keeping holes in rod pointing upward (Figure 20).

Technical diagram showing mechanical assembly with a magnified inset of a component (no text or symbols visible)

Figure 20
3. Place chute assembly onto chute base and ensure chute control rod is positioned above lower handle. Install hex screw (c) removed in Step 1, but do not secure with wing nut at this time (Figure 21).

Technical diagram showing mechanical assembly with labeled components and a magnified inset of a component detail

Figure 21
4. Squeeze trigger on 2-way/4-way chute control and rotate chute by hand to face forward. The holes in chute control collar will be facing up (Figure 22).

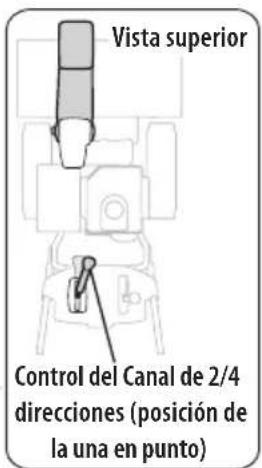

Chute Control Collar Top View 2-Way/4-Way Chute Control (One O'clock Position)

Figure 22
IMPORTANT: Chute will not rotate without squeezing trigger on 2-way/4-way chute control.
5. Rotate 2-way/4-way chute control to one o'clock position (Figure 22) so that indicator arrow on pinion gear below control handle faces upward (Figure 23).

Diagram showing car intake and exhaust system with labeled parts and directional arrows indicating flow or movement.

Figure 23

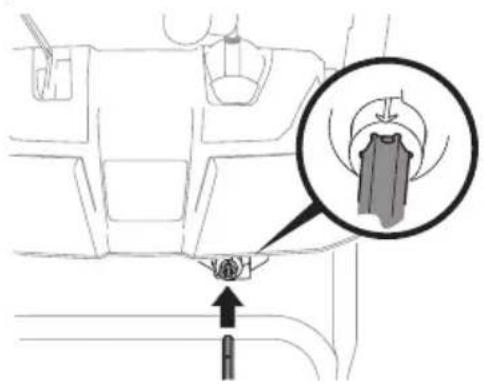

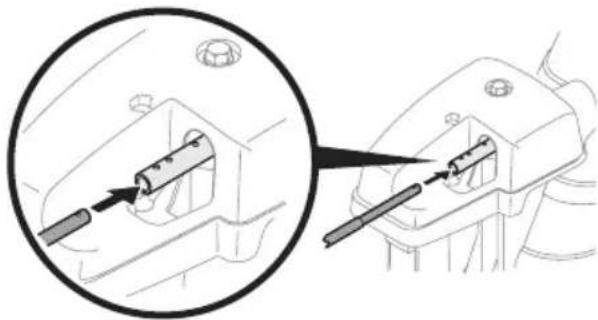

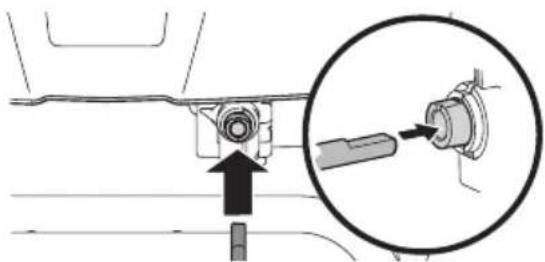

6. Insert chute control rod into pinion gear under handle panel. Make sure to line up hole in rod with arrow on pinion gear (Figure 24).

Diagram showing a car interior with a magnified inset highlighting a specific seat component, likely for safety or repair instructions.

Figure 24
NOTE: Chute control rod will fit snug into pinion gear. Support rear of handle panel with one hand while inserting rod with your other hand to ensure rod is inserted all the way into pinion gear.
NOTE: The hole in the chute control rod is a reference for aligning rod with indicator arrow on pinion gear, and will be visible after rod has been fully inserted.

ASSEMBLY

1. Push chute control rod toward control panel until hole in rod lines up with hole in chute control input collar closest to chute control head and insert hairpin clip (a) removed in Step 1 (Figure 25).

Diagram showing a mechanical component being inserted into a device, with labeled parts and an inset magnified view.

Figure 25

NOTE: Second hole is used to achieve further engagement of chute control rod into pinion gear, if required. Refer to Product Care section for Chute Control Rod adjustments.

1. Finish securing chute control head to chute support bracket with wing nut (b), clevis pin (d), and bow-tie cotter pin (e) removed in Step 1.

STOP

Continue to Set-Up (page 14).

Overhead Chute Control (Flex Shaft) w/ Steel Chute & 2-Way Pitch Control

Steel Chute Assembly Flex Shaft 2-Way Pitch Control

Figure 26

1. Remove lock nuts (a) and hex screws (b) from chute support bracket (this will require two wrenches) (Figure 27).

Chute Control Head Steel Chute Assembly Chute Base Chute Support Bracket

Figure 27

1. Place steel chute assembly onto chute base and chute control head onto chute support bracket (Figure 27).
2. Secure chute control head to chute support bracket with lock nuts (a) and hex screws (b) removed in Step 1 (Figure 28).

Technical diagram of a mechanical device with labeled parts (a, b) and an inset showing a close-up of a component detail.

Figure 28

NOTE: For smoothest operation, cables should all be to the left of the chute control rod.

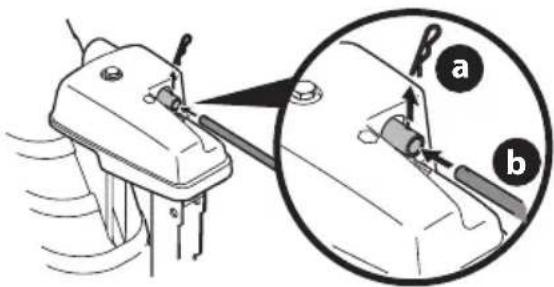

1. Remove hairpin clip (a) from rear of chute control head (Figure 29).

Technical diagram showing a mechanical component with labeled parts (a and b) and an inset view of a plug inserted into a socket.

Figure 29

1. Insert flex shaft (b) into rear of chute control head and secure with hairpin clip (a) removed in Step 4 (Figure 29).

ASSEMBLY

1. Perform one of the following to connect the flex shaft to the chute control rod coupling:

- Models with Overhead Rotational - Insert hex end of flex shaft into chute control rod coupling under handle panel (Figure 30).

Diagram of a car interior showing a mechanical component with a magnified inset view (no text or symbols)

Figure 30

- Models with Electric Chute Control - Insert other end of flex shaft into chute control rod coupling under handle panel. Make sure to line up flat end of rod and flat end of coupler. You may need to rotate rod around until these two surfaces line up (Figure 31 inset).

Mechanical assembly diagram showing a bolt and nut assembly with an inset close-up of a tool (no text or symbols)

Figure 31

1. Ensure speed selector is in fastest forward speed.
2. Remove cotter pin (a) and washer (b) from ferrule on end of shift rod (Figure 32 inset).

Ferrule Shift Rod a b

Figure 32

1. Make sure the shift lever on the back of the transmission is rotated downward to the full extent of its rotation see Figure 33, Detail "A" for models without hydro transmission or Detail "B" for models with hydro transmission.

A Non-Hydro Models B Hydro Models

Figure 33

1. Insert ferrule into top hole of shift lever and secure with cotter pin (a) and washer (b) removed in Step 8 (Figure 32). Ferrule may need to be adjusted up or down.

STOP

Continue to Set-Up (page 14).

Overhead Chute Rotation Control w/ 4-Way Electric Pitch & Rotation Control

Chute Assembly Chute Control Rod or Manual Chute Control Rod

Figure 34

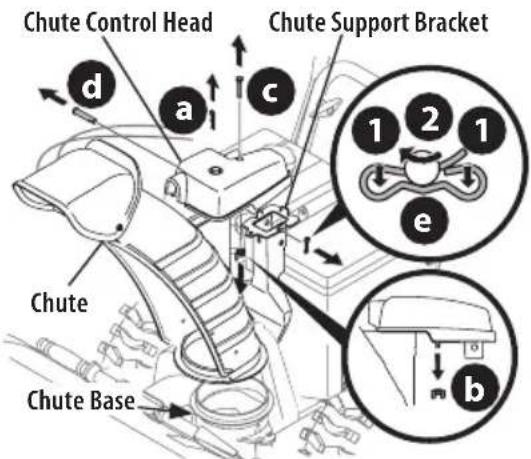

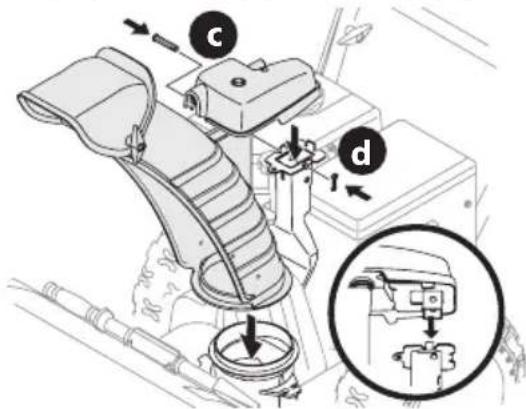

1. Remove cotter pin (a), wing nut (b) and hex screw (c) from chute control head. Remove clevis pin (d) and bow-tie cotter pin (e) from chute support bracket (Figure 35).

ASSEMBLY

Chute Control Head Chute Support Bracket d a c 1 2 1 e Chute Chute Base b

Figure 35

NOTE: For smoothest operation, cables should all be to the left of the chute control rod.
2. Insert round end of chute control rod into chute control head. Push rod as far into chute control head as possible, keeping holes in rod pointing upward (Figure 36).

Technical diagram showing a mechanical component with a magnified inset view of its internal structure (no text or symbols)

Figure 36

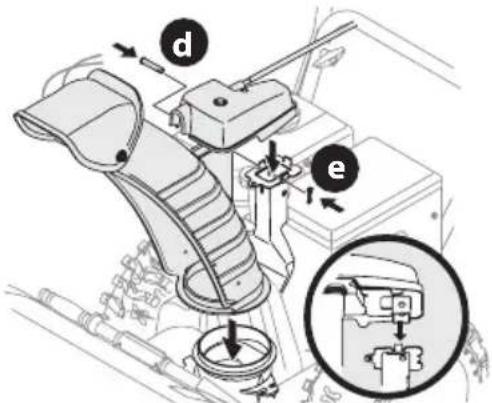

1. Place chute onto chute base and ensure chute control rod is positioned above lower handle. Secure chute control head to chute support bracket with clevis pin (d) and bow-tie cotter pin (e) removed in Step 1 (Figure 37).

Technical diagram of a vehicle engine component with labeled parts (d, e) and a magnified inset showing internal components.

Figure 37

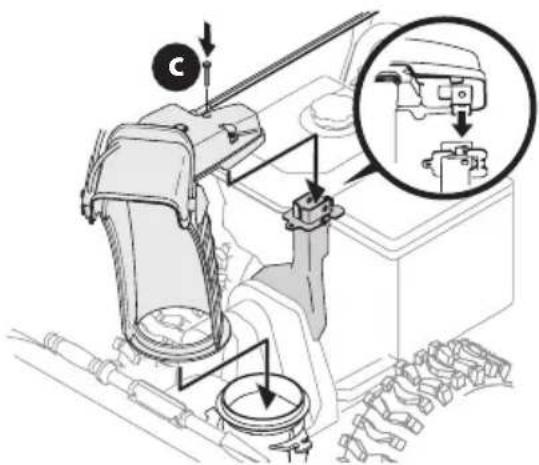

1. Finish securing chute control head by installing hex screw (c) and wing nut (b) removed in Step 1 (Figure 38).

Technical diagram showing mechanical component assembly with labeled parts c and b, including directional arrows and a magnified inset view.

Figure 38

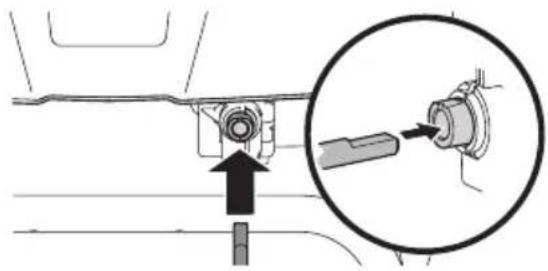

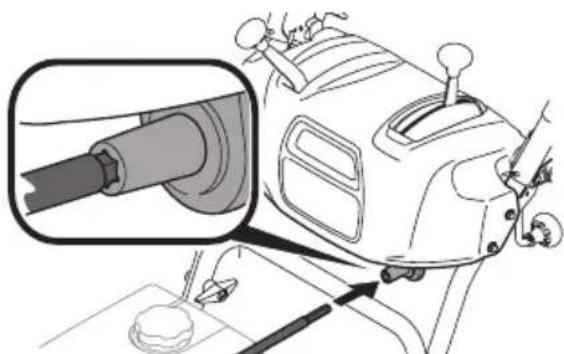

1. Insert other end of chute control rod into coupler below handle panel. Make sure to line up flat end of rod and flat end of coupler. You may need to rotate rod around until these two surfaces line up (Figure 39 inset).

Mechanical assembly diagram showing a valve mechanism with an inset close-up of a component (no text or symbols)

Figure 39

1. Push chute control rod toward the control panel until hole in rod lines up with middle hole in chute control coupler and insert cotter pin (a) removed in Step 1 (Figure 40).

Diagram showing a mechanical component being inserted into a device, with labeled parts and directional arrows indicating assembly or inspection.

Figure 40

NOTE: There is a reference hole provided at rear end of control rod to help know when holes are vertical.
NOTE: Hole furthest from chute control head is used to achieve further engagement of chute control rod into coupler, if required. Refer to Adjustments, Overhead Chute Control on page 16.
NOTE: For models equipped with manual chute control rods, the hole closest to chute control head is used for manual movement of chute assembly, if required. Refer to Operation, Manual Chute Rotation Control & Electric Chute Control on page 22.

STOP

Continue to Set-Up (page 14).

Set-Up

CHUTE CONTROL CABLE ROUTING (IF EQUIPPED)

For models equipped with 2-way or 4-way chute controls, electric chute control and/or chute-pitch controls, ensure control cables are routed properly.

Chute control cables are routed through a single wire guide (a) on top of the engine and/or through two wire guides (b) located on the front and left side of the engine (Figure 41).

NOTE: On models equipped with a cable tie securing the cables to the rear of the gas tank, pull the cables toward the chute and pull the cable tie snug to secure the cables in place.

NOTE: For smoothest operation, cables should all be to the left of the chute control rod (c).

NOTE: The number of cables routed through the wire guides will vary depending on model.

1. Locate cable guide(s) and perform the following:
2. Top Mounted Wire Guide (a) - Check that all cables are properly routed through cable guide on top of engine (Figure 41).
3. Front and Side Mounted Wire Guides (b) - Check that all cables are properly routed through the wire guide below the left side of the engine and the wire guide below the chute control head (Figure 41).

Technical diagram showing labeled components of a vehicle engine, including parts a, b, and c with connecting wires.

Figure 41

SHEAR PINS STORAGE (IF EQUIPPED)

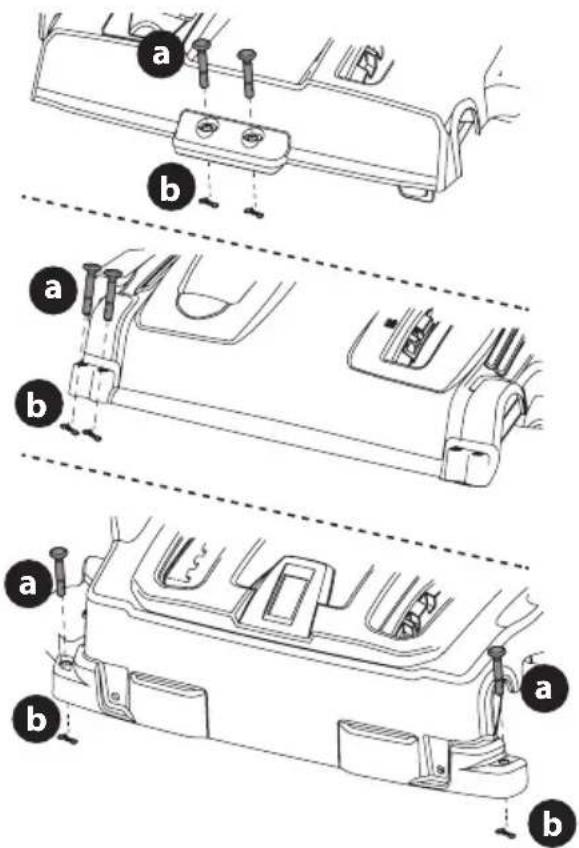

On select models, holes are provided in the rear of the handle panel for shear pin (a) and bow-tie cotter pin (b) storage as shown in Figure 42. If not provided, make sure to store them in a safe place until needed.

Technical diagram showing car interior components with labeled parts (a, b) and assembly steps

Figure 42

DRIFT CUTTERS (IF EQUIPPED)

The drift cutters are mounted inverted at the factory for shipping purposes.

Non-Adjustable

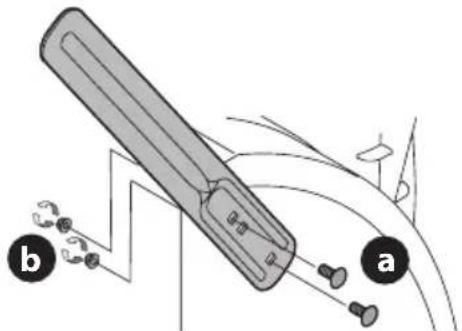

1. Remove two carriage bolts (a) and lock nuts (b) that secure each drift cutter, and remove them from the sides of auger housing (Figure 43).

Diagram of a mechanical device with labeled parts (a and b), showing motion lines and components without any readable text or symbols.

Figure 43

1. Turn the drift cutters around and position them as shown in Figure 43 to the outside of the auger housing.
2. Attach drift cutters with carriage bolts (a) and lock nuts (b) removed in Step 1.

Tool-less

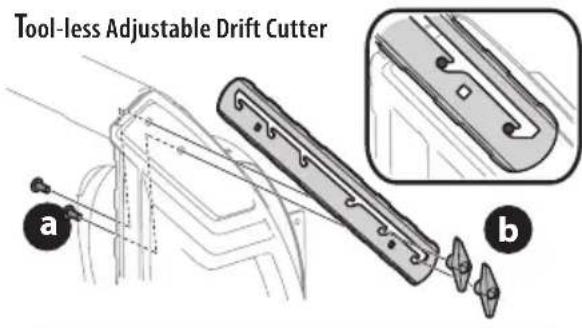

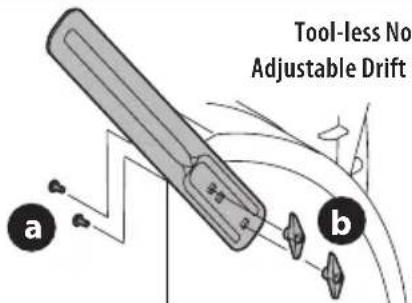

1. Remove two carriage bolts (a) and wing nuts (b) that secure each drift cutter, and remove them from the sides of auger housing (Figure 44).

ASSEMBLY

Tool-less Adjustable Drift Cutter a b

Tool-less Norway Adjustable Drift (a) b

Figure 44

1. Turn the drift cutters around and position them as shown in Figure 44 to the outside of the auger housing.
2. Attach drift cutters with carriage bolts (a) and wing nuts (b) removed in Step 1.

SKID SHOES (IF APPLICABLE)

Select models require the installation to the provided skid shoes.

1. Using the two carriage bolts (a) and hex flange nuts (b) and flat washers (if equipped) (c), secure the skid shoes to the auger housing (d). Hand tighten hex flange nuts (Figure 45).
2. Adjust the skid shoes to provide a minimum of 1/8th inch clearance between the shave plate (e) and the ground. Securely tighten hex flange nuts.
3. If necessary refer to Skid Shoes in the Adjustments section on page 15.

Diagram of a device with labeled parts (a, b, c, d, e) showing internal components and connections.

Figure 45

CHUTE CLEAN-OUT TOOL

The chute clean-out tool is fastened to the top of the auger housing with a mounting clip (Figure 46).

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 46

TIRE PRESSURE (IF APPLICABLE)

NOTE: Not applicable to models equipped with airless tires.

WARNING

Under any circumstance do not exceed manufacturer's recommended psi. Equal tire pressure should be maintained at all times. Excessive pressure when seating beads may cause tire/rim assembly to burst with force sufficient to cause serious injury. Refer to sidewall of tire for recommended pressure.

The tires are over-inflated for shipping purposes. Check tire pressure before operating. Refer to tire side wall for tire manufacturer's recommended psi and adjust pressure, if necessary.

NOTE: Equal tire pressure is to be maintained at all times for performance purposes.

Adjustments

SKID SHOES

Snow blower skid shoes are adjusted at a factory setting roughly 1/8" below the shave plate. Adjust them upward or downward, if desired, prior to operating.

WARNING

Use extreme caution when operating on or near gravel and adjust skid shoes to clear gravel or crushed rock surfaces to avoid picking up and throwing objects which could cause serious injury or property damage.

• For close snow removal on a smooth surface, raise skid shoes higher on auger housing.
• Use a lower position when area to be cleared is uneven, such as a gravel driveway.

IMPORTANT: If you choose to operate on a gravel surface, keep skid shoes in position for maximum clearance between ground and shave plate.

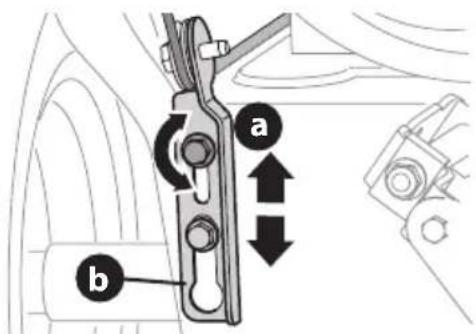

1. Loosen four hex nuts (a) (two on each side) and carriage bolts (b). Move skid shoes to desired position (Figure 47).

a b b

Figure 47

NOTE: The skid shoes on your snow blower may look slightly different (and have different hardware) than ones shown in Figure 47.

1. Make certain entire bottom surface of skid shoe is against ground to avoid uneven wear on skid shoes.
2. Securely tighten hex nuts (a) to carriage bolts (b).

ADJUSTMENTS

ADJUSTABLE DRIFT CUTTERS (IF EQUIPPED)

The drift cutters are mounted inverted at the factory for shipping purposes.

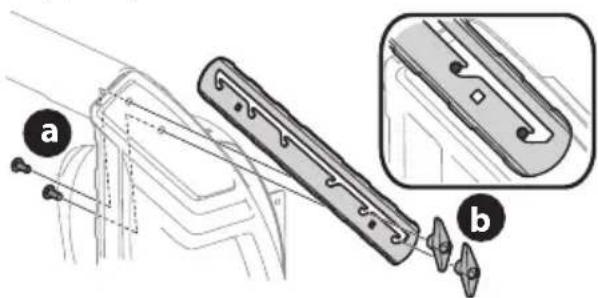

1. Loosen the two carriage bolts (a) and wing nuts (b) that secure each drift cutter to the sides of auger housing (Figure 48).

Technical diagram showing a mechanical component with labeled parts (a) and (b), including a magnified inset view.

Figure 48

1. Slide the drift cutters to desired height.
2. Securely tighten the two carriage bolts and wing nuts that secure each drift cutter to the sides of auger housing.

MANUAL CHUTE PITCH ADJUSTMENT (IF EQUIPPED)

NOTE: For models without manual chute pitch, see Controls and Operation on page 21-22.

On models with manual chute pitch, the distance snow is thrown can be adjusted by changing angle of chute assembly. To do so:

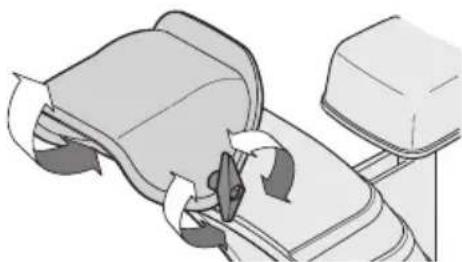

1. Loosen wing nut found on left side of the upper chute assembly (Figure 49).

Illustration of a mechanical device with rotating components and directional arrows (no text or symbols)

Figure 49

1. Pivot chute upward or downward before re-tightening wing nut.

SIDE CHUTE CONTROL (IF EQUIPPED)

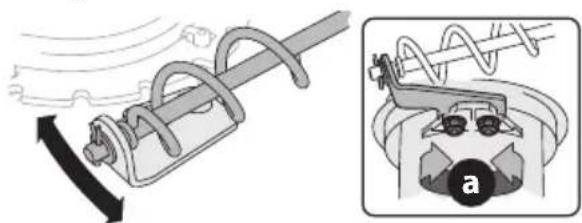

If spiral at bottom of the chute control rod is not fully engaging with chute assembly, the bracket needs to be adjusted. To do so:

1. Loosen two nuts (a) which secure the bracket and reposition it slightly (Figure 50).
2. Re-tighten nuts.

Mechanical assembly diagram showing a spring-loaded component with directional arrows and a close-up of a circular component labeled 'a' (no text or symbols present)

Figure 50

OVERHEAD CHUTE CONTROL (IF EQUIPPED)

If chute fails to remain stationary during operation, preload of chute can be adjusted by tightening hex nut found on front of chute control head.

1. To increase preload, tighten hex nut (a) clockwise in 14 turn intervals. The chute control rod (b) will need to be held stationary when tightening the nut (Figure 51).

Technical diagram of a mechanical assembly with labeled parts (a and b) and an inset showing a circular component detail.

Figure 51

1. If chute control rod is difficult to turn, decrease preload by loosening hex nut counter-clockwise in 14 turn intervals.

2-WAY OR 4-WAY CHUTE CONTROL (IF EQUIPPED)

To adjust chute control rod for increased engagement into the handle panel control, proceed as follows:

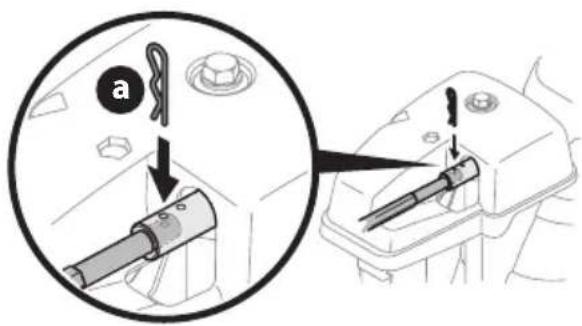

1. Remove hairpin clip (a) from hole closest to chute assembly on chute control head.
2. Pull out chute control rod until hole in it lines up with second hole in chute control head (Figure 52).

Diagram showing a mechanical component being inserted into a car's side panel, with labeled parts and directional arrow.

Figure 52

1. Reinsert hairpin clip (a) through this hole and chute control rod.

ADJUSTABLE SHAVE PLATE (IF EQUIPPED)

1. Allow engine to run until it is out of fuel. Do not attempt to drain fuel from the engine. Remove safety key or disconnect spark plug wire.
2. Carefully pivot snow blower up and forward so that it rests on front of auger housing.
3. Loosen rear skid shoe nuts (a) on both sides of auger housing and remove carriage bolts (b) and hex nuts (c) which attach shave plate (d) to the bottom of the auger housing (Figure 53).

ADJUSTMENTS

a b c d a b c c c

Figure 53
NOTE: 3-Stage model shown.

1. Adjust the shave plate to one of 2 mounting positions. Reinstall and securely tighten all carriage bolts, nuts and skid shoe hardware from Step 3 (Figure 53).
2. Readjust the skid shoes. See Skid Shoes on page 15.

AUGER CONTROL

WARNING

Prior to operating, carefully read and follow all instructions below. Perform all adjustments to verify your snow blower is operating safely and properly.

Refer to Controls & Operation section on page 20 for the location of auger control lever and check adjustment as follows:

1. When auger control lever is released and in disengaged "UP" position, the cable should have very little slack. It should NOT be tight.
2. In a well-ventilated area, start the engine. Refer to your Engine Operator's Manual.
3. While standing in the operator's position (behind the handles), depress the auger control lever to engage auger.
4. Allow auger to remain engaged for approximately ten (10) seconds before releasing auger control lever. Repeat this several times.
5. With auger control lever in disengaged "UP" position, walk to front of machine.
6. Confirm that auger has completely stopped rotating and shows NO signs of motion. If auger shows ANY signs of rotating, immediately shut OFF engine, remove safety key or disconnect spark plug wire. Wait for ALL moving parts to stop before readjusting auger control lever.
7. To readjust the auger control cable, loosen upper hex screw (a) (Figure 54).

a b

Figure 54

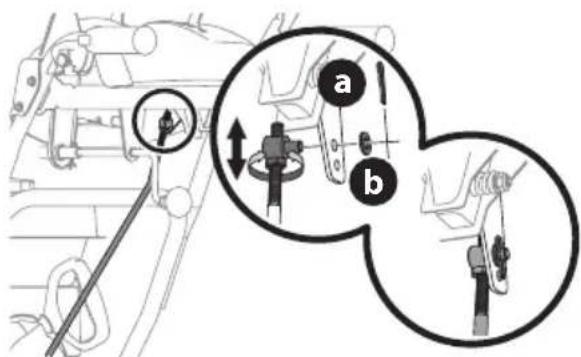

1. Position auger control bracket (b) upward to provide more slack in cable or downward to increase tension (Figure 54).
2. Re-tighten upper/rear hex screw (a).
3. Repeat the steps 1 - 6 to verify proper adjustment has been achieved.

SHIFT CABLE (IF EQUIPPED)

If full range of speeds (forward and reverse) cannot be achieved, adjust shift cable as follows:

1. Place shift lever in fastest forward speed position.
2. Loosen hex nut (a) on shift cable index bracket (b) (Figure 55).
3. Pivot bracket downward to take up slack in cable.
4. Re-tighten hex nut.
5. If further adjustment is necessary move the shift cable to one of the alternate holes in the shift cable index bracket.

Technical diagram of a mechanical clamp or bracket assembly with labeled parts a and b, showing rotational motion indicated by arrows.

Figure 55

SHIFT ROD (IF EQUIPPED)

If full range of speeds (forward and reverse) cannot be achieved, adjust shift rod as follows:

1. Place shift lever in fastest forward speed position.
2. Remove cotter pin (a) and washer (b) from adjustment ferrule on shift rod and pull it out from shift lever (Figure 56).

ADJUSTMENTS

Technical diagram showing mechanical assembly with labeled parts (a and b) and directional arrows indicating movement or assembly.

Figure 56

1. Make sure the shift lever on the back of the transmission is rotated downward to the full extent of its rotation. See Figure 57, Detail "A" for models without hydro transmission or Detail "B" for models with hydro transmission.

A NON-HYDRO MODELS B HYDRO MODELS

Figure 57

1. Rotate ferrule up or down on shift rod as necessary until it lines up with upper hole in shift lever (Figure 57 inset).
2. Insert the ferrule into the upper hole and secure with the washer and cotter pin.

DRIVE CONTROL (NON-HYDRO MODELS) (IF EQUIPPED)

When drive control lever is released and in disengaged "UP" position, cable should have very little slack. It should NOT be tight.

NOTE: If excessive slack is present in drive cable or if drive is disengaging intermittently during operation, the cable may be in need of adjustment.

Check adjustment of drive control lever as follows:

1. With drive control lever released, push snow blower gently forward. It should roll freely.
2. Engage drive control lever and gently attempt to push the snow blower forward. The wheels should not rotate or roll freely.
3. If equipped with a shift lever, with drive control lever released, move shift lever back and forth between the R2 position and the F6 position several times. There should be no resistance in the shift lever.

If any of the above tests fail, the drive cable is in need of adjustment. Proceed as follows:

1. Shut OFF engine, remove safety key or disconnect spark plug wire. Refer to the Engine Operator's Manual.

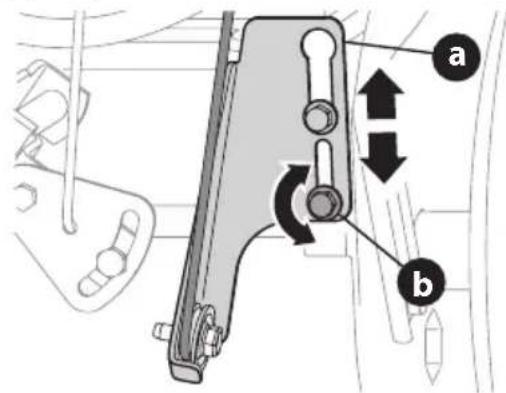

2. Loosen lower hex screw (a) on drive cable bracket (b) (Figure 58).

Technical diagram of a mechanical component with labeled parts (a and b) and directional arrows indicating movement or force.

Figure 58

1. Position drive cable bracket upward to provide more slack (or downward to increase cable tension).
2. Re-tighten lower hex screw.
3. Check adjustment of drive control lever as described above to verify proper adjustment has been achieved.

DRIVE CONTROL (HYDRO MODELS) (IF EQUIPPED)

When drive control lever is released and in disengaged "UP" position, cable should have very little slack. It should NOT be tight.

NOTE: If excessive slack is present in drive cable or if drive is disengaging intermittently during operation, the cable may be in need of adjustment.

1. Shut OFF engine, remove safety key or disconnect spark plug wire. Refer to the Engine Operator's Manual.
2. Loosen upper hex screw (a) on drive cable bracket (b) (Figure 59).

Technical diagram showing mechanical assembly with labeled parts a and b, including directional arrows and component layout.

Figure 59

1. Position bracket upward to provide more slack (or downward to increase cable tension).
2. Re-tighten upper hex screw.
3. Check for excessive slack in drive control cable. If necessary repeat Steps 2-4 to re-adjust the drive control.

Adding Fuel & Oil

Refer to the Engine Operator's Manual for information on adding fuel and oil.

OPERATION

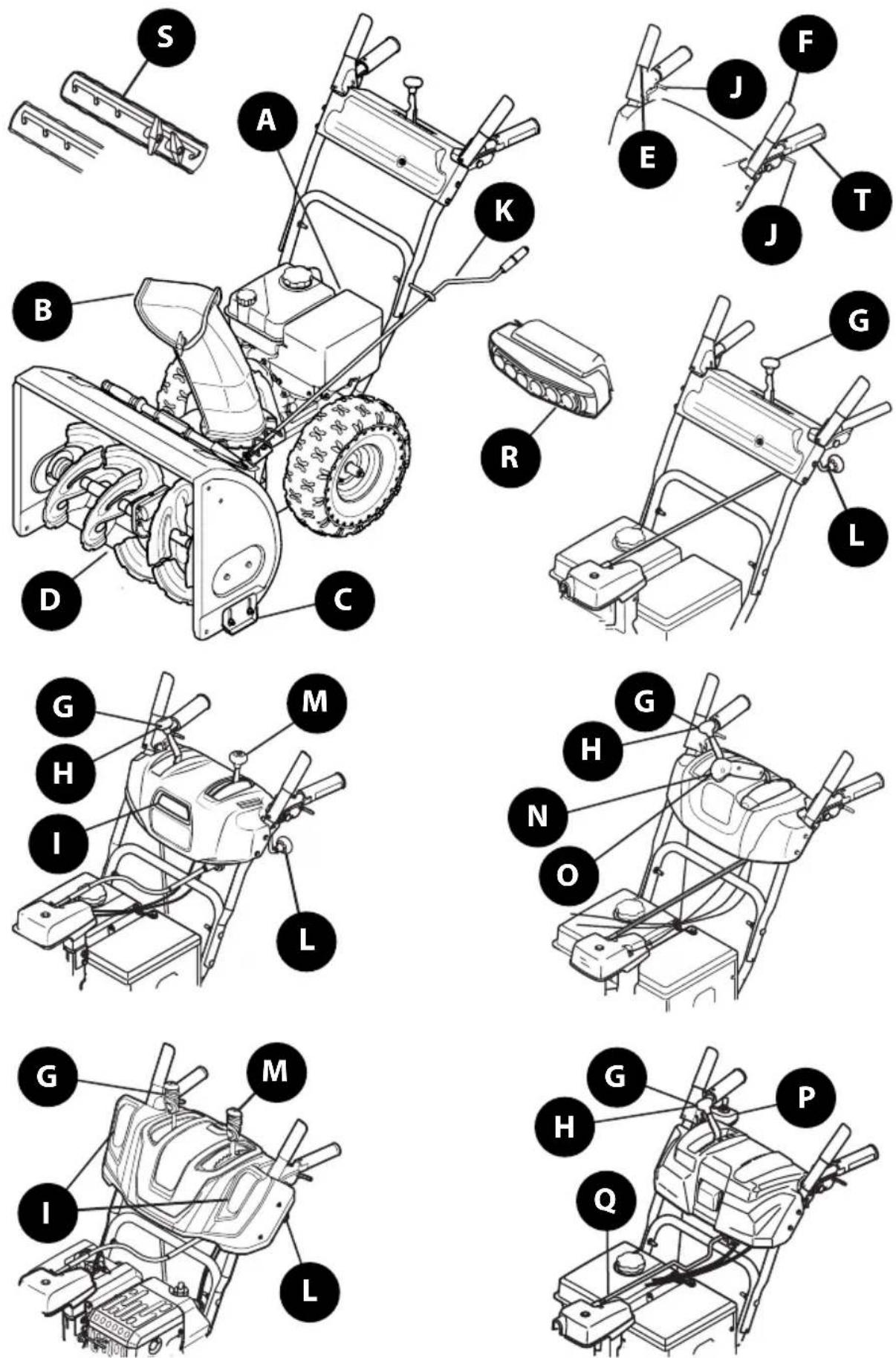

Model Features

Figure 60

FEATURES

Snow blower controls and features are described below and may be illustrated in Figure 60.

NOTE: This Operator's Manual covers several models. Snow blower features may vary by model. Not all features in this manual are applicable to all snow blower models and the snow blower depicted may differ from yours.

NOTE: All references to the left or right side of the snow blower are from the operator's position. Any exceptions will be noted.

A. ENGINE CONTROLS

Refer to your Engine Operator's Manual for location and description of engine controls pertaining to your engine.

B. CHUTE ASSEMBLY

Snow gathered into the auger and impeller housings is discharged out the chute assembly.

C. SKID SHOES

Skid shoes provide the proper clearance of the shave plate for the surface conditions and the snow to be cleared. Adjust upward for hard-packed snow. Adjust downward when operating on gravel or crushed rock surfaces. See Skid Shoe Adjustment section on page 15.

D. AUGERS

When engaged, the augers rotate and gather snow into the auger and impeller housings.

The drive control lever is located on the right handle. Squeeze the control lever down against the handle to engage the wheel drive. Release to stop (Figure 61).

Two black-and-white icons showing a knife and a tractor, with directional arrows indicating movement or force (no text or symbols)

Figure 61

NOTE: Always release drive control lever before changing speeds on all models except the hydro transmission models. Failure to do so will result in increased wear on your machine's drive system.

*On select models, the drive control lever also locks the auger control lever so that you can operate the chute control without interrupting the snow blowing process. When both the auger and drive levers are engaged at any time, the operator can release the auger control lever (on the left handle) and the augers will remain engaged. Release both control levers to stop augers and wheel drive.

F. AUGER CONTROL LEVER (IF EQUIPPED)

The auger control lever down is located on the left handle. Squeeze the control lever against the handle to engage the augers and start snow blowing action. Release to stop (Figure 62).

Simple line drawing of a knife with an arrow indicating motion (no text or symbols)

Pure electrical circuit lines without any symbols

Figure 62

IMPORTANT: Refer to the Auger Control information in the Assembly & Set-Up section prior to operating your snow blower. Read and follow all instructions carefully and perform all adjustments to verify your snow blower is operating safely and properly.

G. SHIFT LEVER (6-SPEED TRANSMISSION) (IF EQUIPPED)

The shift lever is located on the handle panel and is used to determine ground speed and direction of travel.

- Forward

There are six forward (F) speeds. Position one (1) is the slowest and position six (6) is the fastest.

- Reverse

There are two reverse (R) speeds. Position one (1) is the slowest and position two (2) is the fastest.

H. SHIFT LEVER (HYDRO TRANSMISSION) (IF EQUIPPED)

The shift lever is located on the handle panel and is used to determine ground speed and direction of travel. The further forward the lever is moved the faster it will travel. Moving past the detent position to the reverse direction will move the snow blower in reverse.

I. HEADLIGHT (SINGLE OR DUAL) (IF EQUIPPED)

The headlight(s) located on the front of the handle panel is/are automatically turned ON when the engine is started.

OPERATION

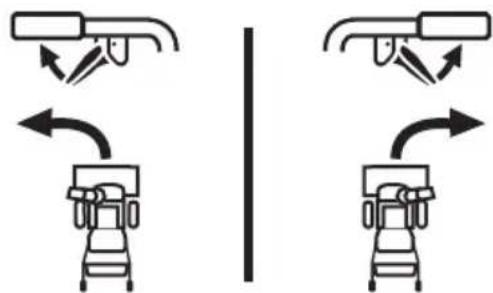

J. STEERING TRIGGER CONTROLS (IF EQUIPPED)

The left and right wheel steering trigger controls are located on the underside of the handles (Figure 63).

IMPORTANT: Models with Hydro Transmission - When moving the snow blower without starting the engine, squeeze both right and left triggers to disengage the drive.

Diagram showing two identical mechanical or robotic device configurations with bidirectional arrows indicating motion (no text or symbols)

Figure 63

• Squeeze the right trigger control to turn right.
• Squeeze the left trigger control to turn left.

CAUTION

Operate the snow blower in open areas until you are familiar with these controls.

K. SIDE MOUNTED CHUTE ROTATION CONTROL (IF EQUIPPED)

The side mounted chute rotation control is located on the left side of the snow blower. To change direction in which snow is thrown, rotate the control (Figure 64).

Two diagrams showing a rotating mechanical component and a magnified view of the same component (no text or symbols)

Figure 64

L. OVERHEAD CHUTE ROTATION CONTROL (IF EQUIPPED)

The overhead chute rotation control is located at the rear of the snow blower under the handle panel.

- To change the direction in which snow is thrown, rotate the control (Figure 65).

Two diagrams showing a mechanical device with rotational motion and a magnified view of a rotating component (no text or symbols)

Figure 65

M. CHUTE-PITCH CONTROL (IF EQUIPPED)

The two-way chute-pitch control is located on the left side of the dash panel and is used to raise and lower the upper chute, which will change the distance the snow is thrown.

To raise or lower the upper chute, move the lever forward or backward (Figure 66).

Two-Way Chute-Pitch Control

• To Reduce the Distance Snow is Thrown: Move the lever forward to tilt the upper chute down (Figure 66).
• To Increase the Distance Snow is Thrown: Move the lever rearward to tilt the upper chute up (Figure 66).

Two-Way Indexed Chute-Pitch Control

• To Reduce the Distance Snow is Thrown: Disengage lever from the current chute setting. Move the lever forward to tilt the upper chute down to the desired setting (a) (Figure 66).
• To Increase the Distance Snow is Thrown: Disengage lever from the current chute setting. Move the lever rearward to tilt the upper chute down to the desired setting (b) (Figure 66).

TWO-WAY CHUTE-PITCH CONTROL

TWO-WAY INDEXED CHUTE-PITCH CONTROL

a b CHUTE TILT DOWN CHUTE TILT UP

Figure 66

N. 2-WAY CHUTE ROTATION CONTROL (IF EQUIPPED)

The 2-Way chute rotation control is located on the left side of the dash panel.

- To change direction in which snow is thrown, squeeze button on control and rotate to the right or to the left (Figure 67).

Diagram showing two mechanical or electrical components with rotating arrows, no text or symbols present

Figure 67

OPERATION

0. 4-WAY CHUTE ROTATION CONTROL (IF EQUIPPED)

The 4-Way chute rotation control is located on the left side of the dash panel.

• To change the direction in which snow is thrown, squeeze the button on the control and rotate to the right or to the left (Figure 68).
  • To change the distance which snow is thrown, move the control forward or backward.

Illustration of two lightbulb devices with rotating arms and directional arrows indicating motion (no text or symbols)

Figure 68

P. ELECTRIC CHUTE PITCH & ROTATION CONTROL (JOYSTICK) (IF EQUIPPED)

The electric chute control is located on the right side of the dash panel (Figure 69).

• To change the direction in which snow is thrown, move the joystick to the right or to the left.
  • To change the distance which snow is thrown, move the joystick forward or backward.

Diagram showing two mechanical lever mechanisms with rotational motion arrows, no text or symbols present

Figure 69

Q. MANUAL CHUTE ROTATION CONTROL & ELECTRIC CHUTE CONTROL (JOYSTICK) (IF EQUIPPED)

Follow this procedure to manually change the chute direction on models equipped with an electric chute control (joystick) and manual chute rotation control rod only (Figure 60).

1. Remove cotter pin (a) from either of the holes furthest from the chute assembly on chute control head (Figure 70).

Diagram showing mechanical assembly with labeled parts 'a' and a magnified inset, likely illustrating a tool or component assembly.

Figure 70

1. Push in chute control rod until the hole in it lines up with the third hole in chute control head (Figure 70).
2. Reinsert cotter pin (a) through this hole and chute control rod (Figure 70).
3. Grasp indented portion of chute control rod and manually rotate chute assembly to the right or to the left (Figure 71).

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Figure 71

R. LED LIGHT BAR (IF EQUIPPED)

The LED headlight is located on top of the auger housing and is automatically turned ON when the engine is running.

S. DRIFT CUTTERS (IF EQUIPPED)

The drift cutters are designed for use in deep snow. Their use is optional for normal snow conditions. Maneuver snow blower so that the cutters penetrate a high standing snow drift to assist snow falling into the augers.

OPERATION

T. HEATED GRIPS (IF EQUIPPED)

CAUTION

It is recommended that you wear gloves when using the heated grip. If the heated grips become too hot, turn them OFF.

To activate the heated grips, move switch found on top (a) or on the rear (b) of dash panel into the ON position (Figure 72). To turn OFF heated grips, move switch to the OFF position.

Figure 72

Starting and Stopping the Engine

WARNING

Always keep hands and feet clear of moving parts. Do not use a pressurized starting fluid. Vapors are flammable.

Refer to the Engine Operator's Manual for instructions on starting and stopping the engine (Figure 73).

D ELECTRIC START

Figure 73

TO ENGAGE DRIVE

1. With the throttle control in the Fast (rabbit) position, move the shift lever into one of the six forward (F) positions or two reverse (R) positions on 6-speed models or in the desired position on the Hydro models. Select a speed appropriate for the snow conditions and a comfortable pace.
2. Squeeze the drive control lever against the handle and the snow blower will move. Release to stop.

TO ENGAGE AUGERS

To engage the augers, squeeze the auger control lever against the left handle. Release to stop.

TO STEER (IF EQUIPPED)

With the drive control lever engaged, squeeze the right steering trigger control to turn right, or squeeze the left steering trigger control to turn left.

CAUTION

Operate the snow blower in open areas and at slow speeds until you are familiar with the drive control and comfortable operating the steering controls.

Clearing a Clogged Chute Assembly

WARNING

Never use your hands to clear a clogged chute assembly. Shut OFF engine, remove safety key or disconnect spark plug wire and remain behind handles until all moving parts have stopped before unclogging.

The chute clean-out tool is conveniently fastened to the rear of the auger housing with a mounting clip. Should snow and ice become lodged in the chute assembly during operation, proceed as follows to safely clear the chute assembly and chute opening:

1. Release both the auger control lever and the drive control lever and rotate the chute assembly to the left.
2. SHUT THE ENGINE OFF! Remove safety key or disconnect spark plug wire. Refer to the Engine Operator's Manual.
3. Remove clean-out tool from the clip which secures it to the rear of the auger housing.
4. Use the shovel-shaped end of the clean-out tool to dislodge and scoop any snow and ice which has formed in and near the chute assembly. Always use the clean-out tool (Part # 931-2643), not your hands. Refer to the separate supplement for clean-out tool ordering information, if lost or damaged (Figure 74).

OPERATION

1. Re-fasten the clean-out tool to the mounting clip on the rear of the auger housing, reinsert the safety key or connect the spark plug wire and start the engine.
2. While standing in the operator's position (behind the snow blower), engage the auger control lever for a few seconds to clear any remaining snow and ice from the chute assembly.

Two technical diagrams showing a valve and a truck with checkmarks indicating approval or verification (no text or symbols present)

Technical line drawing of a mechanical device with a lever and gear assembly (no text or symbols)

Figure 74

Replacing Shear Pins

CAUTION

NEVER replace the auger or central accelerator shear pins with anything other than OEM Part No. 738-04124A (round head replacement shear pins), 738-05273 (black colored, round head replacement shear pins) or 738-06654 (hex head replacement shear pins). Any damage to the auger gearbox or other components as a result of failing to do so will NOT be covered by your snow blower's warranty.

WARNING

Shut OFF engine, remove safety key or disconnect spark plug wire prior to replacing shear pins.

The augers are secured to the spiral shaft with shear pins (a, b or c) and cotter pins (d). If the auger should strike a foreign object or ice jam, the snow blower is designed so that the pins may shear. If the augers will not turn, check to see if the pins have sheared (Figure 75).

IMPORTANT: ALWAYS use the correct OEM replacement shear pin.

2-STAGE SNOW BLOWER REPLACEMENT SHEAR PINS

- The auger is secured to the spiral shaft using round head shear pins (a) - OEM Part No. 738-04124A.

3-STAGE SNOW BLOWER REPLACEMENT SHEAR PINS

• The side augers are secured to the spiral shaft using black colored, round head shear pins (b) - OEM part number 738-05273.
• The central accelerator augers are secured to the spiral shaft using hex head shear pins (c) - OEM part number 738-06654.

2-Stage Snow Blowers

Diagram illustrating mechanical assembly with labeled parts a and d, showing tool paths and components in a biological or mechanical context.

3-Stage Snow Blowers

Diagram of a mechanical device with labeled parts (a, b, c, d) and an inset showing a screwdriver mechanism.

Figure 75

SERVICE AND MAINTENANCE

WARNING

Before servicing, repairing or inspecting the snow blower, disengage the auger control lever. Stop the engine, remove the safety key or disconnect spark plug wire to prevent unintended starting.

Troubleshooting

ENGINE

1. Engine fails to start, runs erratic, skips (hesitates) or idles poorly. Refer to the Engine Operator's Manual.

- Refer to the Engine Operator's Manual for engine-related troubleshooting and service.

EXCESSIVE VIBRATION

1. Loose or damaged parts.

- Stop engine immediately, remove safety key or disconnect spark plug wire. Check for possible damage. Tighten all nuts and bolts. Repair as needed. If the problem persists, contact an authorized service center.

FAILS TO PROPEL ITSELF

1. Drive control cable in need of adjustment.

- Adjust drive control cable. Refer to Drive Control on page 19.

1. Drive belt loose or damaged.

- Replace drive belt. Contact an authorized Service Center.

1. Friction wheel worn.

- Replace friction wheel. Refer to Service section on page 28.

FAILS TO DISCHARGE SNOW

1. Chute assembly clogged.

- Stop engine immediately, remove safety key or disconnect spark plug wire. See Engine Operator's Manual. Clean chute assembly and inside of auger housing with clean-out tool. Refer to Cleaning a Clogged Chute Assembly on page 23.

1. Foreign object lodged in auger.

- Stop engine immediately, remove safety key or disconnect spark plug wire. See Engine Operator's Manual. Remove object from auger with clean-out tool. Refer to Cleaning a Clogged Chute Assembly on page 23.

1. Auger control cable in need of adjustment.

• Refer to Auger Control on page 17.

1. Auger belt loose or damaged.

• Refer to Auger Belt Replacement on page 27.

1. Shear pin(s) sheared.

• Refer to Replacing Shear Pins on page 24.

CHUTE FAILS TO EASILY ROTATE

1. Chute assembled incorrectly.

- Disassemble chute control and reassemble as directed in the Assembly & Set-up section.

PUSHES SNOW INSTEAD OF THROWING

1. Low/slow ground speed in wet/slushy snow 1-3" in depth.

- Increase ground speed and always operate snow blower engine at FULL throttle. Refer to Cleaning a Clogged Chute Assembly on page 23.

1. Shear pin(s) sheared.

• Refer to Replacing Shear Pins on page 24.

OVERHEAD CHUTE CONTROL DOES NOT STAY STATIONARY WHILE THROWING SNOW

1. Insufficient preload applied to chute control.

- Refer to on Overhead Chute Control (If Equipped) on page 17.

Maintenance

ENGINE

Refer to Engine Operator's Manual.

TIRE PRESSURE

Refer to Assembly & Set-up section (page 15) for information regarding tire pressure.

SHAVE PLATE & SKID SHOES

The shave plate and skid shoes on the bottom of the snow blower are subject to wear. They should be checked periodically and replaced when necessary.

NOTE: Deluxe skid shoes (on select models) have two wear edges. When one side wears out, they can be rotated 180^ to use the other edge.

To remove skid shoes (Deluxe shown):

1. Remove four carriage bolts (a) and hex flange nuts (b) and flat washers (c) which secure them to the housing.
2. Rotate and reassemble new skid shoes with four carriage bolts (a) (two on each side) and hex flange nuts (b) and flat washers (c) (Figure 76).

a a c b c b

Figure 76

SERVICE AND MAINTENANCE

To remove shave plate:

1. Allow the engine to run until it is out of fuel. Do not attempt to drain fuel from the engine. Remove safety key or disconnect spark plug wire.
2. Carefully pivot snow blower up and forward so that it rests on the auger housing.
3. Remove carriage bolts (a) and hex nuts (b) which attach it to auger housing (Figure 77).

Technical diagram of a mechanical or electrical component with concentric helical structures and a magnified inset showing two labeled parts (a and b), no readable text or symbols present.

Figure 77

1. Reassemble new shave plate, making sure heads of carriage bolts are to the inside of housing. Tighten securely (Figure 77).
2. If adjusting the shave plate is necessary, refer to Adjustable Shave Plate (If Equipped) on page 17.

OFF-SEASON STORAGE

If the snow blower will no longer be used until next season, follow the storage instructions below.

1. Run engine until fuel tank is empty and it stops due to lack of fuel. Do not attempt to drain fuel from engine. NOTE: Refer to Engine Operator's Manual for information or storing your engine.
2. Lubricate machine as instructed on page 26.
3. Store in a clean, dry area.
4. If storing in an unventilated area, rustproof machine using a light oil or silicone to coat the snow blower.
5. Clean the exterior of the engine and the snow blower.

IMPORTANT: When storing or when it is not being serviced, it is to remain in the upright position with both wheels and auger housing on the ground.

Lubrication

WHEELS

At least once a season, remove both wheels. Clean and coat axles with a multipurpose automotive grease before reinstalling wheels.

SIDE MOUNTED CHUTE ROTATION CONTROL (IF EQUIPPED)

Once a season, lubricate eye-bolt bushing and the spiral with 3-in-1 oil.

NON-HYDRO MODELS (IF EQUIPPED)

The friction wheel hex shaft should be lubricated at least once a season or after every twenty-five (25) hours of operation.

1. Allow engine to run until it is out of fuel. Remove safety key or disconnect spark plug wire.
2. Carefully pivot snow blower up and forward so that it rests on auger housing.

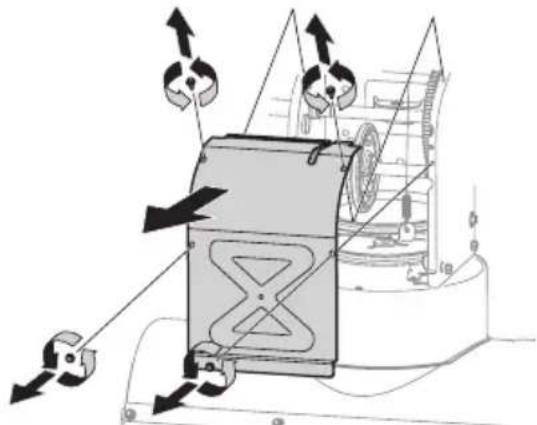

3. Remove frame cover from underside by removing self-tapping screws (Figure 78).

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols present)

Figure 78

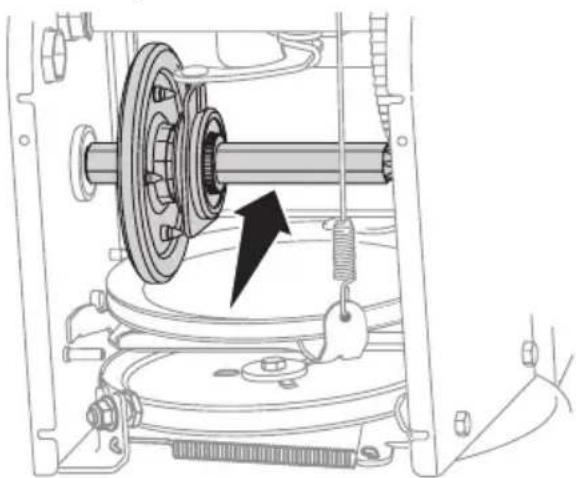

1. Apply a light coating of Bostik Regular Grade Never-Seez ^® to hex shaft (Figure 79).

Technical line drawing of a mechanical assembly with gears and springs (no text or symbols)

Figure 79

NOTE: When lubricating hex shaft, be careful not to get any lubricant on aluminum drive plate or rubber friction wheel. Doing so will affect the drive system. Wipe off any excess or spilled lubricant.

SERVICE AND MAINTENANCE

AUGER SHAFT

At least once a season, remove shear pins (a) and cotter pins (b) from auger shaft(s). Spray lubricant inside shaft and around spacers and flange bearings found at either end of shaft(s) (Figure 80).

NOTE: Three Stage Augers Shown

Figure 80

IMPORTANT: On 3-stage models, there is an additional shear pin in the rear accelerator.

Service

AUGER BELT REPLACEMENT

To remove and replace auger belt, proceed as follows:

1. Allow engine to run until it is out of fuel. Do not attempt to drain fuel from engine. Remove safety key or disconnect spark plug wire.
2. Remove plastic belt cover on front of engine by removing two self-tapping screws (a) (Figure 81).

Technical diagram of a mechanical component with labeled parts 'a' and directional arrows indicating motion or assembly.

Figure 81

NOTE: On models equipped with the LED light bar on top of

the auger housing, make sure to unplug the wire harness before removing the belt cover (Figure 82).

Technical diagram showing a connector assembly with an inset close-up of its internal components (no text or labels visible)

Figure 82

1. Roll auger belt off engine pulley (Figure 83).

Mechanical assembly diagram showing a belt drive mechanism with pulleys and gears (no text or labels)

Figure 83

1. Carefully pivot the snow blower up and forward so that it rests on the auger housing.
2. Remove frame cover from underside by removing self-tapping screws (Figure 78).
3. Loosen and remove shoulder bolt (b) which acts as a belt keeper and unhook the spring (c) from the frame (Figure 84).

Technical diagram of a mechanical assembly with labeled parts b, c, and an arrow indicating direction or force.

NOTE: Multi-speed unit shown.

Figure 84

SERVICE AND MAINTENANCE

1. Remove belt from around auger pulley, and slip it between support bracket and auger pulley (Figure 85).

Mechanical assembly diagram showing a belt drive mechanism with pulleys and a rotating component (no text or labels)

Figure 85

NOTE: Engaging auger control will ease removal and reinstallation of belt.

1. Replace auger belt by following instructions in reverse order.

NOTE: Make sure to reinstall shoulder bolt (a) and reconnect spring to frame after installing a replacement auger belt (Figure 84).

1. After replacing auger belt, perform Auger Control test in Assembly & Set-Up section (page 17).

DRIVE BELT REPLACEMENT

NOTE: See your authorized service dealer to have drive belt replaced or contact Customer Support.

FRICTION WHEEL INSPECTION (STEERABLE 500 AND 800 SERIES & NON-STEERABLE SINGLE SPEED 600 SERIES)

If snow blower fails to drive with drive control lever engaged, and performing drive control cable adjustment fails to correct problem, the friction wheel may need to be replaced.

IMPORTANT: Special tools are required and several components must be removed in order to replace the friction wheel rubber. See your authorized service dealer to have friction wheel rubber replaced or contact Customer Support.

To inspect friction wheel, proceed as follows:

1. Allow engine to run until it is out of fuel. Do not attempt to drain fuel from engine. Remove safety key or disconnect spark plug wire.
2. Carefully pivot snow blower up and forward so that it rests on auger housing.
3. Remove frame cover from underside by removing four self-tapping screws (Figure 78).
4. Inspect friction wheel for signs of wear or cracking.
5. Using the four self tapping screws, reinstall the frame cover (Figure 78).
6. If friction wheel rubber must be replaced see your authorized service dealer to have friction wheel rubber replaced or contact Customer Support.

FRICTION WHEEL REMOVAL

(MULTI-SPEED NON-STEERABLE 600 SERIES)

If snow blower fails to drive with drive control lever engaged, and performing drive control cable adjustment fails to correct the problem, friction wheel may need to be replaced. Follow the instructions below. Examine friction wheel for signs of wear or cracking and replace if necessary.

1. Allow engine to run until it is out of fuel. Do not attempt to drain fuel from engine. Remove safety key or disconnect spark plug wire.
2. Place shift lever in first Forward (F1) position.
3. Carefully pivot snow blower up and forward so that it rests on auger housing.

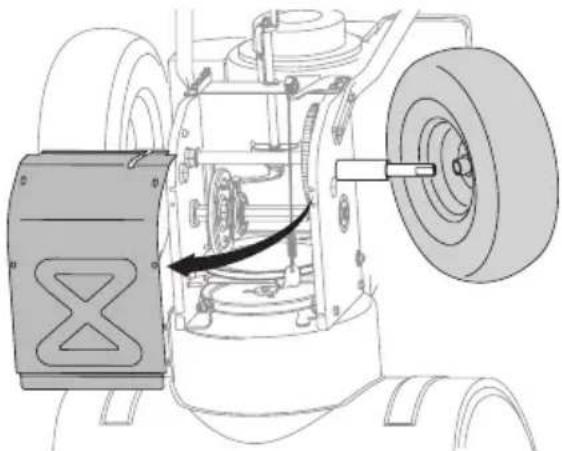

4. Remove frame cover from underside by removing self-tapping screws (Figure 78). Remove right-hand wheel by removing screw and bell washer which secure it to axle. See (Figure 86).

Technical diagram of an aircraft fuselage showing internal components and a directional arrow (no text or labels)

Figure 86

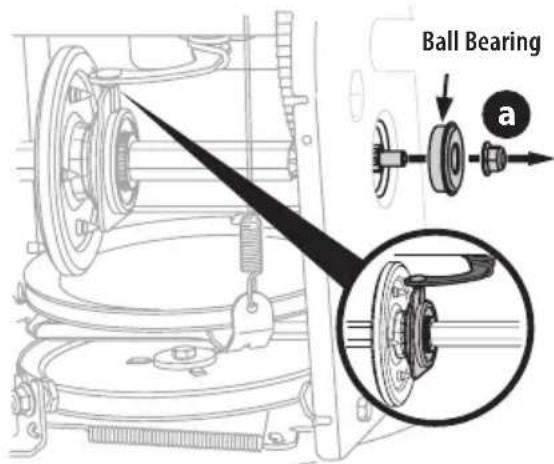

1. Carefully remove hex nut (a) which secures hex shaft to frame and lightly tap the shaft's end to dislodge ball bearing from right side of frame (Figure 87).

Ball Bearing a

Figure 87

NOTE: Be careful not to damage threads on shaft.

SERVICE AND MAINTENANCE

1. Carefully position hex shaft downward and to left before carefully sliding friction wheel assembly off shaft (Figure 88).

Mechanical assembly diagram showing a shaft and housing with directional arrows indicating motion (no text or symbols)

Figure 88

NOTE: If you're replacing friction wheel assembly as a whole, discard the worn part and slide new part onto hex shaft.

1. Follow previous steps in reverse order to reassemble components.
2. Perform Drive Control test shown on page 18.

If you're disassembling friction wheel and replacing only rubber ring, proceed as follows:

NOTE: Not all friction wheels are serviceable. If this is the case, simply replace friction wheel assembly.

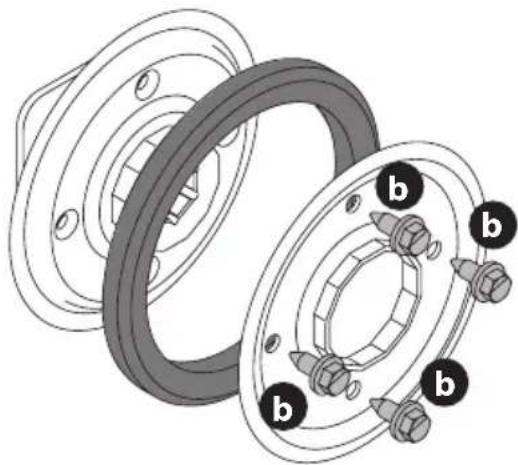

9. Remove four screws (b) which secure friction wheel's side plates together (Figure 89).

Technical diagram of a mechanical assembly with flanged components and bolted joints (no text or symbols)

Figure 89

1. Remove rubber ring from between the plates.
2. Reassemble side plates with a new rubber ring.

NOTE: When reassembling friction wheel assembly, make sure that rubber ring is centered and seated properly between the side plates. Tighten each screw only one rotation before turning wheel clockwise and proceeding with next screw. Repeat this process several times to ensure plates are secured with equal force (between 115-145 in-lbs).

1. Apply a light coating of Bostik Regular Grade Never-Seez® to hex shaft.
2. Slide friction wheel assembly back onto hex shaft and follow the steps above in reverse order to reassemble components.
3. After replacing friction wheel, perform Drive Control test shown on page 18.

NOTE: Make sure shift lever pin is in place in bearing housing (Figure 87 inset).

HYDRO TRANSMISSION (IF EQUIPPED)

NOTE: See your authorized service dealer to have the Hydro Transmission serviced or contact Customer Support for assistance and the name of your nearest servicing dealer.

Manual del Operador

Soplador de Nieve

Mechanical assembly diagram showing two views of a linkage mechanism with no visible text or symbols

Figura 3

Illustration of a tractor with a helicopter and rotor, showing mechanical components and motion direction (no text or symbols)

Figura 4

Technical line drawing of a mechanical assembly with a downward arrow indicating a component (no text or symbols present)

Figura 9

Technical line drawing of a mechanical component with mounting brackets and wiring (no text or symbols)

Figura 10

Technical diagram showing two mechanical assembly steps labeled a and b, with arrows indicating motion direction.

Figura 11

Technical diagram of a vehicle gear assembly with labeled parts (c, d) and a magnified inset showing internal components.

Figura 14

Technical diagram of a mechanical assembly with labeled parts (a, b) and an inset detail showing internal components.

Figura 15

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Figura 16

Technical diagram showing mechanical assembly with labeled parts (a) and (b), including a magnified inset view of tool insertion.

Figura 17

MONTAJE

Mechanical assembly diagram showing a lever mechanism inside a housing component, with no visible text or symbols.

Figura 20

Technical diagram of a mechanical assembly with labeled components and an inset showing a close-up of a component detail.

Figura 21

Diagram of a mechanical device with a magnified inset showing a cylindrical component (no text or symbols)

Diagram showing car interior with labeled parts and directional arrows indicating movement or positioning

Figura 23

Diagram showing a car interior with a highlighted section of a shirt component, including an arrow pointing to the seat.

Figura 24

Diagram showing a mechanical device being inserted into a car's side panel, with labeled component 'a' and directional arrow.

Figura 25

Technical diagram showing mechanical assembly with labeled parts (a, b) and a magnified inset of a component detail

Figura 28

Diagram of a car fuel injector with labeled parts and an inset showing the internal component.

Figura 29

Technical illustration of a car's front wheel assembly with a magnified inset showing the engine component (no text or symbols present)

Figura 30

Mechanical assembly diagram showing a bolted connection with an inset close-up of a tool (no text or symbols)

Figura 31

Mechanical assembly diagram showing a tool inserted into a housing component, with an inset magnified view highlighting the tool path (no text or symbols present)

Figura 36

Technical diagram of a mechanical assembly with labeled parts (d, e) and an inset showing a close-up of a component.

Figura 37

Technical diagram of a mechanical assembly with labeled parts (b and c) and directional arrows indicating movement or assembly.

Figura 38

Technical diagram showing mechanical assembly with an inset close-up of a component being inserted into a shaft.

Figura 39

MONTAJE

Diagram showing a mechanical device being inserted into a housing, with labeled parts and an inset magnified view highlighting the component.

Figura 40

Technical diagram showing mechanical components with labeled parts a, b, and c, likely illustrating engine or automotive assembly.

Figura 41

Technical diagram showing three labeled views (a, b) of a car intake manifold assembly with tool tips and mounting brackets.

Figura 42

MONTAJE

CORTADORES DE DESPLAZAMIENTO

(SI VIENEN EQUIPADOS)

Diagram of a pen-like device with labeled parts (a and b), showing internal components and wiring (no text or symbols beyond labels)

Figura 43

Diagram of a vehicle door panel with labeled parts including a, b, c, d, e, and numbered components.

Figura 45

Technical line drawing of a mechanical assembly with a lever and curved components (no text or symbols)

Figura 46

AJUSTES

Diagram of a mechanical device with labeled parts (a and b), showing internal components and connection lines (no text or symbols present)

Figura 48

Illustration of a mechanical device with a knob and scroll wheel (no text or symbols)

Figura 49

Mechanical assembly diagram showing a rotating shaft and spring mechanism (no text or labels)

Figura 50

CONTROL DEL CANAL SUPERIOR (SI VIENE EQUIPADO)

Technical diagram of a mechanical assembly with labeled parts (a and b) and an inset showing a circular component detail.

Figura 51

Diagram showing a cable being inserted into a device, with magnified detail highlighting the component's direction and detail view.

Figura 52

Technical diagram of a mechanical clamp mechanism with labeled parts a and b, showing rotational motion direction

Figura 55

VARILLA DE CAMBIOS (SI VIENE EQUIPADA)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating rotation (no text or symbols present)

MODELOS NO HIDROSTÁTICOS

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

MODELOS HIDROSTÁTICOS
Figura 57

Technical diagram of a mechanical component with labeled parts a and b, showing directional arrows and rotational motion.

Figura 58

Technical diagram showing mechanical assembly with labeled parts a and b, including directional arrows and circular motion indicators.

Figura 59

Two black-and-white icons showing a knife and a tractor, with directional arrows indicating movement or force (no text or symbols)

Figura 61

Simple line drawing of a knife with an arrow indicating motion (no text or symbols)

Black-and-white graphic with stylized symbols and arrows, possibly representing a mechanical or electrical component.

Figura 62

Two diagrams showing a mechanical device with rotational motion and a magnified view of the device's rotation (no text or symbols)

Figura 64

Two diagrams showing a rotating mechanical component and a hand holding a circular object with directional arrows (no text or symbols)

Figura 65

Diagram showing two hand positions with curved arrows indicating motion, no text or symbols present

Figura 67

Illustration of two lightbulb devices with rotating arms and motion arrows indicating rotation (no text or symbols)

Figura 68

Diagram showing two mechanical lever mechanisms with rotational motion arrows, no text or symbols present

Figura 69

Technical line drawing of a mechanical assembly with a lever and housing (no text or symbols)

Figura 71

Illustration of a knife and hand with motion arrows indicating movement (no text or symbols)

Interruptor ENCENDIDO

Interruptor APAGADO

Illustration of a hand holding a knife and a tool with upward arrows indicating motion or pressure (no text or symbols)

ON | OFF ←→ → b

Figura 72

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

Figura 74

Diagram illustrating mechanical assembly steps with labeled components a and d, showing tool paths and cross-sections.

Technical diagram of a mechanical assembly with labeled parts (a, b, c, d) and an inset showing a tool interacting with a component.

Figura 75

Technical diagram of a mechanical device with labeled parts (a and b) and internal components, showing motion paths and assembly.

Figura 77

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols present)

Figura 78

Mechanical assembly diagram showing a gear and shaft assembly with no visible text or symbols

Figura 79

Technical diagram of a mechanical component with labeled parts 'a' and directional arrows indicating motion or assembly.

Figura 81

Technical diagram showing a connector assembly with a close-up inset of a terminal plug (no text or symbols present)

Figura 82

Mechanical assembly diagram showing a belt drive mechanism with pulleys and gears (no text or labels)

Figura 83

Technical diagram of a mechanical device with labeled parts (b, c) and an arrow indicating direction or force.

Technical line drawing of a mechanical assembly with a curved component and hanging weights (no text or symbols)

Figura 85

Mechanical assembly diagram showing a motor with gear and wheel, no text or symbols present

Figura 86

Mechanical assembly diagram showing a shaft, gear, and housing components with directional arrows indicating motion (no text or labels)

Figura 88

Technical diagram of a mechanical bearing assembly with multiple flanges and bolts (no text or labels)

Figura 89

Français (French)......Page 60

Mechanical assembly diagram showing two views of a bicycle frame with mechanical components and tool tips (no text or labels)

Figure 3

Illustration of a helicopter hovering above a tracked vehicle, with no visible text or symbols

Figure 4

Technical line drawing of a mechanical assembly with a lever and gear (no text or symbols)

Figure 9

Technical line drawing of a mechanical component with mounting flanges and wiring (no text or symbols)

Figure 10

Technical diagram showing two mechanical assembly steps labeled a and b, with arrows indicating motion direction.

Figure 11

Technical diagram of a vehicle intake system with labeled components and directional arrows indicating assembly or movement.

Figure 14

Technical diagram of a mechanical device with labeled parts (a, b) and an inset showing a component detail.

Figure 15

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Figure 16

Diagram showing a mechanical device with labeled parts (a) and (b), highlighting a tool interacting with the component.

Figure 17

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Figure 20

Technical diagram showing mechanical assembly with labeled components and a magnified inset highlighting a specific component.

Figure 21

Diagram showing car interior with labeled parts and a magnified view of the gear mechanism

Figure 23

Diagram showing a car interior with a magnified inset highlighting a specific seat or seat area.

Figure 24

Technical diagram showing a mechanical component being inserted into a housing, with labeled parts and directional arrow.

Figure 25

Technical diagram of a mechanical device with labeled parts (a, b) and an inset showing internal components.

Figure 28

Technical diagram showing a mechanical component with labeled parts (a and b) and an inset view of a plug inserted into a housing.

Figure 29

Diagram of a car's front wheel assembly with a magnified inset showing the blade and hub (no text or labels)

Figure 30

Technical diagram showing mechanical assembly with an arrow indicating direction and a magnified inset highlighting a component being inserted.

Figure 31

Technical illustration of a mechanical component with a magnified inset showing a pin inserted into a housing (no text or symbols present)

Figure 36

Technical diagram of a mechanical assembly with labeled parts (d, e) and an inset view showing a component being inserted.

Figure 37

Technical diagram of a mechanical assembly with labeled parts (b, c) and directional arrows indicating movement or force.

Figure 38

Mechanical assembly diagram showing a valve mechanism with an inset close-up of a component (no text or symbols)

Figure 39

Technical diagram showing a mechanical assembly with labeled parts and a magnified detail view highlighting a specific component.

Figure 40

Technical diagram showing car engine components with labeled parts a, b, and c

Figure 41

GOUPILLES DE CISAILLEMENT (SI PRÉSENT)

Technical diagram showing car interior components with labeled parts (a, b) and directional arrows indicating assembly or movement.

Figure 42

BARRES DE COUPE (SI PRÉSENT)

Diagram of a mechanical device with labeled parts (a and b), showing internal components and motion lines without any readable text or symbols.

Figure 43

Technical line drawing of a mechanical assembly with threaded components (no text or symbols)

Figure 46

PRESSION DES PNEUS (LE CAS ÉCHÉANT)

Technical diagram showing a mechanical component with labeled parts (a) and (b), including a close-up inset of the component.

Figure 48

Illustration of a car seatbelt being adjusted for a seatbelt, showing mechanical components (no text or symbols)

Figure 49

Diagram of a mechanical clamp or spring mechanism with motion arrows (no text or symbols)

Illustration of a mechanical device with rotating coil and gear components (no text or symbols)

Figure 50

COMMANDE SUPÉRIEURE DE GOLOTTE (SI PRÉSENT)

Technical diagram showing mechanical assembly with labeled parts a and b, including a magnified inset view.

Figure 51

Diagram showing a tool being inserted into a device, with labeled parts and an arrow indicating the process.

Figure 52

Technical diagram of a mechanical clamp or bracket assembly with labeled parts a and b, showing internal components and motion direction.

Figure 55

TIGE DU LEVIER DE VITESSE (SI PRÉSENT)

Technical diagram showing mechanical assembly with labeled parts (a and b) and directional arrows indicating movement or assembly.

Figure 56

Technical diagram of a mechanical component with labeled parts (a and b) and directional arrows indicating motion or movement.

Figure 58

Technical diagram showing mechanical assembly with labeled parts a and b, including directional arrows indicating movement or force.

Figure 59

Two black-and-white icons showing a tool and a tractor, with directional arrows indicating movement or force (no text or symbols)

Figure 61

Two diagrams showing a mechanical device and a hand holding a circular object with a curved arrow (no text or symbols)

Figure 64

L. COMMANDE SUPÉRIEURE DE GOULOTTE (SI PRÉSENT)

Diagram illustrating a mechanical or electrical operation with rotating components and a magnified view of a device's rotation.

Figure 65

M. COMMANDE DU DÉFLECTEUR DE GOULOTTE (SI PRÉSENT)

Illustration showing two hand gestures: one with a curved arrow and the other with a magnified circular icon (no text or symbols)

Figure 67

UTILISATION

O. COMMANDE DE GOULOTTE À 4 DIRECTIONS (SI PRÉSENT)

Diagram showing two mechanical or robotic arm configurations with rotational arrows indicating movement (no text or symbols)

Figure 68

P. COMMANDE ÉLECTRIQUE DE GOULOTTE ET DE DÉFLECTEUR D'ÉJECTION (SI PRÉSENT)

Diagram showing two mechanical or robotic arm configurations with rotating arms and directional arrows (no text or symbols)

Figure 69

Q. COMMANDE MANUELLE DE GOULOTTE ET COMMANDE ÉLECTRIQUE DU DÉFLECTEUR (SI PRÉSENT)

Technical diagram showing mechanical assembly with labeled parts 'a' and a magnified inset view of a component detail.

Figure 70

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 71

R. BARRE DE PHARES DEL (SI PRÉSENT)

Illustration of a hand holding a knife with motion arrows indicating movement or force (no text or symbols)

Interrupteur MARCHE

Diagram showing a device with labeled component 'a' and directional arrows indicating flow or movement.

Interrupteur ARRÊT

Illustration of a knife and hand holding a blade, with motion lines indicating movement (no text or symbols)

ON | OFF ←→ b

Figure 72

Technical line drawing of a mechanical assembly with a tool and gear (no text or symbols)

Figure 74

Diagram illustrating a biological or mechanical process with labeled components (a, d) and directional arrows indicating movement or flow.

Diagram of a mechanical assembly with labeled parts (a, b, c, d) and an inset showing a worm-like structure.

Figure 75

AVERTISSEMENT

VIBRATIONS EXCESSIVES

Technical diagram showing a mechanical or electrical component with labeled parts 'a' and 'b', including directional arrows and circular annotations.

Figure 77

Diagram of a mechanical device with directional arrows indicating motion or force, no visible text or symbols

Figure 78

Mechanical assembly diagram showing a gear and shaft assembly with a black arrow indicating direction (no text or labels)

Figure 79

Technical diagram showing mechanical component with labeled parts 'a' and directional arrows indicating movement or assembly.

Figure 81

Technical diagram showing cable connection to a vehicle component with an inset close-up of its connector (no text or symbols present)

Figure 82

Mechanical assembly diagram showing a belt drive system with pulleys and gears (no text or labels)

Figure 83

Mechanical diagram showing a rotating component with a spring and hanging weight (no text or symbols)

Figure 85

Technical diagram of an aircraft fuselage assembly showing internal components and a directional arrow (no text or labels)

Figure 86

Ball Bearing a

Figure 87

Mechanical assembly diagram showing a shaft and gear mechanism with directional arrows indicating motion (no text or labels)

Figure 88

Technical diagram of a mechanical assembly with labeled components (b), showing cross-sectional views of a bearing housing and mounting flanges (no text or symbols present)

Figure 89
