2330FL - Frying Pan Flama - Free user manual and instructions

Product type	Electric heater
Brand	Flama
Model	2330FL
Rated power	1.5 kW
Maximum continuous power	1.483 kW
Power supply	Mains 230 V ~ 50 Hz
Number of power levels	2 (I, II) + off (0)
Adjustable thermostat	Yes
Anti-freeze function	Yes (triggers below 5 °C)
Operating indicator light	Yes
Protection grille	Yes
Swivel castors	Yes (4 legs with wheels)
Cable winder	Yes
Handle	Yes
Overheating safety	Automatic shutdown in case of overheating
Cleaning	Dry soft cloth (do not use abrasive products)
Warranty	36 months
Compliance	CE (electromagnetic compatibility and low voltage)

Frequently Asked Questions - 2330FL Flama

How to assemble the feet of the Flama 2330FL heater?

The feet should be placed at the ends of the lower part of the device. Align the openings of the feet with the axles under the device and screw them tightly.

What are the available power levels?

The power selection button offers three positions: 0 (off), I (minimum power) and II (maximum power).

How to adjust the thermostat?

Turn the thermostat control clockwise to the maximum position (MAX) for fast heating. When the desired temperature is reached, turn it counterclockwise until the indicator light goes out. The thermostat automatically maintains the selected temperature.

How does the anti-freeze function work?

Set the thermostat control to the anti-freeze position (*) and turn on the power button. The device will automatically turn off if the ambient temperature falls below 5 °C.

What to do in case of overheating?

The device has a safety system that automatically turns it off in case of overheating. If this happens, unplug it and wait about 30 minutes before turning it on again.

How to clean the heater?

Before cleaning, unplug the appliance and let it cool down. Use a dry soft cloth to remove dust from the grilles. Never use chemical or abrasive products.

Can I replace the power cord myself?

No, the power cord must be replaced by a Flama-approved technical support service to avoid any danger.

What is the warranty period?

The warranty is 36 months from the date of purchase, subject to presentation of proof of purchase.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a selective collection point for electrical and electronic equipment, in accordance with local regulations.

What to do if the appliance does not heat?

Check that the appliance is properly plugged in and that the power button is not on 0. If the indicator light is off, the thermostat may be set too low: turn it to MAX. If the problem persists, contact an approved service.

USER MANUAL 2330FL Flama

MANUTENÇÂO E LIMPEZA

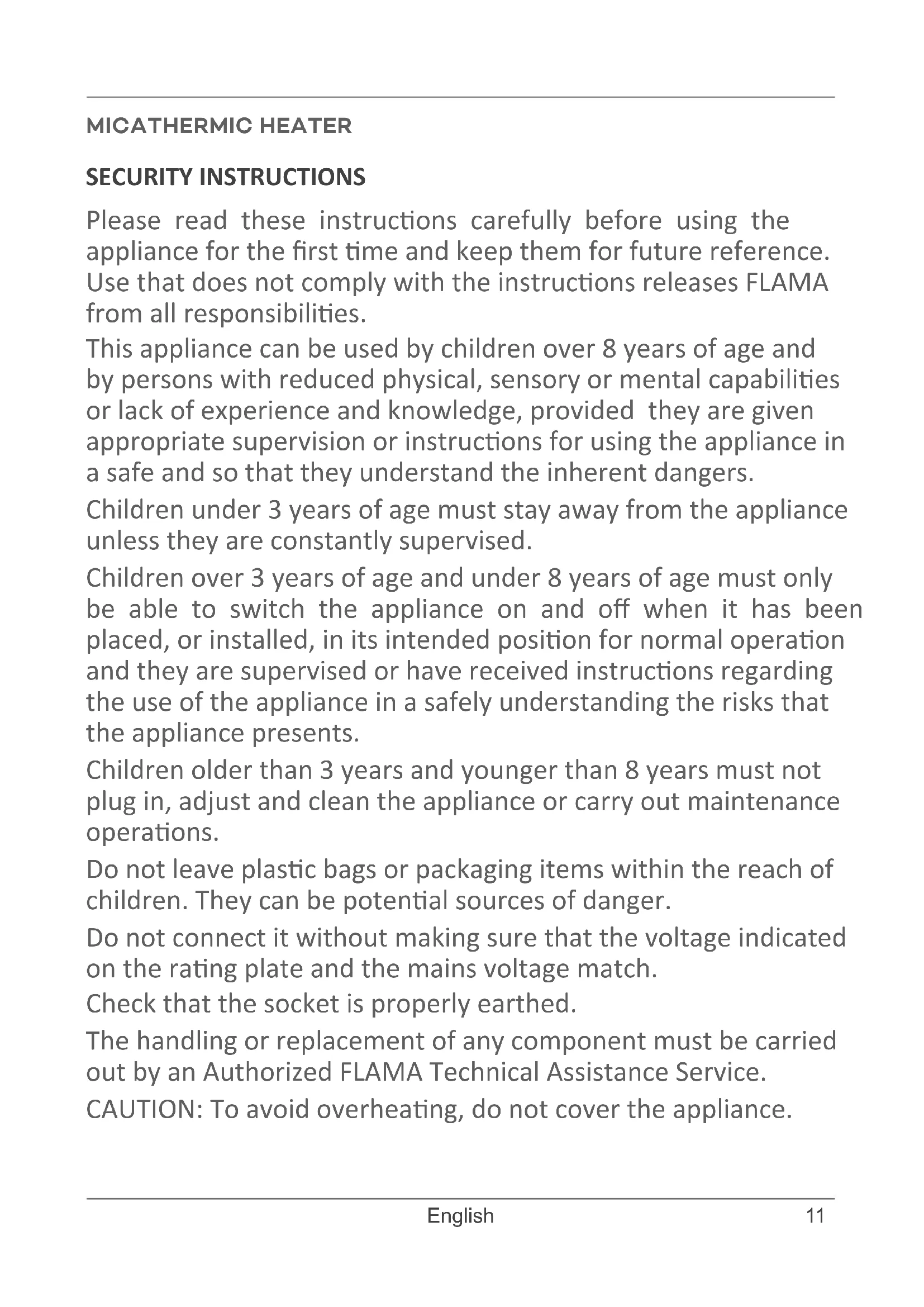

Please read these instructions carefully before using the appliance for the first time and keep them for future reference. Use that does not comply with the instructions releases FLAMA from all responsibilities.

This appliance can be used by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are given appropriate supervision or instructions for using the appliance in a safe and so that they understand the inherent dangers.

Children under 3 years of age must stay away from the appliance unless they are constantly supervised.

Children over 3 years of age and under 8 years of age must only be able to switch the appliance on and off when it has been placed, or installed, in its intended position for normal operation and they are supervised or have received instructions regarding the use of the appliance in a safely understanding the risks that the appliance presents.

Children older than 3 years and younger than 8 years must not plug in, adjust and clean the appliance or carry out maintenance operations.

Do not leave plastic bags or packaging items within the reach of children. They can be potential sources of danger.

Do not connect it without making sure that the voltage indicated on the rating plate and the mains voltage match.

Check that the socket is properly earthed.

The handling or replacement of any component must be carried out by an Authorized FLAMA Technical Assistance Service.

CAUTION: To avoid overheating, do not cover the appliance.

CAUTION: Some parts of this appliance can become very hot and cause burns. Particular attention should be paid when children and vulnerable people are present.

Do not use the radiator near showers, bathtubs, sinks or swimming pools.

Do not wet or immerse it in water or any other liquid.

Do not place the appliance under a power socket.

You must ensure that children do not play with the appliance. Keep the appliance out of your reach.

To disconnect the appliance, pull the plug and never the cable.

Do not place it near or in front of curtains, flammable objects or products.

Always place it in an upright position.

Do not place the connecting cable over the hot areas of the appliance.

This appliance has an integrated safety system that stops its operation in case of overheating.

If this happens, turn it off and wait about 30 minutes before turning it on again.

Cleaning and maintenance to be carried out by the user must not be carried out by children without supervision.

If the appliance's power cord deteriorates, it must be replaced by an Authorized Technical Assistance Service in order to avoid a hazard.

This product complies with the Low-Voltage and Electromagnetic Compatibility Directives.

This instruction manual is also available in PDF format at www.flama.pt.

DESCRIPTION

1. Grille
2. Power level selector
3. Thermostat control knob
4. Lighted indicator
5. Feet with caster wheels
6. Cord wrap
7. Handle

ASSEMBLING THE FEET

The feet should be placed at both ends of the bottom part of the appliance.

Align the openings on the feet with the hubs located underneath the appliance.

Screw on the feet.

Instructions for use

OPERATING INSTRUCTIONS

Fully unwind the power cord from the cord wrap.

Plug the appliance into a wall socket.

Turn the thermostat control knob clockwise to the maximum (MAX) position.

Place the power level selector in the desired position; the lighted indicator will turn on.

Keep in mind:

Position 0 - Off.

Position I - Minimum power.

Position II - Maximum power.

When the desired temperature is reached, turn the thermostat control knob counterclockwise until the lighted indicator turns off. The thermostat will automatically maintain the selected temperature.

Anti-frost function

When the thermostat control knob is in the anti-frost (^*) position and the power level selector is activated, the appliance will automatically turn off if the ambient temperature is below 5^ .

MAINTENANCE AND CLEANING

Before undertaking any cleaning and maintenance procedures, make sure the appliance is unplugged from the wall socket and has cooled down.

Let the hot parts cool down.

It is important to always keep the air intake and outlet grilles clean of dust and lint.

Clean the appliance with a soft, dry cloth.

Do not use chemical or abrasive products, steel wool, etc. to clean the appliance, as these can damage its surface.

INFORMATION REQUIREMENTS

Model identifier(s) 2330FL
Element Symbol Value	Unit Element Unit
Heating output				Type of heating output, only for electric, accumulation ambient heaters (choose one option)
Nominal heating output	Pnom	1,5 kW		Manual thermal load control, with integra-ted thermostat	No
Minimum heating output (indicative)	Pmin	0,0 kW		Manual thermal output control, with interior and/or exterior temperature retroaction	No
Maximum con- tinuous heating output	Pmax, c	1,483 kW		Electronic control of thermal load, with inte-rior and/or exterior temperature retroaction	No
Auxiliary electricity consumption Heating potential				al with fan No
At nominal heating output	elmax	N/A kW		Type of heating output/interior temperature control (select an option)
At minimum hea-ting output	elmin	N/A kW		Heating potential in a single phase, without interior temperature control	No
At minimum hea-ting output	eISB	N/A kW		In two or more manual phases, without interior temperature control	No
				With interior temperature control by mecha-nical thermostat	Yes
				With electronic interior temperature control	No
				With electronic interior temperature control and daily timer	No
				With electronic interior temperature control and weekly timer	No
				Other control options (multiple selections possible)
				Interior temperature control, with presence detection	No
				Interior temperature control, with open window detection	No
				With remote control option	No
				With adaptive startup control	No
				With limited operation time	No
				With black body sensor	No
Informacion de contacto	FLAMA - Fábrica de Louças e Electrodométricos, S.A. Zona Industrial | Apartado 2041 | 3701-906 Cesar | Portugal

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

CHAUFFAGE D'APPOINT MICA

CONSIGNES DE SECURITÉ

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.
