USER MANUAL TACHU3 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

Black handheld device with flexible cable and a small screen, no visible text or symbols

4-IN-1 CAR SMARTPHONE HOLDER WITH CHARGER, FM-TRANSMITTER AND HANDSFREE FUNCTION

4-IN-1 AUTO SMARTPHONE HALTERUNG MIT LADEGERÄT, FM-SENDER UND FREISPRECHFUNKTION

4-IN-1 TELEFOONHOUDER MET LADER, FM-TRANSMITTER EN HANDSFREE FUNCTIE SUPPORT SMARTPHONE 4 EN 1 POUR VOITURE AVEC CHARGEUR, ÉMETTEUR FM ET FONCTION MAINS LIBRES

АВТОМОБИЛЬНЫЙ ДЕРЖАТЕЛЬ ТЕЛЕФОНА С ЗАРЯДНЫМ УСТРОЙСТВОМ USB, FM-ТРАНСМИТТЕРОМ И ГАРНИТУРОЙ ГРОМКОЙ СВЯЗИ

• Universal smartphone car holder: adjustable for use with devices from 58 to 85 mm wide
  • Built-in USB charger (charging cable is not included)
  • FM-transmitter: play your music on your car stereo via FM frequency,
• Handsfree: handle voice call via FM transmitter and built-in mic
• LCD display for easy FM-frequency settings and flexible neck to position your phone at any angle

Specifications

• DC voltage: 12 - 24 V input, 5 V DC ± 0.25 V output (max. 3.1 A)
• Frequency range: 88.1 ... 107.9 MHz
- Idle power consumption: no more than 0.085 W
• Over-current protection: if current is > 2 A
- Charger working conditions: temperature 0...+40°C, humidity ≤95%
• Net weight: 115 g
- Adjustable width: 58 - 85 mm
• Dimensions: 282 x 80 x 98 mm
• Note: the case temperature may be up to 50°C at full load

①

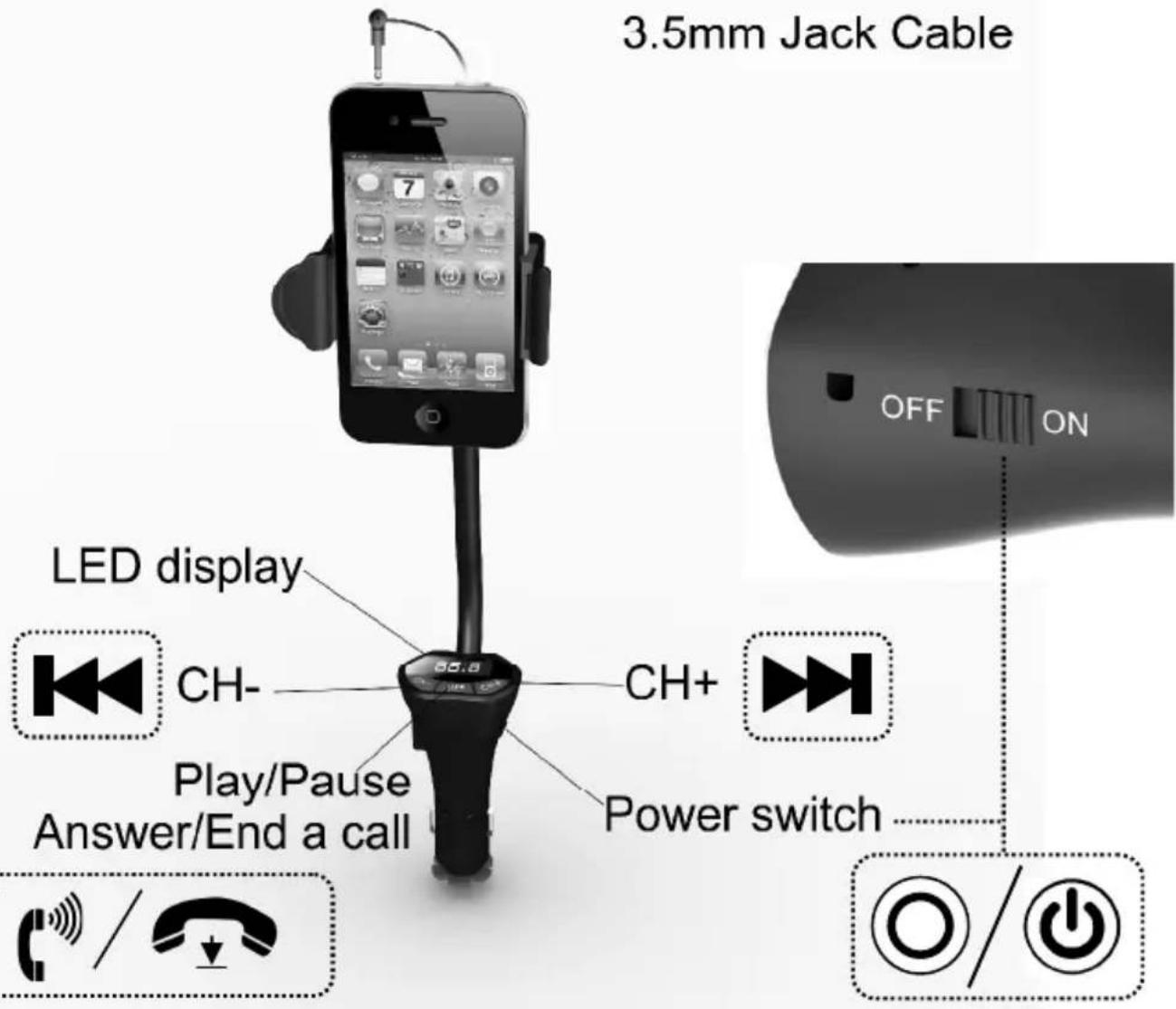

3.5mm Jack Cable LED display CH- Play/Pause Answer/End a call CH+ Power switch OFF ON

②

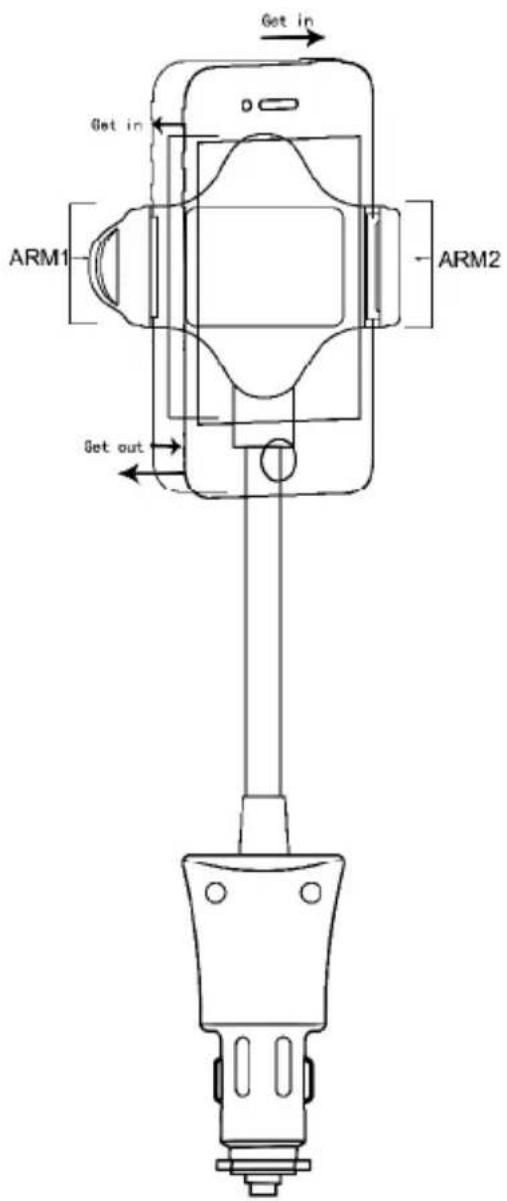

Get in Get in ARM1 ARM2 Get out

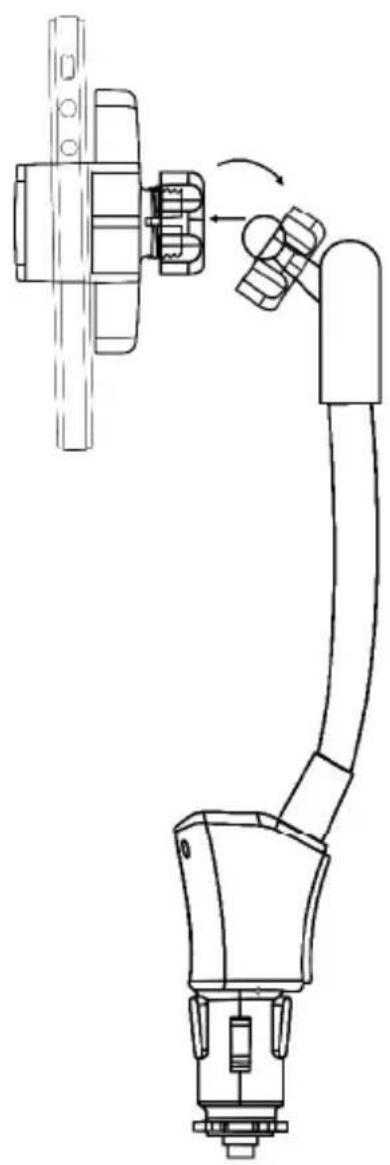

Technical line drawing of a robotic arm with rotating arm and connecting rod (no text or symbols)

③

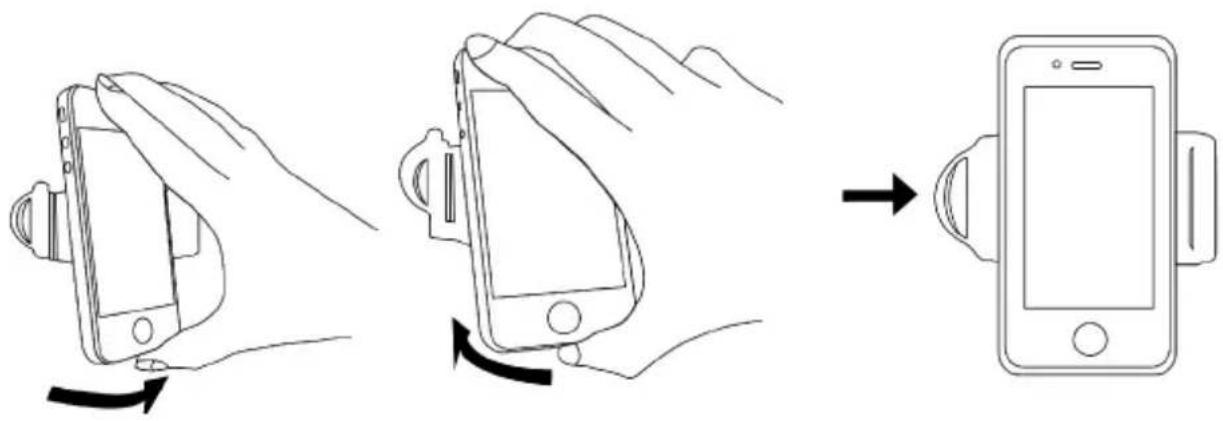

Diagram illustrating the step-by-step change in device usage, showing hand positioning and screen shipment process.

④

Arm1

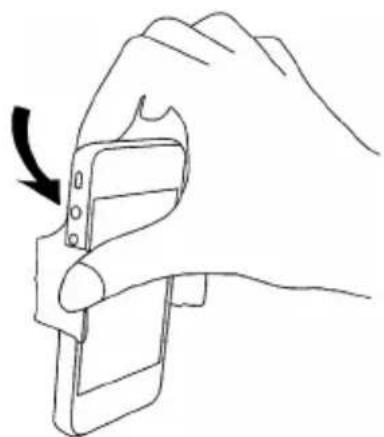

Line drawing of a hand holding a smartphone with an arrow indicating the action (no text or symbols present)

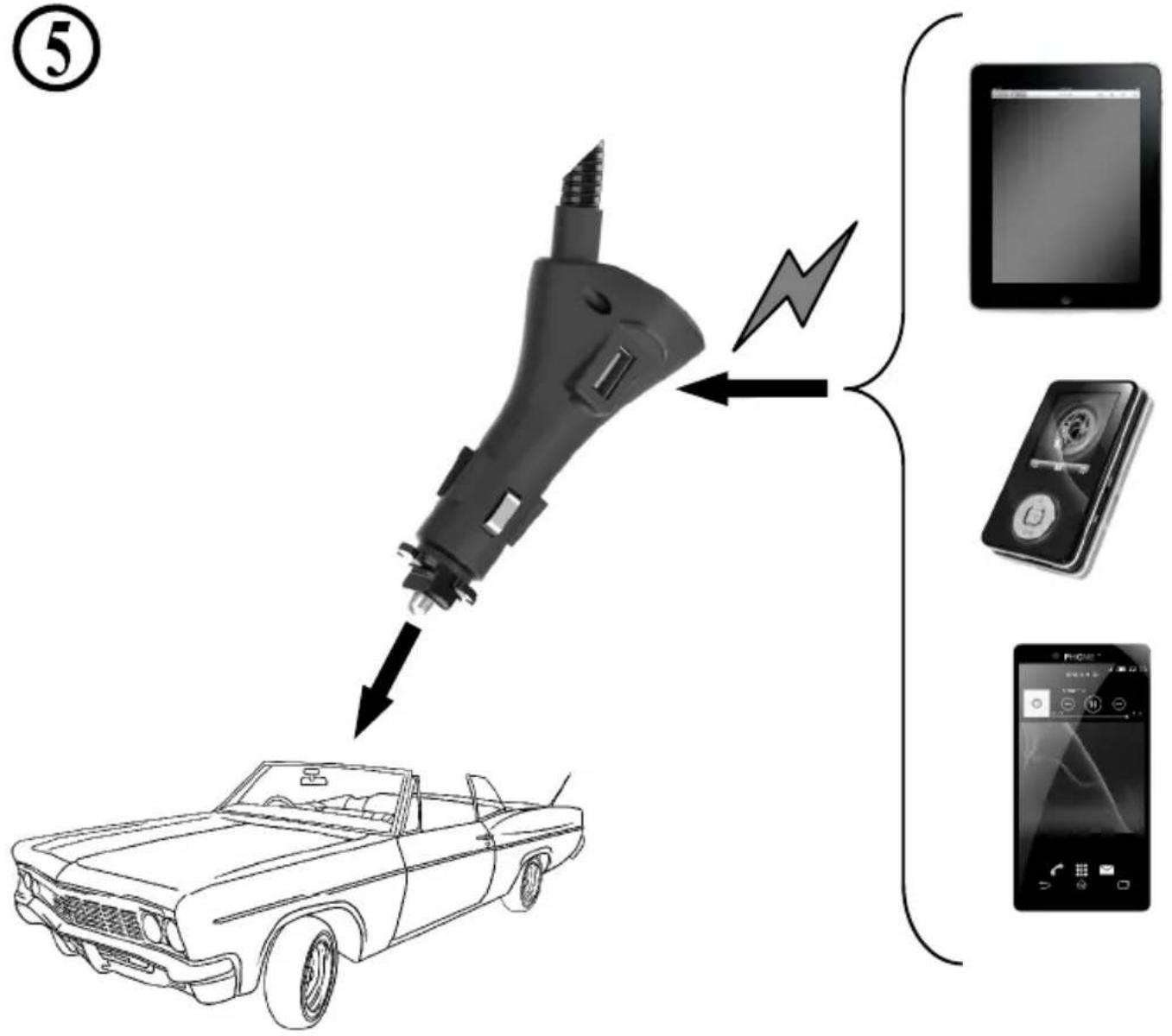


(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot EMC(2014/30/EU), RoHS (2011/65/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website:www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się pod adresemwww.gembird.eu

Hand-drawn sketch of a hand using a tool to cut a screwdriver into a screw, with no text or symbols present.

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
