KA 6501 we - Coffee machine Exquisit - Free user manual and instructions

Brand	Exquisit
Model	KA 6501 we (white) / KA 6501 sw (black)
Product type	Filter coffee maker
Available color	White (we) or Black (sw)
Power supply	220-240 V, 50-60 Hz
Power	800 W
Capacity	Approximately 10 cups
Filter type	Paper filter size 1x4
Carafe	Glass carafe and thermal carafe (Thermos)
Drip-stop system	Yes
Water level indicator	Transparent graduations on the tank
Preparation time	Approximately 8 to 12 minutes
Descaling	Recommended regularly with citric acid
Cleaning	Exterior with damp cloth; do not immerse
Safety	Drip-stop, splash protection
Warranty	24 months (domestic use)
Weight (approx.)	Approximately 1.5 kg
Dimensions (approx.)	Approximately 25 x 20 x 35 cm
Included accessories	Glass carafe, thermal carafe, filter holder
EAN code (white)	4016572021165
EAN code (black)	4016572021158

Frequently Asked Questions - KA 6501 we Exquisit

Why is my coffee not flowing or flowing very slowly?

This may be due to a blockage in the filter or a need for descaling. Check that the carafe is properly positioned with its lid, that the filter is not overfilled, and descale if necessary. The normal brewing time is 8 to 12 minutes.

How do I descale my Exquisit KA 6501 coffee maker?

Use a common descaling product based on citric acid. Follow the dosages indicated on the package. After descaling, run 3 to 4 reservoirs of clean water to rinse. Do not consume this rinsing water.

What type of paper filter should I use?

Use size 1x4 paper filters. Fold the bottom edge of the filter before inserting it into the filter holder.

Why is there coffee grounds in my cup?

This may be due to a paper filter that is too small (use size 1x4) or an excessive amount of ground coffee in the filter. Reduce the amount of coffee.

How do I clean my coffee maker?

Unplug the appliance and let it cool down. Clean the exterior with a slightly damp cloth without additives. Wash the carafe and filter holder in warm soapy water. Do not use abrasive cleaners and do not immerse the appliance.

What should I do if the appliance does not turn on?

Check that the plug is properly inserted and that the outlet works (test with another appliance). Check the fuses. If the problem persists, contact customer service.

Can I use the thermal carafe with the drip-stop system?

Yes, the coffee maker is supplied with a glass carafe and a thermal carafe. The drip-stop system works when the carafe is properly positioned with its lid on the hot plate.

How long does it take to brew a full pot?

The coffee brewing process takes about 8 to 12 minutes, depending on the amount of water and coffee.

What is the maximum capacity of the water tank?

Do not exceed the MAX mark of the water tank. The capacity is about 10 cups. Use the graduations to measure water.

How to prevent coffee grounds from overflowing the filter?

Ensure that the carafe is placed with its lid, that the drip-stop system is open, and do not put too much ground coffee. Use a suitable paper filter (size 1x4). If the problem persists, turn off the appliance, unplug it, and clean.

USER MANUAL KA 6501 we Exquisit

Two modern coffee brewing machines side by side, one black and one white, with no visible text or labels on the devices themselves.

QR code image containing encoded data, no visible human-readable text

21165

QR code image containing encoded data, no visible human-readable text

21165

10 For your safety 19

10.1 Explanation of the safety directions.... 19
10.2 Safety and warning 19
10.3 Safety and responsibility 20
10.4 Unpacking the appliance 20
10.5 Electrical connection....21

11 Initial operation 21

12 Operation.... 21

13 Decalcification and cleaning.... 22

14 Storage....22

15 Troubleshooting 23

17 Disposing of old appliances.... 24

18 General Warranty Conditions 25

Technical diagram of a coffee maker with numbered parts labeled for identification.

With QR codes there's fast and easy access to all information

What are QR codes?

QR codes (Quick Response codes) are graphic codes, which are read by means of a Smartphone camera and lead quickly and easily to further information (e.g. seeinternet site, product video or contact information).

And this is how it works

To scan the QR codes all you need is a Smartphone, a QR code reader app (available free of charge in the App Store) and an internet connection. *

QR code image containing encoded data, no visible human-readable text

21165

When reading QR codes additional costs may be incurred for the internet connection depending on the rate you pay.

Dear Customer,

Thank you for purchasing our appliance.

You have made a good choice. Your Exquisit appliance was built for use in a private household and is a quality product that combines the highest technical requirements with practical ease of operation like other Exquisit appliances as well that function all over Europe to the complete satisfaction of their owners.

Please read this user manual carefully before you start up your appliance for the first time. It contains important safety instructions and information concerning the installation, operation and maintenance of the appliance. Correct handling will contribute to efficient use and will minimize energy consumption during operation.

Improper use could lead to dangerous situations, particularly for children. Keep this user manual for later use. Pass it on to any future owner of this product. In case of doubt concerning questions or topics, which are not dealt with in detail in this manual, please contact your dealer or an authorized technician or go to our homepage: www.ggv-service.de

The manufacturer is constantly working to further develop all types and models. We reserve the right to make changes to the design, features and equipment of all types and models without previous notice.

Use in compliance with the regulations

The appliance is exclusively for brewing coffee. It is intended exclusively for private use and is not suitable for the industrial sector.

Use the egg boiler only as described in this user manual.

Any other use will be deemed to be out of compliance with the regulations and can lead to material damage or even to personal injury.

The manufacturer or dealer assumes no liability for damage that was caused by improper use.

1. Water tank cover
   2 Water dispenser
2. Filter insert
3. Fill level indicator
4. On/Off button
5. Glass pot / Drop stop
6. Thermos

Technical diagram of a coffee maker with numbered parts for identification

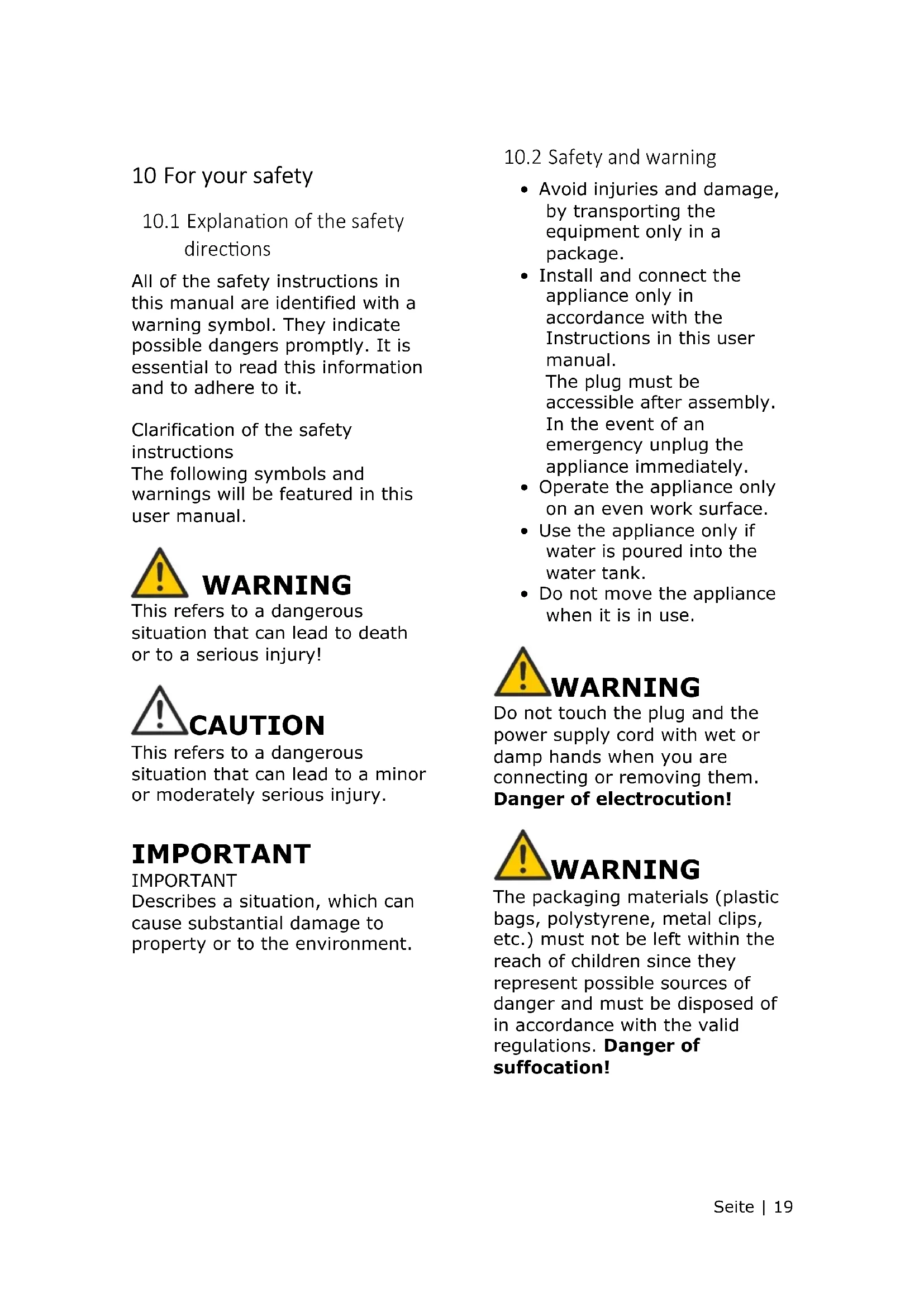

10 For your safety

10.1 Explanation of the safety directions

All of the safety instructions in this manual are identified with a warning symbol. They indicate possible dangers promptly. It is essential to read this information and to adhere to it.

Clarification of the safety instructions

The following symbols and warnings will be featured in this user manual.

WARNING

This refers to a dangerous situation that can lead to death or to a serious injury!

CAUTION

This refers to a dangerous situation that can lead to a minor or moderately serious injury.

IMPORTANT

IMPORTANT

Describes a situation, which can cause substantial damage to property or to the environment.

10.2 Safety and warning

• Avoid injuries and damage, by transporting the equipment only in a package.
  • Install and connect the appliance only in accordance with the Instructions in this user manual.

The plug must be accessible after assembly. In the event of an emergency unplug the appliance immediately.

• Operate the appliance only on an even work surface.
• Use the appliance only if water is poured into the water tank.
• Do not move the appliance when it is in use.

WARNING

Do not touch the plug and the power supply cord with wet or damp hands when you are connecting or removing them.

Danger of electrocution!

WARNING

The packaging materials (plastic bags, polystyrene, metal clips, etc.) must not be left within the reach of children since they represent possible sources of danger and must be disposed of in accordance with the valid regulations. Danger of suffocation!

10.3 Safety and responsibility

WARNING

The appliance must be stored beyond the reach of animals, children or people, who are incapable of using it. Do not leave the appliance unattended if it is connected to a power source.

Undertake the necessary precautionary measures to prevent children from playing with the appliance.

• The appliance can only be used by children above eight years of age and by people, whose physical, mental or emotional capabilities are limited or impaired, or, who lack experience or knowledge, if they are supervised and after they have received instructions on the safe use of the appliance and understand the risks.
• Cleaning and maintenance, which must be performed by the user, may not be carried out by children if they are not supervised.

10.4 Unpacking the appliance

If you open the packaging imprudently with a sharp knife or other pointed object, the coffee maker can be damaged.

After removing the packaging check that all components and accessories were delivered. In case of doubt do not use your appliance and contact a qualified technician.

√ Take the appliance out of the packaging.
√ Examine the delivery for completeness.
√ If the delivery is incomplete or damaged, contact customer service. See the service address ^2
√ Remove all protective films.

10.5 Electrical connection

WARNING

Electric shock due to a faulty connection

The appliance must be switched off when it is being attaching to the electricity mains.

The switch must be at 0.

√ Examine the mains voltage with the information on the identification plate.

- You will find the information for this on the identification plate on the appliance.

√ Connect the appliance only to a shockproof socket, which has been installed in accordance with the provisions.

11 Initial operation

Clean the appliance with a damp cloth before first starting it up.

Setting the coffee machine up

• Set the appliance on a level, stable surface.
• Insert the mains plug into a socket with safety contacts.

Before brewing coffee for the first time

• Let it run through the cycle twice only with clean water and without paper filters in order to remove dust that may have accumulated during production.
• Do not use coffee powders for this cleaning run under any circumstances.

12 Operation

To operate the appliance, proceed as follows:

√ Open the water tank cover
√ Based on the desired number of cups, pour cold water into the water tank. You can read the water level from the scale.

CAUTION

Fill the water tank with water up to the MAX indication.

√ Make sure that the filter holder is inserted.
√ Bend the lower crease of the paper filter (size 1x4)
√ Set the filter into the filter holder.
√ Fill the filter with the desired quantity of coffee powder
√ Close the filter lid.
√ Place the pot on the hotplate.
√ Switch the appliance on. The control light in the switch will come on.

IMPORTANT

The brewing process lasts approx. 8-12 minutes.

13 Decalcification and cleaning

Decalcification becomes necessary if preparation time increases substantially.

• Use only commercially available decalcifying agents based on citric acid.
• Use the portions indicated on the packaging or on enclosed leaflets.

CAUTION

In order to remove all decalcifying residue, let water run through 3-4 times after the decalcification process.

Do not use this water for consumption under any circumstances.

Cleaning

WARNING

Danger of electrocution!

• Before cleaning, always unplug the appliance and wait until it has cooled down.
• Do not immerse the appliance in water.

To clean the appliance, adhere to the following instructions:

CAUTION

• Do not use a wire brush or other scouring items.
• Do not use harsh or abrasive cleaning agents.
• Clean the outside of the appliance as required with a slightly damp cloth – without any additive.
• Remove any coffee grounds that may have been transferred from the inside of the housing with a paper towel.
• Wipe with a damp cloth afterwards.
• Wash the pot and the filter holder in a rinsing bath. Use a soft brush if required.

14 Storage

• Clean the appliance as described and let it dry completely.
• We recommend storing the appliance in its original packaging if you don't want to use it for an extended period of time.
  • Always store the appliance beyond the reach of children in a well-ventilated, dry place.

15 Troubleshooting

Error	Possible cause	Measure
The appliance isn't working.	The appliance has no power supply.	Test the socket with a different appliance.
		Insert the mains plug correctly.
		Check the building fuse.
	The appliance is defective.	Consult our service or a specialist.
Backlog in the filter: The coffee grounds overflow the filter rim.	The drip protection mechanism is closed: The pot isn't on the hotplate or the lid is not on the pot.	1. Switch the appliance off. Unplug it.2. Set the pot with its lid on the hotplate so that the filter is emptied.3. Dispose of the paper filter.4. Clean the appliance as described.
	There is too much coffee powder in the filter
The coffee contains coffee grounds.	The paper filter is too small.	Use a size 1x4 paper filter
	There is too much coffee powder in the filter	Use less coffee powder.
The duration of the brewing process is considerably too long.	There are calcareous deposits in the appliance.	Decalcify the appliance as described.

16 Technical Data

Model	KA 6501 sw /we
Rated voltage (V)	220~240
[Hz]	50~60
Power [W]	800
Capacity [L]	1
EAN [Colour] we	4016572021165
EAN [Colour] sw	4016572021158

CE Marking

At the time of its introduction on the market the product fulfills the requirements, which were specified in the directive for the standardization of the laws of the Member States concerning the electromagnetic compatibility (2014/30/EU) of electrical equipment within certain voltage limits (2014/35/EU). This product is identified by the CE marking and delivered with a declaration of conformity for inspection by the market monitoring authority. *Subject to change without notice*

17 Disposing of old appliances

This product is marked in accordance with the European waste framework guideline 2012//19//EU. The directive regulates the correct disposal of the product. Environmentally appropriate disposal of the appliance will prevent possibly negative consequences for health, which are caused by improper disposal.

The symbol on the product or the packaging indicates that this product must not be disposed of with normal domestic refuse. The user must return the product to a collection point for the recycling of electrical and electronic equipment.

Disposal must be in accordance with the existing local regulations. Your community or municipal authorities will inform you about waste disposal options

Warranty Conditions

As the buyer of an Exquisit appliance you are entitled to the legal guarantees from the sales contract with your dealer. In addition, we grant a warranty to you under the following conditions:

Period of indemnification

The warranty shall run for 24 months starting from the purchase date (proof of purchase must be submitted). During the first 6 months defects in the appliance will be eliminated free of charge, provided that the appliance is accessible for repairs without any particular effort. In the further 18 months the buyer undertakes to prove that the defect already existed at the time of delivery of the appliance.

In the case of commercial use (e.g. in hotels or cafeterias), or in the event of community use by several households, the warranty amounts to 12 months starting from the date of purchase (proof of purchase must be submitted). During the first 6 months defects in the appliance will be eliminated free of charge, provided that the appliance is accessible for repairs without any particular effort. In the further 6 months the buyer undertakes to prove that the defect already existed at the time of delivery of the appliance.

If a claim is made on the warranty, the warranty shall not be extended either for the appliance or for the newly incorporated parts.

Scope of the Defect Removal

Within the periods mentioned we will eliminate all defects from the appliance, which are to be demonstrably attributed to unsatisfactory execution or material defects. Replaced parts are transferred to our ownership.

The following are excluded:

Normal wear, deliberate or negligent damage, damage that is caused by non-compliance with the operating instruction, inappropriate setup or installation or due to connection to the wrong mains voltage, damage due to a chemical or an electro-thermal effect or due to other abnormal environmental conditions, glass, lacquer or enamel damage and possibly differences in colour as well as defective bulbs. Likewise, appliance defects are excluded if they are to be attributed to transport damage.

Also, we don't provide any services if work is undertaken on appliances by unauthorized persons at Exquisit or if parts of foreign origin are used without our specific written permission. This restriction does not apply to defect-free work performed by a qualified specialist with our original parts to adjust the appliance to comply with the technical protection regulations of another European Union country.

Area of applicability

Our warranty applies to appliances that were purchased in a country of the European Union and that are in operation in the Federal Republic of Germany or Austria.

For appliances that were purchased in a country of the European Union and brought into another European Union country, services are provided under the customary warranty conditions of the country. An obligation to perform under the terms of the warranty only exists if the appliance is in compliance with the technical regulations of the country, in which the warranty claim is enforced.

For repair orders outside of the warranty period, the following shall apply:

If an appliance is repaired, the repair invoices are to be paid immediately without any deduction.

If an appliance is examined and/or a repair that has been started has not been completed, lump sums will be calculated for travel expenses and work. Consultation with our customer advisory service center shall be free of charge.

France

QR code image containing encoded data, no visible human-readable text

21165

Technical diagram of a coffee maker with numbered parts for identification

QR code image containing encoded data, no visible human-readable text

21165

Technical diagram of a coffee maker with numbered parts for identification

GGV HANDELGES. MBH & CO. KG

AUGUST-THYSSEN-STR.8

D-41564 KAARST

GERMANY
