Product type	Electric kettle
Brand	Exquisit
Model	WK 3602 swi
Capacity	1 L
Power	1200 W
Supply voltage	220-240 V ~ 50/60 Hz
Automatic shut-off	Yes
Dry-boil protection	Yes
Removable limescale filter	Yes
Water level indicator	Yes, with MIN and MAX marks
On/off switch	Yes, with light
Tank material	Stainless steel
Rotating base	Yes
Cleaning and descaling	Clean the exterior regularly with a stainless steel cleaner; descale every 1 to 3 months depending on water hardness.
Warranty	24 months (domestic use)
EAN code (v. see)	4016572021585

Frequently Asked Questions - WK 3602 swi Exquisit

What is the capacity of the Exquisit WK 3602 swi kettle?

The capacity is 1 litre. Fill between the MIN and MAX marks on the level indicator.

How to use the kettle for the first time?

Before first use, remove all protective films, unwind the power cord, place the base on a flat surface, put the kettle on the base, then plug in. Boil water once and discard it to clean the inside.

How to descale the kettle?

Use a mixture of household vinegar and water (1:1) or a commercial descaler. Pour the liquid into the kettle, bring to a boil, let it sit for 30 minutes, then discard the liquid. Rinse by boiling fresh water twice.

The kettle does not turn on, what to do?

Check that the plug is properly inserted and that the kettle is correctly placed on the base. If the dry-boil protection has activated, unplug and let it cool down before using again.

Can I open the lid during operation?

No, never open the lid during operation. Hot steam can cause burns. Always close the lid before switching on and when pouring.

How to clean the outside of the kettle?

Use a special stainless steel cleaner and a soft cloth. Do not use abrasive cleaners or metal brushes. Never immerse the kettle in water.

The water flow from the spout is weak, what to do?

The filter located in front of the spout may be clogged. Open the lid, remove the filter by pulling it upwards, clean it under running water, then replace it.

What is the warranty of the Exquisit kettle?

The warranty is 24 months for domestic use. The first 6 months cover defects free of charge, the following 18 months require proof that the defect existed at delivery.

Can I use the kettle without water?

No, the dry-boil protection automatically activates if the kettle is empty. If this happens, unplug, let it cool down, then fill before using again.

How to dispose of the kettle at the end of its life?

Do not dispose of the appliance with household waste. Dispose of it at a collection point for recycling of electrical and electronic equipment (WEEE) in accordance with local regulations.

USER MANUAL WK 3602 swi Exquisit

10.1 Explanation of the safety directions 18
10.2 General safety instructions 18

11 Purpose of use 19
12 Initial operation 19

12.1 Checking the kettle and the scope of delivery 19
12.2 Setting up the kettle.. 19

1 Operation 20
13 Cleaning, decalcification and storage 21

13.1 Cleaning 21
13.2 Decalcification 22
13.3 Storage 22

14 Technical information 22
15 Troubleshooting 23
16 Disposing of old appliances 24
17 General Warranty Conditions 24
18 Consignes de sécurité 28

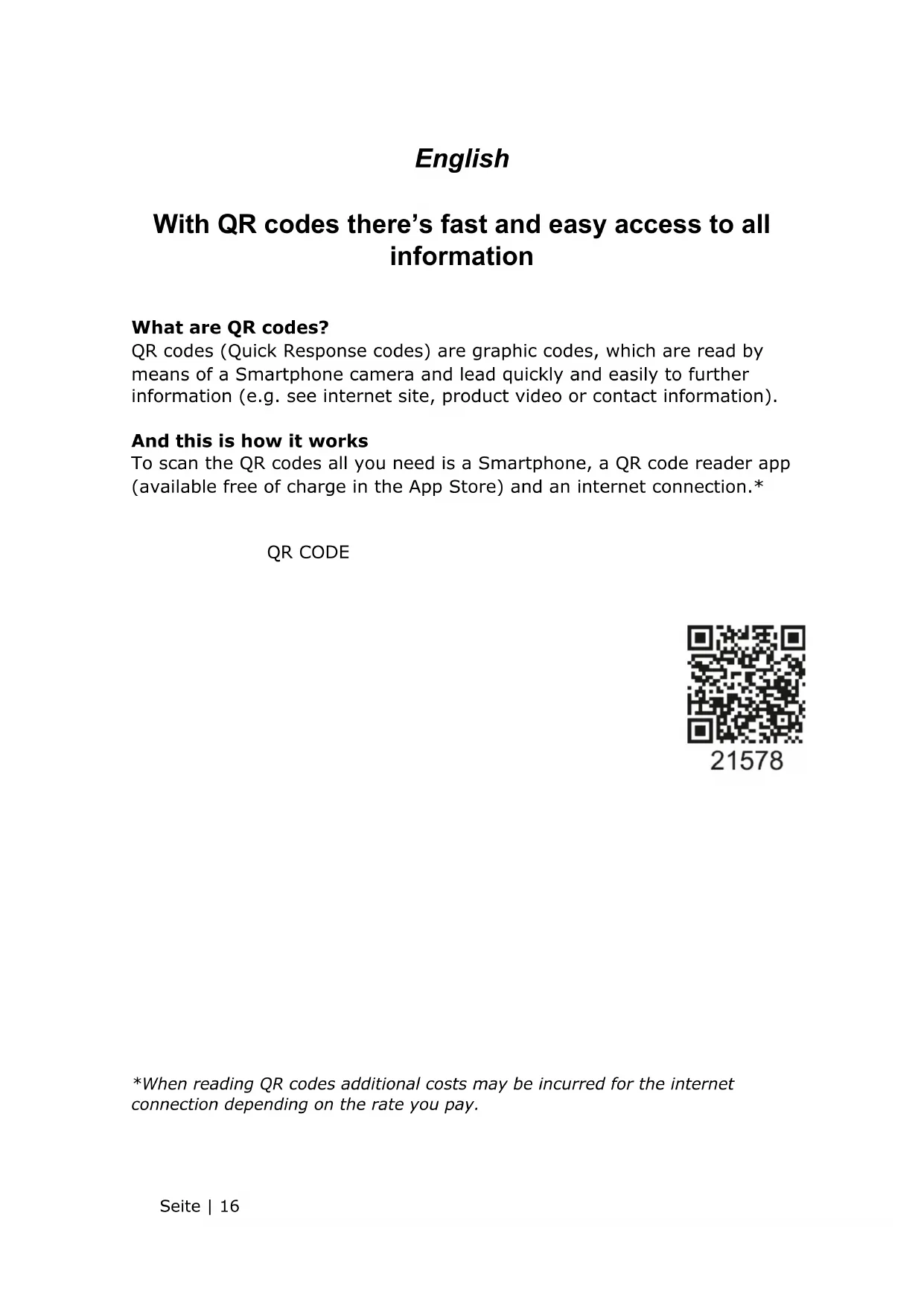

With QR codes there's fast and easy access to all information

What are QR codes?

QR codes (Quick Response codes) are graphic codes, which are read by means of a Smartphone camera and lead quickly and easily to further information (e.g. see internet site, product video or contact information).

And this is how it works

To scan the QR codes all you need is a Smartphone, a QR code reader app (available free of charge in the App Store) and an internet connection.*

QR CODE

21578

*When reading QR codes additional costs may be incurred for the internet connection depending on the rate you pay.

Dear Customers,

Thank you for purchasing our device.

You have made a good decision. Her exquisite - unit has been built for domestic use and a quality product that meets the highest technical demands with verbindet- useful range of operating convenience as other exquisite - devices also working to the full satisfaction of their owners throughout Europe.

Read the instruction manual carefully before using the unit. This leaflet contains important safety instructions and information regarding the installation, operation and maintenance of the unit. Proper handling contributes to efficient use and minimize energy consumption during operation.

The incorrect use could lead to dangerous situations, especially for children. Keep this booklet for future reference. Enter the instructions on to any future owner of this product. If there is doubt regarding any questions or issues that are not described in detail in this manual, contact your dealer, an authorized technician or go to our homepage www.ggv-service.de

The manufacturer is always working on the development of all types and models. For all types and models are changes to the design, features and equipment subject to change without notice.

10 Safety directions

10.1 Explanation of the safety directions

All of the safety instructions in this manual are identified with a warning symbol. They indicate possible dangers promptly. It is essential to read this information and to adhere to it.

Clarification of the safety instructions

The following symbols and warnings will be featured in this user manual or on the electric kettle or the packaging.

WARNING

This refers to a dangerous situation that can lead to death or to a serious injury!

CAUTION

This refers to a dangerous situation that can lead to a minor or moderately serious injury.

IMPORTANT

Describes a situation, which can cause substantial damage to property or to the environment.

10.2 General safety instructions

• Avoid injuries and damage by transporting the appliance packed

• Install and connect the appliance only in accordance with the instructions in this user manual.

• The plug must be accessible after assembly. In the event of an emergency unplug the appliance immediately.

WARNING

Do not touch the plug and the power supply cord with wet or damp hands when you are connecting or removing them.

WARNING

After removing the packaging check that all components and accessories were delivered. In case of doubt do not use your appliance and contact a qualified technician. The packaging materials (plastic bag, polystyrene, metal clips, etc.) must not be left within the reach of children since they represent possible sources of danger and must be disposed of in accordance with the valid regulations.

WARNING

The appliance must be stored beyond the reach of animals, children or people, who are incapable of using it. Do not leave the equipment unattended if it is connected to a power source

Undertake the necessary precautionary measures to prevent children from playing with the appliance. The appliance can only be used by children above eight years of age and by people, whose physical, mental or emotional capabilities are limited or impaired, or, who lack experience or knowledge, if they are supervised and after they have received instructions on the safe use of the appliance and understand the risks.

Cleaning and maintenance, which must be performed by the user, may not be carried out by children if they are not supervised.

This appliance can be used by children over eight years and older and by people with physical, sensory or mental restrictions or who lack experience and knowledge if they are properly supervised or if they have received instructions concerning the safe use of the equipment and if they understand the relevant dangers. Cleaning and maintenance should not be performed by children unless they are older than 8 years and are supervised.

11 Purpose of use

The equipment is intended exclusively for heating water. The electric kettle is intended exclusively for private use and is not suitable for the industrial sector.

Use the kettle only as described in this user manual. Any other use will be deemed to be out of compliance with the regulations and can lead to material damage or even to personal injury.

The manufacturer or dealer assumes no liability for damage that was caused by improper or incorrect use.

12 Initial operation

12.1 Checking the kettle and the scope of delivery

If you open the packaging imprudently with a sharp knife or other pointed object, the kettle can be damaged.

• Take the kettle out of the packing.
• Check whether the scope of delivery is complete.
• Check whether the kettle or the individual parts show signs of damage.

If this is the case do not use the kettle. Contact the service address specified.

12.2 Setting up the kettle

• Remove all protective films.
• Unwind the mains cable completely from the cable holder.
• Guide the cable through the recess for the mains cable
• Place the base on an even, stable surface.
• Place the water container on the base.
• Insert the mains plug into a socket with safety contacts.

1 Operation

WARNING

Danger of scalding or burning!

The kettle becomes hot during operation and hot steam escapes so that you can burn or scald yourself.

If the lid is not properly closed when the kettle is switched on, the appliance can't turn off automatically and the hot water can boil over.

• Never touch the hot parts of the electric kettle.
• Only grip the kettle by its handle. Inform other users of the dangers as well
• Stay away from escaping steam.
• Please note that hot steam can escape from the kettle even after it is switched.
• Always close the lid before you turn the kettle on. Make sure that the lid engages audibly and is locked.
• Always keep the lid closed, while you are pouring the heated water out.

WARNING

Danger of injury and damage!

If you heat up too much water in the kettle, hot water can splash out of the water container and if you heat up too little water, the kettle can overheat and thus be damaged.

• Please note that when pouring the water in that the water level must be between MIN and MAX on the level display.
• Press the button for the lid lock in order to open the lid.
• Pour the desired quantity of cold water into the water container.
• Place the water container on the base.
• Close the lid. Make sure that the lid engages audibly.
• Press the On/Off switch downwards. The water will heat up. When the water boils, the kettle will switch off automatically and the light will go out.
• In order to interrupt the process prematurely, press the On/Off switch upwards.
• Wait a moment until the water is no longer bubbling.
• Take the water container off the base.
• Pour the water slowly out of the spout.

The manufacturer recommends not reheating any leftover water. Pour it away or use it to water your flowers once it has cooled down.

Dry-run protection

In order to prevent damage to the electric kettle the dry-run protection feature will switch itself on automatically, if there is no more liquid in the appliance. This function serves exclusively as a safety device and is not intended for increase the convenience of operation. If the dry-run protection was triggered:

• Unplug the appliance from the receptacle.

• Let the kettle cool down.
  Afterwards you can use the kettle as usual.

13 Cleaning, decalcification and storage

WARNING

Danger of scalding or burning!

The kettle becomes hot during operation and hot steam escapes.

• Let the kettle cool down completely every time before you clean it.
• Keep yourself and other people far away from the escaping steam.
• Close the lid of the kettle before switching it on.
• Never open the lid if you are pouring hot water out.

IMPORTANT

Danger of damage!

The electric kettle can be damaged by inappropriate cleaning.

• Do not use any harsh cleaning agents, brushes with metal or nylon bristles or any sharp or metallic cleaning tools such as knives, a hard scraper or the like.
  These can damage the surfaces.
• Never put the water container or the base into the dishwasher under any circumstances. You would destroy the kettle by doing so.
• Never immerse the kettle in water to clean it and don't use a steam cleaner. Otherwise, the kettle can be damaged.

13.1 Cleaning

• Unplug the appliance each time before cleaning it.
• Let the kettle cool down completely.
• Use a maintenance product for stainless steel that is available in specialist shops to clean the steel kettle from the outside. Please adhere to the manufacturer's specifications on its use.
• Open the lid of the water container.
• To do this, grasp the filter insert by the broad pin and pull the filter insert upwards out of the bracket.

13.2 Decalcification

The manufacturer recommends regular decalcification of the kettle since energy consumption increases if a kettle has severe calcareous deposits. The intervals at which you should decalcify your kettle should depend on the degree of hardness of the water used and the frequency of its use.

• Decalcify the kettle every 3 months in the event of normal use and if the water is soft. If the water is hard, decalcify it 1x per month.

You can obtain information about the water hardness within your living area from the competent water company.

• Decalcify the water at the latest if the boiling process lasts for a very long time or if rather heavy calcareous deposits have formed on the heating plate in the water container.

• Pour the decalcifying liquid into the water container. For this you can mix household vinegar with water in a ratio of

1:1 or use a standard decalcifying agent. Adhere to the manufacturer's specifications for use of a decalcifying agent.

• Boil the decalcifying liquid in the electric kettle.
• Let the liquid work for about half an hour after boiling.
• Boil the liquid a second time is there are severe calcareous deposits.
• Then pour the liquid out.
• Boil fresh tap water and dump it after boiling.
• Now the kettle is decalcified and you can use it again as usual.

13.3 Storage

As soon as the mains plug is inserted into a socket and the water container is placed on the base, the appliance uses minimal power, even if you are not boiling water. Pull the mains plug out of the socket, to disconnect the kettle fully from the power supply when you are not using it.

14 Technical information

Electrical connection Voltage - frequency	220-240 V~50/60 Hz
Capacity	1 L
Power	1200 W
EAN wei.	4016572021578
EAN swi	4016572021585

CE Marking

At the time of its introduction on the market the product fulfills the requirements, which were specified in the directive for the standardization of the laws of the Member States concerning the electromagnetic compatibility (2014/30/EU) of electrical equipment within certain voltage limits (2014/35/EU). This product is identified by the CE marking and

delivered with a declaration of conformity for inspection by the market monitoring authority. Subject to change without notice

15 Troubleshooting

Error	Possible cause	Measure
It doesn’t work.	Does the plug go into the socket?	Insert the plug into the socket.
	Is the water container correctly positioned on the base?	Place the water container correctly on the base.
	Was the dry-run protection feature triggered?	See the section on Dry-run protection
The boiling process takes a very long time.	Check whether the electric kettle has to be decalcified.	See the chapter on Decalcification
Only a little water comes out of the spout when I try to pour it.	Check whether the strainer insert in front of the spout is dirty.	Clean the strainer insert.
Stains are formed on the bottom of the water container.	These are calcareous deposits. They are innocuous but need to be removed regularly.	See the chapter on Decalcification
The electric kettle doesn’t switch off although the water is boiling.		- Switch the kettle off by pressing the on/Off switch upwards.-Let the kettle cool down.- Check whether the lid is closed and engaged.

16 Disposing of old appliances

This product is marked in accordance with the European waste framework guideline 2012//19//EU. The directive regulates the correct disposal of the product. Environmentally appropriate disposal of the appliance will prevent possibly negative consequences for health, which are caused by improper disposal.

The symbol on the product or the packaging indicates that this product must not be disposed of with normal domestic refuse. The user must return the product to a collection point for the recycling of electrical and electronic equipment.

Disposal must be in accordance with the existing local regulations. Your community or municipal authorities will inform you about waste disposal options

17 General Warranty Conditions

Warranty conditions

As the purchaser of a Exquisit appliance you are entitled to the legal guarantees from the sales contract with your dealer. In addition, we grant a warranty to you under the following conditions:

Period of indemnification

The warranty shall run for 24 months starting from the purchase date (proof of purchase must be submitted). During the first 6 months defects in the appliance will be eliminated free of charge, provided that the appliance is accessible for repairs without any particular effort. In the further 18 months the buyer undertakes to prove that the defect already existed at the time of delivery of the appliance.

In the case of commercial use (e.g. in hotels or cafeterias), or in the event of community use by several households, the warranty amounts to 12 months starting from the date of purchase (proof of purchase must be submitted). During the first 6 months defects in the appliance will be eliminated free of charge, provided that the appliance is accessible for repairs without any particular effort. In the further 6 months the buyer undertakes to prove that the defect already existed at the time of delivery of the appliance.

If a claim is made on the warranty, the warranty shall not be extended either for the appliance or for the newly incorporated parts.

Scope of the Defect Removal

Within the periods mentioned we will eliminate all defects from the appliance, which are to be demonstrably attributed to unsatisfactory execution or material defects. Replaced parts are transferred to our ownership.

The following are excluded:

Normal wear, deliberate or negligent damage, damage that is caused by non-compliance with the operating instruction, inappropriate setup or installation or due to connection to the wrong mains voltage, damage due to a chemical or an electro-thermal effect or due to other abnormal environmental conditions, glass, lacquer or enamel damage and possibly differences in colour as well as defective bulbs. Likewise, appliance defects are excluded if they are to be attributed to transport damage. Also, we don't provide any services if work is undertaken on appliances by unauthorized persons at Exquisit or if parts of foreign origin are used without our specific written permission. This restriction does not apply to defect-free work performed by a qualified specialist with our original parts to adjust the appliance to comply with the technical protection regulations of another European Union country.

Area of applicability

Our warranty applies to appliances that were purchased in a country of the European Union and that are in operation in the Federal Republic of Germany or Austria.

For appliances that were purchased in a country of the European Union and brought into another European Union country, services are provided under the customary warranty conditions of the particular country. An obligation to perform under the terms of the warranty only exists if the appliance is in compliance with the technical regulations of the country, in which the warranty claim is enforced.

For repair orders outside of the warranty period, the following shall apply:

If an appliance is repaired, the repair invoices are to be paid immediately without any deduction.

If an appliance is examined and/or a repair that has been started has not been completed, lump sums will be calculated for travel expenses and work. Consultation with our customer advisory service centre shall be free of charge.

France

GGV HANDELGES. MBH & CO. KG

AUGUST-THYSSEN-STR.8

D-41564 KAARST

GERMANY
