USER MANUAL KM0531 Krüger&Matz

Safety instructions Read this instruction manual carefully before rst use, and keep it for future reference. Producer is not responsible for damages caused by inappropriate handling and use of the device.

• Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.

• Do not handle the device with wet hands.

• Before connecting the device into power supply, make sure it is turned o (power button in OFF position).

• When turning on the device, make sure the volume knob is set in the minimal position!

• Keep the volume at a reasonable level throughout entire time of using the speaker. To prevent damage to your hearing, do not raise the volume too high.

• If the device is not being used, disconnect it from power supply.

• When you disconnect the power cord of the device, grasp and pull the plug, not the cord/cable.

• This appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised by the person who is responsible for their safety. Children should be advised not to play with the device. Children without supervision should not perform cleaning or maintenance of the device.

• Do not attempt to repair this device yourself. In case of damage, contact with authorized service point for check-up or repair.

• Do not disassemble the device by yourself. The device does not have parts which could be repaired by the user.

• Do not use the device if it is damaged.

• Remember to always disconnect the device from the power source before cleaning.

• Protect the device and the battery from dust, heat sources and extreme temperatures. Do not use/store the device in places with strong magnetic eld. Protect power cord from harp edges and other factors which could lead to their damage.

• Warning: Interference can occur during charging and connecting to the power supply.

• Do not place heavy objects on the device.

• Do not place any objects into the speaker.

• Clean this device with soft, slightly wet cloth. Do not use any abrasives or chemical agents to clean this product.11 Owner’s manual

Product description Front panel KM0530

1. Power switch: Set on ON position to turn on the speaker; set to OFF position

to turn o the speaker

4. Play/Pause: Press to play/pause music playback

5. Next: Press to go to the next track

6. Previous: Press to go to the previous track

7. EQ (Equalizer): Equalizer settings adjustment

8. RET: Press to select single repeat or all track repeat

14. Treble knob: Adjust the gain of the treble

16. Bass knob: Adjust the gain of the bass

1. Power button: Press to turn the speaker on/o

6. Play/Pause: Press to play/pause music playback

7. Next: Press to go to the next track

8. Previous: Press to go to the previous track

9. EQ (Equalizer): Equalizer settings adjustment

12. Mic priority: After switching on, the microphone automatically reduces the

17. Bass knob: Adjust the gain of the bass

19. Treble knob: Adjust the gain of the treble

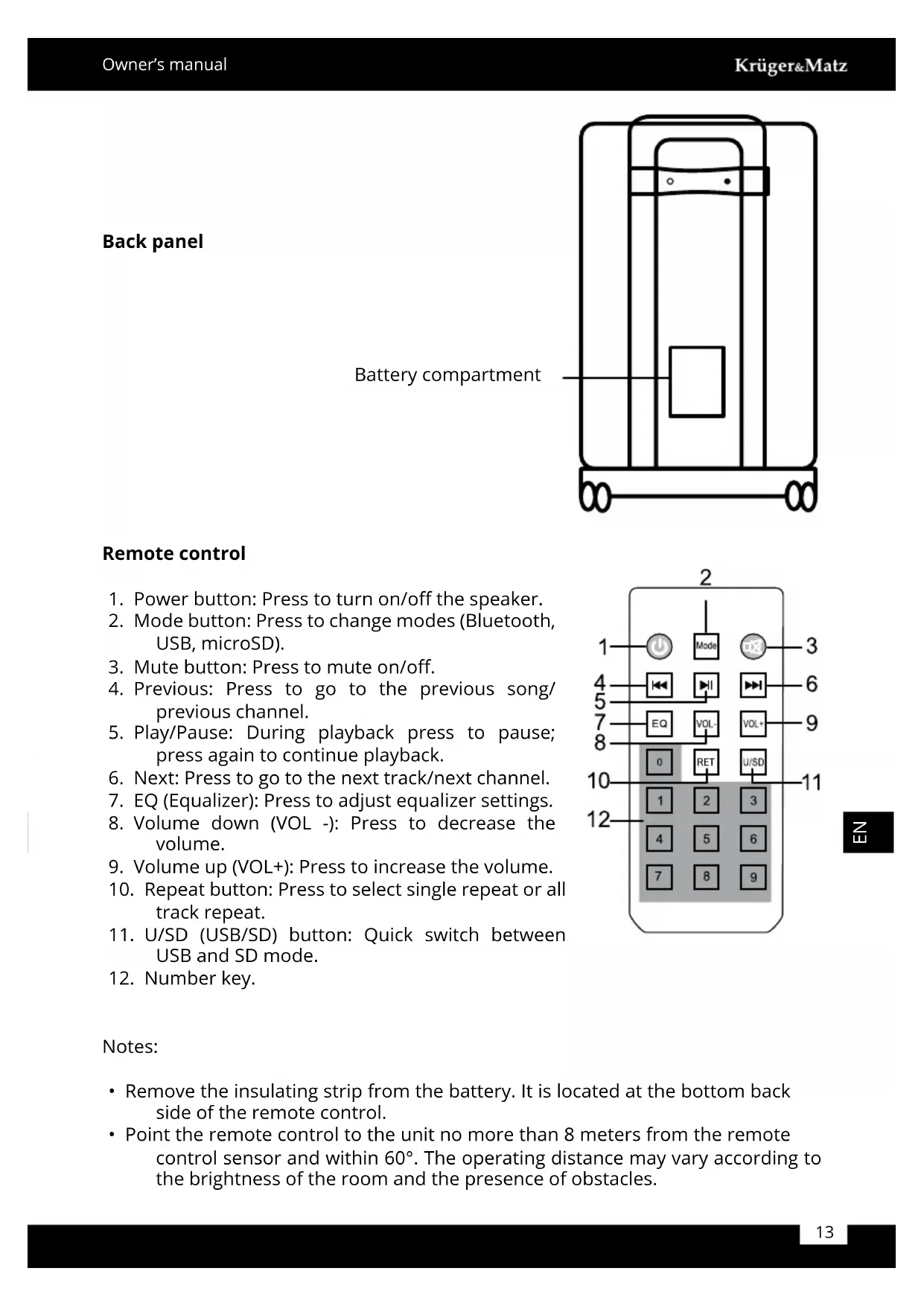

Back panel Remote control

1. Power button: Press to turn on/o the speaker.

2. Mode button: Press to change modes (Bluetooth,

4. Previous: Press to go to the previous song/

5. Play/Pause: During playback press to pause;

press again to continue playback.

6. Next: Press to go to the next track/next channel.

7. EQ (Equalizer): Press to adjust equalizer settings.

11. U/SD (USB/SD) button: Quick switch between

• Remove the insulating strip from the battery. It is located at the bottom back side of the remote control.

• Point the remote control to the unit no more than 8 meters from the remote control sensor and within 60°. The operating distance may vary according to the brightness of the room and the presence of obstacles. Battery compartment ET14 Owner’s manual

1. Make sure the speaker is turned on.

2. Please keep the speaker and external device close to each other when pairing.

3. Press External input button to enter Bluetooth pairing mode.

4. Enable the Bluetooth function on the external device and search for new

5. Select and connect with this device (KM D18- KM0530; KM D19- KM0531).

6. The speaker will issue a sound signifying successful pairing.

• Every time the speaker is switched on, it will connect to last connected device automatically. Please note, your device must be on with Bluetooth function turned on. Charging

1. Connect the speaker to the power supply mains with the included charging

2. When the battery is charging, red LED is on.

3. When the battery is fully charged, green LED is on.

• Please be sure the battery has been charged fully before rst use.

• Charge the battery regularly to keep it in good condition. Troubleshooting Problem Possible solution No electricity • Make sure the battery is charged

• Make sure the power is on No sound • Make sure the volume is not set to the minimum Poor microphone sound quality • Decrease the volume

• Keep a proper distance between the microphone and the speaker No microphone sound • Make sure the microphone is switched on

• In case of wired microphone, make sure the microphone is connected to the speaker

• In case of wireless microphone, replace the batteries

• Make sure the volume is not set to the minimum15 Owner’s manual

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal. Made in China for LECHPOL, Miętne, 1 Garwolińska Street, 08-400 Garwolin. Specications are subject to change without prior notice. “The Lechpol company declares that product KM0530/KM0531 is consistent with the essential requirements and other relevant provisions of directive 2014/53/UE. The proper declaration for download from www.lechpol.eu” LEARN MORE For more information on this product, go to www.krugermatz.com. Visit www.krugermatz.com website for more products and accessories. In case of any doubts or questions reach out to our Frequently Asked Questions section. Model KM0530 KM0531 Output power 20 W 30 W Frequency response 40 Hz ~ 20 kHz Power adapter DC 18 V Speaker 1x 6,5” subwoofer, 2x tweeter 1x 10” subwoofer, 2x tweeter Bluetooth 2.1 Inputs Line in (3,5 mm) Line in (3,5 mm) Karaoke in (6,3 mm) Karaoke in (6,3 mm) AUX out (3,5 mm) Guitar in (6,3 mm) USB port Yes microSD card slot Yes THD 0.5 ~ 1% SNR 80 dB Battery capacity 4400 mAh 4500 mAh Impedance 4 Ohm Playback time up to 8 h Karaoke Yes Remote control Yes Specication16 Mode d’emploi
