Read this manual carefully before use. Keep this leaflet for future reference. This device is intended for the storage of beverages only. To ensure the proper proper use of this appliance and your safety, please read the following instructions completely before operating this appliance. This cabinet is designed exclusively for the storage of beverages.

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safetyfeatures. Save these instructions and make sure that they remain with the appliance if it is moved or so ld, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children aged from 3 to 8 years are allowed to load and unload this appliance.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting ^1 .

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.

- Frozen food must not be re-frozen once it has been thawed out. ^1)

- Store pre-packed frozen food in accordance with the frozen foodmanufacture8s instructions ^1 .

- Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance ^1) .

- Ice lollies can cause frost burns if consumed straight from the appliance. ^1)

• To avoid contamination of food, please respect the following instructions

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
  If the drain is blocked, water will collect in to bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume andower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliancemarked by the symbol 🌐 a re recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

2. PRODUCT DESCRIPTION

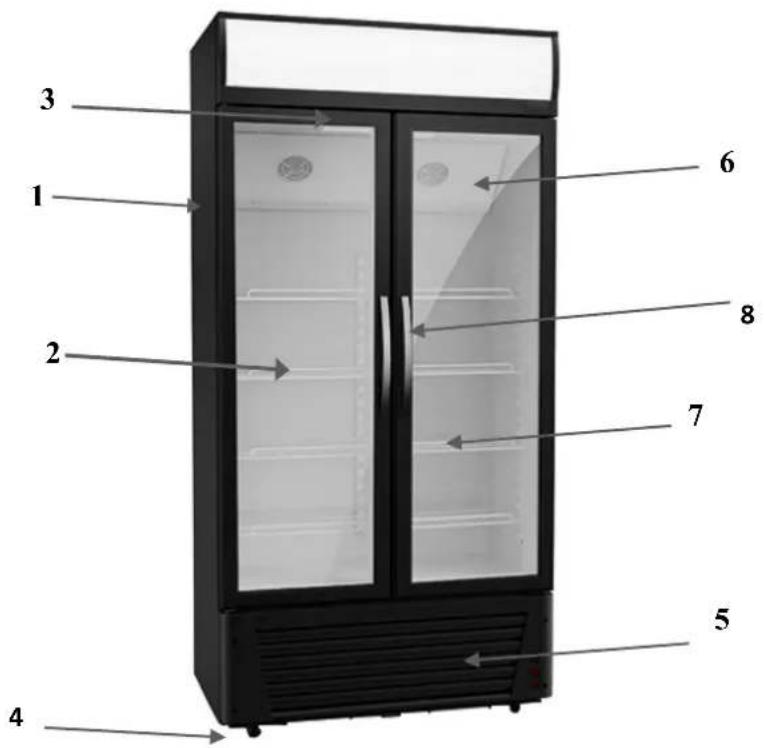

Diagram of a 8-branded refrigerator with numbered labels pointing to glass doors and ventilation slots.

1- Cabinet
2- Shelf
3- Lock
4- Castors
5- Front cover
6- Thermostat
7- Glass door
8- Handle

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

3. INSTALLATION INSTRUCTIONS

Location

When selecting a location for your appliance you should make sure the floor is flat and firm, and the room is well ventilated. An average ambient temperature must be observed. This temperature is specific according to the climatic class of the device. This appliance is designed to operate in climates where the maximum temperature and humidity are equal to +25 C and 60% respectively.

Avoid locating your appliance near a heat source, eg, cooker, boiler or radiator. Also, avoid direct sunlight in out-buildings or terraces/outside seating areas. If you

are placing your equipment in an out-building such as a garage or annex ensure that it is placed above the damp course, otherwise condensation will occur on the appliance's cabinet. Never place the appliance in a wall recessed or into fitted cabinets or furniture. When the appliance is ON, the metal grid at the back may become hot and the sides warm. You must leave enough space on each side of the appliance so the air can circulate.

Cleaning before use

Wipe the inside with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before placing them back.

Handle installation:

The handle is made of three parts: handle, handle cover and two screws.

To install the handle, hold the handle on the door in alignment with the holes, screw the handle to the door with the two screws provided, clip the handle cover.

Before plugging in

Check that you have a socket which is compatible with the plug supplied with the appliance.

Diagram of a lens system with an eye and lens, showing alignment lines (no text or labels)

DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE APPLIANCE.

The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.

Before filling your appliance

Before storing beverage in your appliance, turn the appliance on and wait for 4 hours, to make sure it is working properly and to allow the appliance to reach the correct temperature.

4. USE INSTRUCTIONS

Your appliance has one control for regulating the temperature. The temperature control is located at the top of the appliance.

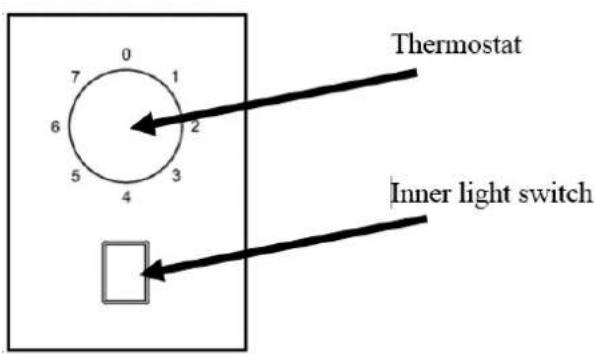

0 7 1 6 2 5 3 4 Thermostat Inner light switch

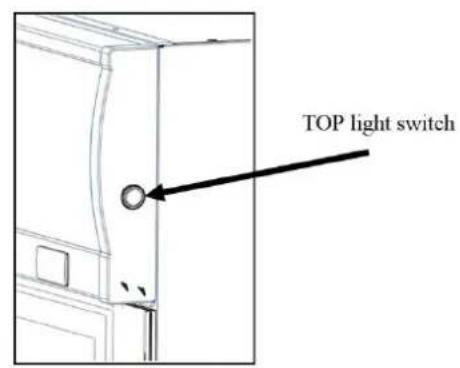

TOP light switch

The first time you put your appliance into operation, set the thermostat to the middle position "4" and let it run empty for 4 hours for it to cool down sufficiently.

Appliance thermostat has 7 settings. The appliance assures that temperature is maintained as long as it is in operation and that it is used in normal conditions of use. The temperature inside the appliance can be influenced by many factors: ambient temperature, sun exposure, number of door opening and amount of food stored... The slight changes in temperature are perfectly normal.

- Settings 1 to 3: compartment average temperature 10 to 14 C

- Settings 4 to 5: compartment average temperature 6 to 10 C

- Settings 6 to 7: compartment average temperature 2 to 6 C

NOTE:

- Turning the temperature control to "0" position stops the cooling cycle but does not shut off the appliance.

- If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before

- Restarting the unit. If you attempt to restart before this time delay, the appliance will not start.

- If you choose to change the thermostat setting, adjust thermostat control by one numerical increment at a time. Allow several hours for temperature to stabilize between adjustments.

Do not leave the door open for too long so that the indoor temperature does not rise too much.

5. CARE AND MAINTENANCE

Defrost

After some time, frost will form on the surface of the evaporator. The thicker the frost is, the hotter resistance is. The hot resistance will reduce the effect of the refrigerant. Please defrost, when the frost layer is thicker than 2 mm.

1. Please set the control knob to "0".

2. Disconnect the power supply before defrost the appliance.

3. Open the door and take out the beverages. Knock the frost gently. Wait until the defrost water is drained. Please clean with soft cloth dipping with warm water or neutral soap liquid. Be sure to wipe with pure water after using neutral soap liquid.

4. Never attempt to scrape/remove ice/frost with sharp objects (such as knives, shovels, etc.). Use a plastic scraper.

5. After defrosting, reconnect the appliance to the power supply.

Cleaning inside the appliance

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. After defrosting you should clean the appliance internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before placing them back. Condensation will form on the back wall of the refrigerated showcase; however, it will normally run down the back wall and into the drain hole.

Cleaning outside the appliance

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Use standard non-abrasive detergent diluted in warm water to clean the outside.

The grille of the condenser at the back of the appliance and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the appliance.

Moving the unit

When moving the appliance, make sure not to tilt it more than 45.

- Location

Do not place your equipment near a heat source, for example. Stove, boiler or radiator. Also, avoid direct sunlight.

- Do not turn on the appliance for 4 hours

After any movement, it must not be connected for 4 hours. This time allows the coolant to adjust.

- Installation

Let your device breathe. Heat is released from the walls so it is important to leave enough space around the appliance so the air can circulate.

Turn off your appliance

If the unit is not likely to operate for a long period of time:

• Remove all items from your appliance.
• Switch off the appliance by setting the thermostat to position "0".
  ■ Unplug the appliance.
• Clean it thoroughly.
• Keep the door open to prevent odors from rising.

Changing the light bulb

This appliance consists of light-emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifetime of these LEDs is normally sufficient for no change to be made. If however, and despite all the care taken during the manufacture of your appliance, the LEDs were defective, please contact your after-sales service for any intervention.

6. TROUBLESHOOTING GUIDE

Sometimes you may come cross minor problems that is most cases do not require a service call and can be easily eliminated. Please refer to the below troubleshooting guide to assist you in identifying the problem still persist after completing these checkpoints, contact the closest authorize service agent in your area for assistance.

Problem	Possible cause	Solution
The appliance doesn't produce cold	1. Is there a problem with the power supply?	Check the main plug
	2. Voltage is insufficient	Install an electric interface
	3. Is the power word correctly plugged?	Plug the cord correctly
	4. Is the thermostat on the 0position?	Change the thermostat position
The appliance is not cold enough	1. Are there too many items inside the appliance?	Remove some of the items
	2. Is the thermostat set too low?	Set the thermostat at the correct temperature.
	3. Is the appliance exposed to direct sunlight or too close to a heat source?	Move the appliance away from important heat sources.
	4. Are there warm items inside?	Remove the warm items.
	5. Is the door too often open?	Reduce opening frequency.
Contents freezes	Is the thermostat set too high?	Set the thermostat at the correct temperature.
The appliance is noisy	1. Is the appliance correctly wedged in place?	Make sure the appliance is steady and wedged in place.
	2. Is the appliance pressed against the wall?	Move the appliance away from the wall.
	3. Are there lose elements?	Fasten the lose elements.
IF the problems are persistent, please contact your reseller or after sales service.

7. ENVIRONMENT

This appliance is marked according to the European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed-Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

8. WARNING

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.

Warranties for INFINITON WORLD ELECTRONIC S.L brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

INFINITON WORLD ELECTRONIC S.L cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

QR code image containing encoded data, no visible human-readable text

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]
• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
• Telephone 1
• Telephone 2
• Full address
• Postal Code
• Population
• Brand
• Product model
• Serial number
• Failure presented by the product

If they wish, they can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).

INFINITON

MANUAL DE USUÁRIO

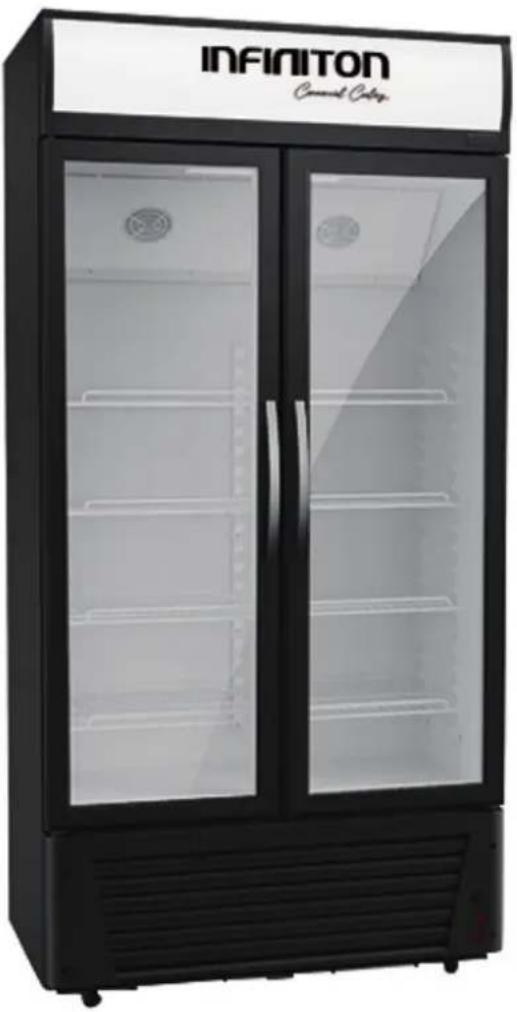

Exterior view of a black and white information center refrigerator with 'INFINITON' branding on top (no other text or symbols visible)

FSB-620

EAN: 8445639001721

Diagram of a 8-branded refrigerator with numbered labels pointing to different interior compartments.

1- Gabinete
2- Prateleira
3- Bloquear
4- Rodízios
5- Capa
6 - termostato
7- Porta de vidro
8- Alça

Diagram of a lens system with an eye and lens, showing alignment and measurement points (no text or labels)

QR code image containing encoded data, no visible human-readable text

• Linha Branca: rmablanca.infiniton.es
• Linha Marrom: rma.infiniton.es

Exterior view of a black and white information center refrigerator with 'INFINITON' branding on top (no additional text or symbols visible)

FSB-620

EAN: 8445639001721

Diagram of a 8-branded refrigerator with numbered labels pointing to each panel.

Technical line drawing of a mechanical component with no visible text or symbols

4. INSTRUCTIONS D'UTILISATION
